Foamit APW20HT User manual

F
A
U
L
T
A
T
T
E
M
P
RINSE
BRUSH
O
N
O
F
F
O
N
O
FF

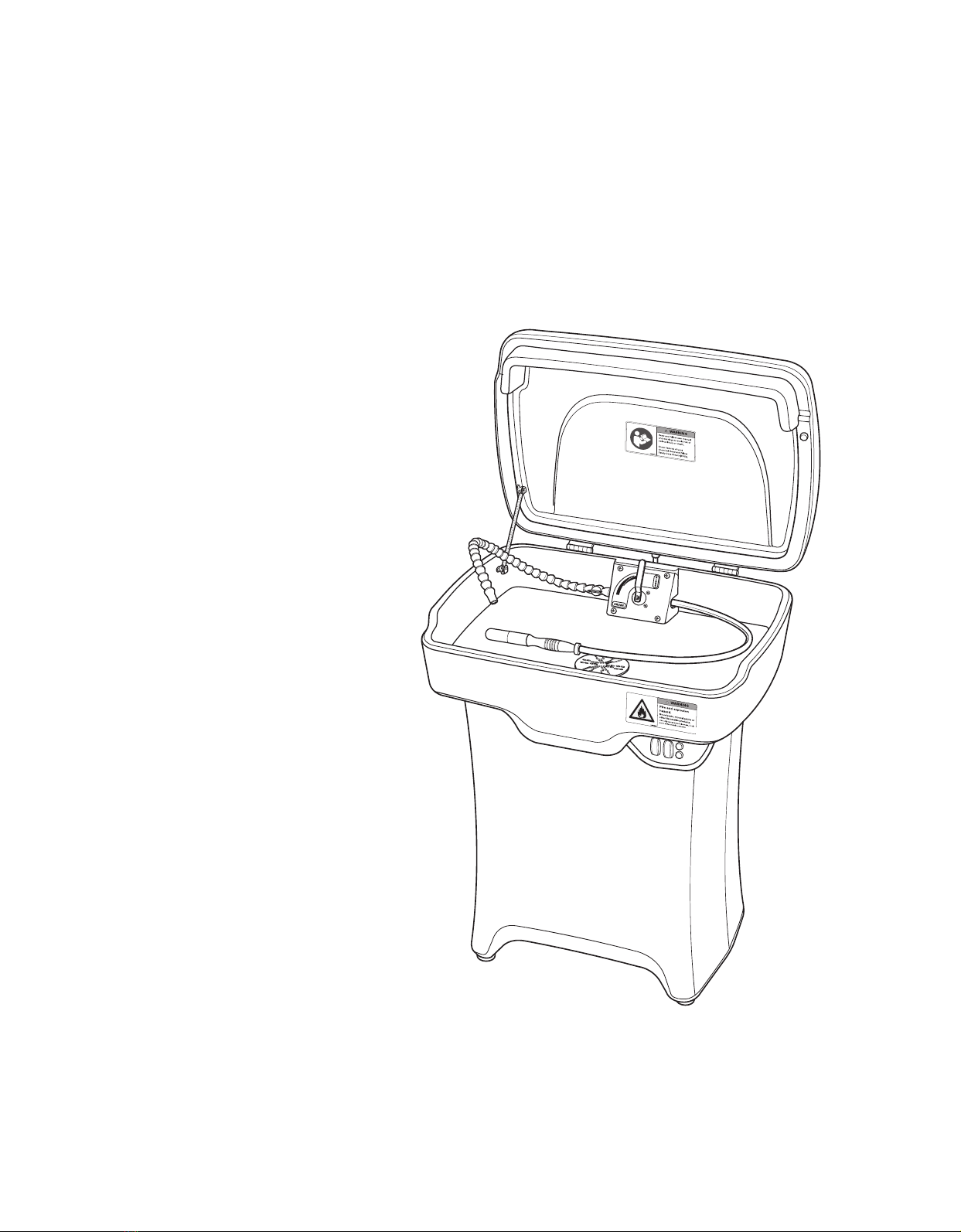

Heated Aqueous Parts
Washer
User Manual
APW20HT
READ ALL INSTRUCTIONS BEFORE USING, OR SERVICING, THIS EQUIPMENT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS.
English (Original Instructions)

Model: APW20HT V20190916 • Page 2Model: APW20HT
Contents
1 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Labels............................................... 4
2 Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3 Installation ..........................................6
System Requirements ....................................... 6
System Specifications ....................................... 6
Assembling the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5Cleaning & Maintenance............................. 11
6Troubleshooting ....................................12

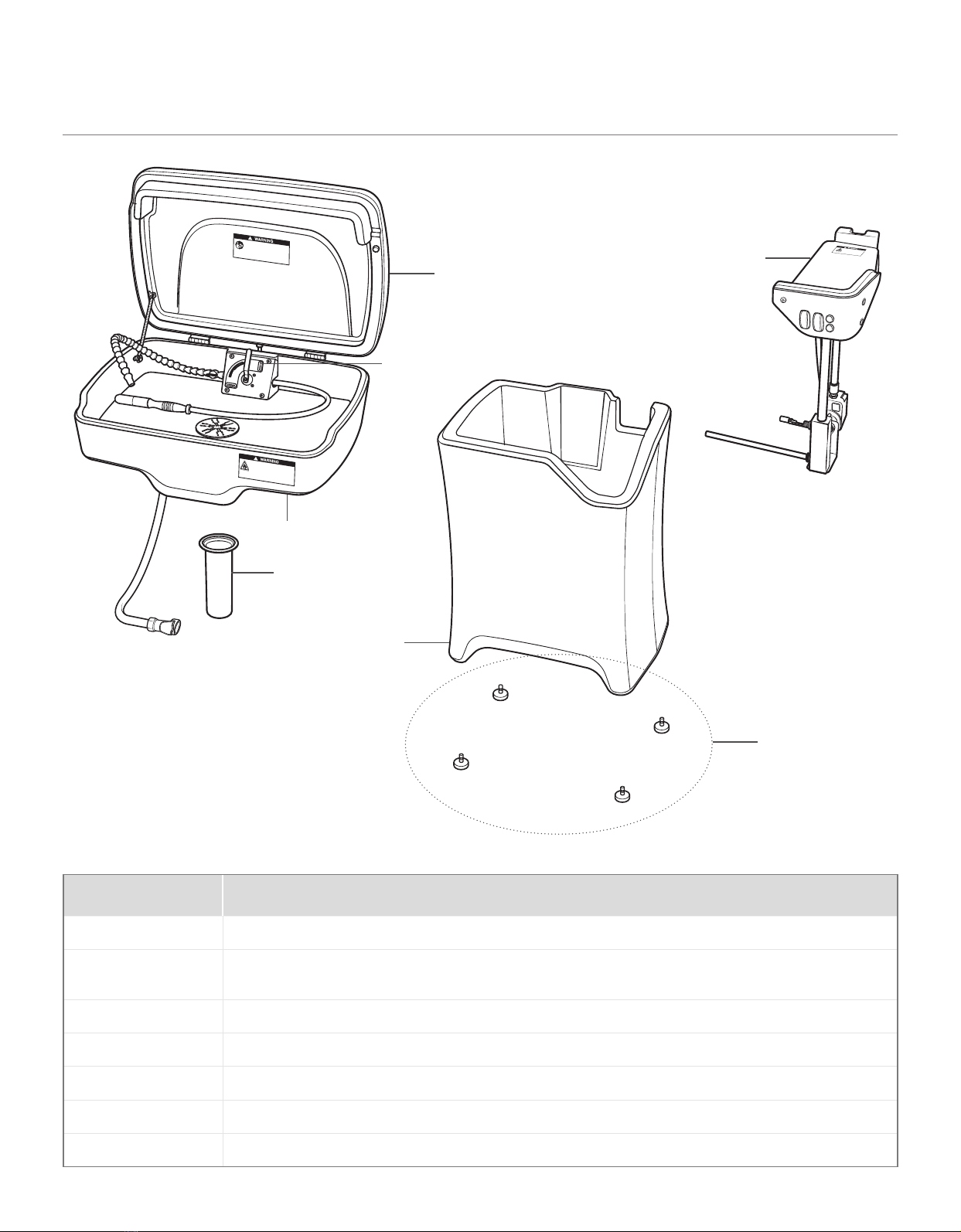

7Parts ..............................................13

Model: APW20HT V20190916 • Page 3
1Safety
WARNING
!
Failure to read all the instructions before operating the unit may result in personal injury or death from
the improper use of the chemical solution. Anyone handling, operating or using the unit must read,
and understand, the instructions in the manual. The buyer assumes all responsibility for safety and
proper use in accordance with the instructions.
Using, or servicing, the unit without proper protective clothing, gloves, and
eye wear may result in serious injury such as burns, rashes, eye, throat
or lung damage and death. Always wear protective clothing, gloves, and
eye wear when using, or servicing, the unit. Protect eyes, skin, and lungs
against drifting spray.
Using, or mixing, any amount of non-aqueous solvents (i.e.: alcohol, gasoline, petroleum or chlorinated
solutions) when using this equipment may cause explosions, fire, skin burns, fatigue, dizziness, serious
injury or death. Never add, mix, or use, non-aqueous solvents to the aqueous (water) based solution
when using or servicing this equipment. Always follow these instructions:
• Only use non-flammable / non-combustible aqueous based solutions with this equipment.
• Drain any non-aqueous solvent from parts before cleaning.
• Read, and follow, all chemical safety precautions and handling instructions provided by the
solution manufacturer and the Safety Data Sheet (SDS) associated with the solution being used
before using the equipment.
Splashing, spills, puncture of the sink or base may result in standing fluid and cause people to slip
and fall resulting in serious injury or death. Immediately cordon o the hazardous area to human and
vehicular trac and clean up any standing fluid around the equipment. Always follow the guidelines
of the solution manufacturer and the Safety Data Sheet (SDS) associated with the solution when
disposing the material used to clean the standing fluid.
Movement of the equipment due to collision or repositioning may cause the equipment to tip-
over and result in serious injury or death. Install the equipment in a low trac area away from
vehicular trac lanes. Always ensure the equipment is level and stable before using or servicing the
equipment.
Overloading or imbalanced weight distribution of parts in the Sink may cause the equipment to tip-
over and result in serious injury or death. Always keep the total weight of the parks in the sink under
400 pounds. Always arrange the parts so their weight is evenly distributed.
Contact with hot surfaces may result in serious burns. Never touch the heating element while it is hot.
Always allow the heating element to cool down before handling.

Model: APW20HT V20190916 • Page 4
Improper use, or accidental movement, of this equipment during the part cleaning process, equipment
cleaning or servicing may result in aqueous based solution making contact with the skin, eyes
and soaking a person’s clothing. This may cause irritation to a body part and should be addressed
immediately. If this occurs, always follow safety guidelines of the solution manufacturer and the Safety
Data Sheet (SDS) associated with the solution.
Fumes and odors from the cleaning process may cause irritation to a person’s eyes and breathing.
Always locate this equipment in well ventilated area.
Servicing, or modification, of this unit with parts not listed in this manual may cause the unit to operate improperly.
Do not use unauthorized parts when servicing the unit.
Running the heater element without being completely submerged in fluid will damage the heating element and
void the warranty. Always ensure the heating elements is completely submerged in the solution before operating
the equipment. Do not attempt to override the solution level float switch.
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, old machine components, and hazardous fluids in an
environmentally safe way according to local waste disposal regulations
Safety Labels
The location of safety labels are
shown here. Important! Immediately
replace missing or damaged safety
labels.
F
A
U
L
T
A
T
T
E
M
P
RINSE
BRUSH
O
N
O
F
F
O
N
O
FF
O
N
OF
F
ON
O
F
F
L
O
W
F
L
U
I
D
A
T
T
E
M
P
CAUTION
!
NOTICE
REV20190503

Model: APW20HT V20190916 • Page 5
2Product Overview
1. Lid
2. Lid Spring
3. Flexible Rinse Line
4. Flow-Thru Brush
5. In-line Valve
6. Rinse/Brush Handle
7. Drain Grate
8. Base
9. Mounting Feet (x4)
10. Control Box Assembly
11. Filter Bag
12. Electrical Plug
13. Pump On/O Switch
14. Heater On/O Switch
15. Low Level Light
16. AT TEMP Light
17. Supply Hose Quick Connect
18. Sink Hose Quick Connect
19. Pump
20. Low Fluid Switch
21. Heating Element
Control Box Assembly with Heater
F
A
U
L
T
A
T
T
E
M
P
RINSE
BRUSH
O
N
O
F
F
O
N
O
F
F
Electrical shock
hazard.
Unplug unit before servicing.
!
Electricalshock
hazard.
Unplugunit before servicing.
!
1718
19
21
20
5
1
9
2
3
4
6
7
10
8
11
12
13
14
15
16

Model: APW20HT V20190916 • Page 6
3Installation
Locating the equipment in high trac areas or vehicular trac lanes may result in the
equipment being punctured or tipped over causing spills, standing fluid and cause
people to slip and fall, serious injury or death. Install the equipment in a low trac area
away from vehicular trac lanes.
System requirements
Incoming liquid temperature range 40-110 ˚F (4.4-43.3 ˚C)
Note: Heated operating temperature is 105 ˚F (40.6 ˚C).
Electrical requirements 120 VAC at 60 Hz, 15A
Operating voltage 120 VAC
Chemical compatibility
For use with aqueous solutions only. Chemical products
used with this equipment must be formulated for this type
of application and compatible with unit materials and pump
seals. For more information on chemical compatibility,
consult the manufacturer or SDS for your product or contact
our customer service department.
Power type Electricity
Chemical pickup type Draws from pre-mixed solution
Number of products unit can draw from One product
Fluid capacity 20 gallons (75.7 liters)
Output lines
FLOW-THRU BRUSH: 3 ft. (0.9 m) hose with 3/8 in. (9.5 mm) inside
diameter and flow-thru brush
FLEXIBLE RINSE LINE: 2 ft. (0.6 m) modular hose with 1/2 in. (12.7 mm)
inside diameter and 1/2 in. (12.7 mm) round nozzle
Flow rate 150 gph (567.8 l/hour)
Pump seals Viton
Heated operating temperature 105 ˚F (40.6 ˚C)
Filter bag 250 micron rating, size 4
Weight capacity Up to 400 lbs. (181.4 kg)
Overall exterior dimensions 33 x 25 x 65 in. (83.8 x 63.5 x 165.1 cm) with lid open
Sink interior dimensions 30 x 18 x 5 in. (76.2 x 45.7 x 12.7 cm)
Work surface height 36 in. (91.4 cm)
Foot type Four adjustable leveling feet
Certifications Conforms to UL Std. 1204, Certified to CSA Std. 22.2# 68
System specifications
WARNING
!

Model: APW20HT V20190916 • Page 7
Fire and explosion hazard.
No solvents, mineral spirits
or other flammable products.
Use only water based cleaners.
Drain parts of flammable contents.
!
F
A
U
L
T
A
T
T
E
M
P
Electricalshock
hazard.
Unplugunit before servicing.
!
O
N
O
F
F
O
N
O
F
F

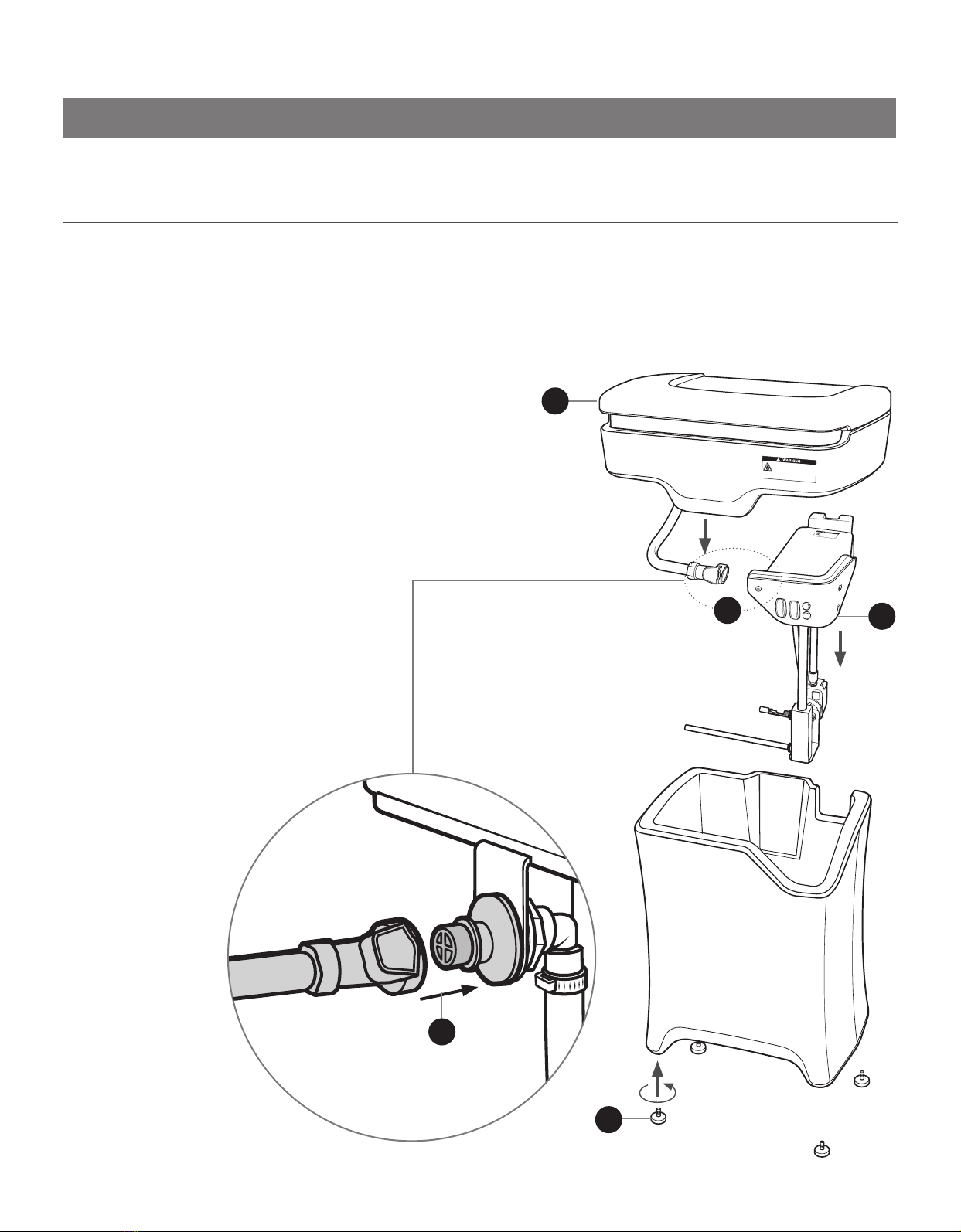

Assembling the Equipment
1. Fasten the mounting feet into the
underside of the base. The mounting
feet should be at approximately the
same height.
2. Place the base in the desired location.
3. Using a level, adjust the mounting feet
until the base is level.
4. Place the control box assembly onto
the base.
5. Connect the sink quick connect hose
from the sink to the supply hose quick
connect from the pump.
6. Place the sink on top of the base.
The equipment is shipped in two boxes, check that all the parts are included and undamaged. One box has
the complete Sink assembly (including Lid) and the other has the Base and Control Box Assembly. The Drain Grate,
Filter Bag and Mounting Feet are in a parts bag. Important! Locate the equipment in an area that has a hard, flat,
level surface and proper ventilation.
Follow these steps to install the equipment:
NOTICE
Operating the equipment with the protective packing material on the Control Box Assembly may cause damage to
the equipment. Remove the protective packing material on the Control Box Assembly and properly dispose before
using the equipment.
4
1
5
6
5

Model: APW20HT V20190916 • Page 8
RINSE
BRUSH
Fire and explosion hazard.
No solvents, mineral spirits
or other flammable products.
Use only water based cleaners.
Drain parts of flammable contents.
!
Read and follow user manual and
warning to avoid rish and serious injury
or death.
Know hazards of your chemical. Read
and follow safety data sheets (SDSs).
!
O
N
O
F
F
O
N
O
F
F
L
O
W
F
L
U
I
D
A
T
T
E
M
P
Fire and explosion hazard.
No solvents, mineral spirits
or other flammable products.
Use only water based cleaners.
Drain parts of flammable contents.
!

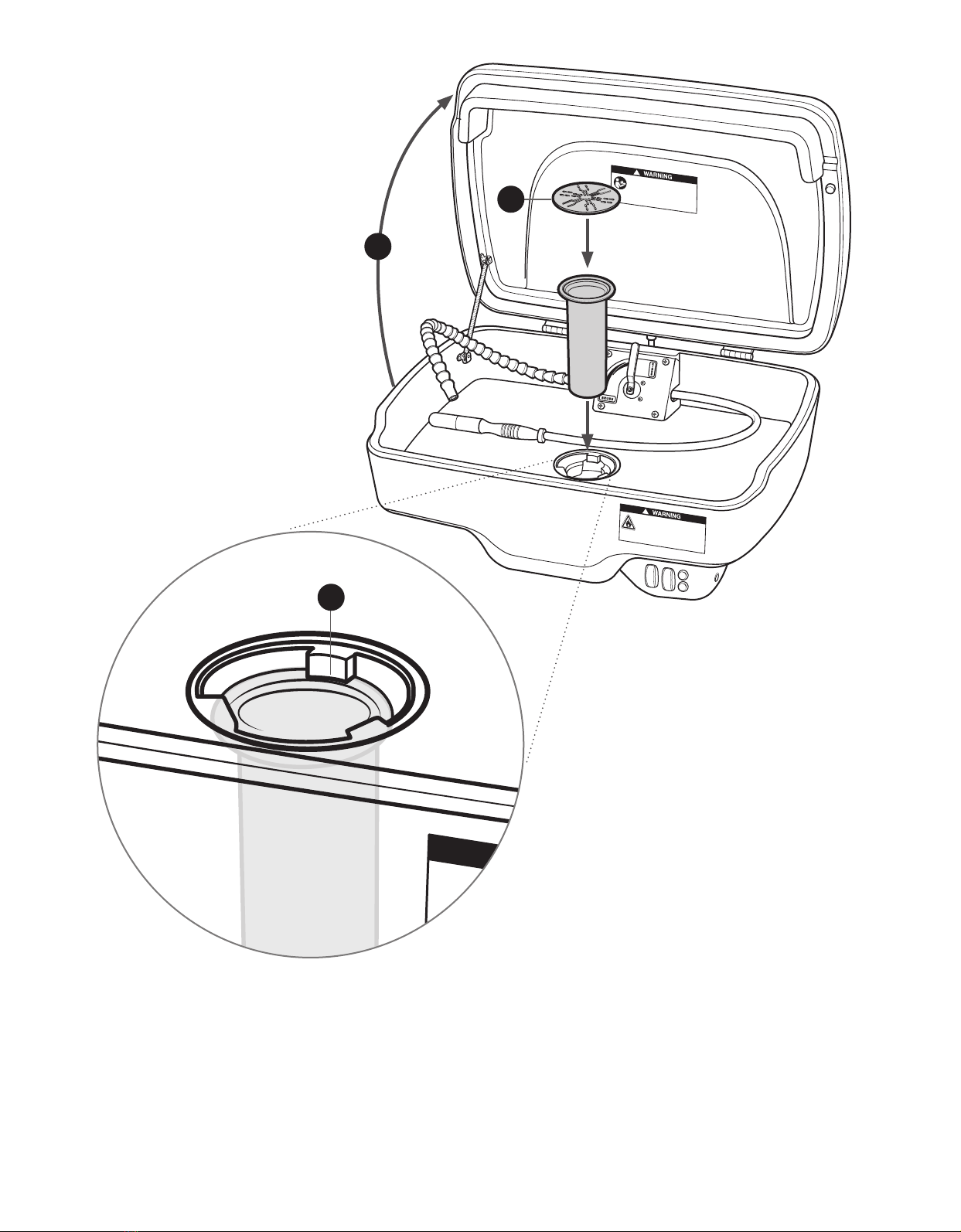

7. Open the lid.
8. Place the filter bag into the sink
drain hole and snap the plastic
ring on the filter bag into the
three tabs.
9. Place the drain grate onto
the sink drain hole over the
filter bag.
10. Connect the electrical plug to
a properly-grounded 120V 15A
outlet. Important! Always unplug
the electrical plug from the 120V
outlet before servicing the
equipment!
7
9
8

Model: APW20HT V20190916 • Page 9

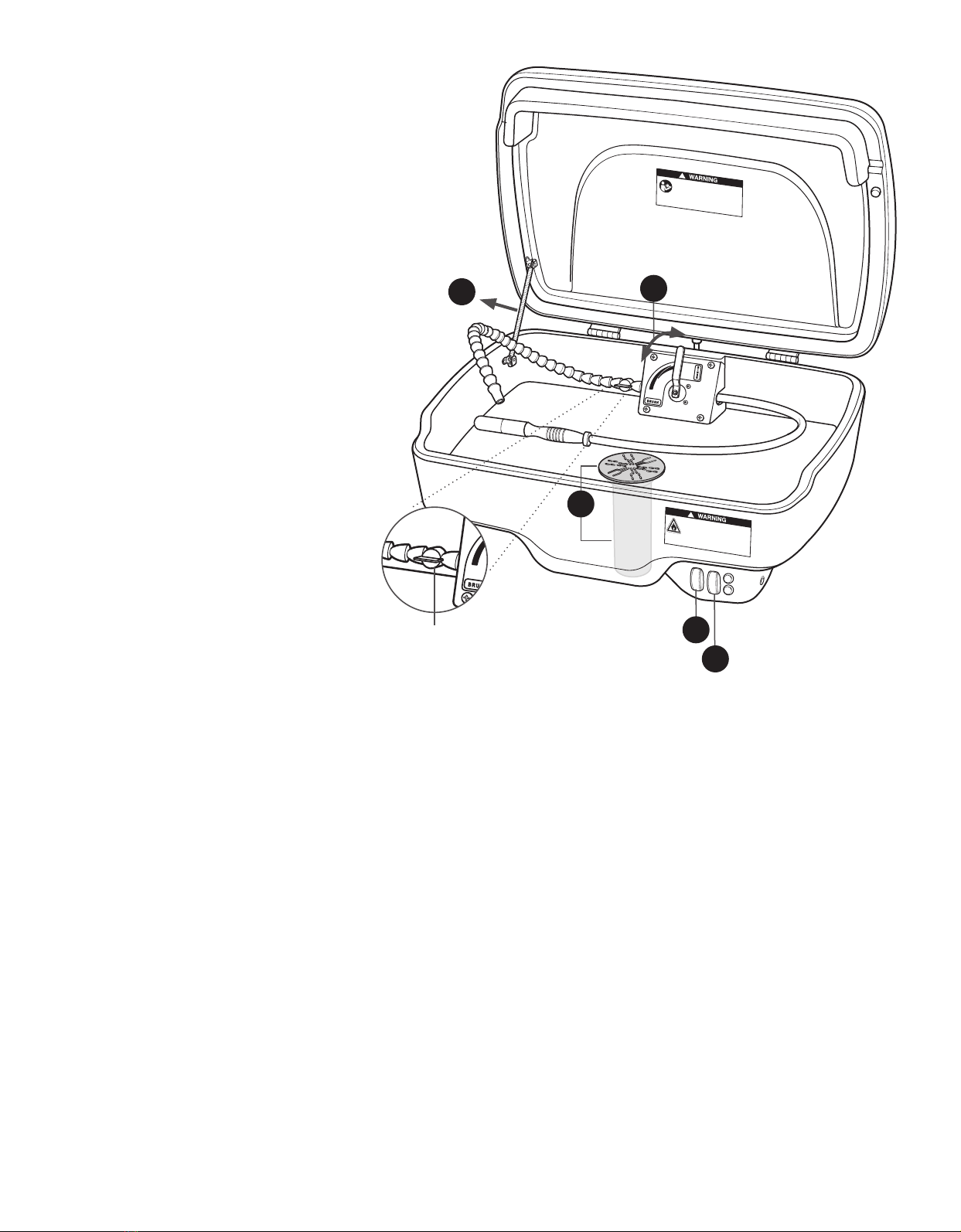

1. Lift the sink up from the base.
2. Fill the base with the aqueous
based solution. Important! Do
not fill higher than the maximum
fill line. The equipment has a
maximum capacity of 20 gallons
(75.7 liters).
3. After the base is filled, place
the control box assembly and
sink back onto the base,
re-connect the supply hose if
necessary, and open the lid.
Important! Always ensure the
heater is submerged in the
solution during operation of
the equipment. Do not run the
equipment if the heater is not
submerged in the solution. This
will damage the unit.
4. Press the heater on/o switch
and turn the heater On. Note: It
takes about 1 1/2 hours to heat
very cold solution to 105° F
(40.5° C).
5. Press the pump on/o switch
and turn the pump On.
6. Place the parts in the sink.
Important! Do not overfill
the sink. Maximum weight of
the part(s) should not exceed
400 lbs.
4Use
Important! Only aqueous (water) based solutions shall be used with this equipment. It is beyond the scope of this
manual to describe every aqueous based solutions available. It is the user’s responsibility to ensure the use of
proper solutions with this equipment.
Chemical solutions must be formulated for this type of application and compatible with unit materials and pump
seals. Always read, and follow, all chemical safety precautions and handling instructions provided by the solution
manufacturer and the Safety Data Sheet (SDS) associated with the solution being used before using the equipment.
Never use any amount of non-aqueous solvent with this equipment.
Follow these steps to use the equipment:
L
O
W
F
L
U
I
D
A
T
T
E
M
P
RINSE
BRUSH
Fire and explosion hazard.
No solvents, mineral spirits
or other flammable products.
Use only water based cleaners.
Drain parts of flammable contents.
!
Read and follow user manual and
warning to avoid rish and serious injury
or death.
Know hazards of your chemical. Read
and follow safety data sheets (SDSs).
!
O
N
O
F
F
O
N
O
F
F
L
O
W
F
L
U
I
D
A
T
T
E
M
P
RINSE
BRUSH
Fire and explosion hazard.
No solvents, mineral spirits
or other flammable products.
Use only water based cleaners.
Drain parts of flammable contents.
!
Read and follow user manual and
warning to avoid rish and serious injury
or death.
Know hazards of your chemical. Read
and follow safety data sheets (SDSs).
!
O
N
O
F
F
O
N
O
F
F
Maximum
fill level
The AT TEMP
light will come on
when the solution
temperature
reaches 105° F
(40.5° C)
The low fluid light
will flash when
the solution level
is below the float
switch and the
control box will
turn o.
3
4
2
5

Model: APW20HT V20190916 • Page 10
Read and follow user manual and
warning to avoid rish and serious injury
or death.
Know hazards of your chemical. Read
and follow safety data sheets (SDSs).
!
RINSE
BRUSH
Fire and explosion hazard.
No solvents, mineral spirits
or other flammable products.
Use only water based cleaners.
Drain parts of flammable contents.
!
O
N
O
F
F
O
N
O
F
F
L
O
W
F
L
U
I
D
A
T
T
E
M
P
7. Move the rinse/brush handle
towards the Rinse or Brush
Hose. Note: The in-line valve
can control the flow through the
Rinse Hose. Turning the in-line
valve fully to the right while the
rinse/brush handle is in the rinse
position will shut o the flow
completely.
8. Clean the parts. Move the
handle to the center to use both
tools simultaneously.
9. Remove the parts and repeat
steps 6 - 8 with additional parts.
10. Monitor the drain grate and
filter bag for accumulated solid
waste. Monitor the solution
quality. Conduct maintenance if
needed (see Section 5: Cleaning
& Maintenance for more
information).
11. Press the pump on/o switch
and turn the pump O when
finished cleaning the parts (or
servicing the equipment).
12. Press the heater on/o switch
and turn the heater O when
finished cleaning the parts (or
servicing the equipment).
13. Tap the lid spring towards the
front of the equipment and close
the lid.
RINSE
BRUSH
Fire and explosion hazard.
No solvents, mineral spirits
or other flammable products.
Use only water based cleaners.
Drain parts of flammable contents.
!
Read and follow user manual and
warning to avoid rish and serious injury
or death.
Know hazards of your chemical. Read
and follow safety data sheets (SDSs).
!
In-line Valve
7
10
13
11
12

Model: APW20HT V20190916 • Page 11
5Cleaning & Maintenance
Important! Dispose of the solution properly. Always follow local, state and federal regulations and laws
when disposing hazardous materials. Consult with the local environmental management agency for
additional guidance.
Cleaning and maintenance intervals will vary based on usage and soil levels, users should reference chemical
manufacturer recommendations on how frequently they need to change out the cleaning solution.
Changing the Filter Bag
Follow these steps to change the filter bag:
1. Wipe down the sink interior and rinse any debris into the drain.
2. Remove the sink drain grate.
3. Remove the filter bag by pulling it up and out of the Sink.
4. Fit a clean filter bag by pushing the ring of the filter into the retaining tabs of the sink drain.
Note: The plastic ring on the filter bag must snap into the three tabs on the sink drain hole when refitted.
5. Put the drain grate back in place.
Changing the Cleaning Solution
Follow these steps to change the cleaning solution:
1. Position the spigot over the edge of the sink and into a suitable container.
2. Move the rinse/brush handle to the rinse position and drain as much solution as possible.
3. To completely drain the solution:
a. Lift up on the right side of the sink to access the quick release button on the hose connected to fluid supply
connector on the control box assembly.
b. Undo the connection by pressing the quick release button.
WARNING
!
Using, or servicing, the unit without proper protective clothing, gloves, and
eye wear may result in serious injury such as burns, rashes, eye, throat
or lung damage and death. Always wear protective clothing, gloves, and
eye wear when using, or servicing, the unit. Protect eyes, skin, and lungs
against drifting spray.
Splashing, spills, puncture of the sink or base may result in standing fluid and cause
people to slip and fall, or cause electric shock and electrocution if a person makes
contact with a live electrical circuit, resulting in serious injury or death. Immediately
cordon o the hazardous area to human and vehicular trac and clean up any
standing fluid around the equipment. Always follow the guidelines of the solution
manufacturer and the Safety Data Sheet (SDS) associated with the solution when
disposing the material used to clean the standing fluid.

Model: APW20HT V20190916 • Page 12
c. Lift the sink o and set aside.
d. Remove the control box assembly and set it aside.
e. Use a fluid evacuator to remove the remaining solution.
f. Wipe down the base and remove collected sediment.
g. Refill with clean solution.
h. Place the control box assembly on the base.
i. Connect the hose from the sink to the control box assembly.
j. Place the sink on the base.
k. Reconnect the air supply.
6Troubleshooting
Issue Solution
Solution doesn’t flow through the
Flexible Rinse Line or Flow-Thru Brush
• Check the hoses between the Sink and Control Box Assembly are
connected. Reconnect if necessary.
• Check the hoses between the Sink and Control Box Assembly are not
pinched or damaged. Repair or replace if necessary.
• Check the pump is functioning. Repair or replace if necessary.
Solution doesn’t drain. Check the Drain Grate and Filter Bag for sediment buildup or blockage.
Clean or replace if necessary.

Model: APW20HT V20190916 • Page 13
RINSE
B R U S H
Fire and explosion hazard.
No solvents, mineral spirits
or other flammable products.
Use only water based cleaners.
Drain parts of flammable contents.
!
Read and follow user manual and
warning to avoid rish and serious injury
or death.
Know hazards of your chemical. Read
and follow safety data sheets (SDSs).
!
O
N
O
F
F
O
N
O
F
F
L
O
W
F
L
U
I
D
A
T
T
E
M
P
Electricalshock
hazard.
Unplugunit before servicing.
!
7Parts
Item number Description
PW-LID-A Includes Lid, Spring, Hinges
PW-HV3-A Includes Flexible Rinse Line, Brush Hose, Control Valve and Faceplate with Decals, and
Connection Hose to Control Box
PW-SINK Includes Sink
PW-BASE Includes Base
LVFT200 Leveling Feet
PW-FLTBG Filter Bag
APW20HT-CB Air Control Box
PW-LID-A
PW-HV3-A
PW-BASE
PW-SINK
FLTBG
APW20HT-CB
LVFT200

Table of contents
