Intelligence working for you
75 years of laundry experience has led to the development of one of the world’s most advanced
wash systems, the Smart Drive™.
Unlike conventional machines, Smart Drive™ clothes washers use intelligence to adapt the wash
action and water levels to save on water and electricity use; making it kinder on your wallet and
the environment.
Intelligent electronics
A powerful microprocessor controls every aspect of
the Smart Drive™, allowing it to continually monitor
and respond to each wash. It contains over 10,000
lines of instructions in its ‘brain’ – the result of many
years of testing and fine-tuning, to give you the best
possible performance.
Direct drive motor
Our revolutionary direct drive motor is capable of
infinite wash actions, continuously adjusting its speed
to the movement of your clothes, removing dirt while
caring for the fabric, delivering the ultimate wash.
Reliability
The Smart Drive™ has no mechanical brake, pulleys or
gears, which means fewer moving parts and greater
reliability.
Saves time
With a top spin speed of 1000 rpm, Smart Drive™
reduces clothes drying time by up to 30%.
Energy conservation
The unique wash action means a typical load uses
only the same amount of electricity as a 100-watt
light bulb left on for an hour.
Eco
Designed to make every drop count, using up to 25%
less water than a traditional rinse.
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 2 8/10/09 2:45:22 PM

1
Contents
Important!
SAVE THESE INSTRUCTIONS
The models shown in this User Guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
Installation Instructions 2
Getting started
Before you do your first wash 5
Using your EXCELLENCE washer 6
Using your PRIDE washer 8
Lid lock 10
Wash cycles and options
Wash cycles and options 11
Wash options and advancing the cycle 12
Water levels 13
Saving water & time – ECO & QUICK WASH options 14
SOAK, SPIN HOLD, DELAY START 15
Washing bulky items, Washing woollens 16
FAVOURITE cycle 17
Customising the wash cycles 18
Before you wash
Sorting, Loading 19
Detergent 20
Fabric softener, Scrud 21
Changing pre-set options
Option adjustment mode 22
Wash temperatures, Rinse options 24
CONTROLLED COLD, End of cycle beeps, AUTO water level 25
Out of balance recovery routine 26
Machine information
Specifications 26
Cleaning your Smart Drive™ 27
Products that might damage your Smart Drive™ 28
Smart Drive™ sounds and beeps, Automatic lint system 28
Saving water 29
Problem solving
If your Smart Drive™ beeps for help 31
Operating problems 33
Wash problems 34
Manufacturer’s Warranty 36
Customer Care 37
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 1 8/10/09 2:45:22 PM

2
Installation instructions
Unpacking
To ensure the best performance from your new
Smart Drive™ please follow the instructions below.
Removing the packaging
1
Remove the outer packaging.
2
Tilt the machine backwards and walk it off the bottom
packer one foot at a time.
3
Remove the bottom packer from under the machine by
pulling it out the front.
4
Lift the lid and remove the bowl packer from the bowl.
5
Remove the hoses and accessories.
6
Keep the bottom packer and bowl packer in case they
are required for future transit.
Important!
Please ensure that the bottom packer has been removed before operating your machine.
Location
Your washer must be installed on a level surface, and not on any textured floor coverings
(eg carpet, rugs) to ensure that the opening at the bottom of the machine is not obstructed.
In your clothes washer you will find:
4 rubber inserts for the levelling feet (joined together).
1 hose guide.
2 inlet hoses.
Drain hose
1
Carefully pull the drain hose out from the back
of the machine by pulling the exposed part of
the hose downward and outward.
2
To guide the drain hose over the tub or
standpipe the hose guide MUST be fitted to the
drain hose.
To prevent syphoning:
The drain hose should not extend more than 20
mm from the end of the guide.
The height of the standpipe or tub should be
between 850 – 1200 mm.
The drain hose can be trimmed to length.
3
Place the drain hose in the tub or standpipe.
Fig.1 Tilt washer backwards to remove packer
Pull hose
through guide
(20 mm)
maximum
Flex hose
guide apart
Standpipe 850 – 1200 mm
Fig.2 Fitting the drain hose guide
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 2 8/10/09 2:45:22 PM

3
Inlet hoses
1
Connect the straight ends of the inlet hoses to the taps.
There are washers fitted in both ends.
2
Connect the elbow ends of the inlet hoses to the machine inlet
valves. Inlet valves are marked on the back of the machine
H=Hot C=Cold
3
Ensure you have correctly connected hot to hot, and cold to cold.
Cold supply only:
If you only have a cold water supply, an inlet valve cap (blanking cap) MUST be connected to
the hot inlet valve. The cap prevents water leaking out of the hot valve. The cap is available from
your Fisher & Paykel Dealer or Authorised Repairer, Part No. 388491. This appliance incorporates
backflow protection complying with AS3500.1. No further backflow protection is required for
connection to the water supply.
Levelling
It is IMPORTANT to level the machine to ensure even
spin performance.
1
Separate the four rubber foot inserts from the moulding
and fit into the feet on the base of the machine.
2
Move the machine to its final position (we suggest a
minimum clearance of 20 mm each side).
3
Adjust the feet (wind down) so the machine is level and
cannot rock.
To check if your machine is level:
Look down on the wash bowl and make sure it sits slightly forward of centre. Close the lid.
Visually check that the lid fits evenly on both sides (see Fig.5). If not, adjust one of the front feet
slightly until it matches. The diagram on the top and bottom are not correct.
4
Turn on the water and check all hose connections for leaks. Make sure there are no kinks in the hoses.
5
Uncoil power cord, remove and discard the plastic pin cover and plug into wall socket.
Installation instructions
Adjustable feet
Corner cabinets
Rubber insert
Fig.3 Inlet hose ends
Machine end
Tap end
To check levelling look
down on the wash bowl
Correct
Incorrect
Fig.5 To assess levelling check lid alignment
Lid Alignment
Lid
Topdeck Lid
Lid
Topdeck
Topdeck
Wind right foot down
(out) to correct
Wind left foot down
(out) to correct
Fig.4 Adjusting levelling feet
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 3 8/10/09 2:45:22 PM

4
Water supply
For best operating conditions your hot water
should be approximately 65°C. Your cold water
should not exceed 35°C or your hot water exceed
75°C. Temperatures above these may cause the
machine to fault or cause damage to the machine.
If you have an uncontrolled water heating source
(eg a wet back or solar heating system) you should
fit a Safe Valve. This will ensure the hot water temperature remains within safe limits.
Inlet water pressure: Max.1 MPa (150 psi) Min. 34 Pa (5 psi)
Inlet water flow rate: Min. 3 litres/min
Minimum height of taps to clear the top of the machine is 1150 mm.
Draining
Regularly check that your standpipe or tub is free from lint or other obstructions, which may
affect how your machine works or may cause flooding.
In multi-storey apartments or any upper floor, the machine should be installed on a drained floor.
Draining must comply with local by-laws.
Clothes washer safety
This clothes washer is not intended for use by children and persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Your Smart Drive™ can be opened while it is filling and agitating. Supervise children at all times
to ensure they do not play with the washer.
WARNING!
Electrical Shock Hazard
If you are using an extension cord or a portable electrical outlet device
(eg multi-socket outlet box), ensure that it is positioned so that it does
not come into contact with water or moisture.
Failure to do so may result in death or electrical shock.
Accessories and spare parts
Available from your Fisher & Paykel Dealer or Authorised Repairer.
Inlet Valve Cap Part No. 388491
Hose Inlet Long (2m) Part No. 422680
Hose Inlet Large Bore Part No. 426123
Drain Hose Extension Part No. 425627p
Power Cord If the power cord of your clothes washer is damaged it must be replaced
by a Fisher & Paykel Authorised Repairer, as it is not a standard power cord.
Installation instructions
Hot ‘N’ Safe Valves available are:
RMC TVA 50HF
RMC TVA 75HFS
Adjustable between 35°C – 55°C
RMC TVA 50HP
For instantaneous gas hot water supply
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 4 8/10/09 2:45:22 PM

5
Getting started
Thank you for buying a Fisher & Paykel Smart Drive™ washing machine. We are very proud of this
washer and trust it will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and
energy efficient. Thousands of tonnes of washing and 75 years of laundry experience have been
programmed into your washing machine to help give you the best possible performance.
We hope you enjoy your new washing machine,
we have certainly enjoyed designing it.
Before you do your first wash
You owe it to yourself and your Smart Drive™ to have it installed correctly by a technician from a
Fisher & Paykel Authorised Repairer.
Before you start, it is a good idea to go through the following checklist:
1
Has the basepacker been removed?
2
Is the hot hose connected to the hot valve marked ‘H’? Is the cold hose connected to the cold
valve marked ‘C’?
3
Is the drain hose threaded through the ‘U bend‘ (with no more than 20 mm extended) and on to
your standpipe?
4
Are the rubber inserts secured into the feet on the base of your machine and is the machine
levelled? Refer to ‘Installation instructions’, page 3.
If you have bought a PRIDE model it is a good idea to check the warm fill temperature. (Refer to
page 24).
Fig.6 EXCELLENCE washer Fig.7 PRIDE washer
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 5 8/10/09 2:45:22 PM

6
Using your EXCELLENCE washer
Place the load evenly around the agitator (refer to ‘Sorting’ and ‘Loading’, page 19).
Remove fabric softener dispenser.
A. Detergent
Follow the instructions on the detergent package.
Use the mark on the agitator, nearest to the top of
the clothes, as a guide to the correct amount
of detergent to use (refer to ‘Detergent’, page 20).

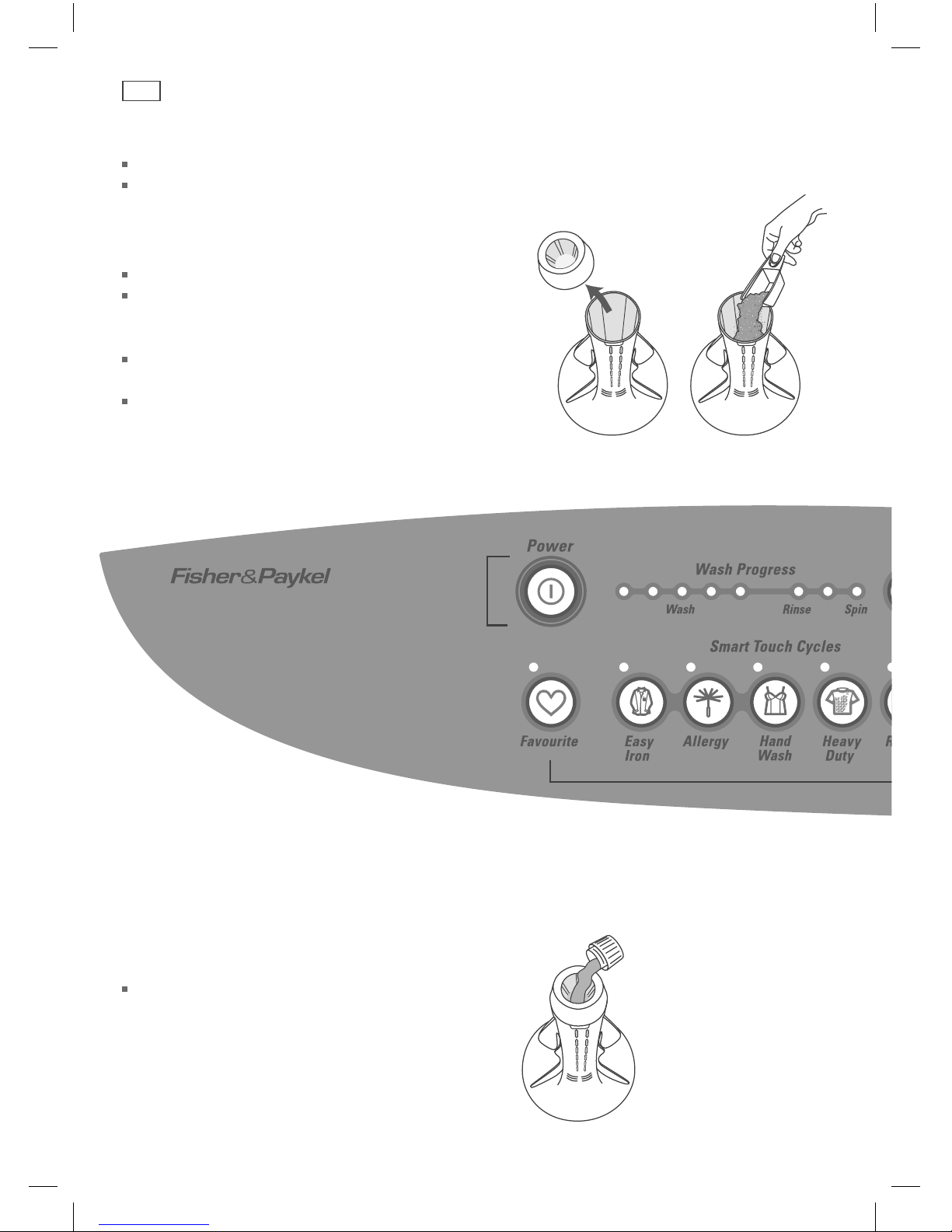

Pour the detergent down the centre of the
agitator stem.
Replace the fabric softener dispenser (this stops
small articles falling down the centre of the agitator).
B. Fabric softener
If you wish to use fabric softener, place it in the
dispenser on the top of the agitator.
Important!
Fabric softener must not be used if you have
selected the ECO or QUICK WASH option.
(Refer to ‘Fabric softener’, page 21).
EXCELLENCE – WA75T65GW1, WA65T60GW1, WA55T56GW1
D
C
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 6 8/10/09 2:45:23 PM

7
Using your EXCELLENCE washer

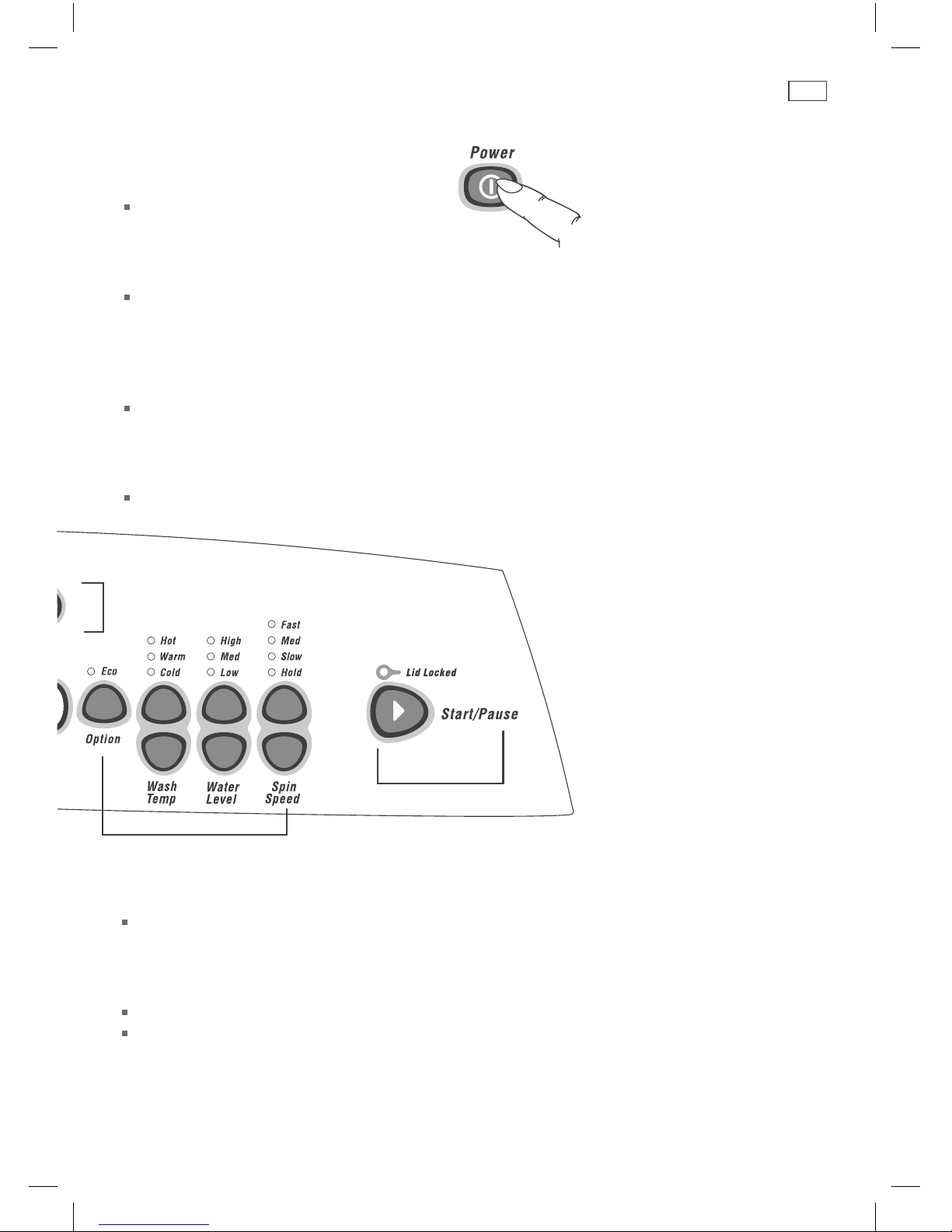

C. Power
Press POWER to turn the machine on.
D. Wash cycles
Select the desired wash cycle by pressing the button.
E. Wash options
Select the WASH TEMPERATURE and other wash options (refer to pages 12 – 16).
F. Advance
Use to advance through to the desired part of the wash cycle (refer to page 12).
G. Start
Press START/PAUSE to start the machine.
If you wish to stop your EXCELLENCE washer
Press START/PAUSE.
If it is during spray rinse or spin there is a slight delay while the bowl is coasted to a stop and the
lid is unlocked.
Important!
For best fabric and colour care remove your clothes as soon as the cycle has finished.
E
G
F
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 7 8/10/09 2:45:23 PM

8
Using your PRIDE washer
Place the load evenly around the agitator (refer to ‘Sorting’ and ‘Loading’, page 19).
Remove fabric softener dispenser.
A. Detergent
Follow the instructions on the detergent package.
Use the mark on the agitator, nearest to the top of
the clothes, as a guide to the correct amount
of detergent to use (refer to ‘Detergent’, page 20).
Pour the detergent down the centre of the
agitator stem.
Replace the fabric softener dispenser (this stops
small articles falling down the centre of the agitator).
B. Fabric softener
If you wish to use fabric softener, place it in the
dispenser on the top of the agitator.
Important!
Fabric softener must not be used if you have
selected the ECO option.
(Refer to ‘Fabric softener’, page 21).
PRIDE – WA55T56MW1 (MW512)
D
CF
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 8 8/10/09 2:45:23 PM

9
Using your PRIDE washer
C. Power
Press POWER to turn the machine on.
D. Wash cycles
Select the cycle you want by pressing the SMART TOUCH CYCLES button located below the
REGULAR option. Scroll through the cycles until the light for the one you want is lit.
E. Wash options
Select the WASH TEMPERATURE and other wash options (refer to pages 12 – 16).
F. Advance
Use to advance through to the desired part of the wash cycle (refer to page 12).
G. Start
Press START/PAUSE to start the machine.
If you wish to stop your PRIDE washer
Press START/PAUSE.
If it is during spray rinse or spin there is a slight delay while the bowl coasts to a stop and the
lid is unlocked.
Important!
For best fabric and colour care remove your clothes as soon as the cycle has finished.
E
G
F
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 9 8/10/09 2:45:23 PM

10

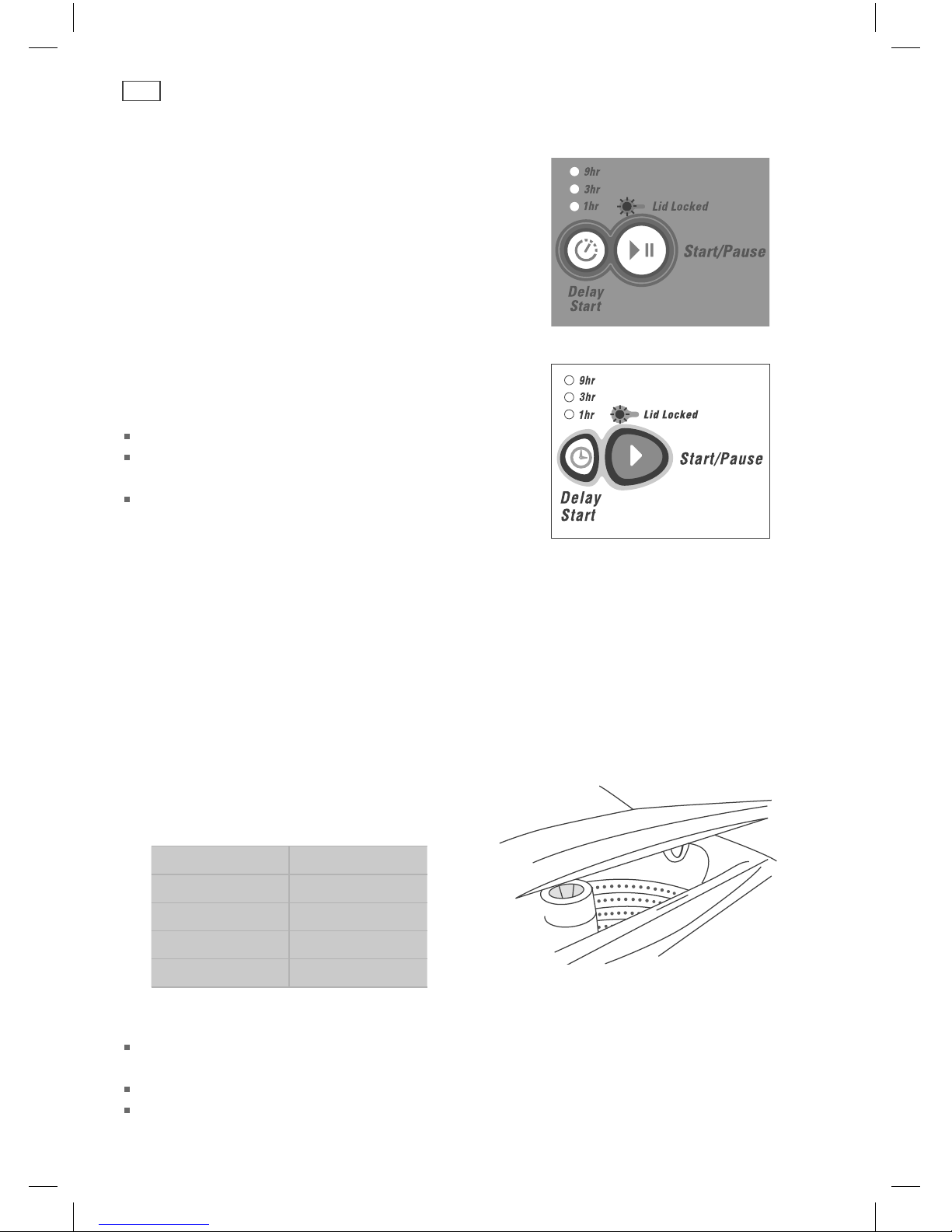

Lid lock
Your Smart Drive™ has a lid lock, which locks
when your machine is spinning. This ensures
the lid cannot be opened during hazardous
parts of the cycle, providing added safety for
you and your family.
The LID LOCK light (above the START/PAUSE
button) comes on when the lid is locked to
tell you when you cannot open the lid. In
short it means you can open the lid while your
Smart Drive™ is filling, agitating and draining,
but not while it is spinning.
When the LID LOCK light is on, the lid is locked.
When the LID LOCK light is off, the lid is not
locked and the lid can be opened.
If the LID LOCK light is flashing the lid lock is
in process of locking or unlocking (ie while the
machine coasts down or START/PAUSE has been
pressed). During this stage the lid still cannot
be lifted.
Important!
If the lid is left open, the machine will be unable to lock and the cycle will be halted.
The machine will play a tune and the LID LOCK light will flash until the lid is closed and
START/PAUSE is pressed.
The lid lock remains unlocked for the majority of the cycle allowing you to add clothes,
dissolve detergent or to add fabric softener (if you do not want to use the Automatic Fabric
Softener Dispenser).
The chart below shows the stages when
the lid is locked.
Fill Unlocked
Agitate Unlocked
Spray Rinse Locked
Deep Rinse Unlocked
Spin Locked
Important!
Keep children away from the machine, especially when you are using hot water, as the lid can
be opened during fill and agitate.
DO NOT put anything down the slot in the top deck of your machine.
DO NOT try to disable the lid lock.
Fig.8 LID LOCK light
Fig.9 Lid lock
EXCELLENCE
PRIDE
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 10 8/10/09 2:45:23 PM

11
Wash cycles and options
Default settings
EXCELLENCE model
REGULAR HEAVY DUTY HAND WASH ALLERGY EASY IRON
Wash time 12 min 15 min 6 min 12 min 9 min
Wash action REGULAR HEAVY DUTY HAND WASH REGULAR REGULAR
Wash temp WARM-COLD WARM WARM-COLD HOT WARM-COLD
Rinse
Spray rinse
+ cold
deep rinse
Spray rinse
+ cold
deep rinse
2 cold
deep
rinses
2 cold
deep
rinses
2 cold
deep
rinses
Spin speed FAST FAST SLOW FAST SLOW
Spin time 6 min 6 min 4 min 6 min 2 min
PRIDE model
REGULAR HEAVY DUTY DELICATE WOOL
Wash time 12 min 15 min 6 min 6 min
Wash action REGULAR HEAVY DUTY DELICATE DELICATE
Wash temp WARM WARM WARM WARM
Rinse
Spray rinse
+ cold
deep rinse
Spray rinse
+ cold
deep rinse
2 cold
deep
rinses
Spray rinse
+ cold
deep rinse
Spin speed FAST FAST SLOW MEDIUM
Spin time 6 min 6 min 4 min 6 min
Model variations
EXCELLENCE model – Fully featured, with REGULAR, HEAVY DUTY, HAND WASH, ALLERGY and
EASY IRON cycles, and a FAVOURITE cycle.
PRIDE model – REGULAR, HEAVY DUTY, DELICATE and WOOL cycles.
Basic cycle descriptions
REGULAR cycle (with the ECO option) has been designed for normally soiled, everyday washing,
eg sheets, towels, T-shirts.
HEAVY DUTY cycle is for heavily soiled durable garments, eg overalls, jeans, tea towels.
HAND WASH cycle is designed for your most delicate garments.
ALLERGY cycle has been designed for those with skin and other sensitivities.
EASY IRON cycle is for items susceptible to creasing, eg shirts, dress trousers.
DELICATE cycle uses a slow, gentle agitation designed to care for your delicate items, eg lingerie,
blouses.
WOOL cycle is for machine washable woollens.
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 11 8/10/09 2:45:24 PM

12
To select the wash options
EXCELLENCE model
1
Select the wash cycle, temperature, water
level and spin speed (refer to page 7).
2
Press the OPTIONS button if you want to
choose ECO, SOAK or QUICK WASH (refer to
pages 14 and 15).
3
Press START/PAUSE.
PRIDE model
1
Select the wash cycle, temperature, water
level and spin speed (refer to page 9).
2
If you wish to save water press the ECO
option button (refer to page 14).
3
Press START/PAUSE.
The wash progress lights
The wash progress lights show all the tasks
your Smart Drive™ will do during the wash
cycle. As each task is completed a light goes
out, so you can tell at a glance how far the
cycle has to go.
To advance the wash cycle
1
Press POWER.
2
Press the button with the ‘two arrows’ repeatedly
to advance the cycle, to the desired position.
3
Press START/PAUSE.
Note: each wash progress light equals 3 minutes of
agitation. The ECO option wash progress lights may
in some cases wash for longer. This is dependent on
the water level. The QUICK WASH option shortens the
agitation time for each progress light (EXCELLENCE
model only).
Clothes care safeguards
To avoid accidentally damaging your clothes there are a few options that your Smart Drive™ will
not accept. For example, you cannot select a HOT wash on HAND WASH or EASY IRON cycles
(EXCELLENCE model) or DELICATE or WOOL cycles (PRIDE model), or choose the ECO option on
anything other than the HEAVY DUTY or REGULAR cycles (both models).
Wash options and advancing the cycle
EXCELLENCE
Fig.11 Wash progress lights
Note: while EXCELLENCE model is shown, PRIDE model
is identical
EXCELLENCE
PRIDE
Fig.12 Advancing the wash cycle

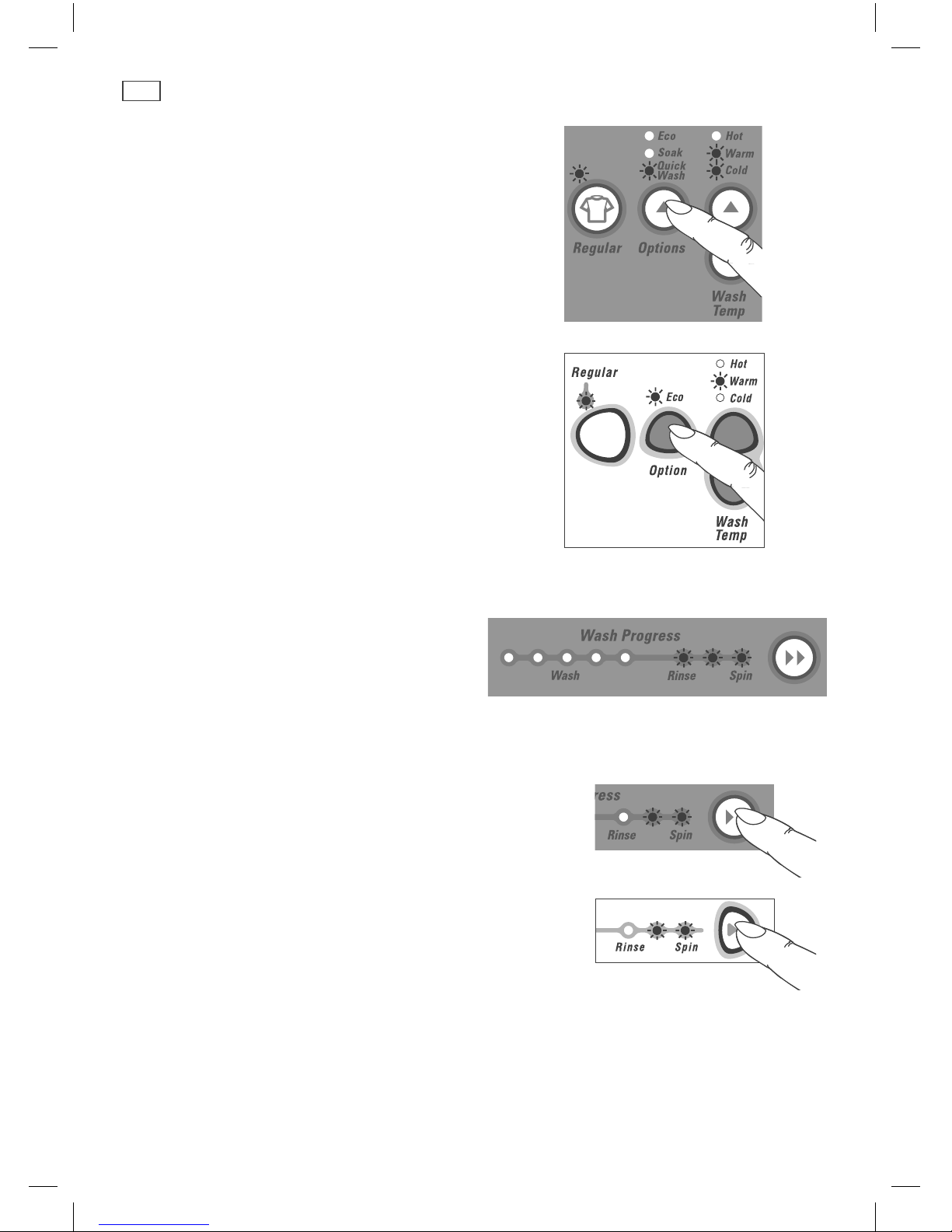

Fig.10 Selecting wash options
PRIDE
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 12 8/10/09 2:45:24 PM

13
Water levels

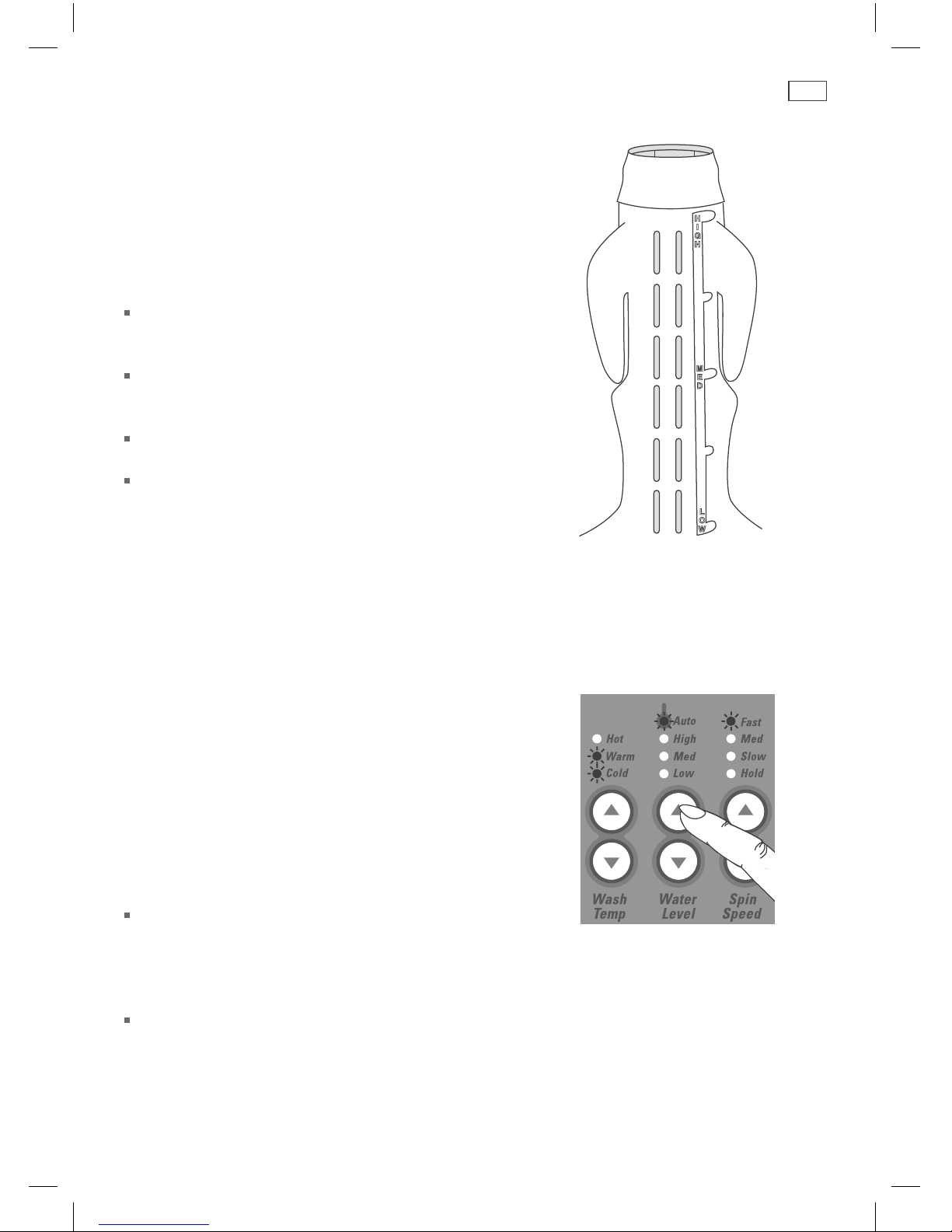

Fig.13 Water level guide on agitator
Manual water level selection
The agitator has five levels marked on its stem that
can be used to help you select the correct water
level. Select the correct water level by using the
mark nearest to the top of the load.
The levels marked on the agitator do not correspond
exactly to the level of the water. They indicate the
level of dry clothes suitable for the water level.
Your Smart Drive™ may occasionally add water
during agitation. This is to maintain the water level
due to the release of air trapped in the garments.
The medium/high and medium/low settings are
available on EXCELLENCE model only.
Out of balance loads, tangling or splash-over can be
caused by selecting a water level that is too high.
Auto water level
EXCELLENCE model only
Your Smart Drive™ can automatically select the
appropriate water level for the load.
1
Place your clothes in the machine.
2
Select the wash cycle (select AUTO if not
automatically selected).
3
Press START/PAUSE.
During fill, the machine will pause occasionally to
sense the water level. The machine will check if
the water level is correct by using a series of two
different agitate strokes. A slow stroke to sense the
load and an agitate stroke to mix the load. (This
may take over a minute.) If it detects that the water
level is not high enough, it will fill with more water
and check the level.
When washing an unusual load, eg large bulky
garments or pillows, we recommend you manually
select the water level and select the HAND WASH
cycle (EXCELLENCE model) or the DELICATE cycle
(PRIDE model).
Manually select the water level if there is already
water in the bowl.
Note: if you feel the AUTO water level does not fill to the correct level, you can adjust the level
the machine selects (refer to ‘Changing pre-set options’, pages 22 and 25).
Fig.14 Selecting AUTO water level
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 13 8/10/09 2:45:24 PM

14
Wash options – saving water and time
Eco
EXCELLENCE and PRIDE model
Press the ECO option in order to save water. The ECO option
uses an Eco Spray rinse which has been specially designed
to use at least 25% less water than a traditional rinse. Use
this option when you want to use less detergent and less
water. However, If you have low water pressure or sensitive
skin it is better to use a traditional rinse.
The ECO option has not been designed to be used with
fabric softener as it does not have a second deep rinse to
dispense the softener correctly. Fabric softener should not
be used if this option is selected.
Note: the ECO option is only available on the REGULAR and
HEAVY DUTY cycles. If you try to select these options on the
HAND WASH, ALLERGY or EASY IRON cycles (EXCELLENCE
model), or the WOOL or DELICATE cycles (PRIDE model),
your Smart Drive™ will skip over the option. ECO will take
slightly longer than a normal spray and deep rinse.
There are some wash loads that may not suit being
washed using the ECO option. For instance, loads that have
a lot of sand or sawdust in them or garments where the
colour still runs from them.
Quick wash
EXCELLENCE model only
Our EXCELLENCE model provides an excellent opportunity
to save on water and time. Use the QUICK WASH option
when you want to save time and reduce the amount of
water used during the REGULAR, HEAVY DUTY, HAND WASH
or EASY IRON wash cycles.
The QUICK WASH option has not been designed to be used
with fabric softener as it does not have a second deep rinse
to dispense the softener correctly. Fabric softener should
not be used if this option is selected.
EXCELLENCE
PRIDE
EXCELLENCE
Fig.15 Selecting the ECO option
Fig.16 Selecting the QUICK WASH
option
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 14 8/10/09 2:45:25 PM

15
Wash options
Soak
EXCELLENCE model only
Use the SOAK option to soak clothes at the end of the wash
phase or when you wish to re-use the wash water.
When you select SOAK your Smart Drive™ will soak for a period
of 2 hours before completing RINSE and SPIN. During SOAK
your Smart Drive™ will agitate for a few seconds every minute.
Nappy sanitisers/bleach
Nappy sanitisers and bleach are very corrosive to metal surfaces.
These should not be used in your machine.
Important!
DO NOT use your Smart Drive™ to soak items in bleach or sanitiser, or tip the contents of the
nappy bucket into your machine. The chemicals in these products can damage your washer.
Rinse and wring items out thoroughly before placing them in your machine.
Spin Hold
EXCELLENCE & PRIDE model
Use the SPIN HOLD option to:
Remove drip dry garments from a mixed load before the wash
goes into SPIN.
Minimise the clothes creasing when they are left to sit in the
bottom of the bowl at the end of the cycle.
When you have selected SPIN HOLD, your Smart Drive™ will
pause at the end of RINSE, beep and the SPIN light will flash
to tell you that it is waiting for another instruction.
Press START/PAUSE to begin the spin.
Delay Start
EXCELLENCE model only
DELAY START will delay the start of the wash cycle for 1, 3 or
9 hours.
Press DELAY START once for a delay of 1 hour. Press again for
3 hours, a third time for 9 hours (and again to return to normal).
Once you press DELAY START your Smart Drive™ will begin the
delay period, you do not have to press START/PAUSE.
Be careful if using DELAY START for non-colourfast clothes as
dyes may run if the clothes are damp.
Your Smart Drive™ will not beep at the end of the cycle if
DELAY START is selected.
EXCELLENCE
Fig.18 Selecting the SPIN HOLD
option
Note: while EXCELLENCE model is
shown, setting of the PRIDE model
is identical
EXCELLENCE
Fig.17 Selecting the SOAK option
Fig.19 Selecting DELAY START
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 15 8/10/09 2:45:25 PM

16
Wash options
Washing bulky items
Forcing large items into the machine may result in
them being damaged during washing. Make sure
there is enough room in the machine for items to
move when being washed.
Some items float up during the wash (eg duvets/
doonas and pillows). If they sit too high they may
touch stationary parts of the machine during
agitate or spin. To minimise the chance of this
happening, bulky items should be pushed down
below the water level after fill and pushed to sit
below the medium high water level mark on the
agitator before spinning. Select a SLOW spin.
Important!
To prevent an out of balance load or splash-over we recommend washing these items on the
HAND WASH cycle (EXCELLENCE model) or the DELICATE cycle (PRIDE model).
If you wish to re-spin the load at a faster speed make sure the load is sitting below the
medium-high mark before spinning.
Washing woollens
Many woollen items carry a MACHINE WASHABLE care
claim. The fibres of these woollens have been treated
to prevent felting when they are machine washed.
Check the care label.
Use a wool detergent.
Use the specially designed HAND WASH cycle (EXCELLENCE model) or WOOL cycle
(PRIDE model). For your more durable woollens you may want to use the EASY IRON cycle
(EXCELLENCE model only).
Hand washed woollens may be spun in your Smart Drive™.
To dry woollens lie them flat on a towel and pat into shape. Dry out of direct sunlight.
Most handcrafted garments are not made of machine washable wool and we recommend that
you wash them by hand only.
Note: some wool underlays and sheepskin products can be washed in a washing machine but
could produce excessive amounts of lint that may cause pump blockages.

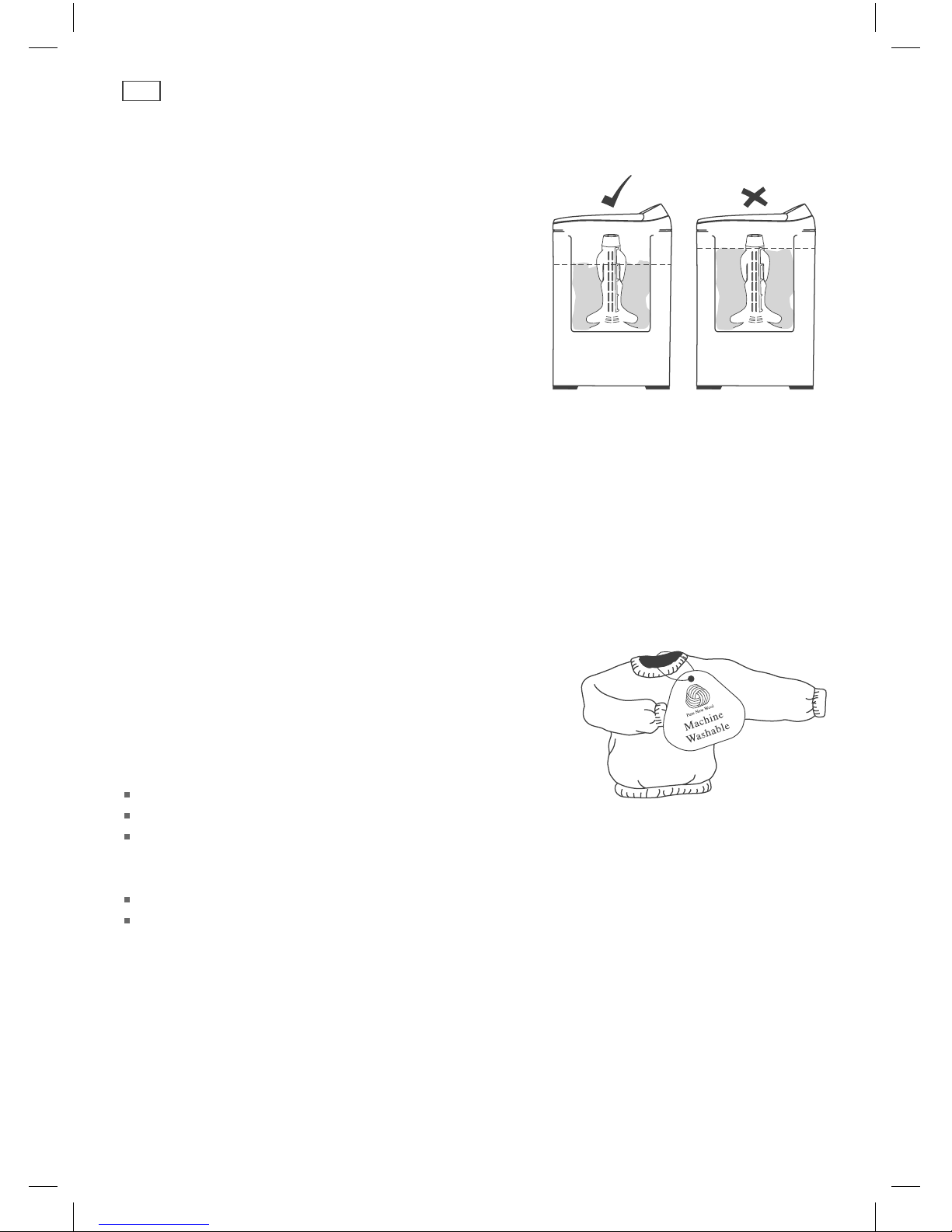

Fig.20 Bulky items should sit below the
medium high water level mark.
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 16 8/10/09 2:45:25 PM

17
Favourite cycle
FAVOURITE cycle
EXCELLENCE model only
The FAVOURITE cycle lets you design the wash cycle. It can be any wash cycle with any of its
wash options and it can start from any point in the cycle. For instance, it may be a cycle to wash
your gym gear or it may be a rinse and spin to finish washing the nappies.
To set your favourite cycle
1
Press POWER.
2
Press the FAVOURITE cycle button. Hold down for 2 seconds.
3
You will hear 2 quick beeps and the FAVOURITE light will flash.
4
Select your most preferred (‘favourite’) cycle, (eg REGULAR, ALLERGY).
5
Select the wash options (eg COLD wash, SOAK). Use ADVANCE if you want part of a cycle
(eg to rinse nappies).
6
Press FAVOURITE again to store your favourite cycle.
To change your FAVOURITE cycle simply repeat these steps.
Note: your Smart Drive™ will remember your FAVOURITE cycle even when it is turned off at the
wall. It is not possible to program a delayed start into the FAVOURITE cycle.
To use your favourite cycle
1
Press POWER.
2
Press FAVOURITE.
(Your favourite cycle and wash options will
be automatically selected).
3
Press START/PAUSE.

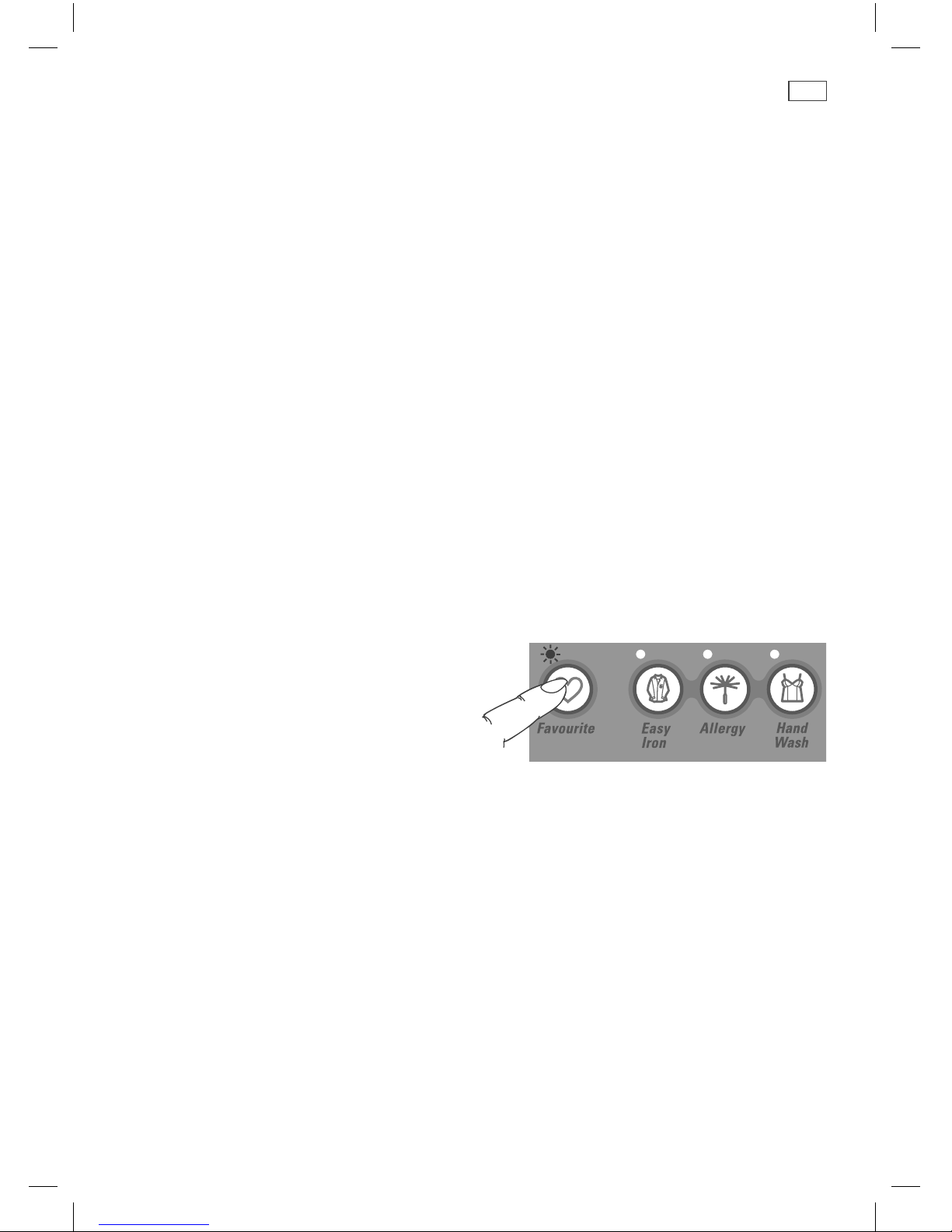

Fig.21 The FAVOURITE cycle
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 17 8/10/09 2:45:25 PM

18
Customising the wash cycles
To customise a cycle
EXCELLENCE model only
You can program your Smart Drive™ to remember the wash options you prefer for each wash
cycle. For instance, you may want to set the REGULAR cycle to a COLD wash or set HEAVY DUTY
to include a SOAK.
1
Press POWER.
2
Press the wash cycle button. Hold down for 2 seconds.
You will hear 2 quick beeps and the wash cycle light will flash.
3
Select your wash options (eg COLD wash, SOAK).
4
Press the wash cycle again to store your customised cycle.
To change your customised wash cycle simply repeat these steps.
When you are customising a wash cycle you can shorten or lengthen the agitation time.
To shorten the agitation time, press the ADVANCE button to reduce the number of wash
progress lights.
To increase the agitation time keep pressing the ADVANCE button until all the wash progress
lights are on (see page 12).
Note: unlike the FAVOURITE cycle you cannot customise a wash cycle to start at the RINSE or
SPIN stage. On HEAVY DUTY and HAND WASH you can only decrease the wash time.
Fig.22 Customising a wash cycle
4323_NZ_AU_PAC_GW_MW_Washer_UG11.indd 18 8/10/09 2:45:26 PM
