Fox 43DLE488 User manual

Android™OS
Model:43DLE488
请收文件
请注意此说明书共48P,封面用157克铜版纸，彩色印刷,内页用80克双胶纸，单黑印刷
注：内页封面也彩色印刷（128克铜版）

SAFETY INSTRUCTION
1
WARNING
IMPORTANT SAFETY INSTRUCTIONS
• TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE TO PREVENT
BLADE EXPOSURE.
• TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
The exclamation mark
within an equilateral
triangle alerts users
to the presence of
important operating
and maintenance
(servicing) instructions
in the literature
accompanying the
appliance.
This lightning flash with
arrowhead symbol in an
equilateral triangle alerts
users to the presence of
uninsulated dangerous
voltage within the
products enclosure that
may be of sufficient
magnitude to constitute
a risk of electric shock.
This appliance should not be exposed to water and no object filled with liquid such as a vase should be
placed on the unit.
CAUTION
·Danger of explosion if incorrectly replaced.
·Replace with only equivalent type of battery.
·Do not expose battery to direct sunlight or any other source of heat.
·Ensure proper disposal of used batteries.
·Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
·To reduce the risk of electric shock, do not perform any servicing other than what is mentioned in
the operating manual.
·There are no user-serviceable parts inside the TV; do not open the TV casing.
batteries are
IMPORTANT INFORMATION
If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to
falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
·Using cabinets or stands recommended by the manufacturer of the television.
·Only using furniture that can safely support the television.
·Ensuring the television is not overhanging the edge of the supporting furniture.
·Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring
both the furniture and the television to a suitable support.
·Not standing the televisions on cloth or other materials placed between the television and supporting
furniture.
·Educating children about the dangers of climbing on furniture to reach the television or its controls.

17. Object and Liquid Entry - Care should be taken so that objects do not fall, and liquids are not
spilled into the enclosure through openings.
19. The ventilation should not be impeded by covering the ventilation opening with items,
such as newspapers, table-cloths, curtains, etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
The apparatus shall be connected to mains socket outlet with a protective earthing connection.
The appliance coupler regarded as disconnection device, the disconnect device shall remain readily
operable.
20. The equipment may be used in tropical and moderate climates.
18. Conditions requiring Service - The appliance should be serviced by qualified service personnel
when:
·The power-supply cord or the plug has been damaged.
·Objects have fallen on or liquid has been spilled into the appliance.
·The appliance has been exposed to rain.
·The appliance does not appear to operate normally or exhibits a marked change in performance.
1. Read Instructions - All the safety and operating instructions should be read before the appliance is
operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered
to.
4. Follow Instructions - All operating instructions should be followed.
5. Water and Moisture - The appliance should not be used near water.
6. Cart and Stands - The appliance should only be used with a cart or stand that is recommended by
the manufacturer.
7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as
recommended by the manufacturer.
8. Ventilation - The appliance should be well situated so that its location or position does not
interfere with its proper ventilation.
9. Heat - This appliance should be placed away from heat sources such as radiators, heat registers and
stoves.
10. Power Sources - The appliance should only be connected to a power supply as described in the
operating instructions or as marked on the appliance.
11. Grounding or Polarization - Precautions should be taken.
12. Power Cord Protection - Power supply cord should be routed so that it is not likely to be walked
on, pinched by items placed upon it against the cord and its end.
13. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.
14. Power Line - An outdoor antenna should be located away from power lines.
15. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, the antenna
system must be grounded so as to provide against voltages and built-up static charges.
16. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left
unused for a long period of time.
SAFETY INSTRUCTION
2

Warning
High voltages are used in the operating of this product.
Do not remove the back cover of the cabinet. Refer servicing
to qualified service personnel.
Warning
To prevent fire or electrical shock hazard, do not expose the
main unit to rain or moisture.
Warning
Do not drop or push objects into television cabinet slots or
openings. Never spill any kind of liquid on the television
receiver.
Caution
If the television is to be built into a compartment or
similarly enclosed, the minimum distances must be
maintained.
Heat built up can reduce the service life of your
television, and can also be dangerous.
Caution
Never stand on, lean on, push suddenly the product or its
stand.
You should pay special attention to children.
Caution
Do not place the main unit on an unstable cart stand, shelf
or table.
Serious injury to an individual, and damage to the television,
may result should it fall.
Caution
When the product is not used for an extended period of
time, it is advisable to disconnect the AC power cord from
the AC outlet.
Caution
Avoid exposing the main unit to direct sunlight and other
sources of heat. Do not position television receiver directly
on other products which give off heat. E.g. Video cassette
players, audio amplifiers. Do not block the ventilation holes
in the back cover. Ventilation is essential to prevent
electrical failure. Do not squash power supply cord under
the main unit.
Caution
The panel used in this product is made of glass. It can break
when the product is dropped or applied with force.
Individuals should execute caution when dealing with
broken glass should the panel break.
SAFETY INSTRUCTION
3

SAFETY INSTRUCTIONS
1 - 3
DESCRIPTION OF CONTROL KEYS & CONNECTORS
OPERATION OF REMOTE CONTROL
CONNECTIONS
OPERATION OF FUNCTION MENU
TROUBLE SHOOTING GUIDE
SPECIFICATIONS
5 - 6
7 - 8
9
10 - 26
27
27
CONTENTS
4

CONTROL BUTTON AND TERMINAL
5

CONTROL BUTTON AND TERMINAL
6

6. VOL+/VOL- BUTTON
Press two buttons to directly to turn up or turn down the
sound volume level.
7. MENU BUTTON
Press the button to open the main menu, press again or
use Exit to close.
8. OK / ENTER BUTTON
Press the button to confirm or enter sub menus.
9. UP, DOWN, LEFT, RIGHT ARROW BUTTONS
Press these buttons to select or adjust the desired item
on the TV menu.
10. EXIT BUTTON
Press the button to exit.
11. MUTE BUTTON
Press the button to turn off the volume. Press it again to
turn on the volume.
12. SLEEP BUTTON
Press the button to set up the TV auto turn off time.
13. RETURN BUTTON
Press the button to toggle between the current and the
previous program you were viewing.
14. FAV. BUTTON
Display favourite of program list.
15. CH+/CH- BUTTON
Press two buttons to directly to adjust the TV program.
16. REC BUTTON
Hotkey of PVR.
17. SOURCE BUTTON
Press the button display Source menu.
18. ASPECT BUTTON
Press the button to display and select available aspect
modes.
19. INFO BUTTON
Display the source and channel information.
20. AUDIO BUTTON (Optional)
Selects audio mode.
21. EPG BUTTON
Open/Close Electronic program guide.
22. DTV/RADIO BUTTON
Switch DTV program and radio program.
23. HOME BUTTON
Back to home OSD.
24. MOUSE BUTTON
MOUSE On/Off.
25. FILE BUTTON
Android OSD operate guide.
26. DELETE BUTTON
User for delete the input.
27. ZOOM+ BUTTON
Directly to turn up the SMART TV sound volume level.
28. ZOOM- BUTTON
Directly to turn down the SMART TV sound volume level.
Note:
EPG, DTV/RADIO, REC are only effective in DTV mode.
The remote controller cannot be used unless it is within the receivable range. Before you use the remote
control, please make sure there's no obstacle between the remote control and the receiver.
1. POWER BUTTON
Switch On/Off the TV when at standby
mode.
2. S.MODE BUTTON
Sound effect selection.
3. P.MODE BUTTON
Picture effect selection.
4. NUMBER BUTTONS
Press these buttons to select the TV
program you want to enter or input
password.
5. FREEZE BUTTON
Freeze picture.
OPERATION OF REMOTE CONTROL
7

BATTERY INSTALLATION OF REMOTE CONTROL UNIT
1.Open the battery compartment cover.
2.Insert two AAA (pencil size) 1.5V
batteries. Make sure the polarity (+ or -)
of the batteries matches the polarity
marks inside the unit.
3.Close the battery compartment cover.
‘ ’
Note:
Recommend use alkaline type batteries.
The life time of the batteries may last up
to one year, depending on how often the
remote control is used. For the best
performance, the batteries should be
replaced on a yearly basis, or when remote
operation becomes erratic.
Be sure to place the batteries in the correct
direction, as shown left.
Do not mix old and new batteries, or
different types.
Old batteries may leak chemical and damage
the remote control. Always remove batteries
as soon as they become weak.
TELETEXT FUNCTION(optional)
1)TEXT BUTTON
Press the TEXT button to change the viewing from
TV to Teletext if TV stations in your local have
teletext broadcasting.
2) REVEAL BUTTON
This is a toggle function key to display hidden
characters.
3) MIX BUTTON
This is a toggle function button to display TV
Picture and teletext together or teletext only.
4) RED/GREEN/YELLOW/BLUE BUTTONS
These 4 Colour keys in teletext mode can quickly
enter the Pre-captured teletext pages.
5) ▲/▼ BUTTON
These keys can be used as a page up/down key in
teletext mode.
6) 0, 1, 2,..., 9 BUTTON
Using the 0,1 ,2, ..., 9 keys, the required Teletext
Pages are selected.
7) HOLD BUTTON
Some Teletext information is contained on more
than one page, the pages automatically changing
after a given reading time. Press the HOLD key to
stop the page changing. Press the HOLD key again
to allow the page to change.
8)INIDEX BUTTON
Press the INDEX key to view Index page in
teletext mode.
9) SIZE BUTTON
This key is to expand character size and display
half teletext page,Each press will display upper....
tower ....Normal page.
USB FUNCTION (Optional)
1) / BUTTON
Skip a scene or music.
2) / BUTTON
Go back to the previous or skip to the next.
3) BUTTON
Play / Pause.
4) BUTTON
Stop playback.
5) SUBTITLE BUTTON
In the USB playback moives,open or closed
subtitle function(Need streaming support).
Note:
A USB device must already be connected.
OPERATION OF REMOTE CONTROL
8

INSTALLATION OF ANTENNA
Connect the 75 OHM coaxial cable from the antenna to the antenna jack on the rear panel, as shown
above.
Note:
For better reception, especially in outlying area or where ghost or interference happens, an external
roof-mounted antenna is recommended.
For UHF TV reception, use the specified UHF antenna. Consult the local sale dealer.
When using 300 OHM flat cable, a 300 OHM - 75 OHM adapter should be adopted for a proper
connection to the antenna jack.
POWER CONNECTION
Plug the AC cord into an AC outlet.
Press the Power button on the remote control to turn on, press the Power button again to standby.
Note:
This unit should be operated from a household AC100-240V~ 50/60Hz.
When you disconnect the power supply cord, pull it out by the plug. Never pull the cord itself.
CAUTIONS:
During a power outage, the TV should be unplugged from the AC outlet. To conserve energy the TV
should be unplugged from the AC outlet if not being used for a prolonged period of time.
·
·
·
·
·
·
·
CONNECTIONS
9

Welcome to use Internet Smart Cloud TV
For your enjoyment of viewing content, we need to do some simple settings
Start the setup
5
Select the language you are using
English
Deutsch
Francais
Note: The above pictures are for reference only, there may be differences in kind.
FTI
Connect an RF cable from the TV’s input called “RF-In” and to your TV Aerial socket.
Press OK button to select the Start the setup.
Press【▼】 【▲】button to select the language.
Press OK button to sure, and press【►】button to setup country.
/
OPERTION OF FUNCTION MENU
10

Press【▼】/【▲】button to select
Press OK button to sure, and press【 】button to select the time zone.
the country.
►
Press【▼】/【▲】button to select
Press【 】button to connect the WIFI/network.
the time zone.
►
OPERTION OF FUNCTION MENU
11
/ 5
Select the country you are using
UK
Ukraine
2
/ 5
3
Select the time zone you are using
Kiev (GMT+2:00)
Pago_Pago (GMT-11:00)
Niue (GMT-11:00)

Press button to
Press button to select the input source.
OK connect the WIFI/network.
【►】
Press button to select the input source.【▼】/【▲】
OPERTION OF FUNCTION MENU
12
/ 5

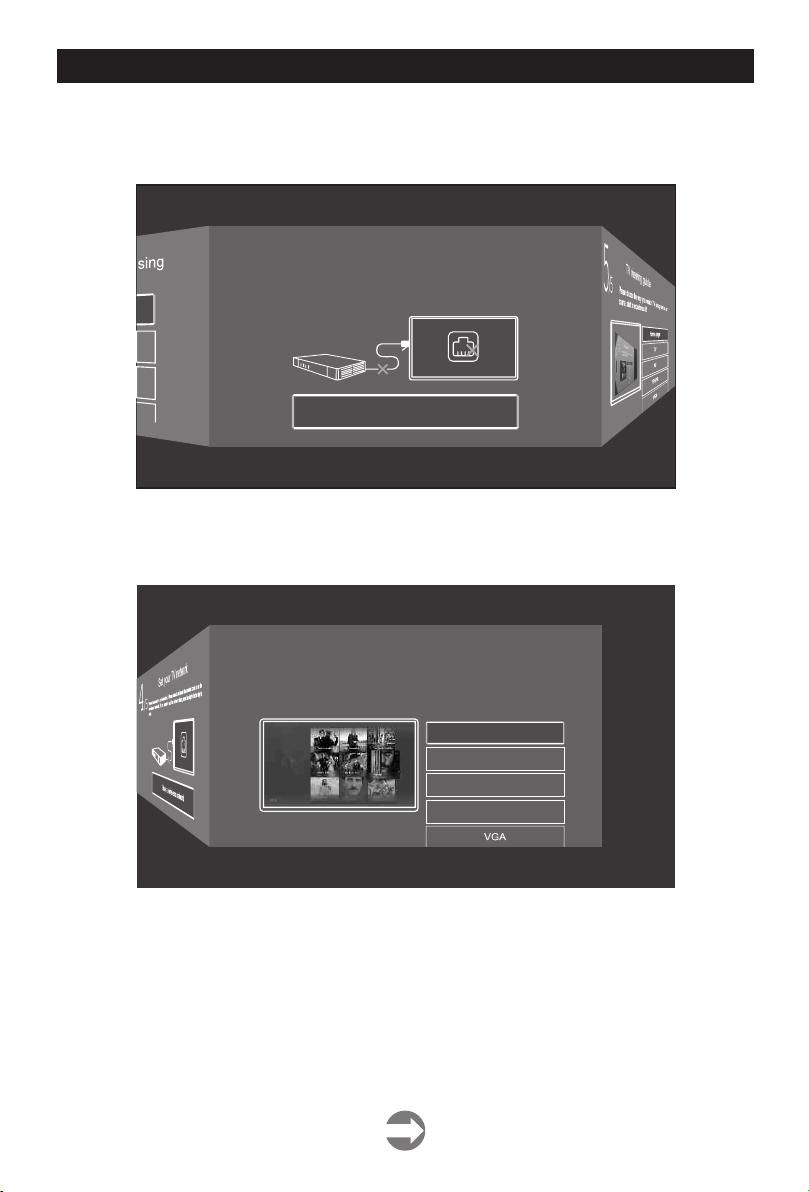

4
Set your TV network
Wired network is not detected. Please check and insert the network cable or use the
wireless network. If you want to set the network later, press the night direction key to
skip.
Use a wireless network
/ 5
5
TV viewing guide
Please choose the way you watch TV programs or
source, start to experience it!
Home page
TV
AV
YPBPR

INPUT SOURCE
MAIN MENU
Press SOURCE button to enter Input Source menu.
Press【▼】/【▲】button to select.
Press ENTER to select source.
HOME
Press button to select HOME menu.
Press【▼】/【▲】/【◄】/【►】button to select.
【◄】/【►】
OPERTION OF FUNCTION MENUOPERTION OF FUNCTION MENU
13
02:09
2018/1/1 Monday
AM
TV TV No Signal
TV TV
AV
YPBPR
VGA
HDMI 1
HDMI 2
APPS
Browser Download Applications
LIKE APPS

APPS/LIKE_APPS
Press button to select APPS/LIKE_APPS to add app.【▼】/【▲】
Press to select App to install.【▼】/【▲】/【◄】/【►】
OPERTION OF FUNCTION MENU
14
APPS
Browser Download Applications
User adds User adds User adds User adds User adds
LIKE APPS
OTHERS
02:09
2018/1/1 Monday
AM
App List
Browser Downloads File Browser Smar TV Store TV Clean
File Browser
Edit with MENU key

SETTINGS
Press【▼】/【▲】/【◄】/【►】button to enter Settings.
Press MENU button to enter main menu.
Press【◄】/【►】button to select Picture.
Press ENTER to enter setting.
1. Press to select: Picture Mode/Contrast/Brightness/Color/Sharpness/Backlight/
Noise Reduction/Color Temp/More Settings.
2. Press【◄】/【►】to adjust or select.
【▼】/【▲】
15
OPERTION OF FUNCTION MENU
Home Source
APPS
Browser Download
User adds User adds
LIKE APPS
OTHERS
Settings File Explorer
Applications
User adds User adds User adds
02:09
2018/1/1 Monday
AM
Home Source Picture Sound Channel System Lock Time
Picture Mode
50
50
50
Contrast
Brightness
Color
Color
Sharpness
Noise Reduction
50
50
>
Backlight 100
> >
Middle
Backlight
Noise Reduction
Color Temp
100
> >
Middle
> >
Normal
More Settings >

Color Temp
Adjust the overall color of the image.
Press【▼】/【▲】to select Colour Temperature. press【◄】/【►】to select.
(Optional:Cool, Normal, Warm).
Cool Produces a gentle blue-hued image.
Normal Produces a vivid image.
Warm Produces a red-hued image.
Contrast / Brightness / Colour / Sharpness / Backlight
【▼】/【▲】 【◄】/【►】
Contrast Adjust image contrast.
Brightness Adjust image brightness.
Color Adjust image color density.
Sharpness Adjust the image edge sharpness.
Backlight Adjust the screen backlight brightness.
Press to select,and press to adjust.
Noise Reduction
Setting the option to eliminate image noise intensity.
Press to select Noise Reduction, and press to select.
(Optional: Off,Low,Middle,High,Auto).
【▼】/【▲】 【◄】/【►】
Picture Mode
Press【▼】/【▲】button to select Picture Mode, then press【◄】/【►】button to select.
(Optional: Standard,Movie,Vivid,Soft,User).
Standard The default mode, to make users experience high-quality images under normal light.
Movie This mode is more suitable for watching movies.
Vivid Image colors more beautiful, more vivid picture.
Soft Produces s highly defined image in a soft lit room.
User User-defined picture settings.
More Settings
Press to select【▼】/【▲】 More Settings
DLC
Press to select , press to select Dark/Normal/Bright/Off.【▼】/【▲】DLC 【◄】/【►】
16
OPERTION OF FUNCTION MENU
DLC >
>
Normal
More Settings

17
OPERTION OF FUNCTION MENU
Sound
Press MENU button to display the main menu.
Press【◄】/【►】button to select Sound in the main menu.
Press to select:Sound Mode/Bass/Treble/Balance/AVC/More settings.
Press ENTER /【◄】/【►】to select or adjust.
【▼】/【▲】
Press button to select Sound Mode, then press button to select.
(Optional: Standard, Music,Theater,News,User ).
Standard Produces a balanced sound in all environments.
Music Preserves the original sound.Good for musical programs.
Theater Enhances treble and bass for a rich sound experience.
News Enhanced voice.
User Select to customize picture settings.
Sound Mode
【▼】/【▲】 【◄】/【►】
Bass
Treble Adjust the treble.
Balance Adjust the left and right channel output balance.
Press【▼】/【▲】button to select Balance, then press【◄】/【►】button to adjust.
Adjust the bass.
AVC
Press【▼】/【▲】button to select AVC, then press【◄】/【►】button to choose ON/OFF.
After opening the AVC,Once the volume is set, regardless of any difference TV Version printed
on each channel, it can make the speaker volume remained stable.
Source Picture Sound Channel System Lock Time Settings
Sound
Sound Mode >
>
Standard
Bass
Treble
Balance
50
50
0
50
0
Sound
Treble
Balance
AVC
More Settings >

SPDIF
Press【▼】/【▲】button to select SPDIF, then press【◄】/【►】button to choose
OFF / RAW / PCM.
SPDIF Delay
Press【▼】/【▲】button to select SPDIF Delay, then press【◄】/【►】button to adjust.
Surround
Achieve better surround sound effect.
Press【▼】/【▲】button to select Surround, then press【◄】/【►】button to choose ON/OFF.
Audio Only
After the opening screen is not displayed only plays sound
Press【▼】/【▲】button to select Audio Only, then press【►】button to choose ON/OFF.
More Settings
18
OPERTION OF FUNCTION MENU
Audio Only Notice
Are you sure to open Audio Only Mode?
Cancel OK
SP DIF
More Settings
> >
PCM
50
SPDIF Delay
Surround
Asdio Only >
