Fox 32DLE198 User manual

MODE L : 32DL E 198

1
17
18

2
CAUTION
·Danger of explosion if incorrectly replaced.
·Replace with only equivalent type of battery.
·Do not expose battery to direct sunlight or any other source of heat.
·Ensure proper disposal of used batteries.
·Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect
device shall remain readily operable.
·To reduce the risk of electric shock, do not perform any servicing other than what is mentioned in the
operating manual.
·There are no user-serviceable parts inside the TV; do not open the TV casing.
batteries are
IMPORTANT INFORMATION
If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to
falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:
·Using cabinets or stands recommended by the manufacturer of the television.
·Only using furniture that can safely support the television.
·Ensuring the television is not overhanging the edge of the supporting furniture.
·Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring
both the furniture and the television to a suitable support.
·Not standing the televisions on cloth or other materials placed between the television and supporting
furniture.
·Educating children about the dangers of climbing on furniture to reach the television or its controls.
Use the belt fixing the television to facilitate
restraining the television from toping forward.
Safe installation
IMPORTANT SAFETY INSTRUCTIONS
This appliance should not be exposed to water and no object filled with liquid such as a vase should be
placed on the unit.
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE AN EXTENSION CORD,
RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE TO PREVENT
BLADE EXPOSURE.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This lightning flash with
arrowhead symbol in an
equilateral triangle alerts
users to the presence of
uninsulated dangerous
voltage within the
products enclosure that
may be of sufficient
magnitude to constitute
a risk of electric shock.
The exclamation mark
within an equilateral
triangle alerts users
to the presence of
important operating
and maintenance
(servicing) instructions
in the literature
accompanying the
appliance.
Warning: To reduce the risk of
electric shock, do not remove
cover(or back). No user
serviceable parts inside. Refer
servicing to qualified service
personnel.
SAFETY INSTRUCTIONS

3
1. Read Instructions - All the safety and operating instructions should be read before the appliance is
operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered
to.
4. Follow Instructions - All operating instructions should be followed.
5. Water and Moisture - The appliance should not be used near water.
6. Cart and Stands - The appliance should only be used with a cart or stand that is recommended by
the manufacturer.
7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as
recommended by the manufacturer.
8. Ventilation - The appliance should be well situated so that its location or position does not
interfere with its proper ventilation.
9. Heat - This appliance should be placed away from heat sources such as radiators, heat registers and
stoves.
10. Power Sources - The appliance should only be connected to a power supply as described in the
operating instructions or as marked on the appliance.
11. Grounding or Polarization - Precautions should be taken.
12. Power Cord Protection - Power supply cord should be routed so that it is not likely to be walked
on, pinched by items placed upon it against the cord and its end.
13. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.
14. Power Line - An outdoor antenna should be located away from power lines.
15. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, the antenna
system must be grounded so as to provide against voltages and built-up static charges.
16. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left
unused for a long period of time.
17. Object and Liquid Entry - Care should be taken so that objects did not fall, and liquids are not
spilled into the enclosure through openings.
18. Conditions requiring Service - The appliance should be serviced by qualified service personnel
when:
The power-supply cord or the plug has been damaged.
Objects have fallen on or liquid has been spilled into the appliance.
The appliance has been exposed to rain.
The appliance does not appear to operate normally or exhibits a marked change in performance.
19. The ventilation should not be impeded by covering the ventilation opening with items, such as
newspapers, table-cloths,curtains,etc.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
The apparatus shall be connected to mains socket outlet with a protective earthing connection.
The appliance coupler regard as disconnection device, the disconnect device shall remain readily
operable.
20. The equipment may be used in tropical and moderate climates.
SAFETY INSTRUCTIONS

4
SAFETY INSTRUCTIONS
Warning
High voltages are used in the operating of this product.
Do not remove the back cover of the cabinet. Refer servicing
to qualified service personnel.
Warning
To prevent fire or electrical shock hazard, do not expose the
main unit to rain or moisture.
Warning
Do not drop or push objects into television cabinet slots or
openings. Never spill any kind of liquid on the television
receiver.
Caution
If the television is to be built into a compartment or
similarly enclosed, the minimum distances must be
maintained.
Heat built up can reduce the service life of your
television, and can also be dangerous.
Caution
Never stand on, lean on, push suddenly the product or its
stand.
You should pay special attention to children.
Caution
Do not place the main unit on an unstable cart stand, shelf
or table.
Serious injury to an individual, and damage to the television,
may result should it fall.
Caution
When the product is not used for an extended period of
time, it is advisable to disconnect the AC power cord from
the AC outlet.
Caution
Avoid exposing the main unit to direct sunlight and other
sources of heat. Do not position television receiver directly
on other products which give off heat. E.g. Video cassette
players, audio amplifiers. Do not block the ventilation holes
in the back cover. Ventilation is essential to prevent
electrical failure. Do not squash power supply cord under
the main unit.
Caution
The panel used in this product is made of glass. It can break
when the product is dropped or applied with force.
Individuals should execute caution when dealing with
broken glass should the panel break.

5
DESCRIPTION OF CONTROL KEYS & CONNECTORS
CONTROL KEYS:
CONNECTORS:
SOURCE BUTTON
MENU BUTTON
VOLUME UP BUTTON
VOLUME DOWN BUTTON
PROGRAM UP BUTTON
PROGRAM DOWN BUTTON
STANDBY BUTTON
BUTTON NAME
NOTE:
1. All these control buttons designs are common use for our TV models, and please refer to that under your real product.
2. This control keys quantity can be different according to models, and please refer to your real product in hand.
INPUT MENU
VOL VOL CH CH
STANDBY
To display source menu.
To select menu.
To increase the sound volume level
To decrease the sound volume level
To select the next higher programme
number.
To select the next lower programme
number.
Switch ON/OFF the TV when at
standby mode.
BUTTON ICON TYPE
BUTTON INSTRUCTION
1 2 3 4 5
SOURCE
MENU
VOL+
CH+
POWER
VOL-
CH-
INPUT
MENU
VOL+
CH+
STANDBY
VOL-
CH-
PORT NAME
AV IN
COMPONENT IN
AV OUT
PORTS ICON TYPE PORT INSTRUCTION
AV input port
YPbPr signal input port
3VIDEO R
L
AUDIO
AV1 IN
VIDEO R
L
AUDIO
AV2 IN
4VIDEO R L
AUDIO
AV1 IN
VIDEO R L
AUDIO
AV2 IN
2YPbPr
1VIDEO R
L
AUDIO
AV IN VR
L
AV IN
1YPr
Pb
COMPONENT IN YPr
Pb
AV output port
2VIDEO R L
AUDIO
AV OUT
TERMINAL ANTENNA
(75 OHM) TV signal input port
ANT
2VIDEO R L
AUDIO
AV IN
AV IN
1AV OUT
VIDEO R
L
AUDIO
AV OUT
TERMINAL ANTENNA
(75 OHM) Satellite signal input port
RF(S2)

6
DESCRIPTION OF CONTROL KEYS & CONNECTORS
NOTE:
1. All these terminal connection icons are commonly used for our TV models, and please select designated ports.
2. This connection ports quantity can be different according to models, and please refer to your actual product.
CONNECTORS:
HDMI IN
USB IN
HDMI signal input port
2HDMI 2HDMI 1
3HDMI 2HDMI 1 HDMI 3
USB input port
1
USB
VGA AUDIO IN
VGA AUDIO
IN VGA audio input port
PC Audio IN
VGA IN RGB signal input port
VGA VGA IN
HDMI
1HDMI IN
2
USB1 USB2
USB2
USB1
EARPHONE OUT Earphone output port
Earphone out
COAXIAL OUT Coaxial output port
COAXIAL
AUDIO OUT Audio output port
AUDIO OUT
TF IN TF card input port
TF IN TF
SCART SCART signal input port
SCART
RJ45 IN RJ45 input port
RJ45
Video output port
VIDEO OUT
VIDEO OUT
OPTICAL OUT Optical output port
OPTICAL
PCMCIA(CI/CI+) IN PCMCIA(CI/CI+) card input port
PCMCIA CI+CI
PORT NAME PORTS ICON TYPE PORT INSTRUCTION
4HDMI 2HDMI 1 HDMI 3 HDMI 4
LINE OUT Audio output port
LINE OUT
DC IN DC +12V input port
DC IN
12V
AUDIO IN
AUDIO IN Audio input port

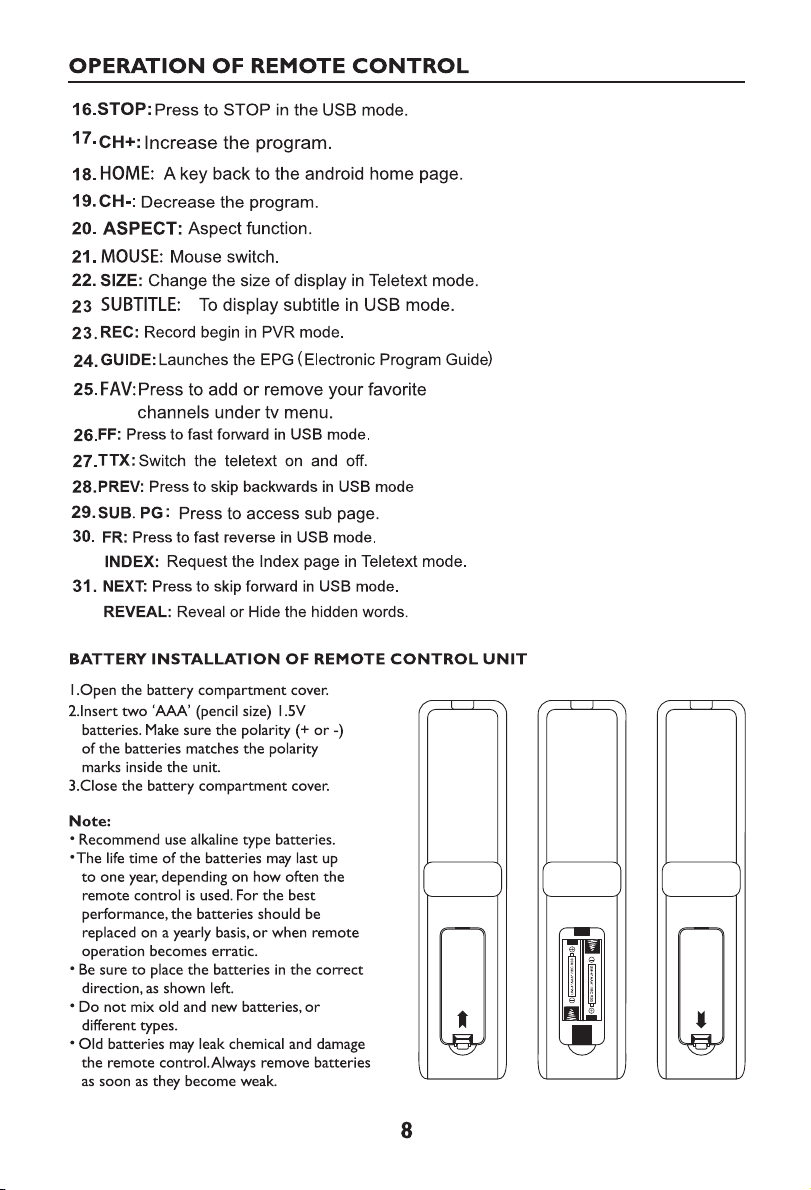

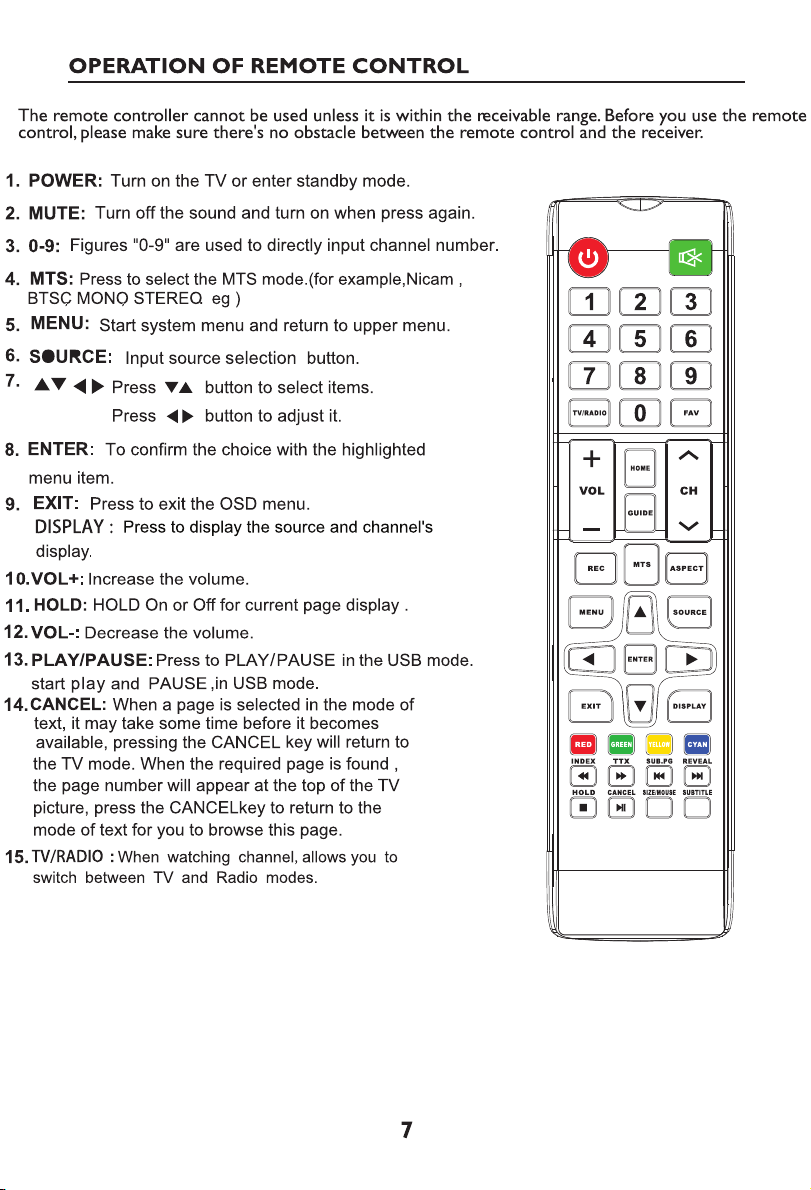

9
OPERATION OF FUNCTION MENU
Note: The pictures on this manual are only examples and the actual products shall prevail.
Setup Wizard
Connect an RF cable from the Tv's input called “RF-In” and to your TV Aerial socket. Press OK button to
select the Start the setup.
Press button to select
the language. Press OK button to sure,
and press【►】button to select the
time zone.
【▼】/【▲】
Press button to select the
time zone. Press OK button to sure, and
press【►】button to connect the WIFI/
network.
【▼】/【▲】
Press OK button to connect the WIFI/
network. Press【►】button to select the
input source.
Note: This picture is for reference only.
Note: This picture is for reference only.
Start the setup
Welcome to use Smart TV
Note: This picture is for reference only.
Kuwait
Qatar
Riyadh
Istanbul
GMT-03:00
GMT-03:00
GMT-03:00
GMT-03:00

10
OPERATION OF FUNCTION MENU
Press button to select the
input source.
【▼】/【▲】
Home Page
Press button to select Home
page in Setup Wizard or press【◄】/
【►】button to select Home in the menu
of TV input .
【▼】/【▲】
When the cursor is near the left border,
press【◄】button to call up the sidebar.
Press the【▼】/【▲】button to select
Apps / Network / Media / Settings.
You can choose the program you want
on the home page.
My Apps
Press
button to select My Apps, and press OK
button to enter the App List.
【▼】/【▲】/【◄】/【►】
Note: This picture is for reference only.
Please choose the way you watch TV programs or source, start to
experience it!
AV1
YPBPR
AV2
Note: This picture is for reference only.
Note: This picture is for reference only.
Note: This picture is for reference only.
AV1
AV2
03:10
YPBPR
HDMI1
2020-01-01
Wed.
TV No Signal Browser
YPBPR
HDMI1
03:10
2020-01-01
Wed.
Kindlink

11
OPERATION OF FUNCTION MENU
Settings
Press button
to select the Settings, and press OK button
to enter the System Setting.
Press【◄】/【►】button to select
Network / Time / Common / System Info.
【▼】/【▲】/【◄】/【►】
System Setting
Network Time Common System Info
Network
Press button to select
Network, press OK button to enter.
【◄】/【►】
Time
Press button to select
Time, press OK button to enter.
【◄】/【►】
Common
Press button to select
Common, press OK button to enter.
【◄】/【►】
System Info
Press button to select
System Info, press OK button to enter.
【◄】/【►】
Media
Press
button to select Multimedia on the
Home page, and press OK button to
enter the Media Center.
Press【▼】/【▲】button to select
All / Video / Audio / Image.
Press【▼】/【▲】/【◄】/【►】
button to select the file, press MENU
button to open the submenu.
【▼】/【▲】/【◄】/【►】
Note: This picture is for reference only.
Note: This picture is for reference only.
Connection
Note: This picture is for reference only.
Note: This picture is for reference only.
GMT+03:00, Istanbul
Auto
2020/01/01 03:11
The Device Name SMART TV

12
OPERATION OF FUNCTION MENU
Video
Press button to select
Video or All, and press【▼】/【▲】/
【◄】/【►】button to select Movies.
【▼】/【▲】
Audio
Press【▼】/【▲】button to select
Audio or All, and press【▼】/【▲】/
【◄】/【►】button to select Music.
Press button to select
Image or All, and press【▼】/【▲】/
【◄】/【►】button to select Pictures.
【◄】/【►】
Input Source
TV Setting
Press SOURCE button to enter Input Source menu.
Press【▼】/【▲】button to select.
Press OK to select source.
Press MENU button to enter main menu.
Press【◄】/【►】button to highlight the desired menu icon, and press OK button to select.
(Optional: Home / Source / Picture / Sound / Channel / Lock / Common / Advance).
00:04:29
1/13
Original
Information
Picture & Sound

13
OPERATION OF FUNCTION MENU

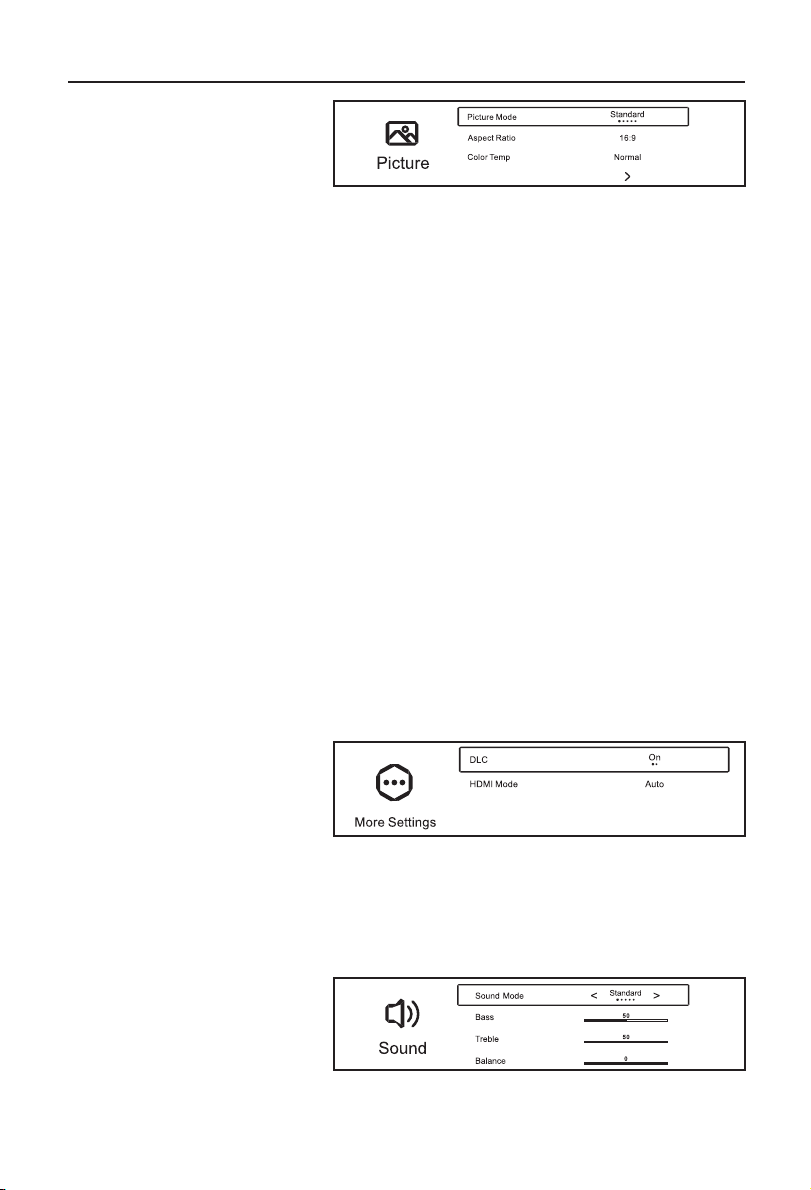

1.Picture
ress
【◄】/【►】
P MENU button to enter the main
menu. Press button to
select the Picture. Press OK button to
enter the sub-menu.
Press button to select Picture Mode / Contrast / Brightness / Color / Sharpness / Noise Reduction /
Aspect Ratio / Color Temp / More Settings. Press MENU or EXIT button to quit.
Picture Mode
Press【▼】/【▲】button to select Picture Mode, then press /button to select.
(Optional: Standard, Dynamic, Vivid, Energy Saving, User).
Standard Produces a standard image.
Dynamic Enhance the contrast, color and clarity of the screen, so that the picture in the dynamic will
balance the color.
Vivid Image colors more beautiful, more vivid picture.
Energy Saving
User User-defined picture settings.
Contrast / Brightness / Color / Sharpness (Optional in user mode only)
Press【▼】/【▲】button to select, and press【◄】/【►】button to adjust.
Contrast Adjust image contrast.
Brightness Adjust image brightness.
Color Adjust image color density.
Sharpness Adjust the image edge sharpness.
Noise Reduction
Set up options to eliminate the image noise intensity.
Press【▼】/【▲】button to select Noise Reduction.
Press【◄】/【►】button to select Off / Low / Middle / High / Auto.
Aspect Ratio
Press【▼】/【▲】button to select Aspect Ratio. Press【◄】/【►】button to adjust.
Color Temp
Adjust the overall color of the image.
Press【▼】/【▲】button to select Color Temp.
Press【◄】/【►】button to select Cool / Normal / Warm.
Cool Produces a gentle blue-hued image.
Normal Produces a vivid image.
Warm Produces a red-hued image.
More Settings
Press【▼】/【▲】button to select
More Settings. Press OK button to enter
the sub-menu.
DLC
Press【▼】/【▲】button to select DLC. Press【◄】/【►】button to select On / Off.
HDMI Mode (Show only under HDMI)
Press【▼】/【▲】button to select HDMI Mode.
Press【◄】/【►】button to select Video / Graphic / Auto.
2.Sound
Press MENU button to enter the main
menu. Press【◄】/【►】button to
select the Sound. Press OK button to
enter the sub-menu.
Press【▼】/【▲】button to select the
item to be set. Press MENU or EXIT button to quit.
【▼】/【▲】
【◄】 【►】
Select energy saving mode will affect the screen brightness etc.
More Settings

14
OPERATION OF FUNCTION MENU
Sound Mode
Press【▼ ▲ button to select Sound Mode.
Press【◄】 【►】button to select. ( Standard / Music / Movie / News / User).
Standard Emit balanced sound under any circumstances.
Music Enhance the high pitch and reduce the bass.
Movie Enhances treble and bass for a rich sound experience.
News Enhance the voice.
User Select to customize sound settings.
Bass / Treble (Optional in user mode only)
Press button to select. Press button to adjust.
Bass Adjust the low frequency sounds.
Treble Adjust the high frequency sounds.
Balance
Balanced left and right channels.
Press【▼】/【▲】button to select Balance. Press【◄】/【►】button to adjust.
AVC
Press【▼】/【▲】button to select AVC. Press【◄】/【►】button to select On / Off.
Note: After open the "AVC", once the volume is set up, it can keep the volume of the speaker steady no
matter what kind of difference among the TV sound of each channel.
Audio Description (Show only under DTV)
Press【▼】/【▲】button to select Audio Description. Press【◄】/【►】button to adjust.
Hearing Impaired (Show only under DTV)
Press【▼】/【▲】button to select Hearing Impaired. Press【◄】/【►】button to adjust.
Multi-Track Sound (Show only under ATV)
Press【▼】/【▲】button to select. Press【◄】/【►】button to adjust.
Note: Audio Description / Hearing Impaired / Multi-Track Sound function requires signal support to be effective.
More Settings
Press【▼】/【▲】button to select
More Settings. Press OK button to enter
the sub-menu.
Digital Audio Output
Press【▼】/【▲】button to select Digital Audio Output.
Press【◄】/【►】button to select Off / PCM / RAW.
SPDIF Delay
Press【▼】/【▲】button to select SPDIF Delay. Press【◄】/【►】button to adjust.
Surround
Press【▼】/【▲】button to select Surround. Press【◄】/【►】button to choose ON / OFF.
Audio Only
Press【▼】/【▲】button to select Audio Only. Press OK button will turn off the backlight.
3.Channel
Press MENU button to enter the main
menu. Press【◄】/【►】button to
select Channel. Press OK button to enter
the sub-menu.
Press【▼】/【▲】button to select the item to be set. Press MENU or EXIT button to quit.
Antenna Type (Show only under DTV)
Press【▼】/【▲】button to select Antenna Type.
Press【◄】/【►】button to select Air / Cable / Satellite.
Note: 'Satellite' is an optional feature, some models do not have this feature, the actual product shall prevail.
】/【 】
/Optional:
【▼】/【▲】 【◄】/【►】
Digital Audio Output
CI Card
Signal Information

15
OPERATION OF FUNCTION MENU
Press【▼】/【▲】button to select Scan. Press OK button to enter the sub-menu.
CI Card (This function is only available for TVs with CI function)
Press【▼】/【▲】button to select CI Card. Press OK button to enter the sub-menu.
Signal Information
Press【▼】/【▲】button to select Signal Information. Press OK button to enter the sub-menu.
Audio Language
Press【▼】/【▲】button to select Audio Language. Press OK button to enter the sub-menu.
Subtitle
Press【▼】/【▲】button to select Subtitle. Press OK button to enter the sub-menu.
Channel List
Press【▼】/【▲】button to select Channel List. Press OK button to enter the sub-menu.
Press MENU button edit the channel. Press EXIT or MENU button to quit.
EPG
Press【▼】/【▲】button to select EPG.
Press OK button to enter the sub-menu.
4.Lock
Press MENU button to enter the main menu. Press【◄】/
【►】button to select Lock. Press OK button to enter the
sub-menu.
Scan
Please input password
Note: Initial password "0000"
Press【▼】/【▲】button to select
Change Password / System Lock / Key
Lock / Parental Guidance. Key Lock
Off
Parental Guidance
Change Password
Set Password
Change Password
Press【▼】/【▲】button to select Change Password.
Press OK button to enter the sub-menu.

16
OPERATION OF FUNCTION MENU
System Lock
Press【▼】/【▲】button to select System Lock.
Press【◄】/【►】button to select Off / On.
When System Lock is set to On, press【▼】/【▲】button to select Key Lock / Parental Guidance.
Key Lock
Press【▼】/【▲】button to select Key Lock.
Press【◄】/【►】button to select On / Off.
Parental Guidance
Press【▼】/【▲】button to select Parental Guidance.
Press【◄】/【►】button to adjust.
5.Common
ress
【◄】/【►】
【▼】/【▲】
( )
【▼】/【▲】
Note: This function requires a USB flash drive to be inserted.
【▼】/【▲】
【◄】/【►】
【▼】/【▲】 【◄】/【►】
【▼】/【▲】 【◄】/【►】
【▼】/【▲】
【◄】/【►】
(This function requires the support of signals transmitted by TV operators.)
【▼】/【▲】 【◄】/【►】
( )
【▼】/【▲】
( )
【▼】/【▲】
P MENU button to enter the main
menu. Press button to
select Common. Press OK button to
enter the sub-menu.
. Press MENU or EXIT button to quit.
Show only under DTV
button to select PVR Setting. Press OK button to enter the sub-menu.
Press button to select OSD Timer.
Press to select. (Optional: off, 5sec, 15sec, 30sec, 40sec)
Press button to select Autostandby Timer. Press to select.
(Optional: off, 3hour, 4hour, 5hour)
Press button to select Sleep Timer. Press to select.
(Optional: off, 15min, 30min, 45min, 60min, 90min, 120min, 240min)
Press button to select Blue Screen.
Press button to select On / Off.
button to select . Press to select.
(Optional: Arabic, East, West Euro, Farsi, Russian)
Show only under DTV
button to select .
Press OK button to enter the sub-menu.
Show only under DTV
button to select .
Press OK button to enter the sub-menu.
Press button to select the item to be set
PVR Setting
Press
OSD Timer
Autostandby Timer
Sleep Timer
Blue Screen
Set the background color to blue when there is no input signal.
Teletext
Press Teletext
Audio Language 1st
Press Audio Language 1st
Audio Language 2nd
Press Audio Language 2nd

17
OPERATION OF FUNCTION MENU
【▼】/【▲】
【▼】/【▲】
【▼】/【▲】 【◄】/【►】
【▼】/【▲】
【◄】/【►】
【▼】/【▲】
【◄】/【►】
【▼】/【▲】
【◄】/【►】
【▼】/【▲】
【►】
【▼】/【▲】
button to select
HDMI CEC Setup. Press OK button to
enter the sub-menu.
button
available only when the select .
available only when the source select .
CEC
button to select CEC, press button to select On / Off.
The following terms are available only when "On" is selected in CEC.
Tv Auto Power On
button to select Tv Auto Power On.
Press button to select On / Off.
Device Auto Power Off
button to select Device Auto Power Off.
Press to select On / Off.
ARC
button to select ARC.
Press to select On / Off.
button to select Device List.
Press OK/ button to enter the sub-menu.
Menu
button to select Menu Reset.
Press OK button to enter the sub-menu.
HDMI CEC Setup
Press
Press to select CEC / Tv Auto Power On / Device Auto Power Off / ARC / Device List.
Note1: All the Options are HDMI CEC Switch On
Note2: The Device List is HDMI
Press
Press
Press
Press
Device List
Press
Reset
Recall the default setting.
Press
6.Advance
Press MENU button to enter the main
menu. Press【◄】/【►】button to
select Advance. Press OK button to enter
the System Setting.

18
TROUBLE SHOOTING GUIDE
No picture or sound
SYMPTOM
Dotted lines or stripes appear on
screen
Snow on screen
Double images or 'ghosting'
METHODS OF CHECKING OR ADJUSTING
Check the AC plug is in the socket. Check house circuit breaker
is in the ON position.
Picture normal but no sound
Remote control not working
Cannot receive any TV signal
No program signals output from
external source
Contrast and brightness problems
Intermittent poor contrast and
colour fading on all channels
Check that the volume is not at its minimum setting or on MUTE.
Check that TV set power is ON.
Check batteries are operational and inserted correctly.
Make sure infrared receiving window on TV is not exposed to
strong lighting or blocked in any way.
Ensure SOURCE switch is set to TV.
Check aerial location and connection.
Re-check your tuning method.
Check SOURCE button to make sure it is in the correct position
for reception.
Make necessary adjustments to relevant settings.
Check aerial positioning
There may be Interference from another electrical product. Move
appliance if it persists.
Check aerial for broken circuit, loose connection or any visible
damage.
Check aerial location and direction - strong winds may cause it to
move. Also check whether mountains or tall buildings may be the
problem. Minor adjustment of the direction of your antenna
should keep the ghosting to a minimum.
Note: External rooftop/antenna adjustment should be left to a suitably qualified person.
Many apparent malfunctions are caused slight misadjustments of the regular controls of your unit or equally simple
causes. If any difficulty arises through normal use of your unit, check the list of common problems in the list below.
If the problem persists, unplug your unit and contact your dealer.

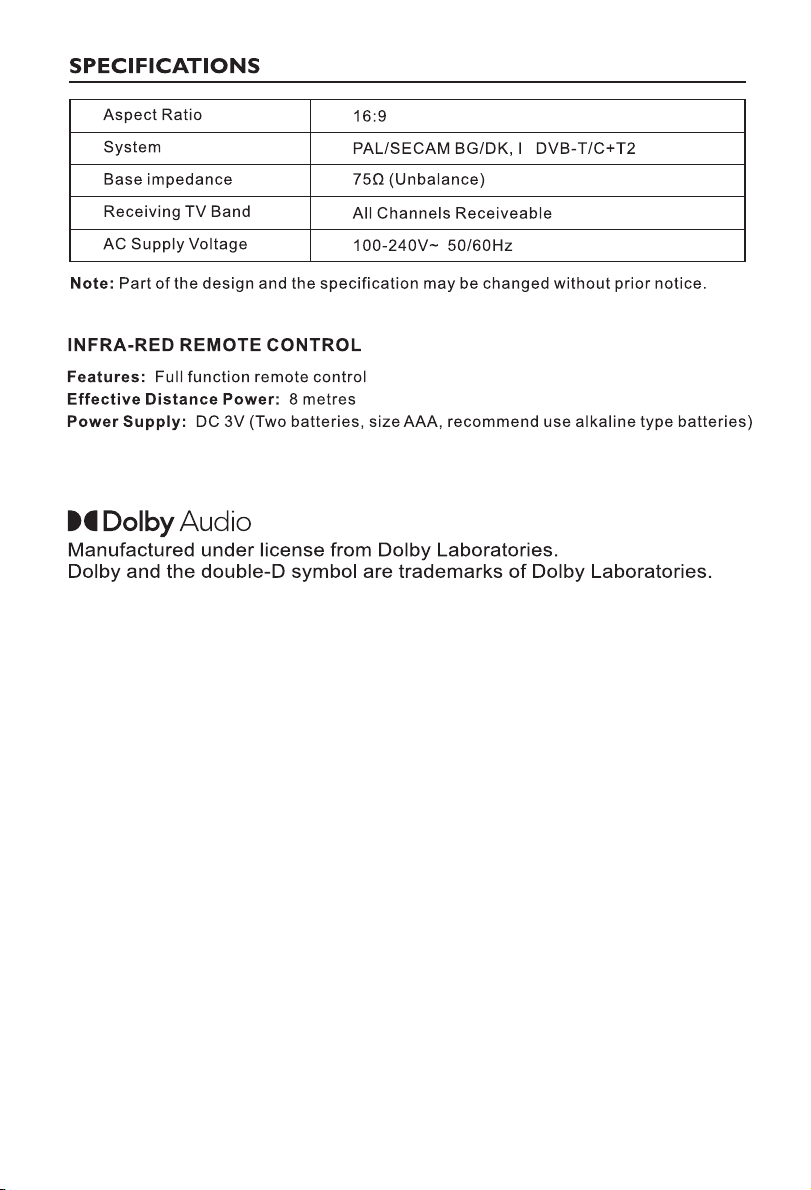

PAL/SE C AM BG/DK/I, DVB-T/ C+T2, DVB-S/ S2(Option al)
(Op tional)
19
