Foxguard FOX 555 User manual

OWNERS MANUAL
FOX 555
ADVANCED "HI-TECH"
SECURITY SYSTEMS
F X U D
OGAR
FOXGUARD
REMOTE ALARM IMMOBILIZER
INDEMNITY
HMS Electronics cc. indemnifies itself against any claims or damages
arising directly or indirectly from the use of any of its immobilize devices
and/or failure due to design, manufacture, quality, components,
recommended installation techniques and/or any consequential claims by
third party, accident, fire, theft, insurance or vehicle manufacturers
guarantees or for any reason whatsoever that may arise from the use or
installation of its products.
WARRANTY
HMS Electronics cc. Warrants the unit for a period of two years from the
batch date on the unit. If the unit fails withing the first 6 months, it may be
exchanged for a new unit. If the unit fails in the 7 to 24 month period, it must
be returned for repair. Failure due to incorrect installation, faulty
connections or accidents, or damage to either the vehicle or the unit by
steam cleaning or water is not covered by the WARRANTY. The WARRANTY
is limited to the replacement of faulty parts or components in the repair of
the unit. The warranty becomes null and void if the unit has been tampered
with, repaired, or damaged by any unauthorized person.
For any further information please contact your
nearest FOXGUARD fitment centre.
FITMENT CENTRE STAMP
FOX 555 - PAGE 01 - REV 1FOX 555 - PAGE 08 - REV 1

We congratulate you on your choice of product and
becoming the proud owner of the latest in hi-tech
vehicle security and convenience. We are certain you
will appreciate the sophisticated security levels
provided and the host of simple to operate, yet
advanced features. This product is a major
advancement in vehicle security and contains a
number of new techniques to combat today's smart
criminal. We trust you shall have many years of
reliable use and protection from your system.
Features:
·Full perimeter protection of Doors , Boot and Bonnet
·Built in Ultrasonic Movement Sensor for interior
protection
·Single event bypass of Ultrasonic Sensor
·The Ignition , Brake Pedal and the Hidden Button
are capable of triggering the alarm
·False alarm control on all zones (Zone Isolation)
·Indicators flash while the alarm is sounding
·Two circuit Immobilisation of the engine
·Passive self arming Immobiliser (30 sec)
·All black untraceable wiring of uniform thickness to
fool the thief
·Sophisticated super Anti-Hijack system (Optional)
with ‘Forced Hijack’ or ‘Door Hijack’
protection and safe operation. (Selectable)
FOX 555 - PAGE 02 - REV 1

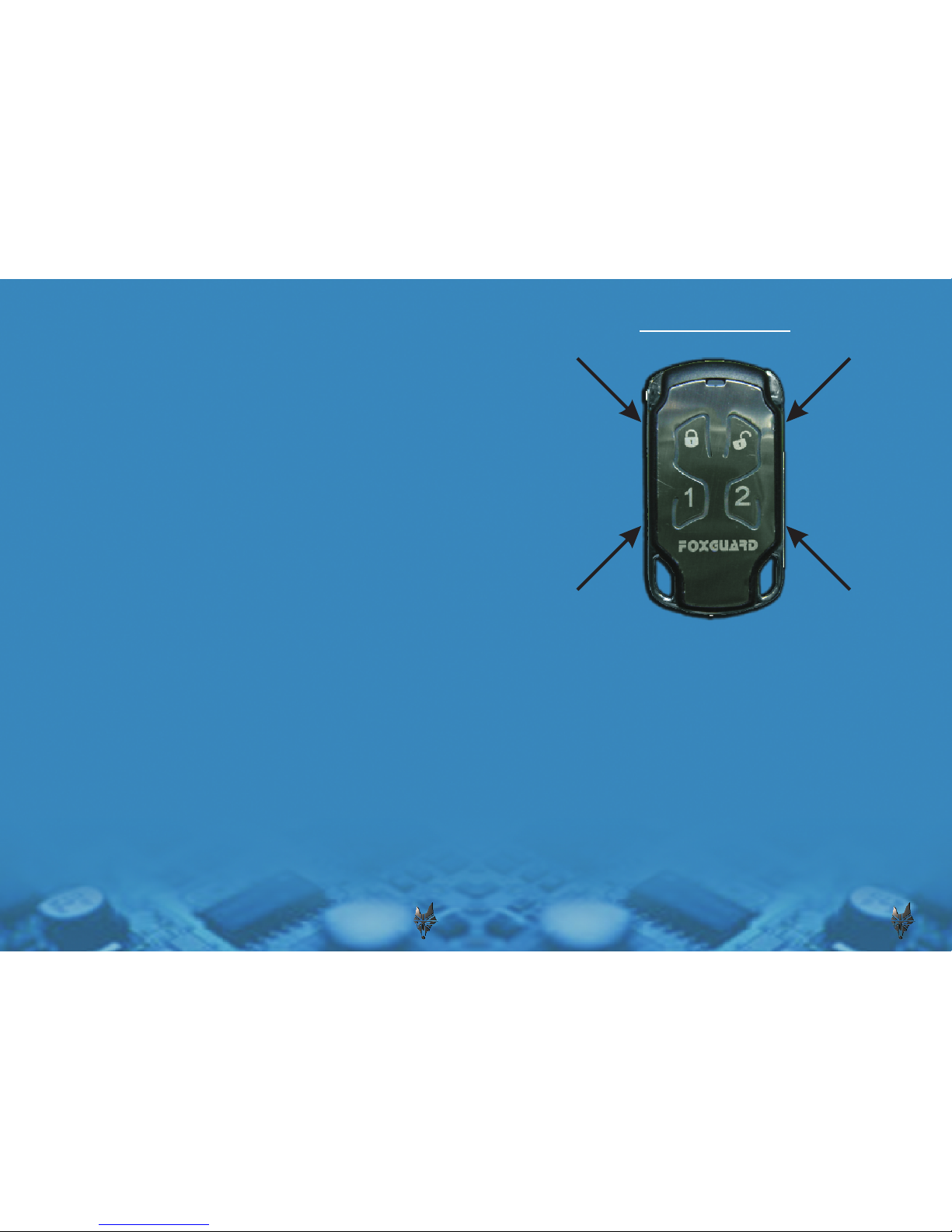

Your Remotes Unlock
Button
Lock
Button
Function Two
Button
Function One
Button
Function Button One / Two is to be used with the following units
Gate Controller
Boot Opener
Remote Start Module
FOX 555 - PAGE 07 - REV 1
NOTE
The MASTER remote is clearly market at the back of the
remote and is not recommended for daily use. It is to be
used only when the last SLAVE remote is lost or stops to
function. If Programming needs to be done, the fitment
centre would require the Master remote.The following
functions is only available when using a SLAVE remote :
Sonic Bypass
Service Mode

·Service bypass on Alarm and Anti-Hijack functions to
prevent operation disclosure
·Randomly encrypted Transmitters with over 18 billion
code permutations
·Two compact 4 button Transmitters supplied
·Only the owner controls Transmitter duplication or
replacement
·Unauthorised Transmitter duplication is impossible
·Transmitters have low battery warning and an
auto turn off feature
·Auto learn function of up to 6 Keying Slave
Transmitters
·Selective Central Locking (Optional)
(Drivers door always operates, with
separate control of passenger doors)
·Auto door locking and/or unlocking when ignition is
turned ON or OFF (Optional)
·Intelligent High Bright dash LED indicates various
modes and alarm memories
·System will retain all conditions when the vehicles
battery is disconnected
FOX 555 - PAGE 03 - REV 1
Service Mode
To disable hi-jack sensors when the vehicle is taken for a service at a
dealership, so that you don’t have to reveal the position of the anti hijack
button to someone else. While the ignition is switched on press the
button for 10 seconds, the siren and indicators will sound and flash 4
times. The vehicle is now in service mode. Every time the ignition is
switched on the siren will sound once to indicate service mode. No alarm
will sound but instead just a remote immobiliser is active. Follow the
same procedure as above to take out of service mode.
Anti Hijack ( Optional )
There are two types of Anti Hijack ( programmable )
Door Hijack ( Default )
Hijack will only be activated when a door is opened and the
brake was not pressed.
Forced Hijack
Every time the ignition of the vehicle is turned on , anti hijack
will be activated. Also if a door was opened and the brake was
not pressed.
If anti hijack is activated the LED on the ultra sonic sensor will flash
twice to indicate anti hijack sequence will start in 30 seconds. You will
receive a warning: indicators will flash then indicators will flash while
siren sounds for 30 seconds. After another 30 seconds the system will cut
the ignition and will be in full hijack mode. To clear anti hijack, press
hijack button for 2 seconds. If the anti hijack sequence is canceled the
LED on the ultra sonic will flash 6 times. To prevent activation of the anti
hijack sequence every time a door is opened, just step on the foot brake
before a door is opened. If door is closed and foot brake is released , the
doors will lock ( if fitted with central locking ) and Anti Hijack will
not be triggered.
Your Remote
FOX 555 - PAGE 06 - REV 1

code of the zone that triggered the alarm as follows:
1 = Doors
2 = Sonic
3 = Boot/Bonnet
4 = Ignition
5 = Brake Pedal
6 = Hidden Button
If wired for Selective Central Locking, the FIRST press of the button
will only unlock the driver's door. The SECOND press unlocks the
passenger doors
Deactivating the Immobilized Vehicle
Should the ignition not be switched on within 30 seconds of disarming the
alarm, the immobiliser will arm, and the L.E.D. comes ON. To start the
vehicle, simply turn ON the ignition and briefly press either or
transmitter button, the L.E.D. goes OFF and starting is possible. Every
time you switch OFF the ignition, the immobiliser shall re-arm or turn on
again after 30 seconds.
Ignition LOCK / UNLOCK
If central locking is installed and connected, switching ON the ignition will
lock the doors, and switching OFF shall unlock the doors. Ignition
unlocking follows how you last switched off or disarmed the alarm. (I.E.
Drivers door only, or all doors if Selective Central Locking is fitted) There
is a short 2 second delay before the doors unlock on ignition off, to prevent
the doors continuously locking/unlocking on hard to start vehicles.
Sonic Bypass
To disable the interior sensor so that a pet or person can remain inside
the vehicle when the alarm is set. While the ignition is switched on step on
the brake while pressing the for 4 seconds. The siren will sound and the
indicators will flash once. Once Armed the ultra sonic trigger will be
bypassed but will indicate movement by switching on the LED during the
30 second arming delay.
Press the once to DISARM the ALARM. When the button is pressed
to ARM the ALARM the ultra sonic sensor will be reactivated.
Activate the Alarm
At any time pressing the button with the ignition switched OFF, will
cause the alarm to arm (Turn ON), and the doors to lock ( if connected).
The alarm responds with 2 flashes of the indicators and 2 chirps of the
siren. [Pressing and holding the button will cause the alarm to arm
quietly] [In the event a door, boot or bonnet is not properly shut, the
alarm will flash and chirp 3 times to indicate the fault - in this case quiet
arming is not possible.]
Once armed, the alarm may be triggered or set off 3 seconds later in the
case of the Doors, Bonnet, Boot, Ignition, Brake pedal and Hidden button,
and 23 seconds later for the ultrasonic movement sensor. 23 seconds after
arming, the L.E.D. flashes slowly.
PLEASE NOTE: The silent arm/disarm function is range and interference
dependant, and will operate better the closer you are to the vehicle!
Sounding and Zone Isolation
If the alarm is triggered or set off, the siren will sound and the indicators
will flash for 60 seconds then stop. To prevent false alarms, the alarm will
only trigger 4 times on each zone (Doors, Ultrasonic, Bonnet & Boot,
Ignition, Brake pedal and Hidden button) and then ignore that zone. If
you press the button while the siren is sounding, the siren and indicators
shall stop. With this action the alarm will add a 1 to the counter of
corresponding zone triggered (Zone Isolation). When the counter reaches
4 the alarm with the other zones will remain armed, and only the zone
triggered will be switched off to prevent any further false alarms. Of
course if you press the button, the alarm switches off, and the doors
unlock.
Deactivate the Alarm
At any time while the alarm is armed, pressing the button turns off the
alarm and the immobiliser and unlocks the doors (if connected). The
alarm will respond with one flash of the indicators and one chirp of the
siren. [Pressing and holding the button will cause the alarm to disarm
quietly without the chirp] [In the event the alarm had sounded during
your absence, as an indication on disarming, two flashes and chirps will be
noted, and again, quiet disarming is not possible. (The L.E.D. flashes twice
as fast once the alarm had triggered.)]
[For 30 seconds after disarming, the system L.E.D. will also flash out the
FOX 555 - PAGE 04 - REV 1 FOX 555 - PAGE 05 - REV 1
