FPM 627 027 User manual

INSTALLATION/HANDLING/MAINTENANCE
№43741 LIST OF SPARE PARTS 01.2011
REAR TRACTOR MOWER
FPM 627 027
FPM 627 079
FPM 627 089
Internet: www.fpm-agromehanika.rs
e-mail: razvoj @ fpm-agromehanika.rs
info @ fpm-agromehanika.rs
fpm
bolj@
eu
net.yu
S
ERBI
A

WARNING FOR YOU, USER
By purchasing this machine, you made a wise choice. It is the result of many years of contemplation,
research and development. You, like thousands of other users, will realize that you own the best that
the technique, knowledge and testing in the field has created. You bought a reliable machine, but only
if you use it properly, you can expect a good performance and a long service life.
This manual gives you all the information you need to achieve the best possible efficiency with your
machine. This effect largely depends on how well you read and understand this manual and apply this
knowledge. It's a simple machine, but often you can overcome the defects that are obvious and prove
to be bad work, which is often due to neglecting the natural wear of parts or the fact that the machine is
not well tuned. Therefore, do not pretend to know how the machine is used and maintained before you
read this manual, which you need to keep at hand.
Our service dealers and sales service centers with their trained staff can offer you all t heoriginal parts
of tractor mowers for servicing. These parts are manufactured and carefully inspected in the same
factory where the mower is made, in order to ensure high quality and precise assembly at each
replacement.
REAR TRACTOR MOWER IS PRODUCED BY:
FPM AGROMEHANIKA DOO BOLJEVAC
The rear tractor mower meets the criteria prescribed by the Rules on the Safety of Machines ("Official
Gazette of the Republic of Serbia", No. 13/2010), especially regarding the stability and protection of
parts and assemblies that could endanger the safety of the operator by their function and shape.
TRAINING: FPM Agromehanika DOO constantly strives to improve its products and therefore
reserves the right to make changes or improvements when needed, without any obligation to
modify or supplement previously manufactured or sold equipment.
The information in this manual is correct at the date of issue.
All rights to the press and images retained by:
FPM AGROMEHANIKA DOO BOLJEVAC
THE CERTIFICATE ON OCCUPATIONAL SAFETY MEASURES IS A CONSTITUENT OF
THE INSTRUCTIONS FOR HANDLING AND MAINTENANCE
Issued by: FPM Agromehanika DOO Boljevac
Print: DEVELOPMENT SERVICE IMT AGROMEHANIKA AD BOLJEVAC
Year: 01.2011

INSTRUCTIONS
FOR INSTALLATION AND
MAINTENANCE OF THE
REAR TRACTOR MOWER
FPM 627 027
FPM 627 079
FPM 627 089
FPM Agromehanika AD Boljevac
The mower is aggregated on I and II category tractors
with three-point suspension system according to ISO
730 / I and output speed n = 540 min
-1

CONTENT
PAGE TABULAR OVERVIEW
GROUP OF PARTS
5
Safety warning
6 Limited warranty
7 Introduction
7 Caution
8 Safety
8 Description of rear tractor mower
9
-
10
Aggregating the mower to a tractor
11
-
12
Adjusting the mower for work
12 - 13 Working with the mower
13 Maintenance of the mower
14 - 15 Adjusting the gap on the cutting machine

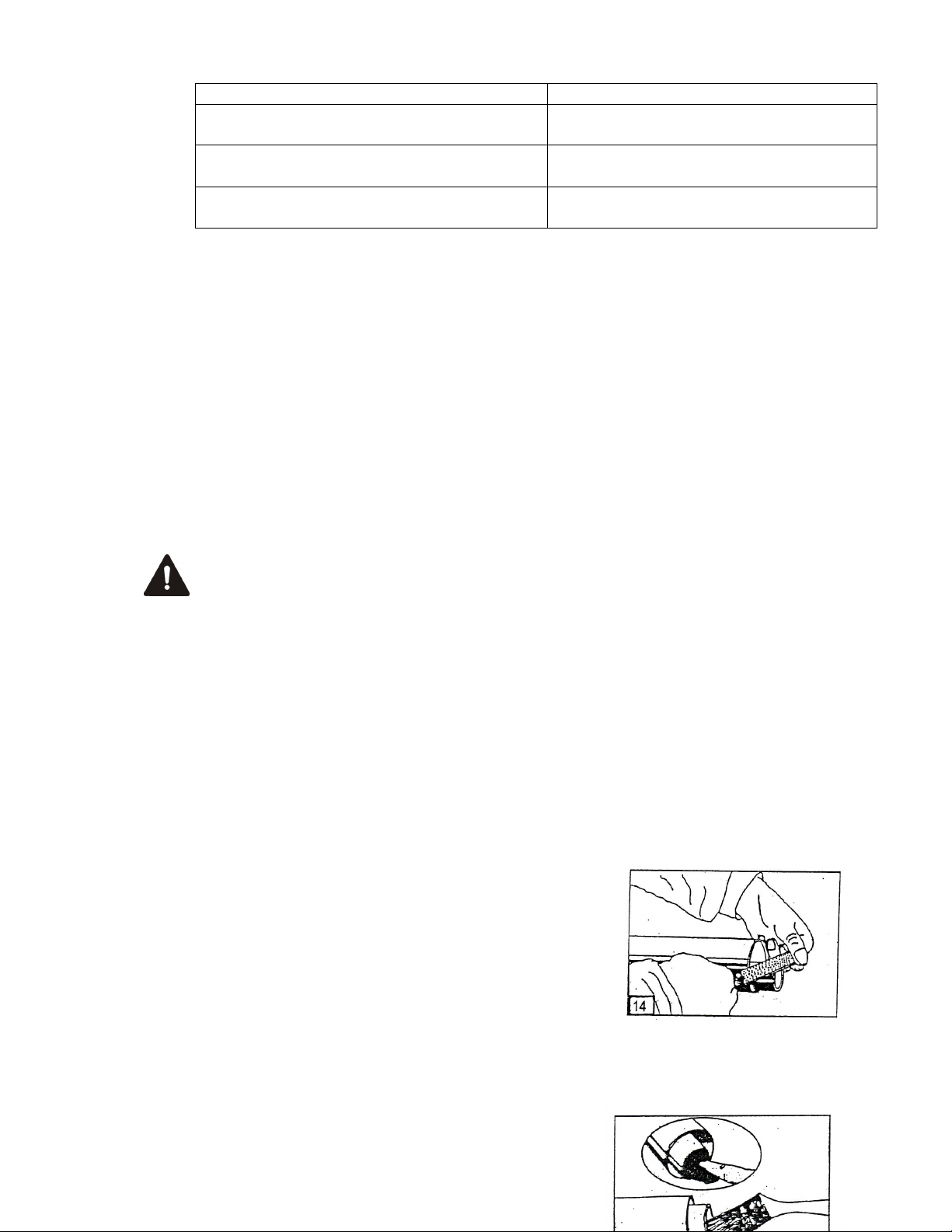

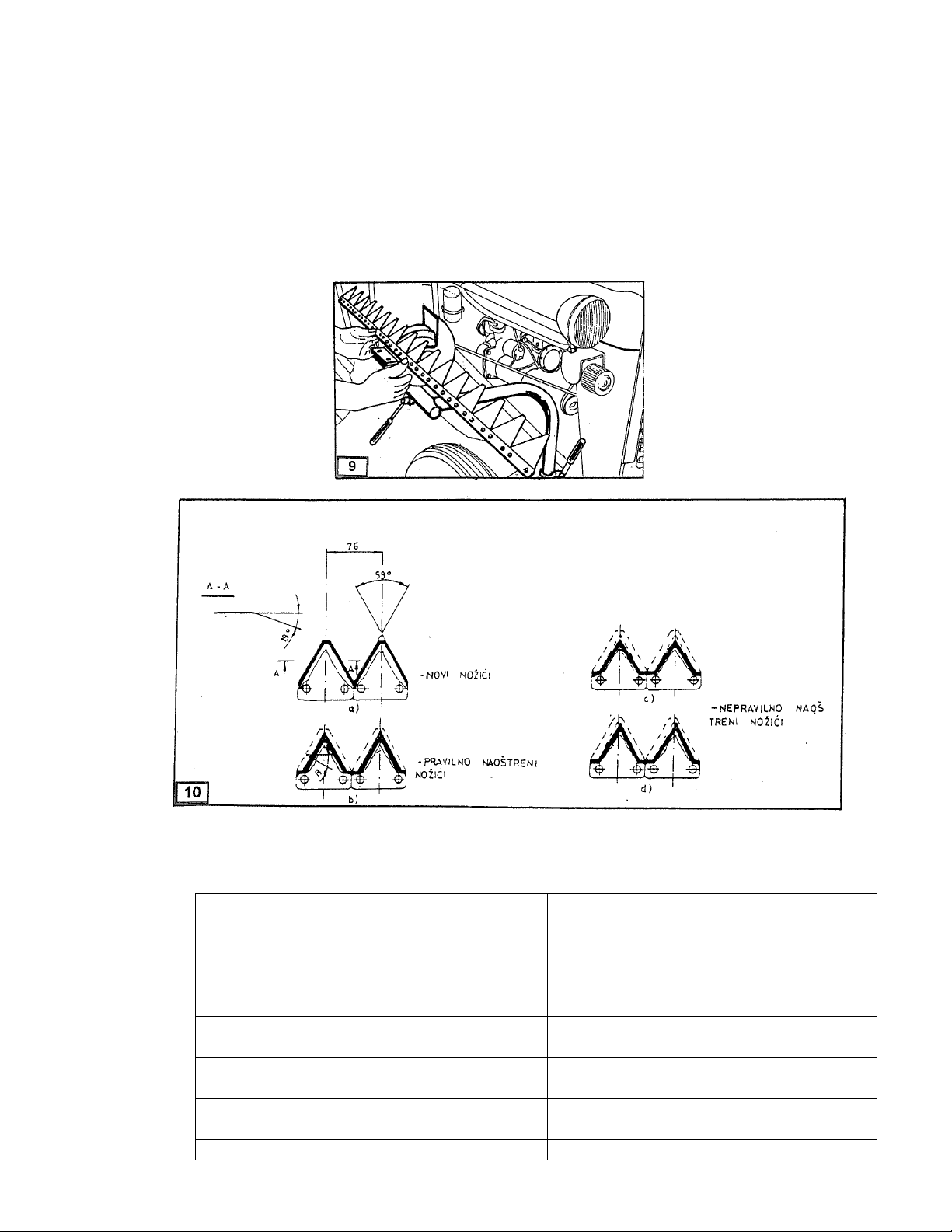

15 Sharpening and replacing the blades on the movable cutting strip
16
Te
chnical characteristics
16
Storage
of the
rear
tractor mower
17

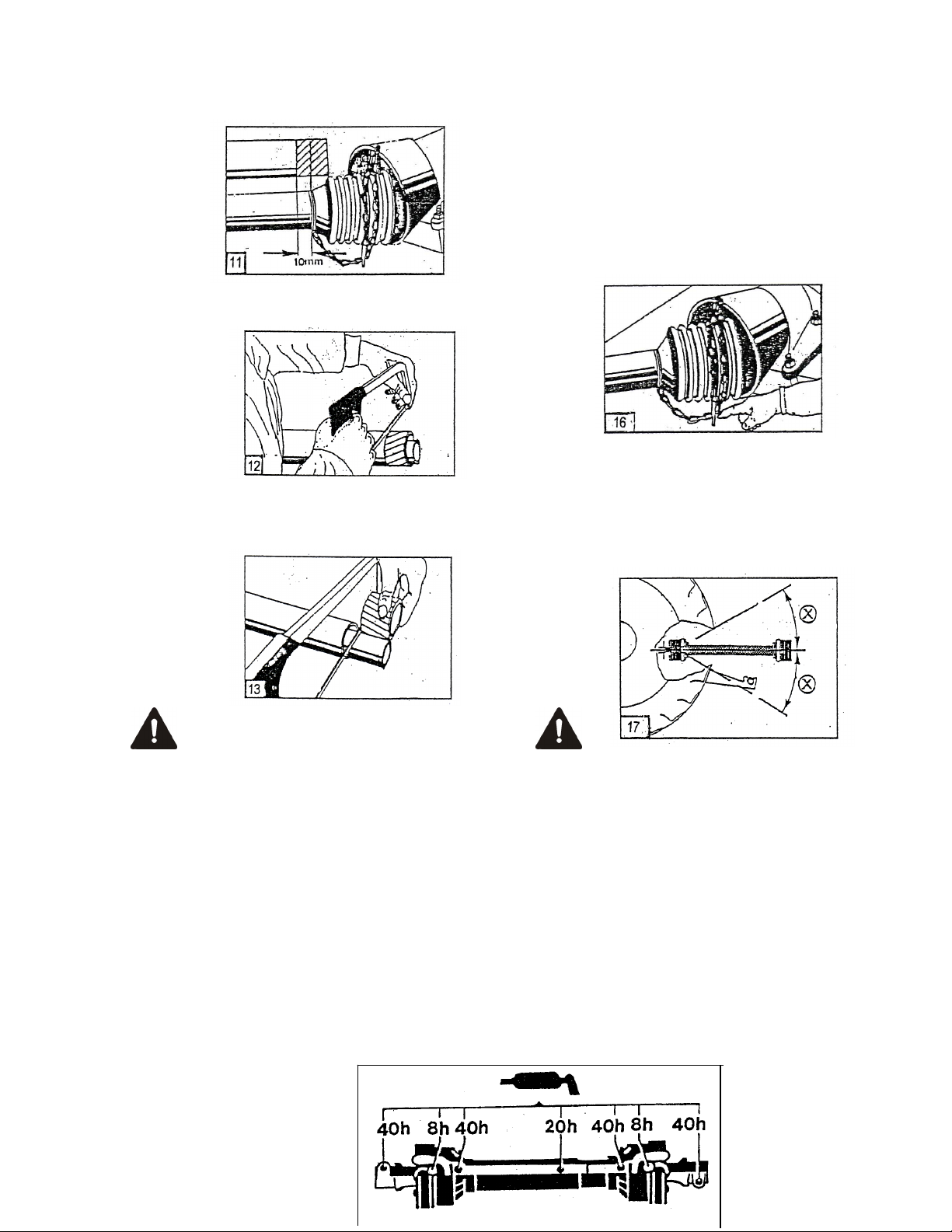

Jointed coupling
-
cardan
shaft
18 Lubrication
19 Certificate - Occupational safety measures were applied
20 - 26 List of spare parts
WARNING FOR YOU, USER
It is very important that the cardan shaft you attach to your rear tractor mower is of the prescribed
dimensions. Therefore, it is necessary to obtain a cardan shaft of the following characteristics:
- wrinkle 35 JUS M.L1.601 on both ends of the universal shaft
- continuous torque Mr = 160 Nm
- max. angle of rotation of the joint at work α= 30º
- For α> 30º, turn the cardan shaft off
- after every 8 hours of operation, apply lubrication
The cardan shaft is the product of the company "FKL" Temerin, and can be purchased under the
number:
05B - 790 - 10.10 - 10.10
IMPORTANT: If you do not comply with the warning, the factory will not be liable
for damages or fractures on the tractor, cardan shaft or rear tractor mower.
READ CAREFULLY!
№
43741

In this manual and on the machine you will find warning labels, "WARNING" "CAUTION" and
"DANGER". Warnings aim to draw attention to the personal caution and caution of those who work
with you because they also need to read it.
PERSONAL SAFETY
WARNING: The word "WARNING" is used where you need to be careful to protect the operator and
other persons from an accident.
CAUTION: The word "CAUTION" indicates the possibility of serious injury to the operator and
personnel that may occur suddenly. It is a commonly used word as a warning to the operator and other
people to prevent surprises in using the mower.
DANGER: The word "DANGER" denotes what can not be done because it entails a risk.
THERE ARE ADDITIONAL WARNINGS SUCH AS "RECOMMENDED" AND "IMPORTANT",
DENOTING SPECIAL INSTRUCTIONS WITH REGARD TO THE SAFETY OF THE REAR
TRACTOR MOWER.
SAFETY OF THE REAR TRACTOR MOWER
NOTE: THIS WARNING DENOTES THE POSSIBILITY OF DAMAGE TO MOWER, IF
YOU DO NOT COMPLY WITH THE INSTRUCTIONS.
IMPORTANT: THE READER IS INFORMED ON WHAT THEY SHOULD KNOW TO
PREVENT MALFUNCION OF THE MOWER, IN CASE THEY MISS IT.
WARNING!
IF YOU DO NOT COMPLY WITH THE "WARNING", "CAUTION" AND
"DANGER", SERIOUS INJURIES MIGHT OCCUR.
LIMITED WARRANTY
The factory provides a warranty in accordance with the Law on Standardization, the Rulebook on the
Safety of Machines ("Official Gazette of the Republic of Serbia", No. 13/2010) for each original piece
of a new mower delivered to the user by the sales network FPM Agromehanika AD Boljevac, which
guarantees at the time of delivery, that every part of the mower is new, free of material defects, and
that the rear tractor mower is given a warranty for a period of one year from the date of delivery to the
user, provided that the machine is used and serviced in accordance with the recommendations in this
INSTRUCTION MANUAL for maintenance and handling.
.

EXCEPTIONS:
1. Parts made of wood are not covered by the warranty.
2. Parts not manufactured by FPM Agromehanika AD Boljevac (tires, plastics, belts, cardan shafts,
cardan shields, hydraulic cylinders with connection hoses, etc.) are not covered by this warranty, but
by the manufacturer's warranty
3. Parts that are normally consumed in exploitation, such as: wedge belts, discs, cutting blades, tires,
scrapers, cutter blades, sliders underneath the cutting machine, protective guard.
4. This warranty is not valid in case of poor use, improper or negligent use or damage due to an
accident. The warranty ceases to be valid due to the use of non-original parts, and the factory is not
responsible for the damage resulting from the transport.
THE FACTORY IS NOT RESPONSIBLE FOR LOSS OF THE PROFIT DUE TO MALFUNCTION
OF THE MOWER OR THE FAILURE OF THIRD PARTIES, NOR FOR ADDITIONAL COSTS OF
WORK ON REMOVAL AND REPLACEMENT OF PARTS.
The buyer is responsible and bear the costs of the following:
1. Normal maintenance, such as lubrication, oil retention, minor adjustments, and the like.
2. Transport of the mower where the service is performed in the warranty period and return.
3. Time of travel of the authorized service to the owner of the mower and return, or delivery and return
of the mower from the workshop after the repair.
This warranty does not apply to the rear tractor mower which has been modified without our explicit
permission, or if it was performed by someone else, outside the authorized service.
The warranty is related to strict adherence to the warning:
- all the instructions in this manual must be respected and all shields are regularly reviewed and
replaced,
as needed.
No warranty is given for products that are not new.
The people who just work in our factory are not officially representatives of the factory and do not
have the right to assume any obligation on its behalf.
No warranty covers product equipment that is larger than that given, so the factory is not responsible
for any injuries caused by such use.
INTRODUCTION
The rear tractor mower FPM 627 089 belongs to the group of modern tools from our production
program and is intended for cutting all kinds of fodder plants. According to its construction, it is
located in the group of worn rear mowers and it has the possibility of aggregating to all tractors of I
and II category that have a three-point attachment system and a six-gang type output shaft, 34.9 mm in

diameter. According to its constructive and exploitative characteristics, the rear tractor mower is a very
high quality and reliable product with the following characteristics:
- Simple and strongconstruction,
- Great work performance,
- Easy and quick aggregation and unloading from the tractor,
- Fast switch from transport to working position,
- Minimum maintenance,
- Existence of a safety system for disconnecting the cutting device at a hook on an obstacle,
- Low energy consumption,
- Easy handling and adjustment.
The mower is delivered in the form of sub-assemblies that are very easily interconnected. In addition
to the mower, a cardan shaft is also delivered, the length of which is adjusted depending on the type of
tractor and according to the instructions on the protective coating.
Good knowledge and practical application of the instructions for working with the rear tractor mower
allows you to be reliable in operation, and its lifetime is long. Please note that during the term of the
warranty period you should not disassemble certain parts of the mower, because in this case, the
warranty is lost. Also, the factory does not take any responsibility if on some parts of the rear tractor
mower during the warranty period are damaged due to improper handling and maintenance.
Servicing measures, other than lubrication and easy maintenance, which can be easily carried out,
should be left to our service representatives or service centers that have trained staff.
To maintain and repair the rear tractor mower, use the original parts that can be obtained from
authorized service agents or directly at the factory.
CAUTION
The operating instructions correspond to the basic model of the rear tractor mower FPM 627 089.
Since your mower can fit a part that functionally fits the explanation while the shape is slightly
different, please do not pay attention to such things.

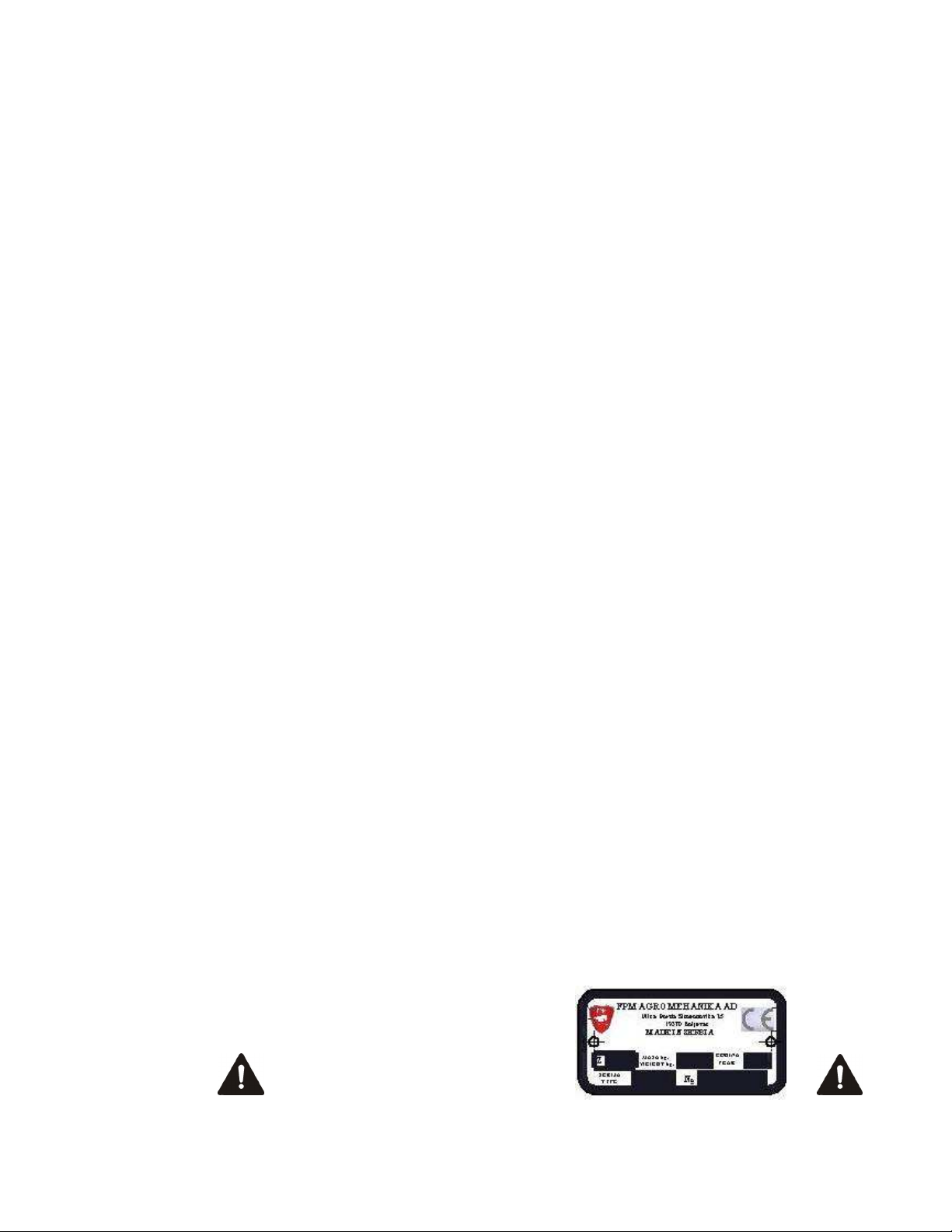

The identification of the rear tractor mower is done via the nameplate. The table contains the
following information:
─In the field with the letter "Z" - the number of certificates of occupational safety is
entered.
─In the "MASA / WEIGHT" field - the weight of the product is entered.
─In the "GODINA / YEAR" field - the year of production (last two digits).
─In the "SERIJA / TYPE" field - the series label and the commercial mark of the product.
─In the field "No." the number of tractor mowers composed of nine digits is entered and has
the following meaning.
- first digit - year of production
- second and third digit - code of the manufacturer
- the other six digits - serial number
of the product from the start of production.
SAFETY INSTRUCTIONS
Before proceeding with any work with the rear tractor mower, carefully read the INSTRUCTIONS and
remember the following:

- The user of the rear tractor mower is responsible for the safety of people and animals that are found
in the area of use, so make sure that the other person is not nearby when working. One should
always think of the consequences of irresponsible work because they are irreparable.
- On sloping terrains, make sure that there is no slipping and overturning with a mower, rain
or moisture accelerates the sliding of the tractor, as well as the accumulation of mud on double
fingers on the cutting so avoid working in a humid terrain.
- All cleaning and maintenance work on the rear tractor must only be carried out when the
tractor is stopped and the drive shaft is deactivated.
- Check the lubrication as well as other sliding surfaces.
- Check the degree of damage to the cutting edges of the blade and, if necessary, sharpen the blades
in order to maintain proper cutting.
- Where there is a likelihood of a hidden obstacle working with more attention and slower speed.
- In order to avoid the drift of the rear tractor mower, both in work and in transport, it is mandatory
to use tractor stabilizers, or chains that are accompanying tractor equipment.
- When working on the drive mechanism of the mower, a protective
sheet metal must be used.
- In order to ensure safe operation with the mower, follow the instructions given in this
manual.
DESCRIPTION OF THE REAR TRACTOR MOWER
The rear tractor mower consists of:
- Bearing constructions with transmission,
- Cutter.
The supporting structure consists of:
- Connecting part,
- Cutter carrier.
The supporting structure is constructively resolved so that, in addition to its basic purpose - the
function of attachment to the tractor and carrying the transmission with the cutting machine, it also has
the task to enable the cutting apparatus to better copy the terrain with the help of the system of swivel
joints and levers.
Also within the supporting structure there is a safety system which, in the event of an impact of the
cutting device in a hidden obstacle, makes it unroll and turn, thereby protecting it from damage.
The system for transferring movement from the output shaft of the tractor to the movable cutting bar
consists of: a cardan shaft, a gearbox with wedge belts and a flywheel with an eccentrically mounted
sleeve and crank levers.
The cardan shaft is connected at one end with the drive shaft of the belt drive and the other is
connected to the output shaft of the tractor. The transmission gear consists of a drive and driven pulley
connected with two v-belts. The crochet lever at one end is connected to the flywheel and the other end
is connected to the movable cutting lath.
AGGREGATING THE MOWER TO A TRACTOR
Before starting the mower attachment to the tractor, it is necessary to connect the independently
delivered assemblies.
- With the cutting machine, release the shaft and the wooden grass guide

Slika 1.
- Unscrew the M12x30 screw on the rear of the cutter blade (Fig. 1, Item 1) and then remove the slider
located below the bend.
- Remove the splinters (fig. 1, item 2) provided by the shafts (figure 1, items 3 and 4) for the
connection of the cutting device and the supporting structure, and then remove the shafts from the
eyelets.
- Lubricate the fuselage and holes on the eyelets with multi-purpose lubricant.
- Insert the blades of the cutting device (fig. 1, item 5) into the eyelets on the couch, and then insert the
shafts (fig. 1, items 3 and 4) into the holes on the eyelets and resistors (Figure 1, Item 2) lift the cutting
machine, place the slider on the hub and then secure it with the previously removed M12x30 screw.
- Connect the chainsaw for holding the cutting apparatus (fig. 1, item 6) using a tweezer (fig. 1, item 7)
with a tension on the cutting machine (fig. 1, item 8).
- Connect the crank lever (fig. 1, item 9) to the ball of the movable battens (fig. 1, item 10). Fasten the
joint with a screw, a roller nut and a fork (fig. 1, item 11).
- Insert multi-purpose lubricant before installing the joint in the lever with a cup.
WARNING:
The joint must be properly attached, otherwise it will be bumped
during operation and the ball and lever with a cup will be damaged.
- On the shaft (fig. 2, item 1), fix the wooden guide of the grass (fig. 2, item 2).
- Connect the spool (fig. 2, item 1) using the screw (fig. 2, items 3,4 and 5) to connect the springs and
nuts with the beak (fig. 2, item 6) on the cutting machine.

- To facilitate the attachment to the tractor, remove the footrest and position it so that the bearing - the
rack is lifted as far as the connecting points reach the height of the lowered tractor levers (Fig. 3, see
broken lines).
- Move the tractor backwards and pull the connecting sleeves on the bearing of the mower (Fig. 3,
items 4 and 5) into the joints on the tractor levers, and then extend the upper tractor lever - warming
(fig. 3, item 1) to lock the shaft (Fig. 3, Item 2) and fuse (fig. 3, pos.3) on the mower's frame.
- Connect the cardan shaft to the output shaft of the tractor. Connection is carried out in such a way
that the finger presses the fuse and the cardanl shaft attachment is attached to the output shaft of the
tractor, after which the fuse is released by lifting the finger and thus the attachment fork is secured
from the draw.
- Ensure that the cardan shaft is secured by tying the chain to the upper tractor lever - warming.
ADJUSTING THE MOWER FOR WORK
In order to ensure the correct operation of the mower, it is necessary to make the necessary
adjustments before starting work. A flat surface should be selected for adjustment.
- Release the mower restraint for the transport position (Fig. 3, Item 8) and attach it to the eyelet
located on the mower's frame.
- Unscrew the handle of the mower holder in the vertical and remove it (fig. 3, item 10).

- The whole mower is lowered by hydraulics until the bowl firmly rests on the ground, then the
hydraulics chains (figure 3, item 6) are fastened to the required length - approximately tightened.
- Use the hydraulics to raise the mower so that the slider (fig. 4, item 6) is 8 to 10 cm from the ground
and use the flat object of the approximate height (Fig. 4, Item 1).
- Use the hydraulics to lower the mower so that the slider rests on the padded object.
- Use the chain (fig. 4, item 2) and the tension chain (figure 4, item 3) to adjust the mower so that the
beak of the mower (Figure 2, Item 6) touches the ground.
- For fine adjustment of the cutting machine, use a screw with a counter nut (fig. 4, item 5).
- Adjustment of the safety system for swinging in the event of an obstacle encounter, is carried out by
tightening or unscrewing the nut (fig. 5, item 4) on the spindle carrying the spring (fig. 5, item 5) of the
safety system.
- The pre-setting which is correctly performed allows the cutting machine to monitor the terrain
correctly during operation.
- The cut off angle is selected depending on the state of the grass to mow.
- The cut on the ground fodder should be as normal as possible to the tree.
- Setting the angle of cut of the stem is done by means of warming (figure 5, item 6).
- Adjusting the cut height is done with sliders underneath the canopy (Figure 2, Item 7) and below the
beak (Figure 2, Item 8). The sliders must be fixed with the existing screws on the mower and beak
after adjustment.

- Cutting height - mowing is very important because it leaves traces not only for the next mowing but
also for the other agrotechnic that is being carried out. Three types of cuts are applied: the lowest 3 - 4
cm for the mowing of meadows in mountainous areas, medium 5 - 6 cm for mowing mixtures for
silage and the cultures that go in silage.
- Place the wooden lawnmower on the shovel (fig. 2, item 2) in the position that suits most.
BEFORE YOU START WORK, YOU NEED TO:
- Remove the protector on the cutting machine,
- Check the tightness of all bolts,
- Lubricate all oilers,
- Lubricate the joint that connects the crank lever and the movable cutting lath.
Lubrication is carried out with multi-purpose lubricant.
WORKING WITH THE MOWER
Before starting mowing, it is necessary to examine the parcel, and if there are some obstacles to
remove them.
The speed of mowing moves in the range of 4 - 8 km / h, depending on the terrain and condition of the
mow.
According to the state of the cultivated mowing, as well as the condition of the soil, the cutting height
is adjusted.
During mowing, the conditions under which the mower will mow should be considered. If you notice
the obstacles they should be removed and continue to mow. The mowing should be carried out with
full working of the mower, in order for it to be fully economically justified.
For cutting grass, there is a movable cutting sling with smooth knives and for cutting dry grass and
cereals with toothed knives.
If during operation, the cutting machine hits the hidden obstacle, the safety device will cut off the
mower, and in order to continue mowing it is necessary to stop the tractor and turn off the output shaft,
and then return the tractor slightly backwards and lift the mower hydraulically. By lifting the cutting
machine, the safety system is returned to the working position.
If during normal operation, the system is unlocked, it is necessary to tighten the spring.
If the slipping wedge is stuck, the tractor should be stopped, then the mower must be turned off, the
tractor moved backward, and then the tailgate must be identified as a cause of jamming. Check the
tension of the straps before starting work again.
When finished, prepare the mower for transport.
- Through the double fingers on the cutting machine, set the protector,
- Place the cutting machine in a vertical position and secure it with the holder and the handle that has a
nut on it.

- Depress the cutting device from the ground and secure with the handle for the transport position (fig.
3, item8)
- Use the hydraulics to lift the mower in the upper position, and then make the chain shortening (figure
3, item 6) to the required transport length, thus releasing the tractor hydraulic system.
MAINTENANCE OF THE MOWER
The mower should be neatly lubricated and properly adjusted. Lubrication of the mower should be a
constant practice, as this will prolong its lifetime. Before starting the work, it is necessary to lubricate
all lubrication points, the nozzle, which connects the movable lath with the crank lever and other
sliding joints.
For lubrication, use multi-purpose lubricant. A spherical ball sphere has a slit that serves to bring
lubricant to the joint.

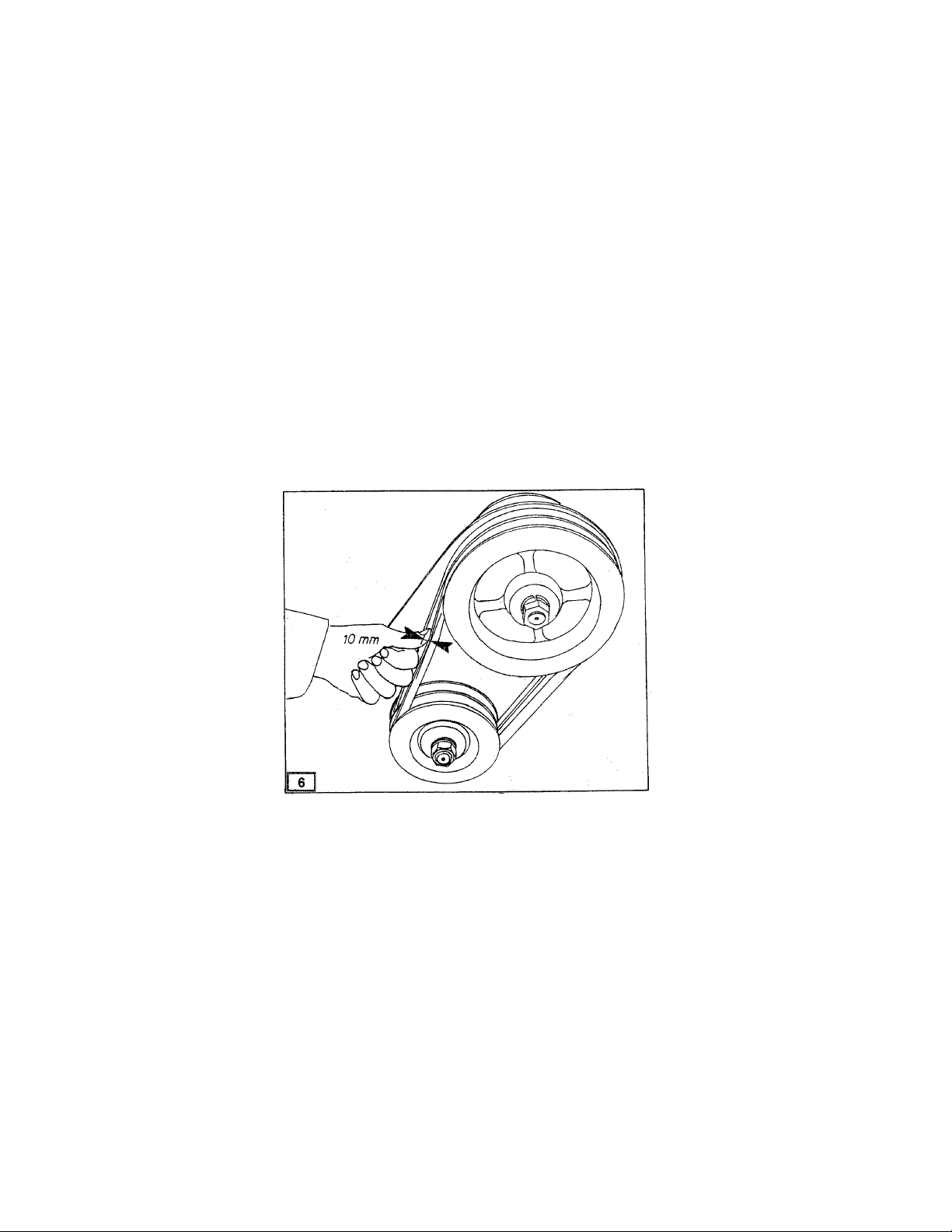

Checking the belt tension and tightening them is done as follows:
- Remove three M8x25 screws securing the belt guard and then remove the guard.
- Press the straps with your hand and check how far they are. The correct belt loosening is 10 mm (see
Figure 6).
NOTE:
- When replacing worn-out belts, replace both straps regardless of the state of one against the other.
- After completion of the previous operations, install the belt guard.
Adjusting the gap on the cutting machine
After a longer period of use, the quality of mowing decreases due to the wear of the cutting machine
guide. Carefully clean the cutting machine and then slip the sliding joints, so that the cutting blade can
be easily started. Adjusting the gap between the guides is performed as follows:
- Check for proper clearance between the movable knife and the fixed knife on the double finger (see
fig. 7, items 1 and 2).
- If the clearance does not exist beneath the inner guides (figure 8, item 4), insert the adjusting pads
(fig. 8, item 6). When inserting the pads it is necessary to unscrew the screw (fig. 8, item 5) and
remove the outer and inner guide (Fig. 8, item 3 and 4) and then return the inner guide.

- When the pre-setting is completed, return the outer guide and screw in place. Do not tighten the
screw to the end.
- Release the "counter" nut (Fig. 8, Item 8) and then screw or unscrew the screw (fig. 8, item 7) with
the hexagon wrench until the correct guide of the outer guide on the slider of the slat.
- After finishing the setting, tighten the screw (fig. 8, item 5) and the "counter" nut (Fig. 8,
poz. 8). Tighten the "counter" of the nut with a fork key at the same time
preventing the screw unwinding (figure 8, item 7) using the "hexagonal" wrench.
- After adjusting the gap, check that the cutting line can be started by hand. If this is not possible, re-
adjust the guides. Excessively tightened guides in your work will cause overheating and rapid damage
to the workpiece. Incorrectly adjusted guides do not provide proper cutting which causes mowing
problems.
Sharpening and replacing the blades on the movable cutting strip
After prolonged use, the cutting edges on the knives come to grips and, therefore, the quality of the
mowing decreases.
The blades are sharpened from the top and can be sharpened as long as the hardened zone on the
blades lasts (see Figure 10). After sharpening, the corners on the knife must be the same as before
sharpening.
If one of the pins is broken or is so blinded that it does not make sense to sharpen, it needs to be
replaced. Replacing the blades is done by removing the head of the rivet from the hand grinder or file,

and then it breaks out. Instead of a worn-out knife, a new one is screwed up. Correct sharpening of
cutting knives is achieved by specially profiled grinding stone - wheel. For this purpose, the most
suitable is tractor sharpener which provides a very simple and quick mounting on the tractor. This
sharpening is also possible on the field, which is a special benefit.
The bristle is also from the production program FPM Agromehanika AD Boljevac.
After completing the work, the mower should be cleaned of the remains of the grass and any residual
soil, especially in the part of the cutting machine. Lubricate all parts that can be lubricated and then put
in a sheltered space. All screws and nuts should be checked frequently if they are tight and tightened if
necessary.
TECHNICAL CHARACTERISTICS
- Type and label Rear tractor mower FPM 627 089
- Working grasp 2.10 m
- Mowing speed 4 - 8 km/h
-The required number of turns of the output
shaft of the tractor 540 min
-1
- Number of oscillations of the cutting deck 900 - 1100 min
-1
- Performance Up to 1.70 ha/h
- Required tractor power 25 KW and more

- Transport speed 20 km/h
- Cut height 3 – 9 cm
- Mower mass 185 kg
Storage of the rear tractor mower
-Storage preparations -
1. If you do not use the mower for a longer period of time, then all the parts that come in contact with
the soil and the grass must be completely cleaned from the ground and grass.
2. After cleaning, wash the whole tool well.
3. Replace all damaged or broken blades or double fingers.
4. Tighten all nuts and bolts on the mower.
5. Clean rusted surfaces and bare spots and shade with protective paint.
6. Put the mower on a wooden base located under a canopy or in a separate room.
CAUTION:
1. NEVER WEAR CLOTHES THAT CAN BE TRAPPED IN THE CARDAN SHAFT, OR ANY
OTHER WINDING PARTS.
2. DO NOT DRIVE OTHER PERSONS ON THE TRACTOR OR MOWER.
3. AFTER EACH WORKING SEASON, WE RECCOMMEND THAT YOUR SERVICE FPM
AGROMEHANIKA AD BOLJEVAC, CHECKS THE CONDITION OF THE MOWER,
ESPECIALLY THE BLADE AND OTHER PARTS.
4. ALWAYS COMPLY WITH THE INSTRUCTIONS IN THIS MANUAL.
Jointed coupling - cardan shaft
It is very important that the cardan shaft be
properly adjusted when attached to the tractor. In
no way should the cardan joints, when the tool is
raised to the highest or lowest position, shut down
each other.
If you believe that the cardan shaft is longer and
cannot be connected to the tractor, it is necessary to
cut it. The following illustrations show an example
of shortening the cardan shaft.
4.—
5.—
Knock down the sharp edges, figure 14.
Clean and lubricate, figure 15.
Connect one cardan to the other and it’s
done
1.—
Attach one half of the cardan shaft to the
tractor and to the mower, hold the halves next

2.—
3.—
to each othe
r, and set the length
of 10 mm
with a different tractor and mowing settings
and mark on the protector, fig. 11.
Cut the protective cover, see Figure 12.
Cut the profile tube, figure 13. Further repairs
to the coating or profile tube are not
permitted.
NOTE: FAILURE TO COMPLY WITH
BASIC REQUIREMENTS FOR THE
WORK WITH THE CARDAN SHAFT MAY
RSULT IN CARDAN DAMAGE OR
DAMAGE TO THE MOWER.
6.—
7.—
The coating of the cardan should in no case
be allowed
to be removed, not even to turn during
work. Attach the chainsaw tray for the
mower shaft protector, fig. 16.
The maximum permitted angle of the cardan
shaft must be less than
30°,
figure 17.
CAUTION: WHEN HANDLING
CARDAN SHAFT OF THE REAR
MOWER, ALWAYS BE CAREFUL.
LUBRICATION
Check the lubricity of the place with built
-
in
lubricants and other sliding surfaces.
A good degree of lubrication is achieved
every eight hours of operation. Before you
make the lubrication clean surfaces from
earth and dust. Every fifty hours lubricate
the turning and swiveling parts. Lubricate
all parts moving one in the other
(telescoping) as needed.

1. The mask on the front joint.
Every 8 hours
2. The reverse part of the liner on the front of the cardan.
Every 40 hours
3. The internal telescopic part of the tube
Every 20 hours
4. The reverse part of the cover at the rear of the cardan
Every 40 hours
5. The back swing mask
Every 8 hours
6. The front axle and the rear part
Every 40 hours
7. Clean all parts of the shaft when it has been out of use for a long time
If you act on this lubrication plan, you will achieve a longer life of the shaft. Clever maintenance keeps
you from failures that can arise from heating the bearing, damage to the bearing or increasing the axial
force. Lubricate the cardan shaft at marked points, only with high quality lubricant.
LUBRICATE ALL THE TURNING, SLIDING AND JOINT CONNECTIONS ON THE
MOWER FRAME
PRAVILNIM I REDOVNIM PODMAZIVANJEM OSIGURAĆEŠ NESMETAN I SIGURAN RAD
SA TVOJOM KOSAČICOM.
strana 18

DECLARATION OF CONFORMITY 98/37/CE
We hereby declare, within our responsibility, that the product
Type: Tractor mower with double blades
Model: IMT 627 089 – work grasp 2.0 m
`Year of manufacture: 2008
is in accordance with the safety requirements established by European Directive 98/37 / CE.
The product is in compliance with the following standards:
DESCRIPTION STANDARD
Safety of machinery - Basic concepts, general
principles for constriction - Part 1: Basic
terminology and methodology
Safety of machinery - Basic concepts, general
principles for construction - Part 2: Technical
principles and specifications
Safety of machinery - Safety limits that define
hazard zones in machines
Agricultural self-propelled machines with
driver and towed machines - common safety
requirements
EN 292-1:1996
EN 292-2:
EN 294:1995
EN 1553: 1999
In Boljevac,
04.2008
Authorised person signature:
Branislav Rajić, mech.eng.

FPM AGROMEHANIKA AD Form 1
BOLJEVAC
No: 741
05.2008
CERTIFICATE
OCCUPATIONAL SAFETY MEASURES WERE
APPLIED
On: tractor mower with double blades
Type, series and purpose: rear carried: IMT 804 162 for mowing all types of grass.
Year of manuf.: 1998
Technical data: Working grasp 1.2m, movement speed 4-8 km/h, number of cutting lath
oscillations 900/1300 min-1, productivity 1 ha/h, tractor power needed 18 KW and more,
weight 140 daN.
Working grasp 1.6m, movement speed 4-8 km/h, number of cutting lath oscillations 900/1300
min-1, productivity 1.25 ha/h, tractor power needed 18 KW and more, weight 150 daN.
Supplied documentation: Instructions for handling, maintenance and safe operation and
warranty card.
NOTE: Use the machine according to the instructions for handling and maintenance.
Authorised person
