Freedom Easy User manual

Freedom Easy Pump
Verifone with Mako 6600
Setup Guide
First Data
Heartland
Sinclair
Rev 2 • 11/2021

This guide provides detailed instructions on how to configure the
Mako MNSP, Verifone Commander/RubyCi, FA80 Bridge, and the
wireless access point for use with the Freedom Easy Pump.
Technicians must be VASC certified.
You will need a laptop with a functional ethernet adapter and wireless
capability, and the Managers login for the Configuration Client.
Table of Contents
1. Configure the Mako 6600……….……….…...……………………………………….……2
2. Program the Commander/RubyCi.…………………………....……..………….…….….6
3. Install the Wireless Access Point........................................................…………….…11
4. Program the FA80 Bridge………………………………………...……..…….…............12
5. Install Easy Pump Dispenser Kits…………………………………………………..……13
7. Remove DCR Programming……………………..………………….…………...……….14
1
Freedom Easy Pump
Freedom Easy Pump: Mako
Freedom Electronics
800-761-9369
Verifone VASC
888-777-3536
Mako Networks Support
844-807-0307
First Data(Buypass)
Helpdesk 800-726-2629
Heartland Payment Systems
Helpdesk 800-767-5258
Sinclair Merchant Support
800-524-4799

1. Configure the Mako 6600
It is recommended to contact Mako Support one week before install to allow for pre-
configuration. This can be done by an email to se[email protected] and you will
receive confirmation of completion.
Provide Mako the station information and proposed install date. You will be installing the
Freedom Electronics Easy Pump using a Sound Payments Enterprise Template.
Note there are (3) possible configurations depending on site equipment:
Sound Payments 8 Port Switch Enterprise Template
Sound Payments 24 Port Switch Enterprise Template
Sound Payments Legacy Enterprise Template (No managed switch)
For any Mako configuration issues, contact Mako Networks Support.
You can also email [email protected] for immediate assistance.
Please refer to the Mako Networks Quick Installation Guide, if needed.
2
Freedom Easy Pump
Freedom Easy Pump: Mako

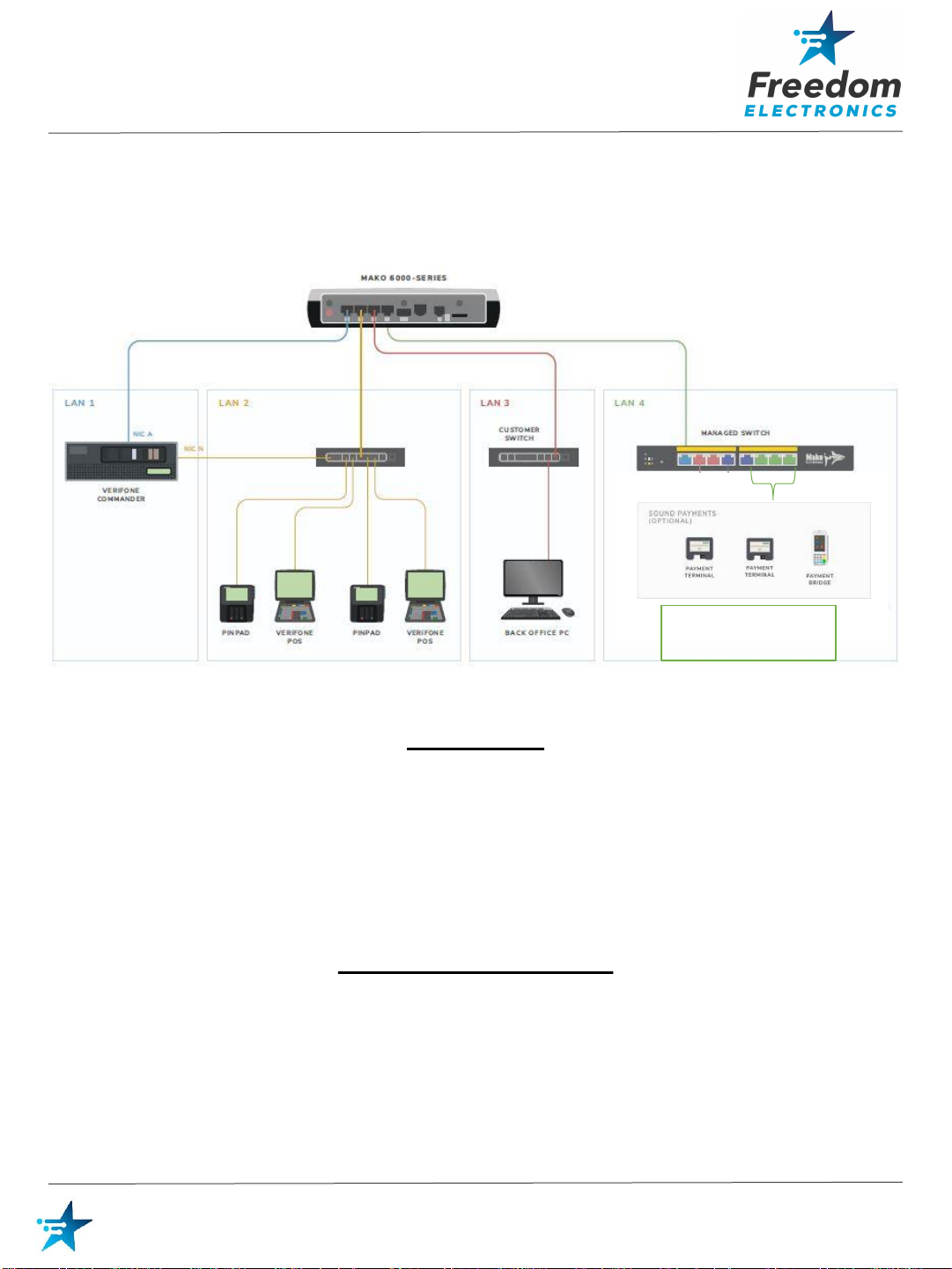

Sound Payments 8 Port Switch Template
3
Freedom Easy Pump
MAKO 6600
WAN 1 –INTERNET PROVIDER
LAN 1 –COMMANDER NIC A
LAN 2 –VERIFONE ZONE
LAN 3 –BACK OFFICE
LAN 4 –TRUNK TO SWITCH
MAKO 8 PORT SWITCH
PORT 1 –TRUNK
PORT 6 –FA80 BRIDGE
PORT 7 –WIRELESSACCESS POINT
Easy Pump VLAN
Ports 6-8
Freedom Easy Pump: Mako

Sinclair Sound Payments 24 Port Switch Template
Freedom Easy Pump
4
Easy Pump VLAN
Ports 15-18
MAKO 6600
WAN 1 –INTERNET PROVIDER
LAN 1 –TRUNK TO SWITCH
MAKO 24 PORT SWITCH
PORT 1 –TRUNK
PORT 2 –COMMANDER NIC A
PORT 3-10 –VERIFONE ZONE
PORT 15 –FA80 BRIDGE
PORT 16 –WIRELESSACCESS POINT
Freedom Easy Pump: Mako

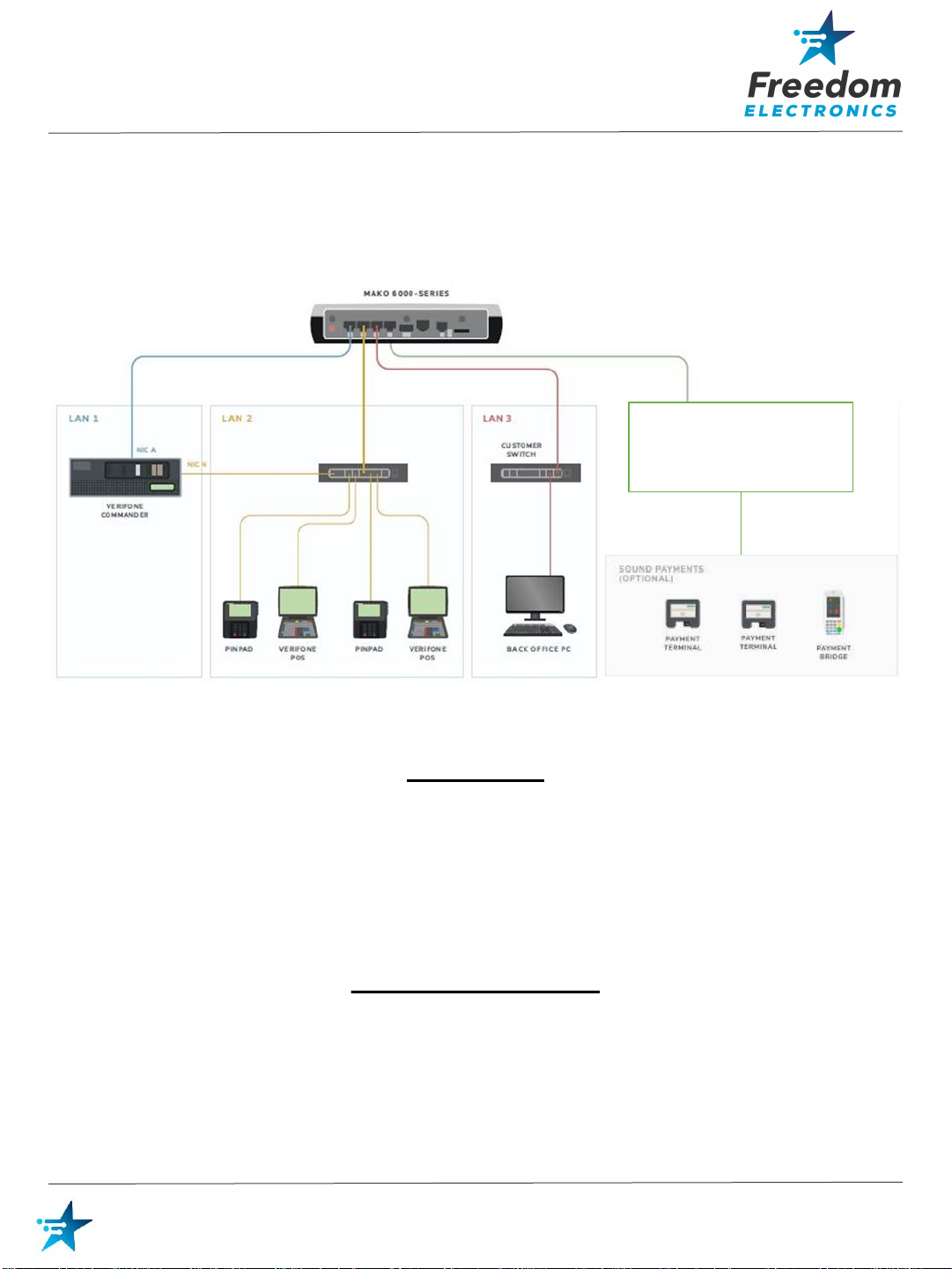

Sinclair Sound Payments Legacy Template
(No managed switch)
Freedom Easy Pump
5
MAKO 6600
WAN 1 –INTERNET PROVIDER
LAN 1 –COMMANDER NIC A
LAN 2 –VERIFONE ZONE
LAN 3 –BACK OFFICE
LAN 4 –EASY PUMP SWITCH
EASY PUMP SWITCH
WIRELESSACCESS POINT
FA80 BRIDGE
EASY PUMP
SWITCH
(PROVIDED IN KIT)
Freedom Easy Pump: Mako

2. Program the Commander/RubyCi
In this section we will setup the Commander to accept
Mobile Payments for The Easy Pump.
Note: Always pull a backup before and after you perform the install.
Note: We highly recommend checking and/or replacing the battery at this time.
Note: You will be required to generate an OTP password for network changes.
Minimum Base 53 is required for Sinclair.
Minimum Base 51 is required for First Data and Heartland
1. Login to the Configuration Manager in the CSR Functions of the register,
or by accessing the Configuration Client at the following address:
https://192.168.31.11/ConfigClient.html
Username: Manager
Password: **current manager password**
2. Determine the site’s Latitude and Longitude. There are many ways to do this,
including using Google Maps. Here we use Latlong.net, after entering the street
address you will find the coordinates.
latlong.net
6
Freedom Easy Pump
Freedom Easy Pump: Mako

3. Navigate to Payment Controller > Mobile Payment Configuration > Site Mobile
Configuration. See figure 1 on page 8.
Check “Accept Mobile Payments”
Enter the following and SAVE.
• Site Name: Enter store name
• Welcome message: Welcome
• Data Storage Time(in Days): 30
• Site Address: Enter street address
• Latitude: Enter Latitude
• Longitude: Enter Longitude
• Report: Leave at default
4. Navigate to Payment Controller > Mobile Payment Configuration > Host
Configuration. See figure 2 on page 8.
Check “Enable Host”
Enter the following and SAVE:
• Adapter: VFI Mobile
• Program Name: EASY PUMP
• Merchant ID: mppa2-mer
• Authentication Type: Display Token
• Store ID: mppa2-store
• Settlement Employee#: 5577
• Settlement Passcode: 633225
• Phone Number: Enter site phone number
• Address: 10.128.9.54
• Port: 4710
• Do NOT Check SSL Enabled
• Heartbeat Frequency: 45
• Hearbeat Time Unit: Seconds
• Outdoor PreAuthorization Timeout (In Secs): 180
• Site Initiated Loyalty: Never Allow Site Entered Loyalty
7
Freedom Easy Pump
Freedom Easy Pump: Mako

8
Freedom Easy Pump

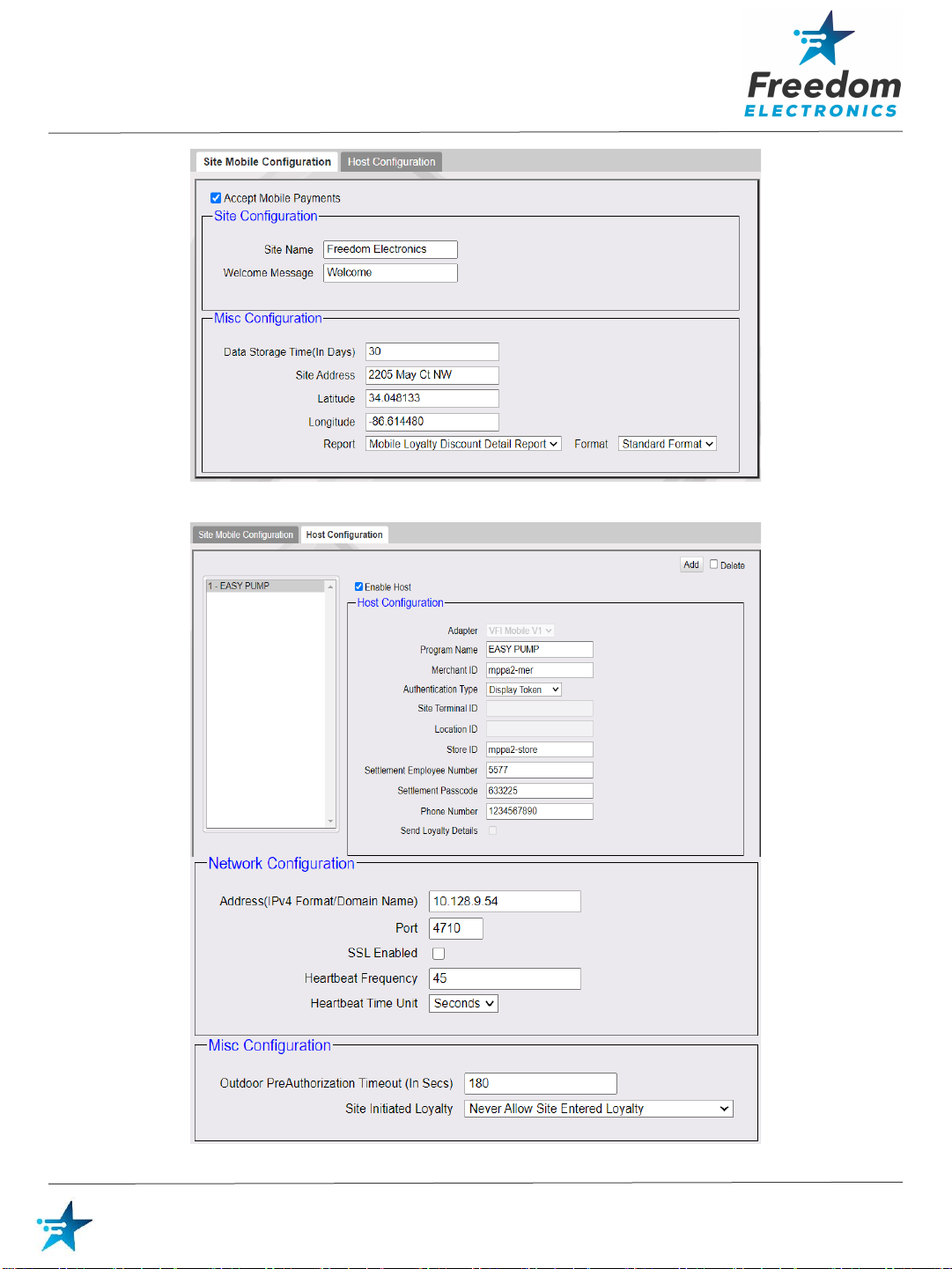

Figure 2 Host Configuration
Figure 1 Site Mobile Configuration
Freedom Easy Pump: Mako

5. Navigate to Store Operations > Payment Management > MOP.
See figure 3 on page 10.
Enter the following and SAVE:
• Select the MOBILE MOP position (position 012)
• Change Name to: EASY PUMP
• MOP Code: 28 –MOBILE
• MinimumAmount: 0.00
• Maximum Amount: 0.00
• Limit: 0.00
• Additional Receipts: 0
• Tender Code: Generic
• Tender Sub Code: Generic
• Check: Allow Zero Entry and Allow Refund
6. Navigate to Initial Setup > LocalArea Network Configuration > Device Specific
Routes. See figure 4 on page 10.
Select New
Enter the following and SAVE.
• Route Type: Host
• Destination: 10.128.9.54
• Gateway: 192.168.31.31
• Netmask: 255.255.255.240
• Service: EasyPump
7. Cycle power to the Commander/RubyCi.
9
Freedom Easy Pump
Freedom Easy Pump: Mako

10
Freedom Easy Pump

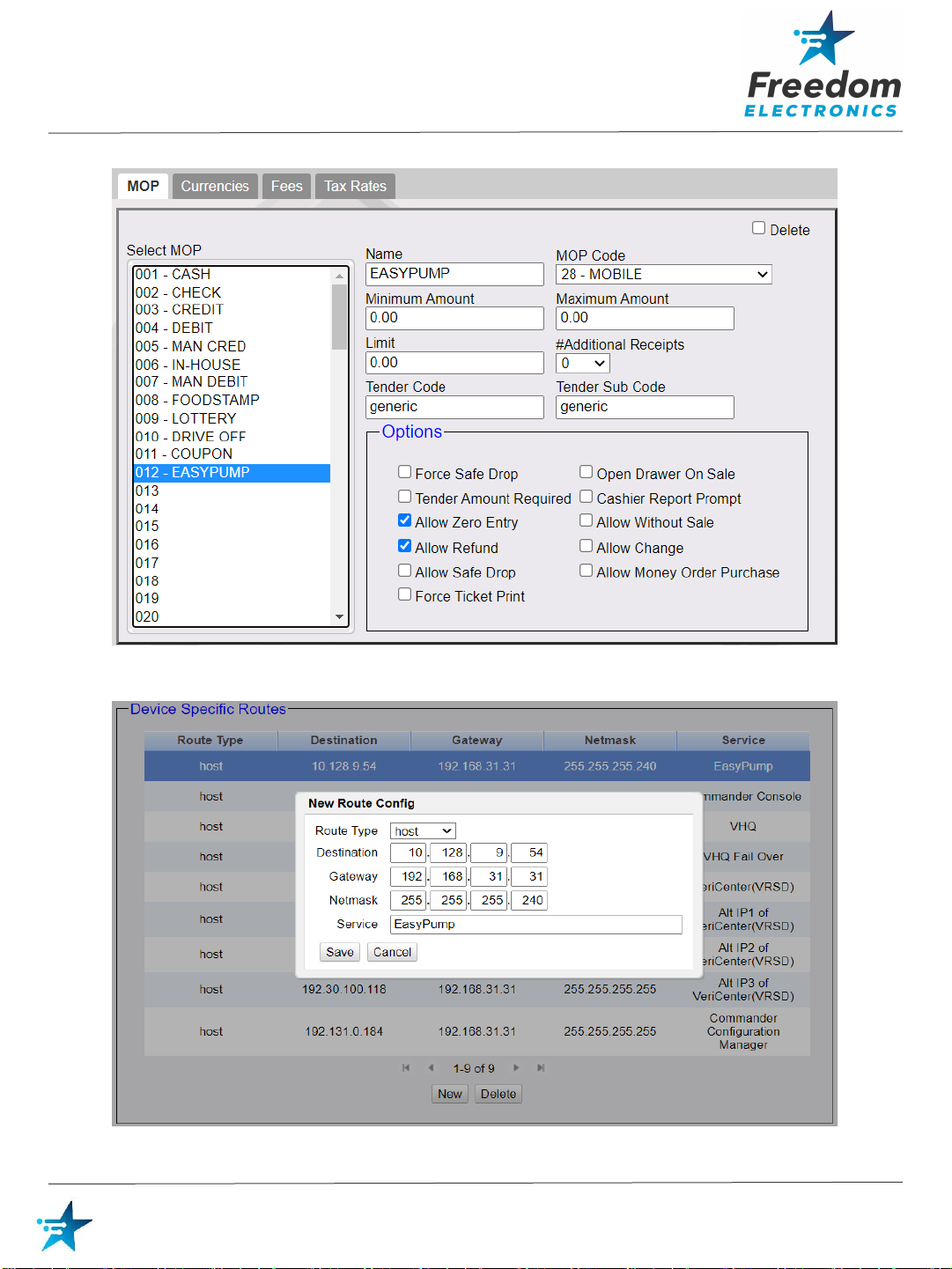

Figure 3 MOP
Figure 4 Device Specific Route
Freedom Easy Pump: Mako

3. Install the Wireless Access Point
1. Using an ethernet cable, connect the WirelessAccess Points LAN port on the PoE
adapter to the appropriate port of the Mako or switch. See Mako diagrams for correct
configuration.
2. Run an ethernet cable from the PoE port of the PoE adapter to the front of the store,
where the access point will be installed.
3. Temporarily mount the Access Point inside the store nearest the dispensers.
Location is critical - See the WirelessAccess Point Tips Guide available on the
Freedom Electronics website. Mount it as high as possible and with the least number
of obstructions to the dispensers as possible. The Access Point’s wireless signal
must reach the FIM-20’s at each dispenser.
4. Power up the Access Point by connecting the PoE adapter to a power plug. We
recommend using a conditioned power outlet, preferably a power receptacle
protected with a UPS for the Access Point and all other equipment.
5. You should now have a wireless network named “EASYPUMP”.
6. Download a WiFi analyzer app. for your laptop or smart phone, such as the free
edition of NetSpot.
7. With the access point temporarily in place, walk around each dispenser and take
note of the signal strength that you experience. We recommend a signal strength
greater than -60dBm at each dispenser, but signals may vary.
• Signal strengths above -60 dBm are recommended for proper operation.
• Signal strengths between -67 and -60 dBm may work but could
encounter issues.
• Signal strengths below -68 dBm are generally unusable.
SIGNAL STRENGTH IS VERY IMPORTANT AND MUST BE VERIFIED.
8. Relocate or adjust the position of the access point as needed.
9. Once proper signals are met, permanently mount the WirelessAccess Point.
11
Freedom Easy Pump
Freedom Easy Pump: Mako

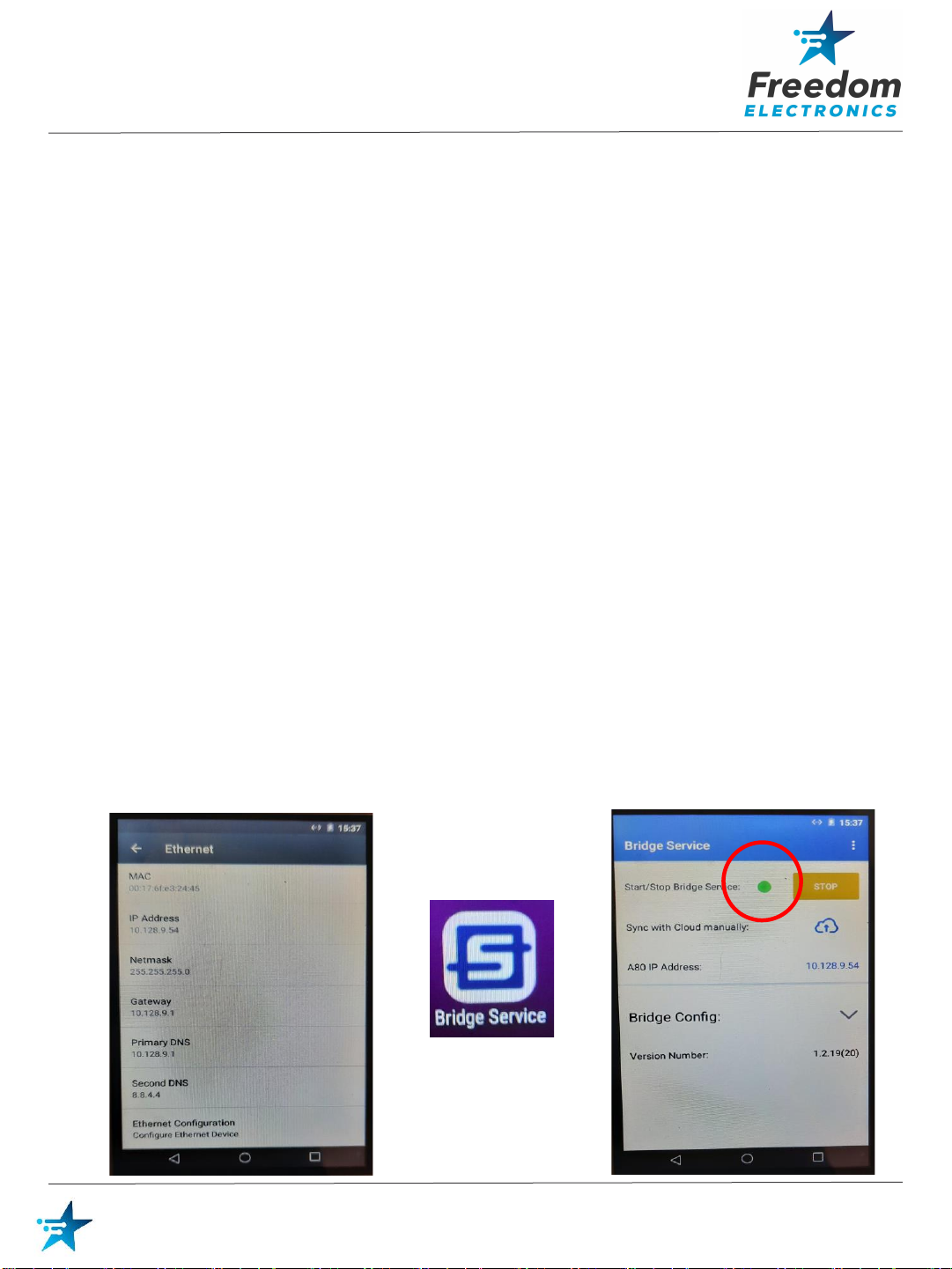

4. Program the FA80 Bridge
1. Using an ethernet cable, connect the FA80 Bridge to the appropriate port of the
Mako or switch. See Mako diagrams for correct configuration.
2. Open Settings and configure: (Password: pax9876@@)
• Disable Wi-fi
• Disable Bluetooth
• Enable Ethernet
• IP Mode: Static
• IP Address: 10.128.9.54
• Netmask: 255.255.255.0
• Gateway: 10.128.9.1
• Primary DNS: 10.128.9.1
• Secondary DNS: 8.8.4.4
Select Save and close settings.
3. From the FA80 Bridge desktop, open the Bridge ServiceApplication.
Password is the date: MMDDYYYY Note: This may be tomorrow’s date
according to UTC.
4. Select Start - The Bridge service will start and the indicator should turn Green.
12
Freedom Easy Pump
Freedom Easy Pump: Mako

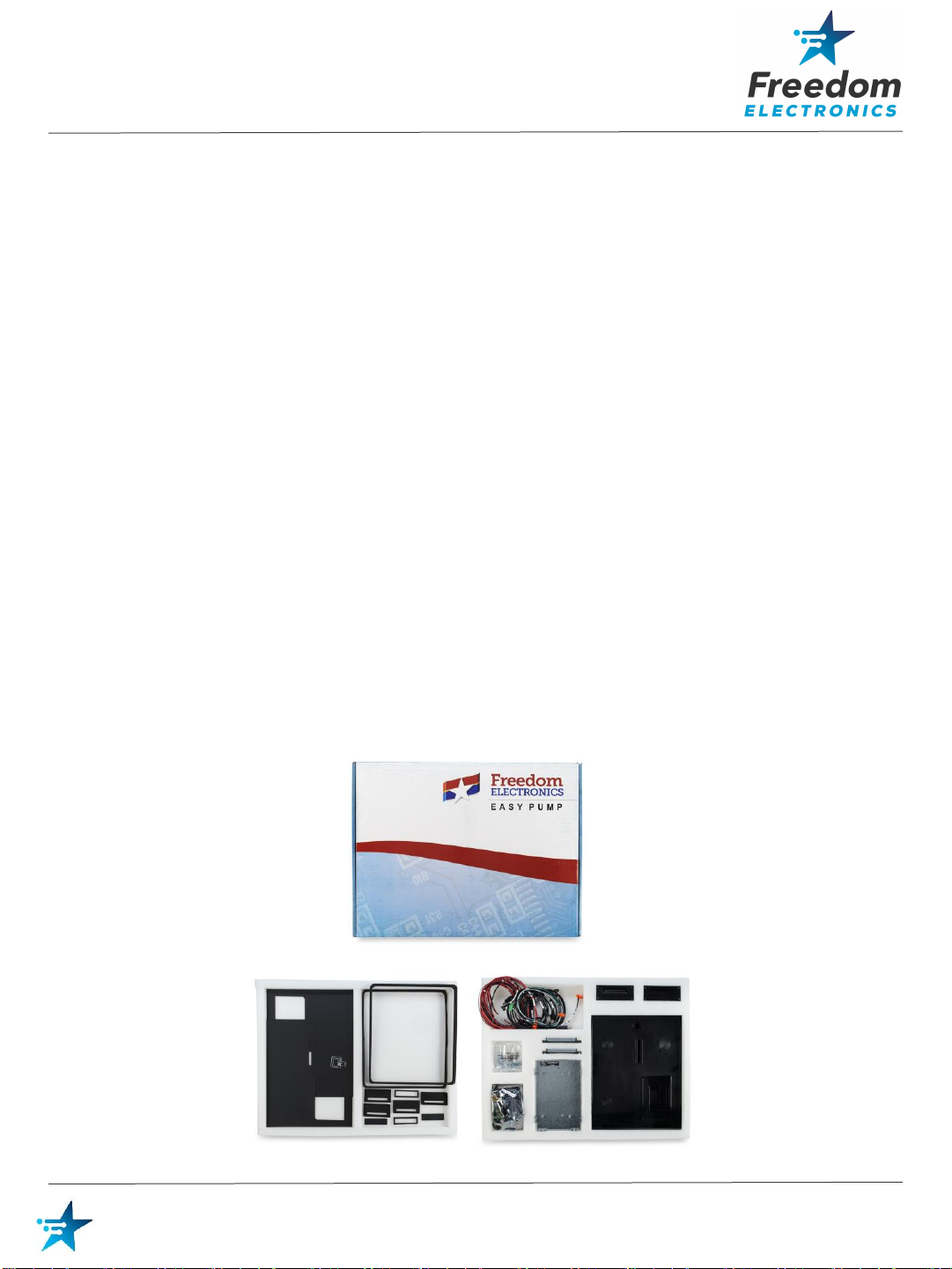

5. Install Easy Pump Dispenser Kits
At this point, you are ready to install the dispenser kits.
Please follow the appropriate dispenser install manual available
on the Freedom Electronics website.
Wayne Ovation Install Manual
Wayne Vista Install Manual
GilbarcoAdvantage Install Manual
Gilbarco 300/500 Install Manual
Gilbarco 500S/700S Install Manual
We recommend installing a kit into the first dispenser and verify
operations before moving onto any others.
The site will be able to run on dual systems, the new Easy Pump and
the existing DCR’s. This allows one dispenser at a time to be upgraded
without affecting the other dispensers. This will require removing current
DCR programming as you upgrade dispensers.
13
Freedom Easy Pump
Freedom Easy Pump: Mako

7. Remove DCR programming
1. Log into the Configuration Manager of the Commander/RubyCi.
2. Navigate to Forecourt > Fuel > Fuel Config –Pending > Fueling Positions.
See figure 5 on page 15.
Uncheck ‘DCR In Dispenser’ for each upgraded fueling position and SAVE.
3. Navigate to Tools > Managed Modules > Current Configurations > Host Names -
sitecontroller > Select Module - DCR Driver > DCR Positions –Advanced Settings.
See figure 6 on page 15.
Remove the channel programming for each upgraded DCR Position and SAVE.
4. Initialize Fuel and DCR’s.
The Easy Pump should now be operational at each upgraded fueling point.
Once all fueling points have been upgraded to
The Easy Pump, remove the DCR driver.
5. Navigate to Tools > Managed Modules > Current Configurations > Host Names –
sitecontroller > Select Module –DCR Driver > DCR Channel 01 –Advanced
Settings. See figure 7 on page 15.
Remove DCR Family type
Remove Port Name
Uncheck Enable and SAVE
6. Initialize Fuel and DCR’s, including Drivers.
14
Freedom Easy Pump
Freedom Easy Pump: Mako

15
Freedom Easy Pump

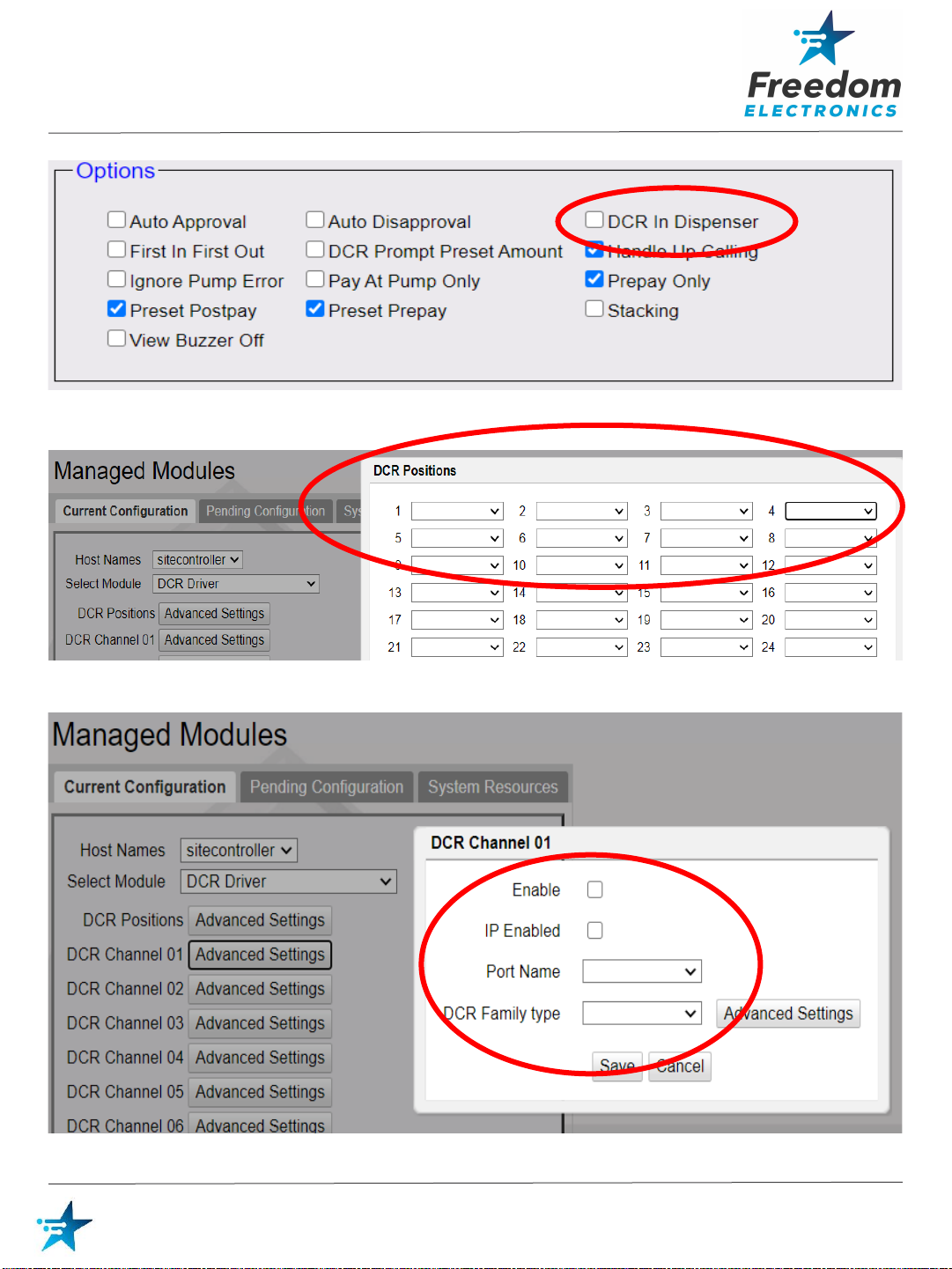

Figure 5 Fueling Positions
Figure 6 DCR Positions
Figure 7 DCR Channel
