Frigidaire GLMV168C User manual

READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
Installation Over the Range
Instructions Microwave Oven
Read these instructions completely and carefully.
•IMPORTANT – Save these
instructions for local inspector’s use.
•IMPORTANT – Observe all
governing codes and ordinances.
•Note to Installer – Be sure to leave these
instructions with the Consumer.
BEFORE YOU BEGIN
•Note to Consumer – Keep these
instructions for future reference.
•Skill level – Installation of this appliance requires
basic mechanical and electrical skills.
•Proper installation is the responsibility of the installer.
•Product failure due to improper installation is not
covered under the Warranty.
Need Help?
For customers in the United States, call: 1-800-944-9044
For Canadian customers, call: 1-866-294-9911
P/N 316137222

2

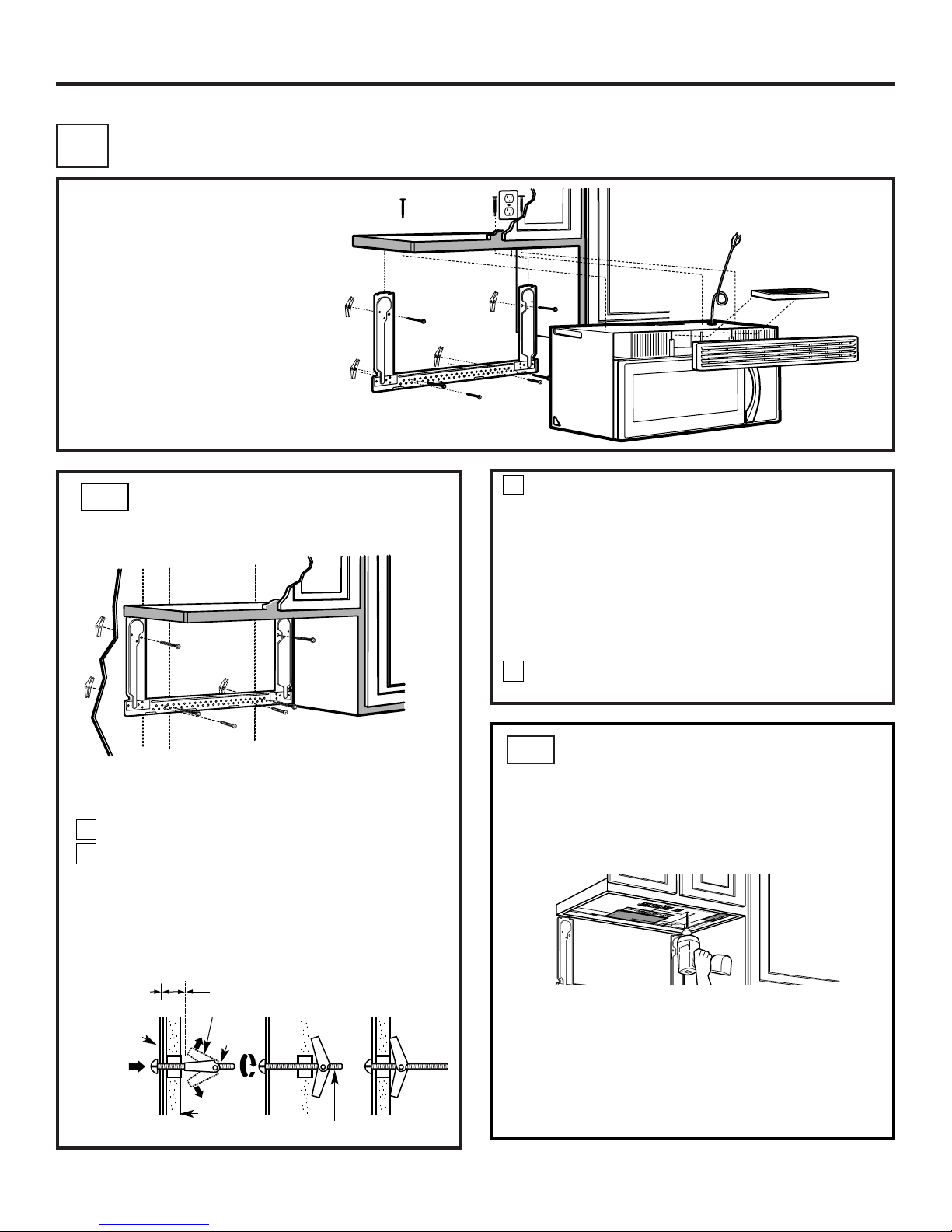

Recirculating ........................................ 19–22
Attach Mounting Plate to Wall ............19
Preparation of Top Cabinet ................19
Check Microwave Assembly ................20
Adapting Microwave Blower
for Recirculation............................20–21
Mount the Microwave
Oven..............................................21–22
Installing the Charcoal Filter ..............22
Before You Use Your Microwave .......................... 23
CONTENTS
General information
Important Safety Instructions .................................. 3
Electrical Requirements .......................................... 3
Hood Exhaust ...................................................... 4–5
Damage – Shipment/Installation.............................. 6
Parts Included.......................................................... 6
Tools You Will Need ................................................ 7
Mounting Space ...................................................... 7
Step-by-step installation guide

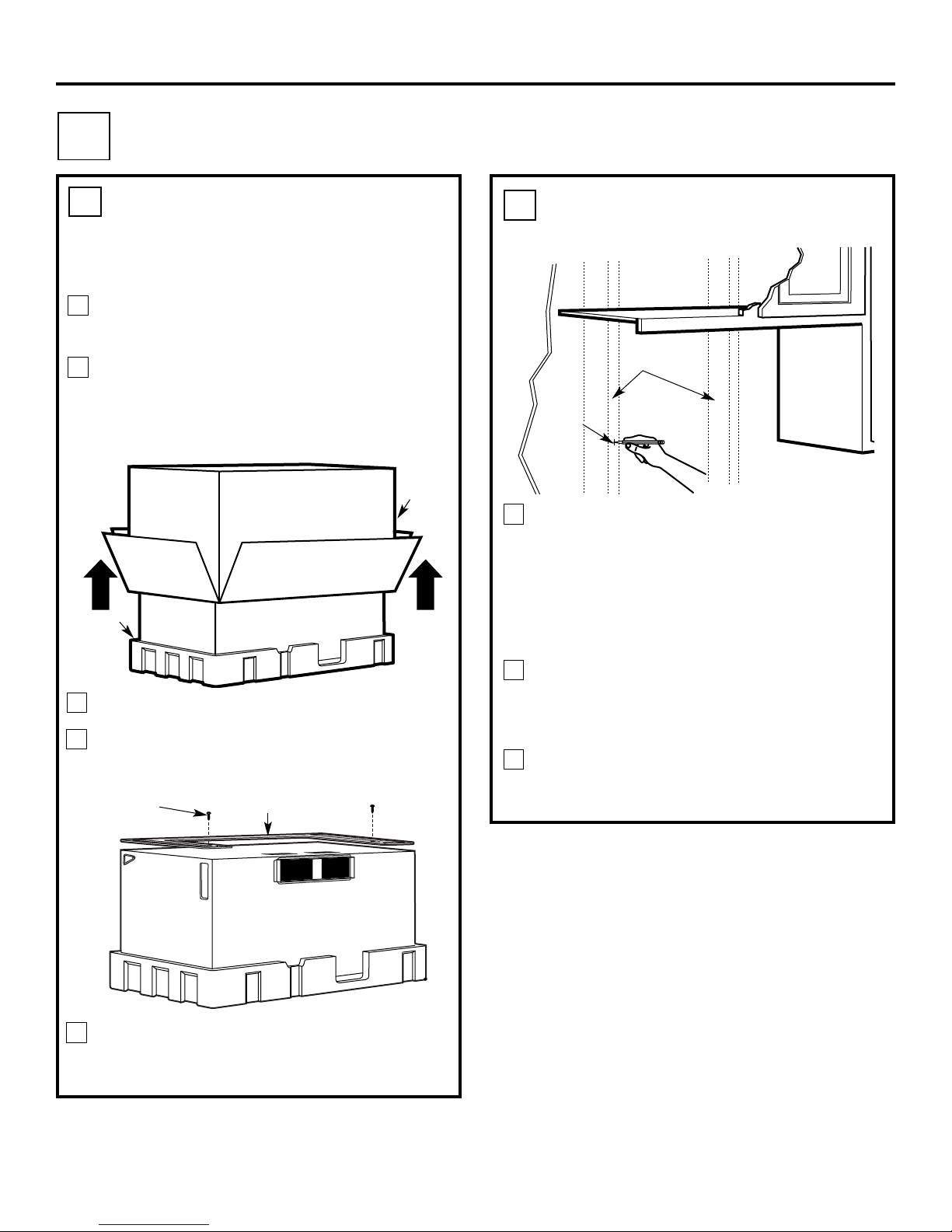

Placement of Mounting Plate ............................ 8–10
Removing the Mounting Plate ...................... 8
Finding the Wall Studs .................................. 8
Determining Wall Plate Location .................. 9
Aligning the Wall Plate................................ 10

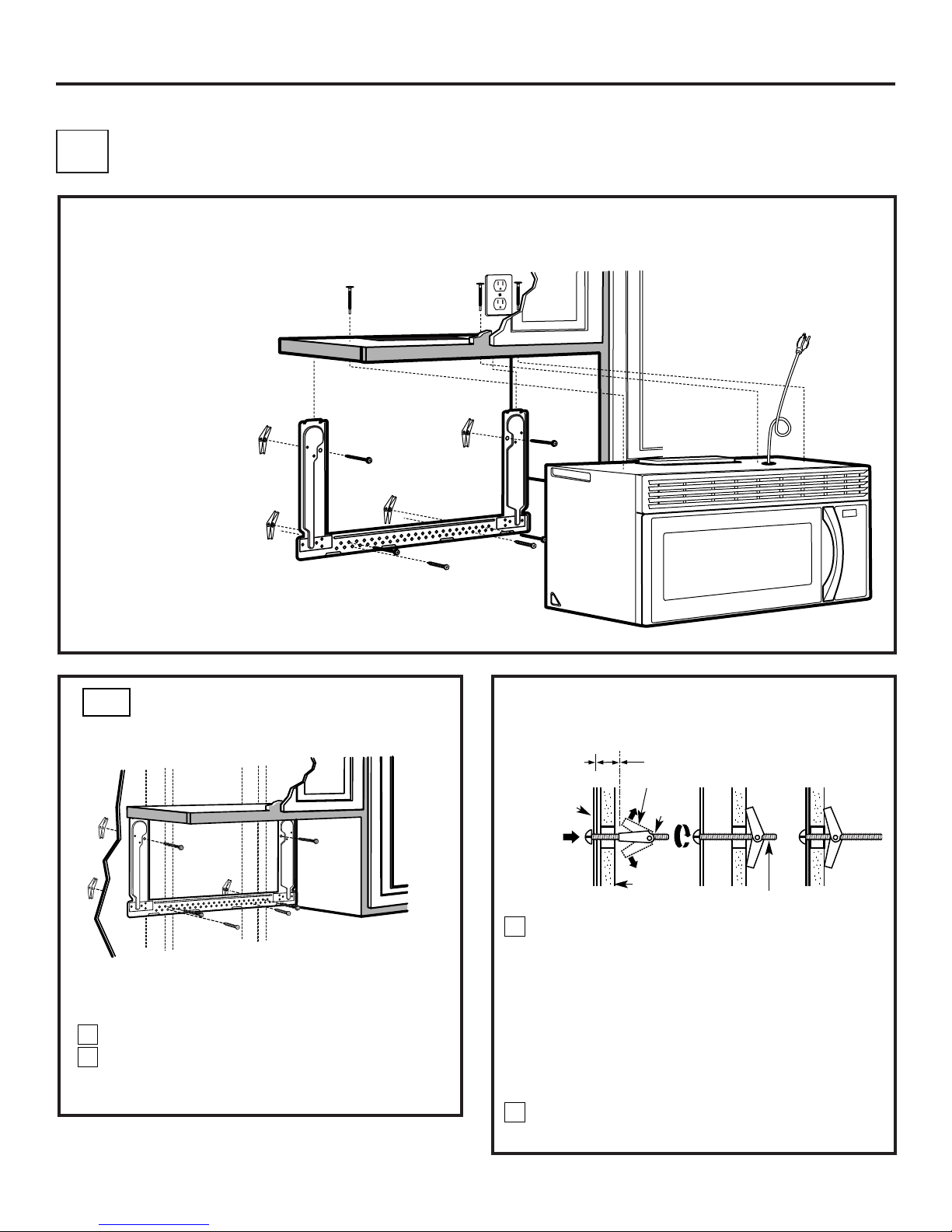

Installation Types.............................................. 11–22

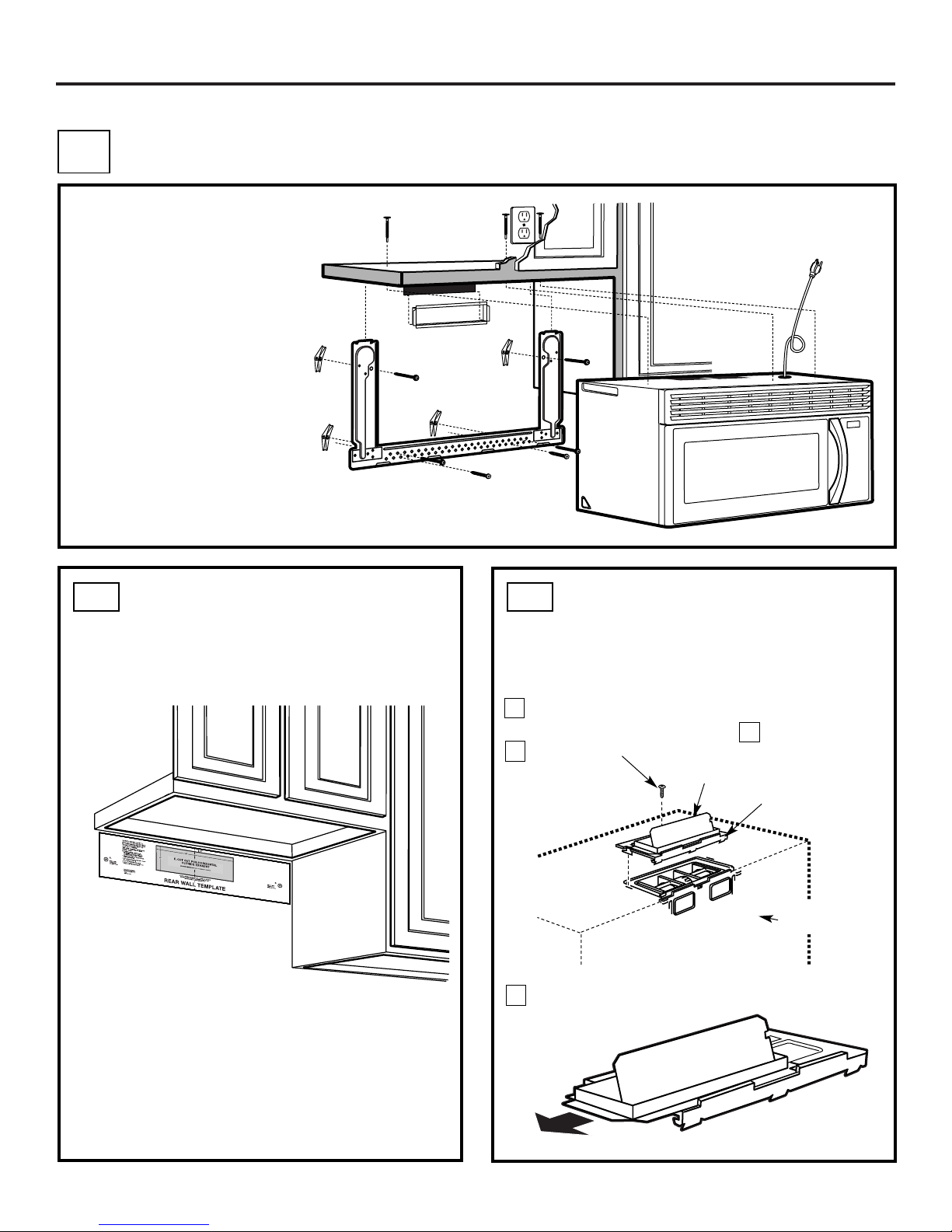

Outside Top Exhaust ............................ 12–14
Attach Mounting Plate to Wall ............12
Preparation of Top Cabinet ................13
Checking for Proper Damper
Operation............................................13
Mount the Microwave Oven ................13
Adjust the Exhaust Adaptor ................14
Connecting Ductwork..........................14
Outside Back Exhaust............................ 15–18
Preparing Rear Wall for
Outside Back Exhaust..........................15
Removing Exhaust Adaptor ................15

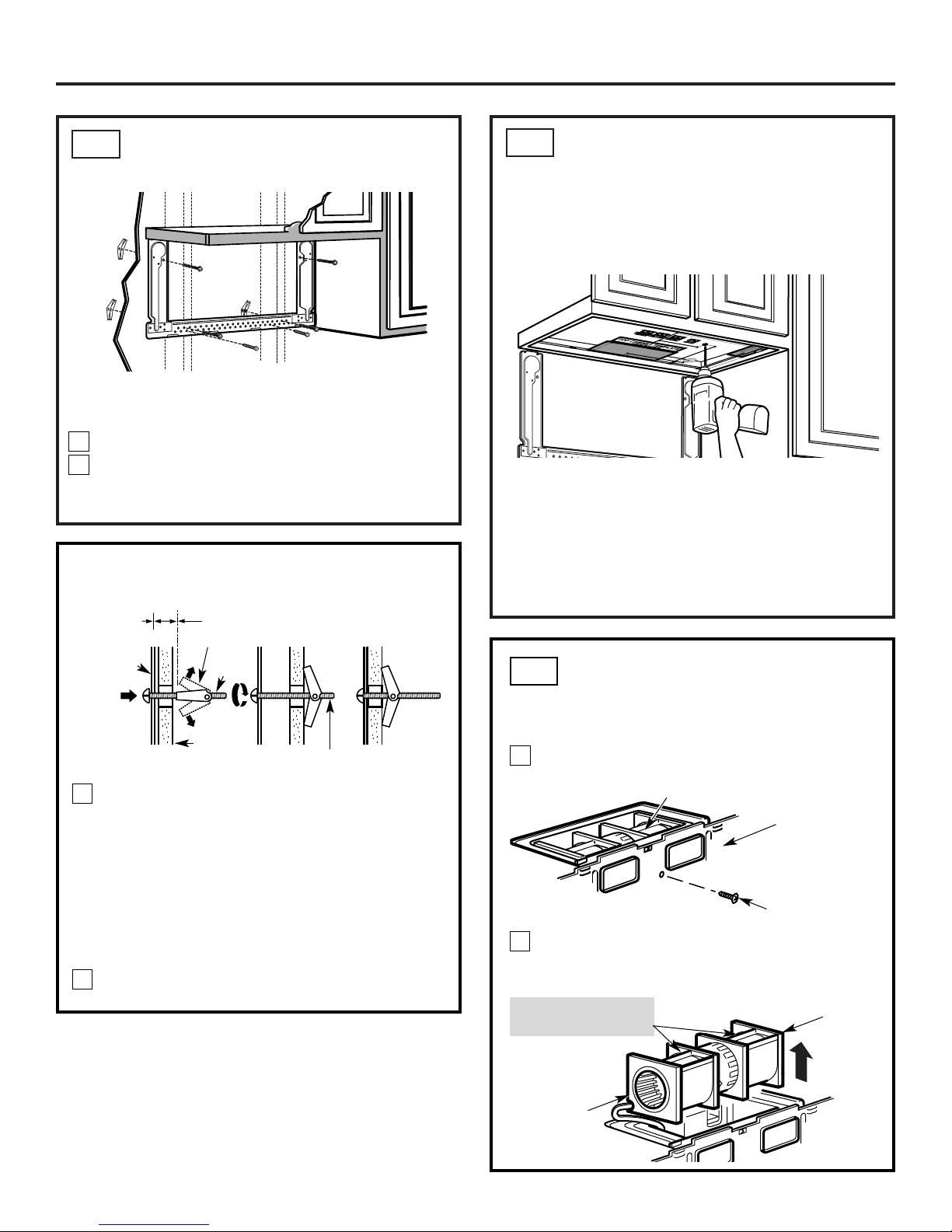

Attach Mounting Plate to Wall ..............16
Preparation of Top Cabinet ................16

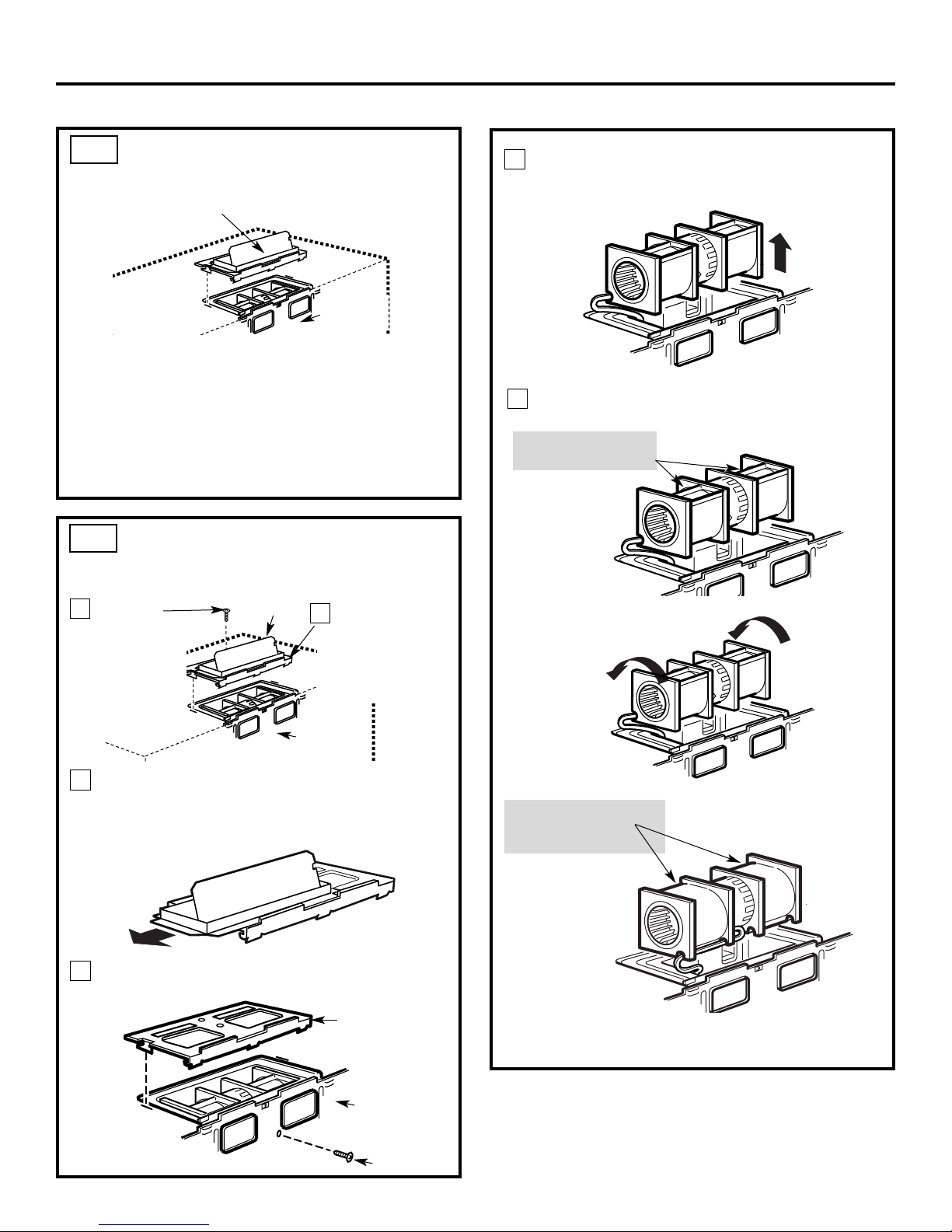

Adapting Microwave Blower
for Outside Back Exhaust................16–17
Mount the Microwave Oven ................18
A
B
C
Installation Instructions

IMPORTANT SAFETY INSTRUCTIONS
This product requires a three-prong grounded
outlet. The installer must perform a ground continuity
check on the power outlet box before beginning the
installation to insure that the outlet box is properly
grounded. If not properly grounded, or if the outlet
box does not meet electrical requirements noted
(under ELECTRICAL REQUIREMENTS), a
qualified electrician should be employed to
correct any deficiencies.
CAUTION: For personal
safety, remove house fuse
or open circuit breaker
before beginning installation
to avoid severe or fatal
shock injury.
CAUTION: For personal safety, the mounting surface
must be capable of supporting the cabinet load, in
addition to the added weight of this 63-85 pound
(28.6-38.6 kg) product, plus additional oven loads of
up to 50 pounds (22.7 kg) or a total weight of 113-135
pounds (51.3-61.2 kg).
CAUTION: For personal safety, this product cannot
be installed in cabinet arrangements such as an island or
a peninsula. It must be mounted to BOTH a top cabinet
AND a wall.
NOTE: For easier installation and personal safety, it is
recommended that two people install this product.
IMPORTANT—PLEASE READ CAREFULLY. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVERE OR
FATAL SHOCK.
The power cord of this appliance is equipped with a
three-prong (grounding)
plug which mates with a
standard three-prong
(grounding) wall receptacle
to minimize the possibility
of electric shock hazard
from this appliance.
You should have the wall receptacle and circuit checked
by a qualified electrician to make sure the receptacle is
properly grounded.
Where a standard two-prong wall receptacle is
encountered, it is very important to have it replaced
with a properly grounded three-prong wall receptacle,
installed by a qualified electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT,
DEFORM OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT USE WITH
AN EXTENSION CORD.
3
ELECTRICAL
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 15 amps and
1.58 kilowatts. This product must be connected to a
supply circuit of the proper voltage and frequency.
Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code
for this kilowatt rating. The power supply cord and
plug should be brought to a separate 15 to 20 ampere
branch circuit single grounded outlet. The outlet box
should be located in the cabinet above the microwave
oven. The outlet box and supply circuit should be
installed by a qualified electrician and conform to the
National Electrical Code or the prevailing local code.
Insure proper
ground exists
before use
Installation Instructions

4
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Roof Cap 24 Ft. x (1) = 24 Ft.
(7.32 m) (7.32 m)
12 Ft. Straight Duct 12 Ft. x (1) = 12 Ft.
(6″Round) (3.66 m) (3.66 m)
Rectangular-to-Round 5 Ft. x (1) = 5 Ft.
Transition Adaptor* (1.52 m) (1.52 m)
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood.
Total Length = 41 Ft. (12.50 m)
HOOD EXHAUST
The following chart describes an example of one possible
ductwork installation.
NOTE: Read these next two pages only if you plan to vent your exhaust to the
outside. If you plan to recirculate the air back into the room, proceed to page 6.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
*IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
The following chart describes an example of one possible
ductwork installation.
Installation Instructions
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH* x USED = LENGTH
Wall Cap 40 Ft. x (1) = 40 Ft.
(12.19 m) (12.19 m)
3 Ft. Straight Duct 3 Ft. x (1) = 3 Ft.
(31⁄4″x 10″Rectangular) (91.44 cm) (91.44 cm)
90° Elbow 10 Ft. x (2) = 20 Ft.
(3.05 m) (6.10 m)
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood. Total Length = 63 Ft. (19.20 m)

EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Rectangular-to-Round 5 Ft. x ( ) = Ft.
Transition Adaptor* (1.52 m) (m)
Wall Cap 40 Ft. x ( ) = Ft.
(12.19 m) (m)
90° Elbow 10 Ft. x ( ) = Ft.
(3.05 m) (m)
45° Elbow 5 Ft. x ( ) = Ft.
(1.52 m) (m)
90° Elbow 25 Ft. x ( ) = Ft.
(7.62 m) (m)
45° Elbow 5 Ft. x ( ) = Ft.
(1.52 m) (m)
Roof Cap 24 Ft. x ( ) = Ft.
(7.32 m) (m)
Straight Duct 6″Round or 1 Ft. x ( ) = Ft.
31⁄4″x 10″Rectangular (30.48 cm) (cm)
Total Ductwork = Ft. (m)
Equivalent lengths of duct pieces are based on actual tests
and reflect requirements for good venting performance with
any vent hood.
* IMPORTANT: If a rectangular-to-round transition
adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order
to allow free movement of the damper .
NOTE: If you need to install ducts, note that the total duct
length of 31⁄4″x 10″rectangular or 6″diameter round duct
should not exceed 140 equivalent feet (42.67 m).
Outside ventilation requires a HOOD EXHAUST DUCT.
Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with a
standard 31⁄4″x 10″rectangular duct.
If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than
a 6″diameter duct.
Maximum duct length:
For satisfactory air movement, the total duct length of
31⁄4″x 10″rectangular or 6″diameter round duct should
not exceed 140 equivalent feet (42.67 m).
Elbows, transitions, wall and roof caps,
etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer
than their actual physical size. When calculating the
total duct length, add the equivalent lengths of all
transitions and adaptors plus the length of all straight
duct sections. The chart below shows you how to
calculate total equivalent ductwork length using the
approximate feet of equivalent length of some typical
ducts.
5
Installation Instructions

6
Installation Instructions
PART QUANTITY
Top Cabinet 1
Template
Rear Wall 1
Template
Installation 1
Instructions
Separately 2
Packed
Grease
Filters
PART QUANTITY
Wood Screws 2
(1⁄4″x 2″)
Toggle Bolts (and 4
wing nuts) (3⁄16″x 3″)
Self-aligning Machine 3
Screws (1⁄4″-28 x 31⁄4″)
Nylon Grommet 2
(for metal cabinets)
•If the unit is damaged in shipment, return the
unit to the store in which it was bought for repair
or replacement.
•If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
•If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by arrangement between customer
and installer.
DAMAGE – SHIPMENT/
INSTALLATION

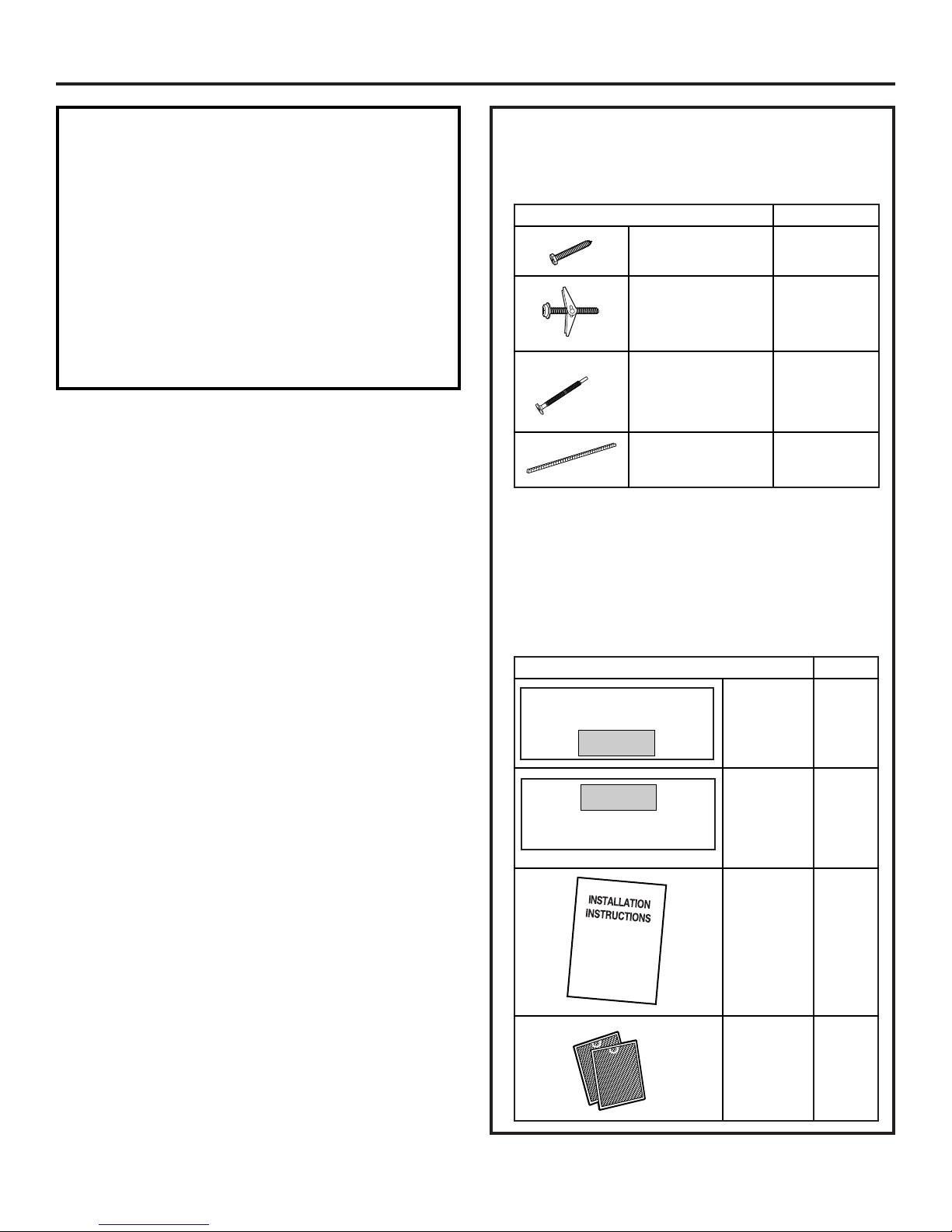

PARTS INCLUDED
You will find the installation hardware contained in
a packet with the unit. Check to make sure you have
all these parts.
NOTE: Some extra parts are included.
HARDWARE PACKET
ADDITIONAL PARTS
TOP CABINET TEMPLATE
REAR
WALL
TEMPLATE

7

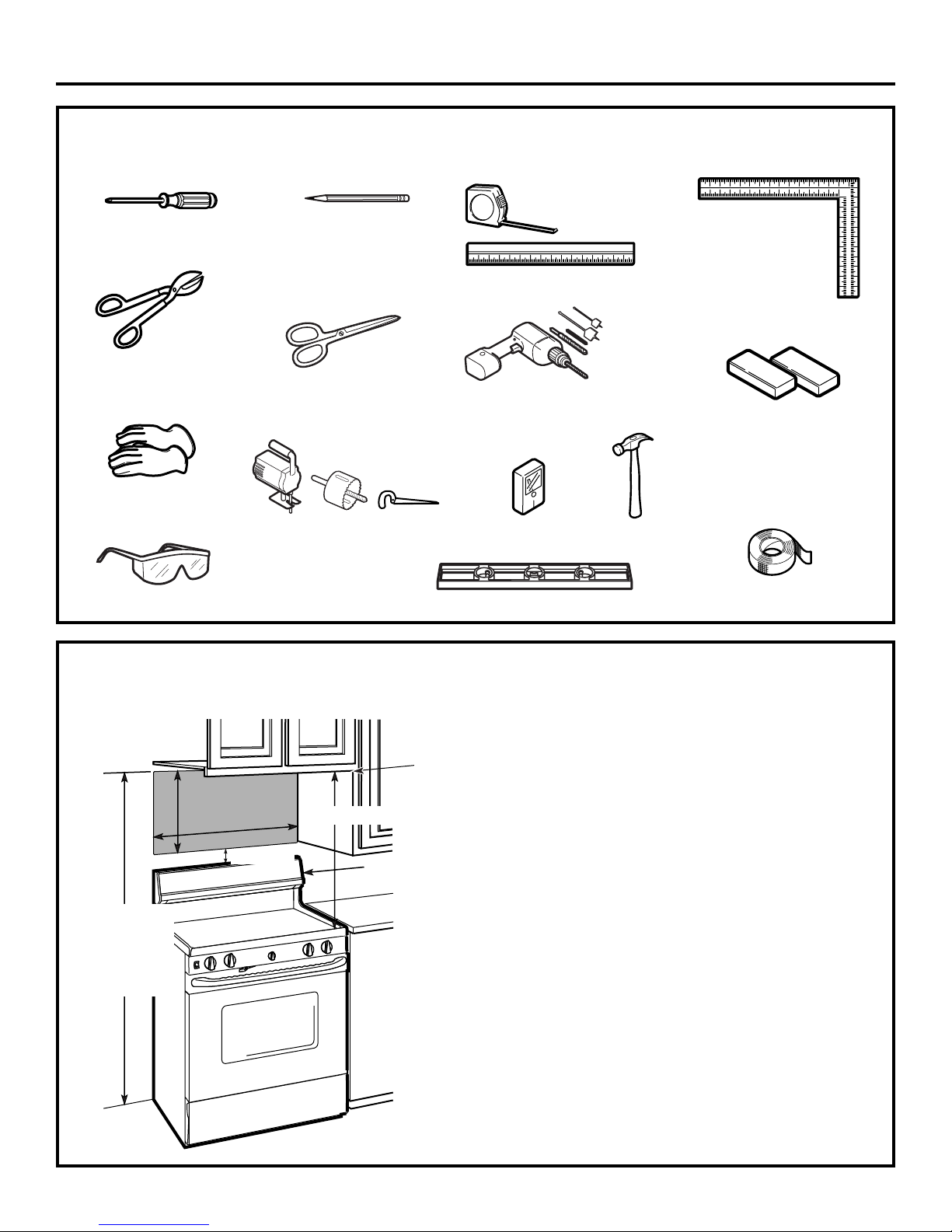

TOOLS YOU WILL NEED
#1 and #2 Phillips screwdriver Pencil
Ruler or tape measure and
straight edge Carpenter square
(optional)
Tin snips (for cutting
damper, if required)
Electric drill with 3⁄16″, 1⁄2″and 5⁄8″
drill bits
Hammer (optional)
Stud finder or
Filler blocks or scrap
wood pieces, if needed
for top cabinet spacing
(used on recessed bottom
cabinet installations only)
Gloves
Saw (saber, hole or keyhole)
Level Duct and masking tape
MOUNTING SPACE
NOTES:
•The space between the cabinets must be 30″
(76.2 cm)wide and free of obstructions.
•If the space between the cabinets is greater
than 30″ (76.2 cm), a Filler Panel Kit may be
used to fill in the gap between the microwave
oven and the cabinets. Your Owner’s Manual
contains the kit number for your model.
•This microwave oven is for installation over
ranges up to 36″(91.44 cm) wide.
•If you are going to vent your microwave oven
to the outside, see Hood Exhaust Section for
exhaust duct preparation.
•When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for
power cord clearance.
Backsplash
66″(167.64 cm)
or more from
the floor to the
top of the
microwave
30″(76.2 cm)
2″ (5.08 cm)
30″ (76.2 cm) min.
161⁄2″ (41.91 cm)
Bottom edge of
cabinet needs to
be 30″(76.2 cm)
or more from the
cooking surface
Installation Instructions
Scissors
(to cut template, if necessary)
Safety goggles

8
Find the studs, using one of the following
methods:
A. Stud finder – a magnetic device which
locates nails.
OR
B. Use a hammer to tap lightly across the
mounting surface to find a solid sound.
This will indicate a stud location.
After locating the stud(s), find the center by
probing the wall with a small nail to find the edges
of the stud. Then place a mark halfway between the
edges. The center of any adjacent studs should be
16″or 24″(40.64 cm or 60.96 cm) from this mark.
Draw a line down the center of the studs.
THE MICROWAVE MUST BE CONNECTED TO
AT LEAST ONE WALL STUD.
1
Remove the installation instructions, filters, glass
tray and the small hardware bag. Do not remove
the Styrofoam protecting the front of the oven.
Fold back all 4 carton flaps fully against carton
sides. Then carefully roll the oven and carton over
onto the top side. The oven should be resting in
the Styrofoam.
REMOVING THE MICROWAVE
OVEN FROM THE CARTON/
REMOVING THE MOUNTING
PLATE
FINDING THE WALL STUDS
B.
A.
2
PLACEMENT OF THE MOUNTING PLATE
1
Wall
Studs
Center
3
Carton
Pull the carton up and off the oven.
Remove the 2 screws from the mounting plate.
This plate will be used as the rear wall template
and for mounting. You may discard these screws.
Mounting
Plate
Screws
2
Styrofoam
Installation Instructions
3
5
Remove and properly discard plastic bags.
4
1

9
DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET
C.
Your cabinets may have decorative trim that interferes
with the microwave installation. Remove the decorative
trim to install the microwave properly and to make it
level.
THE MICROWAVE MUST BE LEVEL.
Use a level to make sure the cabinet bottom is level.
If the cabinets have a front overhang only, with no
back or side frame, install the mounting plate down
the same distance as the front overhang depth. This
will keep the microwave level.
Measure the inside depth of the front overhang.
Draw a horizontal line on the back wall an equal
distance below the cabinet bottom as the inside
depth of the front overhang.
For this type of installation with front overhang only,
align the mounting tabs with this horizontal line, not
touching the cabinet bottom as described in Step D.
Plate position – beneath flat bottom
cabinet
Plate position – beneath recessed bottom
cabinet with front overhang
Mounting Plate Tabs
Touching the Cabinet Bottom
Mounting Plate with
Tabs Below Cabinet
Bottom the Same
Distance as the Front
Overhang Depth
At least 30″ (76.2 cm), up to
36″ (91.44 cm)
Plate position – beneath framed recessed
cabinet bottom
Installation Instructions
30″(76.2 cm) to Cooktop
1
2
3
Mounting Plate Tabs
Touching the Back
Frame
30″(76.2 cm) to Cooktop

10
ALIGNING THE WALL PLATE
Draw a vertical line on the wall at the center of the 30″
(76.2 cm) wide space.
Use the mounting plate as the template for the rear
wall. Place the mounting plate on the wall, making
sure that the tabs are touching the bottom of the
cabinet or the level line drawn in Step C for cabinets
with front overhang. Line up the notch and center line
on the bottom of the mounting plate to the center line
on the wall.
While holding the mounting plate with one hand,
draw circles on the wall at holes A, B, C and D (see
illustration above/actual plate marked with arrows).
Four holes must be used for mounting.
NOTE: Holes C and D are inside area E. If neither
C nor D is in a stud, find a stud somewhere in area E
and draw a fifth circle to line up with the stud. It is
important to use at least one wood screw mounted
firmly in a stud to support the weight of the microwave.
Set the mounting plate aside.
Drill holes on the circles. If there is a stud, drill a 3⁄16″
hole for wood screws. For holes that don’t line up with
a stud, drill a 5⁄8″hole for toggle bolts.
NOTE: DO NOT MOUNT THE PLATE AT THIS
TIME.
1
2
3
4
Draw a Vertical
Line on Wall
from Center of
Top Cabinet
Area E
Hole A
Hole B
Hole D
D.
Installation Instructions
CAUTION: Wear gloves
to avoid cutting fingers on
sharp edges.
Hole C
Centerline
notches

A
INSTALLATION TYPES (Choose A, B or C)

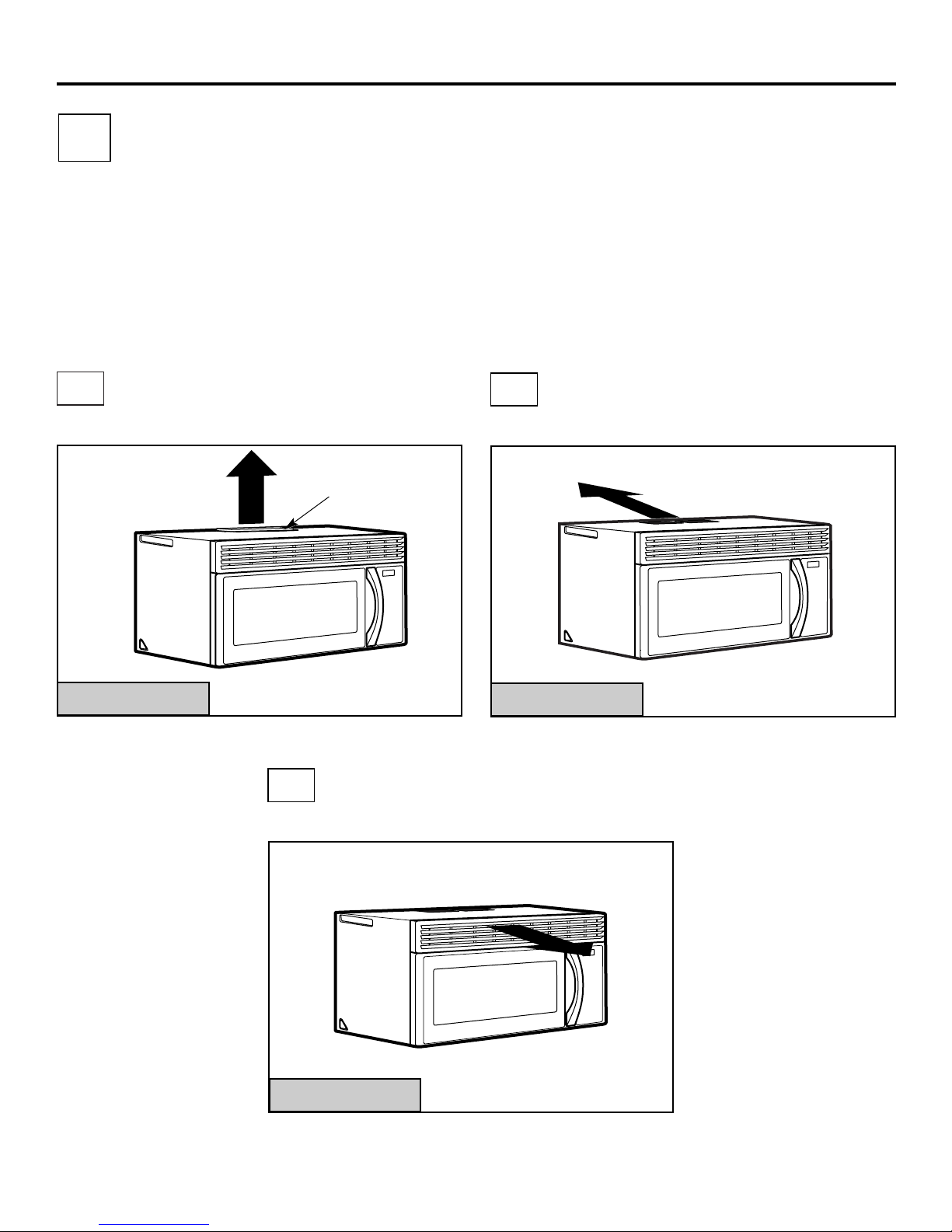

This microwave oven is designed for adaptation to the
following three types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
B. Outside Back Exhaust (Horizontal Duct)
C. Recirculating (Non-Vented Ductless)
NOTE: This microwave is shipped assembled for Outside
Top Exhaust (except for non-vented models). Select the
type of ventilation required for your installation and
proceed to that section.
OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
RECIRCULATING
(NON-VENTED DUCTLESS)
See page 12 See page 15
See page 19
A Charcoal Filter Accessory
Kit is required for the non-
vented exhaust. (See your
Owner’s Manual for the kit
number.)
Adaptor in Place for
Outside Top Exhaust
Installation Instructions
2
B
C
11

A
12
OUTSIDE TOP EXHAUST (Vertical Duct)
Installation Instructions
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed
flush against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
4
ATTACH THE MOUNTING
PLATE TO THE WALL
A1.
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through the
holes designated to go into drywall and reattach the
toggle wings to 3⁄4″(19.05 mm) onto each bolt.
1
INSTALLATION OVERVIEW
A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Check Damper Operation
A4. Mount Microwave Oven
A5. Adjust Exhaust Adaptor
A6. Connect Ductwork
Wall
Mounting
Plate
Spacing for Toggles
More Than Wall
Thickness
Bolt End
Toggle
Bolt
Toggle Wings
To use toggle bolts:
2

13
Installation Instructions
3
MOUNT THE MICROWAVE
OVEN
A4.
CHECK FOR PROPER
DAMPER OPERATION
A3.
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
You need to drill holes for the top support screws, a
hole large enough for the power cord to fit through,
and a cutout large enough for the exhaust adaptor.
A2.
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not
used, case damage may occur from over
tightening screws.
Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord
tight. Be careful not to pinch the cord, especially
when mounting flush to bottom of cabinet.
NOTE: When mounting
the microwave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1–3. Do
not pinch cord or lift
oven by pulling cord.
Lift microwave, tilt it
forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting
plate.
Exhaust Adaptor
(absent on models shipped
for recirculation exhaust)
Blower Plate
Damper
Back of
Microwave
•Read the instructions on the TOP CABINET
TEMPLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
•Place the microwave in its upright position, with the
top of the unit facing up.
•This microwave oven may be shipped assembled for
top exhaust (adaptor installed) or for recirculation
exhaust (adaptor absent).
•Make sure tape securing damper is removed and
damper pivots easily before mounting microwave.
•You will need to make adjustments to assure proper
alignment with your house exhaust duct after the
microwave is installed.
1
2Rotate front of oven
up against cabinet
bottom.

14
4Attach the microwave oven to the top cabinet.
8
7
6
Cabinet Front
Cabinet Bottom Shelf
Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
Filler Block
Microwave Oven Top
Equivalent to
Depth
of Cabinet
Recess
Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
Tighten center
screw completely.
Install grease filters. See the Owner’s Manual
packed with the microwave.
Installation Instructions
ADJUST THE EXHAUST
ADAPTOR
A5.
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Back of
Microwave
For Front-to-Back or
Side-to-Side
Adjustment, Slide the
Exhaust Adaptor as
Needed
Blower Plate Damper
CONNECTING DUCTWORK
1
2
Extend the house duct down to connect to
the exhaust adaptor.
Seal exhaust duct joints using duct tape.
A6.
House Duct
Self-Aligning Screw
5

Installation Instructions
15
This microwave oven is shipped assembled for top
exhaust. You will need the exhaust adaptor for
installation in the rear wall opening. To remove the
exhaust adaptor from the microwave oven:
Remove tape securing damper.
2
OUTSIDE BACK EXHAUST (Horizontal Duct)
Lift off the
blower plate
and attached
adaptor from
the microwave.
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Remove Exhaust Adaptor
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Microwave Oven
Slide exhaust adaptor to one side and remove it.
Back of
Microwave
Remove and
save screw
that holds
blower plate
to microwave.
B
3
4
Damper
1
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
B1.
You need to cut an opening in the rear wall for
outside exhaust.
•Read the instructions on the REAR WALL
TEMPLATE.
•Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall
plate.
•Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
REMOVE EXHAUST ADAPTOR
B2.

16
Installation Instructions
ATTACH THE MOUNTING
PLATE TO THE WALL
B3. USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
B4.
•Read the instructions on the TOP CABINET
TEMPLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
Wall
Mounting
Plate
Spacing for Toggles More
Than Wall Thickness
Toggle
Bolt
Toggle Wings
To use toggle bolts:
Bolt End
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to 3⁄4″(19.05 mm) onto each bolt.
1
2
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
3
4
BEFORE: Fan Blade
Openings Facing Up
2
1Remove and save screw that holds blower motor
to microwave.
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST
B5.
End B
End A
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust the
blower unit.
Back of
Microwave
Blower Motor
Blower Motor
Screw

17
Installation Instructions
Attach the exhaust adaptor to the rear of the
oven by sliding it into the guides at the top
center of the back of the oven.
AFTER: Fan Blade
Openings Facing Back
6Place the blower unit back into the opening.
8Replace the blower plate in the same position
as before with the screw.
7
Roll the blower unit 90° so that fan blade
openings are facing out the back of the
microwave.
5
4
3
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST (cont.)
B5.
Rotate blower unit counterclockwise 180°.
Before Rotation After Rotation
Gently remove the wires from the grooves.
Reroute the wires through grooves on other side
of the blower unit.
Before Rerouting After Rerouting
Wires Routed Through Right Side Wires Routed Through Left Side
Back of
Microwave
Back of
Microwave
Blower Plate
Blower Motor
Screw
Secure the blower unit to the microwave with
the screw from Step 1.
Before Rolling After Rolling
Back of
Microwave
End A
End B
Back of
Microwave
Back of
Microwave
9
CAUTION: Do not pull or stretch the blower
unit wiring. Make sure the wires are not
pinched.
NOTE: The blower unit exhaust
openings should match exhaust
openings on rear of microwave oven.
Push in securely until it is in the lower locking
tabs. Take care to assure that the damper hinge
is installed so that it is at the top and that the
damper swings freely.
Guide
Guide
Adaptor
Locking Tabs
Back of
Microwave

Attach the microwave oven to the top cabinet.
18
Installation Instructions
3
2Rotate front of oven
up against cabinet
bottom.
1
MOUNT THE MICROWAVE
OVEN
B5.
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS MICROWAVE OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not
used, case damage may occur from over
tightening screws.
Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord tight.
Be careful not to pinch the cord, especially when
mounting flush to bottom of cabinet.
NOTE: When mounting
the microwave oven,
thread power cord
through hole in bottom of
top cabinet. Keep it tight
throughout Steps 1–3. Do
not pinch cord or lift
oven by pulling cord.
Lift microwave, tilt it
forward, and hook
slots at back bottom
edge onto four lower
tabs of mounting
plate.
8
7
5
Cabinet Front
Cabinet Bottom Shelf
Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
Filler Block
Microwave Oven Top
Equivalent
to Depth
of Cabinet
Recess
Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
Tighten center
screw completely.
Install grease filters. See the Owner’s Manual
packed with the microwave.
Self-Aligning Screw
6
4

19
Installation Instructions
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
C2.
RECIRCULATING (Non-Vented Ductless)
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Check Microwave Assembly
C4. Adjust Blower
C5. Mount the Microwave Oven
C6. Install Charcoal Filter
•Read the instructions on the TOP CABINET
TEMPLATE.
•Tape it underneath the top cabinet.
•Drill the holes, following the instructions on the
TOP CABINET TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
You need to drill holes for the top support screws and
a hole large enough for the power cord to fit through.
C
Place the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
4
3
ATTACH THE MOUNTING
PLATE TO THE WALL
C1.
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to a
wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to 3⁄4″(19.05 mm) onto each bolt.
1
Wall
Mounting
Plate
Spacing for Toggles
More Than Wall
Thickness
Bolt End
Toggle
Bolt
Toggle Wings
To use toggle bolts:
2

AFTER: Fan Blade
Openings Facing
Forward
5
4
3
6
ADAPTING MICROWAVE
BLOWER FOR RECIRCULATION
C4.
20
NOTE: The exhaust adaptor with damper is not
needed for recirculating models. You may want to
save them for possible future use.
Carefully pull out the blower unit. The wires
will extend far enough to allow you to adjust the
blower unit.
Roll the blower unit 90° so that fan blade openings
are facing toward the front of the microwave.
Roll
Slide exhaust adaptor to one side and remove it.
Remove and save the screw that holds the blower
motor to the microwave.
Blower Plate
Blower Motor
Screw
Back of
Microwave
Remove
and save
screw that
holds blower
plate to
microwave.
Lift off the
blower plate
and attached
adaptor from
the microwave.
NOTE: Make sure wires remain routed in the
grooves of the motor frame.
Installation Instructions
BEFORE: Fan Blade
Openings Facing Up
Damper
Back of
Microwave
CHECK MICROWAVE ASSEMBLY
C3.
Exhaust Adaptor (absent
on models shipped for
recirculation exhaust)
Back of
Microwave
•Place the microwave in its upright position, with the
top of the unit facing up.
•The microwave oven may be shipped assembled for
top exhaust (adaptor installed) or for recirculation
exhaust (adaptor absent).
•If the microwave was shipped for recirculation
exhaust, skip to C5. If shipped for top exhaust,
proceed with C4.
12
