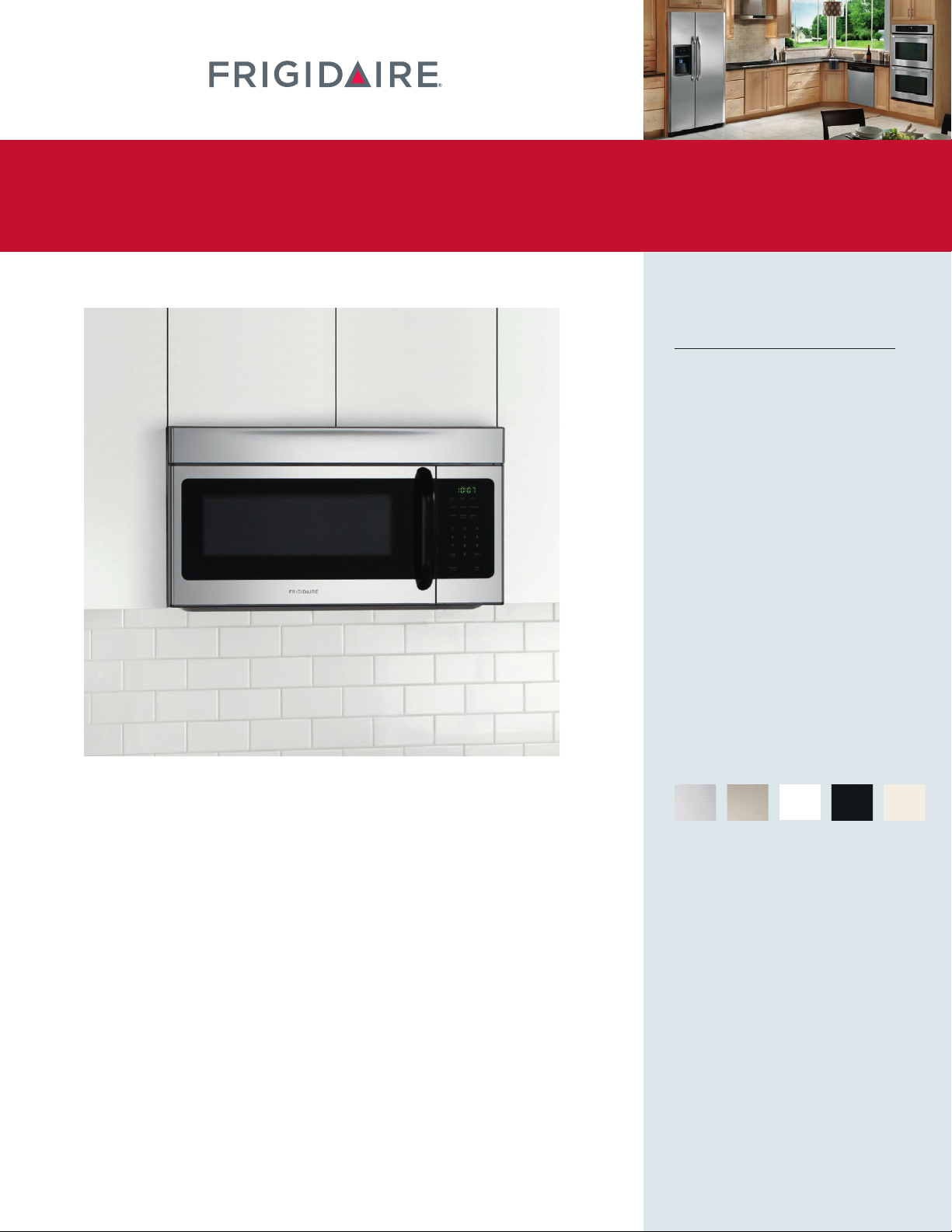

Frigidaire FFMV162L S Instruction sheet

frigidaire.com
Drop-In Cooktop
FPEC3085K S 30" Electric
Signature Features
30" Over-The-Range
Product Dimensions
Height 16-5/16"
Width 29-7/8"
Depth 15-1/32"
More Easy-To-Use Features
Two-Speed Ventilation
Over-the-range microwave doubles
as a hood with two fan speeds.
Extra-Large 13-1/2" Diameter
Glass Turntable
10 Cooking Power Levels
Auto-Reheat Options
Control Lock Option
Electronic Clock & Timer
Vent Filters
Dishwasher-safe.
Auto-Start Heat Sensor Vent Fan
Ductless Vent Installation
Option Included
Attractive Stainless Steel Exterior1
Available in:
1Select models only.
Multi-Stage Cooking
Our Multi-Stage Cooking option allows
you to program power levels and
cooking times in advance, so you can
program it to defrost, cook and keep a
meal warm all at once.
Ready-Select® Controls
Easily select options with the touch
of a button.
Fits-More™ Capacity
Extra-large microwave provides 1.6 Cu. Ft.
of cooking space and will hold almost
any dish — even a 13" x 9" baking dish.
One-Touch Options
Our microwaves feature easy-to-use
one-touch buttons so you can cook
baked potatoes, popcorn, or even add
30 seconds with the touch of a button.
Microwaves
FFMV162L S / M / W/ B /Q
Stainless
(S)
Bisque
(Q)
Black
(B)
White
(W)
Silver Mist
(M)

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
Features
Control / Timing System
Exterior Door Finish
Handle Design
Microwave Capacity (Cu. Ft.)
Convection
Watts (IEC-705 Test Procedure)
Interior Light
Interior Color
Turntable Diameter
Turntable On / O
Control Lock
Clock
Touch Pad Buttons
Power Levels
Accessory Metal Rack
Microwave Control Options
Popcorn Button
Chicken Nugget Button
Baked Potato Button
Sensor Reheat Button
Snack Button
Beverage
Auto Melt / Soften Options
Auto Reheat Options
Snack Menu Options
Auto Cook Options
Auto Defrost Options
Multi-Stage Cooking Option
Keep Warm
Add-30-Seconds
Sensor Cooking Options
Vegetable Cook Sensor
Delay Start
User Preferences
Ventilation System
Ducted / Ductless
Installation Option
Exhaust Fan (CFM)
Cooktop Light
Auto-Start Heat Sensor
Dishwasher-Safe Vent Filter
(Ductless Installation)
Power Ratings
Frequency (MHz)
Watts @ 120 Volts
Amps @ 120 Volts
Optional Accessories
36" Stainless Steel Filler Panel Kit
36" White Filler Panel Kit
36" Black Filler Panel Kit
Specifications
Oven Interior (HxWxD)
Power Supply Connection Location
Voltage Rating
Connected Load
(kW Rating) @ 120 Volts1
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Product Dimensions
A - Height
B - Width
C - Depth
16-5/16"
29-7/8"
15-1/32"
Ready-Select®
Stainless Steel (S), Color-
Coordinated (M/W/B/Q)
Black (S/M),
Color-Coordinated (W/B/Q)
1.6
1,000
Yes
White
13-1/2"
Yes
Yes
23
High (1 – 9)
Yes
Yes
Yes
Yes
Weight / Time
Yes
Yes
Yes
2-Speed
170 / 300
Yes
Yes
Yes
2,450
1,550
13
PN # MWFILKTSS
PN # MWFILKTWH
PN # MWFILKTBK
9-1/4" x 20-1/4" x 14-13/32"
Right Top Rear
120V / 60Hz / 15A
1.55
15
69 Lbs.
Over-the-Range Microwave Oven
Frigidaire Baseline
B
A
C
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFMV162L 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Microwaves
FFMV162L S / M / W/ B /Q 30" Over-The-Range
Cutout Dimensions
Height (Min. from floor to top of unit)
Width (Min.)
Depth (Min.)
Depth (Max.)
66"
30"
12"
13"
1For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation. Accessories information available
on the web at frigidaire.com
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Accessories information available
on the web at frigidaire.com
Microwaves
FFMV162L S / M / W/ B /Q 30" Over-The-Range
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FFMV162L 06/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.
Microwave Specifications
•Product Shipping Weight (approx.) – 69 Lbs.
•Voltage Rating – 120V / 60 Hz / 15 Amps
•Connected Load (kW Rating) @ 120 Volts = 1.55 kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•Amps @ 120 Volts = 13 Amps
•Always consult local and national electric codes.
•Grounded outlet should be located in cabinet above, with hole in base
to route power cord. Carefully follow top template instructions for
power cord clearance when installing beneath smooth, flat cabinets.
•Microwave’s exhaust ventilation system is preset to recirculate air
inside with no ducting system required. Exhausting air outside is
optional, using either vertical or horizontal ducting system. (Refer to
Ducted Option Specifications for outside ventilation.)
•
For safe and proper installation, microwave MUST be mounted to
BOTH a top cabinet AND a wall, and connected to at least one wall
stud. Can NOT be installed in island or peninsula cabinet arrangements.
•Cabinet bottom MUST be level to insure proper installation.
•Cabinet MUST be capable of supporting a total load of 110 lbs.
•Filler blocks recommended for installation when cabinet front hangs
below recessed bottom shelf.
•Minimum distance of 30" required from cooking surface to bottom
edge of top cabinet.
•Minimum distance of 66" required from floor to top of microwave.
•
Opening between cabinets MUST be 30" wide and free of obstructions.
For openings up to 36" wide, order optional 36" Filler Panel Kit to fill
in gap between unit and cabinets.
•Allow 26" minimum clearance for 90° door swing.
Ducted Option Specifications
•For outside ventilation.
•Exhaust duct adapter will be needed for outside ventilation, to mate
with standard 3-1/4" x 10" rectangular duct. If round duct required,
rectangular-to-round transition adapter will be needed with no less
than 6" diameter.
•For most efficient airflow exhaust, use a straight run or as few elbows
as possible with a maximum duct length of 3-1/4" x 10" rectangular or
6" diameter round duct, not to exceed 140 equivalent feet.
•For horizontal installation, be sure to allow enough space between
wall studs to accommodate exhaust.
•Refer to installation instructions on web for detailed duct
preparation and converting exhaust vent blower system for exterior
exhaust ventilation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•36" Stainless Steel Filler Panel Kit – (PN # MWFILKTSS).
•36" White Filler Panel Kit – (PN # MWFILKTWH).
•36" Black Filler Panel Kit – (PN # MWFILKTBK).
30" Over-the-Range Microwave Ovens
with Side Controls (FFMV164L / FFMV162L)
Frigidaire (1.6 Cu. Ft.)

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.

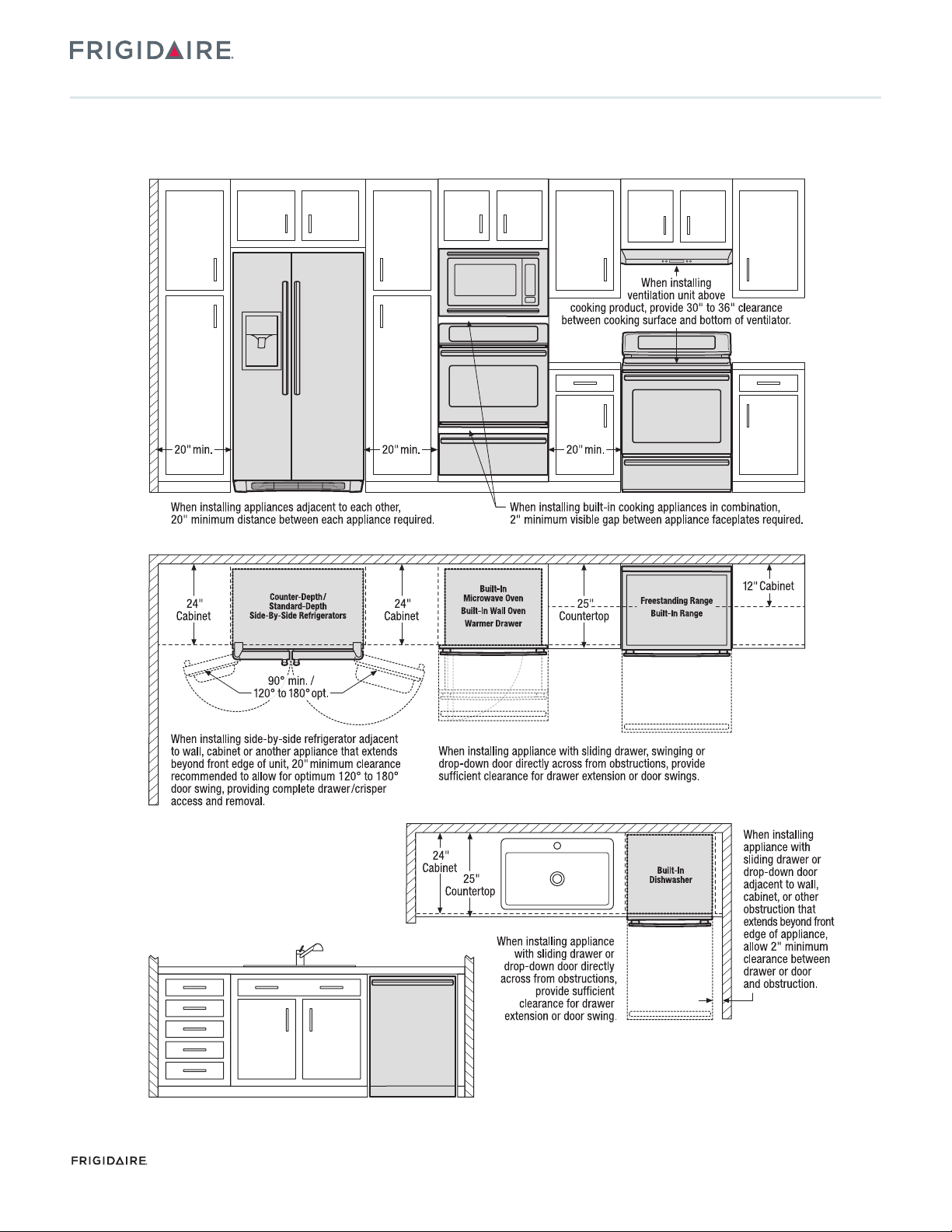

General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top

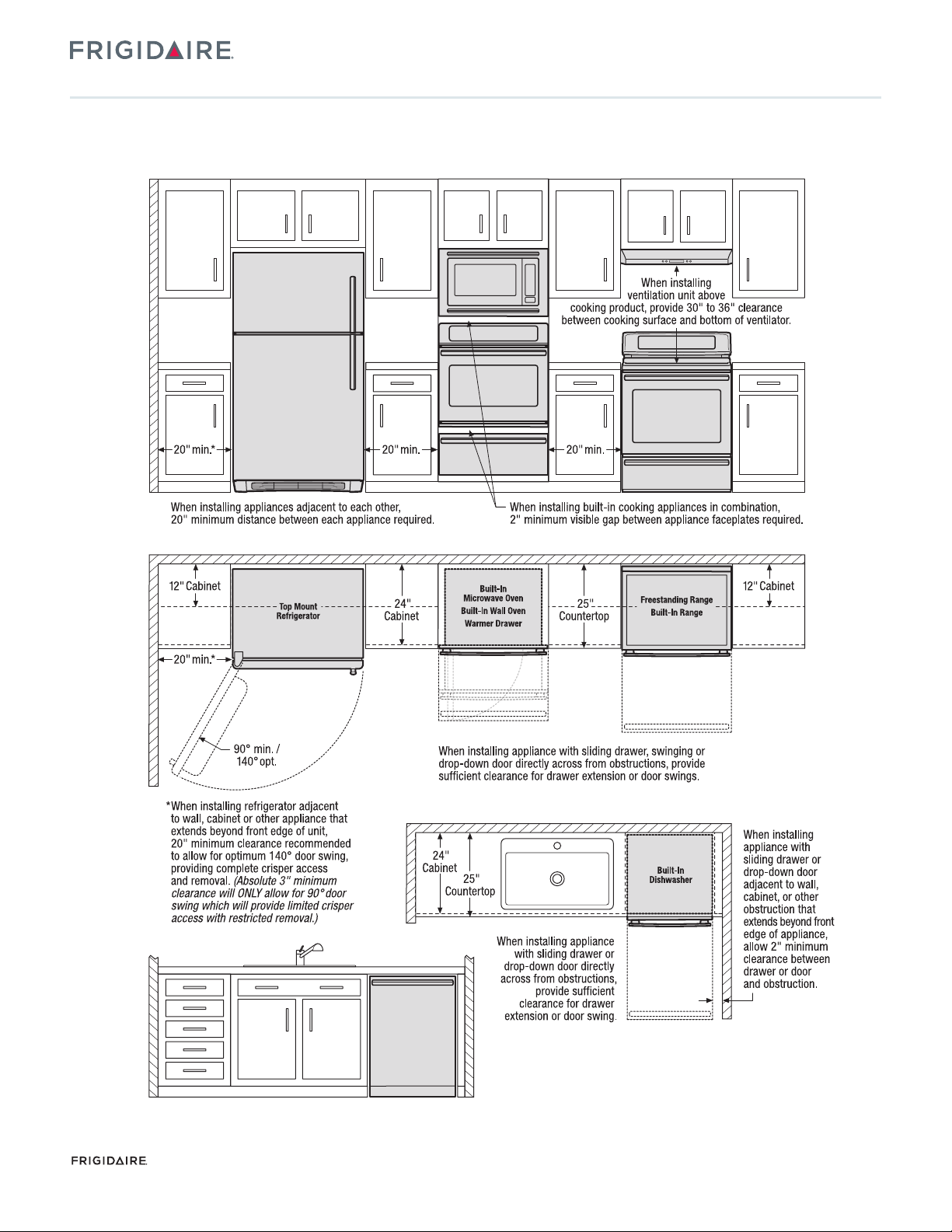

General Installation Guidelines
with Top Mount Refrigerator
