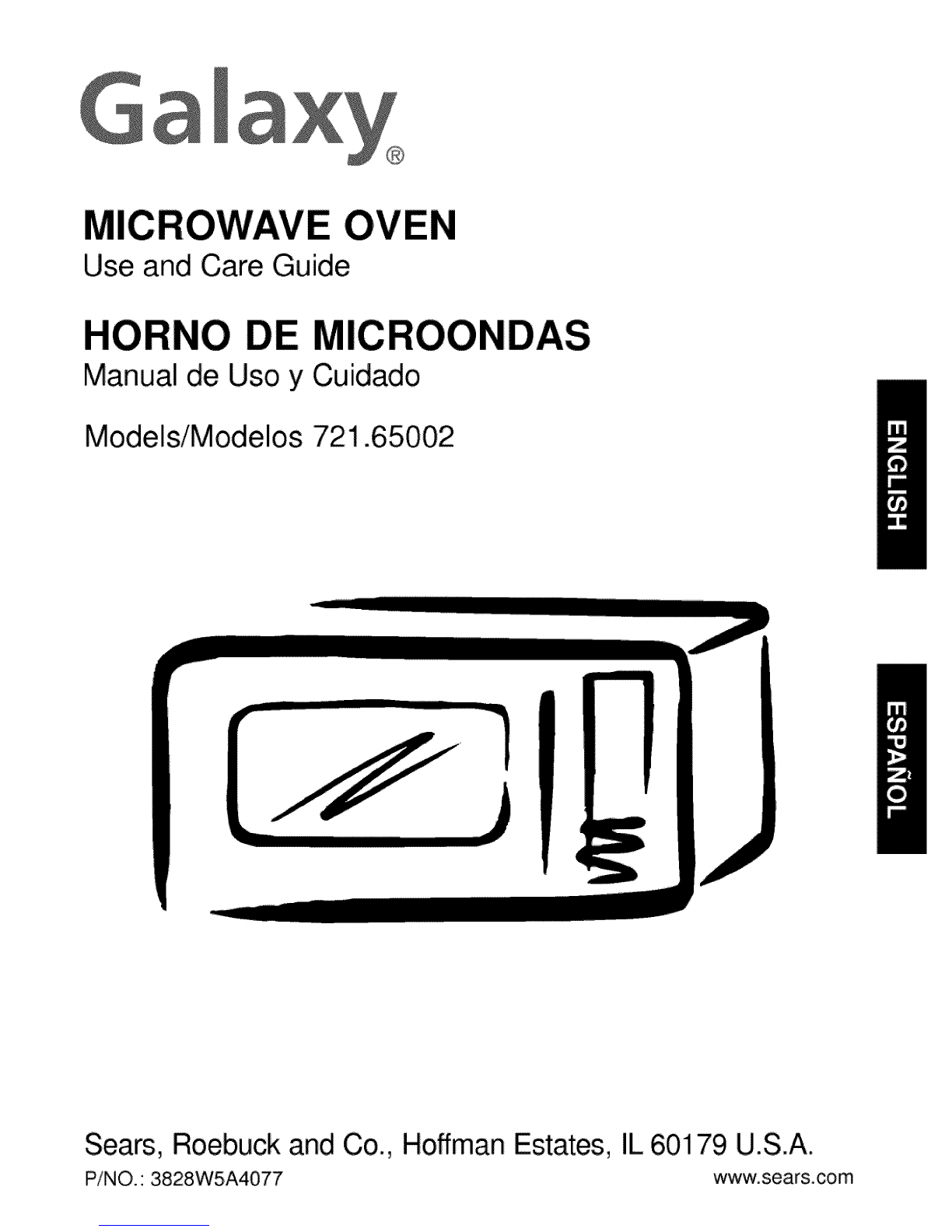

Galaxy 721.65002 User manual

Use and Care Guide
Manual de Uso y Cuidado
Models/Modelos 721.65002
Roebuckand Co., Hoffman Estates, IL60179 U.S.A.
P/NO_: 3828W5A4077 www.sears.com

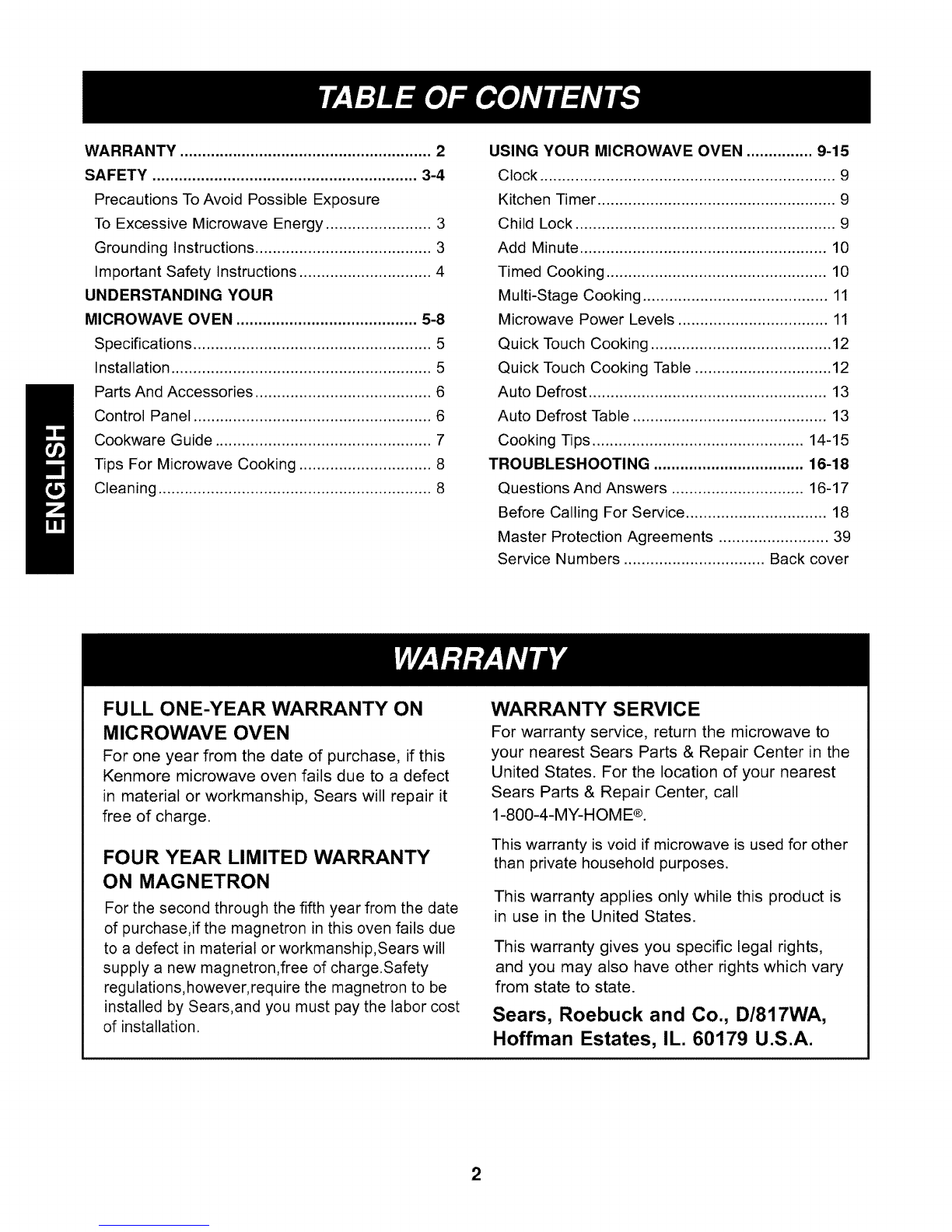

WARRANTY ......................................................... 2
SAFETY ............................................................ 3-4
Precautions To Avoid Possible Exposure
To Excessive Microwave Energy ........................ 3
Grounding Instructions ........................................ 3
Important Safety Instructions .............................. 4
UNDERSTANDING YOUR
MICROWAVE OVEN ......................................... 5-8
Specifications ...................................................... 5
Installation ........................................................... 5
Parts And Accessories ........................................ 6
Control Panel ...................................................... 6

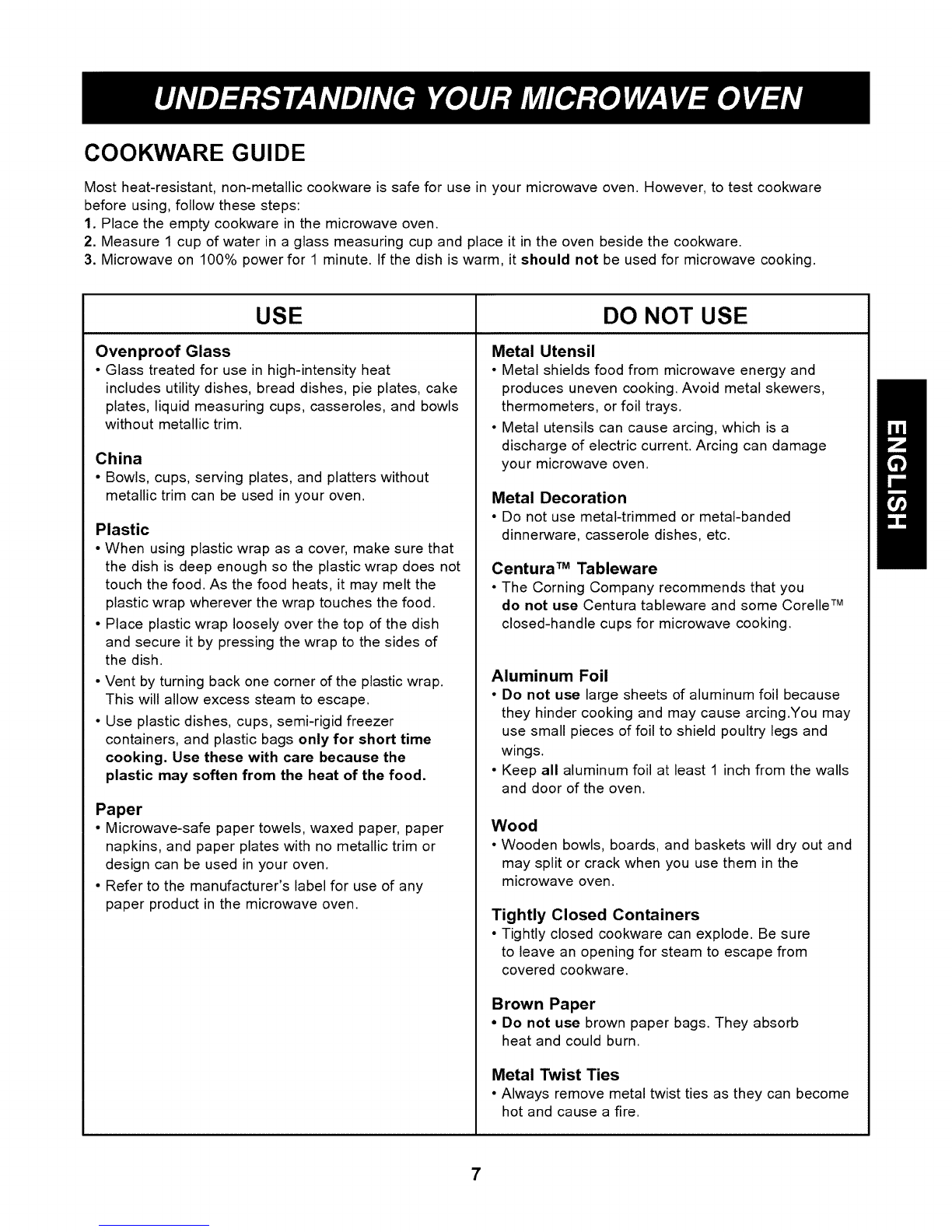

Cookware Guide ................................................. 7

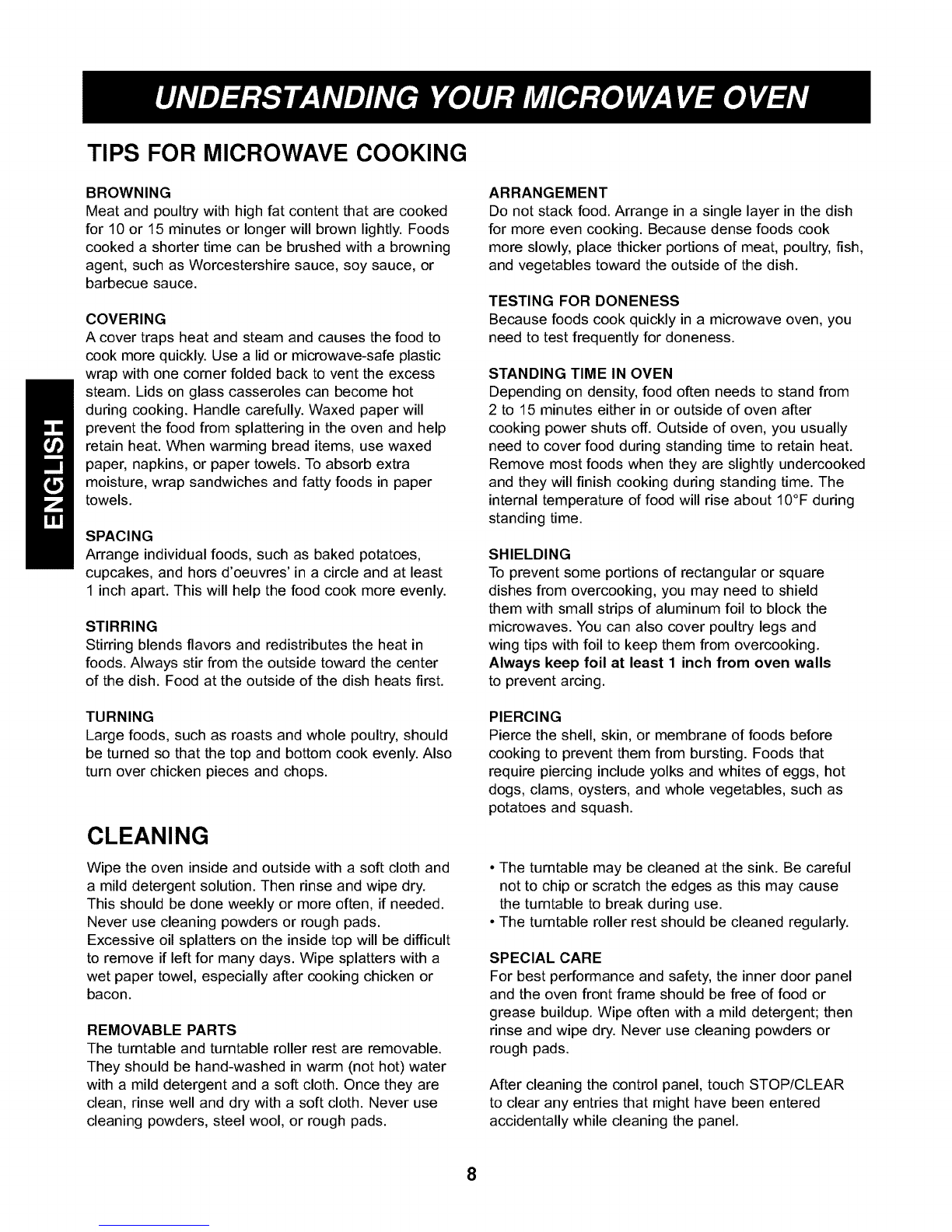

Tips For Microwave Cooking .............................. 8
Cleaning .............................................................. 8
USING YOUR MICROWAVE OVEN ............... 9-15
Clock ................................................................... 9
Kitchen Timer ...................................................... 9
Child Lock ........................................................... 9

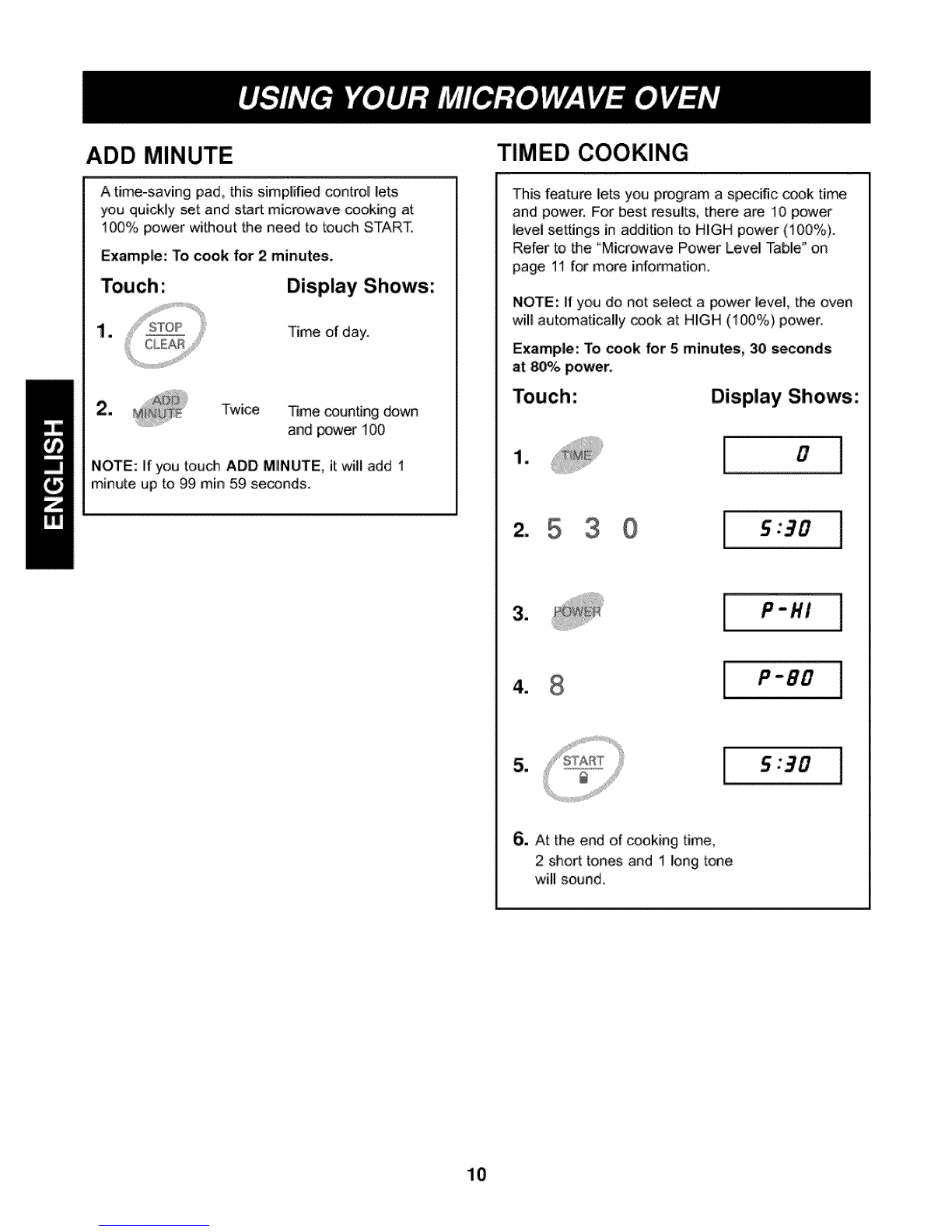

Add Minute ........................................................ 10
Timed Cooking .................................................. 10

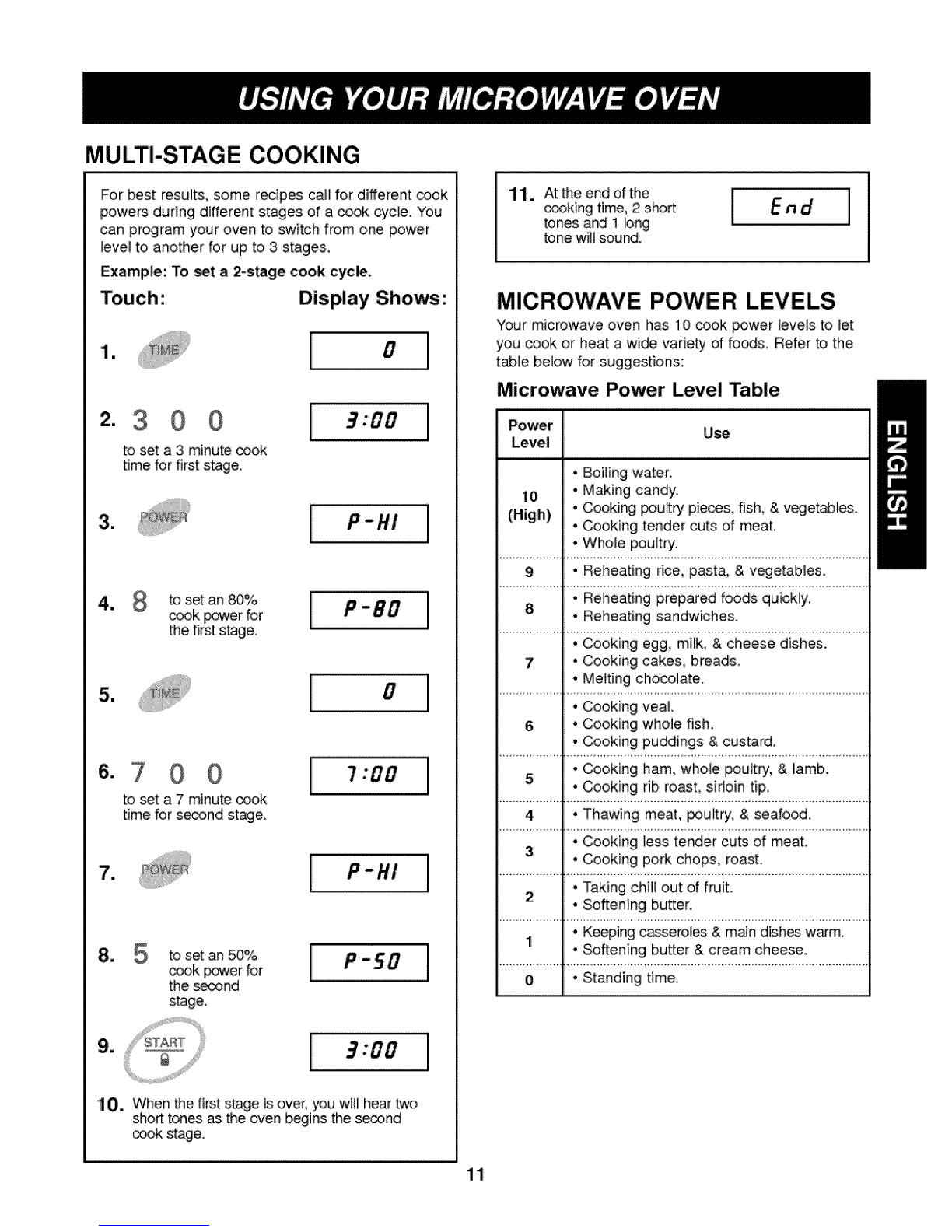

Multi-Stage Cooking .......................................... 11
Microwave Power Levels .................................. 11

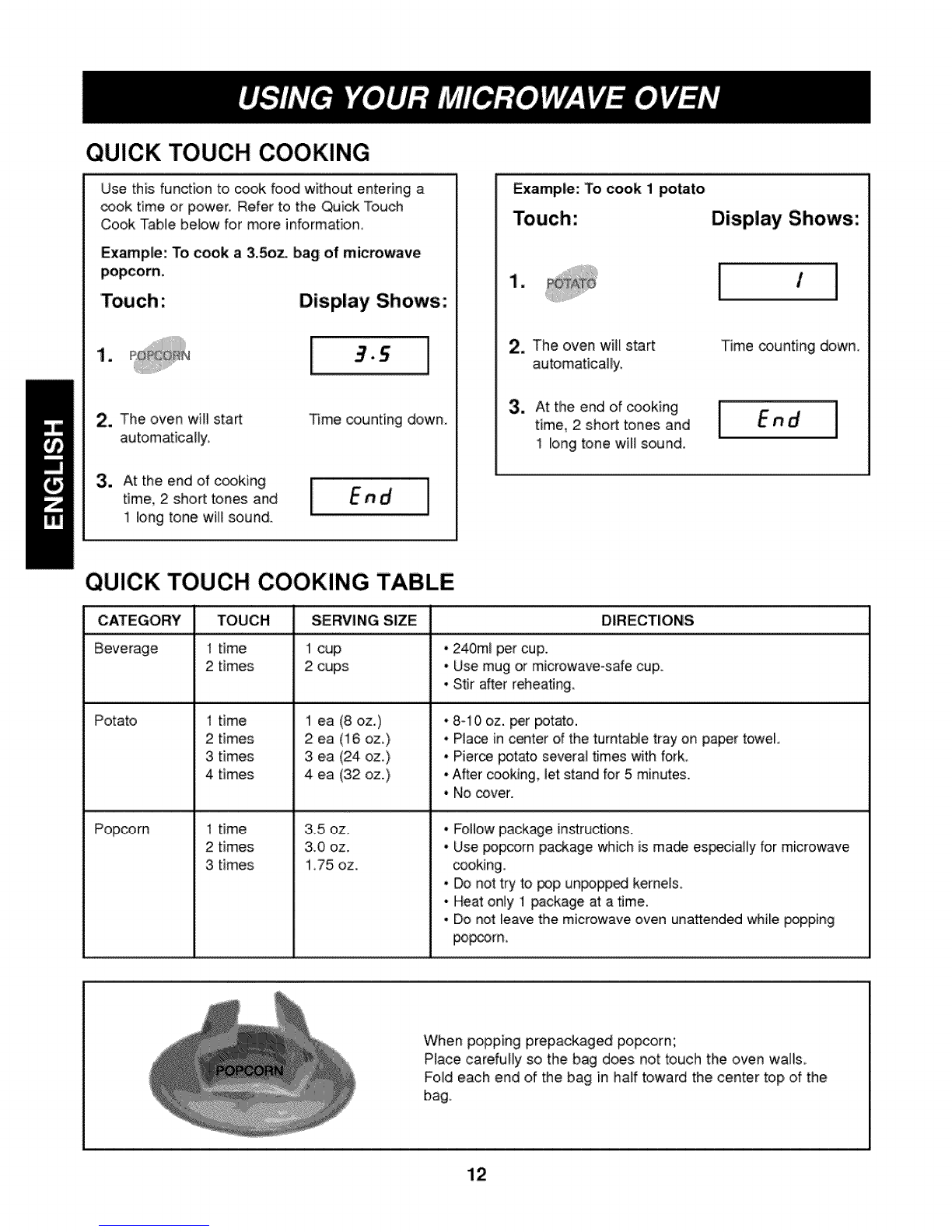

Quick Touch Cooking ......................................... 12
Quick Touch Cooking Table ............................... 12
Auto Defrost ...................................................... 13
Auto Defrost Table ............................................ 13

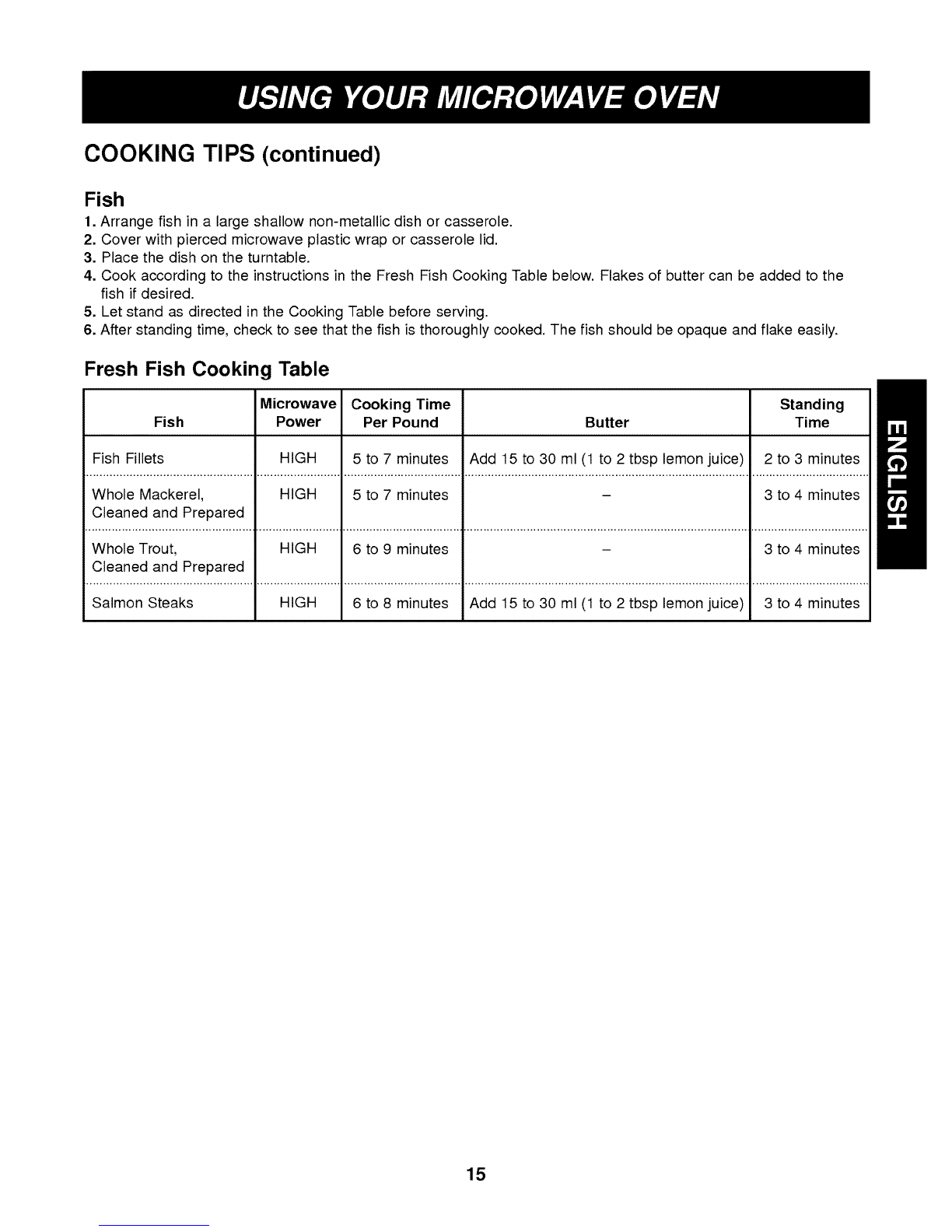

Cooking Tips ................................................ 14-15
TROUBLESHOOTING .................................. 16-18
Questions And Answers .............................. 16-17

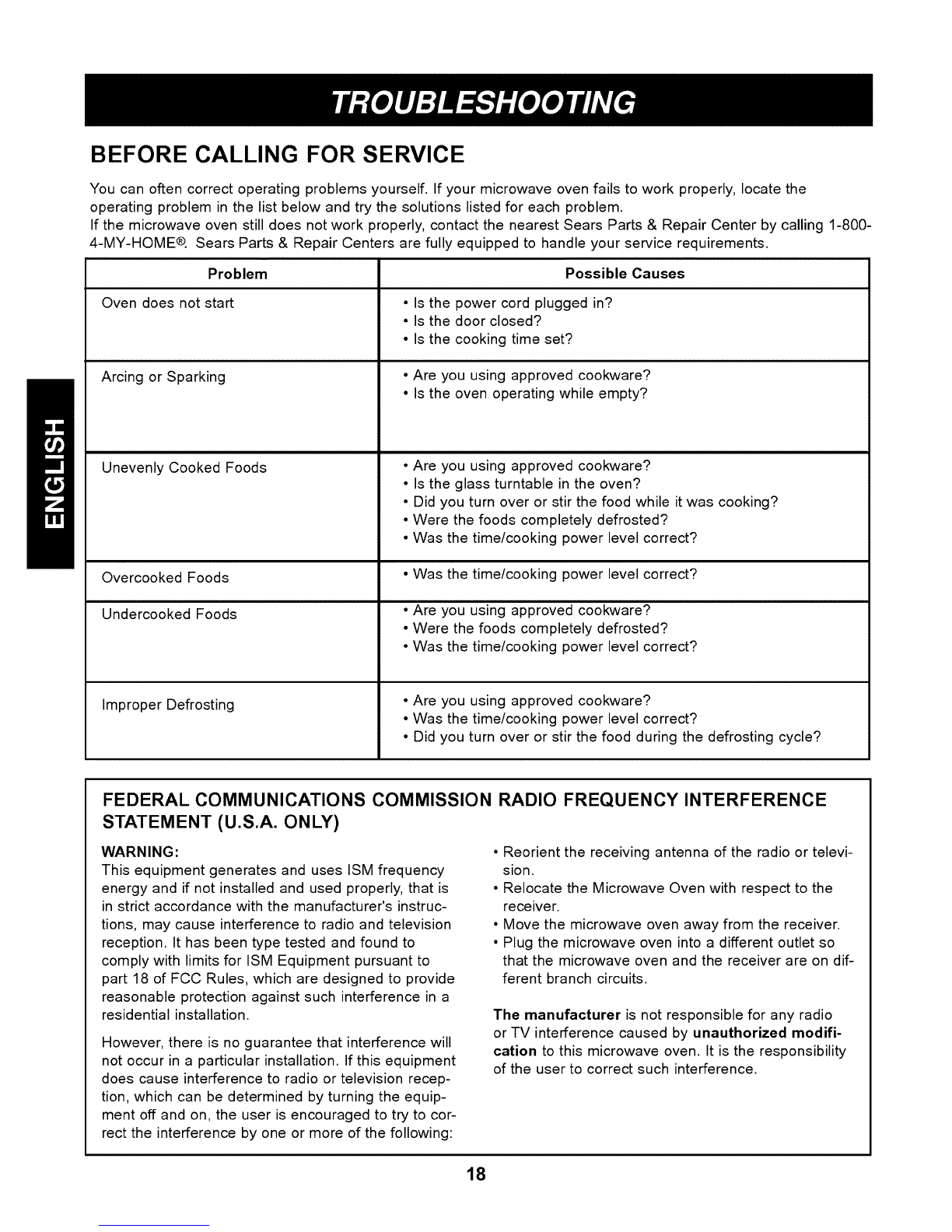

Before Calling For Service ................................ 18
Master Protection Agreements ......................... 39
Service Numbers ................................ Back cover
FULL ONE-YEAR WARRANTY ON
MICROWAVE OVEN
For one year from the date of purchase, if this
Kenmore microwave oven fails due to a defect
in material or workmanship, Sears will repair it
free of charge.
FOUR YEAR LIMITED WARRANTY
ON MAGNETRON
For the second through the fifth year from the date
of purchase,if the magnetron in this oven fails due
to a defect in material or workmanship,Sears will
supply a new magnetron,free of charge.Safety
regulations,however, require the magnetron to be
installed by Sears,and you must pay the labor cost
of installation.
WARRANTY SERVICE
For warranty service, return the microwave to
your nearest Sears Parts & Repair Center in the
United States. For the location of your nearest
Sears Parts & Repair Center, call
1-800-4-MY-HOME®.
This warranty is void if microwave is used for other
than private household purposes.
This warranty applies only while this product is
in use in the United States.
This warranty gives you specific legal rights,
and you may also have other rights which vary
from state to state.
Sears, Roebuck and Co., D/817WA,
Hoffman Estates, IL. 60179 U.S.A.
2

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY ...
• Do not attempt to operate this oven with the door open, since open-door operation can result
in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety
interlock.
• Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the:
- door (bent)
- hinges and latches (broken or loosened)
- door seals and sealing surfaces.
• Do not place any object between the oven front face and the door, or allow soi! or cleaner
residue to accumulate on sealing surfaces.
• The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
GROUNDING INSTRUCTIONS
This appliance must be grounded! If an electrical short circuit occurs, grounding reduces the risk of electric shock
by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding
wire with a grounding plug. Put the plug into an outlet that is properly installed and grounded.
Ak WARNING
If you use the grounding plug improperly, you risk electric shock.
Ask a qualified electrician or the Sears Service Department if you do not understand the grounding instructions or
if you wonder whether the appliance is properly grounded.
This appliance has a short power supply cord to reduce the risk of anyone's tripping over or becoming entangled
in the cord. You may use an extension cord if you are careful.
If you use an extension cord, be sure that:
•The extension cord has the same electrical rating as
the appliance.
•The marked rating of the extension cord shall be
equal to or greater than the electrical rating of
the appliance.
•The extension cord is a grounding-type 3-wire cord.
• The extension cord does not drape over a
countertop or tabletop, where it can be pulled on
by children or tripped over accidentally.
•The electrical cord is dry and not pinched or
crushed in any way.
NOTE: This oven draws 13 amperes at 120 Volts, 60 Hz.
3

IMPORTANT SAFETY INSTRUCTIONS
The safety instructions below will tell you how to use your microwave oven to avoid harm to yourself or damage to your oven.
WARNING - To reduce the risk of bums, electric shock, fire, injury to persons, or exposure to excessive
microwave energy:
1. Readall the instructionsbeforeusingyour microwave
oven.
2. Do notallowchildrento usethis ovenwithout close
supervision!
3. Readand followthespedfic PRECAUTIONSTO AVOID
POSSIBLEEXPOSURETO EXCESSIVEMICROWAVE
ENERGYfoundon page 3.
4. Do not tamper with the built- in safety switches on the
oven door! Theovenhas severalbuilt-insafetyswitchesto
makesure thepowerisoff whenthedoor isopen.
5. When cleaning the door and the surfaces that touch
the door, use only mild, nonabrasive soaps or
detergents and a sponge or soft cloth.
6. If your oven is dropped or damaged, haveitthoroughly
checkedbya qualifiedservicetechnidan beforeusingit
again.
7.To avoid a fire hazard:
a) Do not severely overcook foods. Itcancause a firein
theoven.
b) Do not use recycled paper products in your oven.
They cancontainparticlesthat can causearcingor may
ignite.
c) Do not overcook potatoes. Overcookingcouldcausea
fire.
d) Do notstore combustible items(bread,cookies,etc.)
in the oven, becauseiflightningstrikesthe powerlines,
it maycause theoven totum ON.
e) Do not use wire twist-ties in the oven. Be sureto
removethem beforeplacingthe item inthe oven.
f) Do not use the cavity for storage purposes. Donot
leavepaperproducts,cookingutensils,orfood in the
cavitywhennot inuse.
8. If a fire should start:
a) Keep the oven door closed.
b) Turn the oven off.
c) Disconnect the power cord or shut off the power at
the fuse or circuit breaker panel.
9. Donot usethisovenfor commercialpurposes.This
microwaveismadefor householduseonly.
10. Installor locatethis appliancein accordancewith the
providedinstallationinstructions.
11.Toavoid electric shock:
a) This appliance must be grounded! Connectit onlyto
a properlygroundedoutlet.(See theGrounding
instructions on page3.)
b) Do not operate this appliance if it has a damaged
cord or plug, if itis notworking properly,or ifit has
been damagedor dropped.
c) Do not immerse the electricalcord or plugin water.
d)Keepthe cordaway from heatedsurfaces.
e)This applianceshouldbe servicedonlybyqualified
servicepersonnel.
12. Liquidssuchas water,coffee,or teaare able tobe
overheatedbeyondtheboiling pointwithoutappearing to
be boilingdue to surfacetensionof theliquid.Visible
bubblingor boilingwhenthe containerisremovedfrom
the microwaveoven isnotalwayspresent.This could
result invery hot liquidssuddenlyboilingoverWhenthe
containeris disturbedor whena spoonor otherutensilis
insertedintothe liquid.Toreducethe riskof injuryto
persons;
1) Donotoverheattheliquid.
2) Stirtheliquid bothbeforeand halfwaythroughheatingit.
3) Useextremecare wheninsertinga spoonor other
utensil intothecontaineronce heatinghas begun.
4) Donot usestraight-sidedcontainerswith narrow
necks.
5)After heating,allowthecontainerto stand in the
microwaveovenfor a shorttime before removingthe
container.
13. Keeptheglass trayand the turntablerollerrest in the
ovenwhen youare cooking.
14. Donotusethe ovenoutdoors.Donotstorethe oven
outdoors.Donot usethisproduct nearwater.
-for example,near a kitchensink,ina wet basement,
near a swimmingpool,or similarlocation.
15. Donotcover or blockanyopeningsin theoven.
16. Donotrun themicrowaveovenempty.
17. Donotletthe cordhang overtheedge ofa tableor
counter.
18. Donotheatglass turntableexcessively.
- Do notcook bacondirectlyon theglassturntable.
- Donotallow thegreyfilm on special microwavecooking
packagesto touchtheglass turntable.Putthe package
on a microwave-safedish.
- Keepa browningdishat least3/leinchabovetheglass
turntable.Ifyou usethe browningdishincorrectly,you
couldbreaktheglass turntable.
19. Becareful notto chipor scratchthe edgesofthe
turntable.Chips orscratchesmay causethe turntableto
breakduring use.
20.Some producesuch aswholeeggs andsealedcontainers
- for example,closedglassjars are ableto explodeand
shouldnot beheated inthis oven.
SAVE THESE INSTRUCTIONS!
4

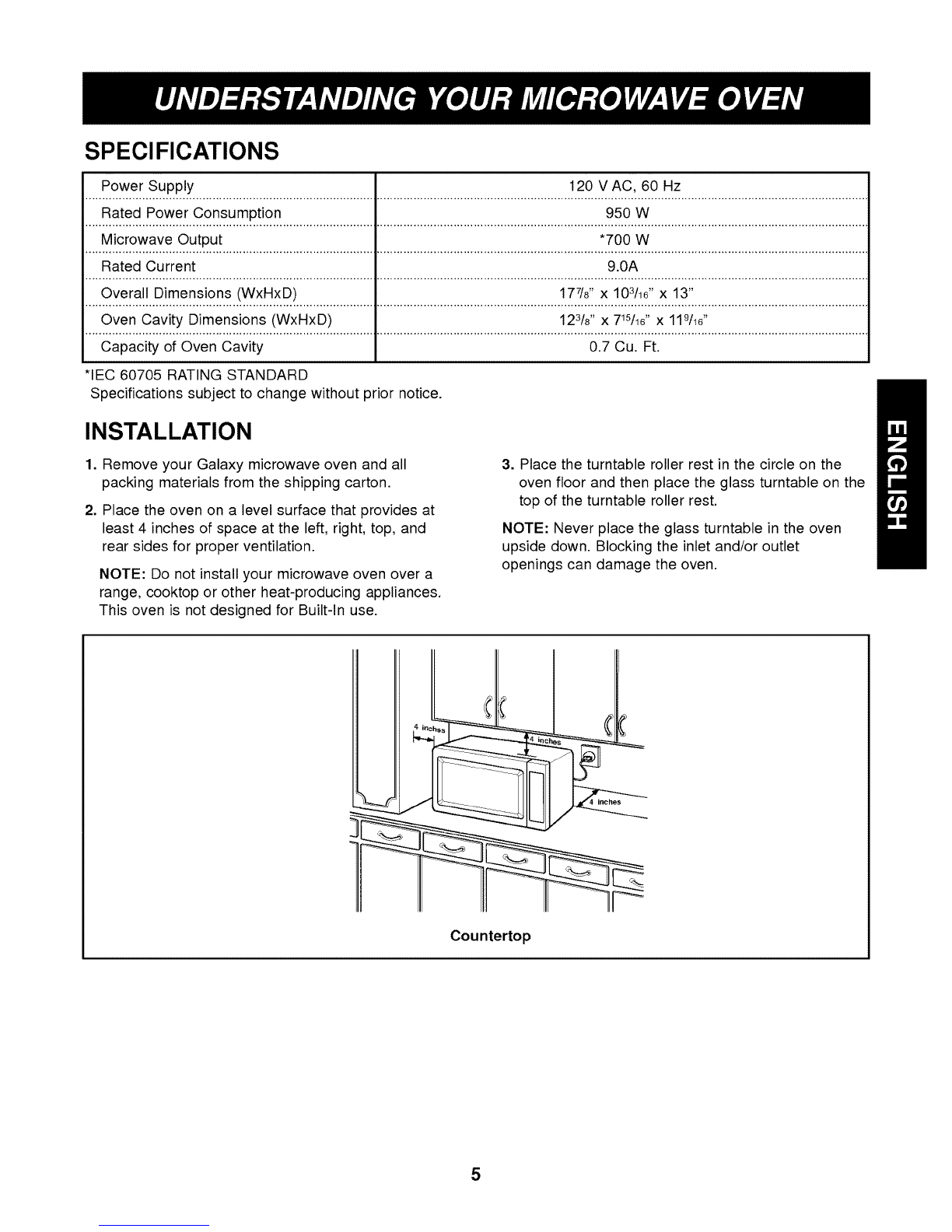

SPECIFICATIONS
Power Supply 120 V AC, 60 Hz
Rated Power Consumption 950 W
Microwave Output *700 W
Rated Current 9.0A
Overall Dimensions (WxHxD) 17718'' x 103/16"x 13"
Oven Cavity Dimensions (WxHxD) 123/8"x 7W16"x 119/16"
Capacity of Oven Cavity 0.7 Cu. Ft.
*IEC 60705 RATING STANDARD
Specifications subject to change without prior notice.
INSTALLATION
1. Remove your Galaxy microwave oven and all
packing materials from the shipping carton.
2. Place the oven on a level surface that provides at
least 4 inches of space at the left, right, top, and
rear sides for proper ventilation.
NOTE: Do not install your microwave oven over a
range, cooktop or other heat-producing appliances.
This oven is not designed for Built-In use.
3. Place the turntable roller rest in the circle on the
oven floor and then place the glass turntable on the
top of the turntable roller rest.
NOTE: Never place the glass turntable in the oven
upside down. Blocking the inlet and/or outlet
openings can damage the oven.
Countertop
5

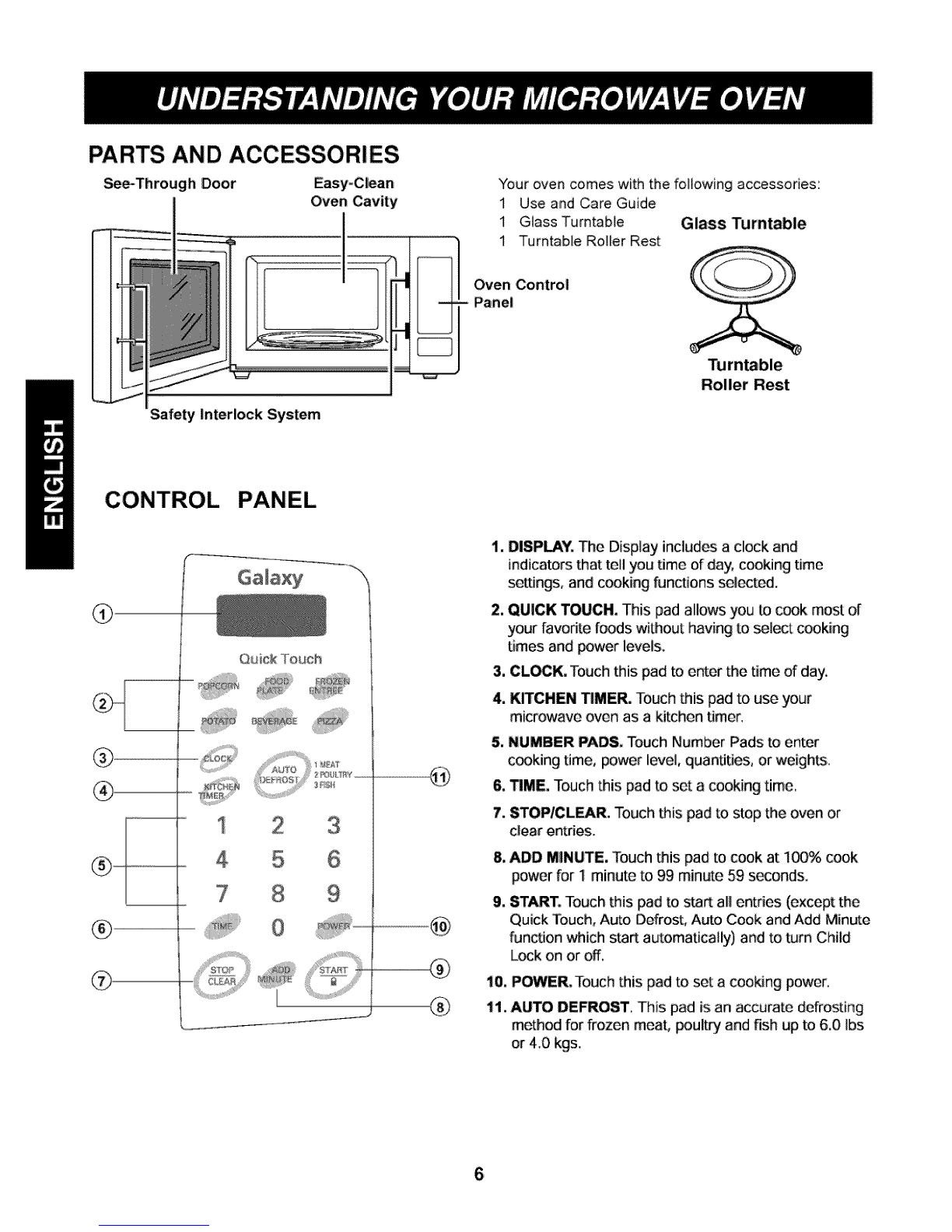

PARTS AND ACCESSORIES
_mThrough Door Oven Cavity
Safety interlock System
"Your oven comes with the following accessories:
1 Use and Care Guide
1 Glass Turntable Glass Turntable
1 TurntabLe RoiLer Rest
Oven Control
-Panel
Turntable
Roller Rest
®
®
®
Quck Touch
_iiiii;iiiiii,iii;;;;;i;;ii;i_ii_;!iii:i
IJ®
1. DISPLAY, The Display includes a clock and
indicators that tell you time of day, cooking time
settings, and cooking:functions selected,
2, QUICK TOUCH. This pad allows you to cook most of
your favorite foods without having to _lect cooking
Umes and _wer levels,
3. CL_K. Touch this _d to enter the time of day,
4. KITCHEN TIMER, Touch this pad to u_ your
microwave oven as a kitchen Umer.
5. NUMBER PADS, Touch Number Pads to enter
cooking time, power level, quantiUes, or weights.
6, _ME. Touch this pad to set a cooking time,
7. STOP/CL_R. Touch bhispad to stop the oven or
clear entries.
8, ADD MINUTE, Touch this pad to cook at 100% cook
power for ! minute to 99 minute 59 s_onds.
9. START, Touch this pad to s_rt all entries (except the
Quick Touch, Auto Defrost, Auto Cook and Add Minute
function _ich staA automatically) and _ turn Child
Lock on or off,
i0. POWER.Touch this pad to set a cooking power,
11, AUTO DEFROST_ This pad is an accurate defrosting
method for frozen meat, _ult_ and fish up to 6.0 Ibs
or 4.0 kgs.
,

COOKWARE GUIDE
Most heat-resistant, non-metallic cookware is safe for use in your microwave oven. However, to test cookware
before using, follow these steps:
1. Place the empty cookware in the microwave oven.
2. Measure 1 cup of water in a glass measuring cup and place it in the oven beside the cookware.
3. Microwave on 100% power for 1 minute. If the dish is warm, it should not be used for microwave cooking.
USE DO NOT USE
Ovenproof Glass
•Glass treated for use in high-intensity heat
includes utility dishes, bread dishes, pie plates, cake
plates, liquid measuring cups, casseroles, and bowls
without metallic trim.
China
•Bowls, cups, serving plates, and platters without
metallic trim can be used in your oven.
Plastic
•When using plastic wrap as a cover, make sure that
the dish is deep enough so the plastic wrap does not
touch the food. As the food heats, it may melt the
plastic wrap wherever the wrap touches the food.
• Place plastic wrap loosely over the top of the dish
and secure it by pressing the wrap to the sides of
the dish.
• Vent by turning back one corner of the plastic wrap.
This will allow excess steam to escape.
• Use plastic dishes, cups, semi-rigid freezer
containers, and plastic bags only for short time
cooking. Use these with care because the
plastic may soften from the heat of the food.
Paper
• Microwave-safe paper towels, waxed paper, paper
napkins, and paper plates with no metallic trim or
design can be used in your oven.
• Refer to the manufacturer's label for use of any
paper product in the microwave oven.
Metal Utensil
• Metal shields food from microwave energy and
produces uneven cooking. Avoid metal skewers,
thermometers, or foil trays.
• Metal utensils can cause arcing, which is a
discharge of electric current. Arcing can damage
your microwave oven.
Metal Decoration
• Do not use metal-trimmed or metal-banded
dinnerware, casserole dishes, etc.
Centura TM Tableware
• The Coming Company recommends that you
do not use Centura tableware and some Corelle TM
closed-handle cups for microwave cooking.
Aluminum Foil
•Do not use large sheets of aluminum foi! because
they hinder cooking and may cause arcing.You may
use small pieces of foil to shield poultry legs and
wings.
• Keep all aluminum foil at least 1 inch from the walls
and door of the oven.
Wood
•Wooden bowls, boards, and baskets will dry out and
may split or crack when you use them in the
microwave oven.
Tightly Closed Containers
• Tightly closed cookware can explode. Be sure
to leave an opening for steam to escape from
covered cookware.
Brown Paper
• Do not use brown paper bags. They absorb
heat and could burn.
Metal Twist Ties
• Always remove metal twist ties as they can become
hot and cause a fire.
7

TIPS FOR MICROWAVE COOKING
BROWNING
Meat and poultry with high fat content that are cooked
for 10 or 15 minutes or longer will brown lightly. Foods
cooked a shorter time can be brushed with a browning
agent, such as Worcestershire sauce, soy sauce, or
barbecue sauce.
COVERING
A cover traps heat and steam and causes the food to
cook more quickly. Use a lid or microwave-safe plastic
wrap with one corner folded back to vent the excess
steam. Lids on glass casseroles can become hot
during cooking. Handle carefully. Waxed paper will
prevent the food from splattering in the oven and help
retain heat. When warming bread items, use waxed
paper, napkins, or paper towels. To absorb extra
moisture, wrap sandwiches and fatty foods in paper
towels.
SPACING
Arrange individual foods, such as baked potatoes,
cupcakes, and hors d'oeuvres' in a circle and at least
1 inch apart. This will help the food cook more evenly.
STIRRING
Stirring blends flavors and redistributes the heat in
foods. Always stir from the outside toward the center
of the dish. Food at the outside of the dish heats first.
TURNING
Large foods, such as roasts and whole poultry, should
be turned so that the top and bottom cook evenly. Also
turn over chicken pieces and chops.
CLEANING
Wipe the oven inside and outside with a soft cloth and
a mild detergent solution. Then rinse and wipe dry.
This should be done weekly or more often, if needed.
Never use cleaning powders or rough pads.
Excessive oil splatters on the inside top will be difficult
to remove if left for many days. Wipe splatters with a
wet paper towel, especially after cooking chicken or
bacon.
REMOVABLE PARTS
The turntable and turntable roller rest are removable.
They should be hand-washed in warm (not hot) water
with a mild detergent and a soft cloth. Once they are
clean, rinse well and dry with a soft cloth. Never use
cleaning powders, steel wool, or rough pads.
ARRANGEMENT
Do not stack food. Arrange in a single layer in the dish
for more even cooking. Because dense foods cook
more slowly, place thicker portions of meat, poultry, fish,
and vegetables toward the outside of the dish.
TESTING FOR DONENESS
Because foods cook quickly in a microwave oven, you
need to test frequently for doneness.
STANDING TIME IN OVEN
Depending on density, food often needs to stand from
2 to 15 minutes either in or outside of oven after
cooking power shuts off. Outside of oven, you usually
need to cover food during standing time to retain heat.
Remove most foods when they are slightly undercooked
and they will finish cooking during standing time. The
internal temperature of food will rise about 10°F during
standing time.
SHIELDING
To prevent some portions of rectangular or square
dishes from overcooking, you may need to shield
them with small strips of aluminum foil to block the
microwaves. You can also cover poultry legs and
wing tips with foil to keep them from overcooking.
Always keep foil at least 1 inch from oven walls
to prevent arcing.
PIERCING
Pierce the shell, skin, or membrane of foods before
cooking to prevent them from bursting. Foods that
require piercing include yolks and whites of eggs, hot
dogs, clams, oysters, and whole vegetables, such as
potatoes and squash.
• The turntable may be cleaned at the sink. Be careful
not to chip or scratch the edges as this may cause
the turntable to break during use.
• The turntable roller rest should be cleaned regularly.
SPECIAL CARE
For best performance and safety, the inner door panel
and the oven front frame should be free of food or
grease buildup. Wipe often with a mild detergent; then
rinse and wipe dry. Never use cleaning powders or
rough pads.
After cleaning the control panel, touch STOP/CLEAR
to clear any entries that might have been entered
accidentally while cleaning the panel.
8

Example: To set the clock for 10:30.
Display Shows:
=
3. 1
4. 'i_sx_;R?
NOTE: This is a i2 hourdock.
ioi
[ ]
i,o.¸3oi
[,o.3oI
KITCHEN TIMER
Your microwave oven can be used as a kitchen
timer. You can set up to 99 minutes, 99 seconds.
Example: To set 3 minutes,
Display Shows:
,. [o1
[ 1
3_ [ ]
time counting down,
CHILD LOCK
You can use this safe_ feature to I_k the _ntrol
panel _ gnatchildren cannot use the oven when
you do not want them to and when you are
cleaning the oven,
To set CHILD LOCK:
Display Shows"
[ol
(Time of day will display.)
Tou_ and
hold until '%°
appeam in
Me display.
4approximately
seconds)
i i
To cancel CHILD LOCK:
Display Shows:
=Touch and hold
until "L"
disappears
from the
display.
(approximately
4 seconds)
Ti_ of day,
9

ADD MINUTE
A time-saving pad, this simplified control lets
you quickly _t and start microwave cooking at
100% power without the need to touch START.
Example: To cook for 2 minutes.
Touch- Display Shows:
=Time of day.
Twice Time counting down
and power 100
NOTE: if you tou_ ADD MIINUTE, itwill add 1
minute up to 99 rain 59 seconds.
TIMED COOKING
This feature le_ you program a specific c_k time
and power. For best results, there are 10 power
level settings in addition to HIGH power (100%).
Refer to the "Microwave Power Level Table" on
page 11 for more information.
NOTE: If you do not select a _wer level, the oven
will automatically cook at HIGH (100%) power
Example: To cook for 5 minutes, 30 seconds
at 80% power_
Display Shows"
1. I0]
2_ 1 ]
3. J P-HI ]
,. ! p-a,,!
mI !
6. At the end of cooking time,
2 short tones and 1 long tone
will sound.
10
