GAS GAS QUAD - PART LIST 2007 User manual

1
QUAD WILD 2007

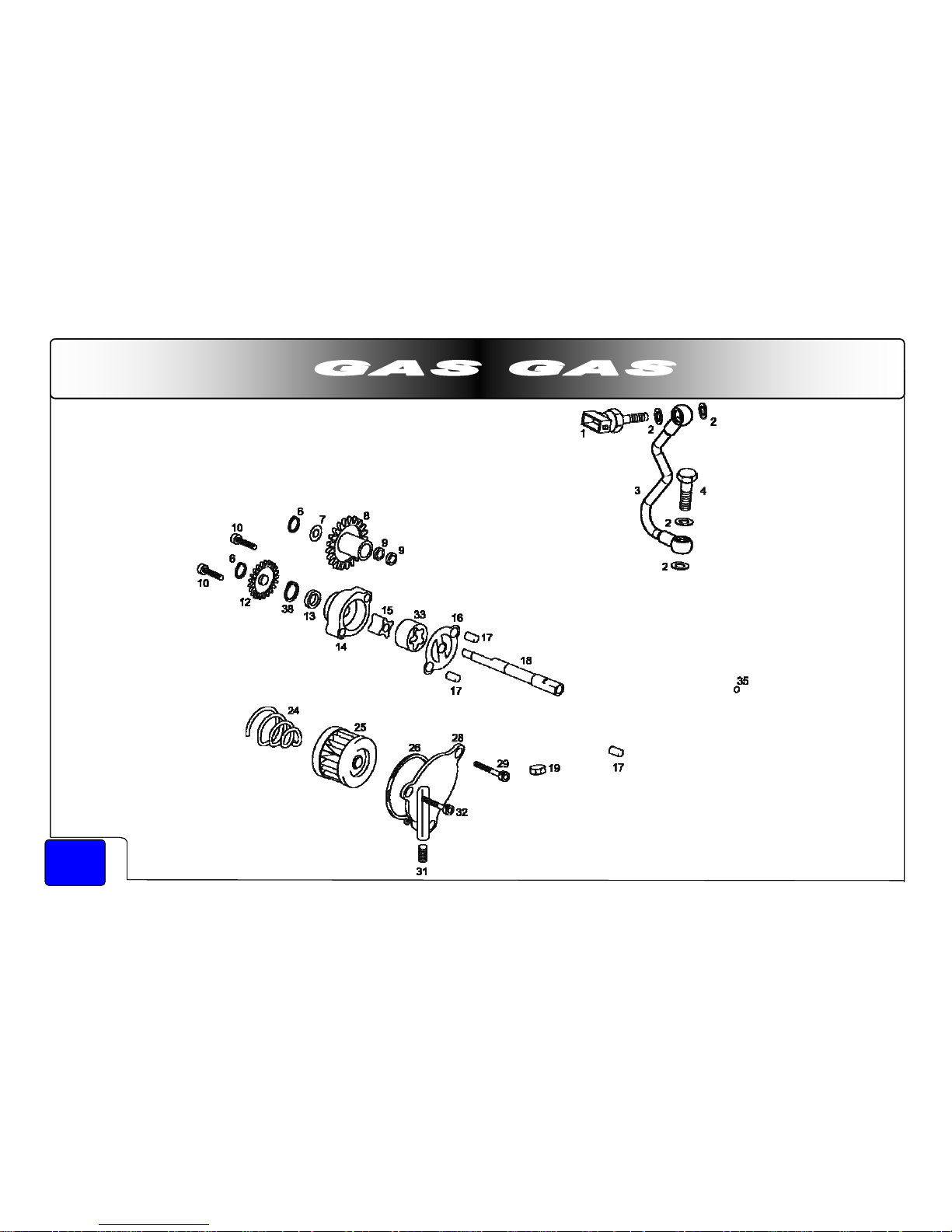

Bombas aceite /
Oil pumps
1
QUAD WILD 2007
Bombas aceite /
Oil pumps

Nº DESCRIPCION / DESCRIPTION WILD HP 450 2007 Cant.
1SENSOR PRESIÓN ACEITE ENDURO / ENDURO OIL PRESSION SENSOR MFS400326568 1
2ARANDELA COBRE 8X12X1,5 / 8X12X1,5 WASHER T4008112 4
3DISTRIBUIDOR ACEITE / OIL SUPPLY MFS450710856 1
4RACOR CIRCUITO ACEITE 10X26 / 10X26 OIL RACORD MFS400122570 1
6SEEGER D.8 EJE BOMBA ACEITE / OIL AXIS SEEGER MFS400122305 2
7ARANDELA REGLAJE 8,1X17X0,2 / 8,1X17X0,2 WASHER ST950705 1
8PIÑÓN INTERMEDIO BOMBA DE ACEITE / OIL PUMP INTERMEDIATE SPROCKET MFS400122450CT 1
9COJINETE HK 0808 / HK 0808 BEARING MFS400126535/2 2
10 TORNILLO 6X35 / 6X35 SCREW T0306035 2
12 PIÑÓN BOMBA ACEITE / OIL PUMP PINION MFS400122400 1
13 COJINETE 508Z / 508Z BEARING ME25616032 1
14 CUERPO BOMBA ACEITE PRESIÓN / OIL PUMP BODY MFS400122230 1
15 ROTOR BOMBA ACEITE / OIL PUMP ROTOR MFS400122105 1
16 JUNTA BOMBA ACEITE / OIL PUMP GASKET MFS400122410 1
17 CASQUILLO CENTRADOR / CENTRER BUSHING MFS400116066 4
18 EJE BOMBA ACEITE / OIL PUMP AXLE MFS450622300 1
19 ABRAZADERA COBRA 21 / 21 CLAMP L200046 1
24 MUELLE APRETADOR FILTRO ACEITE / OIL FILTER SPRING MFS400122560 1
25 CONJ. CAMPANA ASPIRACIÓN FSE 450 2007 / FSE 450 2007 ASPIRATION SET MFS450622565CT 1
26 TÓRICA TAPA FILTRO ACEITE / OIL FILTER COVER O’RING MFS450622555 1
28 TAPA FILTRO ACEITE / AIR FILTER COVER MFS450522551 1
29 TORN. ESPECIAL 6X50 / SPECIAL SCREW 6X50 T0206050 1
31 TORNILLO ESPECIAL M8 / SPECIAL SCREW M8 T0208103 1
32 TORN. ESPECIAL 6X55 / SPECIAL SCREW 6X55 T0206055 1
33 ANILLO BOMBA EATON PRESIÓN / EATON PRESSURE PUMP RING MFS400122110 1
35 TÓRICA CENTRÍFUGO 6X2 / 6X2 O’RING ME25616045 1
38 SEEGER RODAMIENTO / BEARING SEEGER MFS450422240 1
Motor 1
G
AS GAS Motor 1GAS GAS

QUAD WILD 2007
2

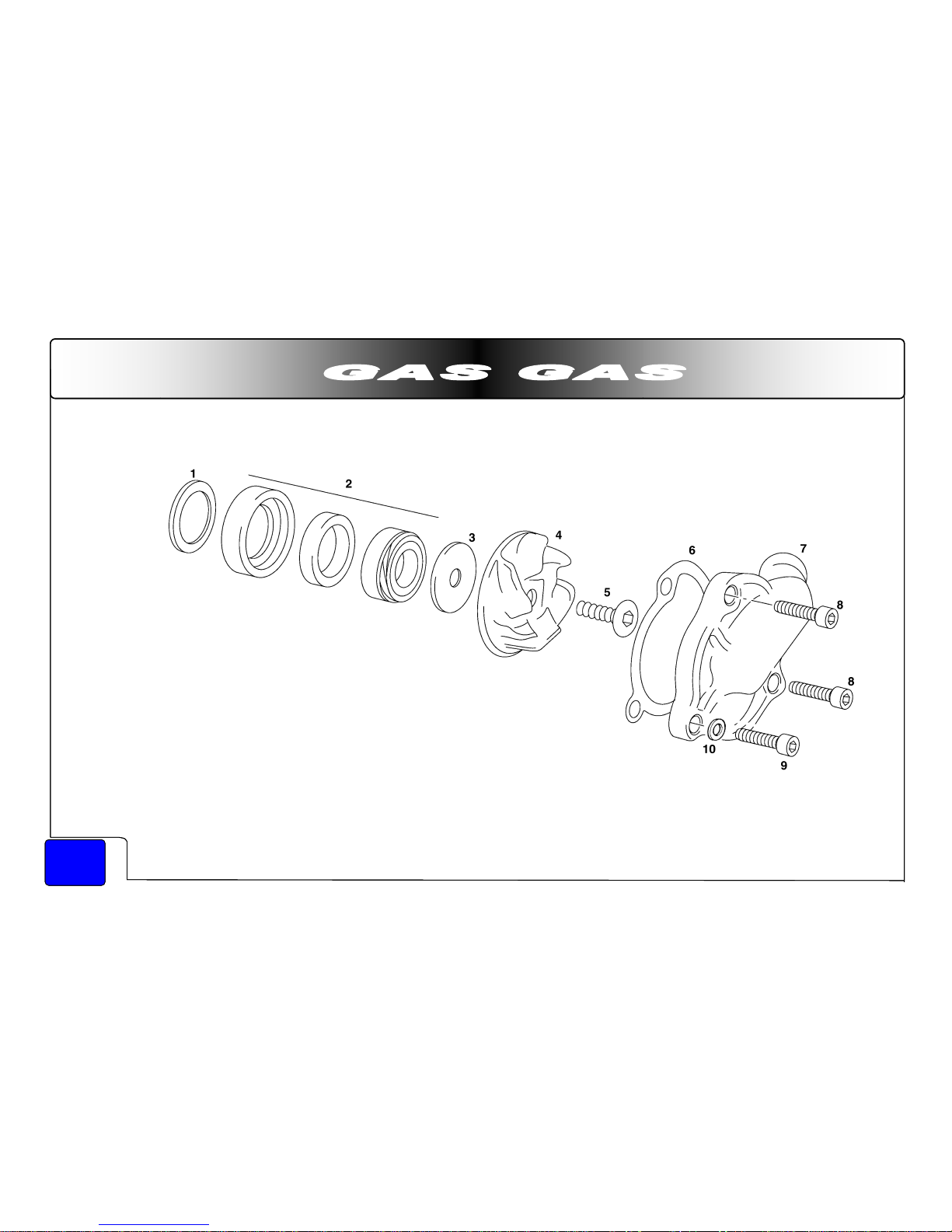

Centrífugo - Bomba /
Im
p
eller - Water
p
um
p
QUAD WILD 2007
2
Centrífugo - Bomba /
Im
p
eller - Water
p
um
p

Nº DESCRIPCION / DESCRIPTION WILD HP 450 2007 Cant.
1ARANDELA 17,5X25,8X0,5 BOMBA AGUA / 17,5X25,8X0,5 WATER PUMP WASHER M03625000 1
2JUEGO RETENES / SEAL SET ME25610011 1
3ARANDELA INOX. TURBINA BOMBA 6.25X21X1 / 6.25X21X1 WATER PUMP WASHER MFS450410107 1
4TURBINA BOMBA AGUA ALUMINIO /ALUMINIUM WATER PUMP IMPELLER MFS450610007 1
5ALLEN 6X16 / 6X16 ALLEN SCREW T0506016 1
6JUNTA TAPA BOMBA AGUA / WATER PUMP COVER GASKET MFS450544008 1
7TAPA BOMBA AGUA / WATER PUMP COVER MFS450610008 1
8TORN. ESPECIAL 6X20 / 6X20 SPECIAL SCREW T0206020 2
9TORNILLO ESPECIAL M6X10 / M6X10 SPECIAL SCREW T0206020N 1
10 ARANDELA 10X6X1,5 / 10X6X1,5 WASHER T4006010 1
GAS GAS Motor 2
GAS GAS

3
QUAD WILD 2007

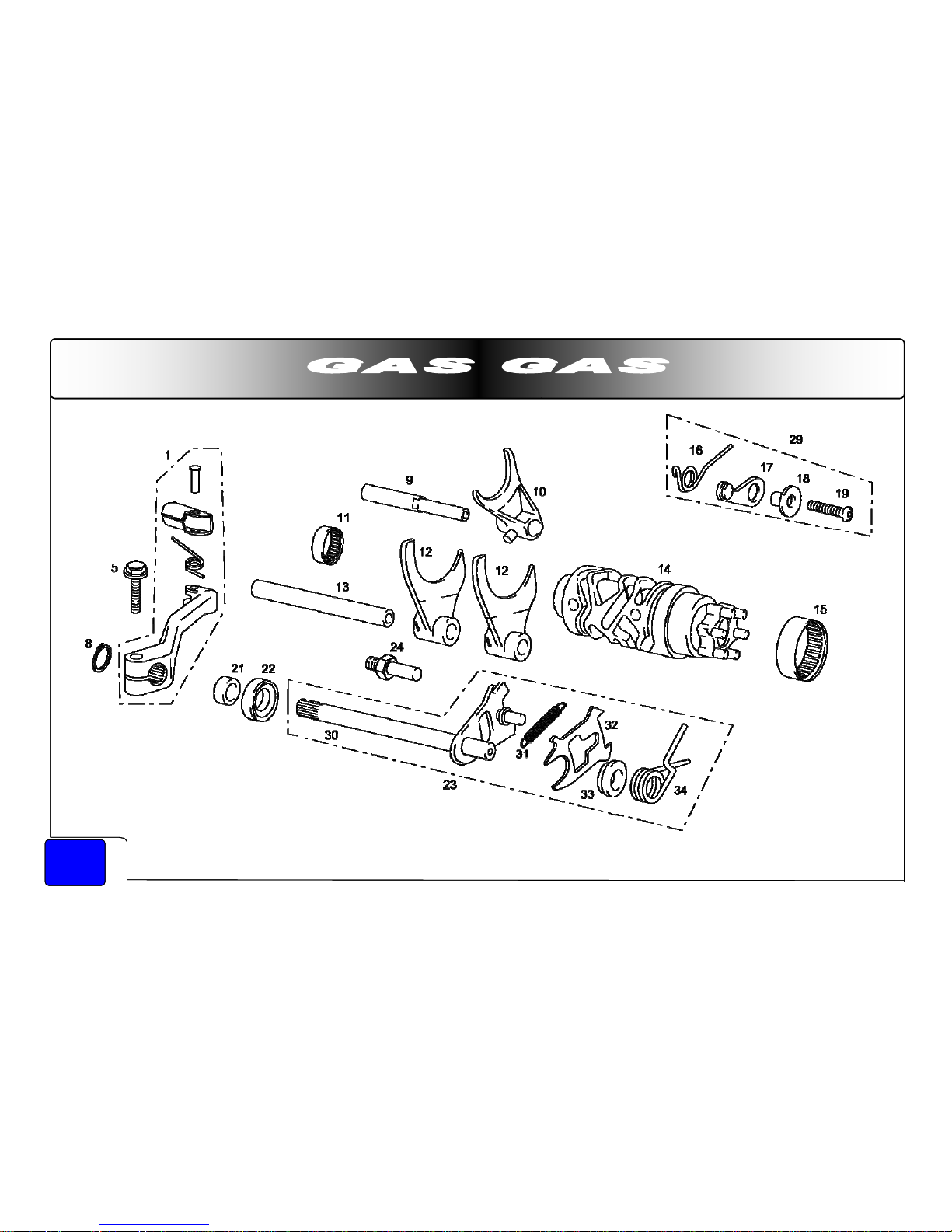

Selector cambio /
Shift cam
3
QUAD WILD 2007
Selector cambio /
Shift cam

Nº DESCRIPCION / DESCRIPTION WILD HP 450 2007 Cant.
1CTO. PEDAL CAMBIO / GEAR LEVER SET ME250036026R 1
5HEXAGONAL 6X20 / HEXAGONAL SCREW 6X20 T0106025 1
8SEEGER 12X1 EXTERIOR EJE SELECTOR / SEEGER 12X1 ME25636043 1
9EJE HORQUILLA 5-6 / 5-6 FORK AXIS MFS400136045 1
10 HORQUILLA 5-6 / SHIFT FORK 5-6 ME25636009 1
11 RODAMIENTO HK2512 DESMODRÓMICO / SHIFT CAM BEARING ME25636055 1
12 HORQUILLA 1-2-3-4 / SHIFT FORK 1-2-3-4 ME25636008 1
13 EJE HORQUILLA 1-2-3-4 / 1-2-3-4 FORK AXIS ME25636044 2
14 DESMODRÓMICO / SHIFT CAM MFS450536031 1
15 RODAMIENTO HK3512 DESMODRÓMICO / SHIFT CAM BEARING ME25636054 1
16 MUELLE FIJADOR MARCHAS / GEAR FASTEN SPRING MFS400136034 1
17 FIJADOR MARCHAS / GEAR FASTEN MFS400136033 1
18 CASQUILLO PLATINA FIJADOR MARCHAS / GEAR BUSHING MFS400136047 1
19 ULS 6X16 / 6X16 ULS T0506016 1
21 RETÉN SELECTOR 12-22-7 / SEAL 12-22-7 ME25636048 1
22 CASQUILLO EJE SELECTOR / AXIS BUSHING ME250136050 1
23 EJE SELECTOR COMPLETO FSE 450 / FSE 450 COMPLET SELECTOR AXIS MFS450436038CT 1
24 TORNILLO CENTRADOR MUELLE SELECTOR / SELECTOR SPRING SCREW ME25636042 1
29 CTO. FIJADOR MARCHAS / GEAR FASTEN SET MFS400136033CT 1
30 EJE SELECTOR / SELECTOR AXIS ME250236038 1
31 MUELLE ESCORPIÓN / SCORPION SPRING ME25636039 1
32 ESCORPIÓN / SCORPION ME250236036 1
33 CASQUILLO CENTRADOR / CENTRER BUSHING MFS450436041 1
34 MUELLE SELECTOR / SELECTOR SPRING ME25636035 1
GAS GAS Motor 3
GAS GAS

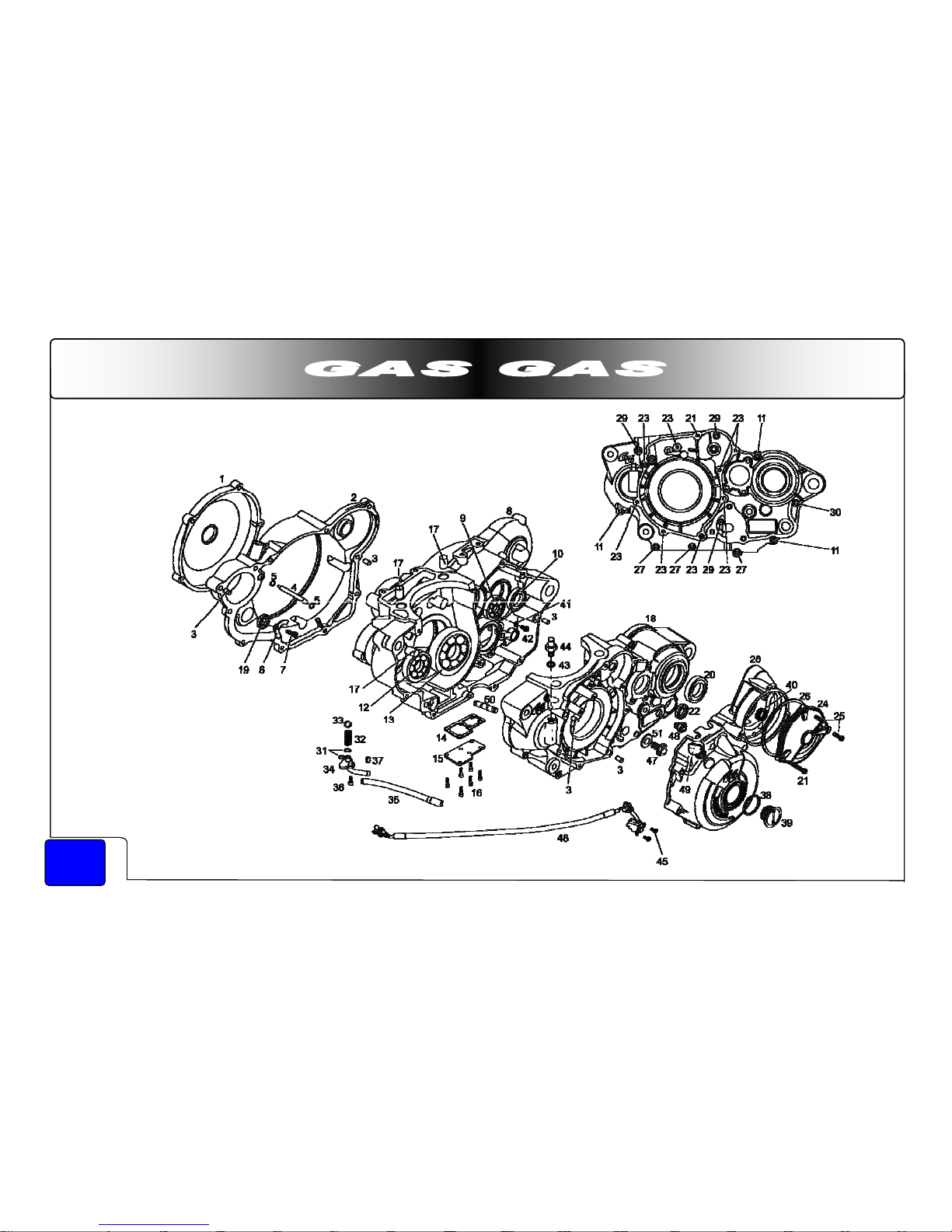

QUAD WILD 2007
Cárter derecho
/ Right crankcase
4
QUAD WILD 2007
Cárter derecho
/ Right crankcase
4

Nº DESCRIPCION / DESCRIPTION WILD HP 450 2007 Cant.
1CÁRTER IZQUIERDO / LEFT CARTER MQ450710001 1
2RODAMIENTO HK2512 / HK2512 BEARING ME25636055 1
3ARANDELA OBTURACIÓN / WASHER MFS450612027 1
4RODAMIENTO 6303 C3 / 6303 C3 BEARING MFS400112030 1
5COJINETE 6306 C4 / 6306 C4 BEARING ME25612007/2 1
6CTO. LÁMINAS OBTURACIÓN PASO ACEITE / OIL OBTURATION REED KIT MFS400110120 1
8PHILIPS TORNILLO 3X5 / 3X5 SCREW PHILIPS T0703005 2
9JUNTA CÁRTER CENTRAL / CENTRAL CRANKCASE GASKET MQ450544001 1
10 CÁRTER DERECHO / RIGHT CRANKCASE MQ450710000 1
11 JUNTA TAPA EMBRAGUE / CLUTCH COVER GASKET MQ450544002 1
12 TAPA EMBRAGUE / CLUTCH COVER MFS450732001 1
13 JUNTA TAPA DISCOS EMBRAGUE / DISCS COVER GASKET ME25644003 1
14 TAPA DISCOS EMBRAGUE / DISCS CLUTCH COVER MFS450732002 1
15 RETÉN 20/30/7/AI / 20/30/7/AI SEAL ME25632021 1
16 TORN. ESPECIAL 6X30 / 6X30 SPECIAL SCREW T0206030 1
17 TORN. ESPECIAL 6X60 / 6X60 SPECIAL SCREW T0206060 1
18 TORN. ESPECIAL 6X80 / 6X80 SPECIAL SCREW T0206080 1
19 TORN. ESPECIAL 6X25 / 6X25 SPECIALSCREW T0206025 8
20 CASQUILLO CENTRADOR CÁRTER / CRANKCASE BUSHING ME25610018 2
22 TORNILLO ESPECIAL M6 / M6 SPECIAL SCREW MFS400136065 1
23 CAMPANA ASPIRACIÓN ACEITE / OIL ASPIRATE MFS400122550 1
24 TÓRICA 11,2X15X1,4 / 11,X15X1,4 O´RING MFS400110026 1
25 COJINETE 6203 2Z C3 / 6203 2Z C3 BEARING MFS400136168 1
26 COJINETE 6205 C3 2RSH / 6205 C3 2RSH BEARING ME25636056 1
30 ARANDELA COBRE 12X18X1,5 / 12X18X1,5 WASHER ME25810030 1
31 TAPÓN VACIADO ACEITE CON IMÁN / OIL DRAIN CAP WITH MAGNE ME25610017 1
GAS GAS Motor 4
GAS GAS

QUAD WILD 2007

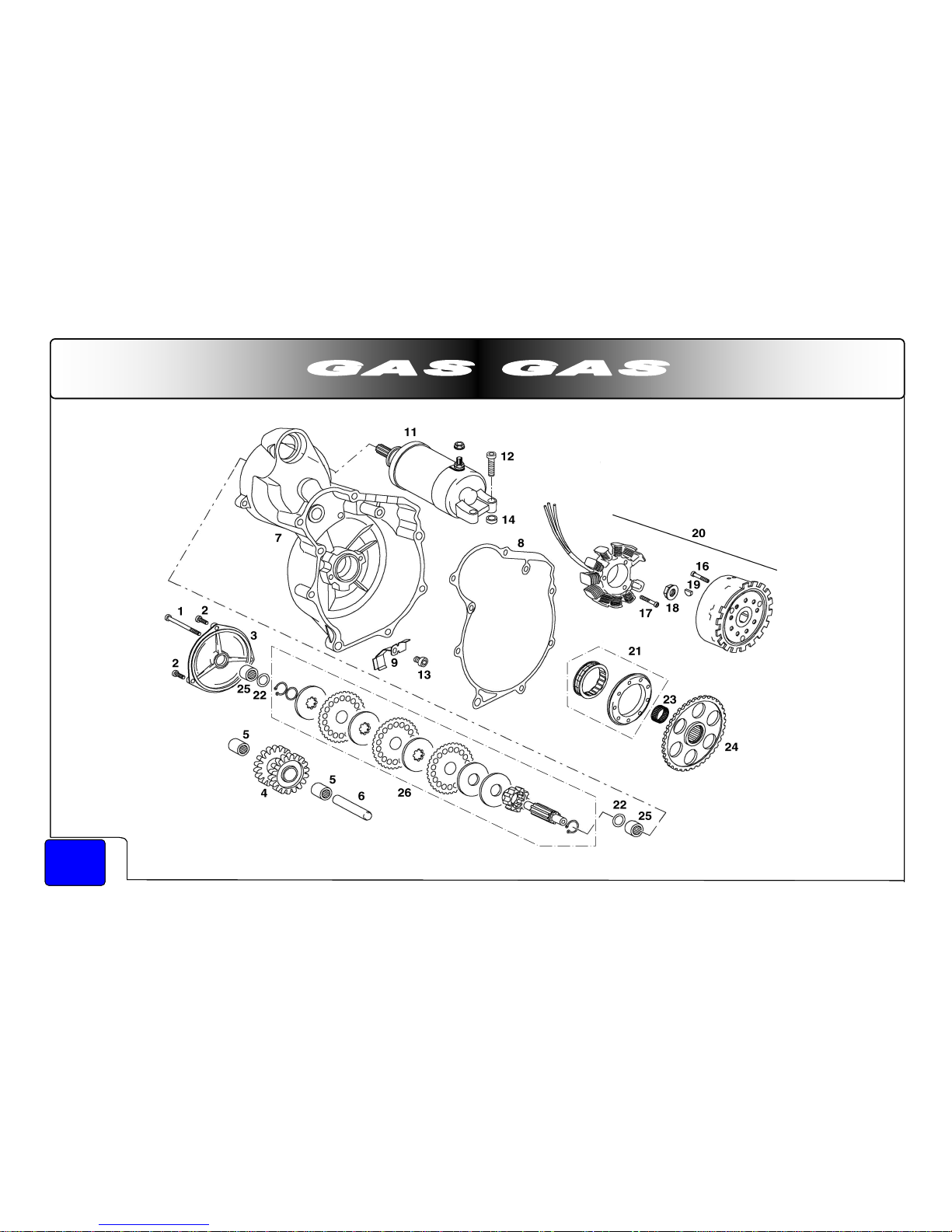

Cárter izquierdo
/ Left crankcase
5

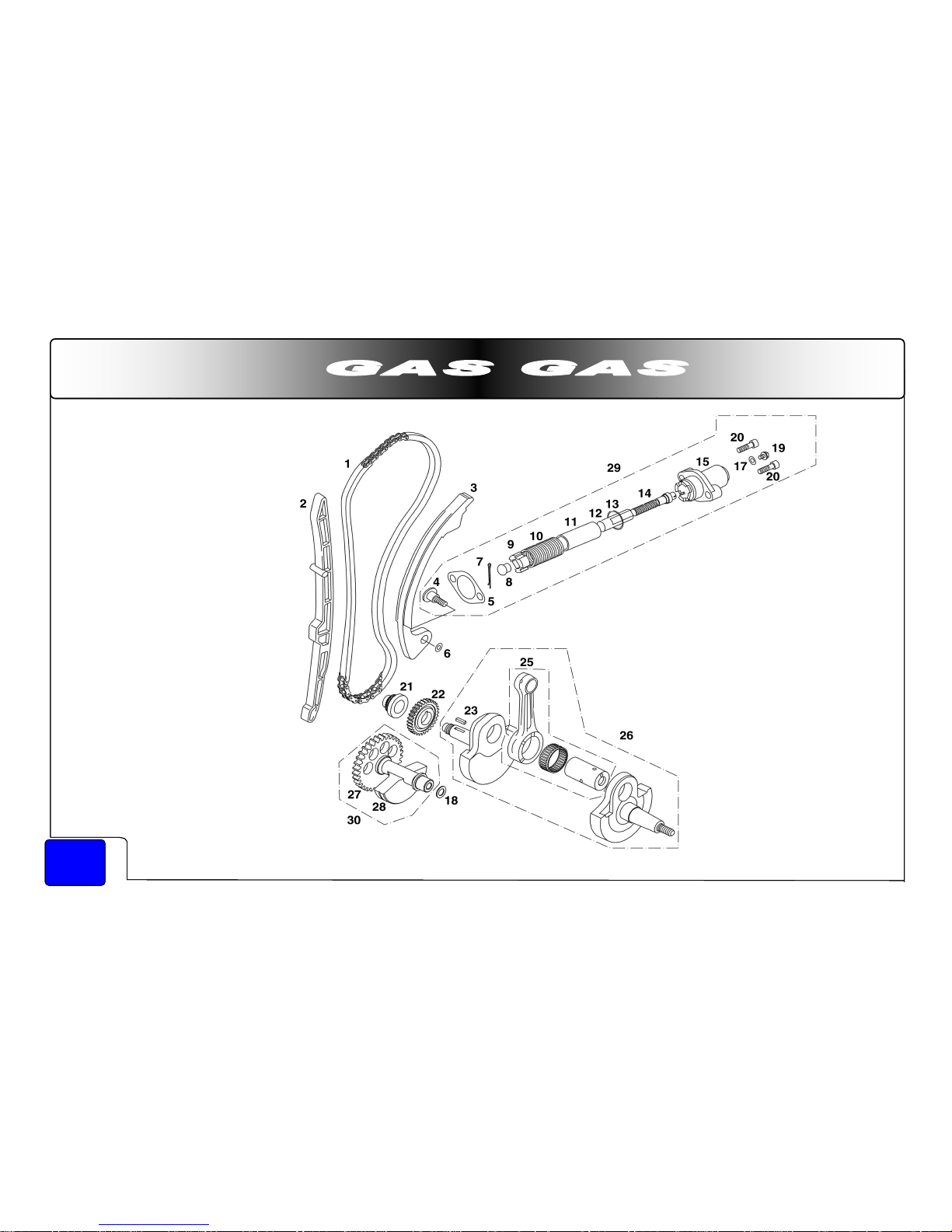

QUAD WILD 2007
Cárter izquierdo
/ Left crankcase
5
