GE ESHF5MGXGEWW Safety guide

0ge.com
Safety Instructions ................. 2-3
Operating Instructions
Automatic Icemaker .................... 10
Care and Cleaning ................... 12, 1:3
Crispers and Pans ........................ 9
Ice and Water Dispenser ............ 11, 12
Refrigerator Doors ....................... 8
Replacing the Light Bulbs ............... 14
Shelves and Bins ....................... 6, 7
Temperature Controls .................... 4
TurboCool TM . ............................. 4
Water Filter .............................. 5
Installation Instructions
Installing the Refrigerator ............ 20-2:3
Moving the Refrigerator ............. 16-19
Preparing to Install
the Refrigerator ......................... 15
Water Line Installation .............. 24-26
Troubleshooting Tips ............ 27-:30
Normal Operating Sounds ............... 27
Consumer Support
Consumer Support ............. Back Cover
Performance Data Sheet ................ :31
State of California Water
Treatment Device Certificate ............ :3:3
Warrantg (Canadian) .................... :34
Warrantg (U.S.) ......................... :35
Models 22, 23, 25, 26 and 27
CSte 5 CSte
R frig rateurs
La section fran_aise commence _ la page 36
Ladoa Lado
Refrigeradores
La secci6n en espa_ol empieza en la pSgina 70
Write the model and serial numbers
here:
Model #
Serial #
Findthese numbers on a label inside
the refrigerator compartment at the
top on the right side. 200D8074P025 49-60578 11-08 JR

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
_4,WARNING!
Use this appliance only for its intended purpose as described in this Owner's Manual.
SAFETYPRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
_,This refrigerator must be properly installed
and located in accordance with the Installation
Instructions before it isused.
_, Donot allow children to climb, stand or hang
on the shelvesinthe refrigerator.They could
damage the refrigerator and seriously injure
themselves.
_, Donot touch the cold surfaces in the freezer
compartment when hands are damp or wet.
Skinmay stick to these extremely cold surfaces.
_, Donot store or usegasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
Inrefrigerators with automatic icemakers,
avoid contact with the moving parts of the
ejector mechanism, or with the heating element
located on the bottom of the icemaker.Do
not placefingers or hands on the automatic
icemaking mechanism while the refrigerator
is plugged in.
_, Keepfingers out of the "pinch point" areas;
clearances between the doors and between
the doors and cabinet are necessarily small.
Becareful closing doors when childrenare
in the area.
_,Unplug the refrigerator beforecleaning and making
repairs.
NOTE:Westrongly recommend that any servidng
be performed bg a qualified individual
_, Do not refreezefrozen foods which have
thawed completely.
NOTE:Turningthe refrigerator off via the controlson
the touch pane!doesnot shut off electricalpower to
the refrigerator.
2

DANGER! RISK OF CHILD
ge.com
ENTRAPMENT
PROPERDISPOSAL OF THE REFRIGERATOR
Childentrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are
still dangerous...eveniftheu will sit for '_justa few
daus."If Uouare getting rid of uour old refrigerator,
pleasefollow the instructions below to help prevent
accidents.
Before You Throw Away Your Old
Refrigerator or Freezer:
Takeoff the doors.
Leavethe shelvesin place sothat children may not
easily climb inside.
Refrigerants
All refrigeration products contain refrigerants, which
under federal law must be removed prior to product
disposal. If you are getting rid of an old refrigeration
product, check with the company handling the
disposal about what to do.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly recommend against the use
of an extension cord.
However,if you must usean extension cord, it isabsolutely necessarythat it be a UL-listed(inthe United States)
or a CSA-listed(inCanada),]-wire grounding type appliance extension cord having a grounding type plug and
outlet and that the electricalrating of the cord be 15 amperes (minimum) and 120 volts.
WARNING!
HOW TOCONNECT ELECTRICITY
Do not, under an_l circumstances, cut or remove the third (ground) prong from the power cord.
For personal safet_l, this appliance must be properlbt grounded.
Thepower cord ofthis appliance isequipped
with a ]-prong (grounding)plug which mates
with a standard ]-prong (grounding)wall outlet
to minimizethe possibility of electric shock hazard
from this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make surethe outlet isproperly
grounded.
If the outlet isa standard 2-prong outlet, it is
your personal responsibility and obligation to
have it replaced with a properly grounded
]-prong wall outlet.
Therefrigerator should always be plugged into its
own individual electricaloutlet which hasa voltage
rating that matches the rating plate.
Thisprovides the best performance and alsoprevents
overloading house wiring circuits which could cause a
fire hazardfrom overheated wires.
Never unplug your refrigerator by pulling on
the power cord.Always grip plug firmly and pull
straight out from the outlet.
Repairor replace immediately all power cords that
have become frayed or otherwise damaged. Do not
usea cord that shows cracks or abrasion damage
along its length or at either end.
When moving the refrigerator away from the wall,
be careful not to roll overor damage the power cord.
READAND FOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS

o_
.9
lJ
o_
iiiiiiiiiliiiqiiiiiii!ill
!iiii]i[[iiii!!iiiiiiiiijii[[iii
iliiiiiiii_i_i}i/iiii;ii]]iii
iiiiiiiiii[iiii_ii_jiii[[_il
,ii]iiiiiiiiiiiii_iiiiiiiiiiiiii
_ L
v _
0
0
0
E
0
About the temperature controls.
Not all features are on all models,
O°F is Recommended 37°F is Recommended
• • ® •
LW e9 _ _d_ Lc d_ _LL t___ CLock-_
FWo e'4
LFilterj at Crushed ube igh LContro_
Hold 3 Seconds to Reset Hold 3 Seconds
Thetemperaturecontrolsarepresetinthefactoryat37°FfortherefrigeratorcompartmentandO°Fforthe
freezercompartment,Allow24hoursforthetemperaturetostabilizetothepresetrecommendedsettings.
ThetemperaturecontrolscandisplayboththeSETtemperotureasweltastheactualtemperaturein the
refrigeratorandfreezer.TheactualtemperaturemabtvarbtstighttgfromtheSETtemperaturebasedon
usageandoperatingenvironment.
Onsomemodels,settingbothcontrolstothewarmestsettinguntilthedisptaLjflashes(off)wiltstop
coolingin boththefreezerandrefrigeratorcompartments.
Onothermodels,settingeithercontrolto thewarmestsettinguntilthedisptaLJflashes(off)wiltstop
thecoolingtothefreezerandrefrigerator.
:NOTE:Turningtherefrigeratoroffviathecontrolsonthetouchpaneldoesnotshutoffelectricalpower
totherefrigerator.
NOTE:Therefrigeratorisshippedwithprotectivefilmcoveringthetemperaturecontrols.If thisfilmwas
notremovedduringinstallation,removeitnow.
PerformanceAir FlowSgstem
ThePerformanceAir-FlowSgstemisdesignedto
maximizetemperaturecontrolintherefrigerator
andfreezercompartments.Thisuniquespecial
featureconsistsoftheAirToweralongtheback
walloftherefrigeratorandtheAirTunnelonthe
bottomportionofthefreezerrearwall.Placing
foodinfrontofthelouversonthesecomponents
About TurboCool:" (onsome models)
willnotaffectperformance.AlthoughtheAirTower
andtheAirTunnelcanberemoved,doingsowill
affecttemperatureperformance.(Forremoval
instructions,on-line,contactusatge.comor
call800.GE.CARES.InCanada,contactusat
geappliances.caorcall1.800.561.3344.)
4
How it Works
TurboCoolrapidlgcools the refrigerator
compartment in order to more quicklgcoolfoods.
UseTurboCoolwhen adding a large amount
offood to the refrigeratorcompartment, putting
away foods after theg have been sittingout at
roomtemperatureorwhenputtingawaywarm
leftovers.Itcanalsobeusediftherefrigeratorhas
beenwithoutpowerfor anextendedperiod.
Onceactivated,thecompressorwillturnon
immediatelgandthefanswillcgcleonand
off at highspeedasneededforeighthours.
Thecompressorwillcontinueto rununtilthe
re!rigeratorcompartmentcoolsto approximatelg
54 F(1C),thenitwillcgcleonandoff tomaintain
thissetting.After8 hours,or ifTurboCoolis
pressedagain,therefrigeratorcompartment
willreturnto theoriginalsetting.
How to Use
PressTurboCool.TheTurboCooltemperature
displagwillshowTcandthe LEDwillbeactivated.
AfterTurboCooliscomplete,the TurboCool
indicatorlightwillgoout.
NOTES:Therefrigeratortemperaturecannotbe
changedduringTurboCool.
Thefreezertemperatureisnotaffected
duringTurboCooL
Whenopeningtherefrigeratordoor
duringTurboCool,thefanswillcontinue
to runiftheghavecgcledon.

About the water filter. Ionsome models) ge.com
Water Filter Cartridge
The water filter cartridge islocated in the back upper right
corner of the refrigerator compartment.
When to Replace the Filter on Models With
a Replacement Indicator Light
There isa replacement indicator light for the water filter
cartridge on the dispenser.This lightwill turn orange to tell
you that you need to replacethe filter soon.
The filter cartridge should be replacedwhen the replacement
indicator light turns red or if the flow of water to the dispenser
or icemaker decreases.
When to Replace the Filter on Models Without
a Replacement Indicator Light
The filter cartridge should be replaced every six months or
earlier if the flow of water to the water dispenser or icemaker
decreases.
Removing the Filter Cartridge
If you are replacingthe cartridge,first remove the old one by
slowly turning itto the left. Do not pull down on the cartridge.
A small amount of water may drip down.
Installing the Filter Cartridge
O Ifyou are replacinga SmartWater cartridge with
an adapter, it must be removed before installing the
cartridge. Toremove the adapter,turn it to the left about
1/4 turn.
Ifyou are replacinga Water by Cu!ligancartridge,
leavethe adapter in place.Thisadapter will stay in
the refrigerator when you replacefuture cartridges.
.
With adapter Without ada_ter
(appearance may vary)
O On models without a replacement indicator light, apply
the month and year stickerto the new cartridge to remind
you to replace the filter in six months.
Fillthe replacement cartridge with water from the tap to
allow for better flow from the dispenser immediately after
installation.
Lineup the arrow on the cartridge and the cartridge
holder.Placethe top of the new cartridge up inside
the holder.Do not push it up into the holder.
Slowly turn it to the right until the filter cartridge stops.
DONOTOVERTIGHTEN.Asyou turn the cartridge, itwill
automatically raiseitself into position.Thecartridge will
move about 1/2turn.
i (( i i( ¸
Runwater from the dispenserfor ] minutes (about !-1/2
gallons)to clearthe system and preventsputtering.
Pressand hold the WATERFILTERpad (onsome models)
on the dispenserfor ] seconds.
NOTE:A newly-installed water filter cartridge may cause
water to spurt from the dispenser.
Filter Bypass Plug
You must usethe filter bypass plug when a replacement filter
cartridge isnot available. Thedispenserand the icemakerwill
not operate without the filter or filter bypass plug.
Plug
SmartWater
JJ
Filter ,,,.tf _ _i_
Bypass
Dtug
WaterbyCulligan
Touseme filter bypass plug on Water by Cu!ligan moaels,you
must first remove me filter aaaoter from the cartridge holder
by turning itto me eft.
If you naveauestions visit our Website at ge.com
or call !.800.GE.CARES(1.800.412.2717).
Replacement filters:
Toorder additional filter cartridges in the United States,
visit our Website at ge.com, or call GEParts and
Accessories, 800.626.2002.
ivISWF
Suggested Retail $]6.95-41.95
Customersin Canada should consult the yellow pages for
the nearest Habe ServiceCenter.

.o
iiiiiiiiiliiiqiiiiiii!ill
!iiii]iiiiiii!!iiiiiiiiijiiiiiii
iliiiiiiii_i_i}i/iii'i'iiiiii
iiiiiiiiiiiiiii_ii_jiiiii_il
,iiiiiii,'iiiiiiii_'iiiiiiii_iiiii
_ L
v _
_ o_
0
0
0
E
0
About the shelvesand bins.
Not all features are on all models.
RefrigeratorDin
I
Freezerbin
Freezertilt-out bin
Refrigerator Door Bins and Freezer Door Tilt-Out Bins
Large Bins
The larger refrigerator door bins and freezer
tilt-out door binsare adjustable.
Toremove: Lift the front of the bin straight
up,then lift up and out.
Toreplace or relocate: Engagethe back side
of the bin inthe molded supports of the door.
Then push down on the front of the bin.Bin
will lock in place.
Small Bins
Toremove: Lift the front of the bin straight up
then out.
Toreplace: Positionthe bin above the
rectangular molded supports on the door.
Then slidethe bin down onto the support
to lock it in place.
Thesnugger helpsprevent tipping, spilling
or sliding of small items stored on the door
shelf.Placea finger on either sideof the
snugger near the rear and move it back
and forth to fit gour needs.
DOnotblock CAUTION:
On models with an
icechute insidethe
top freezerdoor bin,
be carefu!when
placing itemsin the
bin.Hake sure that
items do not block
or fa!!into the ice
chute.
Presstab andpull shelfforward to
remove
Slide-Out Spillproof Shelf
Theslide-out spillproof shelf allows you
to reach items stored behind others.The
specialedges are designedto help prevent
spillsfrom dripping to lower shelves.
Toremove:
Slidethe shelf out until it reachesthe stop,
then press down on the tab and slidethe shelf
straight out.
Toreplace or relocate:
Linethe shelf up with the supports and slide
it into place.Theshelf can be repositioned
when the door isat 90° or more.To reposition
the shelf,slidethe shelf past the stops and
angle downward. Slideshelf down to the
desired position,line up with the supports
and slideinto place.
Hake sure you push the shelves a!! the way
back in before gou close the door.
6

ge.com
Not all features are on all models,
QuickSpace TM Shelf (on some models)
This shelf splitsin half and slidesunder itself
for storage of tall items on the shelf below.
This shelf can be removed and replaced
or relocated just likeSlide-OutSpillproof
Shelves.
On some models,this shelf can not be used
in the lowest position.
Freezer Baskets
Toremove,slide out to the stop position,
lift the front past the stop position,and
slideout.
Hake sure gou push the baskets a!! the
wag back in before gou close the door.
Slide-Out Freezer Shelves
Toremove, slideout to the stop position,
lift the front past the stop position,and slide
out from rib.
Hake sure gou push the shelves a!! the wag
back in before gou close the door.
Fixed Freezer Shelves
To remove, liftthe shelf up at the left side and
then bring the shelf out. NOTE FOR DISPENSER MODELS: In order to take full advantage of the tilt-out ice bin
(on some models), onlg store items on the
shelf below the ice bin that are no taller
than the lowest point on the bin.
Door Wine/Beverage Rack (onsome models)
This rack holds up to 5 cans or one bottle
of wine.
The rack hangs from the sides
of the dairu bin.
Toremove:
0 Emptg the wine/beverage rack.
Holdingthe bottom of the dairy bin,
lift the front straight up,then lift up
and out.
To detach the rack from the dairy bin,
pull the rack'ssidewires out ofthe holes
on each side ofthe dairy bin.
To replace:
Reattach the rack to the sides of the bin.
Engagethe back side ofthe bin in
the molded supports on the door.
Then push down on the front of
the bin.Thebin will lock into place.

.o
iiii]iiiiliiiiiiiiiii!ill
!iiii]iiiiiii!!iiijiiiiijiiiiiij
iliiiiiiii_i_i}i/iiii;ii]]iii
iiiiiiiiiiiiiil]i_Jiiiii_il
_ii]iiiiiiiiiiiii_iiiiiiiiiiiiii
_ L
v _
_ o_
0
0
0
0
About the refrigerator doors.
J_
Refrigerator Doors
The refrigerator doors may feel different
than the onesyou are usedto. Thespecial
door opening/closing feoture mokes sure
the doors closeoll the woy and are
securely seoled.
When opening ond closing the door,you
will notice a stop position.Ifthe door is
opened past this slop point, the door will
remain open to allow you to Ioodond
unlood food more eosily. When the door
isonly partially open, itwill automatically
close.
The resistance you feel at the stop
position will be reducedas the door
isIoodedwith food.
Whenthedooris onlypartially open,
it will automaticallyclose.
Beyondthis step the doorwill
stayopen.
il)! ¸¸¸¸////i/)//
grilleandthenpull _ Raise
thegrillestraightOut: _ --
Door Alignment
If doors are uneven, adjust the refrigerator
door.
0 Usinga 7/16" socket wrench, turn the
door adjusting screw to the right to
raisethe door;to the left, to lower it.
(Anylon plug,imbedded inthe threods
of the pin,preventsthe pin from
turning unless a wrench is used.)
@After one or two turns of the wrench,
open and closethe refrigerator door
and check the alignment at the top
of the doors.
8

About the crispers and pans.
Not all features are on all models.
ge.com
Fruit and Vegetable Crispers
Excesswater that may accumulate in the
bottom of the drawers should bewiped dry.
On some models, the bottom drawer has
full extension slidesthat allow full access
to the drawer.
HI _ LO Adjustable Humidity Crispers
Slidethe control allthe way to the HI setting
to provide high humidity recommended for
most vegetables.
Slidethe control all the way to the LO
setting to providelower humidity levels
recommended for most fruits.
Convertible Dell Pan Ion some models)
Theconvertible deli pan hasits own cold air
duct to allow a stream of cold air from the
freezer compartment or refrigerator
compartment to flow to the pan.
ThevuriuOletemperuture control regulates
the air flow from the Climate KeeperAir
Tower.
Setthe control to the coldest setting to store
fresh meats.
Setthe control to cold to convert the pan
to normal refrigerator temperature and
provide extra vegetable storage space.The
cold air duct is turned off.Variable settings
between these extremes can be selected.
About crisper removal.
Not all features are on all models.
Crisper Removal
Crisperscan easily be removed by pulling the
drawer straight out and lifting the drawer up
and over the stop location.
If the door prevents you from taking out
the drawers,first try to remove the door bins.
If this does not offer enough clearance,the
refrigerator will need to be rolled forward
until the door opens enough to slidethe
drawers out. Insome cases,when you roll
the refrigerator out, you will need to move
the refrigerator to the left or right asyou roll
it out.

o_
.£
o_
iiiiiiiiiliiiqiiiiii;!ill
!iiii]iiiiiii!!iiiiiiiiijiiiiiii
iliiiiiiii_i_i}i/iii'i'i]]iii
iiiiiiiiiiiiiii_ii_jiiiii_il
,ii]iiiiiiiiiiiii_iiiiiiiiiiiiii
_ L
v _
_ o_
.£
0
0
0
E
0
About the automatic icemaker.
A newly installed refrigerator may take J2 to 2/4hours to begin making ice.
Automatic Icemaker
[cemaker
PowerLight FeelerArm
The icemakerwill produce sevencubes
per cycle-approximately 100-1]0 cubes
in a 24-hour period,depending on freezer
compartment temperature, room
temperature, number of door openings
and other useconditions.
Seebelow for how to access iceand reach
the power switch on dispenser models.
If the refrigerator isoperated before the
water connection ismade to the icemaker,
set the power switch in the O (off) position.
When the refrigerator has been connected to
the water supply, set the power switch to the
I(on)position.
Theicemakerwillfillwith water when it cools
to 15°F(-10°C).A newly installedrefrigerator
may take 12to 24 hoursto begin making ice
cubes.
Youwill hear a buzzing soundeach time
the icemaker fillswith water.
Throw away the first few batches of iceto
allow the water line to clear.
Besure nothing interfereswith the sweep
of the feeler arm.
When the bin fills to the levelof the feeler
arm, the icemakerwill stop producing ice.
It isnormal for severalcubes to bejoined
together.
If ice isnot used frequently, old icecubes
will become cloudy,taste stale and shrink.
NOTE:Inhomes with lower-than-average
water pressure,Fou maF hear theicemaker
cgclemultiple timeswhen making one batch
of ice.
Models without a shelf
above the ice bin
To access ice and reach the
icemaker power switch:
oLift the bin, then pull it
forward until the bin stops.
Lower the bin to access ice
or reach the power switch.
NOTE: In order to take full
advantage of the tilt-out ice bin,
only store items on the shelf below
the ice bin that are no taller than
the lowest point on the bin.
Accessing Ice and Reaching
the Power Switch on Dispenser
Models
There are two types of ice storage bins
on dispenser models. One has a shelf above
the bin,the other doesnot.
Special note about dispenser models
without a shelf above the ice bin:
Thesemodels havea tilt-out ice bin.
Thebin can be tilted out as shown in
the illustrations,and itwill hold itself
up while you take ice out or turn the
icemaker power switch on and off.
Models with a shelf
above the ice bin
To access ice, pull the bin forward.
Besureto put the bin back in place _(Sh_lf _-
before closing the door.
To restore gour ice level from an emptg
bucket stage, the following steps are
recommeoaea:
O 12 hours after the first batch of ice
has fallen into the bin,dispense
] to 4 cubes.
O After an additional 6 hours, dispense
] to 4 cubes again.
To reach the power switch, pull the
shelf straight out. Always be sure to
replace the shelf
Thesesteps will restore your icelevel
in the shortest amount of time.
10

About the ice and water dispenser tonsome models) ge.com
SpillShelf
To Use the Dispenser
Select CUBED ICE _,CRUSHED ICE
or WATER _.
Pressthe glass gently against the top of the
dispensercradle.
Thespill shelf is not self-draining.Toreduce
water spotting, the shelf and itsgrille should
be cleaned regularly.
If no water is dispensed when the
refrigerator isfirst installed, there mabl
be air in the water line system. Press the
dispenser arm for at least two minutes to
remove trapped air from the water line
and to fi!! the water SblStem.Toflush out
impurities in the water line, throw away
the first six glassfuls of water.
CAUTION:Never put fingers or any other
objects into the ice crusher discharge
opening.
Locking the Dispenser
Pressthe Lock Controls
0 pad for 5 secondsto lock
FLockq the dispenserand control
ClCt,ntrnl_ I panel.To unlock,press
-ZJ and hold the pad again
for 5 seconds.
Hold 3 Seconds
Dispenser Light
This pad turns the night
light inthe dispenseron
and off.The light also
comeson when the
dispensercradle is
pressed.If this light burns
out, itshould be replaced
with a 6 watt 12V
maximum bulb.
Door Alarm (onsome models)
Toset the alarm,
CD r] pressthis pad untilthe
O0 indicator light comes on.
Thisalarm will sound if
LAlermJ eitherdoorisopenfor
more than 3 minutes.
The light goesout and
the beeping stops when
you close the door.
Important Facts About Your Dispenser
Donot add icefrom trays or bagsto
the storage drawer. It may not crush or
dispensewell.
Avoidoverfillingglasswith iceand use
of narrow glasses.Backed-upicecanjam
the chute or causethe door in the chute to
freezeshut. If iceisblocking the chute,poke
itthrough with a wooden spoon.
Beveragesand foods should not be
quick-chilled inthe ice storage drawer.
Cans,bottles or food packages in the
storage drawer may cause the icemaker
or auger tojam.
Somecrushed icemay be dispensed
eventhough you selectedCUBEDICE This
happens occasionally when a few cubes
accidentally get directed to the crusher.
After crushed iceisdispensed,some water
may drip from the chute.
Sometimes a small mound of snow will
form on the door in the icechute.This
condition isnormal and usually occurs
when you have dispensed crushed ice
repeatedly.The snow will eventually
evaporate.
,,To keepdispensed icefrom missing
the glass,put the glass closeto, but not
touching, the dispenser opening.
11

o_
.o
o_
iiiiiiiiiliiiqiiiiiii!ill
!iiii]iiiiiii!!iiiiiiiiijiiiiiii
iliiiiiiii_i_i}i/iii';'i]iiii
iiiiiiiiiiiiiil]i_Jiiiii_il
,iiiiiii,'iiiiiiii_'iiiiiiii_liiii
_ L
v _
_ o_
0
0
0
E
0

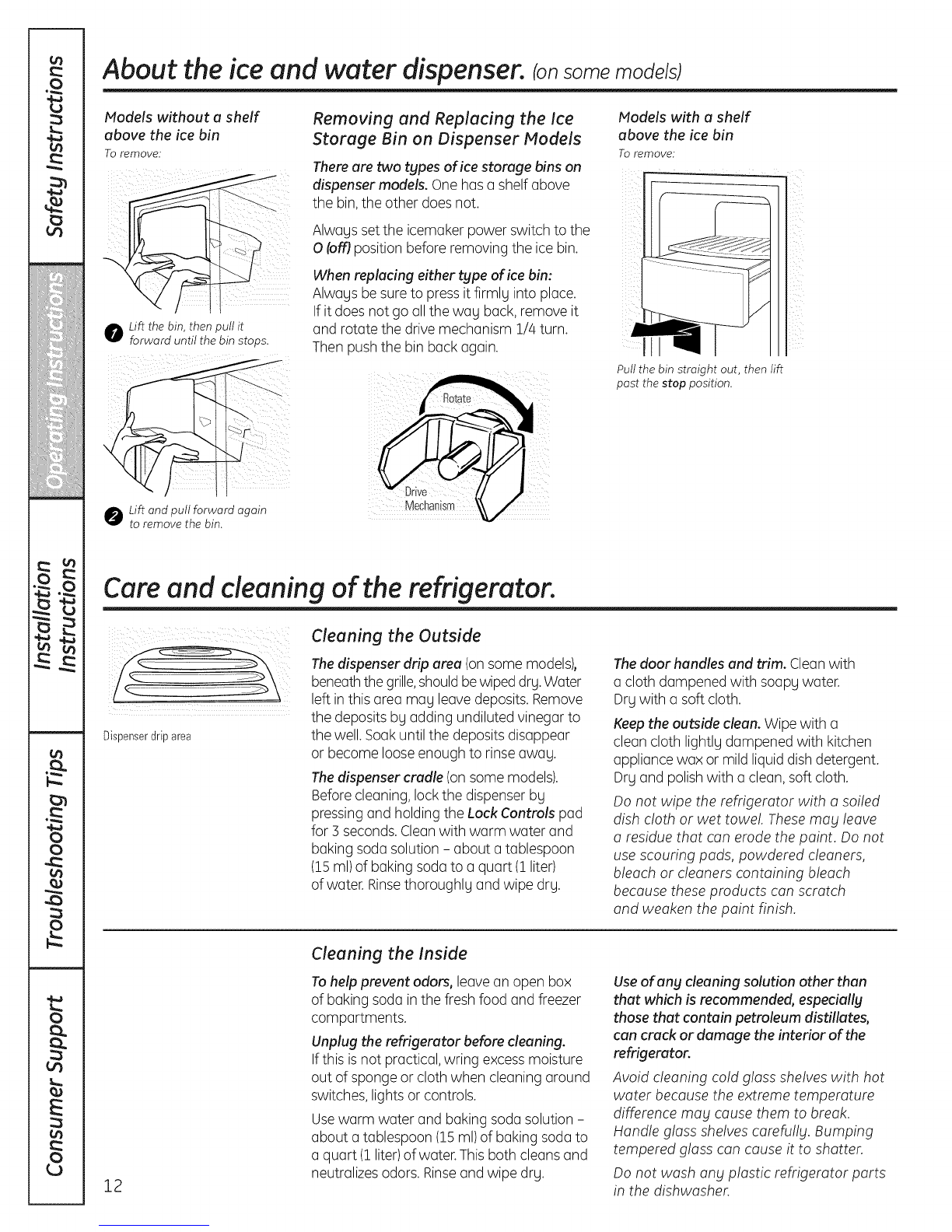

About the ice and water dispenser tonsome models)
Models without a shelf
above the ice bin
Toremove:
oLift the bin, then pull it
forward until the bin stops.
oift and pull forward again
to remove the bin.
Removing and Replacing the Ice Models with a shelf
Storage Bin on Dispenser Models above the ice bin
To remove:
There are two types of ice storage bins on
dispenser models. One has a shelf above
the bin,the other doesnot.
Always set the icemaker power switch to the
0 (off}position before removing the ice bin.
When replacing either type of ice bin:
Always be sureto pressit firmly into place.
If it does not go all the way back,remove it
and rotate the drive mechanism 1//4turn.
Then pushthe bin back again.
Pull the bin straight out, then lift
past the stop position.
Mechanism'
iii
Care and cleaning of the refrigerator.
Dispenserdrip area
Cleaning the Outside
The dispenser drip area (onsome models),
beneaththe grille,shouldbe wipeddry.Water
left inthis area may leave deposits.Remove
the deposits by adding undiluted vinegar to
the well.Soakuntil the depositsdisappear
or become looseenough to rinseaway.
Thedispenser cradle (onsome models).
Beforecleaning, lockthe dispenser by
pressingand holding the Lock Controls pad
for 3 seconds.Cleanwith warm water and
baking soda solution - about a tablespoon
(15ml)of baking soda to a quart (1liter)
of water.Rinsethoroughly and wipe dry.
The door handles and trim. Clean with
a cloth dampened with soapy water.
Dry with a soft cloth.
Keep the outside clean. Wipe with a
clean cloth lightly dampened with kitchen
appliancewax or mild liquiddish detergent.
Dry and polishwith a clean,soft cloth.
Do not wipe the refrigerator with a soiled
dish cloth or wet towe!. These may leave
aresidue that can erode the point. Do not
use scouring pods, powdered cleaners,
bleach or cleaners containing bleach
because these products can scratch
and weaken the point finish.
12
Cleaning the Inside
Tohelp prevent odors, leavean open box
of baking soda in the fresh food and freezer
compartments.
Unplug the refrigerator before cleaning.
If this is not practical, wring excessmoisture
out of sponge or cloth when cleaning around
switches, lights or controls.
Usewarm water and baking soda solution -
about a tablespoon (15ml)of baking sodato
a quart (1 liter)of water.Thisboth cleans and
neutralizesodors. Rinseand wipe dry.
Use of any cleaning solution other then
that which is recommended, especially
those that contain petroleum distillates,
can crack or damage the interior of the
refrigerator.
Avoid cleaning cold glass shelves with hot
water because the extreme temperature
difference may cause them to break.
Handle gloss shelves carefu!lg. Bumping
tempered glass can cause it to shatter.
Do not wash any plastic refrigerator parts
in the dishwasher.

Care and cleaning of the refrigerator, ge.com
Behind the Refrigerator
Becareful when moving the refrigerator
awag from the wall. Alltgpes of floor
coveringscan be damaged, particularlg
cushioned coverings and those with
embossedsurfaces.
Pullthe refrigerator straight out and
return itto position bg pushing it straight
in.Moving the refrigerator in a side direction
mag result in damage to the floor covering
or refrigerator.
When pushing the refrigerator back, make
sure you don't rol! over the power cord or
icemaker supplg line (on some models).
Preparing for Vacation
Forlong vacations or absences,remove
food and unplug the refrigerator.Cleanthe
interior with a baking soda solution of one
tablespoon (15ml)of baking soda to one
quart (! liter)of water. Leavethe doors open.
Setthe icemaker power switch to the
0 (ofgposition and shut offthe water
supplgto the refrigerator.
If the temperature can drop below freezing,
have a qualified servicerdrain the water
supplg sgstem (on some models)to prevent
serious propertg damage due to flooding.
Preparing to Move
Secureall looseitems such as shelvesand
drawers bg taping them securelg in place
to prevent damage.
When using a hand truck to move the
refrigerator,do not rest the front or back
ofthe refrigerator against the hand truck.
This could damage the refrigerator.Handle
onlg from the sidesof the refrigerator.
Be sure the refrigerator stags in an upright
position during moving.
13

.o
iiii]iiiiliiiqiiiiiii!ill
!iiii]iiiiiii!!iiiiiiiiijiiiiiii
iliiiiiiii_i_i}i/iiiiiii]]iii
iiiiiiiiiiiiiii_ii_jiiiii_il
,iiiiiiiiiiiiiiii_'iiiiiiiiiiiiii
_ L
v _
_ o_
0
0
0
E
0
Replacing the light bulbs.
NOTE: Turning the refrigerator off via the controls on the touch panel does not shut off electrical power to
the refrigerator.
Yourlightshieldwill looklike one
ofthe following:
OR
Refrigerator Compartment--Upper Light
0 Unplug the refrigerator.
0 The bulbs are located at the top of
the compartment, insidethe light shield.
Onsome models,a screwat the front of
the light shieldwill have to be removed.
Onother models,the screw is located
in the pocket located at the back of
the shield.
@To remove the light shield,on some
models,pressin on the tabs on the sides
of the shieldand slideforward and out.
Onother models,just slidethe shield
forward and out.
After replacing the bulb with an appliance
bulb of the same or lower wattage,
replacethe light shieldand screw.When
replacing the light shield, make surethat
the tabs at the back of the shieldfit into
the slotsat the back ofthe light shield
housing.
Plugthe refrigerator back in.
Refrigerator Compartment--Lower Light
This light is located above the top drawer.
0 Unplug the refrigerator.
Liftthe light shield up and pull itout.
After replacing the bulb with an appliance
bulb of the same or lower wattage,
replacethe shield.
Plug the refrigerator back in.
Freezer Compartment
Unplugthe refrigerator.
Removethe shelfjust above the light
shield.(Theshelf will be easierto remove
if it isemptied first.) Removethe screw at
the top of the light shield.
0 To remove the light shield,press in on the
sides,and lift up and out.
O
0
Replace the bulb with an appliance
bulb of the same or lower wattage,
and reinstall the light shield. When
reinstalling the light shield, make sure
the top tabs snap securelg into place.
Replace the screw.
Reinstall the shelf and plug the
refrigerator back in.
Dispenser
Unplugthe refrigerator.
The bulb is located on the dispenser
under the control panel.Removethe light
bulb bg turning it counterclockwise.
@
O
Replace the bulb with a bulb
of the same size and wattage.
Plug the refrigerator back in.
14
Refrigerator Compartment Ion some models)
There isan LEDlighting display in the top
of the refrigerator compartment on some
models.If this assembly needsto be
replaced,call GEServiceat 1.800.452.2737
in the UnitedStatesor 1.800.561.3544
in Canada.

I stall ti
Istructi efrigerator
Models 22, 23, 25, 26 & 27
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com
In Canada, call 1.800.561.3344 or Visit our Website at: www.geappliances.ca
BEFORE YOU BEGIN
Read these instructions completelg
and carefullg.
•IMPORTANT -Savetheseinstructions
for local inspector's use.
• IMPORTANT - Observe all governing
codes and ordinances.
• Note to Installer- Be sure to leave these
instructions with the Consumer.
• Note to Consumer - Keep these instructions
for future reference.
• Skill level -Installationof this appliance requires
basic mechanical skills.
• Completion time - Refrigerator Installation
30 minutes
Water Line Installation
30 minutes
•Proper installation is the responsibilitg of
the installer.
•Product failure due to improper installation is not
covered under the Worrontg.
If the refrigerator has alreadg been installed,
remove the bose grille (see Step 2 in Moving
the Refrigerator), then skip to Step 5 in Installing
the Refrigerator.
PREPARATION
WATER SUPPLY TO THE ICEMAKER
If the refrigerator has on icemoker, it will hove
to be connected to o cold water line. AGE water
supplg kit (containing tubing, shutoff valve, fittings
and instructions) is available at extra cost from
gour dealer, bg visiting our Website at ge.com
(in Canada atwww.geappliances.ca) or from
Parts and Accessories, 800.626.2002 (in Canada
1.888.261.3055).
TOOLS YOU WILL NEED
3/8"and5/16"Socket 1/2" and7/16" Wrench
U
PlasticPuttyKnife
PhillipsHeadScrewdriver
15

Installation Instructions
MOVING THE REFRIGERATOR
m LOADING THE RERIGERATOR
ONTO A HAND TRUCK
Leave all tape and door pads on doors until
the refrigerator is in its final location.
To move the refrigerator, use a padded hand
truck. Center the refrigerator on the hand truck
and secure the strap around the refrigerator.
DO NOT OVERTIGHTEN THE STRAP.
IYI REMOVE THE BASE GRILLE
Remove the grille bg removing the two Phillips
head screws.
If the refrigerator must go through
ang entrance that is less than 38" wide,
the doors must be removed. Proceed to
Step 3.
DO NOT remove the handles.
If all entrances are more than 38" wide,
skip to Installing the Refrigerator.
[_] DISCONNECT THE WATER COUPLING
(on some models}
If the refrigerator has a water dispenser,
there is a water line from the cabinet into
the bottom hinge on the freezer door that
must be disconnected.
To disconnect, push in on the white collar
of the coupling and pull out the tubing.
White collar
Bottom
freezer
hinge
16

Installation Instructions
[_] DISCONNECT THE POWER COUPLING
(on some models)
If the refrigerator has a water dispenser,
there is a power line (harness) from the cabinet
into the bottom hinge on the freezer door that
must be disconnected.
To disconnect, pull apart at the coupling.
E] DISCONNECT THE ELECTRICAL
CONNECTORS (on some models)
If the refrigerator has a refreshment center,
there are electrical connectors (harnesses)
from the cabinet into the bottom hinge on the
refrigerator door that must be disconnected.
To disconnect, pull apart each connector.
Bottom
refrigerator
hinge
E] CLOSE THE FREEZER AND
REFRIGERATOR DOORS
171REMOVE THE FREEZER DOOR
[_j Remove the freezer door top hinge cover bg
either squeezing it and pulling it up or bg
prging it off with a plastic puttg knife.
[] Remove the two 5/16" hex head screws, then
lift the hinge straight up to free the hinge pin.
5/16"HexHead
[] Open the freezer door to 90 °
90°
17

Installation Instructions
MOVING THE REFRIGERATOR {CONT.)
[] REMOVE THE FREEZER DOOR {cont.)
r_ As one person slowlg lifts the freezer door up
and off the bottom hinge, the second person
should carefullg guide the water line and power
line (harness) through the bottom hinge.
r_ set the door on a non-scratching surface with
the inside up.
IYI REMOVE THE REFRIGERATOR DOOR
r_ Remove the refrigerator door top hinge cover
bg either squeezing it and pulling it up or bg
prging it off with a plastic puttg knife.
I_ REMOVE THE REFRIGERATOR DOOR
{cont.)
r_ Remove the two 5/16" hex head screws, then
lift the hinge straight up to free the hinge pin.
5/16" HexHead
r_ open the refrigerator door to 90 °
90°
18

Installation Instructions
[] REMOVE THE REFRIGERATOR DOOR
(cont.}
FD] Lift the refrigerator door up and off the bottom
hinge.
If the refrigerator has a refreshment center,
one person should slowlg lift the door up and
off the bottom hinge and the second person
should carefully guide the electrical lines
(harnesses) through the bottom hinge.
Refreshment Center Models only
r_ set the door on a non-scratching surface with
the inside up.
193REPLACING THE DOORS
To replace the doors, simplg reverse steps 3
through 8.
However, pleose note the following:
• When lowering the doors onto the bottom
hinges, make sure the second person
carefully guides the tube and harnesses
through the holes in the hinges.
• When connecting the water line, make sure
gou insert the tubing all the wag to the mark.
\Mark
• Do not pinch the tubing and harnesses when
placing the doors on the bottom hinges.
When connecting the power line and the
electrical lines (refreshment center models
onlg), be sure that the connectors are seated
together fullg.
19

Installation Instructions
INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
• Do not install the refrigerator where the
temperature will go below 60°F (16°C) because
it will not run often enough to maintain proper
temperatures.
• Do not install the refrigerator where the
temperature will go above 100°F (37°C) because
it will not perform properly.
• Install it on a floor strong enough to support
it fullg loaded.
CLEARANCES
Allow the following clearances for ease of
installation, proper air circulation and plumbing
and electrical connections:
Sides 1/8" (4 mm)
Top 1" (25 mm)
Back 1" (25 mm)
2O
