BURAN 1200
GPS locator - GSM audio bug - HQ voice recorder
This 3in1 device is used for long-term HD recording of sound in the room or vehicle, audio
surveillance with
the ability to call you when sound appears in the room or vehicle, and for GPS
locating.
Voice recorder module setup
Battery life in recording mode is 75 hours, and in sleep mode 1800 hours (2,5 months). It
is equipped with the latest POWER SAVE technology, which allows it to go into "sleep"
mode
while there are no conversations nearby and consume almost no battery.
Setting basic recording parameters using the built-in software:
Using the supplied USB cable, plug the device into a USB slot on any computer, the red light next to
the USB slot will turn on, and the batteries will begin to charge. Let the charging continue until the
red light starts blinking, indicating that the battery is full.
At the same time, the device will be recognized on the computer as an external drive marked
BURAN 500.
Open the folder, locate the setup.exe software, and open it:

C/ Duque de Sesto 13, 28009 Madrid
Email:[e-mail]
Teléfono: [phone]
2

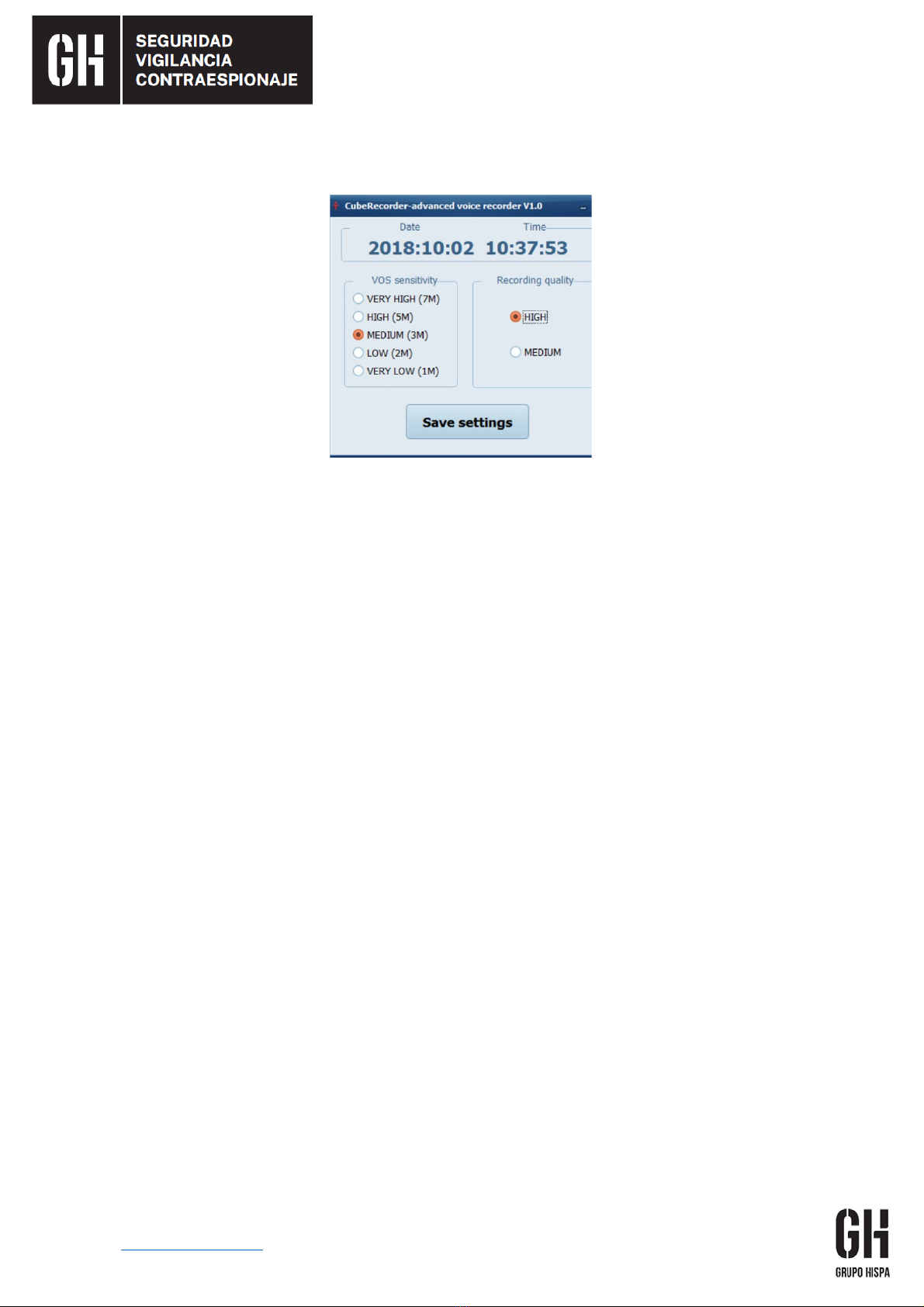

Here you can change the parameters of the voice activation sensitivity, recording quality and
synchronize the date and time on future recordings.
In the left column (VOS sensitivity), select the activation sensitivity to sound. You can
change
it in 5 steps from very high to very low. The higher the sensitivity, the quieter the
device will turn on, and vice versa. Indicatively, the data on the distance from the average
speech, at
which the device will turn on the recording, are given in brackets.
In the right column (recording quality), you can select the recording quality, it is
recommended to always be on HIGH.
Finally, if the date and time information (taken from your computer) is correct, press SAVE
SETTINGS and disconnect the device from the USB port.
The latter is very important, because the device will only remember the settings you entered
by disconnecting it from the computer. The red light will quick flash and go out , which is a
sign
that the device has memorized the settings, and is ready for operation.
Recording and playback:
1. If you want to record with sound activation, slide the switch to the VAS position, the
red light ( near USB) will turn on for 3-5 seconds, and soon after the light will turn off
and the
device will start recording. No lamp will light during recording. If the light

C/ Duque de Sesto 13, 28009 Madrid
Email:[e-mail]
Teléfono: [phone]
3
does not come on at all when turned on, the battery is empty or almost empty, if it
flashes and goes out, the
battery is 30-70% full.
2. Set the switch to the REC position for continuous recording and to the OFF position to
turn off
the unit.
3. Position it as close to the desired sound source as possible, and as far away from
possible
noise as possible.
4. After recording the desired events, turn it off with the switch to the OFF position.
If the
battery is discharged in the meantime, the device saves the recording and
shuts down.
5. To listen to the recording, plug the device into a USB port on any computer.
6. Go to My Computer, find the device as "BURAN 500", open it, you will find all the
recordings
in the VOICE folder.
7. For an easier and more detailed view, turn on the detailed view option, you can
ignore
recordings that have less than 100 kb, these are probably isolated sounds
that briefly turned on the recording. The device records the time and date on each
recording, making it much
easier for you to locate and select important recordings.
8. Click on the recording to listen to it and playback will start
Before you start a new recording, delete or save all the recordings from the recorder to your
computer.
GSM module setup
The device is intended for alarming and listening to conversations from a room or car over
very
long distances. The device works on the principle of the GSM network, and for normal
operation it needs to provide a SIM card. The place where the device will work must be
covered by a GSM signal (check with a regular mobile phone). ). The device has batteries
that
allow it to operate for about 7 days (depending on how much it is used per day, and
the
strength of the GSM signal where it is located), and is equipped with a charger for the
same
Before inserting a SIM card into the device, you must deactivate the PIN number of
that card on the other mobile phone, depending on the type of mobile phone, find the PIN
DISABLE option in the menu or something similar - see the instructions for your mobile
phone.

C/ Duque de Sesto 13, 28009 Madrid
Email:[e-mail]
Teléfono: [phone]
4
CHARGING AND SWITCHING ON-OFF INSTRUCTIONS:
1. Connect the device with the supplied coded cable to any USB charger and let the
device
charge until the red light on the USB slot stops blinking. (approx. 3-4 hours).
2. Insert a NANO SIM card with a deactivated PIN into the SIM card slot. Pay attention to
the
direction of insertion of the card. (LOOK AT THE PICTURE ABOVE, contacts facing
upwards,
notched tip first inside). The SIM card must be activated, it must be able to
make and receive
calls.
3. Switch on the device by pressing the GSM ON OFF button (hold for approx. 3 seconds
until the red light next to the button lights up)
4. Switching off is done by long pressing the GSM ON OFF button (hold for about 10
seconds
until the light next to the button stops blinking and starts to light up constantly,
after releasing the button, the lamp will turn off).
INSTRUCTIONS FOR USING THE DEVICE:
1. The device has the security function of an administrator number. This means that if
anyone
other than the administrator dials this number, they will get busy line signal,
they will not be
able to access the device.
To activate your mobile number as an administrator number, send the following SMS
from your
mobile phone to the SIM card number on your device:
000#[phone]#
where instead of 385951231234 you will enter your mobile number in the international
format exactly as it is written in the example.
Wait for an SMS response from the device: Administrator is saved.
You can now call the device's SIM card number from your admin number, and you will
hear
what's happening near the device.
When placing up your device, try to distance it as far as possible from the source of
any noise
and place it as close as possible to where the conversation you want to hear
will be conducted.
2. The device has the ability to save battery in low power mode, be sure to switch on this
mode every time you turn on the device. In low power mode, the device suspends all
unnecessary processes, switches off the LED and goes into minimum power

C/ Duque de Sesto 13, 28009 Madrid
Email:[e-mail]
Teléfono: [phone]
5
consumption mode. Only by activating this function battery can last for 7 days
To turn on low power mode:
Link#0
ACTIVATING ALARM FEATURES: This model has the ability to alert you if it senses
sound or
vibration in a controlled area. Activation and deactivation of this function is done
by sending SMS messages of the following content.
* voice activation function * (the device will call you when it receives sound in
monitoring area)
Activation: 333, Deactivation: 555
* vibration alarm function * ( the device will call you when notice
vibration) Activation: 777, Deactivation: 555
GPS LOCATION OF THE DEVICE:
The device has the ability to locate via GPS satellites and using LBS base stations. If it has
visibility to GPS satellites, you will get the correct GPS location, and if the vehicle is in a
garage
or GPS inaccessible location, you will get an approximate LBS location through the
GSM base
stations.
To ensure the best possible reception of GPS satellites, turn the bottom of the device
where
the GPS antenna is ,up or leave it somehow free from metal obstacles. On the
bottom is
another microphone that will allow the device to have good sound reception.
Location Request: 999
The device will return SMS with a link to google maps with exact (GPS) or approximate (LBS)
location. In addition to the location, you will also get information about the battery status
DEEP SLEEP MODE:
Deep sleep mode is a way to dramatically extend device battery life when you don't need it.
In the SMS command you will define period of time you want the device to turn off, and
how long afterwards to turn it on again.
While the device is off, it consumes no battery at all, so theoretically in this mode the
battery
can last for months.

C/ Duque de Sesto 13, 28009 Madrid
Email:[e-mail]
Teléfono: [phone]
6
While off, the device cannot receive any new command from you, nor can it be contacted
in any other way, it is switched off until the sleep time you have set has expired, or until
you physically switch it on with the ON / OFF key
This command is repetitive, the device will be ON / OFF at this rate until you cancel the
function
Activation deep sleep mode :
pwonoff#0,0,10#0,0,2 ( days, hours, minutes)
in command above, device will switch itself OFF within 10 minutes, and will switch ON
again 2 minutes later.
In response to this command, device will write you the exact shutdown time and the exact
switch-on time, please check it, and cancel function if anything is misunderstanded.
You can only cancel the deep sleep command while the device is ON by sending:
pwonoff#0,0,0#0,0,0
BURAN 1200 TECHNICAL SPECIFICATIONS :
Battery: LiIon 1200mAh
Voice activation with PC software for select activation voice level in 5 steps; ALC
preamplifier for superior sound;
Each recording is in a separate file;
Dimensions 50 * 35* 25mm;
RECORDING MODULE:
Current consumption : 6 mA in recording , 0,3mA in standby
Battery
life in Sleep mode 4000 hours( when GSM is OFF); Battery life in
recording 150 hours ( when GSM is OFF);
Memory integrated 8Gb – 150 hours of recording in high quality rec mode MP3
recording format (48kHz sampling freq.);
GSM MODULE:
Battery life in GSM transmission mode: 10-15 hours ( recording is OFF) Battery life
in GSM stdby mode 400 hours ( recording is OFF);
Battery life in GSM deep sleep mode 6 months ( recording is OFF);
