6ETXDR
Socket 370 Dual Processors Motherboard
USER'S MANUAL
Socket 370 Dual Processors Motherboard
REV. 1.0 First Edition
12ME-6ETXDR-1001

How This Manual Is Organized
This manual is divided into the following sections:
1) Revision History Manual revision information
2) Item Checklist Product item list
3) Features Product information & specification
4) Hardware Setup Instructions on setting up the motherboard
5) Performance & Block Diagram Product performance & block diagram
6) Advanced Networking Services
For Windows NT*4 and Windows 2000
(Teaming)
7) BIOS Setup Instructions on setting up the BIOS
software
8) Appendix General reference

Table Of Content
Revision History P.1
Item Checklist P.2
Summary of Features P.3
6ETXDR Motherboard Layout P.5
Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition
P.6
Performance List P.27
Block Diagram P.28
Advanced Networking Services for Windows NT* 4 and Windows 2000 (Teaming) P.29
Memory Installation P.35
DIMM QVL List P.35
Page Index for BIOS Setup P.37
Appendix P.63

6ETXDR Motherboard
1
Revision History
Revision Revision Note Date
1.0 Initial release of the 6ETXDR motherboard user’s manual. Aug. 2001
The author assumes no responsibility for any errors or omissions that may appear in this
document nor does the author make a commitment to update the information contained herein.
Third-party brands and names are the property of their respective owners.
Aug. 10, 2001 Taipei, Taiwan, R.O.C

Item Checklist
2
Item Checklist
þThe 6ETXDR motherboard
þCable for SCSI U160 / ATA33 / Floppy device
þDiskettes or CD (Driver CD) for motherboard driver & utility
þ6ETXDR user’s manual
¨Internal COM B Cable (Optional)
¨Internal Chassis Cable (Optional)

6ETXDR Motherboard
3
Summary Of Features
Form Factor Ÿ30.4 cm x 24.3 cm ATX size form factor, 6 layers PCB.
Ÿ250 watt or higher power supply required
CPU ŸDual ZIF PGA370 Socket
Supports all new PentiumIII processors (FC-PGA & FC-PGA2
package) up to 1.26GHz.
ŸTwo onboard VRMs (VRM 8.5)
Ÿ100/133 MHz Front Side Bus support
Chipset ŸServerWorks ServerSetTMIII LE-T Chipset
ŸIntegrated I/O APIC
ŸFull peer-to-peer support
Memory ŸFour 25°angled 168-pin DIMM sockets
ŸSupport only 3.3V PC-100/PC133 registered 72 bit
ECC type SDRAM DIMM.
ŸMaximum up to 4 GB.
I/O Controller ŸNS PC97317VUL Super I/O Chip
Slots ŸTwo PCI slotssupports 33MHz & PCI 2.2 compliant
ŸTwo PCI-64bit/66Mhz slots & PCI 2.2 compliant
ŸPCI Raiser Card (Optional)
On-Board IDE ŸSupport for UDMA33 IDE and ATAPI compliant
devices.
ŸSupports for dual channel master mode and up to 4
enhance IDE devices.
On-Board SCSI ŸIntegrated LSI SYM53C1010-66 Chipset with
64b/66MHz
ŸSupports dual channel Ultra160 SCSI
Ÿ160MBps throughput and up to 15 devices per channel
ŸChannel A and B: 68-pin connectors
On-Board
Peripherals Ÿ1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88M bytes
Ÿ1 parallel ports supports Normal/EPP/ECP mode
Ÿ2 9-pin UART serial ports (COM 1 & COM 2)
(one serial port via cable-optional)
Ÿ4 USB ports
On-Board VGA ŸOnboard Ati Rage XL PCI Accelerator
ŸStandard 15-pin analog VGA port
Ÿ8MB SDRAM frame buffer To be continued…

Summary of Features
4
On-Board LAN ŸIntegrated two Intel 82559 LAN controllers
Ÿ10/100Mbps data transfer rate per controller
Ÿ3 pin Wake on LAN (S1 and S5 state) connector
ŸAdapter Fault Tolerance (AFT) and Adaptive Load
Balancing (ALB)
Hardware Monitor ŸCPU 1/ CPU 2 fan revolution detect
ŸCPU 1/ CPU 2 temperature detect
ŸSystem voltage detect
ŸCPU overheat shutdown detect
Ÿ3pin fan speed monitoring headers
Ÿ2pin chassis intrusion header
ŸCPU, Voltages and system temperature monitoring
ŸBuilt-in Wake on Modem header
PS/2 Connector ŸPS/2Keyboard interface and PS/2Mouse interface
BIOS ŸLicensed AMI BIOS, 4M bits flash ROM
ŸAuto configure IDE HDD type
ŸUser setting for hardware monitoring
ŸDMI 2.0 compliant
ŸMultiple boot (Optional)
Additional Features ŸSupport Internal / External Modem Ring On
ŸPoly fuse for PS/2and USB devices over-current
protection

6ETXDR Motherboard
5

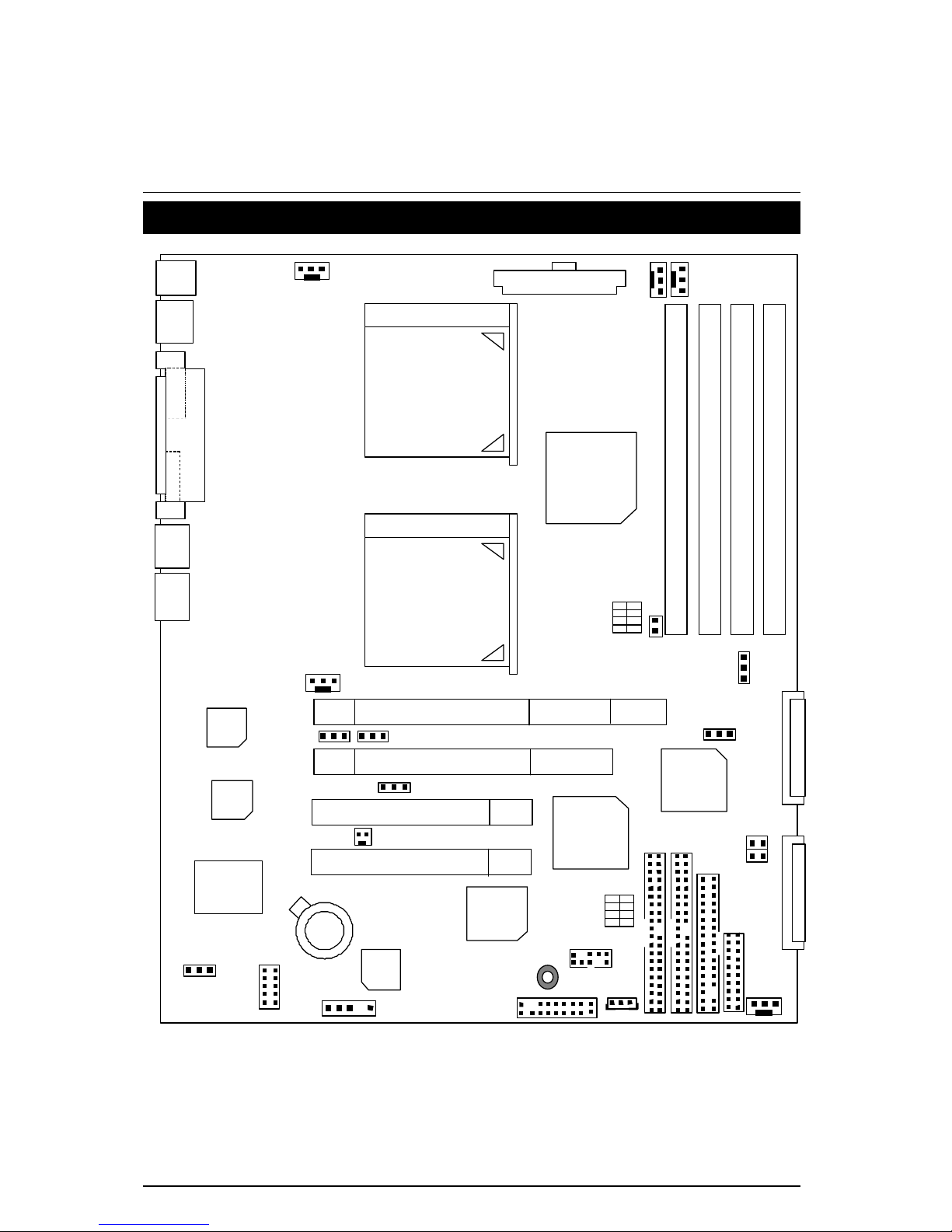

6ETXDR Motherboard Layout
COM2 BRIGHT
VGA COM 1
LPT
PS/2
6ETXDR
BAT1
J6
J1
USB
ATX Power
Floppy
IDE1 IDE2
DIMM3 DIMM2 DIMM4 DIMM1
USB2
J4
J5
J2
J3
JP4
J19
ATI
Rage
XL
SuperI/O
LAN2
Conn. LAN1
Conn.
SW1
BZ1
J7
PGA 370
CPU 1
PGA 370
CPU 2
RCC-NB6635
RCC-IB6566
PCI1
PCI2
64 PCI 1
64 PCI 2 LSI
LSA0723
J22
JP11
JP10
JP2
JP1
JP3
JP6
SW2
SCSI 1
SCSI 2
82559
82559
JP12
JP9
J23

6ETXDR Motherboard Layout
6
$
Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition Page
CPU Speed Setup P.7
Connectors P.11
ATX Power P.11
COM 1 / VGA / LPT Port P.11
COM 2 Port P.12
Floppy Port P.12
IDE 1(Primary) / IDE 2(Secondary) Port P.13
J1 (CPU1 Fan) P.13
J2 (Panel Fan) P.14
J4 (Wake On LAN) P.14
J5 (Ring Power On) P.15
J6 (CPU2 Fan) P.15
J7 (Power Fan1) P.16
J19 (System Interface Connector) P.16
J22 (Power Fan2) P.17
LAN connector P.17
PS/2 Keyboard & PS/2 Mouse Connector P.18
SCSI1 (Primary)/SCSI2 (Secondary) P.18
USB1( USB 1 Connector) P.19
USB2(Front USB Connector) P.19
J23 (SMBUS Connector) P.20
Panel and Jumper Definition P.21
J3 (2x11 Pins Jumper) P.21
JP1 (Firmware White Protect) P.22
JP2 (VGA Enable Jumper) P.22
JP3 (SCSI Enable Jumper) P.23
JP4 (SCSI TERM A) P.23
JP6 (SCSI TERM B) P.24
JP10 (LAN1 Enable Selection) P.24
JP11 (LAN2 Enable Selection) P.25
JP12 (Case Open) P.25
SW2 (Pole1_On Password Enable / Pole4_On CMOS Clear) P.26
BAT1 (Battery) P.26

6ETXDR Motherboard
7
CPU Speed Setup

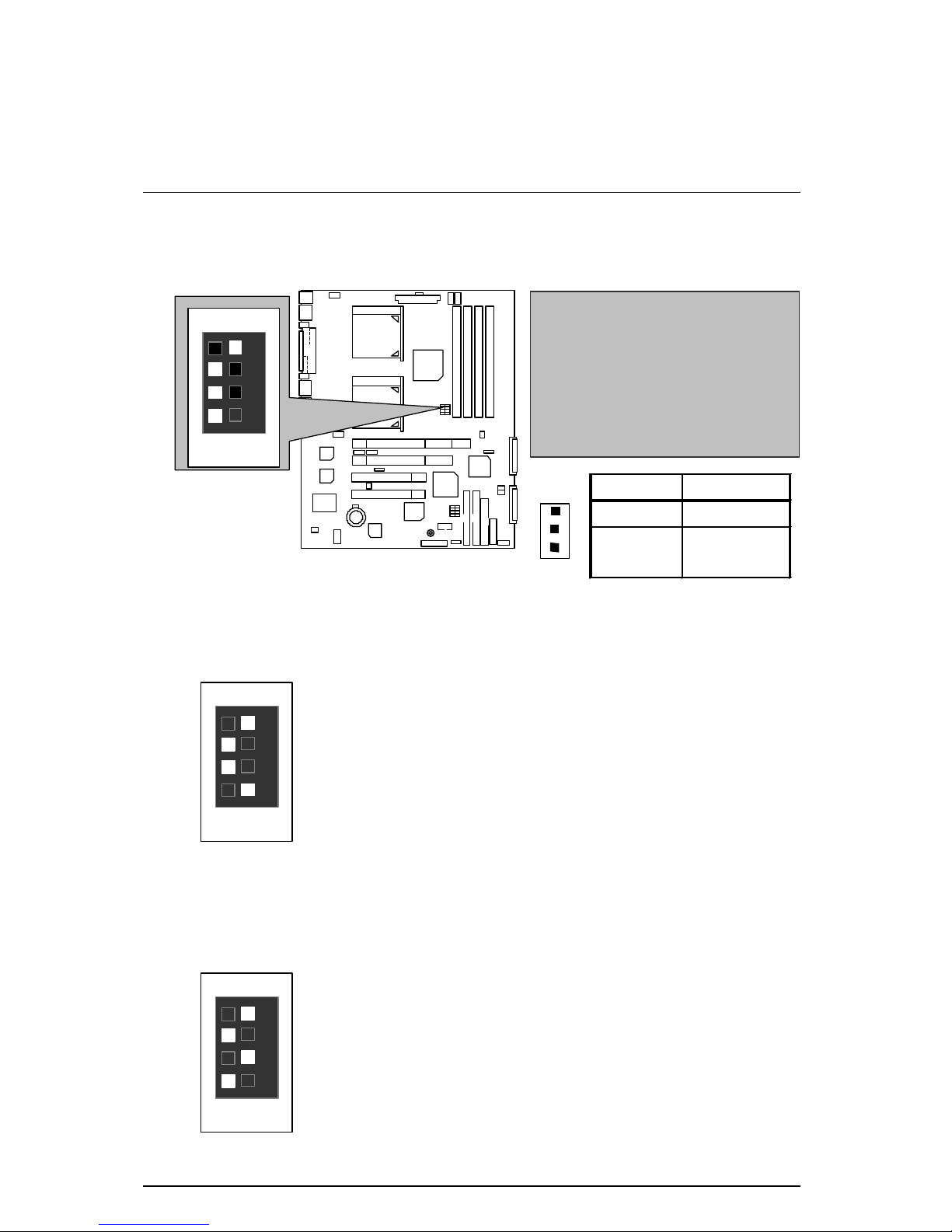

The system bus speed is depended on CPU. (Supported 100,133MHz). The user can change
the DIP switch(SW1) and Jumper (JP9) selection to set up the CPU speed for 600MHz–1GHz
processor.
M The CPU speed must match with the frequency ratio. It will cause system hanging up if
the frequency ratio is higher than that of CPU.
SW1: DIP SWITCHFREQ. RATIO 1234
X3 OXOO
X3.5 XXOO
X4 OOXO
X4.5 XOXO
X5 OXXO
X5.5 XXXO
X6 OOOX
X6.5 XOOX
X7 OXOX
X7.5 XXOX
X8 OOXX
X8.5 OXOO
X9 XXOO
X9.5 XOOO
X10 XOXX
X10.5 OOXO
X11 OXXX
X11.5 XOXO
X12 OXXO
X13 XXXO
X14 OOOX
X15 XOOX
X16 OXOX
M For double CPU use, the same CPU must be used in CPU socket 1 and socket 2.
(The same stepping, FSB, ratio)
M Intel Processor all have locked Frequency Multiple, so you can not change the CPU
Frequency Multiple.

CPU Speed Setup
8
1. Pentium!!! 600/100MHz FSB
Pentium!!! 800/133MHz FSB
SW2
ON
SW1
1 2 3 4
You can change the DIP switch
(SW1) selection to set up the CPU
Speed.
The CPU frequency RATIO is 6.
The FSB is 100MHz, than CPU
speed is 600MHz.
The FSB is 133MHz, than CPU
Speed is 800MHz.
JP9
1-2close
100 MHz
2-3close
Auto
(Default)
1
JP9
2. Pentium!!! 650/100MHz FSB
Pentium!!! 866/133MHz FSB
SW2
ON
SW1
1 2 3 4
3. Pentium!!! 700/100MHz FSB
Pentium!!! 933/133MHz FSB
SW2
ON
SW1
1 2 3 4

6ETXDR Motherboard
9
4. Pentium!!! 750/100MHz FSB
Pentium!!! 1GHz/133MHz FSB
SW2
ON
SW1
1 2 3 4
5. Pentium!!! 800/100MHz FSB
Pentium!!! 1.06GHz/133MHz FSB
SW2
ON
SW1
1 2 3 4
6. Pentium!!! 850/100MHz FSB
Pentium!!! 1.13GHz/133MHz FSB
SW2
ON
SW1
1 2 3 4

CPU Speed Setup
10
7. Pentium!!! 1.2GHz/133MHz FSB
SW2
ON
SW1
1 2 3 4
8. Pentium!!! 1.26GHz/133MHz FSB
SW2
ON
SW1
1 2 3 4
9. Pentium!!! 533/133MHz FSB
SW2
ON
SW1
1 2 3 4
10. Pentium!!! 600/133MHz FSB
SW2
ON
SW1
1 2 3 4

6ETXDR Motherboard
11
Connectors
ATX Power
Pin No. Definition
3,5,7,13,
15-17 GND
1,2,11 3.3V
4,6,19,20 VCC
10 +12V
12 -12V
18 -5V
8Power Good
95V SB stand by+5V
14 PS-ON(Soft On/Off)
20
10
11
1
Please note:
AC power cord should only be connected to your power supply unit after
ATX power cable and other related devices are firmly connected to the
mainboard.
COM 1 / VGA / LPT Port
COM 1
LPT PORT
VGA
Please note:
This mainboard supports 1 standard COM port ,1 VGA port and 1 LPT
port. Device like printer can be connected to LPT port ; mouse and
modem etc can be connected to COM ports.

Connectors
12
COM 2Port
COM 2
FDD 1 : Floppy Port
Red Line
FDD1

6ETXDR Motherboard
13
IDE1 (Primary), IDE2 (Secondary) Port
IDE1 IDE2
Red Line
J1 : CPU1 Fan
Pin No. Definition
1Control
2+12V
3SENSE
1
