Introduction
1-1
1. INTRODUCTION
1.1. PREFACE
Welcome to use the 6WMM7/6WMM7-1 motherboard. It is a CeleronTM
Socket 370 Processor based PC /AT compatible system with PCI / ISA Bus,
and has been designed to be the fastest PC / AT system. There are some
new features allow you to operate the system with just the performance you
want.
This manual also explains how to install the motherboard for operation, and
how to set up your CMOS CONFIGURATION with BIOS SETUP program.
1.2. KEY FEATURES
qIntel CeleronTM Socket 370 Processor based PC / AT compatible main
board.
qSocket 370 Pins ZIF white socket on board.
qBuilt-in AC 97-Link software audio and YAMAHA 744 Hardware audio
(Optional).
qSupports CeleronTM Socket 370 processor running at 200-533 MHz.
qINTEL FW82810 chipset, Supports SDRAM / Ultra DMA66(optional) /33
IDE / Keyboard and PS/2 Mouse Power On / ACPI features.
qSupports 2xDIMMs using 3.3V SDRAM DIMM module.
qSupports 4MB SDRAM Display cache.(Optional)
qSupports external Modem Ring-On on COMA & COMB and internal
Modem Ring-On.
qSupports PC100 SDRAM 16MB~512MB memory on board.
qSupports Wake-up on LAN.
qSupports AMR Function.
qSupports feature connector for TV-Out or DFP (Digital Flat Panel).
q3xPCI Bus slots, 1xISA Bus slots(Optional).
qSupports 2 channels Ultra DMA66(optional)/33 IDE ports for 4 IDE
Devices.
qSupports 1x Line in, 1x Line Out, 1x Mic in, 1x CD Line in,1x GAME Port
1 x TEL, 1x SPDIF OUT(Optional).
qSupports 2xCOM (16550), 1xLPT (EPP / ECP/ SPP), 1x1.44MB Floppy
port.
qSupports Wake-up on LAN.
qSupports Dual BIOS Function.
qLicensed AWARD BIOS, 4M bits FLASH RAM.

6WMM7/6WMM7-1
1-2
q24.4 cm x 24.2 cm Micro ATX SIZE form factor, 4 layers PCB.
1.3. PERFORMANCE LIST
The following performance data list is the testing results of some popular
benchmark testing programs.
These data are just referred by users, and there is no responsibility for
different testing data values gotten by users. (The different Hardware &
Software configuration will result in different benchmark testing results.)
•CPU IntelCeleronTM 466MHz Socket 370 processor
•DRAM (128x 2) MB SDRAM (WINBOND 852WB
W986408BH-8H)
•CACHE SIZE 128 KB included in CPU
•DISPLAY Onboard Intel Corporation 810 Graphics Controller
Hub) (4MB SDRAM)
•STORAGE Onboard IDE (IBM DTTA-371010)
•O.S. Windows NT™4.0 SPK4
•DRIVER Display Driver at 1024 x 768 x 64k colors x 75Hz.
Intel Bus Master IDE Driver 2.05.1 Alpha Release.
Processor IntelCeleronTM (Socket 370)
466MHz (66x7)
Winbench99
CPU mark32 834
FPU Winmark 2500
Business Disk 4750
Hi-End Disk 10500
Business Graphics 163
Hi-End Graphics 323
Winstone99Business 29

Introduction
1-3
3.3V SDRAM
DIMM Sockets
Floppy Port
Hi-End 28.5
1.4. BLOCK DIAGRAM
33 MHz
14.318MHz
33MHz
33MHz
66 / 100 MHz
PCI Bus
ISA Bus
LPT Port
Keyboard
COM Ports
PS/2 Mouse
USB Bus
USB Ports
14.318MHz
48MHz
14.318MHz
I/O
CHIPSET
Winbond
W83627
Host Bus
INTEL
FW82810
(GMCH)
INTEL
FW82801
ICH/ICH0
100MHz
PGA 370
DRAM Bus
IDE Bus
MIC
L-IN
L-OUT
AC97
CODEC
ICS 9248-73
Ultra
DMA66/33
IDE Ports
33MHz
48 MHz
LPC Bus
AMR
Slot
AC’97-Link
PCI to ISA
Bridge
Winbond
w83628
Display cache
Memory 4MB
YAMAHA
YMF744
GAME Port

6WMM7/6WMM7-1
1-4
1.5. INTRODUCE THE INTEL

CeleronTM Socket 370 Processor
Figure 1: INTELCeleronTM Socket370 Processor
1.6 INTRODUCE AMR
The Audio Modem Riser (AMR) is a new port that supports both audio and
modem. The main purpose of the AMR port is to provide lower cost and
higher levels of integration at all levels of the PC platform.
The backbone of the AMR interface is on AC’97 compliant AC-Link with
support for codes. Motherboard support for an AMR interface are not only
capable of achieving the lowest possible cost for basic PC audio and
modem, but have also introduced increased motherboard flexibility enabling
robust, cost effective scalability.
The AMR is done through software and controlled by the motherboard’s I/O
Controller Hub (ICH). There are two types of AMR, one defined as primary
and another defined as secondary. If the motherboard with onboard sound
YAMAHA 744, the AMR must be used primary.

Specification
2-1
2. SPECIFICATION
2.1. HARDWARE
•CPU −CeleronTM Socket 370 processor 200–533 MHz.
−66/100MHz Socket 370 on board.
•PROTECTION −Speaker Alarm when detect "CPU FAN Failure" or
“CPU Overheat”.
−Automatically slow down CPU speed when "CPU
Overheat".
−H/W monitor power status (±5V, ±12V,
VGTL,5VSB, CPU voltage & CMOS battery
voltage).(Optional)
•SPEED −66/100 MHz system speed.
−33 MHz PCI-Bus speed.
−8 MHz AT bus speed.
•DRAM MEMORY −2 banks 168 pins DIMM module sockets on board.
−Use 16 / 32 / 64 / 128 / 256MB DIMM module
DRAM.
−Supports PC-100 SDRAM 16MB~512MB.
•CACHE MEMORY −32 KB 1st cache memory included in CPU.
−128KB L2 cache memory included in CPU.
−Supports DIB speed mode for L2 Cache.
•I/O BUS SLOTS −3 33MHz Master / Slave PCI-BUS.
−1 8MHz 16 bits ISA BUS (Optional).
•IDE PORTS −2 Ultra DMA66/33 Bus Master IDE channels on
board.(Using IRQ14,15)
−Supports Mode 3,4 IDE & ATAPI CD –ROM.

6WMM7/6WMM7-1
2-2
•I/O PORTS −Supports 2 16550 COM ports.
−Supports 1 EPP/ECP LPT port.
−Supports 1 1.44/2.88 MB Floppy port.
−Supports 2 USB ports.
−Supports PS/2 Mouse & Keyboard.
•Audio Ports −1x Line in
−1x Line out
−1x Mic in
−1x Game Port
−1x CD Line in
−1x TEL (Optional)
−1x SPDIF OUT (Optional)
•GREEN FUNCTION −Suspend mode support.
−Green switch & ACPI LED support.
−IDE & Display power down support.
−Monitors all IRQ / DMA / Display / I/O events.
•BIOS −Support Dual BIOS (Optional).
−Supports Plug & Play, DMI Function.
•DIMENSION −Micro ATX Form Factor, 4 layers PCB.
•Display Cache −4MB SDRAM (Optional)
2.2. SOFTWARE
•DRIVER −IUCD (Bus Master + Sound Driver + LDCM +
Utility)
−INTEL 82810 Driver.
•BIOS −Licensed AWARD BIOS.
−AT CMOS Setup, BIOS / Chipset Setup, Green
Setup, Hard Disk Utility included.
•O.S. −Operation with MS-DOS, Windows95,
Windows98, WINDOWSNT, OS/2, NOVELL
and SCO UNIX.
2.3. ENVIRONMENT
•Ambient Temp. −0°C to +50°C (Operating).
•Relative Hum. −0 to +85% (Operating).
•Altitude −0 to 10,000 feet (Operating).
•Vibration −0 to 1,000 Hz.

Introduction
1-3
•Electricity −4.75 V to 5.25 V. (Max. 20A current at 5V.)

Hardware Installation
3-1
3. HARDWARE INSTALLATION
3.1. UNPACKING
The main board package should contain the following:
•The 6WMM7 / 6WMM7-1 main board.
•USER'S MANUAL for main board.
•Cable set for IDE, Floppy devices, [COMB Port Cable (Optional)].
•CD for main board Utility. [IUCD (Bus Master + Sound Driver + LDCM +
Utility), INTEL 82810 Driver.]
The main board contains sensitive electric components, which can be easily
damaged by static electricity, so the main board should be left in its original
packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat.
The operator should be wearing an anti static wristband, grounded at the
same point as the anti-static mat.
Inspect the main board carton for obvious damage. Shipping and handling
may cause damage to your board. Be sure there are no shipping and
handling damages on the board before proceeding.
After opening the main board carton, extract the system board and place it
only on a grounded anti-static surface component side up. Again inspect the
board for damage. Press down on all of the socket IC's to make sure that
they are properly seated. Do this only on with the board placed on a firm flat
surface.
M DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED.

6WMM7/6WMM7-1
3-2

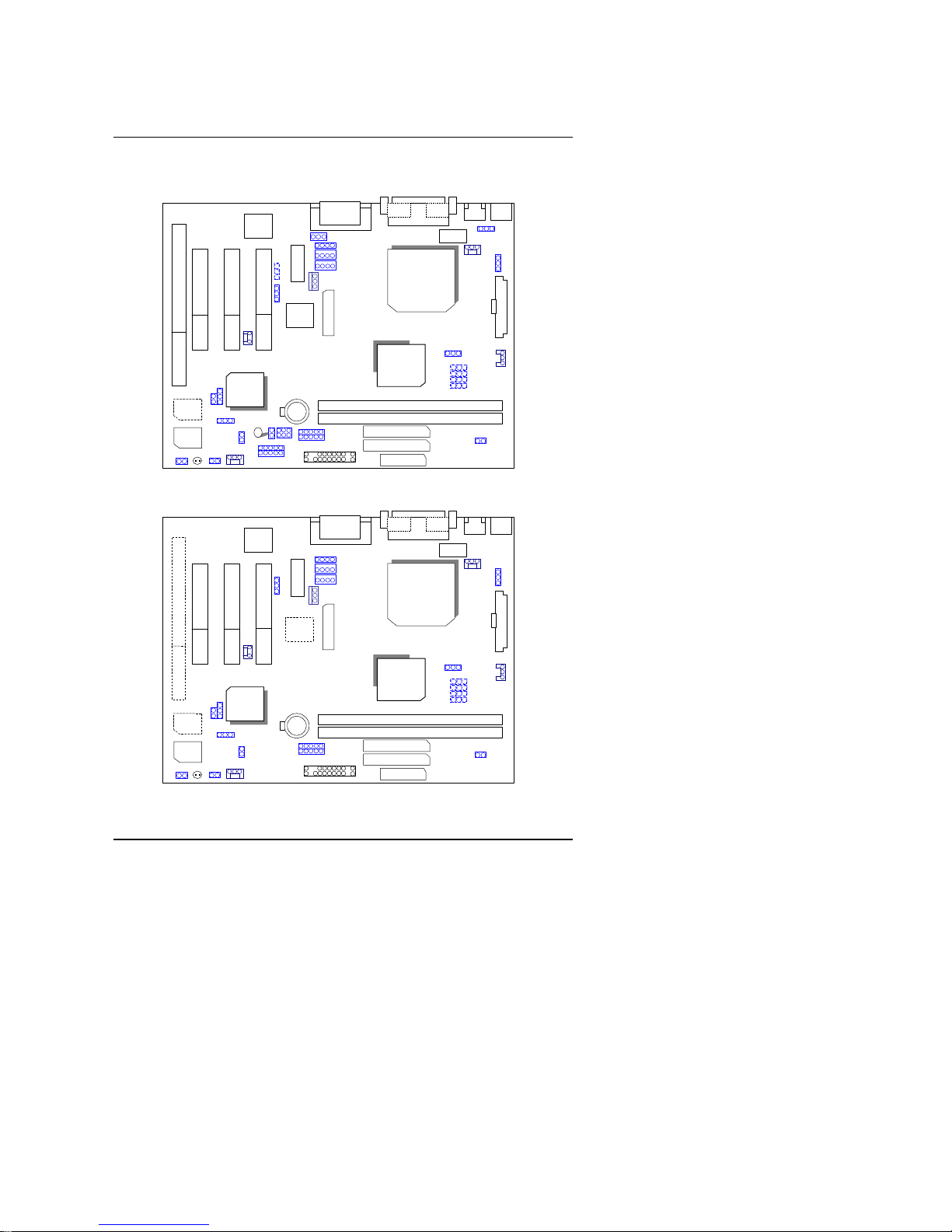

3.2. MAIN BOARD LAYOUT
6WMM7
6WMM7
ICH/
82801
GMCH/
82810
CPU
AC97
FLOPPY
IDE 1
IDE 2
J16 IR/CIR
J5
BZ1
PS/2USB
CPU FAN
PWR FAN
SYS
FAN
ATX POWER
COM B
VGA COM A
JP3
JP13
GAME &
AUDIO
J9
JP28
TEL
J3
J6
JP11
JP9
JP12 JP32
JP24
JP2
BAT BANK 0
BANK 1
AMR
PCI 1PCI 2PCI 3
ISA 1
LPT
JP1
YMF
744
Main
BIOS
Backup
BIOS
JP22
JP25
JP27
JP31
JP30
JP20
JP19
JP18
JP17
×Figure 3.1Ø
6WMM7-1
6WMM7-1
ICH/
82801
GMCH/
82810
CPU
AC97
FLOPPY
IDE 1
IDE 2
IR/CIR
J5
PS/2USB
CPU FAN
PWR FAN
SYS
FAN
ATX POWER
COM B
VGA COM A
JP3
JP13
GAME &
AUDIO
J9
TEL
J3
J6
JP11
JP9
JP12
JP2
BAT BANK 0
BANK 1
AMR
PCI 1PCI 2PCI 3
ISA 1
LPT
JP1
YMF
744
Main
BIOS
Backup
BIOS
JP25
JP31
JP20
JP19
JP18
JP17
×Figure 3.2Ø

Hardware Installation
3-3
3.3. QUICK REFERENCE FOR JUMPERS & CONNECTORS
tI/O Ports Connector
USB USB port.
IDE1 For Primary IDE port.
IDE2 For Secondary IDE port.
PS/2 For PS/2 Mouse & Keyboard port.
FLOPPY For Floppy port.
COMB For Serial port2 (COM B){Support Modem Ring On}.
COMA For Serial port1 (COM A){Support Modem Ring On}.
LPT For LPT port.
VGA For VGA Port.
ATX Power For ATX Power Connector.
GAME & Audio For GAME & MIC LINE-IN, LINE-OUT,TEL Port,
AUX_IN, CD_IN, SPDIF OUT.
tSocket 370
For CeleronTM Socket 370 Processor installed
tIR : INFRARED Connector (IR / CIR) -- Function Option
Pin No. Function
1VCC
2NC
3IRRX
4GND
5IRTX
6NC
7CIRRX
8VCC
9NC
10 NC
tCPU FAN : CPU cooling FAN Power Connector
Pin No. Function
1GND.
2+12V
3SENSE

6WMM7/6WMM7-1
3-4
tPWR FAN: Power FAN Connector
Pin No. Function
1GND.
2+12V
3SENSE
tSYS FAN: System FAN Connector
Pin No. Function
1GND.
2+12V
3SENSE
tJ16:Buzzer Enable (Optional)
Pin No. Function
Open Internal Buzzer Disable
Short Internal Buzzer Enable
tJ6 RING PWR ON :Internal Modem Card Ring PWR On
Pin No. Function
1Signal
2GND
tJP13 : Keyboard Power On Selection (Optional)
Pin No. Function
1-2 short Enabled Keyboard power on.
2-3 short Disabled Keyboard power on(Default).
tJP3 : CLEAR CMOS
Pin No. Function
1-2 short Clear CMOS
2-3 short Normal operation (Default).
tJ9: CD Audio Line in
Pin No. Function
1Left
2GND
3GND
4Right

Hardware Installation
3-5
tJP25:AUX_IN
Pin No. Function
1AUX_L
2GND
3GND
4AUX_R
tJ3:Wake on LAN
Pin No. Function
1+5V SB
2GND
3Signal
tTEL : The connector for Modem with internal voice connector.
Pin No. Function
1Phone-in
2,3 GND
4Mono-out
tJP11:STR Enable
Pin No. Function
Close STR Enable
Open STR Disable
tJP12: Case Open
Pin No. Function
1Signal
2GND
tJP26 : CPU FREQ. Safe mode
Pin No. Function
1-2 short Normal
2-3 short Safe Mode
1-2-3open Recovery
tJP2: TABLE LOCK
Pin No. Function
Open Table LOCK (Default)
Short Table Unlock.

6WMM7/6WMM7-1
3-6
tJP4: Timeout Reboot
Pin No. Function
Open Timeout Reboot.
Short No Reboot.
tJP27: Onboard H/W Audio (Optional)
Pin No. Function
1-2 short Disabled H/W Audio.
2-3 short Enabled H/W Audio.(Default)
tJP32/ JP22: USB Port Selection (Optional)
Pin No. Function
1-2 short Front Panel USB Port Enabled.
2-3 short Back Front Panel USB Port Enabled.
tJP24: Front Panel USB Port (Optional)
Pin No. Function
1,4,5,10 NC
2+5V
3,7,9 GND
6USB P0+
8USB P0-
tJP28: SPDIF (Optional)
Pin No. Function
1VCC
2SPD OUT
3GND
tJP30: USB Keyboard wake-up (Optional)
Pin No. Function
1-2 Disable USB Keyboard wake-up.
2-3 Enable USB Keyboard wake-up.

Hardware Installation
3-7
J5 : For 2X11 PINs Jumper
Soft PWR: Soft Power Connector
Open: Normal Operation
Short: Power On/Off
RES: Reset Switch
Open: Normal Operation
Short: For Hardware Reset System
P+P − P − : Power LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode (−)
PIN 3 : LED cathode (−)
SPKR: Speaker Connector
PIN 1 : VCC (+)
PIN 2 : NC
PIN 3 : NC
PIN 4 : Data (−)
HD: IDE Hard Disk Active LED
PIN 1: LED anode (+)
PIN 2: LED cathode ( − )
1
1
J5
PWR P+P−P−HD
RES SPKR
GN
GD
1
1 1
1
1+
−

6WMM7/6WMM7-1
3-8
GN: Green Function Switch
Open : Normal operation
Short : Entering Green Mode
GD: Green LED
PIN 1 : LED anode (+)
PIN 2 : LED cathode ( − )
3.4. DRAM INSTALLATION
The main board can be installed with 16 / 32 / 64 / 128 / 256 MB 168 pins
DIMM module DRAM, and the DRAM speed must 100 MHz for SDRAM
when system bus speed is set to 66MHz or 100MHz, the DRAM memory
system on main board consists of bank 0 and bank 1.
Since 168 pins DIMM module is 64 bits width, therefore 1 piece of DIMM
module may match a 64 bits system. The total memory size is 16 MB ~
512MB SDRAM . The DRAM installation position refer to Figure 3.1, and
notice the Pin 1 of DIMM module must match with the Pin 1 of DIMM socket.
Insert the DIMM module into the DIMM socket at Vertical angle. If there is a
wrong direction of Pin 1, the SDRAM DIMM module could not be inserted
into socket completely.
3.5. CPU SPEED SETUP
The system bus frequency can be switched between 66MHz and 100MHz by
adjusting JP1. The CPU Frequency is control by BIOS.
1

Hardware Installation
3-9
JP1: Set System Bus Speed
MJP1 (Select the system speed between 66MHz / 100MHz and Auto)
1-2 Close Set system speed to Auto
− auto detect
system speed.
2-3 Close Set system speed to 66 MHz
− system always
run at 66MHz FSB (Front Side Bus).
1-2-3 Open Set system speed to 100 MHz
− system always
run at 100MHz FSB (Front Side Bus).
« Note: Please set the CPU host frequency in accordance with your
processor’s specifications. We don’t recommend you to set the
system bus frequency over the CPU’s specification because these
specific bus frequencies are not the standard specifications for
CPU, chipset and most of the peripherals. Whether your system
can
run under these specific bus frequencies properly will depend on
your hardware configurations, including CPU, Chipsets, SDRAM,
Cards….etc.
3.6. CMOS RTC & ISA CFG CMOS RAM
There're RTC & CMOS RAM on board; they have a power supply from
external battery to keep the DATA inviolate & effective. The RTC is a REAL-
TIME CLOCK device, which provides the DATE & TIME to system. The
CMOS RAM is used for keeping the information of system configuration, so
the system can automatically boot OS every time. Since the lifetime of
internal battery is 5 years, the user can change a new Battery to replace old
one after it cannot work.
MDanger of explosion if battery is incorrectly replaced.
MReplace only with the same or equivalent type recommended by the
manufacturer.
MDispose of used batteries according to the manufacturer’s instructions.
3.7. SPEAKER CONNECTOR INSTALLATION
There is a speaker in AT system for sound purpose. The 4 -Pins connector
SPKR is used to connect speaker.
1 2 3
1 2 3
1 2 3

6WMM7/6WMM7-1
3-10
3.8. HARDWARE RESET SWITCH CONNECTOR INSTALLATION
The RESET switch on panel provides users with HARDWARE RESET
function. The system will do a cold start after the RESET switch is pushed
and released by user. The RESET switch is a 2 PIN connector and should be
installed to RST on main board.
3.9. POWER LED CONNECTOR INSTALLATION
System has power LED lamp on the panel of chassis. The power LED will
light on off or flash to indicate which step on the system. The connector
should be connected to P+P-P- of main board in a correct direction.
3.10. IDE & ATAPI DEVICE INSTALLATION
There are two-Enhanced PCI IDE ports (IDE1, IDE2) on board, which
following ATAPI standard SPEC. Each IDE port can connected to two ATAPI
devices (IDE Hard Disk, CD-ROM or Tape Driver), so total four ATAPI
devices can exist in a system. The HD is the active LED port for ATAPI
devices.
3.11. PERIPHERAL DEVICE INSTALLATION
After the I/O device installation and jumpers setup, the main board can be
mounted into the chassis and fixed by screw. To complete the main board
installation, the peripheral device could be installed now. The basic system
needs a display interface card. If the PCI - Bus device is to be installed in the
system, any one of three PCI - Bus slots can be used.
3.12. KEYBOARD & PS/2 MOUSE INSTALLATION
The main board supports PS/2 Mouse. The BIOS will auto detect whether the
PS/2 Mouse is installed or not & assign IRQ12 for PS/2 Mouse port if it is
installed. After installing the peripheral device, the user should check
everything again, and ready power-on the system.
