Gigabyte GA-K8VT800-RH User manual

GA-K8VT800-RH
AMD Socket 754 Processor Motherboard
User's Manual
Rev. 2001
12ME-K8VT800R-2001R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.

JUNE. 21, 2006
Motherboard
GA-K8VT800-RH
Motherboard
GA-K8VT800-RH
June. 21, 2006

Copyright
© 2006 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in the manual are legally registered to their respective companies.
Notice
The written content provided with this product is the property of Gigabyte.
No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any
means without Gigabyte's prior written permission. Specifications and features are subject to
change without prior notice.
Product Manual Classification
In order to assist in the use of this product, Gigabyte has categorized the user manual in the
following:
For quick installation, please refer to the "Hardware Installation Guide" included with the
product.
For detailed product information and specifications, please carefully read the
"Product User Manual".
For detailed information related to Gigabyte's unique features, please go to the
"Technology Guide" section on Gigabyte's website to read or download the information
you need.
For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

- 4 -
Table of Contents
ItemChecklist ................................................................................................................. 6
OptionalAccessories ...................................................................................................... 6
GA-K8VT800-RH Motherboard Layout .......................................................................... 7
Block Diagram ................................................................................................................ 8
Chapter 1 Hardware Installation .................................................................................... 9
1-1 Considerations Prior to Installation .................................................................... 9
1-2 Feature Summary .......................................................................................... 10
1-3 Installation of the CPU and Heatsink .............................................................. 12
1-3-1 Installation of the CPU ......................................................................................... 12
1-3-2 Installation of the Heatsink .................................................................................. 13
1-4 Installation of Memory .................................................................................... 13
1-5 Installation of Expansion Cards ...................................................................... 15
1-6 I/O Back Panel Introduction ........................................................................... 16
1-7 Connectors Introduction .................................................................................. 17
Chapter 2 BIOS Setup ................................................................................................ 29
The Main Menu (For example: BIOS Ver. : E8) ....................................................... 30
2-1 Standard CMOS Features ............................................................................. 32
2-2 Advanced BIOS Features .............................................................................. 34
2-3 IntegratedPeripherals ..................................................................................... 35
2-4 Power Management Setup ............................................................................. 38
2-5 PnP/PCI Configurations ................................................................................. 40
2-6 PC Health Status ........................................................................................... 41
2-7 Frequency/Voltage Control ............................................................................. 42
2-8 Top Performance ............................................................................................. 43
2-9 Load Fail-Safe Defaults ................................................................................... 43
2-10 Load Optimized Defaults ................................................................................. 44
2-11 Set Supervisor/User Password ..................................................................... 44
2-12 Save & Exit Setup ......................................................................................... 45
2-13 Exit Without Saving ....................................................................................... 45

- 5 -
Chapter 3 Drivers Installation ...................................................................................... 47
3-1 Install Chipset Drivers .................................................................................... 47
3-2 SoftwareApplication ....................................................................................... 48
3-3 Software Information ....................................................................................... 48
3-4 Hardware Information ..................................................................................... 49
3-5 Contact Us ..................................................................................................... 49
Chapter 4 Appendix ................................................................................................... 51
4-1 Unique Software Utilities ................................................................................ 51
4-1-1 Xpress Recovery Introduction ........................................................................... 51
4-1-2 Flash BIOS Method Introduction ........................................................................ 54
4-1-3 Serial ATA BIOS Setting Utility Introduction ...................................................... 63
4-1-4 2- / 4- / 6- / 8- Channel Audio Function Introduction ...................................... 69
4-2 Troubleshooting ............................................................................................... 77

- 6 -
Item Checklist
IDE Cable x 1 & FDD Cable x 1
2 Ports SATA Power Cable x 1
2 Ports USB2.0 Cable x 1
SATA Cable x 2
I/O Shield
* The items listed above are for reference only, and are subject to change without notice.
Optional Accessories
2 Ports USB2.0 Cable (Part Number: 12CR1-1UB030-51/R)
8-Channel Audio Combo Kit (Part Number: 12CR1-1SPAUD-21/21R)

- 7 -
GA-K8VT800-RH Motherboard Layout
ATX_12V
CPU_FAN
CODEC
IR
IT8705F
VIA VT8237R
/ VT8237R+
BIOS
PCI1
PCI2
F_USB2F_USB1
SATA0
BATTERY
ATX
IDE1
FDD
CLR_CMOS
SYS_FAN
GA-K8VT800-RH
KB_MS
Socket 754
AUDIO
COMB
LPT
USB
USB LAN
F_AUDIO
CD_IN
F_PANEL
PWR_LED
COMA
IDE2
PCI3
PCI4
RTL
8100C
SUR_CEN
SPDIF_IO PCI5
AGP
SATA1
VIA K8T800
DDR1
DDR2 DDR3

- 8 -
Block Diagram
VIA
K8T800
VIA
VT8237R /
VT8237R+
CPUCLK+/- (200MHz)
AGPCLK66MHz
33 MHz
14.318 MHz
48 MHz
AGP slot
4X/8X
AGPCLK
(66MHz)
5 PCI
PCICLK
(33MHz)
AC97 Link
8 USB
Ports
ATA66/100/133
IDE Channels
IT8705F
24 MHz
33 MHz
Floppy
LPT Port
COM
Ports
AC97
CODEC
MIC
LINE-IN
LINE-OUT
66MHz V_Link
2 SATA
Ports
AMD
AthlonTM 64
processor (K8)
System Bus
800MHz DDR400/333/266/200 DIMM
DDR RAM
RJ45
RTL8100C
LAN
PS/2
KB/Mouse
BIOS

Hardware Installation- 9 -
English
1-1 Considerations Prior to Installation
Preparing Your Computer
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please
follow the instructions below:
1. Please turn off the computer and unplug its power cord.
2. When handling the motherboard, avoid touching any metal leads or connectors.
3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components
(CPU, RAM).
4. Prior to installing the electronic components, please have these items on top of an antistatic
pad or within a electrostatic shielding container.
5. Please verify that you the power supply is switched off before unplugging the power supply
connector from the motherboard.
Installation Notices
1. Prior to installation, please do not remove the stickers on the motherboard. These stickers
are required for warranty validation.
2. Prior to the installation of the motherboard or any hardware, please first carefully read the
information in the provided manual.
3. Before using the product, please verify that all cables and power connectors are connected.
4. To prevent damage to the motherboard, please do not allow screws to come in contact with
the motherboard circuit or its components.
5. Please make sure there are no leftover screws or metal components placed on the motherboard
or within the computer casing.
6. Please do not place the computer system on an uneven surface.
7. Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
8. If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certified computer technician.
Instances of Non-Warranty
1. Damage due to natural disaster, accident or human cause.
2. Damage as a result of violating the conditions recommended in the user manual.
3. Damage due to improper installation.
4. Damage due to use of uncertified components.
5. Damage due to use exceeding the permitted parameters.
6. Product determined to be an unofficial Gigabyte product.
Chapter 1Hardware Installation

GA-K8VT800-RH Motherboard - 10 -
English
CPU Socket 754 for AMD AthlonTM 64 processor (K8)
1600MT/s system bus
Chipset Northbridge: VIA K8T800
Southbridge: VIA VT8237R / VT8237R+
Memory 3 DDR DIMM memory slots (supports up to 3GB)
Supports DDR 400/333/266/200 DIMMs
Slots 1 AGP slot supports 8X/4X(1.5V) mode
5 PCI slots
IDE Connections 2 IDE connection (UDMA 133/100/66/33), allows connection
of 4 IDE devices
FDD Connections 1 FDD connection, allows connection of 2 FDD devices
Onboard SATA 2 Serial ATA ports from VIA VT8237R / VT8237R+ (SATA0, SATA1)(Note 1)
Peripherals 1 parallel port supporting Normal/EPP/ECP mode
2 serial ports (COMA, COMB)
8 USB 2.0/1.1 ports (rear x 4, front x 4 via cable)
1 front audio connector
1 IR connector
1 PS/2 keyboard port
1 PS/2 mouse port
Onboard LAN Onboard RTL8100C chip (10/100 Mbit/s)
1 RJ45 port
Onboard Audio ALC850 CODEC (UAJ)
Supports Jack Sensing function
Supports 2 / 4 / 6 / 8 channel audio(Note2)
Supports Line In ; Line Out ;MIC
Surround Back Speaker (by optional Audio Combo Kit)
SPDIF In/Out connection
CD In connection
I/O Control IT8705F
Hardware Monitor System voltage detection
CPU temperature detection
CPU / System fan speed detection
CPU / System fan failure warning
1-2 Feature Summary
(Note 1) It is recommended to use SATA (1.5Gb/s) hard disks.
(Note 2) To set up an 8 channel audio configuration, you must use Audio Combo Kit (optional device).

Hardware Installation- 11 -
English
Onboard SATA RAID Onboard VT8237R / VT8237R+ chipset (SATA0, SATA1)
supports data striping (RAID 0) or mirroring (RAID 1) function
supports JBOD function
supports data transfer rate of up to 150 MB/s
supports a maximum of 2 SATA connections
BIOS Use of licensed AWARD BIOS
Supports Q-Flash
Additional Features Supports @BIOS
Supports EasyTune
Overclocking Over Voltage via BIOS (CPU/ DDR/ AGP)
Over Clock via BIOS (CPU)
Form Factor ATX form factor; 29.5cm x 21.5cm

GA-K8VT800-RH Motherboard - 12 -
English
1-3 Installation of the CPU and Heatsink
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the motherboard supports the CPU.
2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong
direction, the CPU will not insert properly. If this occurs, please change the insert direction
of the CPU.
3. Please add an even layer of heat sink paste between the CPU and heatsink.
4. Please make sure the heatsink is installed on the CPU prior to system use, otherwise
overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specifications. It is not
recommended that the system bus frequency be set beyond hardware specifications since it
does not meet the required standards for the peripherals. If you wish to set the frequency
beyond the proper specifications, please do so according to your hardware specifications
including the CPU, graphics card, memory, hard drive, etc.
1-3-1 Installation of the CPU

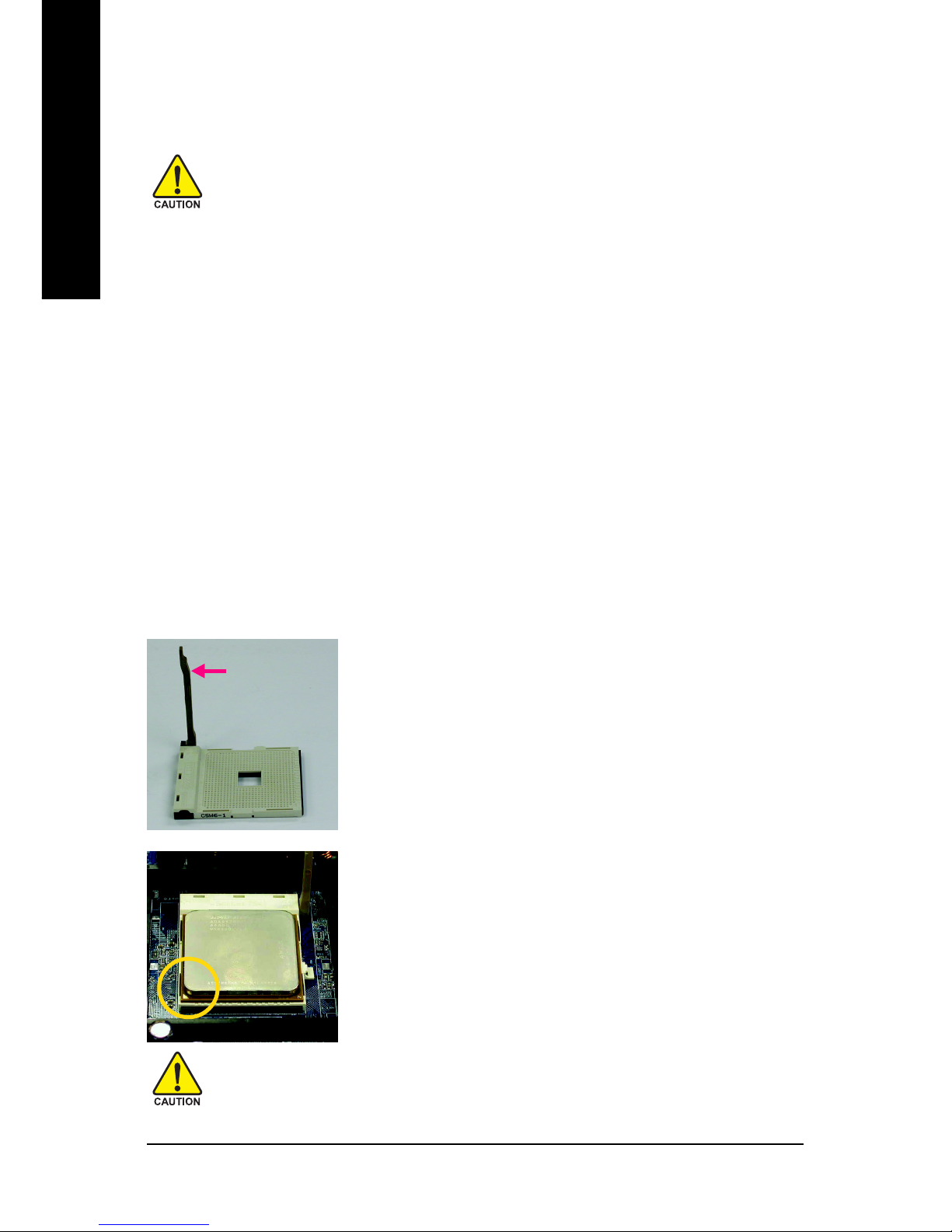

Check the processor pins to see that none are bent. Move the socket lever to the unlocked position as shown
in Figure 1.(90oto the plane of the motherboard) prior to inserting the processor. The pin 1 location is
designated on the processor by a copper triangle that matches up to a triangle on the socket as shown in
Figure 2. Align the processor to the socket and gently lower it into place. Do not force the processor into the
socket.
Fig.1
Position lever at a 90 degree angle.
Socket lever
Fig.2
Pin 1 location on the Socket and Processor. Move the socket lever to the
locked position while holding pressure on the center of the processor.
Please be careful when installing the CPU. The CPU will not fit if positioned incorrectly.
Rather than applying force, please change the positioning of the CPU.

Hardware Installation- 13 -
English
1-3-2 Installation of the Heatsink
The heat sink may adhere to the CPU as a result of hardening of the heat sink paste. To prevent
such an occurrence, it is suggested that either thermal tape rather than heat sink paste be used for
heat dissipation or using extreme care when removing the heat sink.
Fig.1
Before installing the heat sink, please first add an even layer of heat sink
paste on the surface of the CPU. Install all the heat sink components (Please
refer to the heat sink manual for detailed installation instructions).
Fig.2
Please connect the heat sink power connector to the CPU_FAN connector
located on the motherboard so that the heat sink can properly function to
prevent CPU overheating.
Before installing the memory modules, please comply with the following conditions:
1. Please make sure that the memory used is supported by the motherboard. It is
recommended that memory of similar capacity, specifications and brand be used.
2. Before installing or removing memory modules, please make sure that the computer power
is switched off to prevent hardware damage.
3. Memory modules have a foolproof insertion design. A memory module can be installed in
only one direction. If you are unable to insert the module, please switch the direction.
1-4 Installation of Memory
The motherboard supports DDR memory modules, whereby BIOS will automatically detect memory
capacity and specifications. Memory modules are designed so that they can be inserted only in one
direction. The memory capacity used can differ with each slot.
Notch
DDR

GA-K8VT800-RH Motherboard - 14 -
English

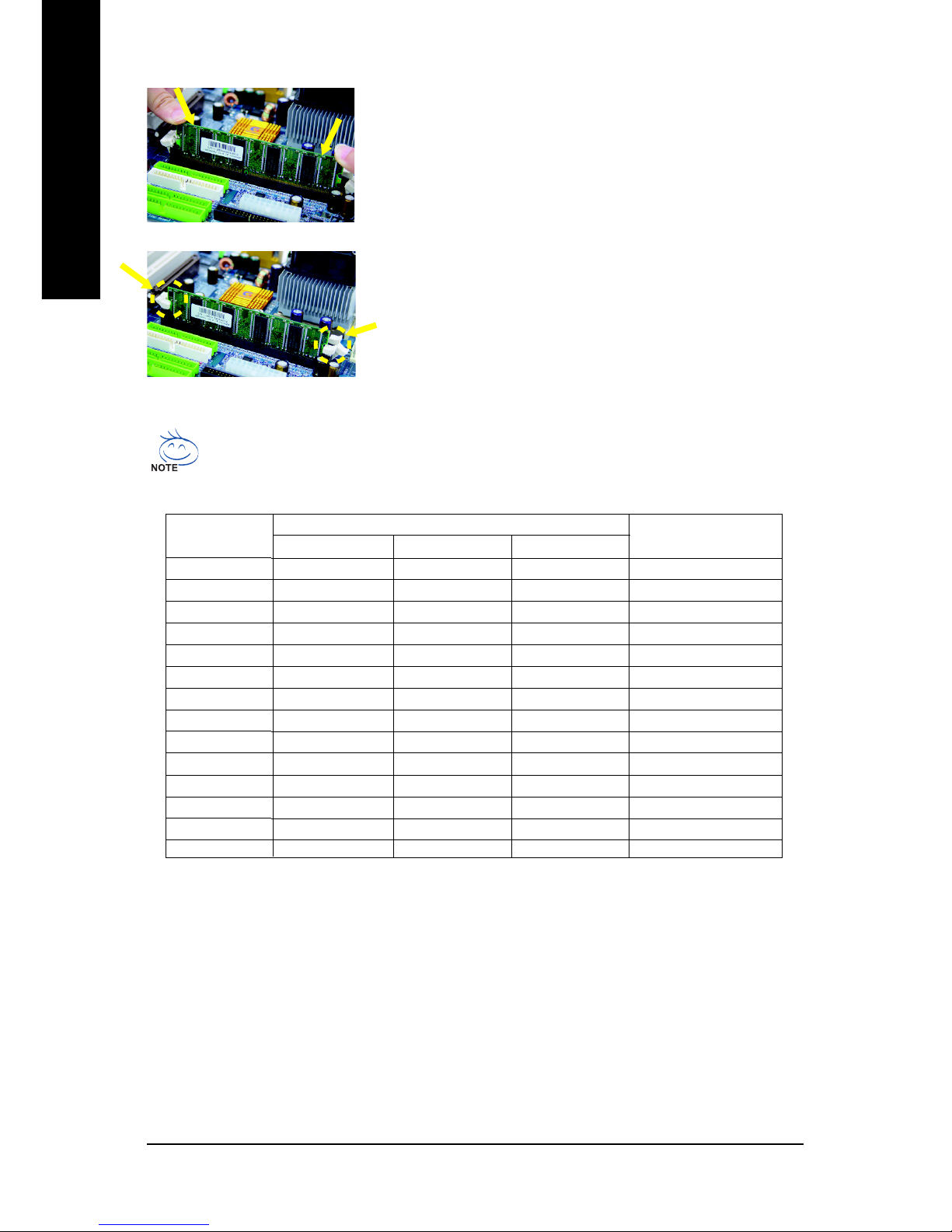

Fig.1
The DIMM socket has a notch, so the DIMM memory module can only
fit in one direction. Insert the DIMM memory module vertically into the
DIMM socket. Then push it down.
Fig.2
Close the plastic clip at both edges of the DIMM sockets to lock the
DIMM module.
Reverse the installation steps when you wish to remove the DIMM
module.
Recommended Memory Configurations (SS: Single -Sided, DS:Double-Sided)
Number of DIMMs
1
1
1
1
1
1
2
2
2
2
2
2
3
3
DIMM Socket Max. Memory Speed
DDR1 DDR2 DDR3
SS -- -- DDR 400
-- SS -- DDR 400
-- -- SS DDR 400
DS -- -- DDR 400
-- DS -- DDR 400
-- -- DS DDR 400
SS SS -- DDR 400
-- SS SS DDR 400
SS -- SS DDR 400
DS DS -- DDR 400
-- DS DS DDR 333
DS -- DS DDR 400
SS SS SS DDR 400
DS DS DS DDR 333
Please refer to the recommended memory configuration table below before installing memory.

Hardware Installation- 15 -
English
1-5 Installation of Expansion Cards
You can install your expansion card by following the steps outlined below:
1. Read the related expansion card's instruction document before install the expansion card into the
computer.
2. Remove your computer's chassis cover, screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.

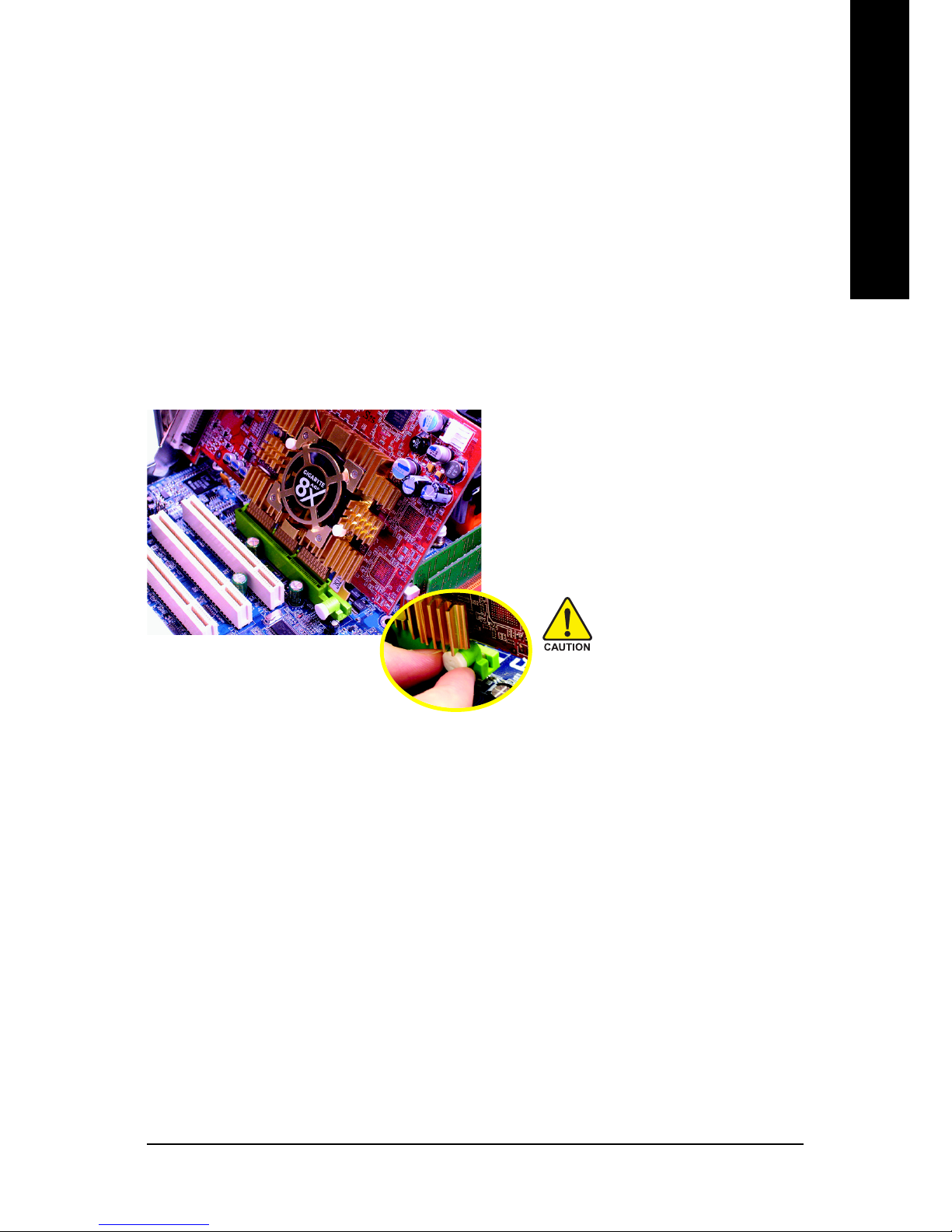

Installing an AGP VGA card:
Please carefully pull out the small white-
drawable bar at the end of the AGP slot
when you try to install/uninstall the VGA
card. Please align the VGA card to the
onboard AGP slot and press firmly down on
the slot. Make sure your VGA card is locked
by the small white-drawable bar.

GA-K8VT800-RH Motherboard - 16 -
English
1-6 I/O Back Panel Introduction
PS/2 Keyboard and PS/2 Mouse Connector
To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the keyboard to the
lower port (purple).
Parallel Port
The parallel port allows connection of a printer, scanner and other peripheral devices.
COMA, COMB (Serial Port)
Connects to serial-based mouse or data processing devices.
USB port
Before you connect your device(s) into USB connector(s), please make sure your device(s) such as
USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also make sure
your OS supports USB controller. If your OS does not support USB controller, please contact OS
vendor for possible patch or driver upgrade. For more information please contact your OS or device(s)
vendors.
LAN Port
The provided Internet connection providing data transfer speeds of 10/100Mbps.
Line In
Devices like CD-ROM, walkman etc. can be connected to Line In jack.
Line Out
Connect the stereo speakers, earphone or front surround speakers to this connector.
MIC In
Microphone can be connected to MIC In jack.
You can use audio software to configure 2-/4-/6-/8-channel audio function.

Hardware Installation- 17 -
English

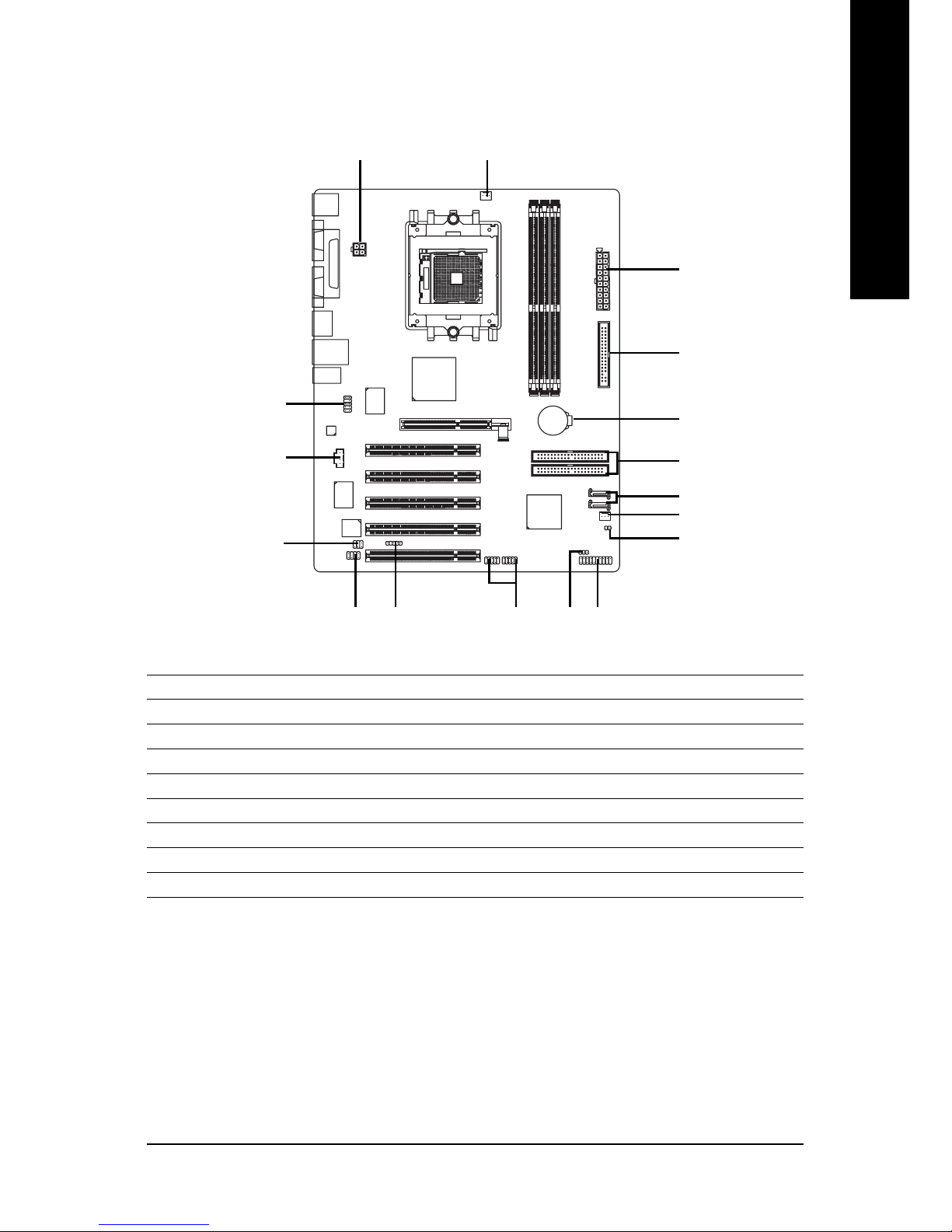

1-7 Connectors Introduction
1) ATX_12V
2) ATX (Power Connector)
3) CPU_FAN
4) SYS_FAN
5) FDD
6) IDE1 / IDE2
7) SATA0 / SATA1
8) PWR_LED
9) F_PANEL
10) F_AUDIO
11) CD_IN
12) SPDIF_IO
13) SUR_CEN
14) F_USB1 / F_USB2
15) IR
16) CLR_CMOS
17) BATTERY
13
4
14
5
2
17
10
12
6
9
16
15
11
813
7

GA-K8VT800-RH Motherboard - 18 -
English

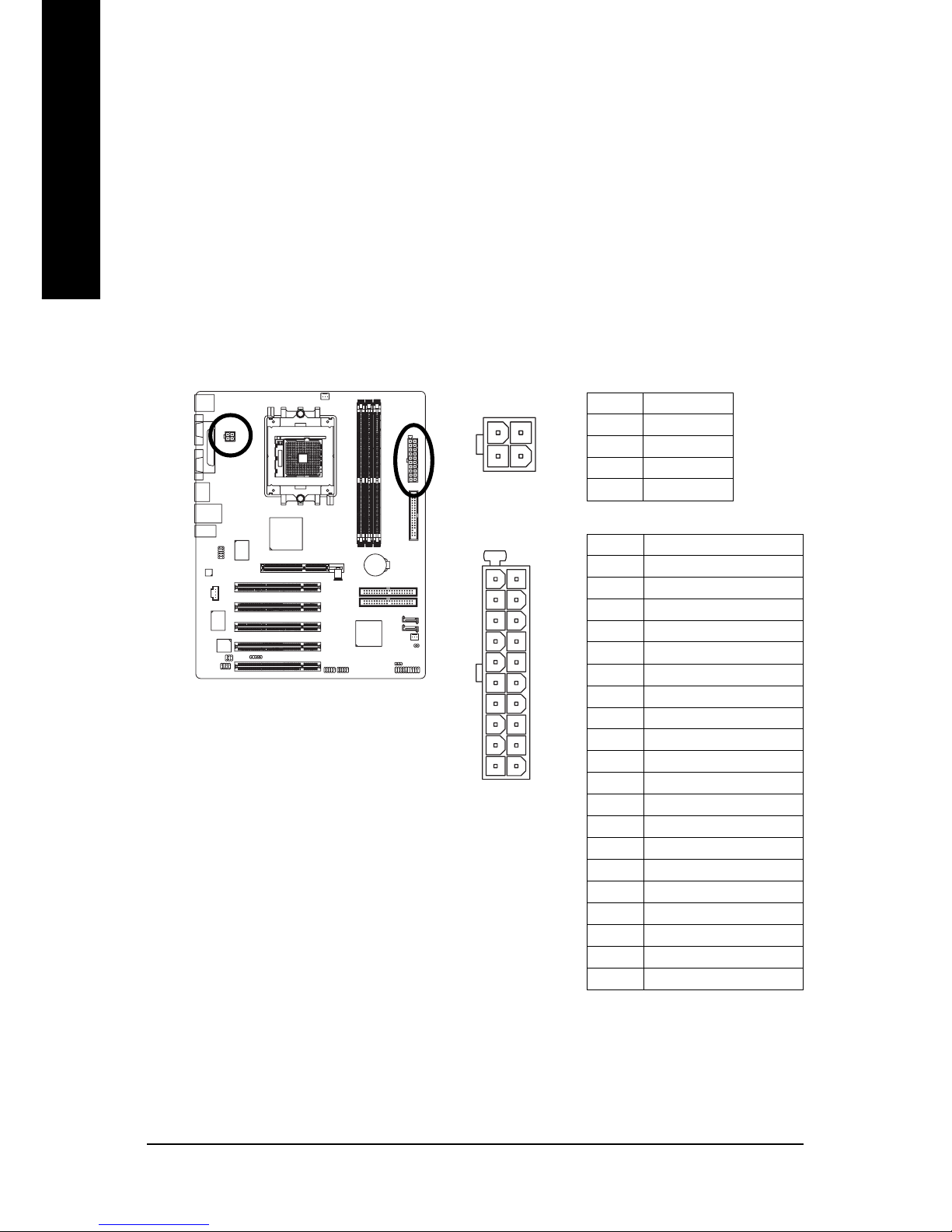

1/2) ATX_12V / ATX (Power Connector)
With the use of the power connector, the power supply can supply enough stable power to all the
components on the motherboard. Before connecting the power connector, please make sure that all
components and devices are properly installed. Align the power connector with its proper location on
the motherboard and connect tightly.
The ATX_12V power connector mainly supplies power to the CPU. If the ATX_12V power connector
is not connected, the system will not start.
Caution!
Please use a power supply that is able to handle the system voltage requirements. It is
recommended that a power supply that can withstand high power consumption be used (300W or
greater). If a power supply is used that does not provide the required power, the result can lead to an
unstable system or a system that is unable to start.
Pin No. Definition
1 GND
2 GND
3 +12V
4 +12V
31
42
1
10
20
11
Pin No. Definition
1 3.3V
2 3.3V
3 GND
4 +5V
5 GND
6 +5V
7 GND
8 Power Good
9 5V SB (stand by +5V)
10 +12V
11 3.3V
12 -12V
13 GND
14 PS_ON(soft on/off)
15 GND
16 GND
17 GND
18 -5V
19 +5V
20 +5V

Hardware Installation- 19 -
English
3/4) CPU_FAN / SYS_FAN (Cooler Fan Power Connector)
The cooler fan power connector supplies a +12V power voltage via a 3-pin power connector and
possesses a foolproof connection design.
Most coolers are designed with color-coded power connector wires. A red power connector wire
indicates a positive connection and requires a +12V power voltage. The black connector wire is the
ground wire (GND).
Please remember to connect the power to the cooler to prevent system overheating and failure.
Caution!
Please remember to connect the power to the CPU fan to prevent CPU overheating and failure.
Pin No. Definition
1 GND
2 +12V
3 Sense
1

GA-K8VT800-RH Motherboard - 20 -
English
2
34
1
33
IDE1
IDE2
139
2
40

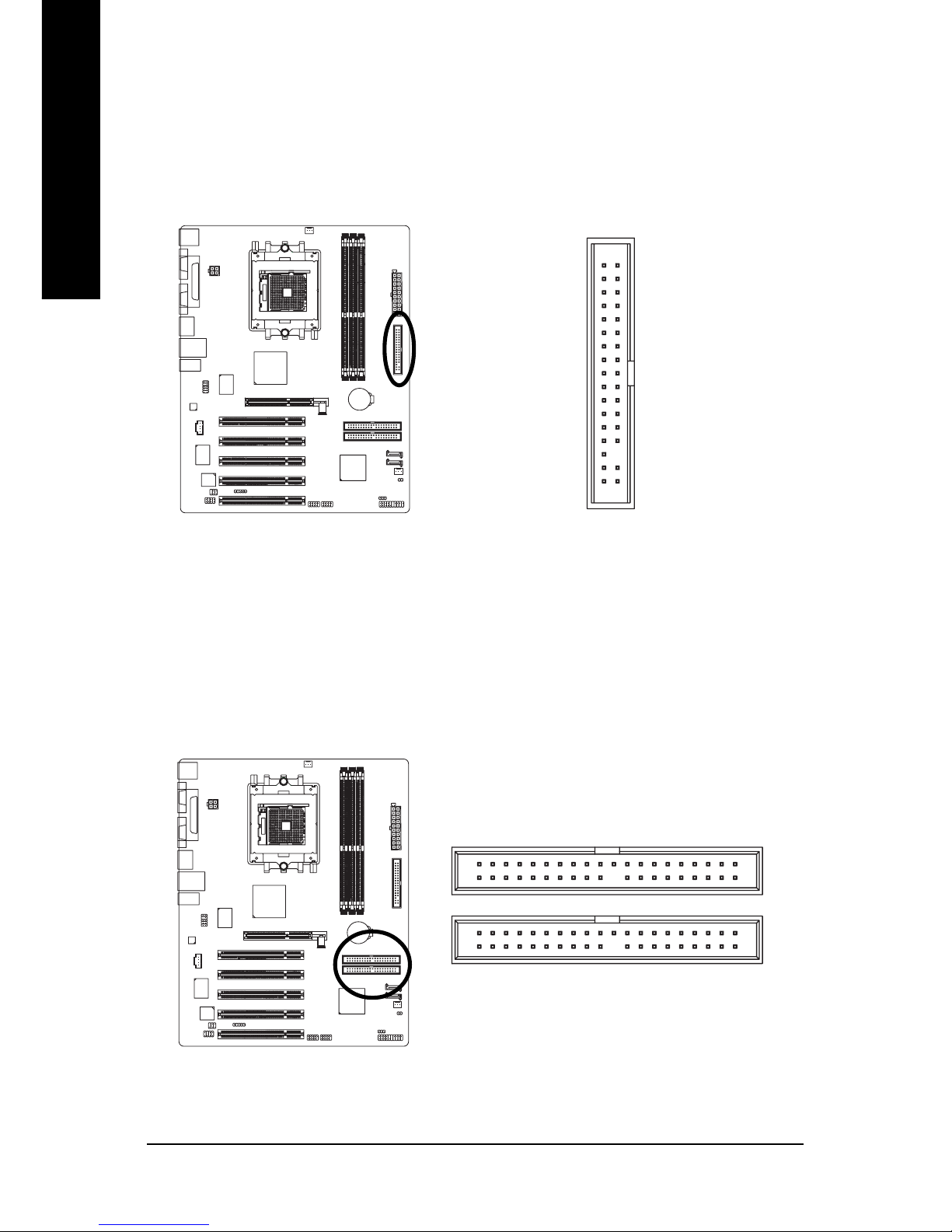

5) FDD (FDD Connector)
The FDD connector is used to connect the FDD cable while the other end of the cable connects to
the FDD drive. The types of FDD drives supported are: 360KB, 720KB, 1.2MB, 1.44MB and
2.88MB. Before attaching the FDD cable, please take note of the foolproof groove in the FDD
connector.
6) IDE1 / IDE2 (IDE Connector)
An IDE device connects to the computer via an IDE connector. One IDE connector can connect to one
IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or optical drive).
If you wish to connect two IDE devices, please set the jumper on one IDE device as Master and the
other as Slave (for information on settings, please refer to the instructions located on the IDE device).
Before attaching the IDE cable, please take note of the foolproof groove in the IDE connector.
