Gigabyte GA-P35T-DS4 User manual

GA-P35T-DS4
LGA775 socket motherboard for Intel®CoreTM processor family/
Intel®Pentium®processor family/Intel®Celeron®processor family
User's Manual
Rev. 1002
12ME-P35TDS4-1002R
* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste
and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!
* The WEEE marking applies only in European Union's member states.

Motherboard
GA-P35T-DS4
Apr. 20, 2007
Motherboard GA-P35T-DS4
Apr. 20, 2007

Copyright
©2007 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
The logo is exclusively licensed to GIGABYTE UNITED INC. by GIGA-BYTE
TECHNOLOGY CO., LTD.
GIGABYTE UNITED INC. is designated by GIGA-BYTE TECHNOLOGY CO., LTD as the exclusive
global distributor of GIGABYTE branded motherboards.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specifications and features in this manual may be made by GIGABYTE without prior
notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any
form or by any means without GIGABYTE's prior written permission.
Documentation Classifications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For instructions on how to use GIGABYTE's unique features, read or download the
information on/from the Support\Motherboard\Technology Guide page on our website.
For product-related information, check on our website at:
http://www.gigabyte.com.tw

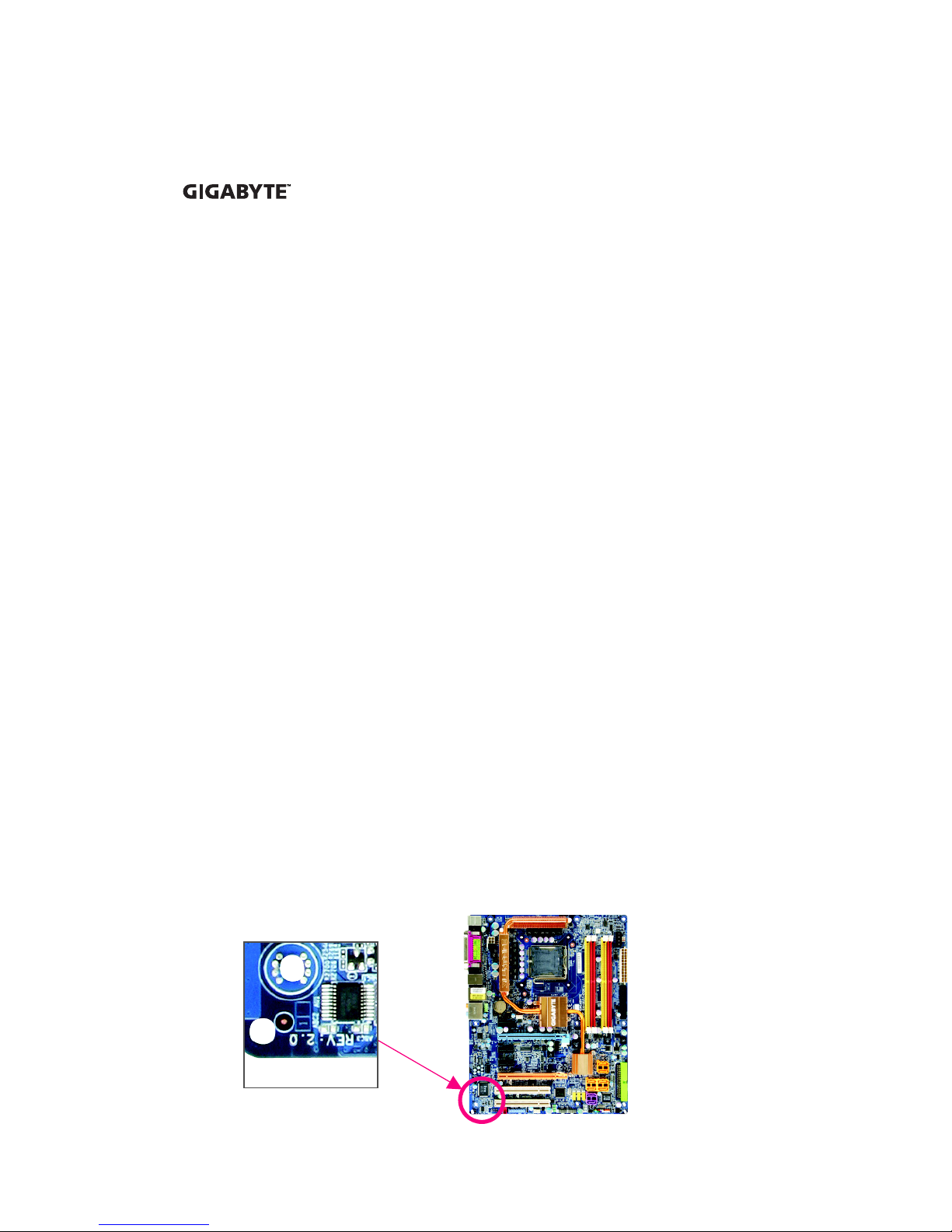

Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means
the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard
BIOS, drivers, or when looking for technical information.
Example:

- 4 -
Table of Contents
OptionalItems ................................................................................................................. 6
Box Contents ................................................................................................................. 6
GA-P35T-DS4 Motherboard Layout .............................................................................. 7
Block Diagram ................................................................................................................ 8
Chapter 1 Hardware Installation .................................................................................... 9
1-1 Installation Precautions ..................................................................................... 9
1-2 Product Specifications .................................................................................... 10
1-3 Installing the CPU and CPU Cooler .............................................................. 13
1-3-1 Installing the CPU ................................................................................................ 13
1-3-2 Installing the CPU Cooler ................................................................................... 15
1-4 Installing the Memory ..................................................................................... 16
1-4-1 Dual Channel Memory Configuration ................................................................ 16
1-4-2 Installing a Memory ............................................................................................. 17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 Installing the SATA Bracket ............................................................................. 20
1-7 Back Panel Connectors ................................................................................. 21
1-8 Internal Connectors ........................................................................................ 23
Chapter 2 BIOS Setup................................................................................................. 35
2-1 Startup Screen ................................................................................................ 36
2-2 The Main Menu .............................................................................................. 37
2-3 Standard CMOS Features ............................................................................. 39
2-4 Advanced BIOS Features .............................................................................. 41
2-5 Integrated Peripherals ..................................................................................... 43
2-6 Power Management Setup ............................................................................. 46
2-7 PnP/PCI Configurations ................................................................................. 48
2-8 PC Health Status ........................................................................................... 49
2-9 MB Intelligent Tweaker(M.I.T.) ....................................................................... 51
2-10 Load Fail-Safe Defaults ................................................................................... 54
2-11 Load Optimized Defaults ................................................................................. 54
2-12 Set Supervisor/User Password ..................................................................... 55
2-13 Save & Exit Setup ......................................................................................... 56
2-14 Exit Without Saving ....................................................................................... 56

- 5 -
Chapter 3 Drivers Installation ...................................................................................... 57
3-1 Installing Chipset Drivers ............................................................................... 57
3-2 Software Applications ..................................................................................... 58
3-3 Driver CD Information .................................................................................... 58
3-4 Hardware Information ..................................................................................... 59
3-5 Contact Us ..................................................................................................... 59
Chapter 4 Unique Features ......................................................................................... 61
4-1 Xpress Recovery2 ......................................................................................... 61
4-2 BIOS Update Utilities ..................................................................................... 66
4-2-1 Updating the BIOS with the Q-Flash Utility ...................................................... 66
4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 69
4-3 EasyTune 5 .................................................................................................... 71
4-4 Windows Vista ReadyBoost ........................................................................... 72
Chapter 5 Appendix .................................................................................................... 73
5-1 Configuring SATA Hard Drive(s) .................................................................... 73
5-1-1 Configuring Intel® ICH9R SATA Controllers ...................................................... 73
5-1-2 Configuring GIGABYTE SATA2 SATA Controller ............................................. 79
5-1-3 Making a SATA RAID/AHCI Driver Diskette ..................................................... 85
5-1-4 Installing the SATA RAID/AHCI Driver and Operating System ...................... 86
5-2 Configuring Audio Input and Output ................................................................. 90
5-2-1 Configuring 2/4/5.1/7.1-Channel Audio ............................................................ 90
5-2-2 Installing the S/PDIF In Cable (Optional) ........................................................... 92
5-2-3 Configuring Microphone Recording ................................................................... 95
5-2-4 Using the Sound Recorder ................................................................................. 97
5-3 Troubleshooting ............................................................................................... 98
5-3-1 Frequently Asked Questions ............................................................................. 98
5-3-2 Troubleshooting Procedure ................................................................................ 99

- 6 -

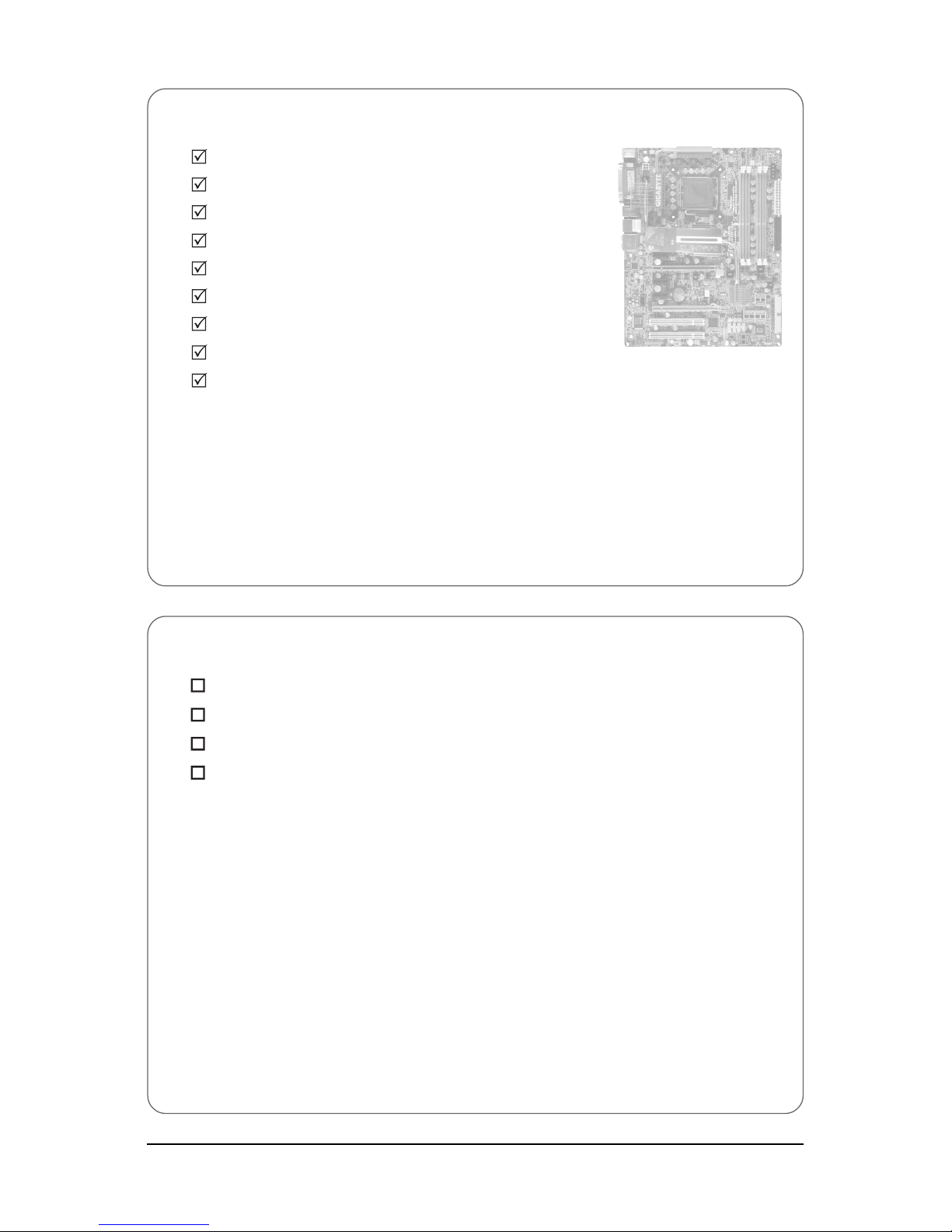

Box Contents
GA-P35T-DS4 motherboard
Motherboard Driver Disk
User's Manual
Quick Installation Guide
Intel®LGA775 CPU Installation Guide
One IDE cable and one floppy disk drive cable
Four SATA 3Gb/s cables
One SATA bracket
I/O Shield
The box contents above are for reference only and the actual items shall depend on product package you obtain.
The box contents are subject to change without notice.
Optional Items
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-51/R)
4-port USB 2.0 bracket (Part No. 12CR1-1UB030-21/R)
2-port IEEE 1394a bracket (Part No. 12CF1-1IE008-01/R)
S/PDIF in cable (Part No. 12CR1-1SPDIN-01/R)

- 7 -
GA-P35T-DS4 Motherboard Layout
KB_MS
CPU_FAN
LGA775
ATX
GA-P35T-DS4
CD_IN F_AUDIO
MAIN_BIOS
FDD
PCIE_16_1
PCIE_2
F_USB1
CODEC
GIGABYTE
SATA2
SPDIF_IN
IDE
DDRIII1
DDRIII2
DDRIII3
DDRIII4
PWR_FAN
F2_1394
F1_1394
TSB43AB23
PCIE_16_2
PCI1
PCI2
BATTERY SATAII0
F_PANEL
IT8718
RTL8111B
ATX_12V_2X
Intel®P35
Intel®ICH9R
PWR_LED
USB LAN
AUDIO
LPT
USB 1394
COM
COAXIAL
OPTICAL
CLR_CMOS
PCIE_3
SATAII1
SATAII2
SATAII4
SATAII3
SATAII5
PCIE_12V
GSATAII1
GSATAII0
SYS_FAN2
SYS_FAN1
F_USB4
BP_BIOS
CI
NB_FAN
PCIE_1
F_USB2 F_USB3

- 8 -

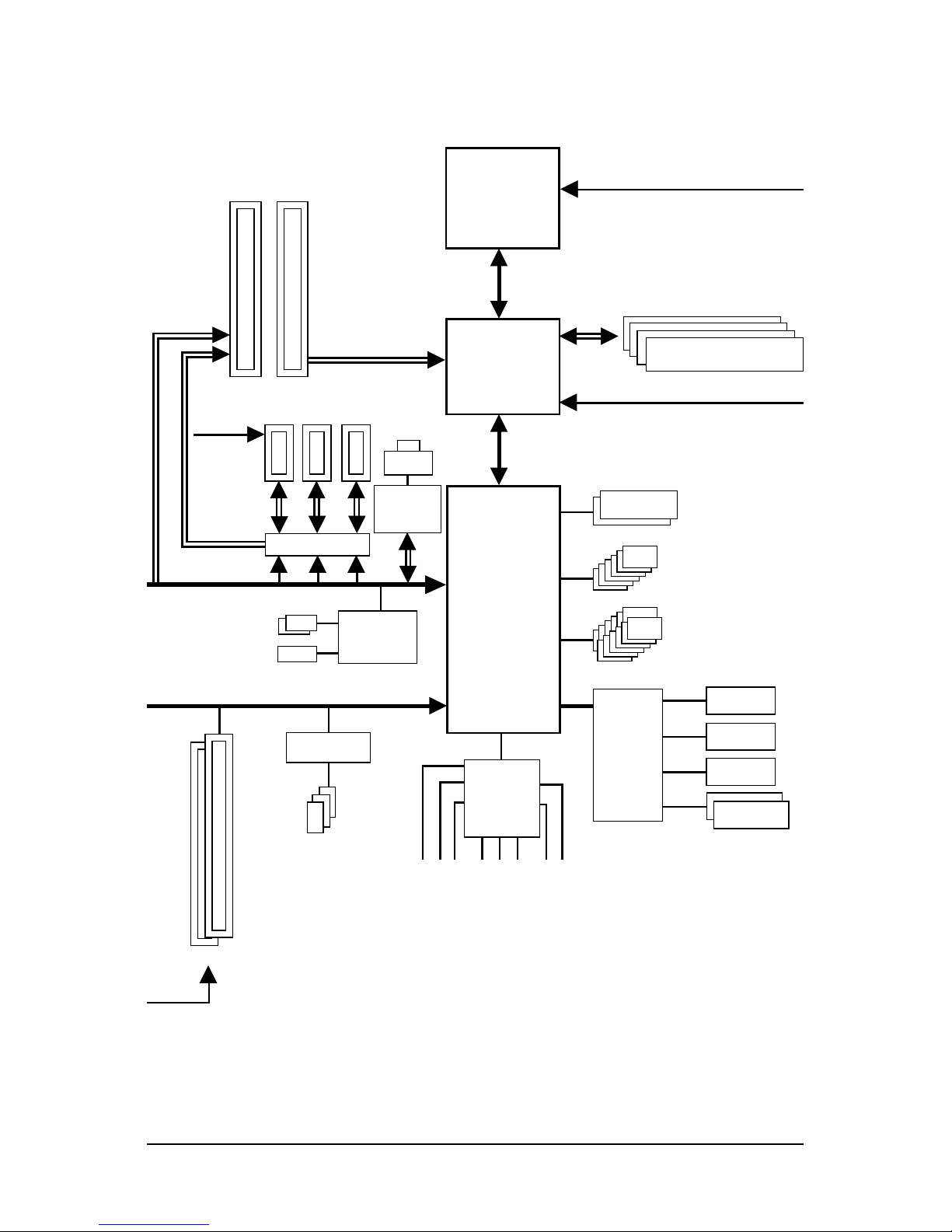

Block Diagram
LGA775
Processor
Host
Interface
Intel®
P35
MCH CLK (333/266/200 MHz)
DDR3 1333/1066/800 MHz
Intel®
ICH9R
Dual BIOS
2 PCI
PCI Bus
Dual Channel Memory
6 SATA 3Gb/s
PCI CLK
(33 MHz)
3 IEEE 1394a
12 USB Ports
IT8718
Floppy
PS/2 KB/Mouse
LPT Port
COM Port
CPU CLK+/- (333/266/200 MHz)
TSB43AB23
Center/Subwoofer Speaker Out
Line-Out
MIC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
3 PCI Express x1
PCI Express Bus
RTL
8111B
x1
LAN
RJ45
x1
PCIe CLK
(100 MHz)
PCI Express x16
PCI Express x1
2 SATA 3Gb/s
ATA-133/100/66/
33 IDE Channel
GIGABYTE
SATA2
Switch
x1 x1
PCI Express x3
PCIe CLK
(100 MHz)

Hardware Installation- 9 -
English
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can become
damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's
manual and follow these procedures:
•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
•Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
•When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
•When handling the motherboard, avoid touching any metal leads or connectors.
•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic
components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keep your hands dry and first touch a metal object to eliminate static electricity.
•Prior to installing the motherboard, please have it on top of an antistatic pad or within a
electrostatic shielding container.
•Before unplugging the power supply cable from the motherboard, make sure the power supply
has been turned off.
•Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
•Before using the product, please verify that all cables and power connectors of your hardware
components are connected.
•To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
•Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
•Do not place the computer system on an uneven surface
.
•Do not place the computer system in a high-temperature environment.
•Turning on the computer power during the installation process can lead to damage to system
components as well as physical harm to the user.
•If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certified computer technician.
Chapter 1 Hardware Installation

GA-P35T-DS4 Motherboard - 10 -
English
1-2 Product Specifications
CPU Support for an Intel®CoreTM 2 Extreme processor/
Intel®CoreTM 2 Quad processor/Intel®CoreTM 2 Duo processor/
Intel®Pentium®processor Extreme Edition/Intel®Pentium®D processor/
Intel®Pentium®4 processor Extreme Edition/Intel®Pentium®4 processor/
Intel®Celeron®D processor in the LGA 775 package
(Go to GIGABYTE's website for the latest CPU support list.)
Support for Intel®Hyper-Threading Technology
L2 cache varies with CPU
Front Side Bus 1333/1066/800 MHz FSB
Chipset North Bridge: Intel®P35 Express Chipset
South Bridge: Intel®ICH9R
Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note1)
Dual channel memory architecture
Support for DDR3 1333/1066/800 MHz memory modules
(Go to GIGABYTE's website for the latest memory support list.)
Audio Realtek ALC889A codec
High Definition Audio
2/4/5.1/7.1-channel
Support for DTS (dts NEO:PC)
Support for Dolby Digital Live
Support for S/PDIF In/Out
Support for CD In
LAN Realtek 8111B chip (10/100/1000 Mbit)
Expansion Slots 2 x PCI Express x16 slots
(The PCIE_16_1 slot supports x16; the PCIE_16_2 supports x4.)
3 x PCI Express x1 slots (share with the PCIE_16_2 slot) (Note 2)
2 x PCI slots
Storage Interface South Bridge:
- 1 x floppy disk drive connector supporting up to 1 floppy disk drive
- 6 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3,
SATAII4, SATAII5) supporting up to 6 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
GIGABYTE SATA2 chip:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 2 x SATA 3 Gb/s connectors (GSATAII0, GSATAII1) supporting up to
2 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, and JBOD
IEEE 1394 T.I. TSB43AB23 chip
Up to 3 IEEE 1394a ports (1 on the back panel, 2 via the IEEE 1394 bracket
connected to the internal IEEE 1394 headers)

Hardware Installation- 11 -
English
USB Integrated in the South Bridge
Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets
connected to the internal USB headers)
Internal Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin PCIe 12V power connector
1 x floppy disk drive connector
1 x IDE connector
8 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x north bridge fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF In header
4 x USB 2.0/1.1 headers
2 x IEEE 1394a headers
1 x chassis intrusion header
1 x power LED header
Back Panel 1 x PS/2 keyboard port
Connectors 1 x PS/2 mouse port
1 x parallel port
1 x coaxial S/PDIF Out connector
1 x optical S/PDIF Out connector
1 x serial port
4 x USB 2.0/1.1 ports
1 x IEEE 1394a port
1 x RJ-45 port
6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side
Speaker Out/Line In/Line Out/Microphone)
I/O Controller iTE IT8718 chip
Hardware Monitor System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU fan speed control

GA-P35T-DS4 Motherboard - 12 -
English
(Note 1) Due to Windows XP 32-bit operating system limitation, when more than 4 GB of physical
memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) When the second PCI Express x16 slot (PCIE_16_2) is in use, the three PCI Express x1 slots
become unavailable.
(Note 3) Available functions in Easytune may differ by motherboard model.
(Note 4) The adjustable CPU voltage range depends on the CPU being used.
(Note 5) Due to chipset limitation, Intel ICH9R RAID driver does not support Windows 2000 operating
system.
BIOS 2 x 8 Mbit flash
Use of licensed AWARD BIOS
Support for Dual BIOSTM
PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
Unique Features Support for @BIOS
Support for Download Center
Support for Q-Flash
Support for EasyTune (Note 3)
Support for Xpress Install
Support for Xpress Recovery2
Support for Virtual Dual BIOS
Bundled Software Norton Internet Security (OEM version)
Overclocking Voltage adjustments in BIOS Setup (CPU/DDR3/PCIe/FSB/(G)MCH)
allow you to:
- Increase CPU voltage with 0.025V increment (Note 4)
- Increase DDR3 voltage by 0.05V to 1.55V with 0.05V increment
- Increase PCIe voltage by 0.05V to 0.35V with 0.05V increment
- Increase FSB voltage by 0.05V to 0.35V with 0.05V increment
- Increase (G)MCH voltage by 0.025V to 0.025V with 0.375V increment
Frequency adjustments in BIOS Setup (CPU/DDR3/PCI-E) allow you to:
- Adjust CPU host frequency from 100 MHz to 700 MHz with 1 MHz
increment
- Adjust DDR3 frequency
- Adjust PCI Express x16 frequency from 90 MHz to 150 MHz with
1 MHz increment
Operating System Support for Microsoft®Windows®Vista/XP/2000(Note 5)
Form Factor ATX Form Factor; 30.5cm x 24.4cm

Hardware Installation- 13 -
English
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
•Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
•Always turn off the computer and unplug the power cord from the power outlet before
installing the CPU to prevent hardware damage.
•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you
may locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
•Apply an even and thin layer of thermal grease on the surface of the CPU.
•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and
damage of the CPU may occur.
•Set the CPU host frequency in accordance with the CPU specifications. It is not recom-
mended that the system bus frequency be set beyond hardware specifications since it
does not meet the standard requirements for the peripherals. If you wish to set the fre-
quency beyond the standard specifications, please do so according to your hardware
specifications including the CPU, graphics card, memory, hard drive, etc.

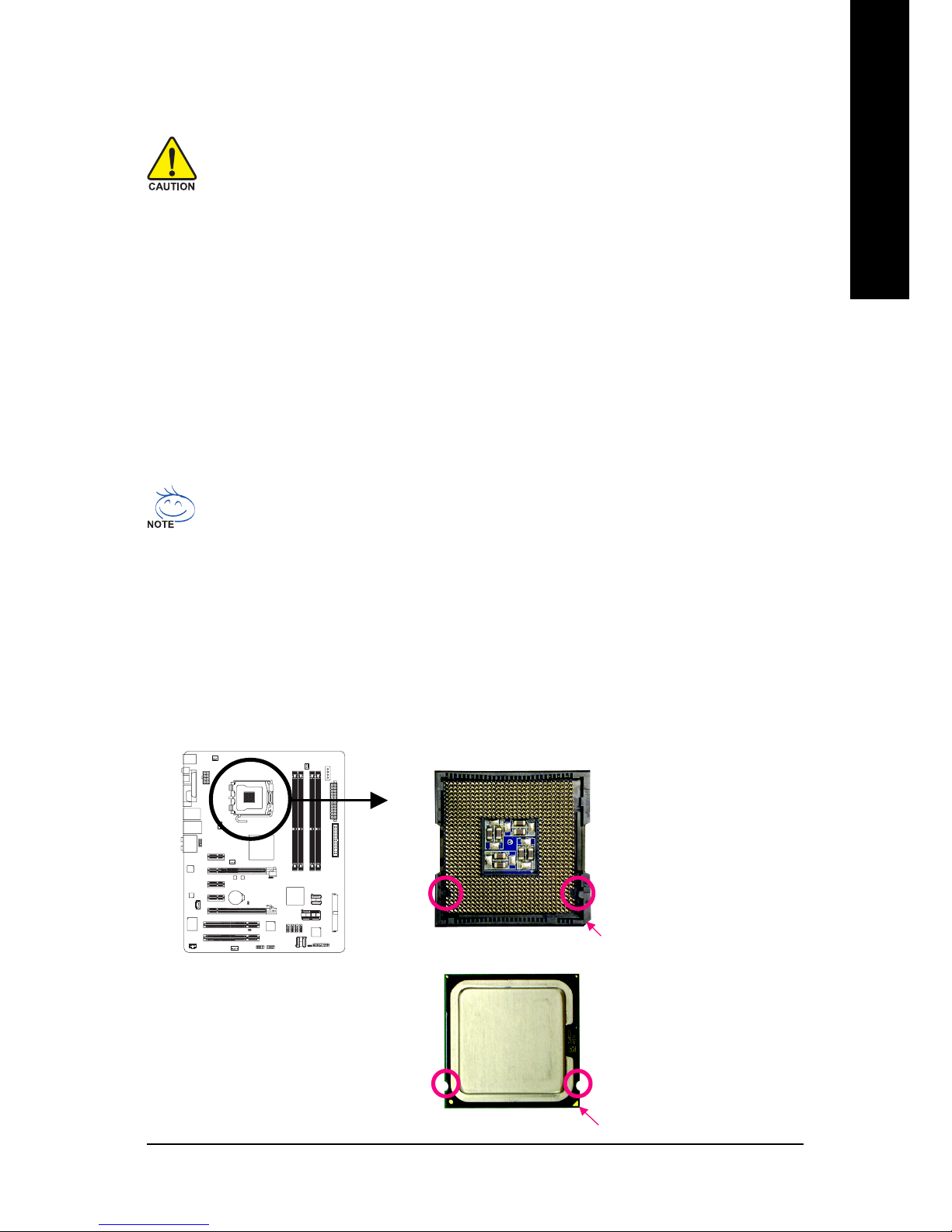

1-3-1 Installing the CPU
A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
NotchNotch
Alignment Key
Alignment Key
LGA 775 CPU
LGA775 CPU Socket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU
Hyper-Threading Technology System Requirements:
(Go to Intel's website for more information about the Hyper-Threading Technology)
•An Intel®CPU that supports HT Technology
•A chipset that supports HT Technology
•An operating system that is optimized for HT Technology
•A BIOS that supports HT Technology and has it enabled
(Refer to Chapter 2, "BIOS Setup," "Advanced BIOS Features," for instructions on enabling
the HT Technology.)

GA-P35T-DS4 Motherboard - 14 -
English
B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
Step 2:
Remove the protective socket cover.
Step 4:
Hold the CPU with your thumb and index
fingers. Align the CPU pin one marking (triangle)
with the pin one corner of the CPU socket (or
you may align the CPU notches with the socket
alignment keys) and gently insert the CPU
into position.
Step 3:
Lift the metal load plate on the CPU socket.
Step 5:
Once the CPU is properly inserted, replace
the load plate and push the CPU socket lever
back into its locked position.
Before installing the CPU, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the CPU.
Step 1:
Completely raise the CPU socket lever.
CPU Socket Lever

Hardware Installation- 15 -
English
Use extreme care when removing the CPU cooler because the thermal grease/tape between
the CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may
damage the CPU.
Step 3:
Place the cooler atop the CPU, aligning the
four push pins through the pin holes on the
motherboard. Push down on the push pins
diagonally.
Step 4:
You should hear a "click" when pushing down each
push pin. Check that the Male and Female push pins
are joined closely. (Refer to your CPU cooler instal-
lation manual for instructions on installing the cooler.)
Step 5:
After the installation, check the back of the
motherboard. If the push pin is inserted as the
picture above, the installation is complete.
Step 6:
Finally, attach the power connector of the CPU
cooler to the CPU fan header (CPU_FAN) on
the motherboard.
1-3-2 Installing the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the motherboard. (The following procedure
uses Intel®boxed cooler as the example cooler.)
Step 1:
Apply an even and thin layer of thermal grease
on the surface of the installed CPU.
Step 2:
Before installing the cooler, note the direction
of the arrow sign on the male push pin.
(Turning the push pin along the direction of
arrow is to remove the cooler, on the contrary,
is to install.)
Male
Push Pin
Female
Push Pin
The Top
of Female
Push Pin
Direction of
the Arrow Sign
on the Male
Push Pin

GA-P35T-DS4 Motherboard - 16 -
English
1-4 Installing the Memory
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of
the same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest memory support list.)
•Always turn off the computer and unplug the power cord from the power outlet before
installing the memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.
DDRIII1 DDRIII2 DDRIII3 DDRIII4

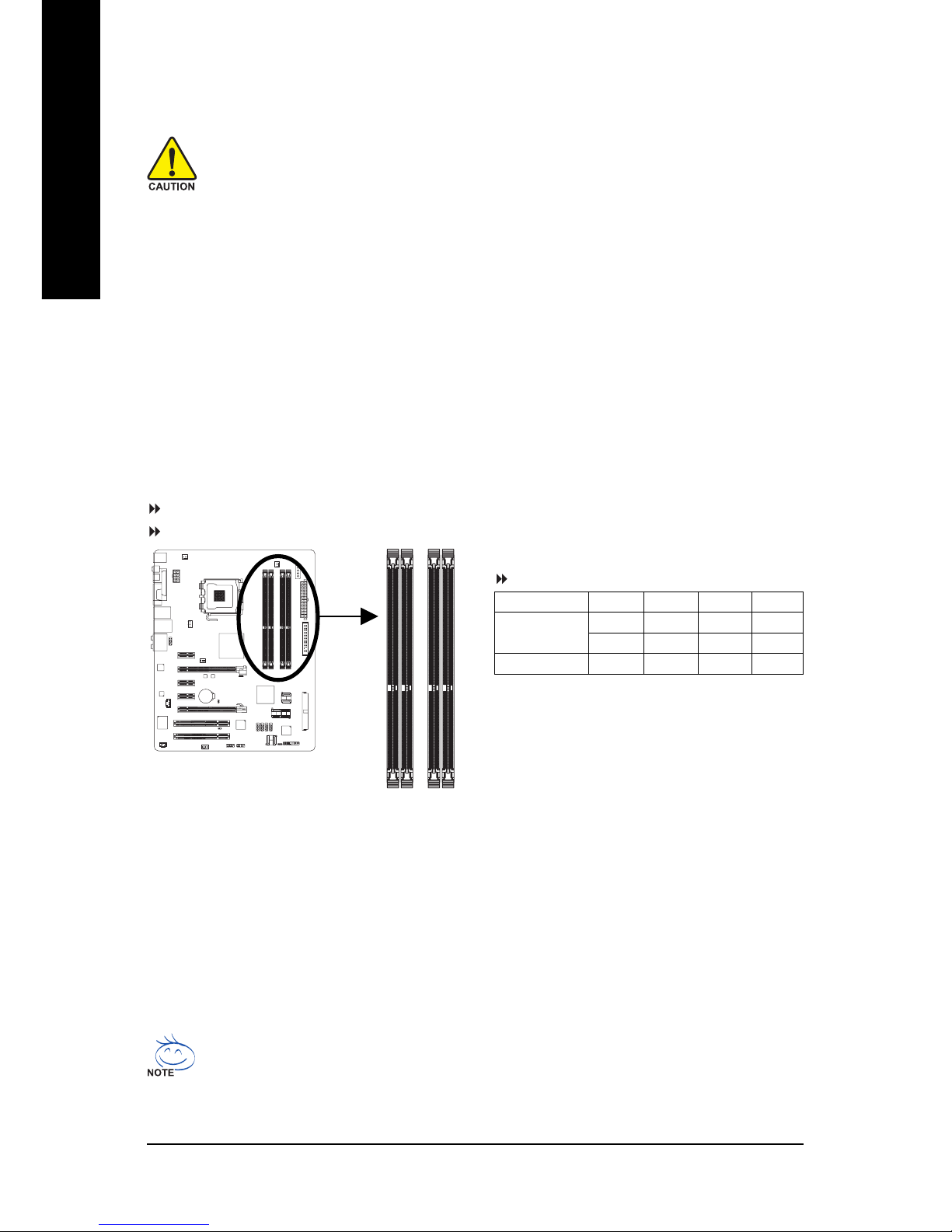

1-4-1 Dual Channel Memory Configuration
This motherboard provides four DDR3 memory sockets and supports Dual Channel Technology. After
the memory is installed, the BIOS will automatically detect the specifications and capacity of the
memory. Enabling Dual Channel memory mode will double the original memory bandwidth.
The four DDR3 memory sockets are divided into two channels and each channel has two memory
sockets as following:
Channel 0: DDRIII1, DDRIII2
Channel 1: DDRIII3, DDRIII4
Due to chipset limitation, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.
2. When enabling Dual Channel mode with two or four memory modules, it is recommended that
memory of the same capacity, brand, speed, and chips be used and installed in the same
colored DDR3 sockets for optimum performance.
When memory modules of different capacity and chips are installed, a message which says
memory is operating in Flex Memory Mode will appear during the POST. Intel®Flex Memory
Technology offers greater flexibility to upgrade by allowing different memory sizes to be
populated and remain in Dual Channel mode/performance.
Two Modules
Four Modules
DDRIII1 DDRIII2 DDRIII3 DDRIII4
DS/SS - - DS/SS - -
- - DS/SS - - DS/SS
DS/SS DS/SS DS/SS DS/SS
Dual Channel Memory Configurations Table
(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

Hardware Installation- 17 -
English
1-4-2 Installing a Memory
Step 1:
Note the orientation of the memory module. Spread the retaining
clips at both ends of the memory socket. Place the memory
module on the socket. As indicated in the picture on the left,
place your fingers on the top edge of the memory, push down
on the memory and insert it vertically into the memory socket.
Notch
Step 2:
The clips at both ends of the socket will snap into place when
the memory module is securely inserted.
A DDR3 memory module has a notch, so it can only fit in one direction. Follow the steps below to
correctly install your memory modules in the memory sockets.
Before installing a memory module, make sure to turn off the computer and unplug
the power cord from the power outlet to prevent damage to the memory module.
DDR3 and DDR2 DIMMs are not compatible to each other or DDR DIMMs. Be sure to
install DDR3 DIMMs on this motherboard.
DDR3 DIMM

GA-P35T-DS4 Motherboard - 18 -
English
1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
•Make sure the motherboard supports the expansion card. Carefully read the manual that
came with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before
installing an expansion card to prevent hardware damage.
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for
your expansion card(s).
7. Install the driver provided with the expansion card in your operating system.
Example: Installing and Removing a PCI Express x16 Graphics Card:
•Installing a Graphics Card:
Gently insert the graphics card into the PCI Ex-
press x16 slot. Make sure the small white-draw-
able bar securely locks the graphics card.
•Removing the Card from the PCIE_16_1 Slot:
Pull out the small white-drawable bar at the end of the PCI Express x16 slot
to release the card and then pull the card straight up from the slot.
You can also press the latch on the back of the white-drawable bar to
release the card.
PCI Slot
PCI Express x1 Slot
PCI Express x16 Slot (PCIE_16_2)
PCI Express x16 Slot (PCIE_16_1)

Hardware Installation- 19 -
English
•The motherboard provides a PCIE_12V power connector, which can sup-
ply extra power to the onboard PCI Express x16 slots. When you install
two graphics cards, connect the power cable from your power supply to
this connector.
•Removing the Card from the PCIE_16_2 Slot:
Press the white latch at the end of the PCI Express x16 slot to release the
card and then pull the card straight up from the slot.

GA-P35T-DS4 Motherboard - 20 -
English

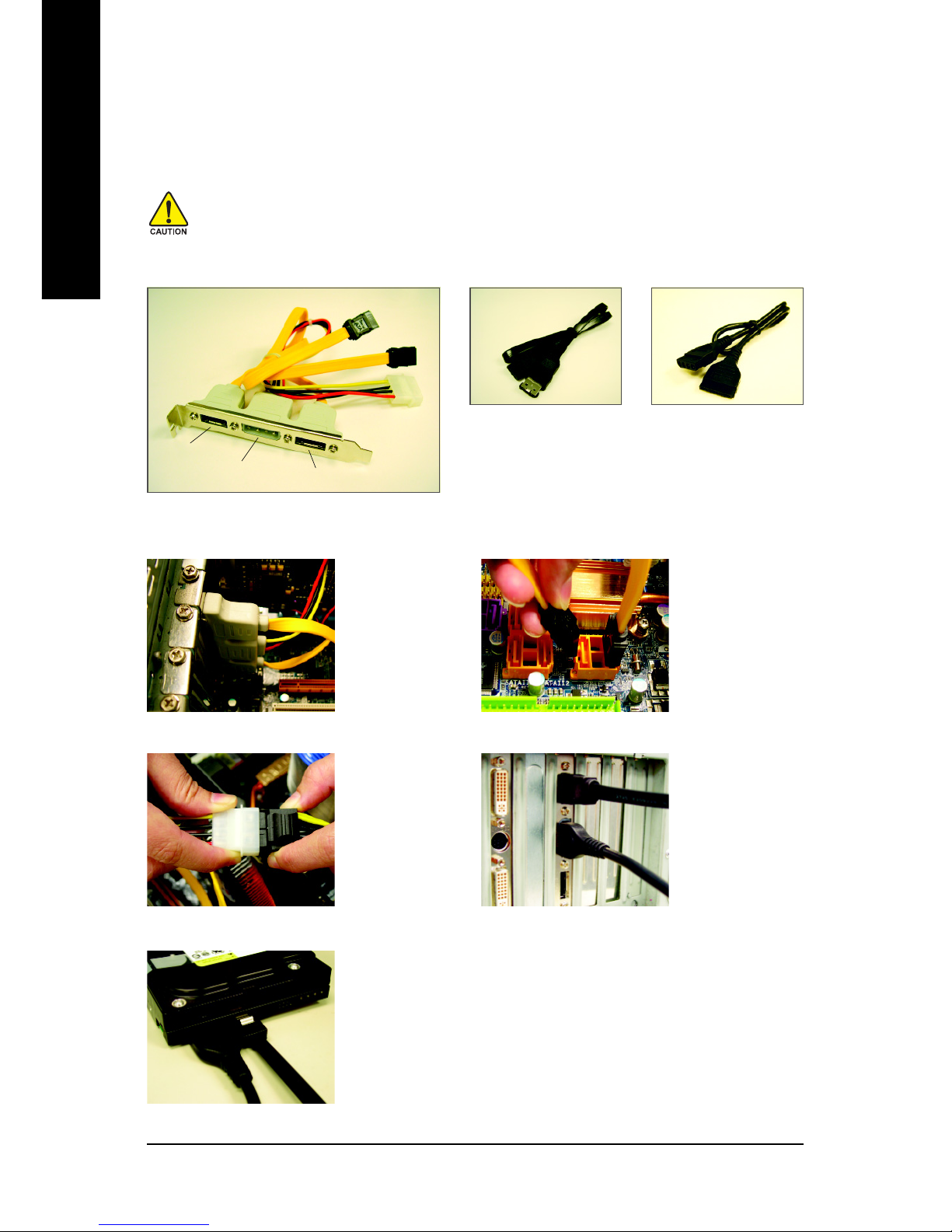

1-6 Installing the SATA Bracket
The SATA bracket includes one SATA bracket, one
SATA signal cable, and one SATA power cable.
SATA Bracket SATA Power CableSATA Signal Cable
Step 1:
Locate one free PCI
slot and secure the
SATA bracket to the
chassis back panel
with a screw.
Follow the steps below to install the SATA bracket:
Step 2:
Connect the SATA
cable from the
bracket to the SATA
port on your
motherboard.
Step 3:
Connect the power
cable from the
bracket to the power
supply.
Step 4:
Plug one end of the
SATA signal cable into
the external SATA
connector on the
bracket. Then attach
the SATA power cable
to the power connec-
tor on the bracket.
External
SATA
Connector Power
Connector External SATA
Connector
The SATA bracket allows you to connect external SATA device(s) to your system by expanding the
internal SATA port(s) to the chassis back panel.
•Turn off your system and the power switch on the power supply before installing or
removing the SATA bracket and SATA power cable to prevent damage to hardware.
•Insert the SATA signal cable and SATA power cable securely into the corresponding connec-
tors when installing.

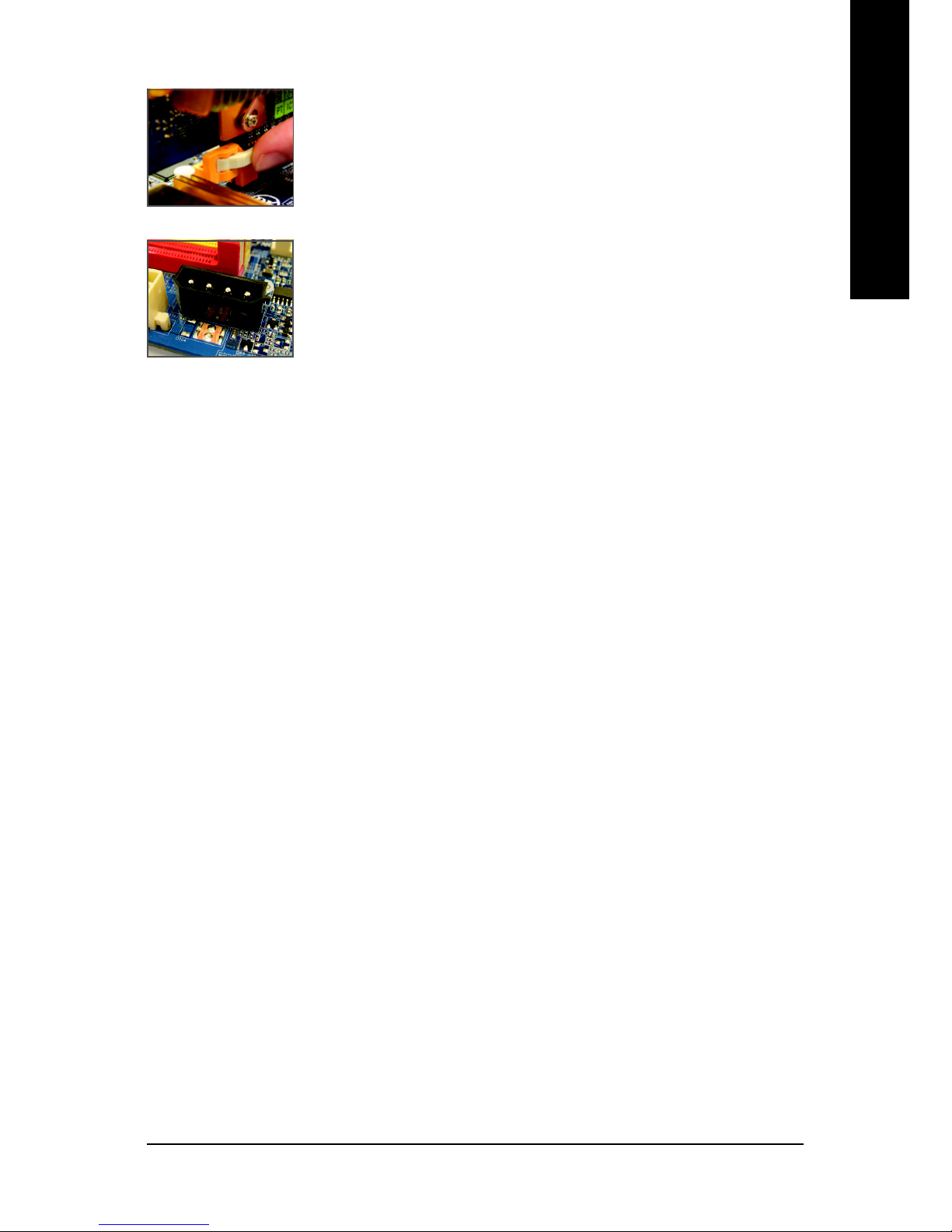

Step 5:
Connect the other ends of the SATA signal cable and SATA power cable
to your SATA device. For SATA device in external enclosure, you only
need to connect the SATA signal cable. Before connecting the SATA signal
cable, make sure to turn off the power of the external enclosure.
