Gigabyte GA-P41T-D3P (rev. 1.3) User manual

GA-P41T-D3P
LGA775 socket motherboard for Intel®Core™ processor family/
Intel®Pentium®processor family/Intel®Celeron®processor family
User's Manual
Rev. 1301
12ME-P41TD3P-1301R

Motherboard
GA-P41T-D3P
Dec. 27, 2010
Dec. 27, 2010
Motherboard
GA-P41T-D3P

Copyright
©2011 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.
Disclaimer
Information in this manual is protected by copyright laws and is the property of GIGABYTE.
Changes to the specications and features in this manual may be made by GIGABYTE with-
out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or
published in any form or by any means without GIGABYTE's prior written permission.
Documentation Classications
In order to assist in the use of this product, GIGABYTE provides the following types of documentations:
For quick set-up of the product, read the Quick Installation Guide included with the product.
For detailed product information, carefully read the User's Manual.
For product-related information, check on our website at:
http://www.gigabyte.com
Identifying Your Motherboard Revision
The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"
means the revision of the motherboard is 1.0. Check your motherboard revision before updating
motherboard BIOS, drivers, or when looking for technical information.

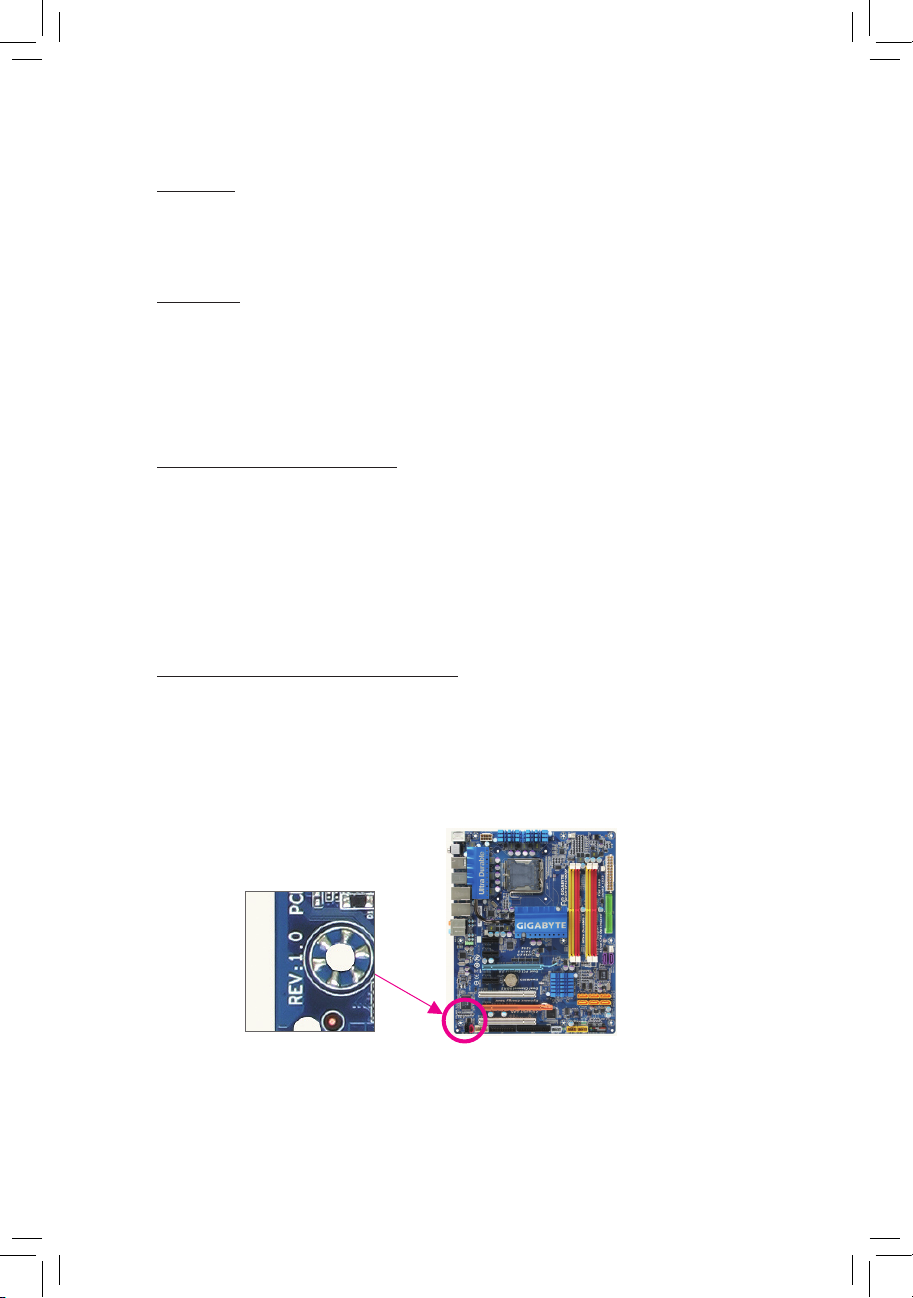

Example:

- 4 -
Table of Contents
Box Contents...................................................................................................................6
Optional Items .................................................................................................................6
GA-P41T-D3P Motherboard Layout ................................................................................7
GA-P41T-D3P Motherboard Block Diagram....................................................................8
Chapter 1 Hardware Installation .....................................................................................9
1-1 Installation Precautions.................................................................................... 9
1-2 Product Specications.................................................................................... 10
1-3 Installing the CPU and CPU Cooler ............................................................... 13
1-3-1 Installing the CPU...................................................................................................13
1-3-2 Installing the CPU Cooler .......................................................................................15
1-4 Installing the Memory..................................................................................... 16
1-4-1 Dual Channel Memory Conguration .....................................................................16
1-4-2 Installing a Memory ...............................................................................................17
1-5 Installing an Expansion Card ......................................................................... 18
1-6 Back Panel Connectors.................................................................................. 19
1-7 Internal Connectors........................................................................................ 21
Chapter 2 BIOS Setup ..................................................................................................29
2-1 Startup Screen ............................................................................................... 30
2-2 The Main Menu .............................................................................................. 31
2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 33
2-4 Standard CMOS Features.............................................................................. 40
2-5 Advanced BIOS Features .............................................................................. 42
2-6 Integrated Peripherals.................................................................................... 45
2-7 Power Management Setup............................................................................. 48
2-8 PnP/PCI Congurations ................................................................................. 50
2-9 PC Health Status............................................................................................ 51
2-10 Load Fail-Safe Defaults.................................................................................. 52
2-11 Load Optimized Defaults................................................................................ 52
2-12 Set Supervisor/User Password ...................................................................... 53
2-13 Save & Exit Setup .......................................................................................... 54
2-14 Exit Without Saving........................................................................................ 54

- 5 -
Chapter 3 Drivers Installation........................................................................................55
3-1 Installing Chipset Drivers ............................................................................... 55
3-2 Application Software ...................................................................................... 56
3-3 Technical Manuals.......................................................................................... 56
3-4 Contact........................................................................................................... 57
3-5 System ........................................................................................................... 57
3-6 Download Center ........................................................................................... 58
3-7 New Utilities ................................................................................................... 58
Chapter 4 Unique Features...........................................................................................59
4-1 Xpress Recovery2.......................................................................................... 59
4-2 BIOS Update Utilities ..................................................................................... 62
4-2-1 Updating the BIOS with the Q-Flash Utility.............................................................62
4-2-2 Updating the BIOS with the @BIOS Utility .............................................................65
4-3 EasyTune 6 .................................................................................................... 66
4-4 Easy Energy Saver ........................................................................................ 67
4-5 Q-Share.......................................................................................................... 69
4-6 SMART Recovery........................................................................................... 70
Chapter 5 Appendix ......................................................................................................71
5-1 Conguring Audio Input and Output............................................................... 71
5-1-1 Conguring 2/4/5.1/7.1-Channel Audio...................................................................71
5-1-2 Conguring S/PDIF Out..........................................................................................74
5-1-3 Conguring Microphone Recording........................................................................75
5-1-4 Using the Sound Recorder .....................................................................................77
5-2 Troubleshooting.............................................................................................. 78
5-2-1 Frequently Asked Questions ..................................................................................78
5-2-2 Troubleshooting Procedure ....................................................................................79

- 6 -
Box Contents
GA-P41T-D3P motherboard
Motherboard driver disk
User's Manual
Quick Installation Guide
One IDE cable
Two SATA cables
I/O Shield
Optional Items
Floppy disk drive cable (Part No. 12CF1-1FD001-7*R)
2-port USB 2.0 bracket (Part No. 12CR1-1UB030-5*R)
2-port SATA power cable (Part No. 12CF1-2SERPW-0*R)
•The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
•The motherboard image is for reference only.

- 7 -
GA-P41T-D3P Motherboard Layout
KB_MS
COAXIAL
CPU_FAN
LGA775
ATX
GA-P41T-D3P
USB LAN
CD_IN
F_AUDIO
AUDIO
B_BIOS
M_BIOS
PCIEX16
IDE
SPDIF_O
DDR3_1 DDR3_2
BAT
F_PANEL
SATA2_1
ATX_12V
Intel®G41
Intel®ICH7
FDD
SATA2_0
PCI1
PCI2
R_USB
CLR_CMOS
COMA
CODEC
F_USB1 F_USB2
SYS_FAN1
LPT
SATA2_3
SATA2_2
PCIEX1_1
PCIEX1_2
PCIEX1_3
PCI3
SYS_FAN2
PWR_FAN
Realtek
RTL8111C/D/E
iTE
IT8718

- 8 -

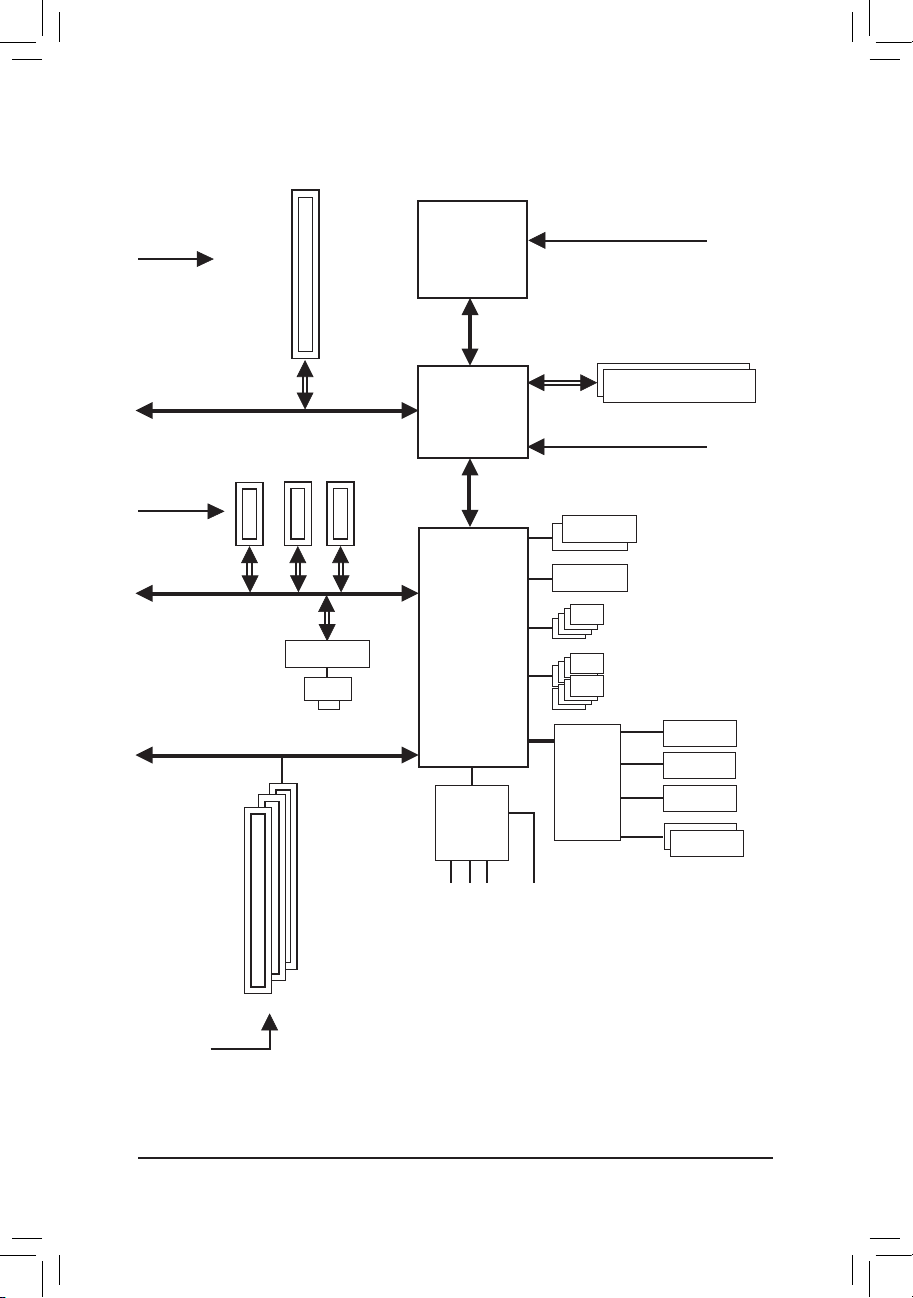

GA-P41T-D3P Motherboard Block Diagram
PS/2 KB/Mouse
8 USB 2.0/1.1
LGA775
Processor
Host
Interface
Intel®G41
MCH CLK
(333/266/200 MHz)
Intel®ICH7
3 PCI
PCI Bus
Dual Channel Memory
PCI CLK
(33 MHz)
PCI Express x16
Floppy
CPU CLK+/-
(333/266/200 MHz)
3 PCI Express x1
PCI Express Bus
PCIe CLK
(100 MHz)
PCIe CLK
(100 MHz)
x1
x1
4 SATA 3Gb/s
ATA-100/66/33
IDE Channel
Dual BIOS
COM Port
LAN
RJ45
Line-Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line-In (Rear Speaker Out)
S/PDIF Out
CODEC
LPT
x1 x1
x16
1 PCI Express x16
DDR3 1333(O.C.)/1066/800 MHz
Realtek
RTL8111C/D/E
iTE
IT8718

- 9 - Hardware Installation
1-1 Installation Precautions
The motherboard contains numerous delicate electronic circuits and components which can
become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read
the user's manual and follow these procedures:
• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or
warranty sticker provided by your dealer. These stickers are required for warranty validation.
• Always remove the AC power by unplugging the power cord from the power outlet before
installing or removing the motherboard or other hardware components.
• When connecting hardware components to the internal connectors on the motherboard,
make sure they are connected tightly and securely.
• When handling the motherboard, avoid touching any metal leads or connectors.
• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-
ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,
keep your hands dry and rst touch a metal object to eliminate static electricity.
• Prior to installing the motherboard, please have it on top of an antistatic pad or within an
electrostatic shielding container.
• Before unplugging the power supply cable from the motherboard, make sure the power sup-
ply has been turned off.
• Before turning on the power, make sure the power supply voltage has been set according to
the local voltage standard.
• Before using the product, please verify that all cables and power connectors of your hard-
ware components are connected.
• To prevent damage to the motherboard, do not allow screws to come in contact with the
motherboard circuit or its components.
• Make sure there are no leftover screws or metal components placed on the motherboard or
within the computer casing.
• Do not place the computer system on an uneven surface .
• Do not place the computer system in a high-temperature environment.
• Turning on the computer power during the installation process can lead to damage to sys-
tem components as well as physical harm to the user.
• If you are uncertain about any installation steps or have a problem related to the use of the
product, please consult a certied computer technician.
Chapter 1 Hardware Installation

Hardware Installation - 10 -
1-2 Product Specications
CPU Support for an Intel
®Core™ 2 Extreme processor/
Intel®Core™ 2 Quad processor/Intel®Core™ 2 Duo processor/
Intel®Pentium®processor/Intel®Celeron®processor in the LGA775 package
(Go to GIGABYTE's website for the latest CPU support list.)
L2 cache varies with CPU

Front Side Bus 1333/1066/800 MHz FSB

Chipset North Bridge: Intel
®G41 Express Chipset
South Bridge: Intel
®ICH7
Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory

* Due to standard PC architecture, a certain amount of memory is reserved for
system usage, the actual memory size displayed will be less than 4 GB.
Dual channel memory architecture

Support for DDR3 1333(O.C.)/1066/800 MHz memory modules

Support for non-ECC memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and
memory modules.)
Audio Realtek ALC888/889/892 codec

High Denition Audio

2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you need connect with the port of HD Audio
standard via front panel and enable the multi-channel audio feature through the
audio driver.
Support for S/PDIF Out

Support for CD In

LAN 1 x Realtek RTL8111C/D/E chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot, running at x16

3 x PCI Express x1 slots

3 x PCI slots

Storage
Interface
South Bridge:

- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718 chip:

- 1 x oppy disk drive connector supporting up to 1 oppy disk drive
USB South Bridge:

- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets
connected to the internal USB headers)

- 11 - Hardware Installation
Internal
Connectors
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x oppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
2 x system fan headers
1 x power fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x clearing CMOS jumper
Back Panel
Connectors
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x coaxial S/PDIF Out connector
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
I/O iTE IT8718
Hardware
Monitor
System voltage detection
CPU/System temperature detection
CPU/System/Power fan speed detection
CPU overheating warning
CPU/System/Power fan fail warning
CPU fan speed control
* Whether the CPU fan speed control function is supported will depend on the CPU
cooler you install.
BIOS 2 x 8 Mbit ash
Use of licensed AWARD BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Hardware Installation - 12 -
Unique Features Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune(Note 4)
Support for Easy Energy Saver (Note 5)
Support for Smart Recovery
Support for ON/OFF Charge
Support for Q-Share
Bundled Software Norton Internet Security (OEM version)
Operating System Support for Microsoft®Windows®7/Vista/XP
Form Factor ATX Form Factor; 30.5cm x 19.4cm
Unique Features Support for @BIOS
Support for Q-Flash
Support for Xpress BIOS Rescue
Support for Download Center
Support for Xpress Install
Support for Xpress Recovery2
Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
Support for Easy Energy Saver
* Due to the hardware limitation, you must install the Intel®CoreTM 2 Extreme/
CoreTM 2 Quad/ CoreTM 2 Duo/Pentium Dual-Core/Celeron Dual-Core/
Celeron 400 Series CPU to enable support for Easy Energy Saver.
Support for Smart Recovery
Support for ON/OFF Charge
Support for Q-Share
Bundled
Software Norton Internet Security (OEM version)
Operating
System Support for Microsoft®Windows 7/Vista/XP
Form Factor ATX Form Factor; 30.5cm x 19.4cm
* GIGABYTE reserves the right to make any changes to the product specications and product-related information
without prior notice.

- 13 - Hardware Installation
1-3 Installing the CPU and CPU Cooler
Read the following guidelines before you begin to install the CPU:
• Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)
• Always turn off the computer and unplug the power cord from the power outlet before installing
the CPU to prevent hardware damage.
• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)
• Apply an even and thin layer of thermal grease on the surface of the CPU.
• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and dam-
age of the CPU may occur.
• Set the CPU host frequency in accordance with the CPU specications. It is not recommended
that the system bus frequency be set beyond hardware specications since it does not meet the
standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications, please do so according to your hardware specications including the CPU, graph-
ics card, memory, hard drive, etc.
1-3-1 Installing the CPU

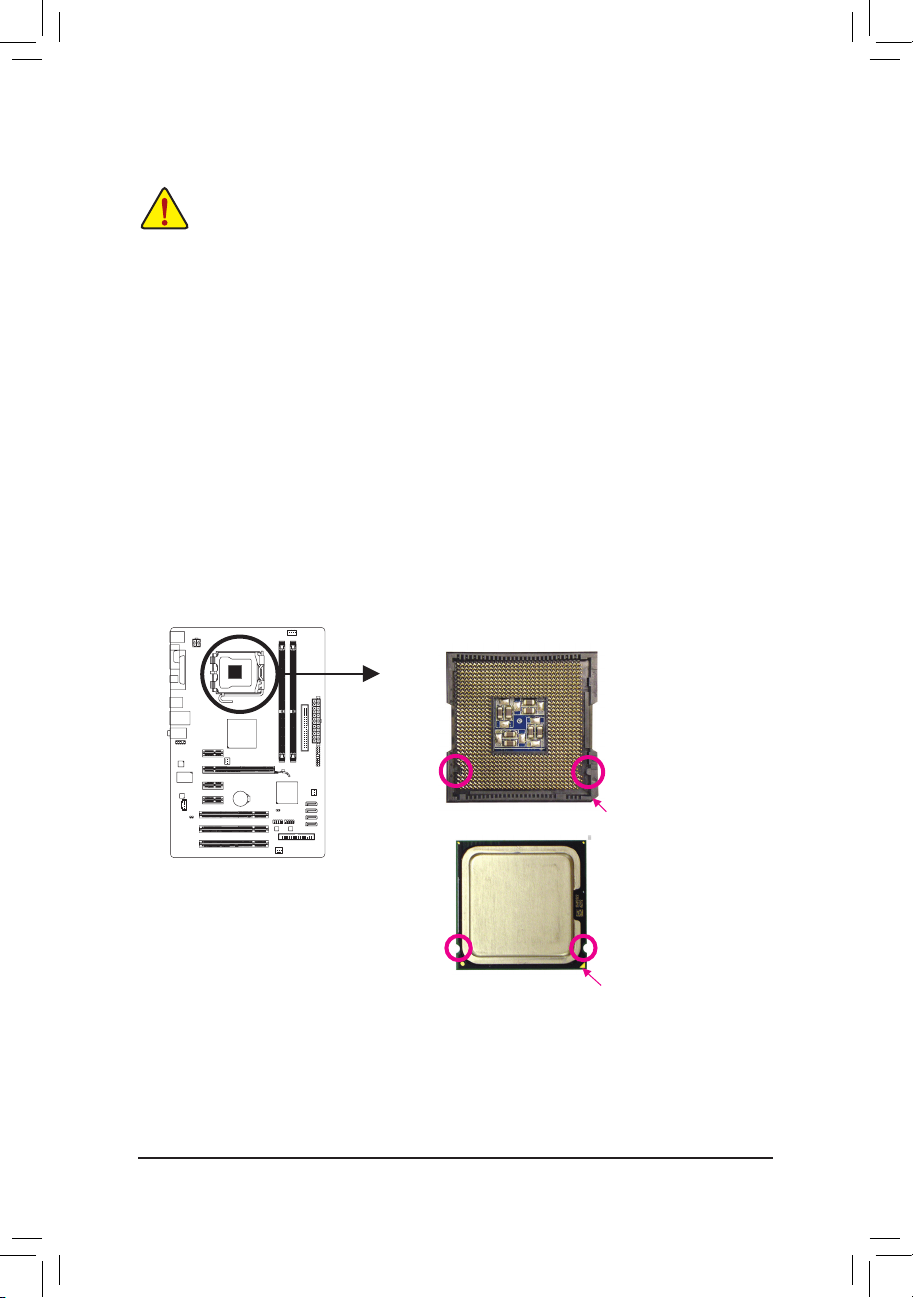

A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Notch Notch
Alignment KeyAlignment Key
LGA775 CPU
LGA775 CPU Socket
Pin One Corner of the CPU Socket
Triangle Pin One Marking on the CPU

Hardware Installation - 14 -
B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
Step 1:
Completely raise the CPU socket lever.
Step 3:
Remove the protective socket cover from the
load plate. (To protect the CPU socket, always
replace the protective socket cover when the
CPU is not installed.)
Step 5:
Once the CPU is properly inserted, replace the
load plate and push the CPU socket lever back
into its locked position.
Step 2:
Lift the metal load plate from the CPU socket.
(DO NOT touch socket contacts.)
Step 4:
Hold the CPU with your thumb and index ngers.
Align the CPU pin one marking (triangle) with the
pin one corner of the CPU socket (or you may
align the CPU notches with the socket alignment
keys) and gently insert the CPU into position.
CPU Socket Lever
Before installing the CPU, make sure to turn off the computer and unplug the power cord from
the power outlet to prevent damage to the CPU.

- 15 - Hardware Installation
1-3-2 Installing the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the motherboard. (The following procedure uses
Intel®boxed cooler as the example cooler.)
Step 1:
Apply an even and thin layer of thermal grease
on the surface of the installed CPU.
Male Push
Pin
Female
Push Pin
The Top
of Female
Push Pin
Direction of the
Arrow Sign on
the Male Push
Pin
Step 2:
Before installing the cooler, note the direction of
the arrow sign on the male push pin. (Turn-
ing the push pin along the direction of arrow is to
remove the cooler, on the contrary, is to install.)
Step 3:
Place the cooler atop the CPU, aligning the four
push pins through the pin holes on the mother-
board. Push down on the push pins diagonally.
Step 4:
You should hear a "click" when pushing down
each push pin. Check that the Male and Female
push pins are joined closely. (Refer to your CPU
cooler installation manual for instructions on
installing the cooler.)
Step 5:
After the installation, check the back of the moth-
erboard. If the push pin is inserted as the picture
above shows, the installation is complete.
Step 6:
Finally, attach the power connector of the CPU
cooler to the CPU fan header (CPU_FAN) on the
motherboard.
Use extreme care when removing the CPU cooler because the thermal grease/tape between the
CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler may damage
the CPU.

Hardware Installation - 16 -
1-4 Installing the Memory
Due to chipset limitation, read the following guidelines before installing the memory in Dual Channel mode.
1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.
2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of
the same capacity, brand, speed, and chips be used.
Read the following guidelines before you begin to install the memory:
•Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
( Go to GIGABYTE's website for the latest supported memory speeds and memory modules. )
•Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
•Memory modules have a foolproof design. A memory module can be installed in only one direc-
tion. If you are unable to insert the memory, switch the direction.
DDR3_1 DDR3_2
1-4-1 Dual Channel Memory Conguration

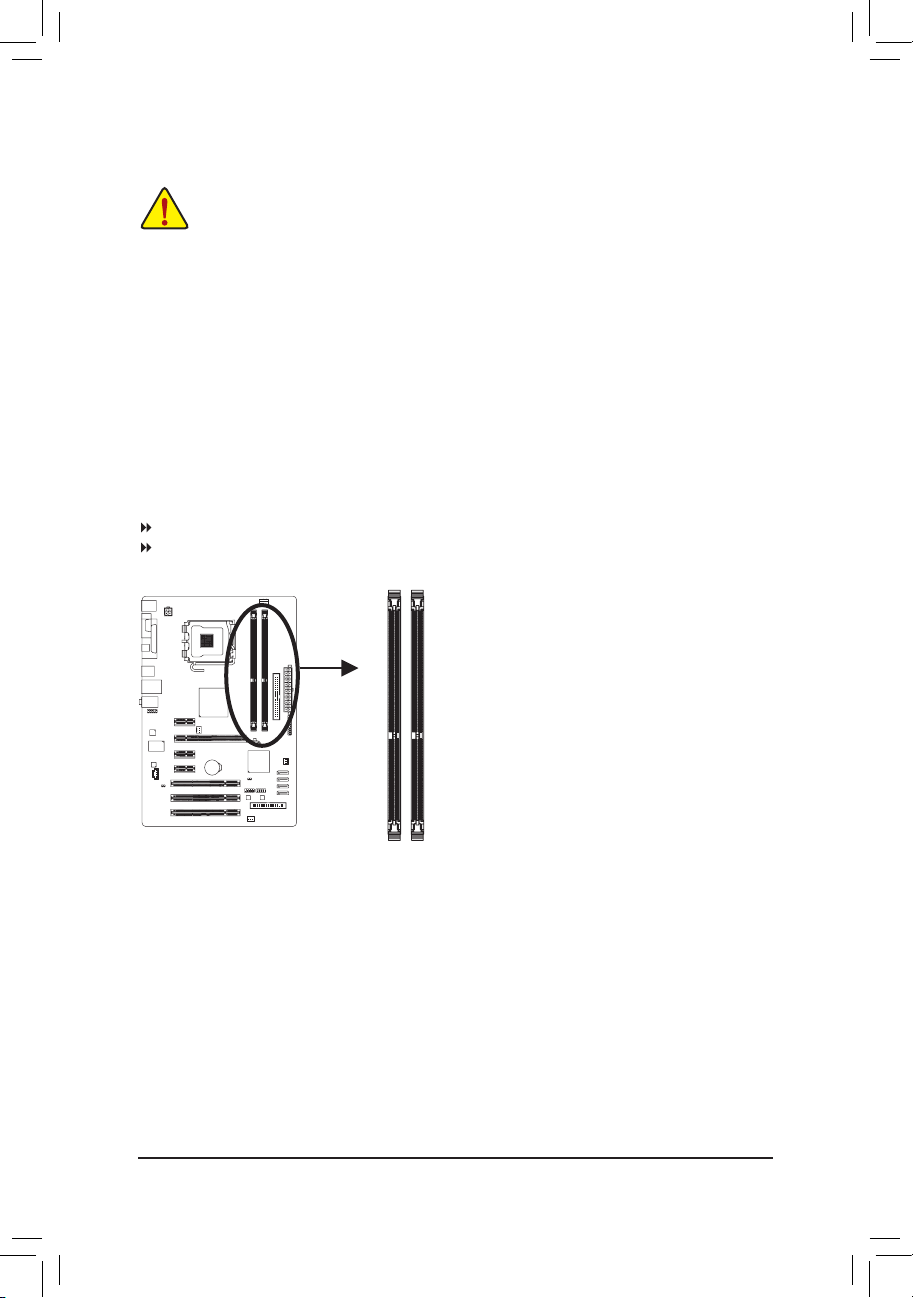

This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology. After the
memory is installed, the BIOS will automatically detect the specications and capacity of the memory. En-
abling Dual Channel memory mode will double the original memory bandwidth.
The two DDR3 memory sockets are divided into two channels and each channel has two memory sockets as
following:
Channel 0: DDR3_1
Channel 1: DDR3_2

- 17 - Hardware Installation
1-4-2 Installing a Memory
Before installing a memory module, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the memory module.
DDR3 and DDR2 DIMMs are not compatible to each other or DDR DIMMs. Be sure to install
DDR3 DIMMs on this motherboard.
Notch
DDR3 DIMM

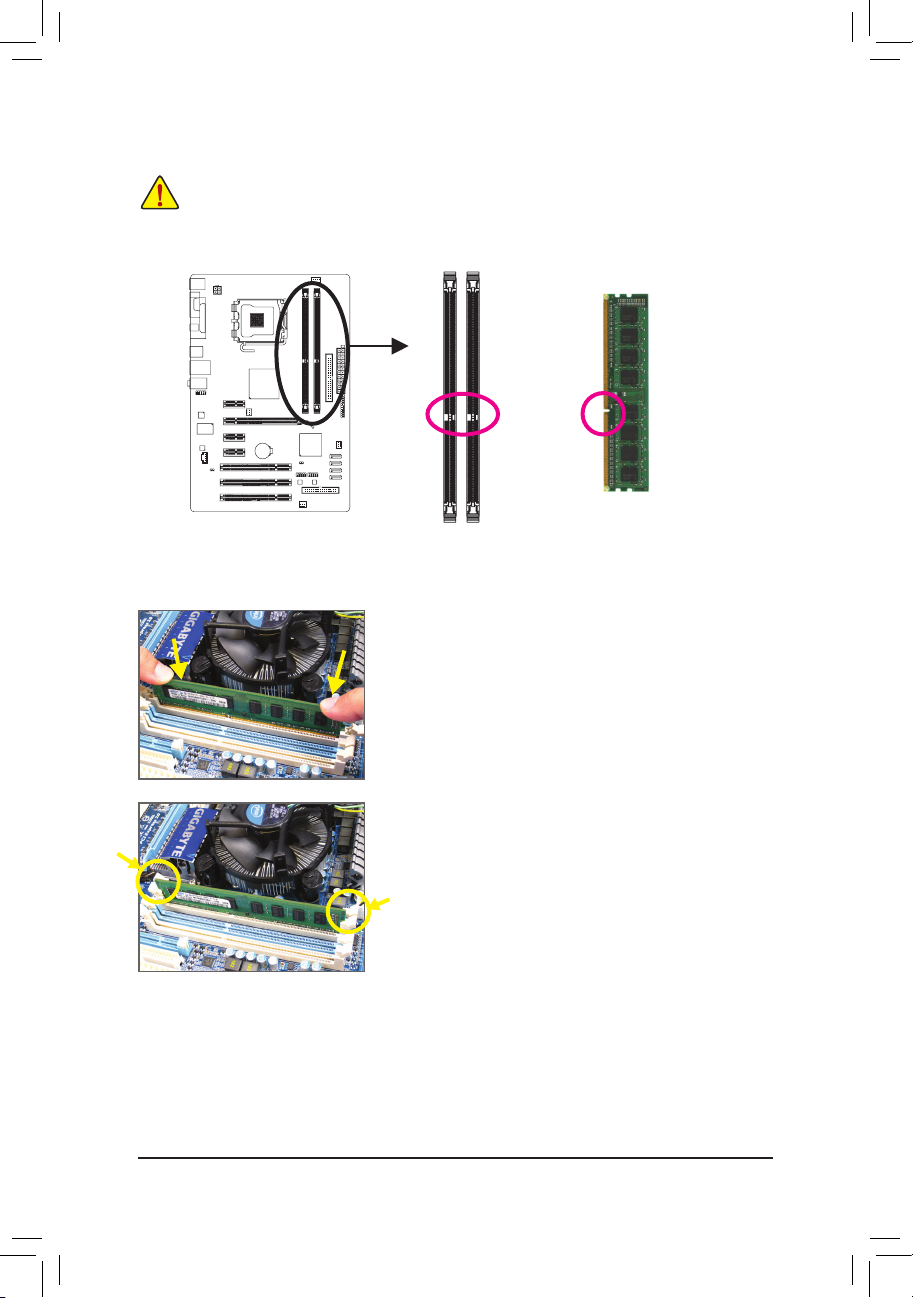

A DDR3 memory module has a notch, so it can only t in one direction. Follow the steps below to correctly
install your memory modules in the memory sockets.
Step 1:
Note the orientation of the memory module. Spread the retaining
clips at both ends of the memory socket. Place the memory module
on the socket. As indicated in the picture on the left, place your n-
gers on the top edge of the memory, push down on the memory and
insert it vertically into the memory socket.
Step 2:
The clips at both ends of the socket will snap into place when the
memory module is securely inserted.

Hardware Installation - 18 -
1-5 Installing an Expansion Card
Read the following guidelines before you begin to install an expansion card:
•Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.
•Always turn off the computer and unplug the power cord from the power outlet before installing
an expansion card to prevent hardware damage.
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card’s metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover(s).
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for your
expansion card(s).
7. Install the driver provided with the expansion card in your operating system.
Example: Installing and Removing a PCI Express Graphics Card:
•Installing a Graphics Card:
Gently push down on the top edge of the card until
it is fully inserted into the PCI Express slot. Make
sure the card is securely seated in the slot and
does not rock.
•Removing the Card:
Gently push back on the lever on the slot and then lift the card straight out from
the slot.
PCI Slot
PCI Express x1 Slot
PCI Express x16 Slot

- 19 - Hardware Installation
1-6 Back Panel Connectors
PS/2 Keyboard and PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 key-
board.
Parallel Port
Use the parallel port to connect devices such as a printer, scanner and etc. The parallel port is also
called a printer port.
Serial Port
Use the serial port to connect devices such as a mouse, modem or other peripherals..
Coaxial S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital coaxial audio.
Before using this feature, ensure that your audio system provides a coaxial digital audio in connector.
USB 2.0/1.1 Port
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB key-
board/mouse, USB printer, USB ash drive and etc.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following de-
scribes the states of the LAN port LEDs.
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
Off No data transmission or receiving is occurring
Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
Activity LED
Connection/
Speed LED
LAN Port
• When removing the cable connected to a back panel connector, rst remove the cable from your
device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.

Hardware Installation - 20 -
Line In Jack (Blue)
The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.
Line Out Jack (Green)
The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be
used to connect front speakers in a 4/5.1-channel audio conguration.
Mic In Jack (Pink)
The default Mic in jack. Microphones must be connected to this jack.
To enable 7.1-channel audio, you have to use an HD front panel audio module and enable the
multi-channel audio feature through the audio driver. Refer to the instructions on setting up a
2/4/5.1/7.1-channel audio conguration in Chapter 5, "Conguring 2/4/5.1/7.1-Channel Audio."
