For your safety
ìPlease read the safety instructions carefully before putting into service.
Safety precautions
General safety instructions
uOnly pass on the Gigaset SE680 WiMAX modem to third parties with this user guide
and the assembly instructions.
uThe Gigaset SE680 WiMAX modem must only be installed and put into use by a qual-
ified electrician in accordance with the supplied installation instructions.
uNational laws and regulations must be considered before putting the device into
service.
uThese devices are professional IT equipment. Keep the devices beyond the reach of
children.
Safety instructions for connection
uOnly use undamaged original accessories.
uThe outdoor modem must only be installed by qualified electricians in accordance
with the assembly instructions.
Safety precautions for the Gigaset SE680 WiMAX modem
uThe operation of medical appliances may be affected. Be aware of the technical con-
ditions in your particular environment, e.g. doctor's surgery.
uThe Gigaset SE680 WiMAX modem can interfere with the functioning of medical
devices such as pacemakers. Keep at least 20 cm between the devices and the pace-
maker. For more information consult your doctor.
uDo not operate the indoor unit under the influence of direct heat sources (e.g.
directly in the sun).
uThe Gigaset SE680 WiMAX modem complies with the regulations on limiting the
effect of electromagnetic fields on the general population.
uDo not use the devices in environments with a potential explosion hazard, e.g. auto
paint shops or in a humid environment (bathroom etc.).
uOnly clean the Gigaset SE680 WiMAX modem with a soft anti-static cloth.
Trademarks
uMicrosoft Windows 2000, Windows XP, Windows Vista and Internet Explorer are reg-
istered trademarks of the Microsoft Corporation.
uMozilla Firefox is a registered trademark of the Mozilla Organization.

6
Notes on the user guide
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Safety.fm / 11.8.09
Schablone 2006_02_08
Information on Specific Absorption Rate (SAR)
This device meets the limits for protecting the health of the public from the effecs of
exposure to electromagnetic fields when it is operated in connection with the desig-
nated antenna(s) like described in the user manual.
Your device is a radio transmitter and receiver. It is designed and manufactured not to
exceed the limits for exposure to emission from electromagnetic fields recommended
by international guidelines from the International Commission on Non-Ionizing Radia-
tion Protection (ICNIRP). These limits are part of comprehensive guidelines for the pro-
tection of the public and establish permitted levels of exposure to electromagnetic radi-
ation for the population. The guidelines were confirmed by independent scientific
organisations through periodic and thorough evaluation of scientific studies. The limits
include a substantial safety margin designed to assure the safety of all persons, regard-
less of age and health.
The exposure limit employs a unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit stated in the international guidelines is 2.0 W/kg. Tests for
SAR are conducted in all frequency bands with the device transmitting at its highest
power level with minimum possibledistance to the body. The actual SAR level of the
device during operation with the designated antenna(s) is below the maximum value
and is additonally decreased by a distance to the device. This is because the device is
designed to operate at multiple power levels so as to use only the power required to
enable seamless network connection.
Notes on the user guide
This user guide describes how to set up and configure the Gigaset SE680 WiMAX
modem. Installation of the individual components is dealt with in the assembly instruc-
tions, which you received together with the Gigaset SE680 WiMAX modem.
ìPlease read the user guide carefully before using the devices for the first time.
ìAlso note the product information on the Internet at www.sagem-communica-
tions.com

7
The Gigaset SE680 WiMAX
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Product_intro.fm / 11.8.09
Schablone 2006_02_08
The Gigaset SE680 WiMAX
What is WiMAX?
WiMAX stands for "Worldwide Interoperability for Microwave Access", a modern wire-
less network technology that enables fast Internet connection even in remote areas.
With WiMAX technology you are no longer dependent on a DSL infrastructure in your
home or place of work. Instead, you connect your PC or network wirelessly to radio
stations operated in your region by your provider. As a result, WiMAX gives you fast,
economical broadband Internet access, even in places that are not connected to the DSL
cable network.
The WiMAX standard IEEE 802.16 generally defines WiMAX technology. Your Gigaset
SE680 WiMAX modem already meets the latest IEEE 802.16e-2005 standard, a mobile
WiMAX standard that offers many extra possibilities.
The Gigaset SE680 WiMAX modem
With your Gigaset SE680 WiMAX modem, you can make use of everything the Internet
has to offer:
uDownloads
– Even large files download quickly to your PC.
– Complex Website designs are no longer characterised by the time they take to
download – you can enjoy flash animation and high-resolution graphics immedi-
ately after clicking on a link.
uAudio
– Play back audio files straight from the Internet.
– Listen to the radio via the Internet in superb digital quality.
uVideo
– View short or longer films you find on the Internet without tedious waiting times.
– Watch television via the Internet (IPTV).
– Use "Video on Demand" and order films that are transmitted to you via the
Internet.
uReal time
– Take part in video conferences and feel as if you are sitting in the same room as
the people you are talking to.
– Speak to and see your chat partners.
uVoIP
– Benefit from the economical telephone rates for Internet telephony (Voice over
IP, VoIP). Your PC does not even need to be switched on.

8
Scope of delivery
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Product_intro.fm / 11.8.09
Schablone 2006_02_08
Product features
uWireless high-speed Internet access with a transmission rate of up to 20Mbps
(14 Mbps downlink, 6 Mbps uplink)
uStandards compliant: IEEE 802.16e-2005
uCompatible with all usual operating systems
uSuitable for home and business facilities
uMulti-protocol support: TCP/IP, FTP, HTTP and other Internet related protocols
uCompact design and easy installation
uDHCP server and routing functions
uHigh performance and Quality of Service
uOptional: external antenna for improved quality of connection
Scope of delivery
u1 Gigaset SE680 WiMAX modem, comprising:
– 1 Outdoor modem (to be installed by an electrician)
– 1 Indoor unit
u1 power lead (two-pin)
u1 Ethernet cable (length 1.8 m)
u1 Set of assembly material, incl. assembly instructions
u1 User guide
u1 Outdoor Antenna (optional, to be installed by an electrician)

9
Scope of delivery
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Product_intro.fm / 11.8.09
Schablone 2006_02_08
Connectors and LEDs
1Connector for the two-pin power lead, see "Switching on the
devices" on page 14.
2 CONNECT The LED shows whether or not the indoor unit is properly con-
nected with the outdoor modem.
uGreen: The indoor unit is properly connected with the outdoor
modem.
3FAULTThe LED shows whether or not the indoor unit is properly con-
nected with the outdoor modem.
uRed: The connection between the indoor unit and the outdoor
modem is faulty.
4ON The LED shows that power is being supplied.
uGreen: The Gigaset SE680 WiMAX modem is powered cor-
rectly.
5IN Ethernet connector for data exchange with a PC or network (RJ45,
10/100 Base T), see "Connecting a PC or switch" on page 12.
6OUT Ethernet connector for connection with the outdoor modem
(RJ45, power supply and data transmission), see "Connecting the
outdoor modem" on page 12.
7Clips for wall mounting
12
3
4
5
6
7

10
Installing the Gigaset SE680 WiMAX modem
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Installation.fm / 11.8.09
Schablone 2006_02_08
Installing the Gigaset SE680 WiMAX modem

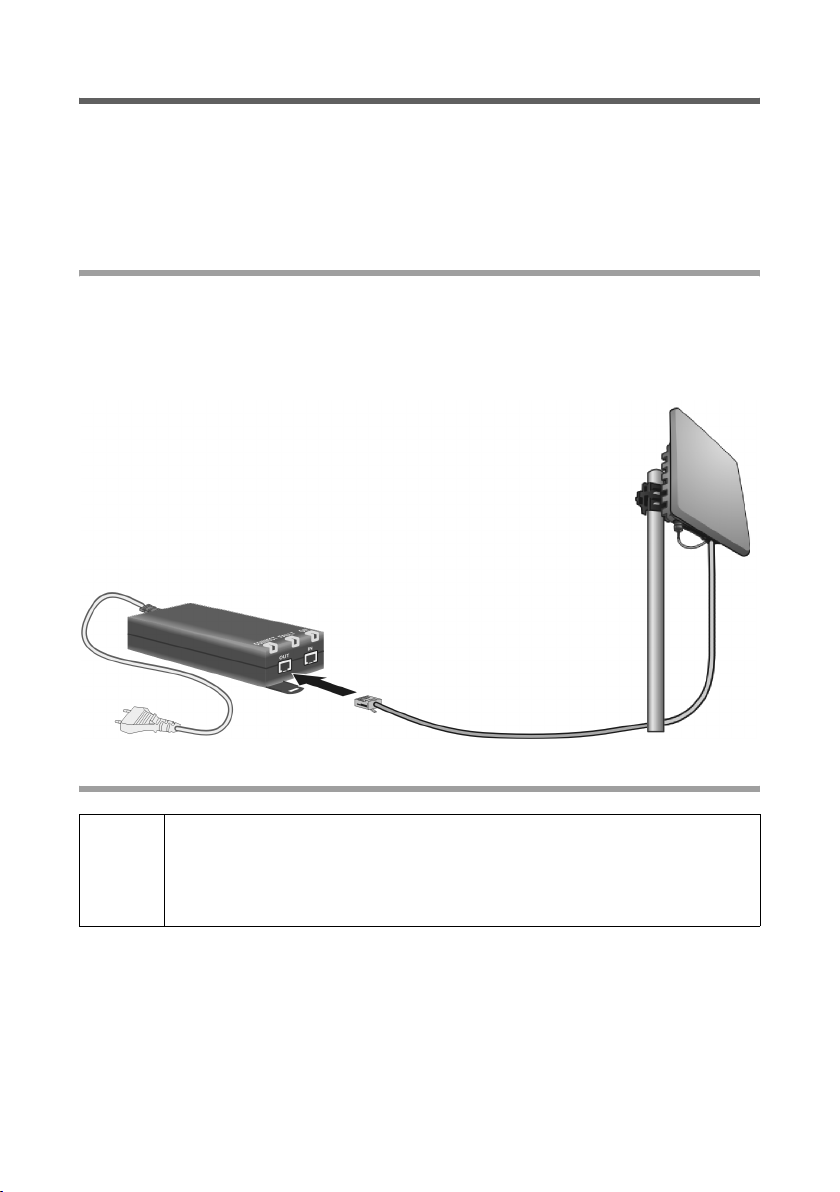

The Gigaset SE680 WiMAX modem essentially comprises three components:
uOutdoor modem with integrated antennas (X-pol)
uExternal antenna (optional)
uIndoor unit
This user guide assumes that the work required for outside installation has already been
carried out.
Therefore, installation is described below starting with how to put the indoor unit into
service.
WThe Gigaset SE680 WiMAX modem must be assembled and put into serv-
ice by a qualified electrician.
The information in the enclosed assembly instructions must be noted.
PC with Gigaset SE680 WiMAX modem Base station

11
System requirements
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Installation.fm / 11.8.09
Schablone 2006_02_08
Choosing the location
uChoose the location so that you can easily establish the following connections:
– Ethernet cable socket, which, for example, establishes the connection to the out-
door modem through a wall duct.
– Ethernet cable socket for connection with a PC or network.
– Connection of the power lead with a mains socket.
uFirst choose the location for the indoor unit:
– Consider the stated temperature range for the indoor unit when choosing the
location (see "Specifications" on page 46).
uThe indoor unit can be operated either on a horizontal surface or mounted on a wall.
Make sure the connections cannot become loose and that the LEDs are clearly visi-
ble.
uLay the cables in such a way that nobody can tread on or trip over them.
System requirements
To install and get started with the indoor unit, the following requirements must be ful-
filled:
uThe outdoor modem has been properly installed and is ready for use. The associated
Ethernet cable is fitted with an RJ45 plug and ends close to the indoor unit.
uPC with a LAN interface 10/100BaseT or an Ethernet network
10/100BaseT. The network adapter must support one of the following modes:
10BaseT Full Duplex, 100BaseT Half Duplex, 100BaseT Full Duplex.
uThe TCP/IP protocol has to be set up on the PC (standard installation for Windows XP
and Windows Vista; if you are using a different Windows operating system, read the
separate instructions on network configuration on the product CD, if necessary).
Wall mounting (optional)
The indoor unit is fitted with two clips for wall mounting. Wall mounting is not abso-
lutely necessary, but is recommended to make the cable connections mechanically
secure.
ìUse screws, anchor fittings and cable clamps to mount the indoor unit on a wall.
Make sure the LEDs are easily visible.

12
Wall mounting (optional)
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Installation.fm / 11.8.09
Schablone 2006_02_08
Connecting the Gigaset SE680 WiMAX modem
Set up the connections on the indoor unit in the following order:
1. Connect the outdoor modem.
2. Connect the PC or the switch/hub.
3. Connect the indoor unit to the mains power supply and switch all the devices on.
Connecting the outdoor modem
After the outdoor modem has been installed correctly, the associated Ethernet cable
(with RJ45 plug) is available close to the indoor unit.
ìInsert the Ethernet cable plug into the OUT socket on the indoor unit. You should be
able to hear the clips on the RJ45 plug click into place.
Connecting a PC or switch
!
Use either the Ethernet cable that is supplied or a standard network cable
(CAT-5) for the connection to the PC or switch. It does not matter if the
Ethernet cable has straight or crossed wiring.
You must use a shielded Ethernet cable.

13
Wall mounting (optional)
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Installation.fm / 11.8.09
Schablone 2006_02_08
Connecting the indoor unit to a PC
ìConnect an Ethernet cable plug to the IN socket on the indoor unit.
ìConnect the other plug of the Ethernet cable to the LAN interface on the PC.
Connecting the indoor unit to a switch
ìConnect an Ethernet cable plug to the IN socket on the indoor unit.
ìConnect the other Ethernet cable plug to the switch or hub.
ìFor configuration, please refer to the user guide of your switch or hub.

14
Wall mounting (optional)
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Installation.fm / 11.8.09
Schablone 2006_02_08
Switching on the devices
ìConnect the power lead to the indoor unit.
ìConnect the power lead of the indoor unit to the mains power supply. The outdoor
modem is powered via the Ethernet cable and does not require its own mains con-
nection.
The system starts booting and performs a self-test.
After the self-test, the Gigaset SE680 WiMAX modem continually attempts to regis-
ter with a base station. Registration with the base station may be successful imme-
diately; otherwise, registration will take place when your Gigaset SE680 WiMAX
modem is being configured.
ìCheck the LEDs during startup:
LEDs during startup:
–TheON power supply LED lights up green, and the Gigaset SE680 WiMAX
modem starts a self-test.
–TheFAULT LED (red) and the CONNECT LED (green) light up for approximately 1
second and then go out. If the connection to the outdoor modem is then found
to be free from errors, the CONNECT LED is continuously lit up green. If an error
occurs, the FAULT and CONNECT LEDs start to flash alternately at regular inter-
vals.
!
Only use the Gigaset SE680 WiMAX modem with the supplied mains
cable.
Refernece number: C39280-Z4-C584
Manufacturer: PhiHong
Type: POE30U-560(G)-S
Input: 100-240V, 0.95A AC
Output: 56V, 0,55A DC

15
Configuration with the Web browser
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Basic_configuration.fm / 11.8.09
Schablone 2007_10_19
Configuration with the Web browser
You do not need to install any software on your PC to configure your Gigaset SE680
WiMAX modem; the configuration progam is stored on the device. Open this software
in the same way as an Internet page in the Web browser and make the required settings.
Your settings are then stored directly on the device.
On startup, the Basic Setup Wizard helps you set up a connection to the WiMAX network
and configure your Internet access.
Presentation of the configuration progam
To configure your Gigaset SE680 WiMAX modem, we recommend the Microsoft Internet
Explorer Version 7.0 or higher or Mozilla Firefox Version 2.0 or higher Web browser.
However, you can also use most other or older Web browsers.
User interface
ìOpen your Web browser.
ìEnter the IP address of your Gigaset SE680 WiMAX modem in the address field of
your Web browser:
http://192.168.2.1
ìPress Enter (Return).
If a system password has been set up on your Gigaset SE680 WiMAX, the login screen
will now open.
Enter the system password supplied by your provider in the text box and click Ok.The
start page (Home) of the user interface opens, in which you can change the language
if necessary (see page 18).
Change the system password later to one of your own (see "System password" on
page 31).
If no system password has been set up on your Gigaset SE680 WiMAX, a security warn-
ing will appear first. You should then assign a system password as soon as possible.
ìConfirm the security warning with Ok.
The user interface start page opens.
i
For experienced users:
– IP address: 192.168.2.1
– Subnet mask: 255.255.255.0
iNumber and amount of functions and settings provided by the configura-
tion program may differ specific to a project.
Launching the user interface

16
User interface
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Basic_configuration.fm / 11.8.09
Schablone 2007_10_19
If the login screen does not open:
ìCheck the connections; see "Connecting the Gigaset SE680 WiMAX modem" on
page 12.
ìIf you use a firewall on the PC, it must allow connection to the Gigaset SE680
WiMAX. If applicable, switch off the firewall for a test; if you can then open the login
screen, configure the firewall accordingly. For details, refer to the user guide for your
firewall.
If you have changed the standard settings on your PC, you might not be able to open
the configuration pages.
ìFor details on how to find and rectify the fault, see "Troubleshooting" on page 39.
Saving the user interface address
ìYou can add the address of the registration page to your favourites/bookmarks so
that you will no longer need to enter the IP address manually in future:
– Internet Explorer: Add to Favorites button
–Firefox:Bookmarks > Add Bookmark
User interface elements
The user interface you open with the Web browser is divided into the following sections:
Tab selection:
Open the Home, Basic Setup Wizard, Advanced Settings or Status tabs to dis-
play the contents of each configuration area.
Language button:
Select your language.
1
2
3
4
5
6
Home Basic Setup Wizard Advanced Settings Status Language Logout
Operating Mode
Internet
...
...
...
1
2

17
User interface
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Basic_configuration.fm / 11.8.09
Schablone 2007_10_19
Buttons
You will see other buttons depending on the screen currently open. If you require fur-
ther information about these, open the online Help at the appropriate place using the
question mark button.
Input fields
On the configuration screens, change the required settings using the following input
fields:
Logout button:
The button is only displayed if a system password is set up.
Log off from your Gigaset SE680 WiMAX modem.
Open Help window button:
Open the online Help relating to the menu item currently in the working area.
Menu area:
Click the menu items to display the respective pages of the currently open config-
uration area or a submenu.
Working area:
Check the settings on your Gigaset SE680 WiMAX modem and change them as
necessary.
Open online Help.
Click on this button if you require information about the screen you cur-
rently have open. The corresponding Help topic is opened.
Logout Button with which you end the connection between the PC and the Gigaset
SE680 WiMAX modem.
Back Return to the previous screen in the Basic Setup Wizard.
Next Move on to the next screen in the Basic Setup Wizard.
Cancel Changed settings are not applied and you return to the next highest level.
Ok Save the settings and return to the next highest level.
End Save the settings and exit the Basic Setup Wizard.
Option fields:
Two or more fields, of which one is activated. As soon as you click in
another option field, it is activated and the one previously selected is
reset. You will find option buttons wherever there is a choice between
several possibilities.
Text field:
Enter text or digits. Click in the field to activate input mode. You will find
text fields at points where you can specify text or numbers as required,
e.g. a new system password.
3
4
5
6

18
User interface
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Basic_configuration.fm / 11.8.09
Schablone 2007_10_19
Opening online Help
There is an online Help for each screen of the configuration progam, which you can
open directly on the screen.
ìClick on the question mark button at the top right.
The online Help is shown in the right pane of the configuration progam.
ìIf necessary, click on Open Help window to open the online Help in a separate
window.
Menu structure
The menu of the user interface on your Gigaset SE680 WiMAX modem is split into the
following main areas: Home, Basic Setup Wizard, Advanced Settings and Status.
Under these menu options, you will find the following areas:
Home Brief description of all the menus in your Gigaset SE680 WiMAX
modem, as well as the connection status and the language change
feature; see "User interface" on page 15.
Basic Setup Wizard Establish a connection to the WiMAX network, optimise the
antenna direction and set up your Internet connection, see "Basic
Setup Wizard" on page 20.
Advanced Settings Configure your Internet access and your local network and perform
administration tasks. For example, you can enter a system pass-
word for access to your Gigaset SE680 WiMAX or change it, see
"Configuration with the Web browser" on page 15.
Status Obtain information about the operating status of your Gigaset
SE680 WiMAX modem and read off the device and version num-
bers as well as IP addresses; see "Status" on page 34.
Internet See "Internet" on page 35.
Local Network See "Local network LAN" on page 36.
Device Status See "Device status" on page 36.
Radio Status See "Radio status" on page 37.
Setting the language
The user interface is initially displayed in English. However, you can select another lan-
guage, e.g. German, French, Spanish.
ìIf you wish to set your language, click on the Language button at the top right. This
opens the page for setting the language.
ìClick on the arrow next to the selection field to open it and select your language.
ìClick on Ok to change the language.

19
The Home page
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Basic_configuration.fm / 11.8.09
Schablone 2007_10_19
The Home page
Once you have logged in successfully to the Gigaset SE680 WiMAX modem, you will see
the Home page for the device software. The start screen offers an overview of all areas
of the configuration progam:
In the area to the right of the start screen, you will see the connection status of your
Gigaset SE680 WiMAX modem:
uconnected = The Gigaset SE680 WiMAX modem has established a radio connection
with a WiMAX network. You will see the connection duration in brackets and in the
format ddd:hh:mm:ss (d=days, h=hours, m=minutes, s=seconds).
udisconnected = The Gigaset SE680 WiMAX modem is trying to establish a connec-
tion with a WiMAX network.
To configure your Gigaset SE680 WiMAX modem, use the Basic Setup Wizard, which will
help you establish a radio connection.
Connecting to the Internet manually
Once you have configured your Internet access (see page 20 and page 25), you can
establish a manual connection to the Internet on the start screen if you have selected
Connect on demand as the Connection mode.
To establish or end an Internet connection manually:
ìOpen the start screen of the Gigaset SE680 WiMAX as described on page 15.
ìIf you have already started the user interface, click the Home tab at the top left of
the window.
ìClick Connect to establish a connection to the Internet.
ìClick Disconnect if you no longer require the connection.
Menu Description
Basic Setup Wizard Perform the basic configuration and set up the radio
connection to the WiMAX network (see page 20).
Advanced Settings Perform advanced configuration and administration
tasks (see page 23).
Status Obtain information on the status of your Gigaset SE680
WiMAX (see page 34).

20
Basic Setup Wizard
Gigaset SE680 WiMAX / engbt / A31008-N925-R101-4x-7619 / Basic_configuration.fm / 11.8.09
Schablone 2007_10_19
Basic Setup Wizard
The Basic Setup Wizard helps you start up your device and guides you step by step
through the configuration process with the most important settings.
The Basic Setup Wizard comprises the following steps:
uEntering the access data for the WiMAX network
uConfiguring the Internet access
uPositioning the device
uScanning the frequencies to establish a radio connection with a WiMAX network
uExact alignment of the antenna to optimise the quality of the connection
Starting the Basic Setup Wizard
ìTo start the Basic Setup Wizard, click the Basic Setup Wizard tab.
ìClick Next.
Entering access data for the WiMAX network
On this page you enter the data for authentication of your device on the WiMAX base
station. You will need the access data supplied by your WiMAX operator for this.
ìEnter the access data and click Next.
Setting up Internet access
To allow users in your local network access to the Internet, set up the Internet connec-
tion of your device using the information supplied by your Internet provider.
ìEnter the access data and click Next.
Adjusting the antenna
ìAdjust your Gigaset SE680 WiMAX modem facing towards the base station.
ìClick Next.
iYou can check all the configuration settings that you make with the Basic
Setup Wizard later via the Advanced Settings menus and, if necessary,
change them, see "Advanced Settings" on page 23.
iYour Gigaset SE680 WiMAX can be used as an Internet router or bridge.
For more on this see "Setting the operating mode" on page 24.
