Goome GM03CW User manual

[在此处键入]
GM03CW
Car GPS Tracker
User Manual

1
Content
1. Product components and interface definitions
.1 Product Introduction
.2 product picture
.3 product configuration checklist
.4 Products interface definitions
.5 Product light is defined
2. Instructions for the machine parameters and function
.1 specifications
.2 function
.3 setting and installation
3. Common problem analysis and after-sales
.1 Common problem analysis
.2 announcements
.3 RFQ and After-sale service

2
1、Product Components and Interface Definitions
1.1 Product Introduction
Name: Long Standby GPS Tracker
Type: BSJ-A5E-3
Size: L86mm*W62mm*H30mm

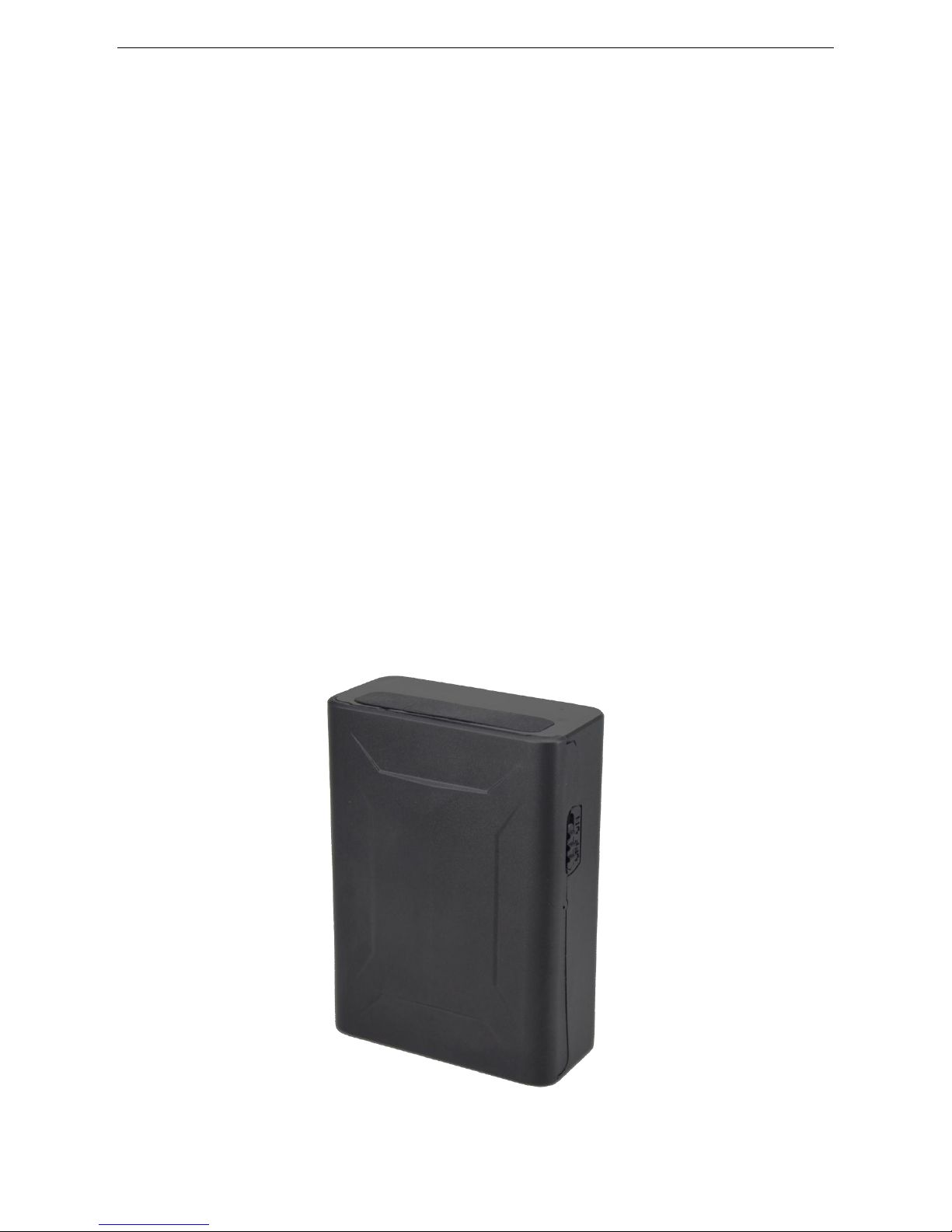

1.2 Product Picture
1.3 Product Configuration Checklist
Packing List
No
Name
quantity
Unit
Remark
1
BSJ—A5E-3 host
1
Pc
2
USB cable
1
Pc
3
User manual、warranty card、certification
1
Pc
4
Package box
1
Pc
Optional list
No
Name
quantity
Unit
Remark
1
4PIN wire
1
pc
Used for setting parameter
2
magnet
1
pc
Either-or
3
Velcro
1
pc

3
1.4 Products interface definitions
1.5 Product light is defined
Light is defined
GSM
（red）
Flash: GSM in the initialization
Slow flash: GSM signals is normal
Long bright: GPRS on line
not light: Not yet received the GSM signal/not insert SIM card/GSM dormancy
GPS
（yellow
）
Flash：GPS Signal in the search
Long bright：GPS Has been positioning
not light：GPS Dormancy/not working
charge
lamp
red：be charging
green：Has been charged

4
2、Instructions for the machine parameters, and function
2.1 Specifications
No
Item
Specifications
remark
1
Working voltage
DC 5V
2
Working current
Motion Model:46mA @4V
The static current: 7.5mA@4V
power saving mode: 70uA@4V
3
Standby current
<3.5uA
4
Size
L86*W62*H30MM
5
Location Accuracy
<10 meter
6
Communication
GPS+GPRS
7
Communication way
TCP
7
Working temperature
-25℃~ +75℃
8
Storage temperature
-40℃~ +85℃
9
Weight
255g
10
Battery capacity
10000mAh
2.2 Function
Function
Function Details
Function Illustration
tracking and
positioning
Time track
According to the set time interval, and compared with a positioning packets on
mobile distance is greater than 50 meters back under the condition of latitude
and longitude location information, etc
Vehicle state
detection
Light alarm
Terminal of light by the light to see the light, the light alarm terminal reported.
Save electricity after dormancy timing mode light wake terminal transmission
light alert at the meeting.
Speed alarm
Platform setting maximum speed limit, when the GPS speed is greater than
the set value, then report to over speed alarm to remind.


Other Function
Blind spots to fill the
function
Terminal positioning and online, data storage, up to 600. Signal normal online
upload.
EPO auxiliary
positioning function
Terminal support EPO auxiliary positioning function, strengthen the
positioning effect.
Turning point
When a device change directionAngle is greater than a certain Angle,
immediately upload a location data, the optimal trajectory.
remote upgrade
To upgrade the housekeeper remote upgrade.
low power
consumption
Wake up regularly
Terminal set wake up open and back time interval timer, terminal timing starts
after entering hibernation, according to the set back time to wake up.

5
2.3 setting and installation
2.3.1 device installation
(1)inspection device
Whether to check the equipment appearance is good, fittings is complete.
(2)Install SIM card
Open the device SIM card into the cato. Please avoid overexertion is damaged, please make
sure that a SIM card with Internet access, only at the same time satisfy the electricity and insert SIM
card terminal can work normally.
(3)The terminal installation position requirements
A. Waterproof: should choose is not easy to fill the position is kept terminal dry, pay attention to the
far away from the air-conditioning outlet in case of changes in temperature, have condensed
water accumulated inside the terminal seriously affect the service life of the product.
B. Shock: terminal can't hung up installed in vibration is larger position for a long time.
C. Tamper-proof: terminal should be away from the car video intercom and electronic equipment,
such as to prevent conduction and radiation.
2.3.2 SMS remote online Settings
The following message set online format
Text content:
<SPBSJ*P:BSJGPS*T:120.025.232.237,7788*A:CMNET*N:13288888888*C:30*3P：XTTTT>
SPBSJ Message header
*P:BSJGPS password
*T: 120.024.176.195,6695 TCPIP/port
*A:CMNET APN
*N:13288888888 This number (max:16)
*C:30 Back time interval，Unit second (3s to 10800s)
*3P：XTTTT Mode setting instruction
X:0 Continuous time model 1: Dormancy timing mode
TTTT: timing time，Unit minute，Only effective when X = 1
The minimum setting for 10 min，The biggest is set to 720 min.

6
3、Common problem analysis and after-sales
3.1 Common problem analysi
fault phenomenon
reason analysis
handling method
Center cannot monitor
SIM card Owe downtime
Contact network operators pay cost
SIM Card contacts are in good condition
Reinstall the SIM card
On-line parameter error
With reference to the instruction to set
parameters
Vehicles in the underground parking lot, tunnel
signal is weak
Leave the area of poor signal
unable to locate
Vehicles in the underground parking lot, tunnel
Open the above areas
Terminal antenna surface is not up
Readjust the terminal location
3.2Announcements
1 Electronic product please note waterproof.
2 Please keep the backup battery is enough.
3 When the temperature of the environment is more than the normal work of the terminal
temperature range, advice without electricity.
4 When the vehicle in the underground parking lot, tunnel or garage, will influence the positioning
signal. And possible communication network signal blind area lead to equipment can't monitor;
After the vehicle out of the above areas, equipment will automatically return to normal work.
5 In abnormal situation, please do not repair itself. By linking the original attachment or unplug the
connection between the various components damage, manufacturer is not liable.
3.3RFQ and After-sale service
1 This product from the date of installation, enjoy one year warranty service. Warranty belong to
human factors or equipment damage caused by product quality, please do not hesitate to contact
the agent or call shenzhen boshijie technology co., LTD, after-sales service department.
2 To customers to open or force majeure (such as floods, traffic accident damage will not be
maintenance.
3 After the warranty expires, damage or malfunction caused by using the products, but need to
collect maintenance material cost.
4 Free to provide customers with products of the purchase, use, installation, consulting and
technical services.
