Gotrack tracking Te-200 User manual

GPS tracking system

USERGUIDE



PetGPSTRACKINGSYSTEM



- 1 -

GPS tracking system

- 2 -

ProductOverview

ThankyouforusingGPSTrackingsystem.Thisdeviceisaninnovativeminiaturesizepersonalremotepositioningdevicewithbuilt‐in

U‐bloxGPSandGSM/GPRStechnology.

What’sNew?

1.Uniquedesign,combinationofstyleandtechnology.

2.SupportsA‐GPSforacceleratedpositioning.

3.Twowayvoicecommunications.

4.Firmwareupgradeovertheair.

5.Built‐in8MBflashmemory.

6.GPRSblindareadatare‐uploadfunction.

7.Longbatterylife.



GPS tracking system

What’sinthebox?



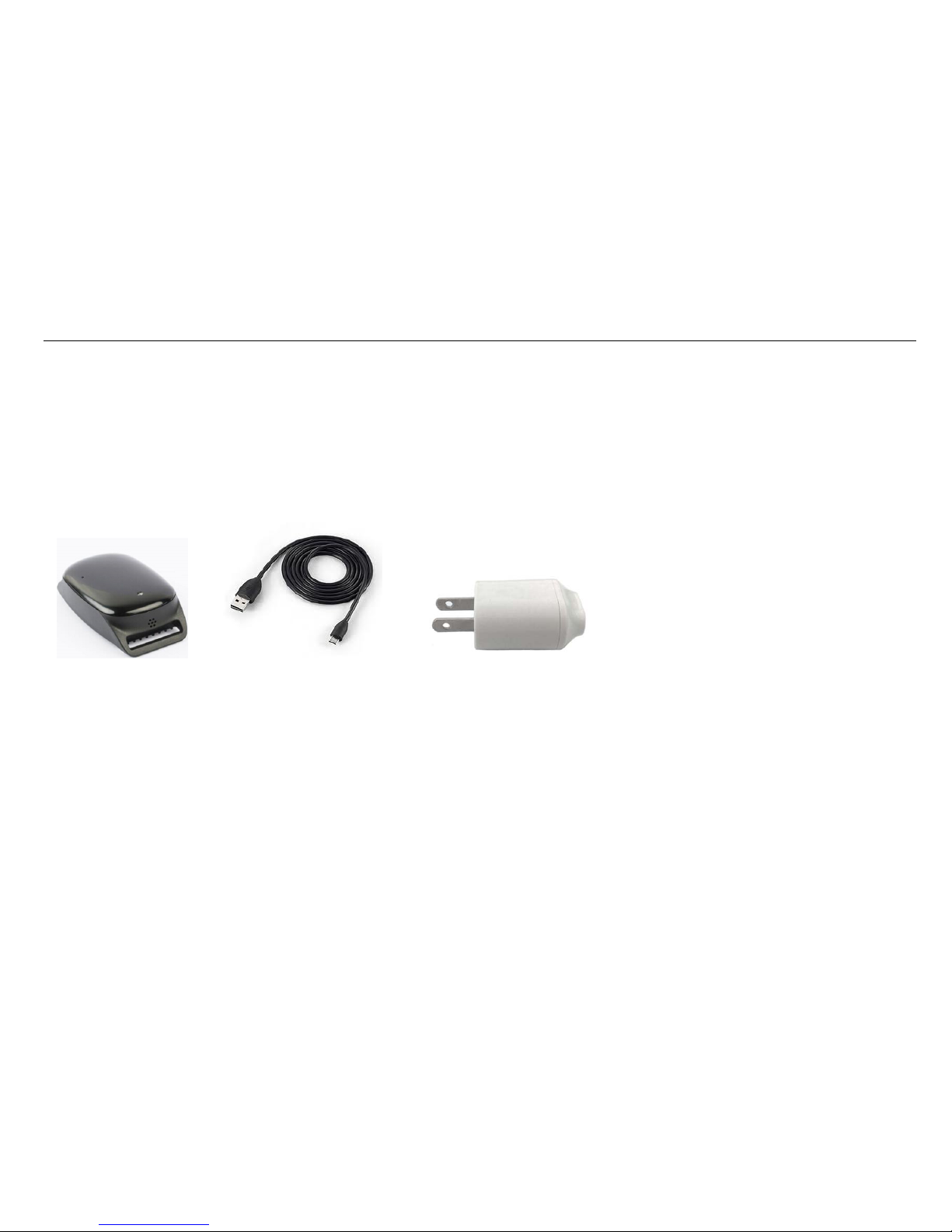

Thisdeviceissuppliedinaboxwhichincludes:



   





DeviceUSBCableCharger







- 3 -

GPS tracking system

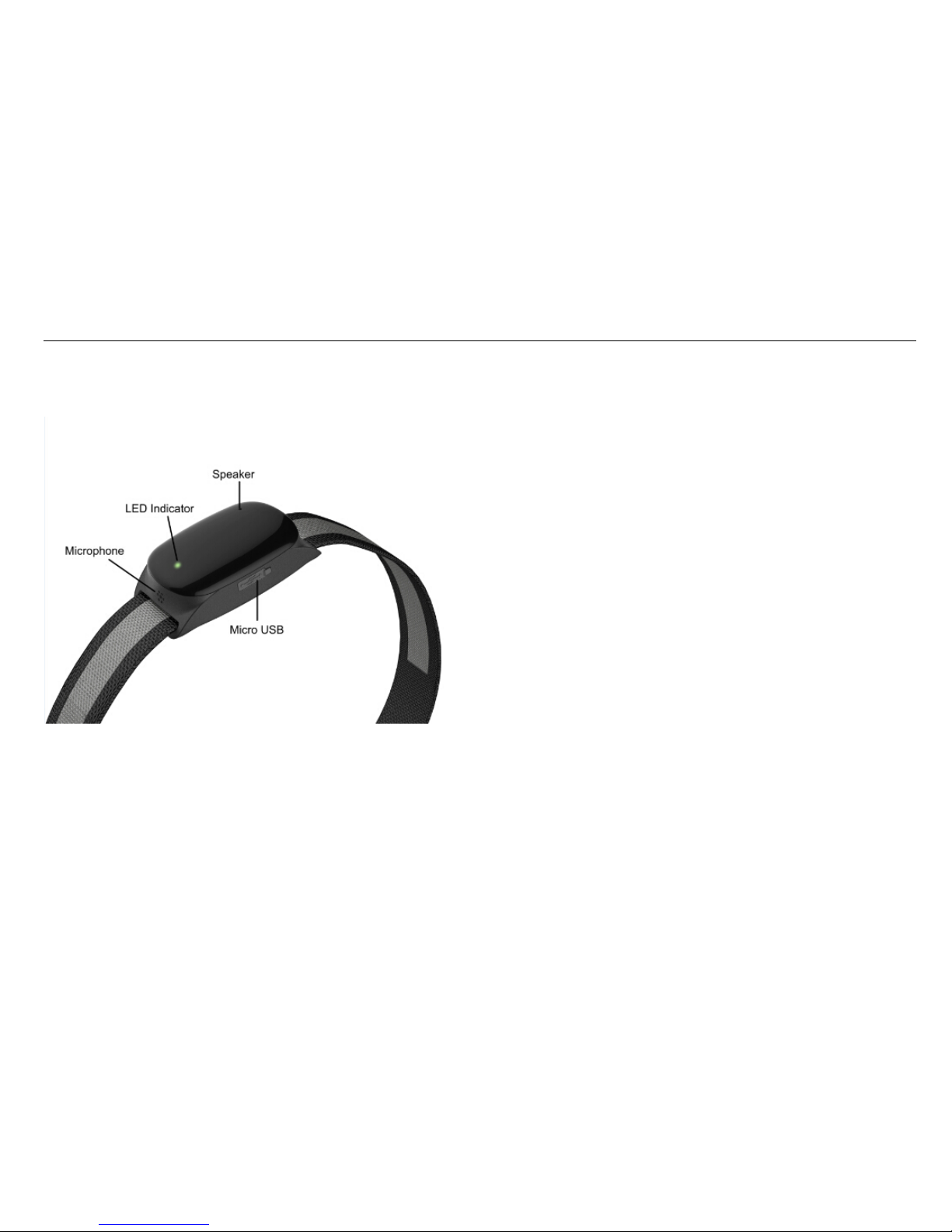

Gettingtoknowyourdevice





Usages

‐ Forthefirsttimeuse,pleasefullychargethebatteryforaround2~3hours,usingtheUSBcharger.

‐ Whencharging,theREDLEDwillbeon(solid).Afterfullycharging,theREDLEDwillgotoSignalMode.

- 4 -

GPS tracking system

- 5 -

Switchingthedeviceonandoff

‐ Toturnonthedevice:PlugthedevicetoachargingMicroUSBcable.

※Togetaninitiallocation,useoutdoorsornearawindowsothedevicemayfixontothesatellites.

‐ Toturnoffthedevice:SendSMS:offtothedevice,afteryouhearthebeep,thedeviceisturnedoff.



‐ Toturnon/offthedevicemanually:Openthecaseandturnon/offbyinsideswitch.



Whatdothelightsmean?

GSMLED‐‐GREEN

Lightshowsasingleflashrapidlyevery3secondsThedeviceisconnectedtoGSMnetwork

Lightshowsadoubleflashrapidlyevery3secondsThedeviceisregisteredtoGPRSnetwork

Lightshowsaslowflashevery3secondsThedeviceisconnectingtoGSMnetwork

LightSolid(notflashing) NoSIMCarddetected



GPSLED‐‐BLUE

Lightshowsasingleflashrapidlyevery3seconds ThedevicehasGPSpositioningfix

Lightshowsaslowflashevery3seconds(every1secondonand3

secondsoff)

ThedevicehasnoGPSfix

NoflashingGPSchipissleeping



GPS tracking system

- 6 -

①

Lowbatteryalarm

Whendevicebatteryislowerthan20%,itwillsendaSMSalarm“BAT:LOW!”toallauthorizednumbers.Ifbatterylowersthan15%,thebluelightwillflash

rapidlytowarntheusertochargethedeviceassoonaspossible.



ConfigurationandOperationbySMS



1.ToSettheAuthorizedNumber

※Itisnotmandatoryforallthreeoftheauthorizednumberstobeset,howeveraminimumofonemustalwaysbeset.

Command:A1orA1,phonenumber

Note:Withnospacesinthetext,case‐insensitive.

Example:A1ora1,123456789

※Usingyourmobilephone,sendA1tothephonenumberofthedevice,itwillreply:∙Setmobilenumber1OK!

※Todeletethisnumber,youcansendA0tothetracker.



②Command:B1orB1,phonenumber

Example:B1orb1,123456789



Thedevicewillreply:∙Setmobilenumber2OK!

※Todeletethisnumber,youcansendB0



③Command:C1orC1,phonenumber

Example:C1orc1,123456789



GPS tracking system

- 7 -

Thedevicewillreply:∙Setmobilenumber3OK!

※Todeletethisnumber,youcansendC0



2.ModifytheTimezone



Command:TZ++00/‐00

Note:thetimemustamountsbein2digitsandatmaximum23hoursinvalue.“+”inthe“timezone”portionofthetextindicateseast.Thesymbol“‐“inthe

“timezone”indicateswest.

Example:tz+02,thesystemwilladd2hoursbasedontheUTCtime.

tz‐02,thesystemwillminus2hoursbasedontheUTCtime.

※UTCtimehasbeensetasdefaulttime.



3.UserdefinednameinSMScontent

Command:name1,username

Example:name1,Emma,thetrackerwillreply“Addnameok!”



※Todeletename,youcansendname0



4.Locationrequest



4.1Replywithcoordinatesandweblink



Command:loc

Thedevicewillreply“GPSInfo!Time:xxxxx;Lat:xxxx;Lon:xxxx;Spd:xxxxx,Altitude:xxxxBt:xxx

maps.google.com/maps?q=loc:22.647379,114.030998

※PutcoordinatestoGoogleearthorGooglemaps.Clickonsearchbutton,thenyouwillfindthepositionfixed.

GPS tracking system

※ClickonthelinkthenthelocationcanbeshowndirectlyonGoogleMaponyourmobilephone.





5.GEO‐FENCEAlarm



Command:G+X,Y, Z,xxxM/KM

Example:G1,1,1,100M



Notes:Nospacesinbetween.

X=No.ofGeofence(1~3),usercanset3Geofences

Y=0meanstoturnoffthefunction

Y=1meanstoturnonthefunction

Z=1meanstosetalarmwhenthetrackerentersthepresetarea

Z=0meanstosetalarmwhenthetrackerbreachesthedistrict

xxxisthepresetdistancetothetracker’soriginalplace,mustbe3digitals.Mmeansmeters,KMmeanskilometers

Thedevicewillsendthemessagetotheauthorizednumbersas“Geofencealarm!+GPSinfo”whenitentertheareayouset.

(UsermustsetthisfunctionwhenthedevicehasGPSfixed.)



Toturnoffthisfunction,pleasesendG1,0orG2,0orG3,0



- 8 -

GPS tracking system



- 9 -

6.MovementAlert



Command:M1,xxxM/KM

Notes:xxxmustbe3digitals.Mmeansmeters,KMmeanskilometers

Thetrackermustbestationarywhensettingthisfunction



Example:m1,100m

Whenthetrackermovesbeyond100meters,itwillsendanSMSalarmtothepresetnumbers.

Toturnoffthisfunction,pleasesendM0tothedevice.



(Thesettingsmustbeatleast50meters)



7.Listen‐in(Voicewiretapping)



Command:L1

A1,B1,C1canmakeasilencecalltothetracker,thetrackanswersthecallautomaticallyandallowsthecallertohearwhatishappeningaroundthetracker.

Thereisnovoiceindicationthatthecallisinprogress.



Toturnoffthisfunction,pleasesendL0tothedevice.



8.Motionalarm



Command:V1,xxS/M/H

Note:Nospacesinbetween,Smeansseconds,Mmeansminutes,Hmeanshours,xxmeansthetimeyousetandmustbetwodigitals.

Example:V1,05M



Ifuserturnsonthisfunction,thedevicewilldetectmotionevery5minutesandwillsendanSMSwarningalarmtoallregisteredphonenumbers.

Toturnoffthisfunction,pleasesendV0



GPS tracking system



- 10 -

9.ShutdownLED



Command:LED1

Thedevicewillreply“LEDoff”andlaterLEDswillstopflashing,butthedeviceisactuallyon.

Toturnoffthisfunction,pleasesendLED0



10.AGPS



Command:AGPS1,latitude,longitude

Example:AGPS1,22.647606,114.022583

AssistedGPS(abbreviatedgenerallyasA‐GPSandlesscommonlyasaGPS)isasystemthatisoftenabletosignificantlyimprovethestartupperformanceorti

me‐to‐first‐fix(TTFF)andimprovetheGPSlocationtobemoreprecise,ofaGPSsatellite‐basedpositioningsystem.

Toturnoffthisfunction,pleasesendAGPS0



11.Checksettings



Command:status

ThedevicewillreplyE.g.A8613812345678B13912345678C13712345678;Speed:0,100km/h;GEO:0,0,0;VB:1,10S;MV:1,100;LED:0;TZ:2.0;LI:1;PS:1;DS:0;

FL:1;Bat:95



Torecognizethemeaningof“0”&“1”

Thenumber“0”impliesthatthefunctionisturnedoff;whilst“1”indicatesthatthefunctionisturnedon.



GPS tracking system

- 11 -

Devicethreeworkingmodes



1.NoPowersavingmode



Command:PS0

Inthismode,BothGSMandGPSareonallthetime,Batterycanlast18~24hours.



2.SmartPowersavingmode(defaultmode)



Command:PS1

Inthismode,thegsmchipisworkingandreceivescalls,SMSandtransmitslocation.TheGPSchipisactivatedbymotion,incomingcallsandSMS.TheGPS

chipisoffwhenthereisnomovementornophoneusage.Batterylifeisnotwastedwhenthedeviceisn'tmoving.



Undernormaluse,batterycanlast3~7days.



3.DeepSleepingmode



Command:DS1

BothGSMandGPSchipwillshutdowntosavepower,thedeviceisunabletoreceivecallsorSMS.



Itcanbeonlyactivatedbymovement.Oncemovementisdetected,itwillrunforthesettimeandsleepagainifnomovementisdetected.



Batterycanlast40daysifnomovementatall.



Toturnoffthisfunction,sendDS0



GPS tracking system

- 12 -

HowtoconnectdevicetotheplatformforrealtimetrackingviaGPRS

1.GetIMEInumber



Command:version

Thedevicewillreply”IMEI:123456789123456;GSMCSQ:xxxx;Soft:V07.20.10.1345”



2.GPRSSetting

2.1SetAPN

InordertousetheGPRSfunction,theuserneedstosetuptheAPNbysendingSMScommand.

‐‐WhatisAPN?Accesspointname(APN)isthenameusedtoidentifyageneralpacketradioservice(GPRS)bearerserviceintheGSMmobilenetwork.The

APNdefinesthetypeofservicethatisprovidedinthepacketdataconnection.

※MakesurethattheSIMcardinthetrackersupportstheGPRSfunction.

※TheAPNcanbeacquiredfromyourlocalGSMoperators.



Command:S1,APN,username,password

Notes:Someaccesspointnamewithoutusernameandpassword,sopleaseleaveitblank.



Example:S1,internet



“internet”istheAPNfromtheSIMcardprovider;thereforetheusermustsettheirparticularAPNfortheirowncountrywhichtheunitresides.

Aftersendingthecommand,thedevicewillreply“SetAPNOK!GPRSconnecting”



AftersendS1,APN,waitforawhilethenyouwillseedeviceisonline.



GPS tracking system

- 13 -

2.2SetIPandPort



Command:IP1,IP/domainname,port

Example:IP1,183.90.184.58,2040orIP1,www.domainname.com,2040



2.3SetGPRSTimeintervalbySMS



Command:TIxxS/M/H

Themeaningof“xx”,Thesettingmustbein2digitalsandmaximum99invalue,whichmeans01~99.

xxSisthetimeintervalinsecondwithrange(30~99)

xxMisthetimeintervalinminutewithrange(01~99)

xxHisthetimeintervalinhourwithrange(01~99)



Example:TI01M

Thedevicewillreply“SetupdatingtimeintervalOK!”andthendevicewillupdatethetimebyevery1minuteonthewebsite.



2.4DisableGPRS:



Command:S0

Thedevicewillreply“GPRSOFF”.



2.5ReconnectGPRS

ReconnectthewebsiteviaGPRSforrealtimetracking,pleasesendS2



GPS tracking system

- 14 -

Rebootdevice



Command:reboot

Thedevicewillrestartitselfwithoutchanginganysettings.



Initialization:



Command:RESET!

Note:Thisistomakeallsettingsbacktothefactorydefault.



Built‐inMemory



Thedevicebuiltin8MBflashmemoryinside.ItwillstoretheGPSinformationwhendonothaveGSMnetworkcoverage (i.e.,verylowpopulationdensity

areas,somemountainousterrain,undergroundareasetc).ThedevicewilltransmitGPSlocationstotheWEBserverautomaticallyoncetheGSMnetworkis

recovered.


