grandimpianti 805898ENR1 Guide

Installation/Operation
Stacked Washer/Dryers
Electric and Gas Models
SWD455C_SVG
Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 805898ENR1
February 2015

Front Matter
WARNING
Risk of fire. Highly flammable material.
W881
Read all instructions before using unit.
WARNING
FOR YOUR SAFETY, the information in this manual
must be followed to minimize the risk of fire or ex-
plosion or to prevent property damage, personal in-
jury or death.
W033
WARNING
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
• WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Clear the room, building or area of all occu-
pants.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s in-
structions.
• If you cannot reach your gas supplier, call the
fire department.
• Installation and service must be performed by a
qualified installer, service agency or the gas sup-
plier.
W052
IMPORTANT: Purchaser must consult the local gas
supplier for suggested instructions to be followed if
the dryer user smells gas. The gas utility instructions
plus the SAFETY and WARNING note directly above
must be posted in a prominent location near the dryer
for customer use.
WARNING
• Installation of unit must be performed by a quali-
fied installer.
• Install clothes dryer according to manufacturer’s
instructions and local codes.
• DO NOT install a clothes dryer with flexible plas-
tic venting materials. If flexible metal (foil type)
duct is installed, it must be of a specific type
identified by the appliance manufacturer as suita-
ble for use with clothes dryers. Refer to section
on connecting exhaust system. Flexible venting
materials are known to collapse, be easily crush-
ed, and trap lint. These conditions will obstruct
clothes dryer airflow and increase the risk of fire.
W729R1
WARNING
To reduce the risk of severe injury or death, follow
all installation instructions. Save these instructions.
W894
WARNING
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
W053
This product uses FreeRTOS V7.2.0 (www.freertos.org).
Front Matter
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
3 Part No. 805898ENR1

Table of Contents
Safety Information..................................................................................6
Explanation of Safety Messages....................................................................... 6
Important Safety Instructions........................................................................... 6
Important Safety Instructions........................................................................... 7

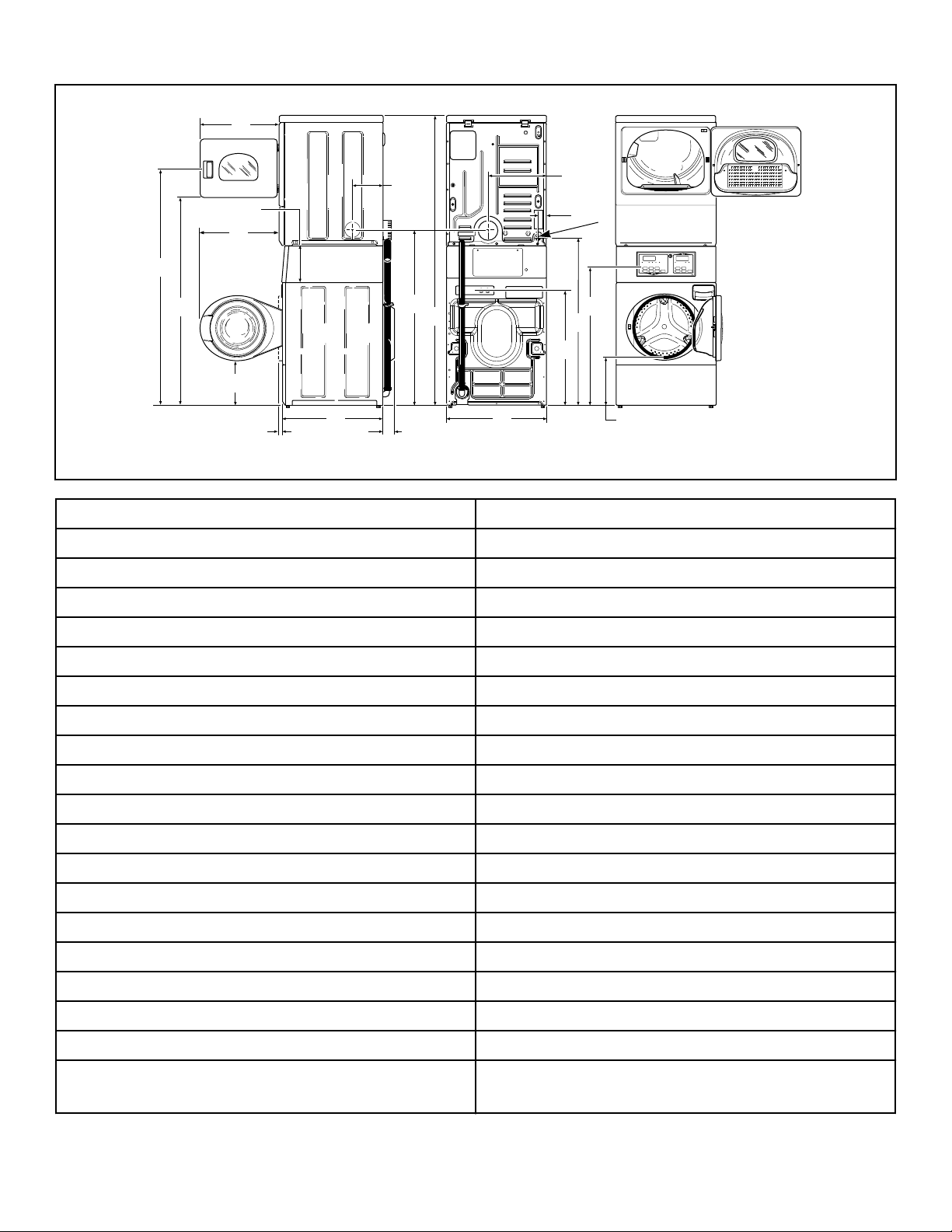

Dimensions............................................................................................. 9
Installation........................................................................................... 14
Before You Start...........................................................................................14
Tools........................................................................................................14
Central Pay Models................................................................................... 14
Order of Installation Steps..........................................................................14
Position Unit Near Installation Area............................................................... 15

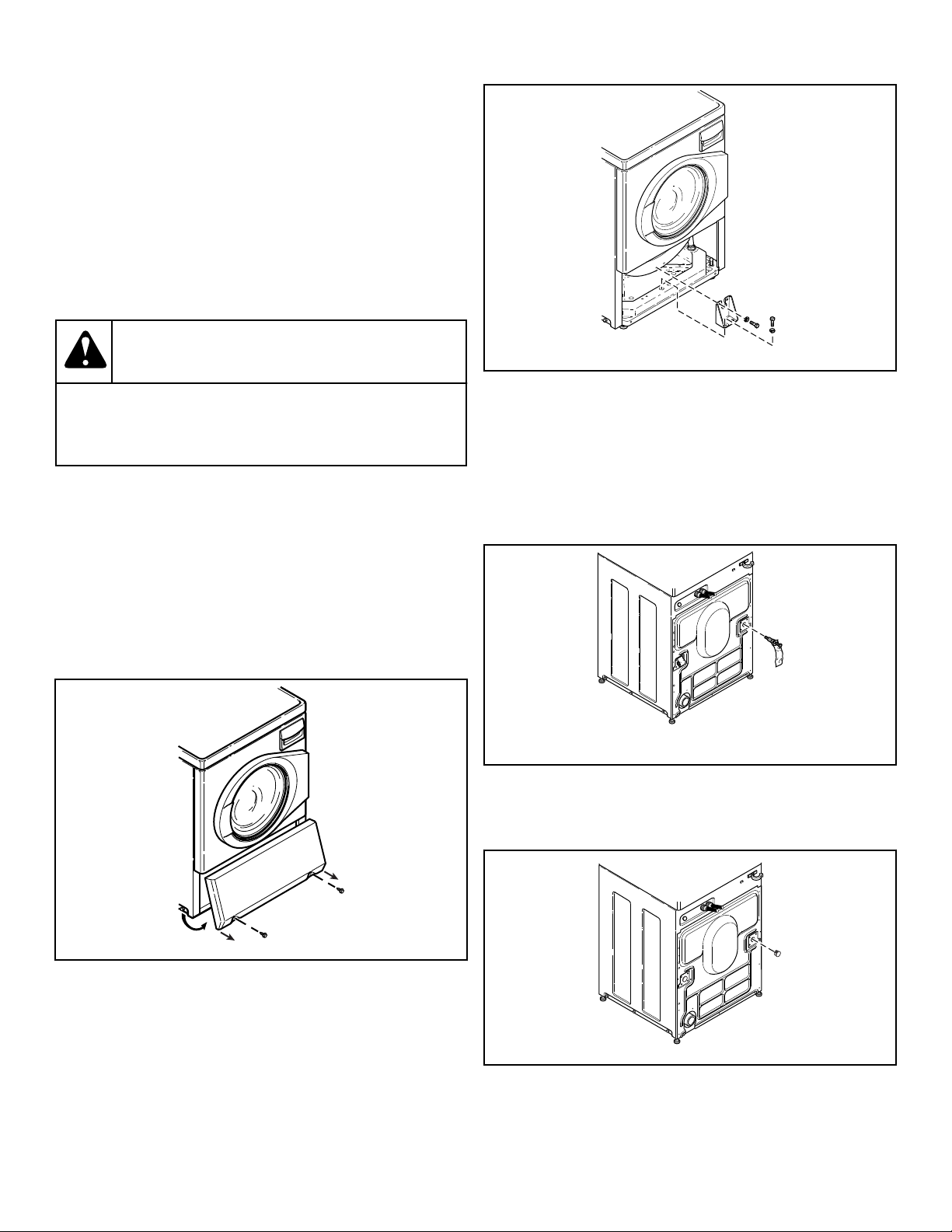

Remove Shipping Materials........................................................................... 15

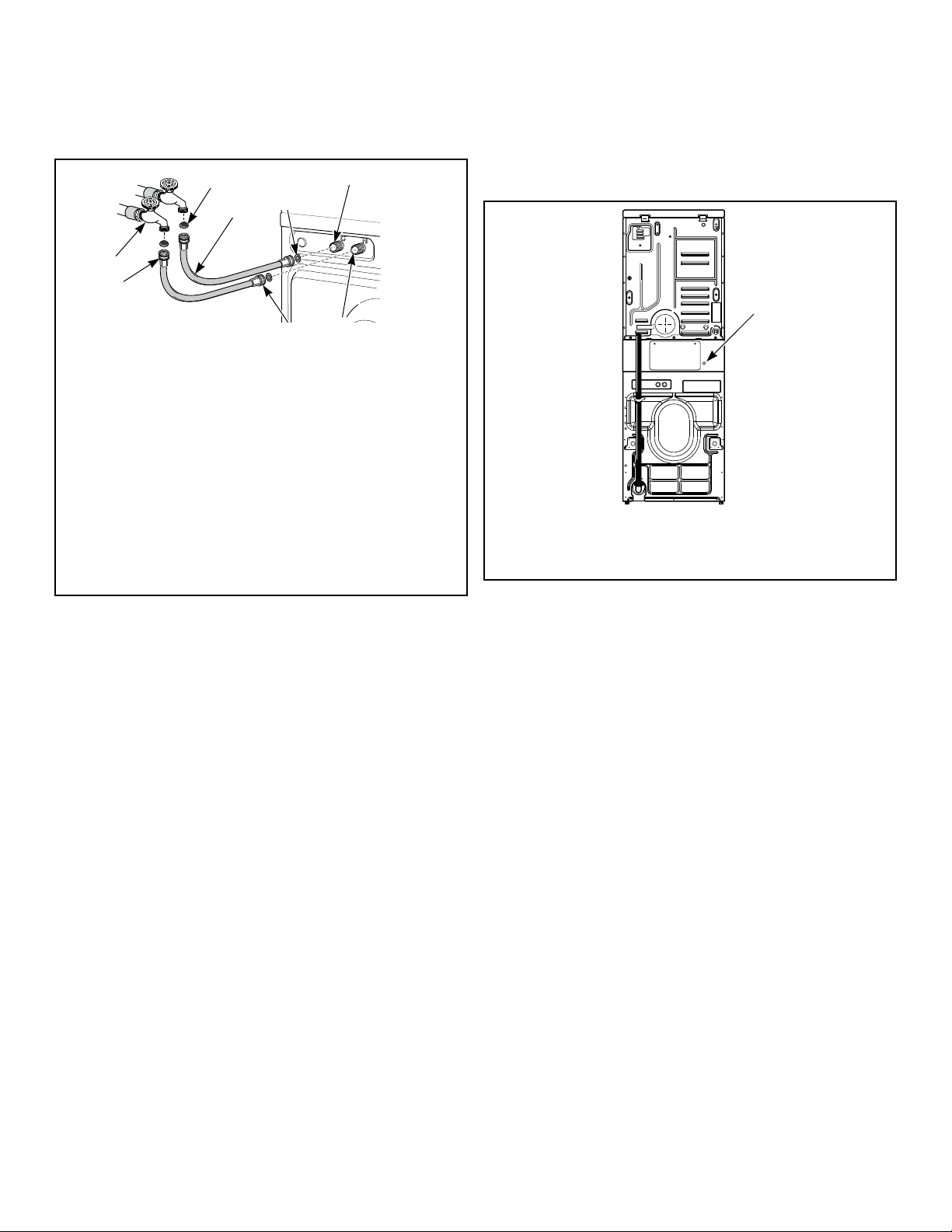

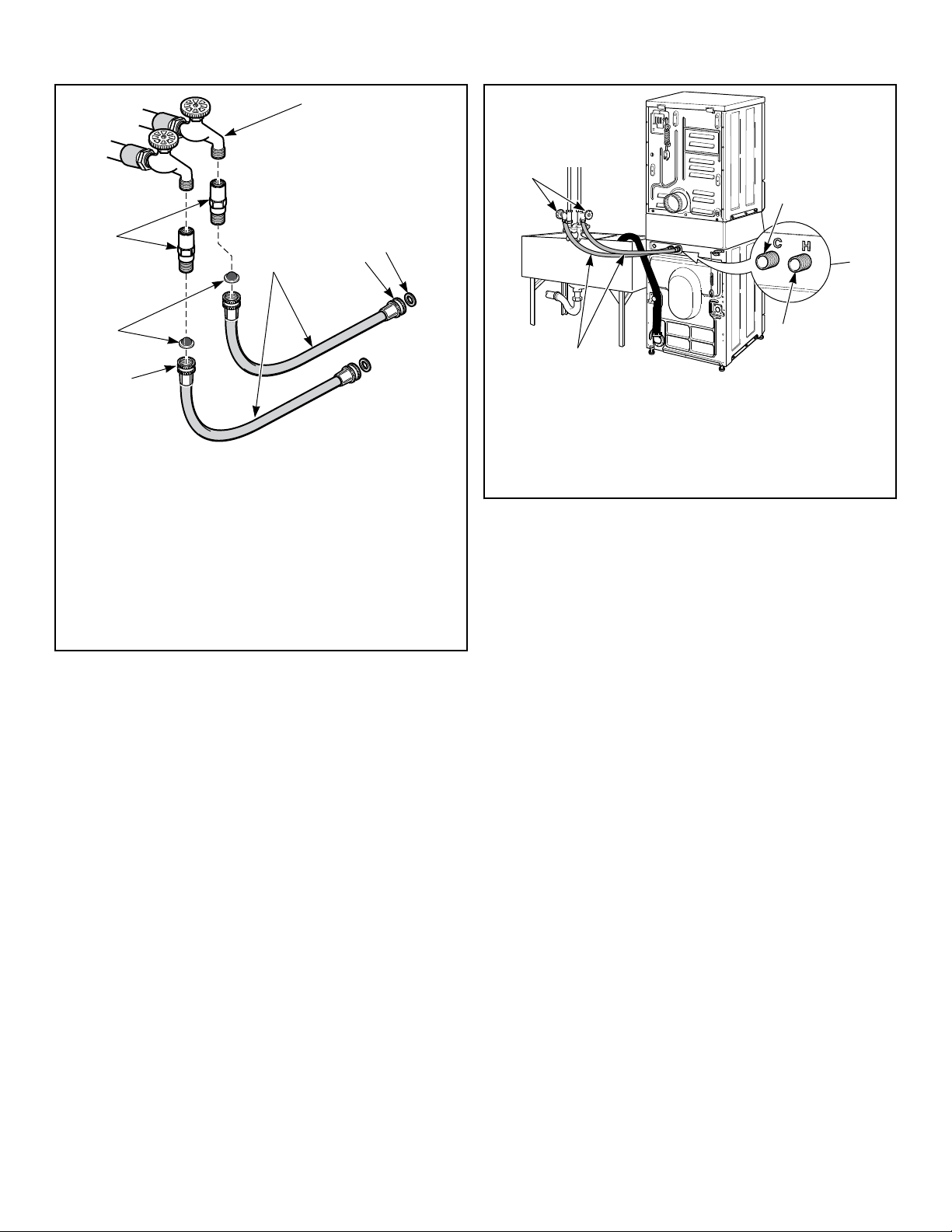

Connect Fill Hoses........................................................................................16
Water Supply Requirements....................................................................... 16
Model Numbers Ending in "06".................................................................. 16
All Other Models.......................................................................................17
Install Washer Electrical Cord........................................................................18
Non-Gravity Drain Models - Connect Drain Hose to Drain Receptacle.............. 19
Standpipe Installation................................................................................ 19
Gravity Drain Models - Connect Drain Outlet to Drain System......................... 20
Gas Dryers - Connect Gas Supply Pipe........................................................... 20
Connect Dryer Exhaust System...................................................................... 22
Exhaust Direction......................................................................................23
Exhaust System.........................................................................................23
Multi-Dryer Installation Exhaust Requirements............................................24
Position and Level the Unit............................................................................26
Wipe Out Inside of Washer and Dryer Drums..................................................27
Connect the Washer to Electrical Power..........................................................28
Washer Electrical Requirements................................................................. 28
Earth/Ground Instructions.......................................................................... 28
Connect the Dryer to Electrical Power............................................................ 29
Electrical Requirements............................................................................. 29
Earth/Ground and Wiring Instructions......................................................... 30
Check Installation......................................................................................... 30
Check Heat Source........................................................................................30
Electric Dryers.......................................................................................... 30
Gas Dryers................................................................................................30
Operation............................................................................................. 32
© Published by permission of the copyright owner.
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed
written consent of the publisher.
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
4 Part No. 805898ENR1

Operation Instructions for Washers.................................................................32
Load Laundry........................................................................................... 32
Close Loading Door...................................................................................32
Add Laundry Supplies............................................................................... 32
Determine Proper Controls.........................................................................33
Set Fabric Selector/Wash Temperature (°C).................................................33
Set Soil Level............................................................................................33
Insert Coins, if Needed...............................................................................33
Start Washer............................................................................................. 33
Indicator Lights.........................................................................................34
Operation Instructions for Dryers................................................................... 34
Clean Lint Filter........................................................................................34
Load Laundry........................................................................................... 35
Close Loading Door...................................................................................35
Determine Proper Controls.........................................................................35
Set Fabric Selector.....................................................................................35
Insert Coins, if Needed...............................................................................35
Start Dryer................................................................................................36
Remove Laundry.......................................................................................36
Indicator Lights.........................................................................................36
Maintenance......................................................................................... 37
User-Maintenance Instructions....................................................................... 37
Lubrication............................................................................................... 37
Cold Weather Care.................................................................................... 37
Extended Non-Use.................................................................................... 37
Care of Your Washer................................................................................. 37
Care of Your Dryer....................................................................................38
Reinstallation of Shipping Materials............................................................... 38
Motor Overload Protector.............................................................................. 39
For Energy Conservation............................................................................... 39
Troubleshooting....................................................................................40
Disposal of Unit.................................................................................... 44
Contact Information............................................................................. 45
Installer Checklist.................................................................................46
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
5 Part No. 805898ENR1

Safety Information
Explanation of Safety Messages
Precautionary statements (“DANGER,” “WARNING,” and
“CAUTION”), followed by specific instructions, are found in this
manual and on machine decals. These precautions are intended
for the personal safety of the operator, user, servicer, and those
maintaining the machine.
DANGER
Indicates an imminently hazardous situation that, if
not avoided, will cause severe personal injury or
death.
WARNING
Indicates a hazardous situation that, if not avoided,
could cause severe personal injury or death.
CAUTION
Indicates a hazardous situation that, if not avoided,
may cause minor or moderate personal injury or
property damage.
Additional precautionary statements (“IMPORTANT” and
“NOTE”) are followed by specific instructions.
IMPORTANT: The word “IMPORTANT” is used to in-
form the reader of specific procedures where minor
machine damage will occur if the procedure is not fol-
lowed.
NOTE: The word “NOTE” is used to communicate in-
stallation, operation, maintenance or servicing informa-
tion that is important but not hazard related.
Important Safety Instructions
WASHER
Save These Instructions
WARNING
To reduce the risk of fire, electric shock, serious in-
jury or death to persons when using your washer,
follow these basic precautions:
W023
• Read all instructions before using the washer.
• Install the washer according to the INSTALLATION IN-
STRUCTIONS. Refer to the EARTH/GROUND INSTRUC-
TIONS in the INSTALLATION manual for the proper earth/
ground connection of the washer. All connections for water,
drain, electrical power and earth/ground must comply with lo-
cal codes and be made by licensed personnel when required.
Do not do it yourself.
• Do not install or store the washer where it will be exposed to
water and/or weather.
• Do not add the following substances or textiles containing
traces of the following substances to the wash water: gasoline,
kerosene, waxes, cooking oils, vegetable oils, machine oils,
dry-cleaning solvents, flammable chemicals, thinners or other
flammable or explosive substances. These substances give off
vapors that could ignite, explode or cause the fabric to catch
on fire by itself.
• Under certain conditions, hydrogen gas may be produced in a
hot water system that has not been used for two weeks or
more. HYDROGEN GAS IS EXPLOSIVE. If the hot water
system has not been used for such a period, before using a
washing machine or combination washer-dryer, turn on all hot
water faucets and let the water flow from each for several mi-
nutes. This will release any accumulated hydrogen gas. THE
GAS IS FLAMMABLE, DO NOT SMOKE OR USE AN
OPEN FLAME DURING THIS TIME.
• To reduce the risk of an electric shock or fire, DO NOT use
an extension cord or an adapter to connect the washer to the
electrical power source.
• Do not allow children to play on or in the washer. Close su-
pervision of children is necessary when the washer is used
near children. This appliance is not intended for use by per-
sons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, un-
less they have been given supervision or instruction concern-
ing the use of the appliance by a person responsible for their
safety. This is a safety rule for all appliances.
• Cleaning and user maintenance shall not be made by children
without supervision.
• Children less than three years should be kept away unless
continuously supervised.
• Do not reach into the washer if the washtub or agitator, if ap-
plicable, is moving.
Safety Information
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
6 Part No. 805898ENR1

• Never operate the washer with any guards, panels and/or parts
removed or broken. DO NOT tamper with the controls or by-
pass any safety devices.
• Use your washer only for its intended purpose, washing
clothes. Always follow the fabric care instructions supplied
by the garment manufacturer.
• Always read and follow manufacturer’s instructions on pack-
ages of laundry and cleaning aids. To reduce the risk of poi-
soning or chemical burns, keep them out of the reach of chil-
dren at all times (preferably in a locked cabinet). Heed all
warnings or precautions.
• Do not use fabric softeners or products to eliminate static un-
less recommended by the manufacturer of the fabric softener
or product.
• Be sure water connections have a shut-off valve and that fill
hose connections are tight. CLOSE the shut-off valves at the
end of each wash day.
• Keep your washer in good condition. Bumping or dropping
the washer can damage safety features. If this occurs, have
your washer checked by a qualified service person.
• Do not repair or replace any part of the washer, or attempt any
servicing unless specifically recommended in the user-main-
tenance instructions or in published user-repair instructions
that you understand and have the skills to carry out. AL-
WAYS disconnect the washer from electrical supply before
attempting any service.
• Disconnect the power cord by grasping the plug, not the cord.
If the supply cord is damaged, it must be replaced by the man-
ufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• Before the washer is removed from service or discarded, re-
move the lid or door to the washing compartment.
• Failure to install, maintain, and/or operate this washer accord-
ing to the manufacturer’s instructions may result in conditions
which can produce bodily injury and/or property damage.
NOTE: The WARNING and IMPORTANT SAFETY IN-
STRUCTIONS appearing in this manual are not meant
to cover all possible conditions and situations that may
occur. Common sense, caution and care must be exer-
cised when installing, maintaining, or operating the
washer.
Always contact your dealer, distributor, service agent or the man-
ufacturer about any problems or conditions you do not under-
stand.
Important Safety Instructions
DRYER
Save These Instructions
WARNING
To reduce the risk of fire, electric shock, serious in-
jury or death to persons when using your dryer, fol-
low these basic precautions:
W130
• Read all instructions before using the dryer.
• Install this dryer according to the INSTALLATION IN-
STRUCTIONS. Refer to the EARTH/GROUND INSTRUC-
TIONS in the INSTALLATION manual for the proper earth/
ground connection of the dryer. All connections for electrical
power, earth/ground and gas supply must comply with local
codes and be made by licensed personnel when required. Do
not do it yourself.
• Do not install or store the dryer where it will be exposed to
water and/or weather.
• Do not dry articles that have been previously cleaned in,
washed in, soaked in, or spotted with gasoline or machine
oils, vegetable or cooking oils, cleaning waxes or chemicals,
dry-cleaning solvents, thinner, anything containing chemicals
such as in mops and cleaning cloths, or other flammable or
explosive substances as they give off vapors that could ignite,
explode or cause fabric to catch on fire by itself.
• Items that have been soiled with substances such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers, turpen-
tine, waxes and wax removers, should be washed in hot water
with an extra amount of detergent before being dried in the
tumble dryer.
• To reduce the risk of fire, DO NOT DRY plastics or articles
containing foam or latex rubber or similarly textured rubber-
like materials, such as shower caps, water proof textiles, rub-
ber-backed articles, and clothes or pillows filled with foam
rubber pads.
• Do not tumble fiberglass curtains and draperies unless the la-
bel says it can be done. If they are dried, wipe out the cylinder
with a damp cloth to remove particles of fiberglass.
• Do not allow children to play on or in the dryer. Close super-
vision of children is necessary when the dryer is used near
children. This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning the use
of the appliance by a person responsible for their safety. This
is a safety rule for all appliances.
• Cleaning and user maintenance shall not be made by children
without supervision.
• Children less than three years should be kept away unless
continuously supervised.
• Do not reach into the dryer if the cylinder is revolving.
• Use the dryer only for its intended purpose, drying clothes.
ALWAYS follow the fabric care instructions supplied by the
Safety Information
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
7 Part No. 805898ENR1

garment manufacturer and only use the dryer drum to dry tex-
tiles that have been washed in water.
• Always read and follow manufacturer’s instructions on pack-
ages of laundry and cleaning aids. Heed all warnings or pre-
cautions. To reduce the risk of poisoning or chemical burns,
keep them out of reach of children at all times (preferably in a
locked cabinet).
• Remove laundry immediately after the dryer stops.
• DO NOT operate the dryer if it is smoking, grinding or has
missing or broken parts or removed guards and/or panels. DO
NOT tamper with the controls or bypass any safety devices.
• DO NOT operate individual units if they have been separated
from a stack unit.
• Dryer will not operate with the loading door open. DO NOT
bypass the door safety switch by permitting the dryer to oper-
ate with the door open. The dryer will stop tumbling when the
door is opened. Do not use the dryer if it does not stop tum-
bling when the door is opened or starts tumbling without
pressing the START mechanism. Remove the dryer from use
and call the service person.
• ALWAYS clean the lint filter after every load. A layer of lint
in the filter reduces drying efficiency and prolongs drying
time. Keep area around the exhaust opening and adjacent sur-
rounding area free from the accumulation of lint, dust and
dirt. The interior of the dryer and the exhaust duct should be
cleaned periodically by qualified service personnel.
• Do not repair or replace any part of the dryer, or attempt any
servicing unless specifically recommended in the user-main-
tenance instructions or in published user-repair instructions
that you understand and have the skills to carry out. AL-
WAYS disconnect the electrical power to the dryer before at-
tempting service. Disconnect the power cord by grasping the
plug, not the cord.
• If supply cord is damaged, it must be replaced by the manu-
facturer, its service agent or similarly qualified persons in or-
der to avoid a hazard.
• Before the dryer is removed from service or discarded, re-
move the door to the drying compartment.
• Failure to install, maintain, and/or operate this machine ac-
cording to the manufacturer’s instructions may result in con-
ditions which can produce bodily injury and/or property dam-
age.
NOTE: The WARNING and IMPORTANT SAFETY IN-
STRUCTIONS appearing in this manual are not meant
to cover all possible conditions and situations that may
occur. Observe and be aware of other labels and pre-
cautions that are located on the machine. They are in-
tended to provide instruction for safe use of the ma-
chine. Common sense, caution and care must be exer-
cised when installing, maintaining, or operating the
dryer.
Always contact your dealer, distributor, service agent or the man-
ufacturer about any problems or conditions you do not under-
stand.
Safety Information
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
8 Part No. 805898ENR1

Dimensions
The workstation average sound pressure level is 68.7 dBA.
Electric Models Equipped With Drain Hose
SWD1023N_SVG
Q
P
O
NI
M
L
K
J
H
G
F
E
D
C
B
A
A * 1678 mm [66.06 in.]
B * 1447 mm [56.97 in.]
C 597 mm [23.5 in.]
D 213 mm [8.375 in.]
E 610 mm [24 in.]
F 203 mm [8 in.]
G 391 mm [15.4 in.]
H * 938 mm [36.9 in.]
I * 368 mm [14.5 in.]
J * 813 mm [32 in.]
K 683 mm [26.875 in.]
L * 1986 mm [78.17 in.]
M * 1184 mm [46.62 in.]
N 52 mm [2.04 in.]
O 704 mm [27.73 in.]
P 38 mm [1.5 in.]
Q * 333 mm [13.1 in.]
NOTE: Exhaust openings are 102 mm [4 inch] metal
ducting.
* With leveling legs turned into base.
Dimensions
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
9 Part No. 805898ENR1

Gas Models Equipped With Drain Hose
SWD1024N_SVG
Q
S
PR
O
N
M
L
I
K
J
H
G
F
E
D
C
B
A
1
1. 3/8 in. NPT Gas Connection
A *1678 mm [66.06 in.]
B *1447 mm [56.97 in.]
C 597 mm [23.5 in.]
D 213 mm [8.375 in.]
E 610 mm [24 in.]
F 203 mm [8 in.]
G 391 mm [15.4 in.]
H 59 mm [2.3 in.]
I *938 mm [36.9 in.]
J *368 mm [14.5 in.]
K *1140 mm [44.87 in.]
L *813 mm [32 in.]
M 683 mm [26.875 in.]
N *1986 mm [78.17 in.]
O *1184 mm [46.62 in.]
P 52 mm [2.04 in.]
Q 704 mm [27.73 in.]
R 38 mm [1.5 in.]
S *333 mm [13.1 in.]
NOTE: Exhaust openings are 102 mm [4 inch] metal
ducting.
* With leveling legs turned into base.
Dimensions
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
10 Part No. 805898ENR1

Electric Models Equipped With Gravity Drain
SWD1027N_SVG
Q
S
P
R
O
N
M
LI
K
J
H
G
F
E
D
C
B
A
1
1. 38 mm [1.5 in.] Inside Diameter; 47 mm [1.86 in.] Outside Diameter
A *1678 mm [66.06 in.]
B *1447 mm [57.97 in.]
C 597 mm [23.5 in.]
D 213 mm [8.375 in.]
E 610 mm [24 in.]
F 203 mm [8 in.]
G 391 mm [15.4 in.]
H *938 mm [36.9 in.]
I *368 mm [14.5 in.]
J *813 mm [32 in.]
K 683 mm [26.875 in.]
L 107 mm [4.2 in.]
M *104 mm [4.1 in.]
N *1184 mm [46.62 in.]
O *1986 mm [78.17 in.]
P 52 mm [2.04 in.]
Q 704 mm [27.73 in.]
R 38 mm [1.5 in.]
S *333 mm [13.1 in.]
NOTE: Exhaust openings are 102 mm [4 inch] metal
ducting.
* With leveling legs turned into base.
Dimensions
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
11 Part No. 805898ENR1

Gas Models Equipped With Gravity Drain
SWD1028N_SVG
Q
U
S
P
R
T
O
N
M
L
I
K
J
H
G
F
E
D
C
B
A1
2
1. 3/8 in. NPT Gas Connection
2. 38 mm [1.5 in.] Inside Diameter; 47 mm [1.86 in.] Outside Diameter
A *1678 mm [66.06 in.]
B *1447 mm [56.97 in.]
C 597 mm [23.5 in.]
D 213 mm [8.375 in.]
E 610 mm [24 in.]
F 203 mm [8 in.]
G 391 mm [15.4 in.]
H 60 mm [2.3 in.]
I *938 mm [36.9 in.]
J *368 mm [14.5 in.]
K *1140 mm [44.87 in.]
L *813 mm [32 in.]
M 683 mm [26.875 in.]
N 107 mm [4.2 in.]
O *104 mm [4.1 in.]
P *1184 mm [46.62 in.]
Q *1986 mm [78.17 in.]
R 52 mm [2.04 in.]
S 704 mm [27.73 in.]
Table continues...
Dimensions
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
12 Part No. 805898ENR1

T 38 mm [1.5 in.]
U *333 mm [13.1 in.]
NOTE: Exhaust openings are 102 mm [4 inch] metal
ducting.
* With leveling legs turned into base.
NOTE: Gas models cannot be vented out left side of
cabinet because of burner housing.
IMPORTANT: The dryer should have sufficient clear-
ance around it for needed ventilation and for the ease
of installation and servicing. For maximum drying per-
formance, we recommend that more clearance be al-
lowed around the dryer than the clearances that are lis-
ted throughout this manual.
Dimensions
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
13 Part No. 805898ENR1

Installation
Before You Start
Tools
For most installations, the basic tools you will need are:
SWD1021N_SVG
11
10 98
4
3
2
1
6
7
5
1. Wrench
2. 1/4 inch Driver
3. Screwdriver
4. Level
5. Wood Block
6. Pliers
7. 5/16 Inch Socket Wrench
8. Gloves
9. Teflon Tape (Gas Models)
10. Duct Tape
11. Safety Glasses
Figure 1
NOTE: An 20.32 cm [8 in.] coin drawer is required for
coin operated models.
NOTE: If the unit is delivered on a cold day (below
freezing), or is stored in an unheated room or area dur-
ing the cold months, do not attempt to operate it until
the unit has had a chance to warm up.
NOTE: Some moisture in the wash drum is normal. Wa-
ter is used during testing at the manufacturer.
NOTE: This appliance is suitable for use in countries
having a warm, damp climate.
WARNING
Any disassembly requiring the use of tools must be
performed by a suitably qualified service person.
W299
Central Pay Models
The machine is shipped from the factory with the Electronic Con-
trol Diagnostic Harness Assembly unplugged. To avoid unauthor-
ized manual programming or vending, perform the following
steps.
1. Open control panel. Refer to Figure 2 .
2. Locate diagnostic harness on electronic control.
3. Plug connectors for “white/black” wire and “red/blue” wire
together.
SWD990N_SVG
1. Control Panel
Figure 2
Order of Installation Steps
The proper order of steps must be followed to ensure correct in-
stallation. Refer to the list below when installing your unit.
1. Position unit near area of installation.
2. Remove the shipping materials.
3. Connect the fill hoses.
4. Install the washer's electrical cord.
5. For non-gravity drain models, connect the drain hose to the
drain receptacle.
6. For gravity drain models, connect the drain outlet to the drain
system.
7. For gas models only, connect the gas supply pipe. Check for
gas leaks.
8. Connect dryer to exhaust system.
Installation
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
14 Part No. 805898ENR1

9. Position and level the unit.
10. Wipe out inside of washer and dryer drums.
11. Connect the washer and dryer to electrical power.
12. Recheck steps.
13. Start and run the dryer in a heat setting to verify dryer is heat-
ing.
Position Unit Near Installation Area
Move unit so that it is within 1.2 meters [4 feet] of the desired
area of installation.
CAUTION
Washer and dryer are not designed to be operated as
separated, side-by-side units.
W187
NOTE: For best performance and to minimize vibration
or movement, install washer on a solid, sturdy and lev-
el floor. Some floors may need to be reinforced, espe-
cially on a second floor or over a basement. Do not in-
stall the washer on carpeting, soft tile or other weakly
supported structures.
Remove Shipping Materials
1. Remove two screws at bottom of front access panel. Rotate
bottom of panel out and remove panel.
FLW2378N_SVG
Figure 3
2. Remove two 9/16 inch bolts and washers holding shipping
brace to weight.
3. Remove two 9/16 inch bolts and washers holding shipping
brace to washer base and remove brace.
FLW2296N_SVG1
Figure 4
4. Go to rear of washer and pull label from rear shipping bolts.
5. Remove two 9/16 inch bolts. Unscrew each bolt while apply-
ing forward pressure just until bolt stops unthreading. Work
each bolt and spacer out by hand using a circular motion.
NOTE: Avoid backing bolts out completely or
spacers might fall into cabinet.
FLW2297N_SVG1
Figure 5
6. Insert two plugs included in accessories bag into rear shipping
bolt holes.
FLW2358N_SVG
Figure 6
7. Replace front access panel.
Installation
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
15 Part No. 805898ENR1

8. Save all shipping materials. They must be reinstalled any time
washer is moved more than four feet.
IMPORTANT: Do not lift or transport unit from front
or without shipping materials installed. Refer to the
Maintenace section for proper instructions on rein-
stalling the shipping materials.
Connect Fill Hoses
WARNING
Under certain conditions, hydrogen gas may be pro-
duced in a hot water system that has not been used
for two weeks or more. HYDROGEN GAS IS EXPLO-
SIVE. If the hot water system has not been used for
such a period and before using the washer, turn on
all hot water faucets and let the water flow from each
for several minutes. This will release any accumula-
ted hydrogen gas. The gas is flammable. Do not
smoke or use an open flame during this time.
W029
Water Supply Requirements
Water supply faucets must fit standard 19 mm [3/4 inch] female
garden hose couplings. DO NOT USE SLIP-ON OR CLAMP-
ON CONNECTIONS.
NOTE: Water supply faucets should be readily accessi-
ble to permit turning them off when washer is not being
used.
Recommended cold water temperature is 10° to 24° Celsius [50°
to 75° Fahrenheit]. Recommended maximum hot water tempera-
ture is 51° Celsius [125° Fahrenheit]. Warm water is a mixture of
hot and cold water. Warm water temperature is dependent upon
the water temperature and the pressure of both the hot and cold
water supply lines.
WARNING
To prevent personal injury, avoid contact with inlet
water temperatures higher than 51° Celsius [125°
Fahrenheit] and hot surfaces.
W748
Maximum flow rate for all water temperatures is 9.46 liters per
minute [2.5 gallons per minute] ± 15%.
Water pressure must be a minimum of 138 to a maximum of 827
kPa [minimum of 1.4 bar to a maximum of 8.3 bar] static pres-
sure measured at the faucet.
NOTE: Water pressure under 138 kPa [20 pounds per
square inch] will cause an extended fill time in the
washer and may not properly flush out the detergent
dispenser.
The appliance is to be connected to the water mains using new
hose-sets and the old hose-sets should not be reused.
Turn on the water supply faucets and flush the lines for approxi-
mately two minutes to remove any foreign materials that could
clog the screens in the water mixing valve. This is especially im-
portant when installing your washer in a newly constructed or
renovated building. Build-up may have occurred during construc-
tion.
Model Numbers Ending in "06"
Connecting Hoses
To comply with water regulations, this washing machine must be
fitted with an approved 3/4 inch double check valve to both the
hot and cold supplies between shut off valve and fill hose. Refer
to Figure 7 .
Maximum water flow rate to the dispenser is 10 liters per minute.
Installation Notice: Note that the Machines must be installed with
Double Check Valves at the Faucets which are not supplied.
1. Insert rubber washers and filter screens (from accessories
bag) in water fill hose couplings (two hoses supplied with
washer). The filter screen must be facing outward.
NOTE: If using hoses with BSPP thread coupling, in-
sert filter screens into the BLACK colored hose cou-
plings and the rubber washers into the brass col-
ored hose couplings.
2. Connect fill hose couplings with filter screens to water supply
faucets.
3. Connect the other hose couplings to the hot and cold valve
connections at the rear of the washer.
NOTE: If using hoses with BSPP thread coupling,
connect the BLACK colored hose coupling end of
the fill hoses (with filter screens) to the water supply
faucets. Then connect end of hoses with the brass
colored hose couplings to the hot and cold water
mixing valve connections at rear of washer.
4. Thread hose couplings onto valve connections finger tight.
Then turn 1/4 turn with pliers.
IMPORTANT: DO NOT cross thread or overtighten
couplings. This will cause them to leak.
5. Turn water on and check for leaks.
6. If leaks are found, retighten the hose couplings.
7. Continue tightening and rechecking until no leaks are found.
Installation
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
16 Part No. 805898ENR1

FLW2216N_SVG
HOT
COLD
7
6
5
4
3
2
1
1. Faucet
2. Fill Hoses
3. Install this end of hose to valve connections at rear of
washer
4. Plain Rubber Washer
5. Install this end of hose to water supply faucet (Black col-
ored coupling for BSPP thread)
6. Filter Screens
7. Double Check Valves
Figure 7
IMPORTANT:
Hoses and other natural rubber parts deteriorate after extended
use. Hoses may develop cracks, blisters or material wear from the
temperature and constant high pressure they are subjected to.
All hoses should be checked on a monthly basis for any visible
signs of deterioration. Any hose showing the signs of deteriora-
tion listed above should be replaced immediately. All hoses
should be replaced every five years.
SWD1025N_SVG
1
2
3
4
5
1. Water Supply Faucets
2. Cold Water Connection
3. Water Mixing Valve
4. Hot Water Connection
5. Fill Hoses
Figure 8
IMPORTANT: Turn off water supply faucets after check-
out and demonstration. Owner should turn off water
supply whenever there will be an extended period of
non-use.
All Other Models
Connecting Hoses
1. Insert rubber washers and filter screens (from accessories
bag) in water fill hose couplings (two hoses supplied with
washer). The filter screen must be facing outward.
NOTE: If using hoses with BSPP thread coupling, in-
sert filter screens into the BLACK colored hose cou-
plings and the rubber washers into the brass col-
ored hose couplings.
2. Connect fill hose couplings with filter screens to water supply
faucets.
3. Connect the other hose couplings to the hot and cold valve
connections at the rear of the washer.
NOTE: If using hoses with BSPP thread coupling,
connect the BLACK colored hose coupling end of
the fill hoses (with filter screens) to the water supply
faucets. Then connect end of hoses with the brass
colored hose couplings to the hot and cold water
mixing valve connections at rear of washer.
4. Thread hose couplings onto valve connections finger tight.
Then turn 1/4 turn with pliers.
IMPORTANT: DO NOT cross thread or overtighten
couplings. This will cause them to leak.
Installation
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
17 Part No. 805898ENR1

5. Turn water on and check for leaks.
6. If leaks are found, retighten the hose couplings.
7. Continue tightening and rechecking until no leaks are found.
FLW2304N_SVG1
COLD
HOT
14
5
6
7
8
23
1. Filter Screen (Screen must be facing outward)
2. Fill Hose
3. Plain Rubber Washer
4. Cold Water Connection
5. Hot Water Connection
6. Install this end of hose to valve connections at rear of
washer
7. Install this end of hose to water supply faucet (Black col-
ored coupling for BSPP thread)
8. Faucet
Figure 9
IMPORTANT:
Hoses and other natural rubber parts deteriorate after extended
use. Hoses may develop cracks, blisters or material wear from the
temperature and constant high pressure they are subjected to.
All hoses should be checked on a monthly basis for any visible
signs of deterioration. Any hose showing the signs of deteriora-
tion listed above should be replaced immediately. All hoses
should be replaced every five years.
IMPORTANT: Turn off water supply faucets after check-
out and demonstration. Owner should turn off water
supply whenever there will be an extended period of
non-use.
Install Washer Electrical Cord
400 Volt, 50 Hertz, 9.8 Amp
NOTE: Refer to 7-14-190 conversion instructions for
400 Volt, 3-Phase WYE, 4 wire plus earth, 9.8 Amp to
230 Volt, 3-Phase DELTA, 3 wire plus earth conversion
instructions. Refer to Kit 805832 for converting to 230
Volt, Single-Phase, 2 wire plus earth, 21 Amp connec-
tion.
Have a qualified electrician install appropriate electrical recepta-
cle.
To attach electrical cord supplied with machine (400 Volt WYE):
1. Remove electrical access panel on rear of machine.
2. Remove plastic plug from hole in rear of machine.
3. Install strain relief, supplied with machine, in hole.
4. Put power cord through hole.
SWD1022N_SVG
1
1. Install power cord through this hole after removing plastic
plug. Use strain relief supplied in accessories bag.
Figure 10
5. Attach power cord wires as shown in Figure 11 .
6. Tighten down the strain relief (supplied with unit) on the
power cord.
7. Reinstall access panel.
NOTE: 1.5 mm2 wire required for 3 Phase, 4 wire con-
nection.
Installation
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
18 Part No. 805898ENR1

Terminal Block Wired For 400 Volt WYE As Viewed
Through Rear Access Panel
FLW1915N_SVG
L 1 L 2 L 3 N
1
10
10
9
9
9
10
2 3 4 5 6
8
7
1. Black Wire
2. Black/White Wire
3. Black/Red Wire
4. White Wire
5. White/Red Wire
6. White/Black Wire
7. Green/Yellow Wire
8. Earth/Ground - Power Cord
9. 230 Volt
10. 400 Volt
Figure 11
Non-Gravity Drain Models - Connect
Drain Hose to Drain Receptacle
Remove the drain hose from its shipping position on the rear of
the washer by removing the shipping tape.
IMPORTANT: Drain receptacle must be capable of han-
dling a minimum of 35 mm [1-3/8 inch] outside diame-
ter drain hose.
Drain Flow Rate
Drain Height
Flow Rate
liters per minute [gal-
lons per minute]
0.9 m [3 ft.] 27.7 [7.3]
1.5 m [5 ft.] 17.8 [4.7]
1.8 m [6 ft.] 13.4 [3.5]
2.1 m [7 ft.] 4.8 [1.3]
2.4 m [8 ft.] 0 [0]
Standpipe Installation
1. Place the drain hose into the standpipe.
2. Remove the beaded tie-down strap from accessories bag and
place around standpipe and drain hose and tighten strap to
hold hose to standpipe. Refer to Figure 12 . This will prevent
the drain hose from dislodging from drain receptacle during
use.
SWD1026N_SVG
2
3
1
1. 610 to 914 mm [24 to 36 in.] Recommended Height
2. Beaded strap from accessory bag
3. Standpipe 51 mm [2 in.] or 40 mm [1-1/2 in.]
Figure 12
Installation
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
19 Part No. 805898ENR1

Gravity Drain Models - Connect Drain
Outlet to Drain System
1. Remove drain fitting (102 mm [4 inches] long) and hose
clamp from accessories bag. Insert drain fitting into drain out-
let hose. Clamp hose and fitting.
2. Connect the drain fitting to a vented drain system using a
flexible connection (obtain locally). Inside diameter of fitting
is 39 mm [1.53 in.] and outside diameter is 42 mm [1.66 in.].
3. The drain system must be vented to prevent an air lock or si-
phoning.
IMPORTANT: Increasing the drain hose length, in-
stalling elbows, or causing bends will decrease
drain flow rates and increase drain times, impairing
machine performance.
SWD1002N_SVG
2
1
1. Drain Trough
2. Drain Outlet Hose
Figure 13
Gas Dryers - Connect Gas Supply Pipe
(5.9 kW)
Gas Rate = 0.55 m3/hr.
NOTE: This appliance must be installed in accordance
with regulations in force.
NOTE: This machine is supplied from the factory for
operation on Natural Gas (2nd Family, Group H[E]) at
nominal inlet pressure of 20 mbar for use in the coun-
tries of GB/IE/PT/ES/IT/BE. For installation in other EU
Countries, and/or for conversion to L.P. (Liquefied Pe-
troleum) gas, consult the distributor
WARNING
To reduce the risk of gas leaks, fire or explosion:
• The dryer must be connected to the type of gas
as shown on nameplate located in the door re-
cess.
• Use a new flexible stainless steel connector.
• Use pipe joint compound insoluble in L.P. (Lique-
fied Petroleum) Gas, or Teflon tape, on all pipe
threads.
• Purge air and sediment from gas supply line be-
fore connecting it to the dryer. Before tightening
the connection, purge remaining air from gas line
to dryer until odor of gas is detected. This step is
required to prevent gas valve contamination.
• Do not use an open flame to check for gas leaks.
Use a non-corrosive leak detection fluid.
• Any disassembly requiring the use of tools must
be performed by a suitably qualified service per-
son.
W316
These instructions are only valid if the following country code is
on the appliance - GB/IE/PT/ES/IT/BE. If this code is not present
on the appliance, it is necessary to refer to the technical instruc-
tions which will provide the necessary information concerning
the modification of the appliance to the condition of use for the
country.
Before installation, check that the local distribution conditions,
nature of gas and pressure, and the adjustment of the appliance
are compatible.
1. Make certain your dryer is equipped for use with the type of
gas in your laundry room. Dryer is equipped at the factory for
Natural Gas with a 3/8 inch NPT gas connection.
NOTE: The gas service to a gas dryer must conform
with the local codes and ordinances.
Installation
© Published by permission of the copyright owner -
DO NOT COPY or TRANSMIT
20 Part No. 805898ENR1
