Gravely Atlas JSV EFI 2016 User manual

2016 Atlas JSV EFI Service Manual PN 21901443A Printed in USA
Service Manual
2016Atlas JSV EFI
21901443A
Models 996200, 996201 (SN 160101 +)

FOREWORD
The information printed within this publication includes the latest product information at time of print. The most recent
version of this Service Manual is available in electronic format at www.gravely.com.
This Service Manual is designed primarily for use by trained Gravely JSV dealers and technicians in a properly
equipped shop and should be kept available for reference. All references to left and right side of the vehicle are from
the operator's perspective when seated in a normal riding position.
Some procedures outlined in this manual require a sound knowledge of mechanical theory, tool use, and shop
procedures in order to perform the work safely and correctly. Technicians should read the text and be familiar with the
service procedures before starting any repair. Certain procedures require the use of special tools. Use only the proper
tools as specified. If you have any doubt as to your ability to perform any of the procedures outlined in this Service
Manual, contact an authorized dealer for service.
Consumers, please provide any feedback you may have regarding this manual in writing to: Ariens Company, Attention
Technical Publications Department, 655 W. Ryan Street, Brillion, WI 54110.
Publication Printed September 2015 (PN 21901443 R02)
© Copyright 2015 Ariens Company All information contained within this publication is based on the latest product information at the time of publication. Due to constant
improvements in the design and quality of production components, some minor discrepancies may result between the actual vehicle and the information presented in this
publication. Depictions and/or procedures in this publication are intended for reference use only. No liability can be accepted for omissions or inaccuracies. Any reprinting
or reuse of the depictions and/or procedures contained within, whether whole or in part, is expressly prohibited. Printed in U.S.A.
2016 Gravely Atlas JSV3000 / JSV6000 EFI
Service Manual

SAFETY WARNINGS
Throughout this manual, important information is brought to your attention by the following symbols:
WARNING
SAFETY ALERT WARNING indicates a potential hazard that may result in severe injury or death to the operator,
bystander or person(s) inspecting or servicing the vehicle.
CAUTION
SAFETY ALERT CAUTION indicates a potential hazard that may result in minor personal injury or damage to the
vehicle.
CAUTION
CAUTION indicates special precautions that must be taken to avoid vehicle damage or property damage.
NOTE
NOTE provides key information by clarifying instructions.
IMPORTANT
IMPORTANT provides key reminders during disassembly, assembly and inspection of components.

TRADEMARKS
GRAVELY ACKNOWLEDGES THE FOLLOWING PRODUCT(S) MENTIONED IN THIS MANUAL:
Loctite, Registered Trademark of the Loctite Corporation
Torx, Registered Trademark of Textron
Some Gravely factory publications can be downloaded from www.gravely.com or purchased by contacting the nearest
Gravely dealer.

2016 Gravely Atlas JSV3000 / JSV6000 EFI
Service Manual
Chapter Summary
CHAPTER 1: GENERAL INFORMATION
CHAPTER 2: MAINTENANCE
CHAPTER 3: ENGINE / COOLING SYSTEM
CHAPTER 4: FUEL SYSTEM
CHAPTER 5: CVT SYSTEM
CHAPTER 6: TRANSMISSION
CHAPTER 7: FINAL DRIVE
CHAPTER 8: BODY / STEERING / SUSPENSION
CHAPTER 9: BRAKE SYSTEM
CHAPTER 10: ELECTRICAL

1
21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company 1.1
GENERAL INFORMATION
CHAPTER 1
GENERAL INFORMATION
VEHICLE IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
GRAVELY IDENTIFICATION NUMBER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
ENGINE DESIGNATION NUMBER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
VEHICLE IDENTIFICATION NUMBER (VIN) DESIGNATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2
VEHICLE AND ENGINE SERIAL NUMBER LOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3
VEHICLE INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4
SPECIAL TOOLS INDEX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8
2016 ATLAS JSV3000 EFI OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8
2016 ATLAS JSV3000 EFI SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.9
2016 ATLAS JSV6000 EFI OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.10
2016 ATLAS JSV6000 EFI SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.11
MISC. SPECIFICATIONS AND CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.12
MASTER TORQUE LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.12
CONVERSION TABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.16
STANDARD BOLT TORQUE SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.17
METRIC BOLT TORQUE SPECIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.18
SAE TAP / DRILL SIZES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.19
METRIC TAP / DRILL SIZES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.19
DECIMAL EQUIVALENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.20

1.2 21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company
VEHICLE IDENTIFICATION
GRAVELY IDENTIFICATION NUMBER
Example: 996200160253
MODEL NUMBER MODEL YEAR SERIAL NUMBER
1st 2nd 3rd 4th 5th 6th 7th* 8th 9th 10th 11th 12th
996200160253
ENGINE DESIGNATION NUMBER
1204971: 567cc Single Cylinder, Liquid Cooled, 4-Stroke
DOHC, Electric Start
VEHICLE IDENTIFICATION NUMBER (VIN) DESIGNATION
Example: 4XAKA09A0E3000000
WORLD MFG. ID
VEHICLE DESCRIPTORS VEHICLE IDENTIFIERS
CHASSIS
DRIVELINE
ENGINE SIZE
ENGINE
MODIFIER
CATEGORY
CHECK DIGIT
MODEL YEAR *
MFG. LOCATION
INDIVIDUAL SERIAL NO.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
4 X A K A 0 9 A 0 E 3 0 0 0 0 0 0
* Model Year: A = 2010; B = 2011; C = 2012; D = 2013; E = 2014; F = 2015; G = 2016; H = 2017
GENERAL INFORMATION

21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company 1.3
VEHICLE AND ENGINE SERIAL NUMBER
LOCATIONS
Whenever corresponding about a utility vehicle, be sure
to refer to the vehicle identification number (VIN) and the
engine model number and serial number.
VEHICLE IDENTIFICATION NUMBER (VIN) - The VIN
is found under the passenger seat on the base model
and under the rear passenger seat on the crew model.
ENGINE SERIAL NUMBER - The engine model and
serial number qcan be found on a decal applied to the
top of the engine near the coolant inlet.
GENERAL INFORMATION
1

1.4 21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company
VEHICLE INFORMATION
SPECIAL TOOLS INDEX
CHAPTER 3 — ENGINE / COOLING SYSTEM
Water Pump Mechanical / Oil Seal
Installation Kit
21900595
Drive Clutch Puller
21900611
Clutch Center Distance Tool
21900594
Oil Pressure Gauge Adapter
21900598
Cylinder Holding & Camshaft Timing
Plate
21900591
Valve Spring Compressor Adapter
21900599
Flywheel Holding Tool
21900603
Flywheel Puller
21900614
Crankshaft Removal / Installation
Tool Kit
21900604
GENERAL INFORMATION

21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company 1.5
CHAPTER 4 — FUEL SYSTEM
Fuel Pressure Gauge Kit
21900612
Fuel Pump Service Tool
21900602
Digital Wrench® Diagnostic Kit
21900617
Digital Wrench® Software
21900607
Digital Wrench® USB-Serial Adapter
Cable
21900606
Digital Wrench® SmartLink Module
Kit
21900590
GENERAL INFORMATION
1

1.6 21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company

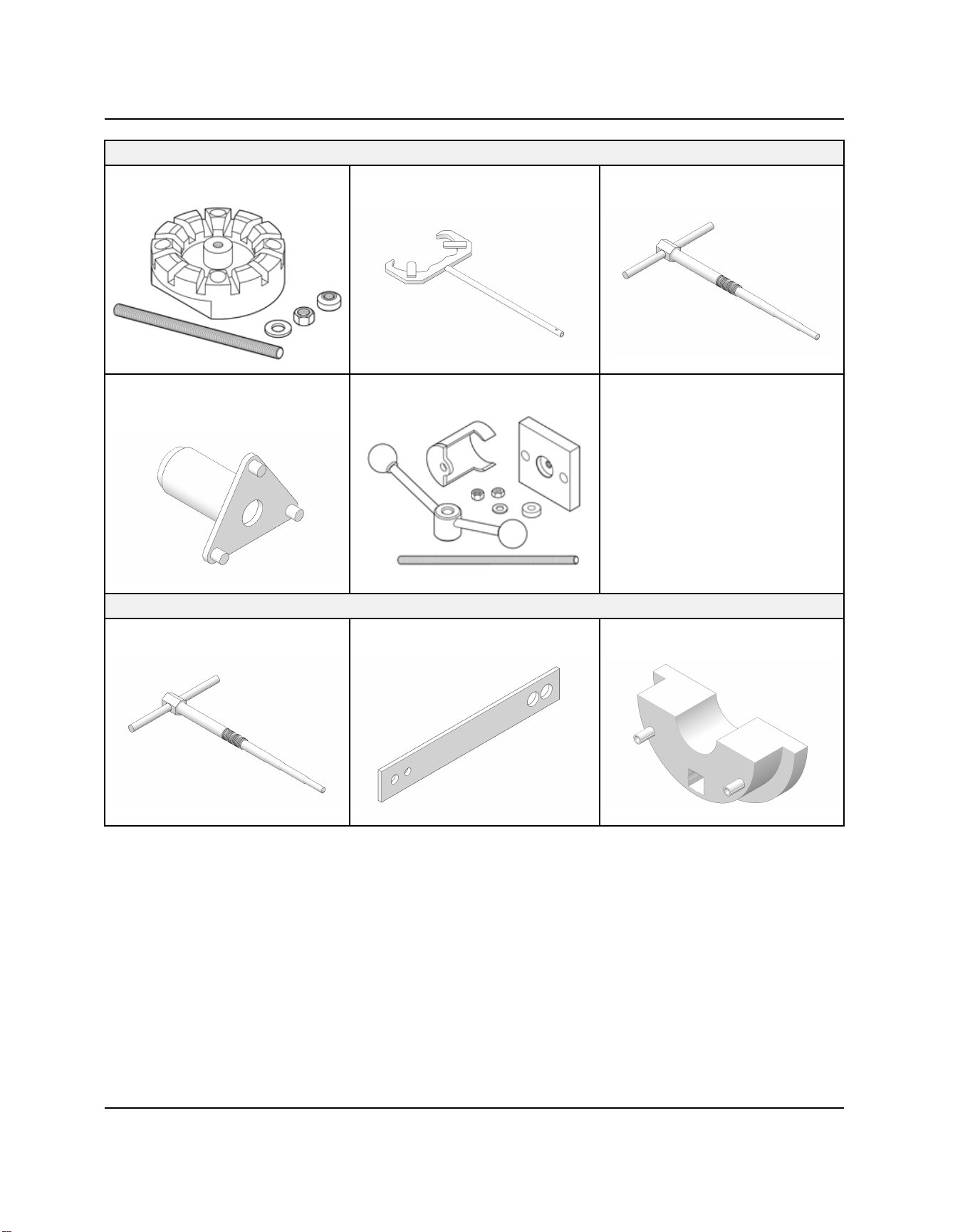

CHAPTER 5 — CVT SYSTEM
Clutch Holding Fixture
21900600
Drive Clutch Holding Tool
21900613
Drive Clutch Puller
21900611
Drive Clutch Spider Removal and
Installation Tool
21900609
Universal Clutch Compressor
21900605
CHAPTER 6 — TRANSMISSION
Drive Clutch Puller
21900611
Clutch Center Distance Tool
21900594
Snorkel Tool
21900593
GENERAL INFORMATION

21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company 1.7
CHAPTER 7 — FINAL DRIVE
Axle Boot Clamp Tool
21900610
CV Boot Clamp Pliers
21900596
CHAPTER 8 — BODY / STEERING / SUSPENSION
Ball Joint Tool
21900592
CHAPTER 10 — ELECTRICAL
Connector Test Kit
21900601
GENERAL INFORMATION
1

1.8 21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company
SPECIFICATIONS
2016 ATLAS JSV3000 EFI OVERVIEW
CATEGORY DIMENSION / CAPACITY
Length 128 in / 325 cm
Width (cargo box) 64 in / 162.6 cm
Width (tires) 60 in / 152.4 cm
Height 73.5 in / 187 cm
Wheel Base 84 in / 213 cm
Ground Clearance 10 in / 25.4 cm
Turning Radius 91 in / 231 cm
Dry Weight 1520 lb / 689 kg
Cargo Box Capacity 1250 lb / 567 kg
Cargo Box Dimensions
(inside dimensions)
48.2 x 57 x 11.4 in
(122.4 x 144.8 x 29 cm)
Vehicle Payload
(includes weight of riders,
cargo and accessories)
1900 lb / 862 kg
Hitch Towing Capacity 2000 lb / 907 kg
Hitch Tongue Capacity 150 lb / 68 kg
GENERAL INFORMATION

21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company 1.9
2016 ATLAS JSV3000 EFI SPECIFICATIONS
ENGINE
Platform Liquid Cooled, 4-Stroke DOHC,
Electric Start
Engine Displacement 34.6 ci (567 cc)
Number of Cylinders 1
Bore & Stroke (mm) 3.898 x 2.898 in (99 x 73.6 mm)
Compression Ratio 10:1
Compression Pressure 80-120 psi (552–827 kPa)
(compression release)
Engine Idle Speed 1200 ± 100 RPM
Engine Max Operating
RPM 7750 RPM
Lubrication Wet Sump
Oil Requirements Synthetic 4-Cycle Engine Oil
Oil Capacity 2 Qt (1.9 L)
Coolant Capacity 5 Qt (4.7 L)
Exhaust System Single Headpipe / Single
Silencer
FUEL SYSTEM
Fuel System Type Bosch ME17 EFI
Fuel Delivery Electronic Fuel Pump (in tank)
Fuel Pressure 58 ± 2 psi (400 ± 14 kPa)
Fuel Capacity 10 gal. (37.8 L)
Fuel Requirement 87 Octane (minimum)
ELECTRICAL
Alternator Rated Output 660 Watts @ 4000 RPM
Headlights Four Single Beam, 27W
Tail Lights LED (10): 0.2 Watts x 2
Brake Lights LED (10): 2.9 Watts x 2
Ignition System Bosch ME17 (ECU Controlled)
Spark Plug Gap 0.0315 in. (0.8 mm)
Battery Johnson Controls / 575 CCA /
12V
DC Outlets (2) - Standard 12 Volt
Relays
*Not in Fuse/Relay Box
Chassis / EFI / Fan / Fuel Pump
/ EPS (OPT) / Rear Diff
Solenoid*
Circuit Breaker 20 Amp: Fan Motor
Fuses
*Not in Fuse/Relay Box
10 Amp: Brake Lights:, Drive,
Fuel Pump
20 Amp: Accessory, ECM,
Lights
30 Amp: EPS (OPT)*
DRIVETRAIN
Transmission Type Automatic CVT
Transmission Gear Ratio:
High
Low
Reverse
Front: 4.541:1 / Rear: 13.579:1
Front: 9.646:1 / Rear: 28.839:1
Front: 8.638:1 / Rear: 25.826:1
Front Gearcase
Lubricant Requirements
All Terrain Fluid
6.7–7.6 oz (200–225 mL)
Transmission
Lubricant Requirements
Full Synthetic
40.6 oz (1200 mL)
Clutch (CVT) Type
Drive: Polaris, Basic, Non-
Braking Bearing
Driven: Team Rapid Reaction
Clutch Center Distance 10.5” (26.7 cm)
Steering / Suspension
Toe Out 1/8 - 1/4 in. (3.2 - 6.35 mm)
Front Suspension Dual A-arm
Front Travel 6 in (15.2 cm)
Rear Suspension Multi-Link Coil Over De-Dion
Rear Travel 5 in (12.7 cm)
Wheels / Brakes
Front Wheel Size / Type 12 x 6 / Steel
Rear Wheel Size / Type 12 x 8 / Steel
Front Tire
Make / Model / Size Carlisle AT-I / 25 x 9 R12
Rear Tire
Make / Model / Size Carlisle AT-II / 25 x 11 R12
Tire Air Pressure
Front: 10 psi (69 kPa)
Rear: 26 psi (179 kPa)
Brake System 4 Wheel Hydraulic Disc
Brake Fluid DOT 4
ALTITUDE
SHIFT
WEIGHT
DRIVE
SPRING
DRIVEN
SPRING
0-1500 Meters
(0-5000 Feet)
25-52
(2190028-
1)
Black
(2190031-
0)
21900807
1500-3700
Meters
(5000 - 12000
Feet)
25-48
(2190136-
7)
Black
(2190031-
0)
21900807
GENERAL INFORMATION
1

1.10 21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company
2016 ATLAS JSV6000 EFI OVERVIEW
CATEGORY DIMENSION / CAPACITY
Length 165 in / 419 cm
Width (cargo box) 64 in / 162.6 cm
Width (tires) 60 in / 152.4 cm
Height 73.5 in / 187 cm
Wheel Base 116 in / 295 cm
Ground Clearance 10 in / 25.4 cm
Turning Radius 129 in / 327.7 cm
Dry Weight 1800 lb / 816 kg
Cargo Box Capacity 1250 lb / 567 kg
Cargo Box Dimensions
(inside dimensions)
48.2 x 57 x 11.4 in
(122.4 x 144.8 x 29 cm)
Vehicle Payload
(includes weight of riders,
cargo and accessories)
2100 lb / 953 kg
Hitch Towing Capacity 2000 lb / 907 kg
Hitch Tongue Capacity 150 lb / 68 kg
GENERAL INFORMATION

21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company 1.11
2016 ATLAS JSV6000 EFI SPECIFICATIONS
ENGINE
Platform Liquid Cooled, 4-Stroke DOHC,
Electric Start
Engine Displacement 34.6 ci (567 cc)
Number of Cylinders 1
Bore & Stroke (mm) 3.898 x 2.898 in (99 x 73.6 mm)
Compression Ratio 10:1
Compression Pressure 80-120 psi (552–827 kPa)
(compression release)
Engine Idle Speed 1200 ± 100 RPM
Engine Max Operating
RPM 7750 RPM
Lubrication Wet Sump
Oil Requirements Synthetic 4-Cycle Engine Oil
Oil Capacity 2 Qt (1.9 L)
Coolant Capacity 5.8 Qt (5.5 L)
Exhaust System Single Headpipe / Single
Silencer
FUEL SYSTEM
Fuel System Type Bosch ME17 EFI
Fuel Delivery Electronic Fuel Pump (in tank)
Fuel Pressure 58 ± 2 psi (400 ± 14 kPa)
Fuel Capacity 10 gal. (37.8 L)
Fuel Requirement 87 Octane (minimum)
ELECTRICAL
Alternator Rated Output 660 Watts @ 4000 RPM
Headlights Four Single Beam, 27W
Tail Lights LED (10): 0.2 Watts x 2
Brake Lights LED (10): 2.9 Watts x 2
Ignition System Bosch ME17 (ECU Controlled)
Spark Plug Gap 0.0315 in. (0.8 mm)
Battery Johnson Controls / 575 CCA /
12V
DC Outlets (2) - Standard 12 Volt
Relays
*Not in Fuse/Relay Box
Chassis / EFI / Fan / Fuel Pump
/ EPS (OPT) / Rear Diff
Solenoid*
Circuit Breaker 20 Amp: Fan Motor
Fuses
*Not in Fuse/Relay Box
10 Amp: Brake Lights:, Drive,
Fuel Pump
20 Amp: Accessory, ECM,
Lights
30 Amp: EPS (OPT)*
DRIVETRAIN
Transmission Type Automatic CVT
Transmission Gear Ratio:
High
Low
Reverse
Front: 4.541:1 / Rear: 13.579:1
Front: 9.646:1 / Rear: 28.839:1
Front: 8.638:1 / Rear: 25.826:1
Front Gearcase
Lubricant Requirements
All Terrain Fluid
6.7–7.6 oz (200–225 ml)
Transmission
Lubricant Requirements
Full Synthetic
40.6 oz (1200 mL)
Clutch (CVT) Type
Drive: Polaris, Basic, Non-
Braking Bearing
Driven: Team Rapid Reaction
Clutch Center Distance 10.5” (26.7 cm)
Steering / Suspension
Toe Out 1/8 - 1/4 in. (3.2 - 6.35 mm)
Front Suspension Dual A-arm
Front Travel 6 in (15.2 cm)
Rear Suspension Multi-Link Coil Over De-Dion
Rear Travel 5 in (12.7 cm)
Wheels / Brakes
Front Wheel Size / Type 12 x 6 / Steel
Rear Wheel Size / Type 12 x 8 / Steel
Front Tire
Make / Model / Size Carlisle AT-I / 25 x 9 R12
Rear Tire
Make / Model / Size Carlisle AT-II / 25 x 11 R12
Tire Air Pressure
Front: 10 psi (69 kPa)
Rear: 28 psi (193 kPa)
Brake System 4 Wheel Hydraulic Disc
Brake Fluid DOT 4
ALTITUDE
SHIFT
WEIGHT
DRIVE
SPRING
DRIVEN
SPRING
0-1500 Meters
(0-5000 Feet)
25-52
(2190028-
1)
Black
(2190031-
0)
21900807
1500-3700
Meters
(5000 - 12000
Feet)
25-48
(2190136-
7)
Black
(2190031-
0)
21900807
GENERAL INFORMATION
1

1.12 21901443 R02 - 2016 Gravely Atlas JSV3000 / JSV6000 EFI Service Manual
© Copyright Ariens Company
MISC. SPECIFICATIONS AND CHARTS
MASTER TORQUE LIST
CHAPTER 2 — MAINTENANCE
PART DESCRIPTION
TORQUE
SPECIFICATION
Crankcase Drain Plug 14 lb-ft (19 Nm)
Spark Plug 9 lb-ft (12 Nm)
Valve Cover Bolts 7 lb-ft (10 Nm)
Outer Clutch Cover
Screws
45-50 lb-in (5 Nm)
Exhaust Spark Arrestor 8 lb-ft (11 Nm)
Transmission Fill / Drain
Plug
10-14 lb-ft (14-19 Nm)
Front Gearcase Fill /
Drain Plug
8-10 lb-ft (11-14 Nm)
Radiator Hose Clamp 3 lb-ft (4 Nm)
Wheel Nuts (Steel
Wheels)
60 lb-ft (81 Nm)
Front Wheel Hub Castle
Nuts
75 lb-ft (102 Nm)
Rear Wheel Hub Castle
Nuts
110 lb-ft (149 Nm)
Tie Rod Jam Nut 14 lb-ft (19 Nm)
Shock Mounting Bolts 40 lb-ft (54 Nm)
CHAPTER 3 — ENGINE / COOLING SYSTEM
PART DESCRIPTION
TORQUE
SPECIFICATION
Thermostat Cover Bolts 8 lb-ft (11 Nm)
Coolant Bleed Screw 6 lb-ft (8 Nm)
Water Pump Cover
Fastener
9 lb-ft (12 Nm)
Water Pump Impeller Finger Tight
Stater Cover and Water
Pump Cover
9 lb-ft (12 Nm)
Wheel Nuts (Steel
Wheels)
60 lb-ft (81 Nm)
Rear Engine Coupler
Fastener (In Sequence)
55 lb-ft (75 Nm)
Front Engine Mount
Fasteners
40 lb-ft (54 Nm)
CHAPTER 3 — ENGINE / COOLING SYSTEM
PART DESCRIPTION
TORQUE
SPECIFICATION
Isolator Center Bolt 40 lb-ft (54 Nm)
Exhaust Head Pipe Bolts 18 lb-ft (25 Nm)
Starter Motor Fastener 7 lb-ft (10 Nm)
CPS Fastener 9 lb-ft (12 Nm)
Oil Gallery Plug 11 lb-ft (15 Nm)
Intake Camshaft Sprocket
Bolt
33 lb-ft (45 Nm)
Cam Chain Guide
Fasteners
9 lb-ft (12 Nm)
Camshaft Carrier Bolts 8 lb-ft (11 Nm)
Cam Chain Tensioner 30 lb-ft (41 Nm)
Spark Plug 9 lb-ft (12 Nm)
Valve Cover Bolts 9 lb-ft (12 Nm)
Cylinder Head Step 1 21 lb-ft (28 Nm)
Cylinder Head Step 2 26 lb-ft (35 Nm)
Cylinder Head Step 3 Additional 135°
Cylinder Head Step 4 (M6
Bolts)
8 lb-ft (11 Nm)
Oil Pump Cover Bolt 8 lb-ft (11 Nm)
Bearing Retainer
Fastener
8 lb-ft (11 Nm)
Crankcase Bolts (In
Sequence)
22 lb-ft (30 Nm)
One Way Clutch
Retaining Bolts
9 lb-ft (12 Nm)
Flywheel Retaining Nut 133 lb-ft (180 Nm)
Stator Mounting Bolts 9 lb-ft (12 Nm)
Stator Wire Retainer 6 lb-ft (9 Nm)
GENERAL INFORMATION
