Greatneck 80167 User manual

•
•
•
•
•
•
•
Rev.
80167
9/13

SECTION PAGE SECTION PAGE
Warranty ….……………… 2 Know Your Cordless Drill 9
Product Specifications … 3 Accessories …………… 10
Power Tool Safety ……… 4–6 Carton Contents……..… 10–11
Drill Safety ……………… 6 Assembly & Operation .. 12–17
Battery & Charger Safety 6–7 Maintenance …….……… 18
Symbols ………………… 8 Parts & Service ..……..… 19–21
2
WARRANTY
One Year Limited Warranty
For one year from the date of purchase of this GreatNeck® product you find
any defect in material or workmanship, through normal usage, either return it
to the place of purchase, or send it to GreatNeck® Tools LLC. for repair or
replacement at our discretion. In order to obtain this service send your tool
and proof of purchase, transportation pre-paid, to GreatNeck® Tools LLC
Q.A. Dept, 3580 E. Raines Rd. #3, Memphis, TN 38118. This warranty
gives you specific legal rights, and you may also have other rights, which
vary from state to state.
This product is not guaranteed if used for industrial or commercial purposes.
TOLL FREE HELPLINE: 1-866-458-2472

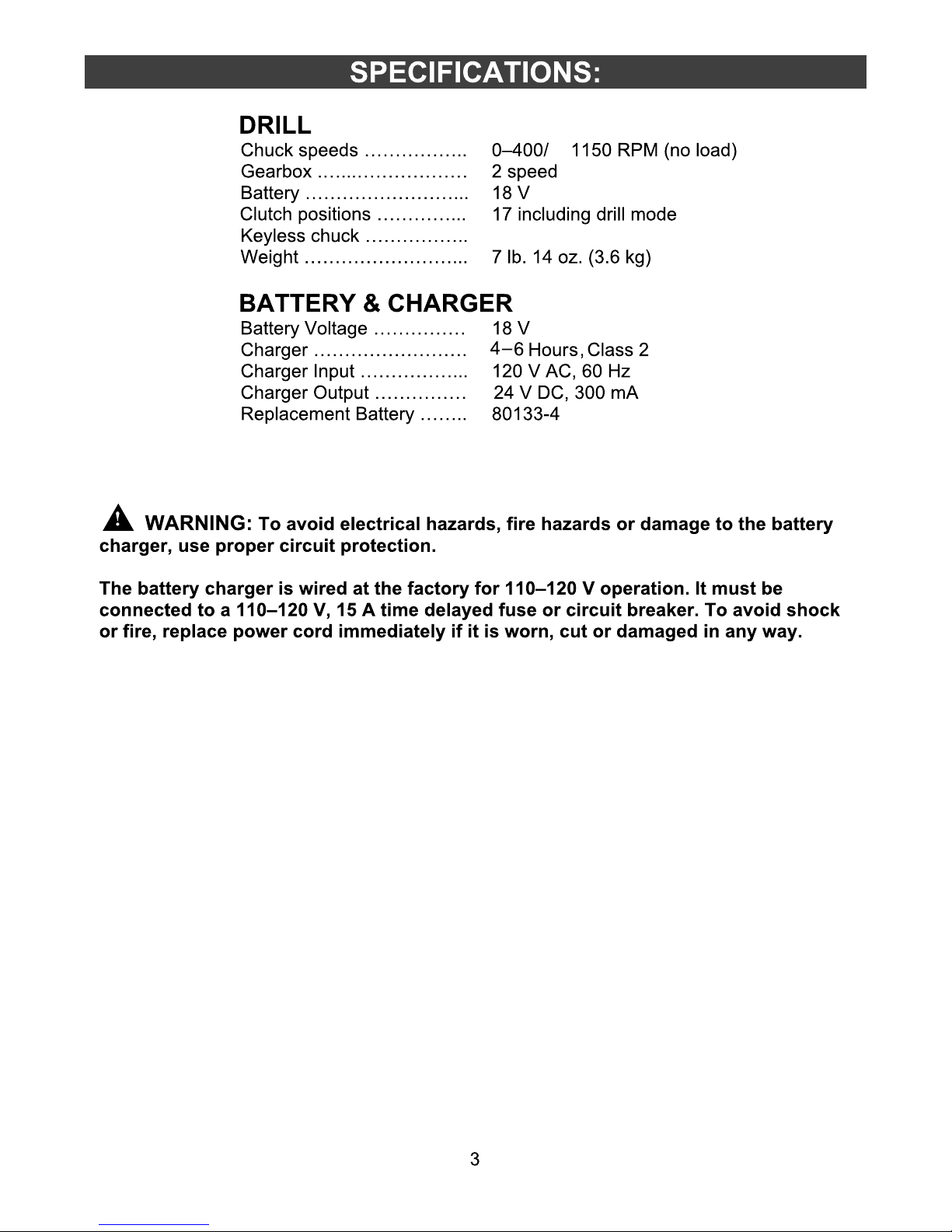

TABLE OF CONTENTS

0–
3/8”

4

Use sa ety equipment. Always wear eye
protection. Dust mask, non-skid safety
shoes, hard hat or hearing protection must
be used under applicable conditions.
TOOL USE AND CARE
Use clamps or other practical method to
secure and support the workpiece on a
stable plat orm. Holding the work by hand
or against your body is unsafe and may
lead to loss of control.
Do not orce the tool. Use the correct
tool or your application. The correct tool
will do the job better and safer at the rate
for which it is designed.
Do not use the tool i the switch does
not turn it ON or OFF. Any tool that cannot
be controlled with the switch is dangerous
and must be repaired.
Disconnect the plug rom the power
source be ore making any adjustments,
changing accessories or storing the
tool. Such preventive safety measures
reduce the risk of starting the tool
accidentally.
Store idle tools out o reach o children
and other untrained persons. Tools are
dangerous in the hands of untrained users.
Maintain tools with care. Keep cutting
tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier
to control.
Check or misalignment or binding o
moving parts, breakage o parts and any
other condition that may a ect the tool’s
operation. I damaged, have the tool
serviced be ore using. Many accidents
are caused by poorly maintained tools.
Use only accessories that are
recommended by the manu acturer or
your model. Accessories that may be
suitable for one tool may become
hazardous when used on another tool.
SERVICE
Tool service must be per ormed only by
quali ied personnel. Service or
maintenance performed by unqualified
personnel could result in risk of injury.
When servicing a tool, use only identical
replacement parts. Follow instructions
in the Maintenance section o this
manual. Use of unauthorized parts or
failure to follow Maintenance instructions
may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES
WARNING: For your sa ety, do not
plug in your charger or install the
battery in the tool until you have
care ully read and understood this
Owner’s Manual.
Wear eye protection. Use face or
dust mask along with safety goggles if
operation is dusty. Use hearing
protection, particularly during extended
periods of operation.
Do not wear gloves, neckties or loose
clothing.
Do not drill, cut, or sand material too
small to be securely held.
Always keep hands out of the path of
the drill bit and saw blade. Avoid
awkward hand positions where a
sudden slip could cause your hand to
move into the path of the drill bit or
saw blade.
5
POWER TOOL SAFETY
!

SPECIFIC SAFETY RULES – cont’d
Secure workpiece. Use clamps or a
vice to hold the workpiece. It is safer
than using your hand and it frees both
hands to operate the tool.
Make sure there are no nails or
foreign objects in the part of the
workpiece to be cut, drilled or sanded.
To avoid injury from accidental
starting, always remove the battery
from the tool before installing or
removing a drill bit, saw blade,
sandpaper, accessory or attachment.
Do not install or use any drill bit that
exceeds 7” (175 mm) in length or
extends more than 6” (150 mm)
beyond the chuck jaws. They can bend
or break suddenly.
Be ore starting the operation, jog the
drill switch to make sure the drill bit
does not wobble or vibrate.
Do not use fly cutters or multiple-part
hole cutters, as they can come apart or
become unbalanced in use.
Make sure the spindle has come to a
complete stop before touching the
chuck or attempting to change the drill
bit.
Always make sure the chuck is tight
and the drill bit irmly tightened in
the chuck before starting drill.
Do not store or carry battery in a
manner in which metal objects
could contact the exposed metal
end. Do not place battery in aprons,
pockets, drawers, etc. with loose nails,
screws, keys etc. The battery could
short circuit causing a fire, personal
injury or damage to the battery.
Never attempt to open the battery
or any reason. If the housing of the
battery breaks or cracks, immediately
discontinue use and do not recharge.
Do not charge the battery i it is wet
or shows any evidence o corrosion.
A small leakage from the battery may
occur under extreme usage, charging
or temperature conditions. This does
not indicate a failure. I however, the
outer seal is broken and this
leakage gets on your skin, ollow
these steps:
1. Wash immediately with soap and
water.
2. Neutralize with a mild acid such as
lemon juice or vinegar.
3. If liquid gets into your eyes, flush
immediately with clean water for a
minimum of 10 minutes and seek
medical attention.
NOTE: The battery liquid is a 20–
35% solution of potassium
hydroxide.
Do not incinerate the battery. It can
explode in a fire.
Do not use an extension cord. Plug
the charger cord directly into an
electrical outlet.
6
DRILL SAFETY
BATTERY & CHARGER
SAFETY
POWER TOOL SAFETY

Use the charger only in a standard
110–120 V 60 Hz electrical outlet.
Charge the battery only with the
charger supplied with the drill.
Do not use the charger in wet or
damp conditions. It is intended for
indoor use only. Do not use the
charger near sinks or tubs. Do not
immerse the charger in water.
Do not allow the cord to hang over
the edge o a table or counter or
touch hot sur aces. The charger
should be placed away from sinks and
hot surfaces.
Do not use charger to charge any
batteries other than the drill
batteries. Other batteries may
explode.
Do not operate charger i cord or
plug is damaged. Replace damaged
cord and plug immediately.
Do not operate charger i it has
received a sharp blow, been dropped
or otherwise damaged in any way.
Have a qualified technician examine
the charger and repair it if necessary.
Do not disassemble the charger.
For best results, only charge the
battery when the temperature range of
the battery or work area is between
10–40°C (50–105°F).
Unplug the charger when not in use
and before cleaning or maintenance.
Do not abuse the cord. To reduce the
risk of damage to the electric cord or
plug, never carry the charger by the
cord or yank the cord to pull the plug.
Always grasp the plug and pull to
disconnect. Always keep the cord
away from heat, oil and sharp edges.
7
BATTERY & CHARGER SAFETY

0
=D
&
=
)
"
8
3042597
JD 608618
direction

9

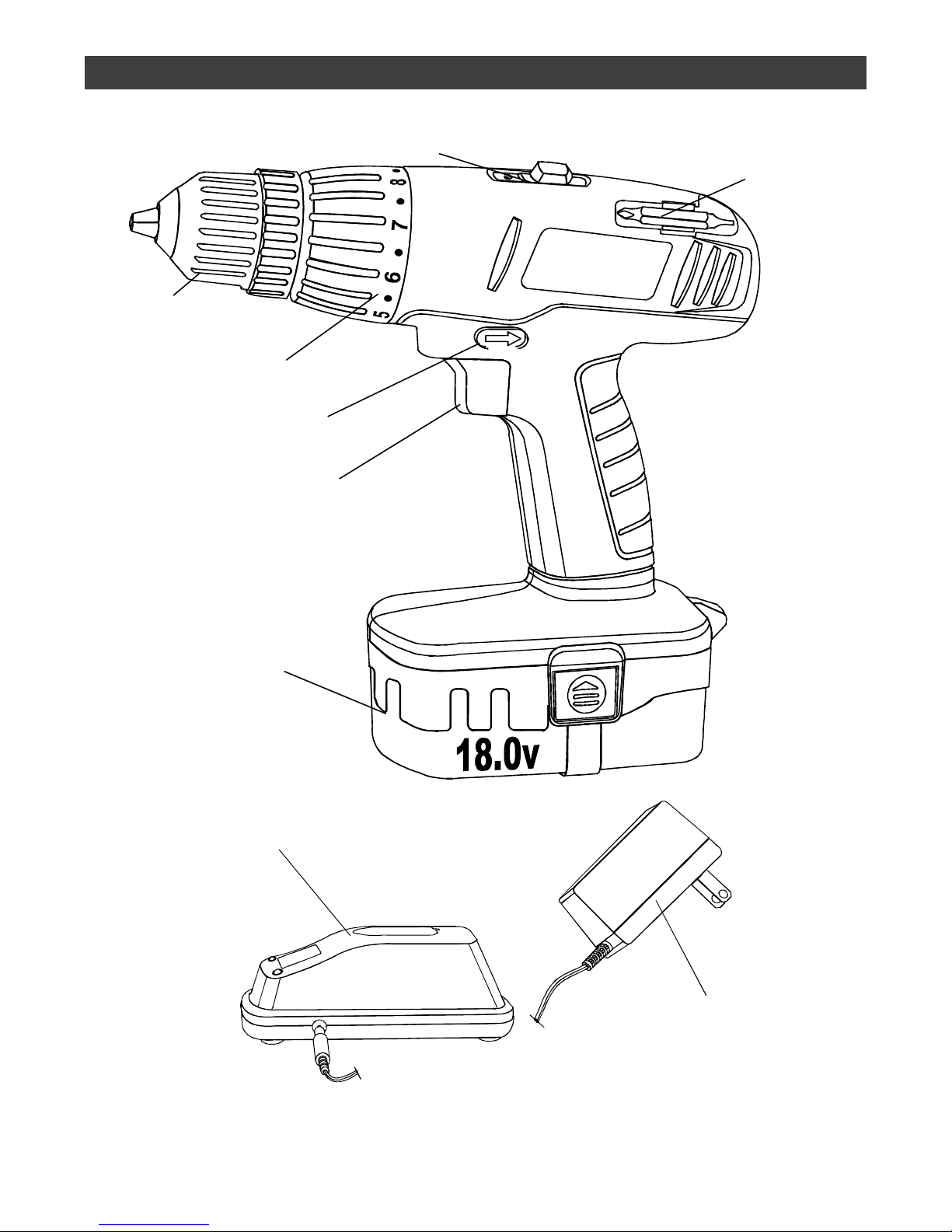

KNOW YOUR CORDLESS DRILL
Charger
stand
Battery
charger
Two-speed
gearbox
3 8”
Keyless
chuck
Clutch
Forward
reverse switch
Trigger switch
On-board
screwdriver
bit storage
18 V Battery
pack

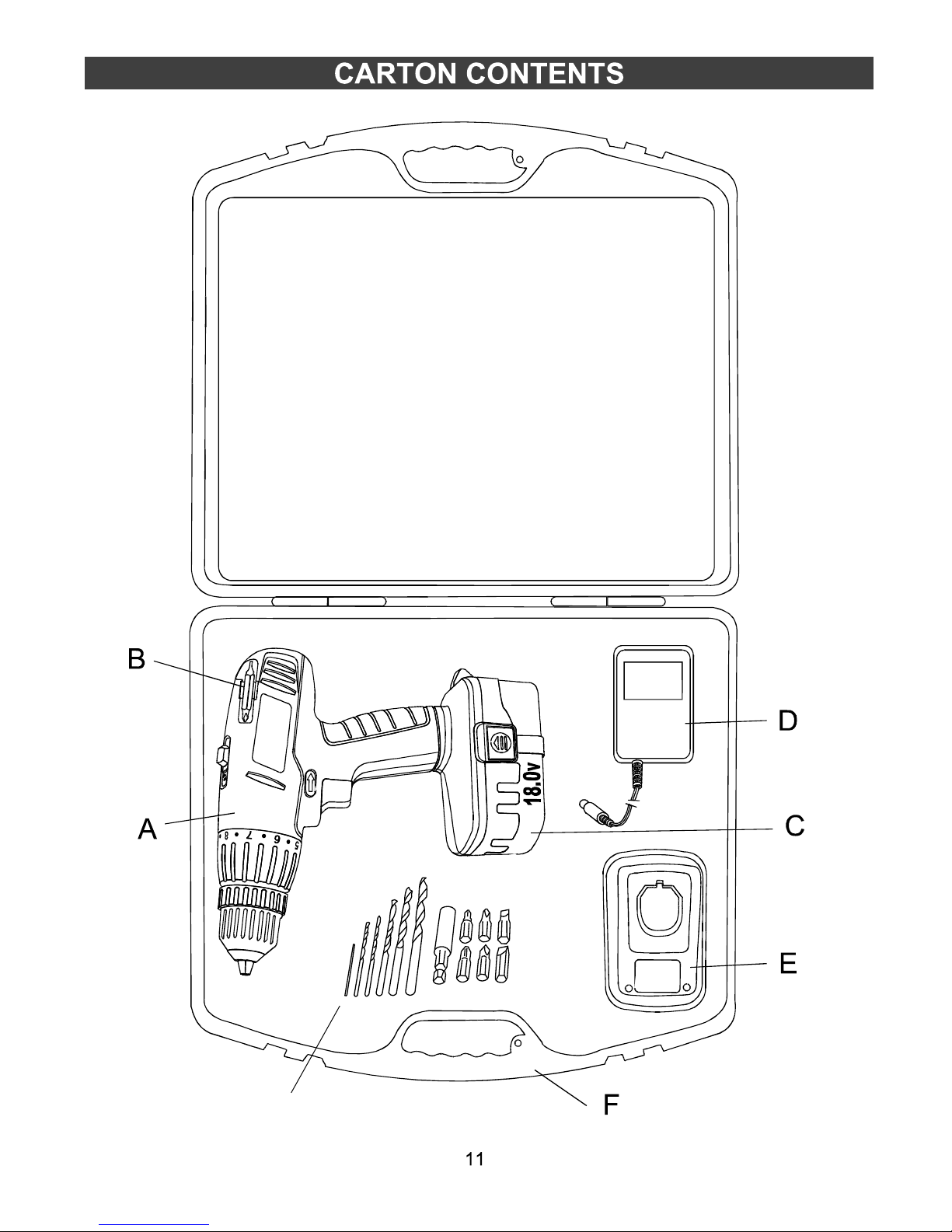

DRILL COMPONENTS
KEY DESCRIPTION QTY
A Drill 1
B Double-ended
screwdriver bits
#1 & #2 1
#2 & 6 mm 1
C 18 V Battery pack 1
D Battery charger 1
E Battery charger stand 1
F Blow-molded case 1
G 13 Pc. Accessory kit 1
Owner’s manual 1

G

2.
6
4-6
2.
Red light indicates charging.
When charging is finished,
green light is ON. Red light
OFF indicates battery is fully
charged.

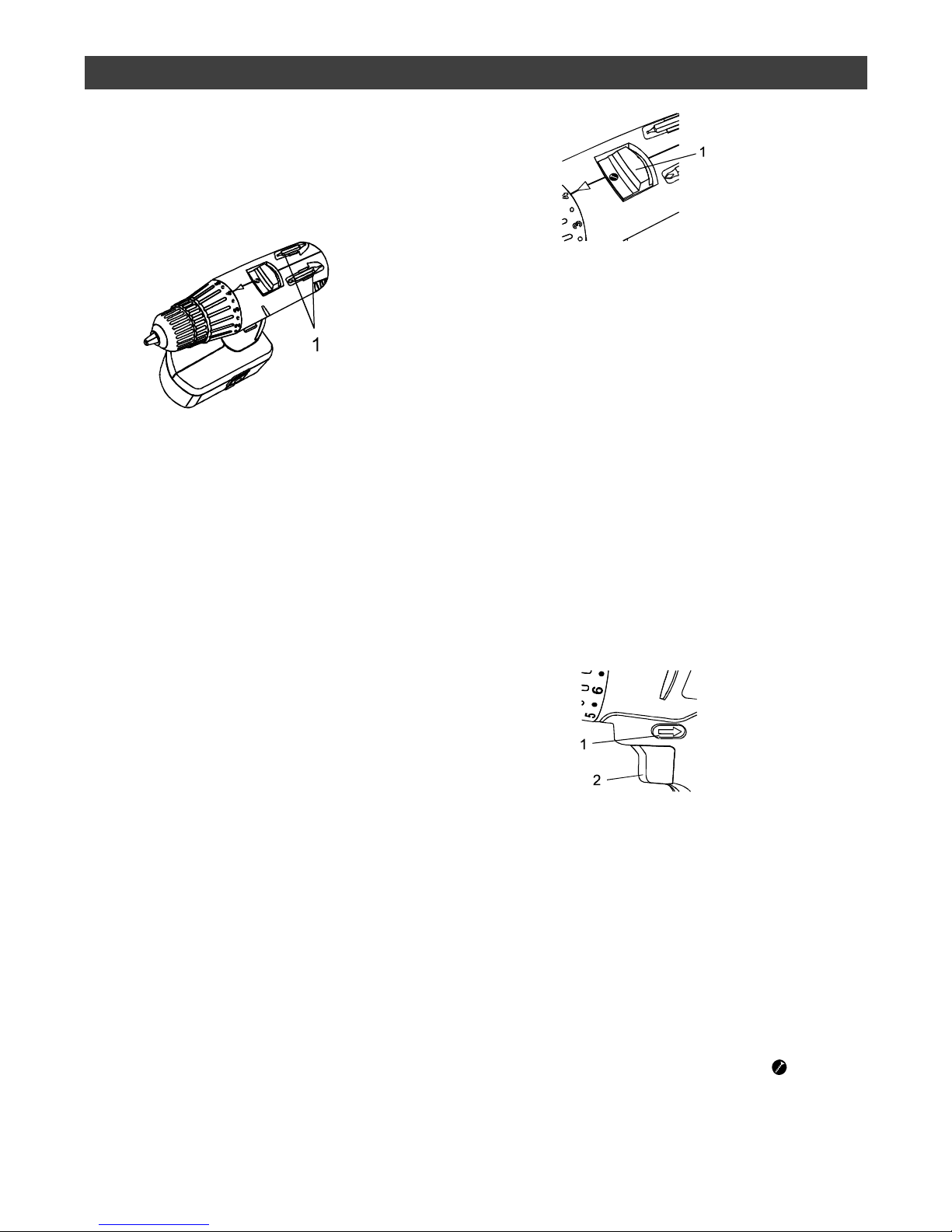

ON-BOARD SCREWDRIVER BIT
STORAGE
Convenient on-board screwdriver bit
storage (1) is provided at the rear of the
drill housing (Fig. 3).
TORQUE ADJUSTMENT
Your drill is equipped with an adjustable
torque clutch for driving different types of
screws into different types of materials. The
proper setting depends upon the type of
material and size of screw being used.
Adjust the torque setting as follows:
1. Identify the torque settings located on
the torque adjustment ring (1) (Fig. 4).
2. Rotate adjustment ring to align the
correct torque setting number with the
torque indicator arrow (2). See chart
below for correct torque settings.
1–2 For driving small screws
3–4 For driving medium-sized
screws into soft materials
5–6 For driving screws into soft &
medium-density materials
7 For driving screws into
hardwood
8 For driving large screws
Use highest setting for drilling.
This position is marked with a
picture of a drill bit on the torque
adjustment ring.
FORWARD/REVERSE SWITCH
The forward reverse switch (1) is
conveniently mounted above the trigger
switch (2) (Fig.5). To make the drill rotate
clockwise (for drilling) push the forward
reverse switch to the left. To make the drill
rotate counter-clockwise for removing
screws, push the forward reverse switch
to the right.
NOTES:
a) Never change position of the
forward reverse switch while chuck is
turning.
b) The trigger switch will NOT function with
the forward reverse switch in the middle
position.
TWO-SPEED GEARBOX
Set the speed control switch (1) to the
desired speed (Fig. 6). Slide the speed
control switch toward the rear of the drill for
low-speed operation. Slide the speed
control switch forward toward the front of
the drill for high-speed operation.
NOTES:
a) Use low-speed setting (position ) for
drilling large holes and for driving screws.
13
ASSEMBLY & OPERATION
Fig. 3
Fig. 4
Fig. 6
Fig. 5

)(
2.
4.

2.
N

2.
4.
2.
4.

2.
4.
6.
7.
2.
4.

®

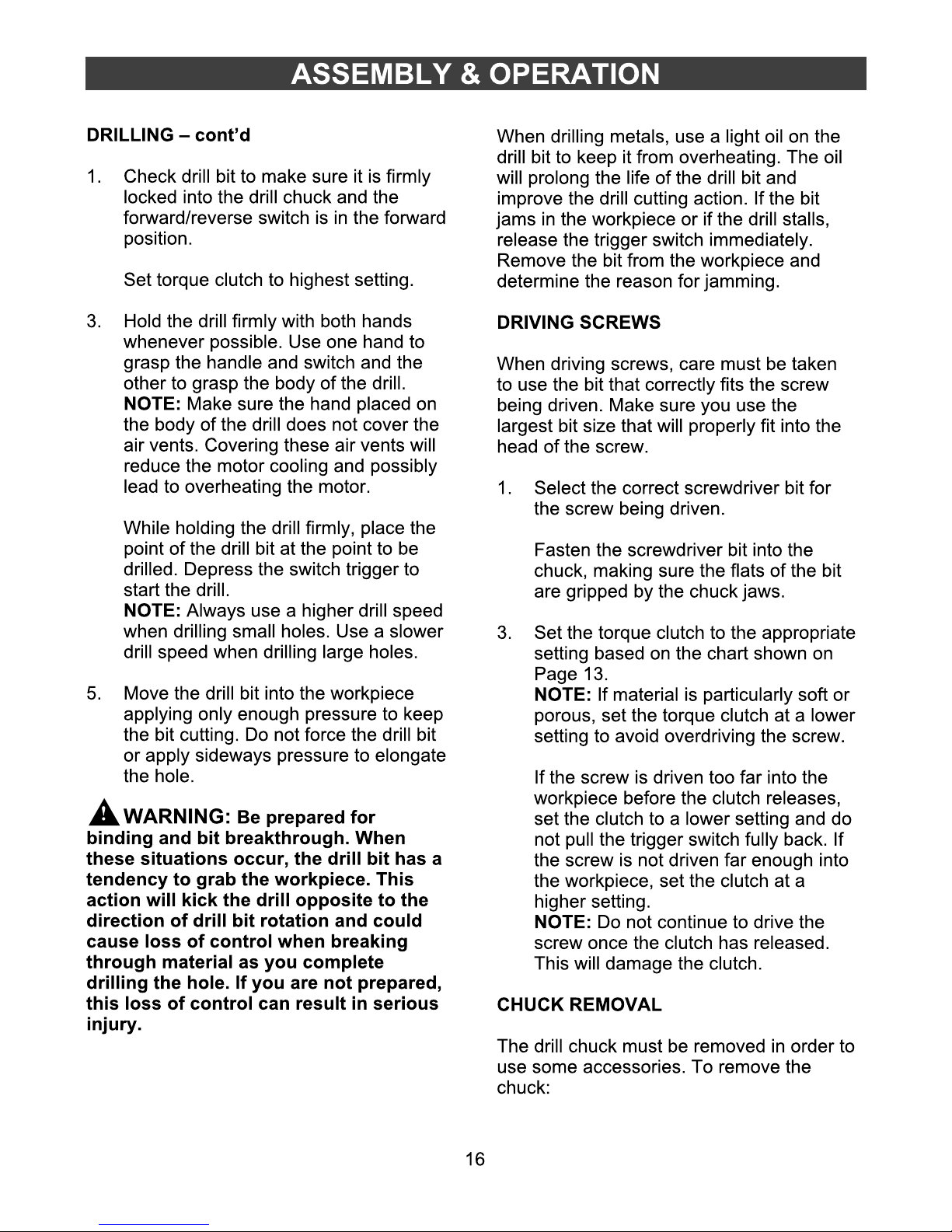

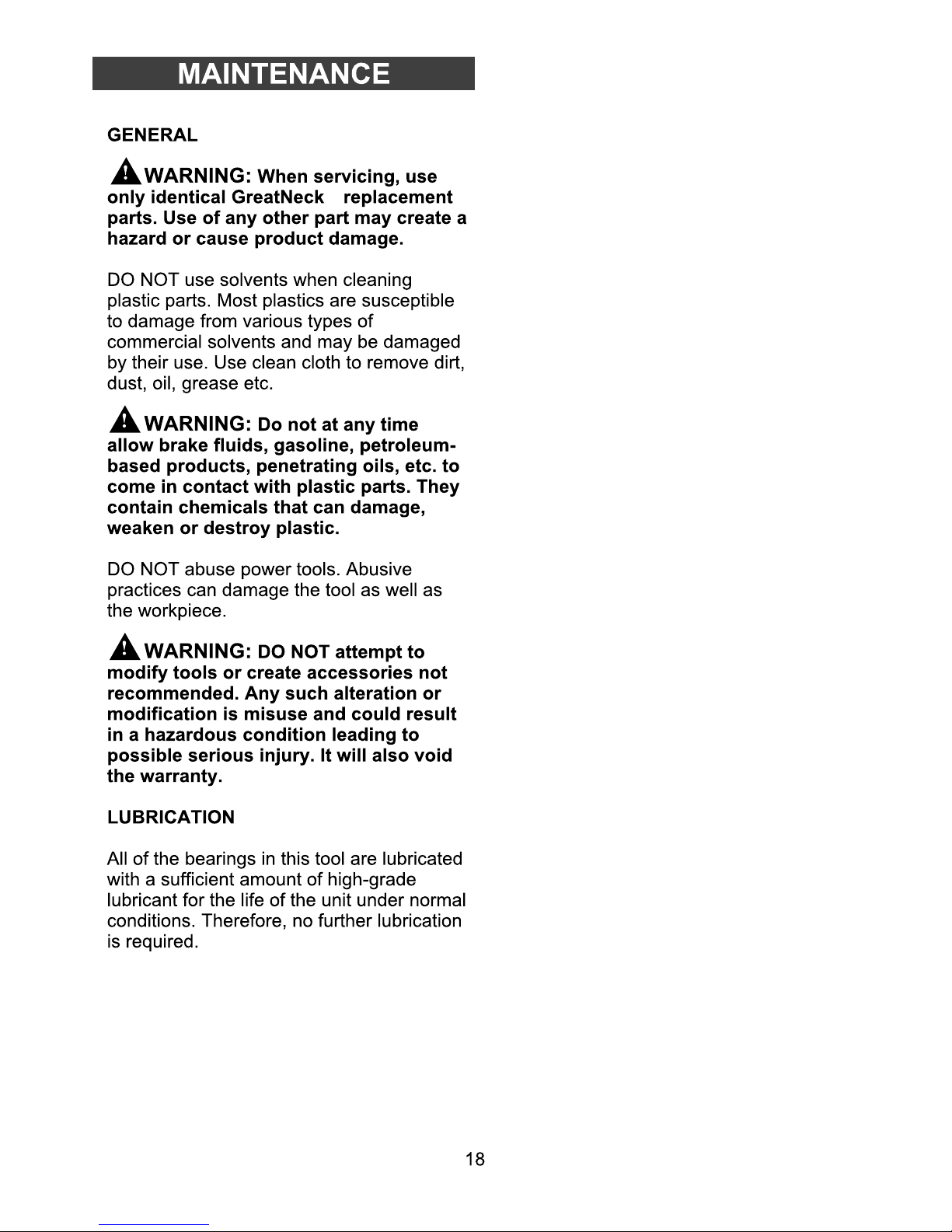

80167

7
9
80133-4
