Green Audio HDE 18G User manual

User Manual
HDE 18G
HDMI 2.0 with IR and RS232 over
Twisted Pair Cable Extender Set
All Rights Reserved
Version: HDE 18G_181128

HDE 18G User Manual
GreenAudioMfg.com
Preface
Read this user manual carefully before using this product. Pictures shown in this manual
are for reference only; the actual product may vary.
This manual is only for operation instruction only and not for any maintenance or repair.
Trademarks
Product model and logo are trademarked. Any other trademarks mentioned in this manual
are acknowledged as the properties of the trademark owner. No part of this publication
may be copied or reproduced without prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. It has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void the
user’s authority to operate the equipment.

HDE 18G User Manual
GreenAudioMfg.com
SAFETY PRECAUTIONS
To i nsure proper operat ion, please read all instructions carefully before using the device.
Save this manual for further reference.
l Unpack the equipment carefully and save the original box and packing material for
possible future shipment
l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to
persons.
l Do not dismantle the housing or modify the module. It may result in electrical shock or
burn.
l Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
l Refer all servicing to qualified service personnel.
l To pre ve nt fire or shock hazard, do not ex pose the u nit to rain, moisture or install thi s
product near water.
l Do not remove the housing of the device, as opening or removing housing may expose
you to dangerous voltage or other hazards.
l Install the device in a place with adequate ventilation to avoid damage caused by
overheating.
l Keep the device away from liquids.
l Spillage into the housing may result in fire, electrical shock, or equipment damage. If an
object or liquid falls or spills on to the housing, unplug the device immediately.
l Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
l Unplug the power cord when left unused for a long period of time.
l If disposing of the unit, do not burn or mix with general household waste. The device
must be disposed of per local regulations for electronic recycling.

HDE 18G User Manual
GreenAudioMfg.com
Contents
1. Introduction ............................................................................................................ 1
1.1 Introduction to the HDE 18G ........................................................................ 1
1.2 Features ....................................................................................................... 1
1.3 Package List ................................................................................................. 1
2. Panel Description ................................................................................................... 2
2.1 HDMI Transmitter ......................................................................................... 2
2.2 HDMI Receiver ............................................................................................. 3
3. System Connection ................................................................................................ 4
3.1 Usage Precautions ....................................................................................... 4
3.2 System Diagram ........................................................................................... 4
3.3 Connection Procedure .................................................................................. 5
3.4 Twisted Pair Cable Connection .................................................................... 6
4. Specifications ......................................................................................................... 7
4.1 Supported Resolutions ................................................................................. 8
5. Panel Drawing ........................................................................................................ 9
6. Troubleshooting & Maintenance .......................................................................... 11
7. After-sales Service ............................................................................................... 12

1
HDE 18G User Manual
GreenAudioMfg.com
1. Introduction
1.1 Introduction to the HDE 18G
HDE 18G is a slim HDBT transmitter receiver set with HDCP 2.2 compatibility. It supports
resolutions up to 4K@60Hz 4:4:4 8-bit, transporting 4K signal up to 40m/130ft and 1080p
signal up to 70m/230ft over a single Cat X cable. HDE 18G features bi-directional PoC
(Power over Cable). It also supports bi-directional IR and RS232 pass-through.
1.2 Features
• Supports resolutions up to 4K@60Hz 4:4:4 8bit and HDCP 2.2
• Supports HDR (High Dynamic Range), including HDR 10 and Dolby Vision
• Over a Cat 6a/7 cable, HDBT transmits 4K@60Hz 4:4:4 8bit up to 40m/130ft and 1080p
up to 70m/230ft
• Over a Cat 5e/6 cable, HDBT transmits 4K@60Hz 4:4:4 8bit up to 35m/115ft and 1080p
up to 60m/200ft
• Bi-directional PoC, one power adapter at either transmitter or receiver side can power
both units
• Supports bi-directional IR and RS232 pass-through
• Single twisted pair transmission (shielded recommended)
• Diagnostic LEDs
• CEC transmission supported
Note: HDE 18G supports Dolby Vision only if the data rate is less than or equal to 10.2Gbps.
1.3 Package List
Ø 3 Transmitters
Ø 3 Receivers
Ø 3 sets of IR kits (1 IR receiver, 1 IR emitter)
Ø 3 sets of 3-pin RS232 connectors
Ø 3 sets of detachable mounting ears with screws
Ø 3 sets of plastic feet
Ø 3 power adapters (DC 18V 1A)
Ø 1 user manual

2
HDE 18G User Manual
GreenAudioMfg.com
2. Panel Description

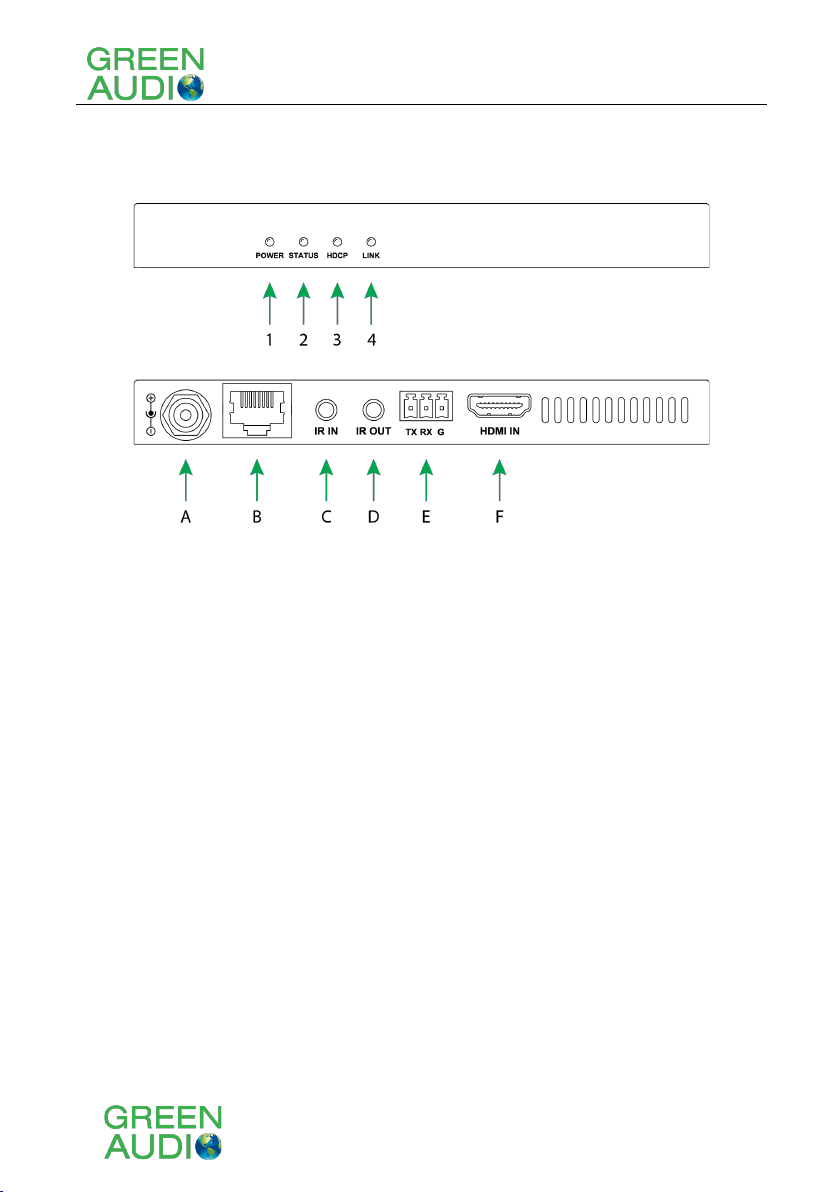

2.1 HDMI Transmitter
1) POWER: Illuminates when properly powered.
2) STATUS: Blinks when the extender is working properly.
3) HDCP: Solid illumination when HDCP content is being transmitted. Blinks when non-
HDCP protected content is being transmitted. No illumination when no content is
being transmitted.
4) LINK: Solid illumination when the link between the transmitter and the receiver is
normal. Blinking or no illumination indicates there is a link error or no link.
A) DC 18V: Connect the included power supply. This port powers both the transmitter
and receiver.
B) HDBT OUT: Connect to the HDBT IN socket on the receiver via a twisted pair cable.
C) IR IN: Connect to an IR receiver. Signals from this port are transmitted to the receiver.
D) IR OUT: Connect to an IR emitter. Signals from this port are transmitted from the
receiver.
E) RS232: Connect to RS232 device.
F) HDMI IN: Connect to HDMI source.

3
HDE 18G User Manual
GreenAudioMfg.com

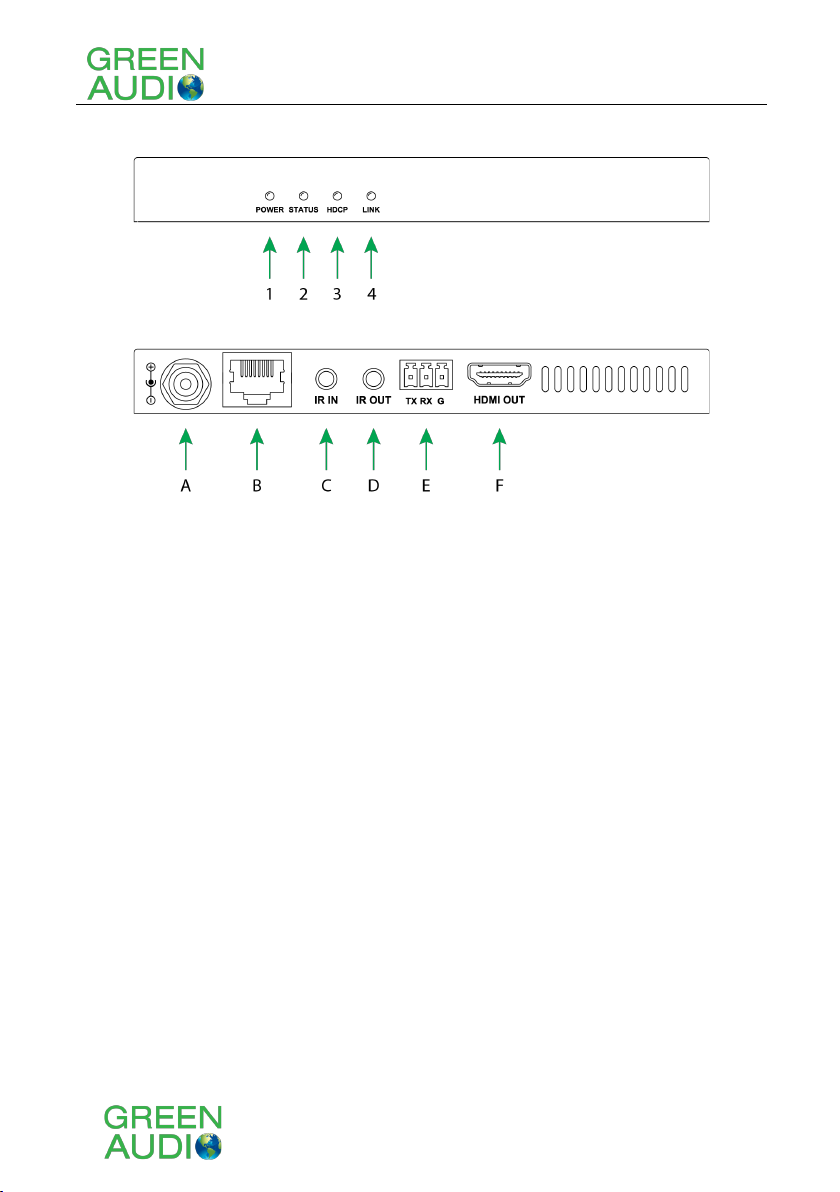

2.2 HDMI Receiver
1) POWER: Illuminates when properly powered.
2) STATUS: Blinks when the extender is working properly.
3) HDCP: Solid illumination when HDCP content is being transmitted. Blinks when non-
HDCP protected content is being transmitted. No illumination when no content is
being transmitted.
4) LINK: Solid illumination when the link between the transmitter and the receiver is
normal. Blinking or no illumination indicates there is a link error or no link.
A) DC 18V: Connect the included power supply. This port powers both the transmitter
and receiver.
B) HDBT IN: Connect to the HDBT OUT socket on the transmitter via a twisted pair cable.
C) IR IN: Connect to an IR receiver. Signals from this port are transmitted to the receiver.
D) IR OUT: Connect to an IR emitter. Signals from this port are transmitted from the
receiver.
E) RS232: Connect to RS232 device.
F) HDMI OUT: Connect to HDMI display.

4
HDE 18G User Manual
GreenAudioMfg.com
3. System Connection
3.1 Usage Precautions
1) System should be installed in a clean environment that has a proper temperature and
humidity.
2) All of the power switches, plugs, sockets and power cords should be installed properly.
3) All devices should be connected before powering on the devices.
4) The twisted pair terminations for the devices should be a straight-through connection
conforming to the TIA/EIA T568B standard.

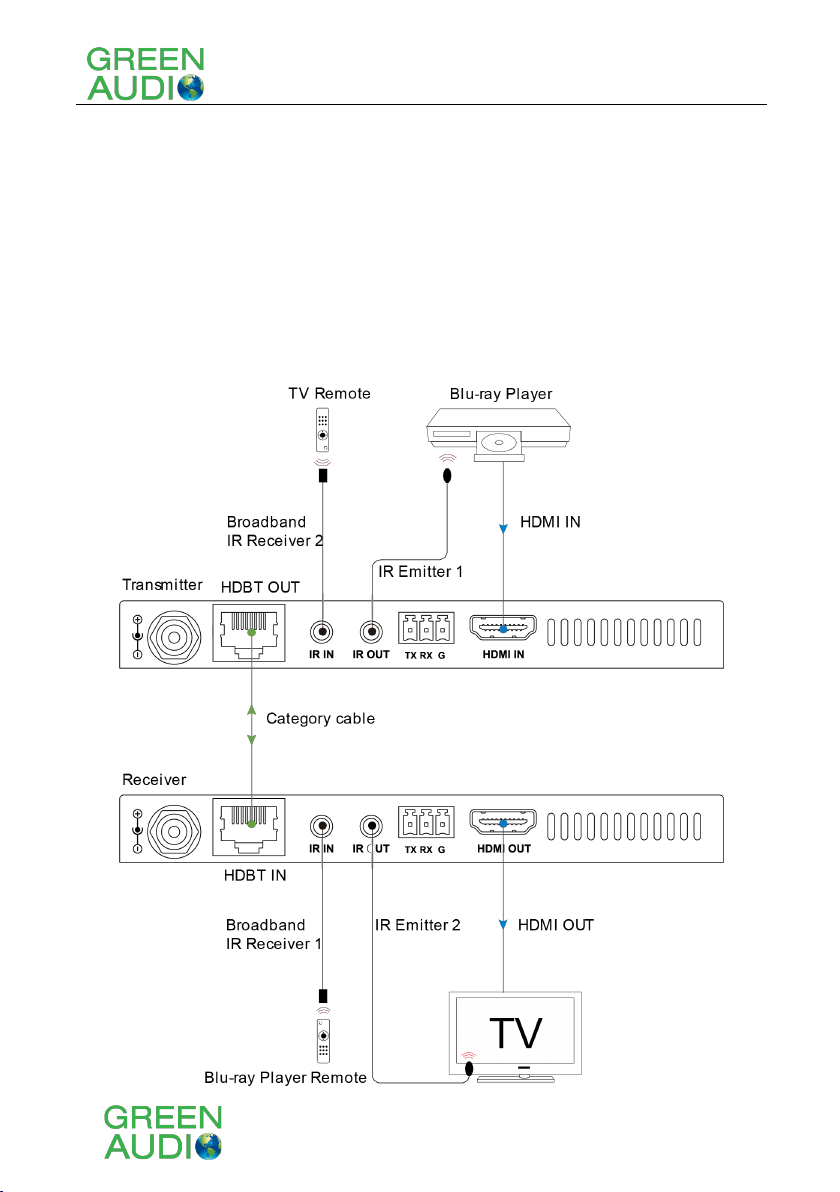

3.2 System Diagram

5
HDE 18G User Manual
GreenAudioMfg.com
3.3 Connection Procedure
Step1. Connect an HDMI source (such as a set top box) to the HDMI IN port of the
transmitter with an HDMI cable.
Step2. Connect HDBT OUT port of the transmitter to HDBT IN port of the receiver using a
twisted pair cable.
Step3. Connect an HDMI display to HDMI OUT port of the receiver with an HDMI cable.
Step4. If IR control is required, perform the following:
a) Connect the IR emitter to the IR OUT port on either the transmitter or
receiver.
b) Connect the IR receiver to the IR IN port on either the transmitter or receiver.
Step5. If RS232 control is required, connect the RS232 port of the devices to be controlled
to the receiver or the transmitter.
Step6. Connect the DC 18V power adaptor to the power port of the transmitter or
receiver. The other device is powered via the twisted pair connection and does not
require a separate power supply.

6
HDE 18G User Manual
GreenAudioMfg.com

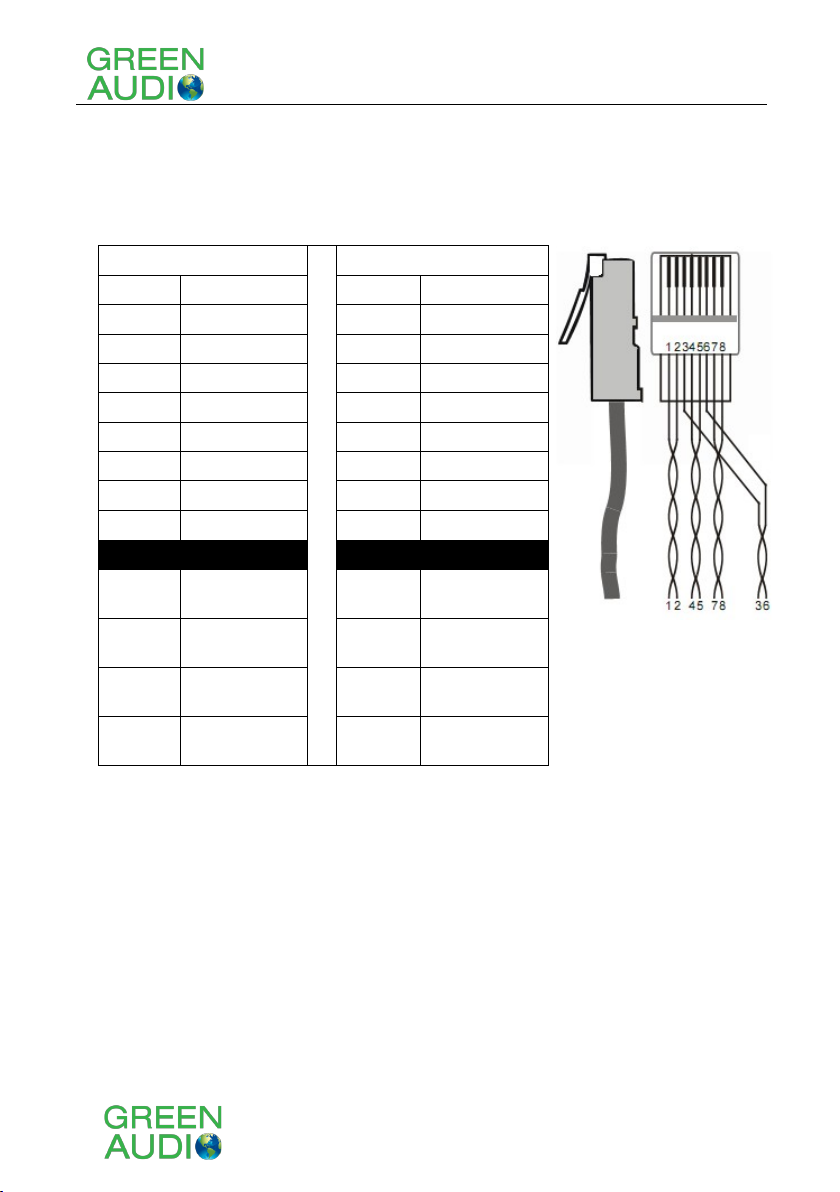

3.4 Twisted Pair Cable Connection
The Cat5e/Cat6 terminations for twisted pair devices should be a straight-through
connection conforming to the TIA/EIAT568B standard. The TIA/EIA T568A standard is NOT
recommended.
Note: For best operation, the twisted pair cable should be shielded and the cable
connectors should be metallic. The shielded layer of cable MUST be connected to the
connector’s metal shell.
TIA/EIA T568A
TIA/EIA T568B
Pin
Cable color
Pin
Cable color
1
green white
1
orange white
2
green
2
orange
3
orange white
3
green white
4
blue
4
blue
5
blue white
5
blue white
6
orange
6
green
7
brown white
7
brown white
8
brown
8
brown
1st
Ground
4--5
1st
Ground
4--5
2nd
Ground
3--6
2nd
Ground
1--2
3rd
Group
1--2
3rd
Group
3--6
4th
Group
7--8
4th
Group
7--8

7
HDE 18G User Manual
GreenAudioMfg.com
4. Specifications
Transmitter
Receiver
Input
Input Signals
1 HDMI, 1 IR, 1 RS232
1 IR, 1 RJ45, 1 RS232
Input Connectors
HDMI female
3.5 mm mini jack
3-pin terminal block
RJ45
3.5mm mini jack
3-pin terminal block
Output
Output Signals
1 IR, 1 RJ45, 1 RS232
1 HDMI, 1 IR, 1 RS232
Output Connectors
HDMI female
3.5 mm mini jack
3-pin terminal block
RJ45
3.5mm mini jack
3-pin terminal block
General
Video Compliance
HDMI 2.0, HDCP 1.4, HDCP 2.2, HDR10, Dolby Vision
(limited to 10.2 Gbps)
Supported Audio
Up to 7.1 surround (8 channel) PCM, Dolby TrueHD,
Dolby Atmos, DTS-HD Master Audio, DTS:X
Resolution Range
800x600@60Hz~4K@60
Transmission Distance
(shielded Cat 5e/6)
1080p: 200 ft. (60m)
4K@60: 115 ft. (35m)
Transmission Distance
(shielded Cat 6a)
1080p: 230 ft. (70m)
4K@60: 130 ft. (40m)
SNR
>70dB@ 100MHz-100M
Bandwidth
18 Gbps
THD
<0.005%@1KHz
Impedance
75Ω
Tempe rature
0 ~ 50°C
Reference Humidity
10% ~ 90%
Power Supply
DC 18V, 1A

8
HDE 18G User Manual
GreenAudioMfg.com
Power Consumption
13 W
Dimension (W*D*H)
136.8 x 74.5 x 15.4 mm
Weight per extender
0.24 kg
Included Accessories
Power Supply, IR Emitter, IR Receiver, Mounting Brackets
with Screws
4.1 Supported Resolutions
Format
Resolution
HDMI
480I, 480P, 576I, 576P, 720P, 1080I, 1080P, 4Kx2K, 1080P 3D
DVI
640x480@60Hz, 640x480@72Hz, 640x480@75Hz, 800x600@60Hz,
800x600@72Hz, 800x600@75Hz, 1024x768@60Hz, 1024x768@70Hz,
1024x768@75Hz, 1280x720@60 Hz, 1280x1024@60Hz, 1280x1024@75Hz,
1600x1200@60Hz, 1920x1080@60Hz, 1920x1200@60Hz

9
HDE 18G User Manual
GreenAudioMfg.com
5. Panel Drawing
Transmitter

10
HDE 18G User Manual
GreenAudioMfg.com
Receiver

11
HDE 18G User Manual
GreenAudioMfg.com
6. Troubleshooting & Maintenance
l No image on display:
l Ensure that the display device has been set to the correct input.
l Ensure that the HDMI cables used for both the source/transmitter and the
receiver/display are properly connected and are working. Test the HDMI cables
directly from a source to display and ensure their operation.
l Ensure that the twisted pair cable has not been damaged and that it has been
terminated correctly with T568B on both ends. A temporary length of twisted pair
cable can be used for testing to ensure that the devices are all compatible and
working properly.
l Ensure proper grounding of the power supply.
l Known issues with HDMI 1.2 source devices:
Older compatibility (HDMI 1.2) may result in transmission issues. Please contact
Technical Support for a solution to these issues.
l Color loss or poor picture quality:
l Ensure that the HDMI cables used for the source, transmitter, receiver and display
are properly connected and are of good quality. Test the HDMI cables directly from
a source to display and ensure their picture quality.
l Ensure proper grounding of the power supply.
l If the static becomes stronger or picture quality becomes worse when connecting
the video connectors, this may be due to improper grounding.
l Check the grounding and make sure all the components are properly grounded to a
common ground. Improper grounding may cause damage to the receiver.
If your problem persists after following the above troubleshooting steps, please contact
your authorized reseller or Green Audio technical support.

12
HDE 18G User Manual
GreenAudioMfg.com
7. After-sales Service
1) Product Limited Warranty: We warrant that our products will be free from defects in
materials and workmanship for three years.
2) Warranty coverage may be voided when:
l The warranty period has expired
l The factory applied serial number has been altered or removed from the product
l There is damage, deterioration or malfunction caused by:
l Atypical wear and tear
l Use of supplies or parts not meeting the specifications
l No certificate or invoice as the proof of warranty
l Damage caused by force majeure
l Non-authorized service
3) Technica l Supp or t: When contacting Green Audio support, please have the following
information available:
l Product part number
l Installation and sale date
l Detailed failure information
