GreenWorks Commercial 48TH12 User manual

CSE403
48TH12
EN OPERATOR MANUALCHAINSAW
FR MANUEL DE L'UTILISATEURSCIE À CHAÎNE
ES MANUAL DEL OPERADORSIERRA DE CADENA
www.greenworkscommercial.com
www.shopgreenworksgear.com
P0801491-03 Rev B

1 Description.........................................4
1.1 Purpose.............................................................. 4
1.2 Overview........................................................... 4
1.3 Packing list........................................................ 4
2 General power tool safety
warnings.............................................4
2.1 Work area safety................................................ 4
2.2 Electrical safety................................................. 4
2.3 Personal safety...................................................4
2.4 Power tool use and care.....................................5
2.5 Battery tool use and care................................... 5
2.6 Service............................................................... 5
3 Safety instructions for chain
saws.....................................................5
3.1 Chainsaw safety warnings................................. 5
3.2 Causes and operator prevention of kickback:....6

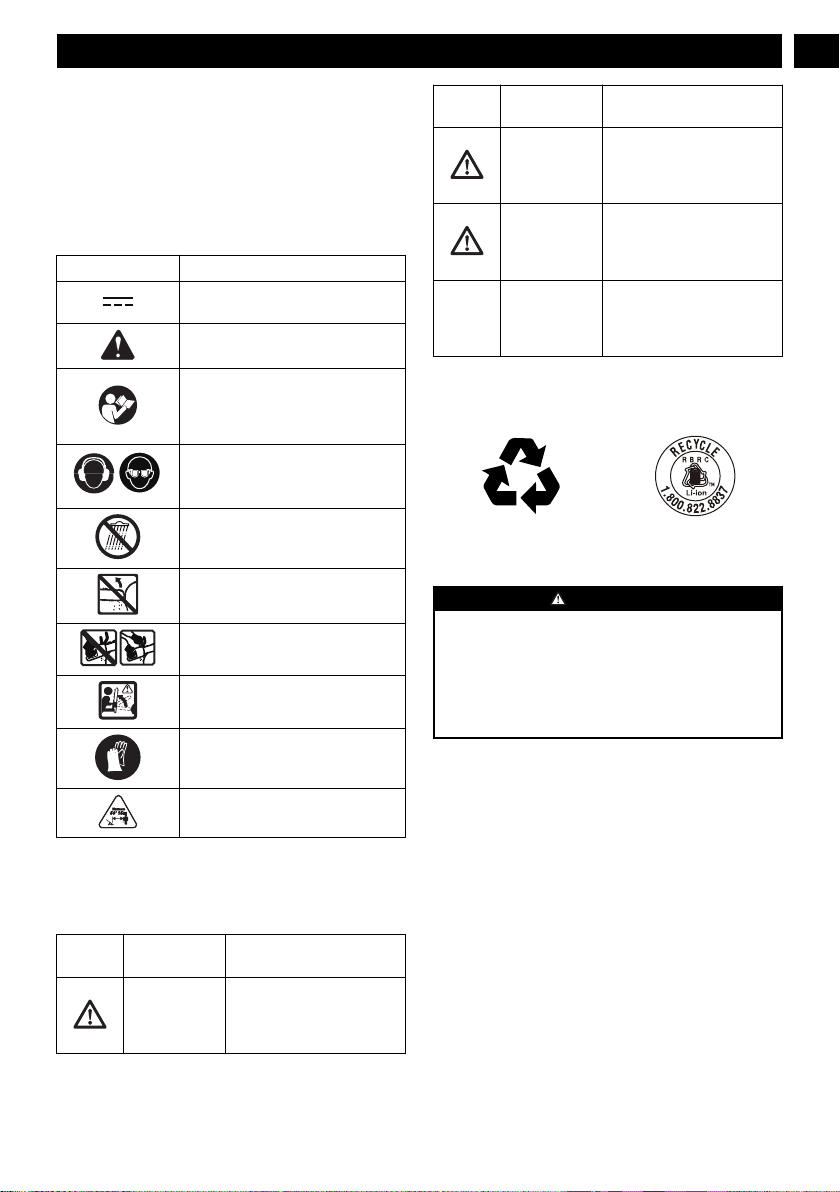

4 Symbols on the product.................... 7
5 Risk levels...........................................7
6 Environmentally safe battery
disposal...............................................7
7 Proposition 65....................................8
8 Installation......................................... 8
8.1 Unpack the machine.......................................... 8
8.2 Add the bar and chain oil...................................8
8.3 Install the battery pack.......................................9
8.4 Remove the battery pack................................... 9
9 Operation........................................... 9
9.1 Examine the chain oil........................................ 9
9.2 Hold the machine...............................................9
9.3 Start the machine............................................... 9
9.4 Stop the machine............................................... 9
9.5 Operate the chain brake................................... 10
9.6 Prepare to cut the tree...................................... 10
9.7 The work position for two-handed use............10
9.8 Start the machine in the tree............................ 11
9.9 Operate the machine with one hand.................11
9.10 Fell a tree......................................................... 11
9.11 Limb a tree.......................................................12

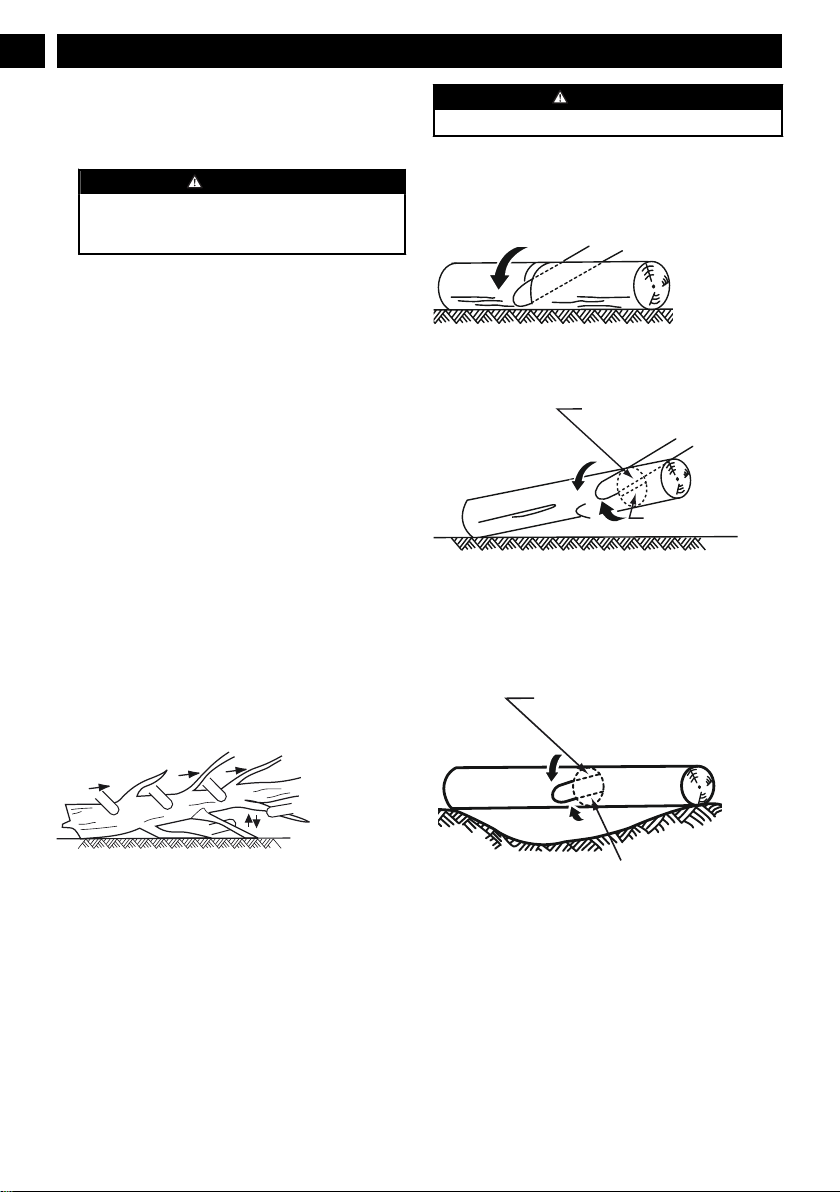

9.12 Buck a log........................................................12
10 Maintenance.....................................13
10.1 Replace the guide bar and the chain................ 13
10.2 Adjust the chain tension.................................. 14

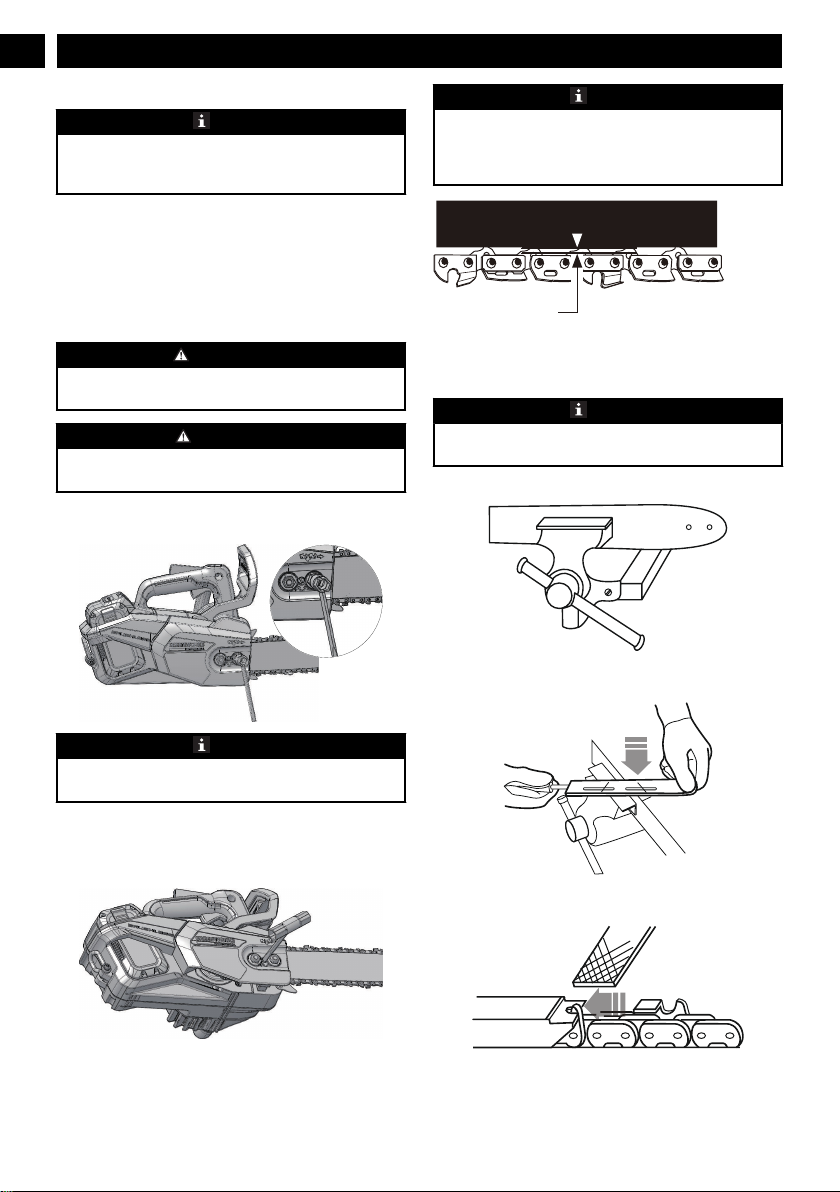

10.3 Sharpen the cutters...........................................14
10.4 Guide bar maintenance.................................... 15
11 Transportation and storage............15
12 Troubleshooting...............................16
13 Technical data..................................17
14 Limited warranty............................ 17
3
English EN

1 DESCRIPTION
1.1 PURPOSE
This chainsaw is designed for cutting branches, trunks, logs
and beams of a diameter determined by the cutting length of
the guide bar. It is only designed to cut wood.
It is only to be used in an outdoor, domestic application by
adults.
Do not use the chainsaw for any purpose not listed above.
It is not to be used by children or by persons not wearing
adequate personal protective equipment and clothing.
This appliance is not intended for use by persons with
reduced physical, sensory or mental capabilities or lack of
experience or knowledge, unless they have been given
supervison or instruction concerning use of the appliance by a
person responsible for their safety.
1.2 OVERVIEW
1
3
4
5
40
6
7
8
9
10
2
11
12
13 1514
1Guide bar cover
2Front handle guard /
chain brake
3Front handle
4Lock out button
5Trigger
6Oil tank cap
7Oil indicator
8Bucking spikes
9Chain
10 Guide bar
11 Wrench
12 Top handle
13 Chain tension screw
14 Chain cover
15 Chain cover nuts
1.3 PACKING LIST
1Chainsaw
2Scabbard
3Manual
4Wrench
2 GENERAL POWER TOOL
SAFETY WARNINGS
WARNING
Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your battery-
operated (cordless) power tool.
2.1 WORK AREA SAFETY
•Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
•Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
•Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
2.2 ELECTRICAL SAFETY
•Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
2.3 PERSONAL SAFETY
•Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in
serious personal injury.
•Use personal protective equipment. Always wear eye
protection. Protective equipment such as a dust mask,
non-skid safety shoes, hard hat or hearing protection used
appropriately will reduce personal injuries.
•Prevent unintentional starting. Ensure the switch is in
the off position before connecting to power source
and/or battery pack and when picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch on
invites accidents.
•Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
4
English
EN

•Do not over-reach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
•Dress properly. Do not wear loose clothing or jewelry.
Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewelry or long hair can be
caught in moving parts.
•If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust related hazards.
•Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury
within a fraction of a second.
2.4 POWER TOOL USE AND CARE
•Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do
the job better and safer at the rate for which it was
designed.
•Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
•Disconnect the plug from the power source and/or
remove the BATTERY pack, if detachable, from the
power tool before making any adjustments, changing
accessories, or storing power tools . Such preventive
safety measures reduce the risk of starting the power tool
accidentally.
•Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power
tools are dangerous in the hands of untrained users.
•Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the
power tool's operation. If damaged, have the power
tool repaired before use. Many accidents are caused by
poorly maintained power tools.
•Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
•Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
•Keep handles and grasping surfaces dry, clean and
free from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
2.5 BATTERY TOOL USE AND CARE
•Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
•Use power tools only with specifically designated
battery packs. Use of any other battery packs may create
a risk of injury and fire.
•When battery pack is not in use, keep it away from
other metal objects like paper clips, coins, keys, nails,
screws, or other small metal objects that can make a
connection from one terminal to another. Shorting the
battery terminals together may cause burns or fire.
•Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
•Do not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behavior resulting in fire, explosion or risk
of injury.
•Do not expose a battery pack or tool to fire or
excessive temperature. Exposure to fire or temperature
above 130°C may cause explosion.
•Follow all charging instructions and do not charge the
battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at
temperatures outside the specified range may damage the
battery and increase the risk of fire.
2.6 SERVICE
•Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
•Never service damaged battery packs. Service of
battery packs should only be performed by the
manufacturer or authorized service providers.
3 SAFETY INSTRUCTIONS FOR
CHAIN SAWS
3.1 CHAINSAW SAFETY WARNINGS
•Keep all parts of the body away from the saw chain
when the chainsaw is operating. Before you start the
chainsaw, make sure the saw chain is not in contact
with anything. A moment of inattention while operating
chainsaws may cause entanglement of your clothing or
body with the saw chain.
•Hold the power tool by insulated gripping surfaces
only, because the saw chain may contact hidden
wiring. Saw chains contacting a “live” wire may make
exposed metal parts of the power tool “live” and could
give the operator an electric shock.
•Always hold the chainsaw with your right hand at the
rear handle and your left hand at the front handle.
Holding the chainsaw with a reversed hand configuration
increases the risk of personal injury and should never be
done.
5
English EN

•Wear safety glasses and hearing protection. Further
protective product for head, hands, legs and feet is
recommended. Adequate protective clothing will reduce
personal injury from flying debris or accidental contact
with the saw chain.
•Do not operate a chainsaw in a tree. Operation of a
chainsaw while up in a tree may result in personal injury.
•Always keep proper footing and operate the chainsaw
only when standing on fixed, secure and level surface.
Slippery or unstable surfaces such as ladders may cause
loss of balance or control of the chainsaw.
•When cutting a limb that is under tension, be alert of
spring back. When the tension in the wood fibres is
released, the spring loaded limb may strike the operator
and/or throw the chainsaw out of control.
•Use extreme caution when cutting brush and saplings.
The slender material may catch the saw chain and be
whipped toward you or pull you off balance.
•Carry the chainsaw by the front handle with the
chainsaw switched off and away from your body.
When transporting or storing the chainsaw, always fit
the guide bar cover. Proper handling of the chainsaw
will reduce the likelihood of accidental contact with the
moving saw chain.
•Follow instructions for lubricating, chain tensioning
and changing accessories. Improperly tensioned or
lubricated chain may either break or increase the chance
for kickback.
•Keep handles dry, clean, and free from oil and grease.
Greasy, oily handles are slippery, causing loss of control.
•Cut wood only. Do not use chainsaw for purposes not
intended. For example: do not use chainsaw for
cutting plastic, masonry or non-wood building
materials. Use of the chainsaw for operations other than
intended could result in a hazardous situation.
•Fatigue causes carelessness. Be more cautious before
rest periods and towards the end of your shift.
•Personal protective clothing required by your safety
organizations, government regulations, or your
employer should be used. At all times when using a
chain saw, snug-fitting clothing, protective eyewear,
safety footwear, and hand, leg, and hearing protection
should be worn.
•Before fuelling, servicing, or transporting your chain
saw, switch off the chain saw.
•When felling, keep at least two tree lengths away from
other persons or animals.
•Plan your work, ensuring an obstacle-free work area
and, in the case of felling, have at least one escape
path from the falling tree prepared in advance.
•Follow the instructions in your operator’s manual for
starting the chain saw and control the chain saw with
a firm grip on both handles when it is in operation.
Always hold the chain saw with your right hand on the
rear handle and your left hand on the front handle. Keep
handles dry, clean, and free of oil.
•When transporting your chain saw, use the
appropriate transportation covers, which should be
available for the guide bar and saw chain.
•Never operate a chain saw that is damaged or
improperly adjusted or that is not completely and
securely assembled. Be sure that the saw chain stops
moving when the power control system trigger is
released. Never adjust the guide bar or saw chain when
the chain saw is operating.
•Do not attempt a pruning or limbing operation in a
standing tree unless specifically trained to do so.
•Guard against kickback. Kickback is the upward
motion of the guide bar that occurs when the saw
chain, at the nose of the guide bar, contacts an object.
Kickback can lead to dangerous loss of control of the
chain saw.
•A chain saw is intended for two-handed use. Serious
injury to the operator, helpers, and/or bystanders can
result from one-handed operation.
3.2 CAUSES AND OPERATOR
PREVENTION OF KICKBACK:
Kickback may occur when the nose or tip of the guide bar
touches an object, or when the wood closes in and pinches the
saw chain in the cut.
Tip contact in some cases may cause a sudden reverse
reaction, kicking the guide bar up and back towards the
operator.
Pinching the saw chain along the top of the guide bar may
push the guide bar rapidly back towards the operator.
Either of these reactions may cause you to lose control of the
saw which could result in serious personal injury. Do not rely
exclusively upon the safety devices built into your saw. As a
chainsaw user, you should take several steps to keep your
cutting jobs free from accident or injury.
Kickback is the result of tool misuse and/or incorrect
operating procedures or conditions and can be avoided by
taking proper precautions as given below:
•Maintain a firm grip, with thumbs and fingers
encircling the chainsaw handles, with both hands on
the saw and your body and arm positioned to allow
you to resist kickback forces.
Kickback forces can be controlled by the operator, if
proper precautions are taken. Do not let go of the
chainsaw.
•Do not overreach and do not cut above shoulder
height. This helps prevent unintended tip contact and
enables better control of the chainsaw in unexpected
situations.
•Only use replacement bars and chains specified by the
manufacturer. Incorrect replacement bars and chains
may cause chain breakage and/or kickback.
•Follow the manufacturer’s sharpening and
maintenance instructions for the saw chain.
6
English
EN

Decreasing the depth gauge height can lead to increased
kickback.
4 SYMBOLS ON THE PRODUCT
Some of the following symbols may be used on this product.
Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the
product better and safer.
Symbol Explanation
Direct current - Type or characteristic
of current.
Precautions that involve your safety.
Read and understand all instructions
before operating the product, and fol-
low all warnings and safety instruc-
tions.
Wear eye and ear protection.
Do not expose the product to rain or
moist conditions.
Avoid bar nose contact.
Hold with both hands.
DANGER! Be careful with kickbacks.
Wear non-slip, heavy-duty gloves.
Keep all bystanders at least 50 feet (15
m) away.
5 RISK LEVELS
The following signal words and meanings are intended to
explain the levels of risk associated with this product.
SYM-
BOL
SIGNAL MEANING
DANGER Indicates an imminently haz-
ardous situation, which, if not
avoided, will result in death
or serious injury.
SYM-
BOL
SIGNAL MEANING
WARNING Indicates a potentially hazard-
ous situation, which, if not
avoided, could result in death
or serious injury.
CAUTION Indicates a potentially hazard-
ous situation, which, if not
avoided, may result in minor
or moderate injury.
CAUTION (Without Safety Alert Sym-
bol) Indicates a situation that
may result in property dam-
age.
6 ENVIRONMENTALLY SAFE
BATTERY DISPOSAL
The toxic and corrosive materials below are in the batteries
used in this machine: Lithium-Ion, a toxic material.
WARNING
Discard all toxic materials in a specified manner to prevent
contamination of the environment. Before discarding
damaged or worn out Li-ion battery, contact your local
waste disposal agency, or the local Environmental
Protection Agency for information and specific instructions.
Take the batteries to a local recycling and/or disposal center,
certified for lithium-ion disposal.
7
English EN

WARNING
If the battery pack cracks or breaks, with or without leaks,
do not recharge it and do not use. Discard it and replace
with a new battery pack. DO NOT TRY TO REPAIR IT! To
prevent injury and risk of fire, explosion, or electric shock,
and to avoid damage to the environment:
• Cover the terminals of the battery with heavy-duty
adhesive tape.
• DO NOT try to remove or destroy any of the battery
pack components.
• DO NOT try to open the battery pack.
• If a leak develops, the released electrolytes are
corrosive and toxic. DO NOT get the solution in the
eyes or on skin, and do not swallow it.
• DO NOT put these batteries in your regular household
trash.
• DO NOT incinerate.
• DO NOT put them where they will become part of any
waste landfill or municipal solid waste stream.
• Take them to a certified recycling or disposal center.
7 PROPOSITION 65
WARNING
This product contains a chemical known to the state of
California to cause cancer, birth defects or other
reproductive harm. Some dust created by power sanding,
sawing, grinding, drilling, and other construction activities
contains chemicals known to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals
are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement and other
masonry products;
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area,
and work with approved safety equipment, such as dust
masks that are specially designed to filter out microscopic
particles.
Save these instructions.
8 INSTALLATION
WARNING
Do not change or use accessories that are not recommended
by the manufacturer.
WARNING
Do not install battery pack until you assemble all the parts.
8.1 UNPACK THE MACHINE
WARNING
Make sure that you correctly assemble the machine before
use.
WARNING
• If parts of the machine are damaged, do not use the
machine.
• If you do not have all the parts, do not operate the
machine.
• If parts are damaged or missing, contact the service
center.
1. Open the package.
2. Read the documentation provided in the box.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Discard the box and packing material in compliance with
local regulations.
8.2 ADD THE BAR AND CHAIN OIL
Examine the amount of oil in the machine. If the oil level is
low, add the bar and chain oil as follows.
IMPORTANT
Use bar and chain oil that is only for chains and chain
oilers.
NOTE
The machine comes from the factory without bar and chain
oil.
1. Loosen and remove the cap (6) from the oil tank.
6
7
2. Put the oil into the oil tank.
3. Monitor the oil indicator (7) to make sure that no dirt gets
into the oil tank while you add the oil.
4. Put the oil cap on.
5. Tighten the oil cap.
6. The whole oil tank will last for approximately 20- 40
minutes.
8
English
EN

IMPORTANT
Do not use dirty, used or contaminated oil. Damage can
occur to the bar or chain.
8.3 INSTALL THE BATTERY PACK
18
WARNING
• If the battery pack or charger is damaged, replace the
battery pack or the charger.
• Stop the machine and wait until the motor stops before
you install or remove the battery pack.
• Read and understand the instructions in the battery and
charger manual.
1. Align the lift ribs on the battery pack with the grooves in
the battery compartment.
2. Push the battery pack into the battery compartment until
the battery pack locks into place.
3. When you hear a click, the battery pack is installed.
8.4 REMOVE THE BATTERY PACK
1. Push and hold the battery release button (18).
2. Remove the battery pack from the machine.
9 OPERATION
NOTE
Remove the battery pack and keep hands clear of the lock
out button when you move the machine.
IMPORTANT
Examine the chain tension before each use.
9.1 EXAMINE THE CHAIN OIL
NOTE
Do not use the machine without sufficient chain oil.
1. Examine the oil level of the machine from the oil
indicator.
2. Add oil if necessary.
9.2 HOLD THE MACHINE
1. Hold the chainsaw with your right hand on the top handle
and left hand on the front handle.
2. Hold the handles with the thumbs and the fingers around
them.
3. Make sure that your left hand holds the front handle and
your thumb is below the handle.
9.3 START THE MACHINE
4
5
40
1. Press the on/off switch (40).
2. Press the lock-out button (4).
3. Press the trigger (5) while you hold the lock-out button.
4. Release the lock-out button.
NOTE
The machine has an automatic stop function that stops the
machine if you do not use it for one minute.
IMPORTANT
The chain brake must be disengaged for the chain saw to
start. Activate the brake by moving the front hand guard
forwards.
9.4 STOP THE MACHINE
1. Release the trigger to stop the machine.
9
English EN

9.5 OPERATE THE CHAIN BRAKE
WARNING
Make sure that your hands are on the handles at all times.
1. Start the machine.
2. Push the guard forward to to engage the chain brake.
3. Pull the handle guard / chain brake backwards to
disengage the chain brake.
4. Call approved service center for repair before use if
• The chain brake does not stop the chain immediately.
• The chain brake does not stay in the disengaged
position without aid.
9.6 PREPARE TO CUT THE TREE
IMPORTANT
Do not work alone when you are working at height from a
rope and harness. You must:
• get help from a ground worker trained in applicable
emergency procedures.
• be trained in general safe climbing and work
positioning techniques.
• have correct harnesses, ropes, strops, carabiners and
other equipment.
Examine, charge up, start and warm up the machine.
Switch off the machine before you send it up to the operator
in the tree.
Make sure that the machine has a correct strop for attachment
to the harness.
• Secure the strop around the attachment point on the rear
of the saw.
• Attach the machine to the harness directly or indirectly
with correct carabiner.
• Make sure that the machine is safely attached when it is
being sent up to the operator.
• Make sure that the machine is secured to the harness
before it stops rising.
• Always switch the machine off when it is directly
attached to the harness.
Attach the machine to the recommended attachment points on
the harness (mid-point or at the sides).
When changing the attachment point to another, make sure
that the machine is secured in the new position before
releasing the previous attachment point.
9.7 THE WORK POSITION FOR TWO-
HANDED USE
NOTE
An analysis of accidents with the machine during tree
service operations shows the primary cause is inappropriate
one-handed use of the machine. In the vast majority of
accidents, operators do not use a safe work position that let
them hold both handles of the machine. Not hold the
machine firmly results in an increased risk of injury. If it
kicks back, it is more likely to touch climbing lines and the
operator’s body (particularly the left hand and arm).
• To use the machine with both hands, as a general rule
operators must aim for a safe work position in:
• hip level, when cutting horizontal sections, and
• solar plexus level, when cutting vertical sections.
• When operator is working close into vertical stem with
low lateral forces on the work position, a good footing
could be all that is needed to maintain a safe work
position.
• When operators move away from the stem, it is necessary
to remove or counteract the increasing lateral forces by
• a redirect of the main line via a supplementary anchor
point, or
• use of an adjustable strop direct from the harness to
supplementary anchor point.
10
English
EN

9.8 START THE MACHINE IN THE
TREE
1. Apply the chain brake before starting.
2. Hold the machine with your left hand on the front handle.
3. Thrust the machine away from your body while holding
the pull starter cord in your right hand.
4. Hold the machine with your right hand on either handle.
5. Thrust the machine away from your body while holding
the pull starter cord in your left hand.
NOTE
• The chain brake must always be engaged before a
running machine is lowered onto its strop.
• Examine that the machine has sufficient energy before
doing critical cuts.
9.9 OPERATE THE MACHINE WITH
ONE HAND
NOTE
Do not use the machine with one hand when work position
is unstable or in preference to a handsaw when cutting small
diameter wood at the branch tips.
Operate the machine with one hand only when:
• You cannot get a work position enabling two-handed
operation.
• You need to support the working position with one hand.
• The machine is being used at full stretch, at right angles
to and out of line with your body.
Do not:
• Cut with the kickback zone at the tip of the saw guide bar.
• "Hold and cut" sections, or.
• Attempt to catch falling sections.
9.10 FELL A TREE
23
24
24
25
25
It is recommended that the first-time user should, as a
minimum practice, start cutting logs on a saw-horse or cradle.
Before you start to fell a tree, make sure that:
• The minimum distance between the areas of bucking and
felling performed by two or more persons at the same
time is two times the height of the tree felled.
• The operation does not:
• Cause injury to personnel.
• Hit utility lines. If the tree touches utility lines,
immediately tell the utility company.
• Cause losses in property.
• The user is not in the danger area (24), for example, the
downhill side of the area.
• The escape paths (25) that extend back and diagonally
behind the felling direction (23) are clear. The felling
direction is controlled by:
• The natural lean of the tree.
• The location of larger branches.
• The wind direction.
• Ensure there is no dirt, stones, loose bark, nails, or staples
on the tree.
27
28
29
2’’(50mm)
26
2’’(50mm)
11
English EN

1. Make a lower level notching cut (27). Make sure that
this cut is:
a) 1/3 width of the diameter of the tree.
b) Perpendicular to the felling direction.
CAUTION
The level notching cut helps prevent pinching of the
saw chain or the guide bar when you make the second
notch.
2. Make the felling cut (28) no less than 2 in. (50 mm) or
higher than the level notching cut. Make sure that this
cut:
a) Is parallel to the level notching cut.
b) Keeps sufficient wood 2 in. (50 mm) or 1/10 the
diameter of the tree to become a hinge (29) which
prevents the tree from twisting and felling in the
wrong direction.
When the felling cut (28) gets near the hinge (29), the tree
falls. Stop the felling cut if the tree:
• Does not fall in the correct direction or
• Moves backwards, causing the cutting bar and chain
to become stuck in the cut.
3. Use felling wedge to open the cut and let the tree fall
in the correct direction.
4. When the tree starts to fall:
a) Remove the chainsaw from the cut.
b) Stop the machine.
c) Put the machine down.
d) Move away from the tree via the escape path (25).
Always keep watching the tree to see the direction of
fall. Be careful with overhead branches and your
footing.
9.11 LIMB A TREE
30
31
Limbing is the removal of the branches from a fallen tree.
1. Keep the larger lower branches to hold the log off the
ground (31).
2. Remove the small limbs (30) in one cut.
3. Limb the branches with tension from the bottom to top.
4. Keep the larger lower branches as a support until the log
is limbed.
9.12 BUCK A LOG
To buck is to cut a log into lengths.
CAUTION
Do not let the chainsaw touch the ground.
It is important to make sure your footing is secure and your
weight is evenly distributed. If possible, lift the log and hold
it with branches, logs or chock. Obey the instructions below:
33
32
When the log is held along the full length (32), cut it from the
top (33).
34
36
35
When the log is held on one end (34):
1. Cut the first time 1/3 of the diameter from the bottom
(35).
2. Cut the second time from the top (36) to complete the
bucking.
36
37 35
When the log is held on two ends (37):
1. Cut the first time 1/3 of the diameter from the top (36).
2. Cut the second time lower 2/3 from the bottom to
complete the bucking (35).
12
English
EN

38
39
When the log is on a slope:
1. Stand on the uphill side.
2. Control the chainsaw completely.
3. Hold the chainsaw handles tightly.
4. Release the cutting pressure near the end of the cut.
When bucking is complete (38):
1. Wait for the chain to stop (39).
2. Ensure the chainsaw is turned off.
3. Check for hazards before you move to another tree.
10 MAINTENANCE
CAUTION
Do not let brake fluids, gasoline, petroleum-based materials
touch the plastic parts. Chemicals can cause damage to the
plastic, and make the plastic unserviceable.
CAUTION
Do not use strong solvents or detergents on the plastic
housing or components.
WARNING
Remove the battery pack from the machine before
maintenance.

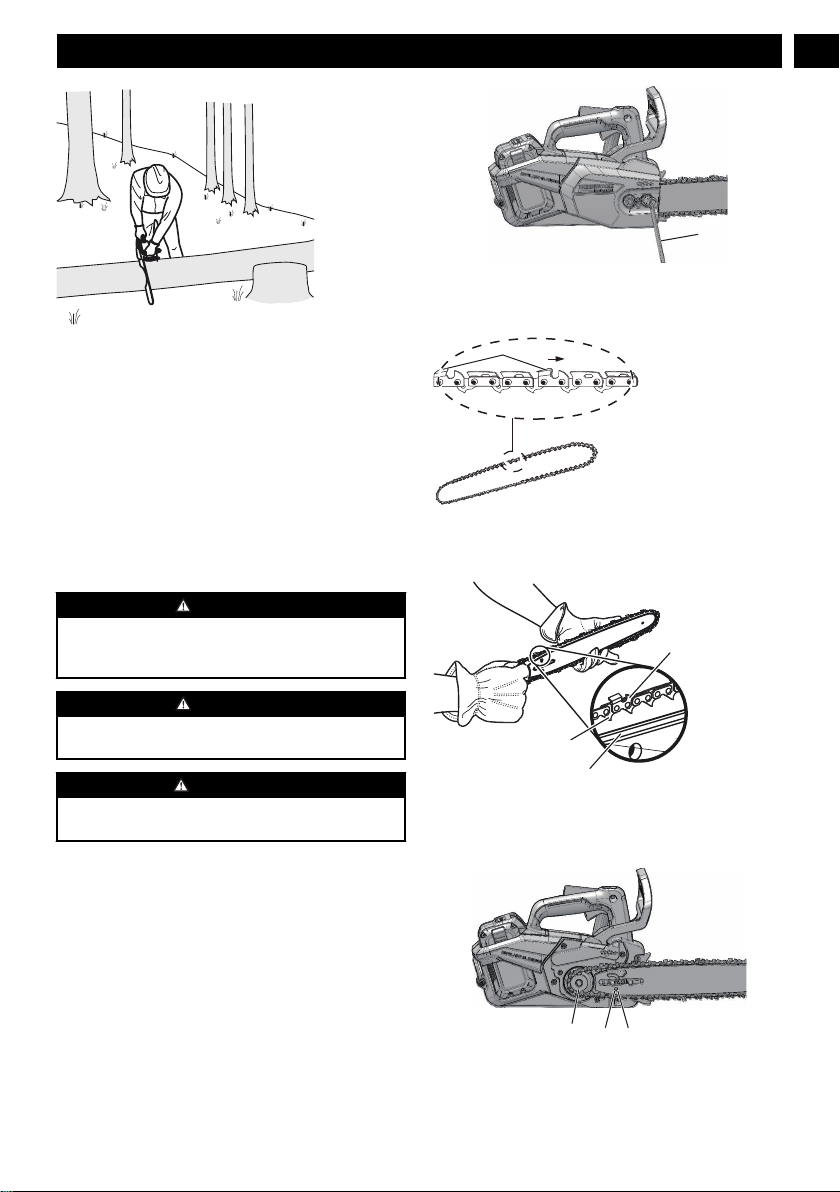

10.1 REPLACE THE GUIDE BAR AND
THE CHAIN
1. Remove the chain cover nuts with the wrench (11).
2. Remove the chain cover.
11
3. Put the chain drive links (21) into the bar groove (20).
4. Put the chain cutters (22) in the direction of the chain
operation.
5. Put the chain in position and make sure that the loop is
behind the guide bar.
6. Hold the chain and bar.
20
21
22
7. Put the chain loop around the sprocket (16).
8. Make sure the chain tension pin hole (19) on the guide
bar fits correctly with the bolt (17).
17 19
16
9. Install the chain cover.
10. Tighten the chain. Refer to Adjust the chain tension.
13
English EN

11. Tighten the nuts when the chain is correctly tensioned.
NOTE
If you start the chain saw with a new chain, have a test for
2-3 minutes. A new chain gets longer after the first use,
examine the tension and tighten the chain if necessary.
10.2 ADJUST THE CHAIN TENSION
The more you use a chain the longer it becomes. It is
therefore important to adjust the chain regularly to take up the
slack.
Tension the chain so that it can only just be pulled away from
the bar at its centre point.
WARNING
A slack chain may jump off and cause serious or even fatal
injury.
CAUTION
Wear protective gloves if you touch the chain, bar or areas
around the chain.
1. Stop the machine.
2. Loosen the lock nuts with the wrench.
NOTE
It is not necessary to remove the chain cover to adjust the
chain tension.
3. Turn the chain adjustment screw clockwise to increase
the chain tension.
4. Turn the chain adjustment screw counterclockwise to
decrease the chain tension.
5. When the chain is at the wanted tension, tighten the lock
nuts.
NOTE
During normal saw operation, the temperature of the chain
increases. The drive links of a correctly tensioned warm
chain will hang approximately 1/16 in. (1,58 mm) out of the
bar groove.
1/16 in. (1,58 mm)
10.3 SHARPEN THE CUTTERS
Sharpen the cutters if chain does not go into wood easily.
NOTE
We recommend that a service center, which has an electric
sharpener, perform important sharpening work.
1. Tensioning chain.
2. Sharpen the cutters corner with a 5/32 in. (4 mm)
diameter round file .
3. Sharpen the top plate, side plate and depth gauge with a
flat file.
14
English
EN

4. File all the cutters to the specified angles and the same
length.
NOTE
During the process:
• Keep the file flat with the surface to be sharpened.
• Use the midpoint of the file bar.
• Use light but firm pressure when sharpening the
surface.
• Lift the file away on each return stroke.
• Sharpen the cutters on one side and then move to the
other side.
Replace the chain if:
• The length of the cutting edges is less than 1/5 in. (5
mm).
• There is too much space between the drive links and the
rivets.
• The cut speed is slow.
• Sharpening the chain many times but it does not increase
the cutting speed. The chain is worn.
10.4 GUIDE BAR MAINTENANCE
NOTE
Make sure that the bar is turned over periodically to keep
symmetrical wear on the bar.
1. Lubricate the bearings on the nose sprocket (if present)
with the syringe (not included).
2. Clean the bar groove with the scraping hook (not
included).
3. Clean the lubrication holes.
4. Remove burr from the edges and level the cutters with a
flat file.
Replace the bar if:
• the groove does not fit with the height of the drive links
(which must never touch the bottom).
• the inside of the guide bar is worn and makes the chain
lean to one side.
11 TRANSPORTATION AND
STORAGE
Before you move the machine, always
• Remove the battery pack from the machine.
• Keep hands clear of the lock-out button.
• Put the scabbard on the guide bar and the chain.
Before you put the machine into storage, always
• Remove all residual oil from the machine.
• Remove the battery pack from the machine.
• Clean all unwanted material from the machine.
• Make sure that the storage area is
• Not available to children.
• Away from agents which can cause corrosion, such as
garden chemicals and de-icing salts.
15
English EN

12 TROUBLESHOOTING
Problem Possible cause Solution
The guide bar and
the chain become
hot and release
smoke.
The chain is too
tight.
Adjust the chain
tension.
The oil tank is
empty.
Add oil.
Contamination
causes a blockage
of the discharge
port.
Remove the guide
bar and clean the
discharge port.
Contamination
causes a blockage
of the oil tank.
Clean the oil tank.
Add new oil.
Contamination
causes a blockage
of the guide bar
and the oil tank
cap.
Clean the guide
bar and the oil
tank cap.
Contamination
causes a blockage
of the sprocket or
guide wheels.
Clean the sprocket
and the guide
wheels.
The motor runs
but the chain does
not rotate.
The chain is too
tight.
Adjust the chain
tension.
The guide bar and
the chain are dam-
aged.
Replace the guide
bar and the chain
if it is necessary.
The motor is dam-
aged.
1. Remove the
battery pack
from the ma-
chine.
2. Remove the
guide bar cov-
er.
3. Remove the
bar and saw
chain.
4. Clean the ma-
chine.
5. Install battery
pack and oper-
ate the ma-
chine.
If the sprocket ro-
tates, it means the
motor works prop-
erly. If not, call
service center.
Problem Possible cause Solution
The motor runs
and the chain ro-
tates, but the chain
does not cut.
The chain is blunt. Sharpen or replace
the saw chain.
The chain is in the
incorrect direction.
Turn the chain
loop to the other
direction.
The chain is tight
or loose.
Adjust the chain
tension.
The machine does
not start. The chain brake is
engaged.
Pull the chain
brake in the direc-
tion of the user to
disengage it.
The machine and
battery are not
connected correct-
ly.
Make sure that the
battery release
button clicks when
you install the bat-
tery pack.
The battery level
is low.
Charge the battery
pack.
The lock out but-
ton and the trigger
are not pushed at
the same time.
1. Push the lock-
out button and
hold it.
2. Push the trig-
ger to start the
machine.
The battery is too
hot or too cold.
Refer to battery
and charger man-
ual.
The motor runs,
but the chain does
not cut correctly,
or the motor stops
after around 3 sec-
onds.
The machine is in
the protection
mode to protect
the PCB.
Release the trigger
and start the ma-
chine again. Do
not force the ma-
chine to cut.
The battery is not
charged.
Charge the battery.
Refer to the bat-
tery and charger
manual for correct
charging proce-
dures.
The chain is not
lubricated.
Lubricate the
chain to decrease
the friction. Do
not let the guide
bar and the chain
operate without
sufficient oil.
Incorrect battery
storage tempera-
ture
Cool the battery
pack until it de-
creases to the am-
bient temperature.
16
English
EN

13 TECHNICAL DATA
Voltage 48 V DC
No load speed 20 m/s
Guide bar length 12'' (305 mm)
Chain pitch 3/8" LP (9.5 mm)
Chain gauge .050" (1.27 mm)
Drive links 45
Chain oil capacity 150 ml
Weight (without battery
pack)
7.5 lbs (3.4 kg)
Chain 91PJ045X/CL15045
Guide bar 120SDEA041/
M1501245-1041TL
Battery model 48B4AH and other BAM
series
Charger model CAM803 and other CAM
series
The recommended ambient temperature range:
Item Temperature
Appliance storage tempera-
ture range
32°F (0°C) - 113°F (45°C)
Appliance operation temper-
ature range
32°F (0°C) - 113°F (45°C)
Battery charging temperature
range
39°F (4°C) - 104°F (40°C)
Charger operation tempera-
ture range
39°F (4°C) - 104°F (40°C)
Battery storage temperature
range
32°F (0°C) - 113°F (45°C)
Battery discharging tempera-
ture range
32°F (0°C) - 113°F (45°C)
14 LIMITED WARRANTY
Greenworks hereby warranties this product, to the original
purchaser with proof of purchase, 2 year commercial power
train warranty, 2 year commercial battery warranty against
defects in materials, parts or workmanship. Greenworks, at its
own discretion will repair or replace any and all parts found
to be defective, through normal use, free of charge to the
customer. This warranty is valid only for units which have
been used for personal or commercial use, and that have been
maintained in accordance with the instructions in the owners’
manual supplied with the product from new.
2 YEAR LIMITED POWER TRAIN WARRANTY
COVERAGE:
– Motor
– PCB Boards
– Gear Box
– 2 years from the date of purchase (non transferable)
2 YEAR LIMITED BATTERY WARRANTY
COVERAGE:
– Greenworks Commercial Battery Packs (48B4AH)
– 2 year from the date of purchase (non transferable)
60 DAY LIMITED WEARABLE PARTS WARRANTY
COVERAGE:
– Bars
– Blades
– Guards
– Chains
– Bump Feed Heads
– Tines
– 60 Days from date of purchase (non transferable)
WARRANTY EXCLUSIONS, LIMITATIONS AND
RIGHTS:
1. All warranties may not be transferred by the consumer to
any subsequent purchaser.
2. Parts or components not supplied by the warrantor, or
parts or components that have been modified.
3. Any failure resulting from the use of improper tools or
improper repair procedures.
4. Any failure resulting from the use of improper tools or
improper repair procedures.
5. Any failure or part that has become inoperative due to
accident, impact, abuse, misuse, neglect, mishandling,
dulling of cutting edges, or failure to operate the product
in accordance with the information provided in the
instruction manual supplied with the product.
6. Routine maintenance items such as lubricants, blade
sharpening.
7. The unit, if it has not been operated and/or maintained in
accordance with the owner's manual.
8. The unit, if it has not been operated and/or maintained in
accordance with the owner's manual.
17
English EN

GREENWORKS HELPLINE:
Warranty service is available by calling our toll-free helpline,
at 1-855-470-4267.
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power
equipment unit or attachment are the responsibility of the
purchaser. It is the purchaser’s responsibility to pay
transportation charges for any part submitted for replacement
under this warranty unless such return is requested in writing
by Greenworks.
USA address: Canadian address:
Greenworks Tools Greenworks Tools Canada Inc.
P.O. Box 1238 P.O. Box 93095, Newmarket,
Ontario
Mooresville, NC 28115 L3Y 8K3
18
English
EN

1 Description.......................................20
1.1 But................................................................... 20
1.2 Aperçu............................................................. 20
1.3 Liste du contenu de l’emballage......................20
2 Avertissements généraux de
sécurité des outils électriques......... 20
2.1 Sécurité de la zone de travail...........................20
2.2 Sécurité électrique........................................... 20
2.3 Sécurités des personnes................................... 20
2.4 Utilisation et entretien des outils électriques...21
2.5 Utilisation et entretien de l’outil à batterie...... 21
2.6 Service............................................................. 22
3 Instructions de sécurité
concernant les scies à chaîne.......... 22
3.1 Avertissements de sécurité de la
tronçonneuse....................................................22
3.2 Causes et prévention du recul de
l'opérateur :...................................................... 23
4 Symboles figurant sur la
machine............................................ 23
5 Niveaux de risques...........................23
6 Élimination des batteries sans
danger pour l'environnement.........24
7 Proposition 65..................................24
8 Installation....................................... 25
8.1 Déballer la machine.........................................25
8.2 Ajoutez le lubrifiant de guide-chaîne et
chaîne...............................................................25
8.3 Installez la batterie...........................................25
8.4 Retirer le bloc-batterie.....................................25
9 Utilisation.........................................26
9.1 Examiner la lubrification de la chaîne.............26
9.2 Tenez la machine............................................. 26
9.3 Démarrez la machine.......................................26
9.4 Arrêter la machine........................................... 26
9.5 Actionnez le frein de la tronçonneuse............. 26
9.6 Préparation pour la coupe de l’arbre................27
9.7 La position de travail pour une utilisation
à deux mains.................................................... 27
9.8 Redémarrez la machine dans l’arbre............... 28
9.9 Utilisez la machine en tenant fermement
avec une main.................................................. 28
9.10 Abattre un arbre...............................................28
9.11 Ébrancher un arbre...........................................29
9.12 Couper une bûche............................................ 29
10 Entretien...........................................30
10.1 Assemblage du guide-chaîne et de la chaîne...30
10.2 Réglez la tension de la chaîne..........................31
10.3 Affûter les dents...............................................31
10.4 Entretien du guide-chaîne................................32
11 Transport et entreposage................ 32
12 Dépannage........................................33
13 Données techniques......................... 34
14 Garantie limitée...............................34
19
Français
FR

1 DESCRIPTION
1.1 BUT
Cette scie à chaîne est conçue pour la coupe de branches,
troncs, grumes et poutres d'un diamètre déterminé par la
longueur de coupe du guide-chaîne. Elle est uniquement
conçue pour couper du bois.
Elle ne doit être utilisée qu'à l'extérieur, à des fins
domestiques, par des adultes.
N'utilisez pas la scie à chaîne à des fins autres que celles
mentionnées ci-dessus.
Elle ne doit pas être utilisée par des enfants ou par des
personnes ne portant pas un équipement et des vêtements de
protection individuelle adéquats.
Cette machine n'est pas destinée à être utilisée par des
personnes ayant des capacités physiques, sensorielles ou
mentales réduites ou un manque d'expérience et de
connaissances, à moins qu'elles n'aient reçu une supervision
ou des instructions concernant son utilisation par une
personne responsable de leur sécurité.
1.2 APERÇU
1
3
4
5
40
6
7
8
9
10
2
11
12
13 1514
1Couvercle du guide-
chaîne
2Garde protectrice de
la poignée avant /
frein de la chaîne
3Guidon avant
4Bouton de
verrouillage
5Gâchette
6Bouchon du réservoir
d’huile
7Indicateur d’huile
8Pointes de
tronçonnage
9Chaîne
10 Guide-chaîne
11 Clé
12 Poignée supérieure
13 Vis de tension de
chaîne
14 Couvre-chaîne
15 Écrous du couvre-
chaîne
1.3 LISTE DU CONTENU DE
L’EMBALLAGE
1Scie à chaîne
2Fourreau
3Manuel
4Clé
2 AVERTISSEMENTS
GÉNÉRAUX DE SÉCURITÉ
DES OUTILS ÉLECTRIQUES
AVERTISSEMENT
Lisez tous les avertissements de sécurité et toutes les
instructions. Le non-respect de ces avertissements et de ces
instructions peut entraîner un choc électrique, un incendie
et/ou des blessures graves.
Conservez tous les avertissements et instructions pour
référence ultérieure.
Le terme « outil électrique » dans les avertissements fait
référence à votre outil électrique (sans fil) fonctionnant sur
batterie.
2.1 SÉCURITÉ DE LA ZONE DE
TRAVAIL
•Gardez la zone de travail propre et bien éclairée. Les
endroits encombrés ou sombres favorisent les accidents.
•N'utilisez pas les outils électriques dans des
environnements explosifs, par exemple en présence de
liquides, gaz ou poussières inflammables. La mise en
marche des outils électriques crée des étincelles qui
peuvent enflammer la poussière ou les vapeurs.
•Tenez les enfants et les curieux à l'écart lorsque vous
utilisez un outil électrique. Les distractions peuvent
vous faire perdre le contrôle.
2.2 SÉCURITÉ ÉLECTRIQUE
•N'exposez pas les outils électriques à des conditions
humides ou mouillées. L'eau qui pénètre dans un outil
électrique augmente le risque de choc électrique.
2.3 SÉCURITÉS DES PERSONNES
•Restez vigilant, soyez attentif à ce que vous faites et
faites preuve de bon sens lorsque vous utilisez un outil
électrique. N’utilisez pas l’appareil lorsque vous êtes
fatigué, sous l’emprise de l’alcool ou de drogues ou
après avoir pris des médicaments. Un moment
d’inattention lors de l’utilisation d’un outil électrique
peut provoquer des blessures corporelles graves.
•Utilisez de l’équipement de protection individuelle.
Portez toujours des lunettes de protection. L’utilisation
20
Français
FR
