Grillo DX175 User guide

QUAD GRILLO
DX175
EDIZIONE 2004
USE AND MAINTENANCE

1
CONTENTS
Introduction ……………………………………………………………………….. II
Maintenance coupons ………...………………………………………………… III
Drive instructions ……………………………..…………………………………. XIII
Use and maintenance manual …………………………………………………. 1
Location of the “warning and specification labels …………...……………. 2
Security information ………………………..……………………………………. 4
Description and machine identification ………………………………………. 5
Progressive identification numbers… ………………………………………… 6
Control functions………………………………………………………………….. 7
Pre-operation check ……………………………………………………………… 14
Operation ………….……………………………………………………………….. 19
Technical characteristics ………………………………………………………... 30
Maintenance works list …………………………………………………………… 36
Suggested oil ………………………………………………………………………. 37

2
INTRODUCTION
Thanks for having choose QUAD GRILLO DX 175
This use manual has been prepared in details to show you the working and the necessary operations
for a safe use of the vehicle.
IT’S NECESSARY TO READ IT CAREFULLY, BEFORE USING THE VEHICLE.
Grillo S.p.A. do not assume any responsibility for possible undergone damages, or for damages
caused by the non-observance of this information.
CAUTION
IT’S COMPULSORY THE HELMET USE
NEVER operate this ATV if you are under age 18.
“The warranty recognition is subordinated to the regular execution of the operations, prevented
by the following maintenance coupons, against payment, and by the relative coupon dispatch
to Grillo S.p.A.“

3
1° SCHEDULED SERVICE COUPON
within the first 500 km or at least within 6 months
 Replace engine oil
 Replace transmission oil
 Clean fuel filter
 Check valves clearance
 Check battery
 Check bolts and nuts
 Check brakes
 Check engine fuel
 Check and lubricate primary and secondary chain
CUSTOMER COPY Date ____________________
1° SCHEDULED SERVICE COUPON
within the first 500 km or at least within 6 months
 Replace the engine oil
 Replace the transmission oil
 Check the fuel filter
 Check the valves clearance
 Check the battery
 Check bolts and nuts
 Check the brakes
 Check engine fuel
 Check and lubrication primary and secondary chain
Grillo S.p.A. COPY Date ____________________
CAUTION:
The warranty do not
cover possible
damages due to a
lack of engine oil.
CAUTION:
The warranty do not
cover possible
damages due to a
lack of engine oil.

4
1° SCHEDULED SERVICE COUPON
After-Sales & Service Centre stamp
Customer/vehicle datum
SURNAME …………………………………………………………….
NAME …………………………………………………………………..
ADDRESS ……………………………………………………………..
…………………………………………………………………………...
MODEL ….……………………………………………………………..
FRAME N. ……………………………………………………………..
Send to Grillo S.p.A. – Via Cervese, 1701 (FC) – ITALY
Tel. [phone]
1° SCHEDULED SERVICE COUPON
After-Sales & Service Centre stamp

5
2° SCHEDULED SERVICE COUPON
within the first 1.500 km
 Replace engine oil
 Clean fuel filter
 Check valves play
 Check advance ignition
 Check battery
 Check bolts and nuts
 Check brakes
 Check and lubricate primary and secondary chain
CUSTOMER COPY Date ____________________
2° SCHEDULED SERVICE COUPON
within the first 1.500 km
 Replace engine oil
 Clean fuel filter
 Check valves play
 Check ignition advance
 Check battery
 Check bolts and nuts
 Check brakes
 Check and lubricate primary and secondary chain
Grillo S.p.A. COPY Date ____________________
CAUTION:
The waranty do not
cover possible
damages due to a
lack of engine oil..
CAUTION:
The waranty do not
cover possible
damages due to a
lack of engine oil..

6
2° SCHEDULED SERVICE COUPON
After Sales & Service Centre stamp
Customer/vehicle datum
SURNAME …………………………………………………………….
NAME …………………………………………………………………..
ADDRESS ……………………………………………………………..
…………………………………………………………………………...
MODEL ….……………………………………………………………..
FRAME N. ……………………………………………………………..
Send to Grillo S.p.A. – Via Cervese, 1701 (FC) – ITALY
Tel. [phone]
2° SCHEDULED SERVICE COUPON
After Sales & Service Centre stamp

7
3° SCHEDULED SERVICE COUPON
within the first 2.500
 Replace engine oil
 Replace transmission oil
 Replace petrol filter
 Replace fuel filter
 Clean spark plugs
 Check battery
 Check transmission belt
 Check clutch
 Check brakes
 Check bolts and nuts
 Check engine fuel
 Check and lubricate primary and secondary chain
CUSTOMER COPY Date ____________________
3° SCHEDULED SERVICE COUPON
within the first 2.500
 Replace engine oil
 Replace transmission oil
 Replace petrol filter
 Replace fuel filter
 Clean spark plugs
 Check battery
 Check transmission belt
 Check clutch
 Check brakes
 Check bolts and nuts
 Check engine fuel
 Check and lubricate primary and secondary chain
Grillo S.p.A. COPY Date ____________________
CAUTION:
The warranty do not
cover possible
damages due to a
lack of engine oil.
CAUTION:
The warranty do not
cover possible
damages due to a
lack of engine oil.

8
3° SCHEDULED SERVICE COUPON
After Sales & Service Centre stamp
Customer/vehicle datum
SURNAME …………………………………………………………….
NAME …………………………………………………………………..
ADDRESS ……………………………………………………………..
…………………………………………………………………………...
MODEL ….……………………………………………………………..
FRAME N. ……………………………………………………………..
Send to Grillo S.p.A. – Via Cervese, 1701 (FC) – ITALY
Tel. [phone]
3° SCHEDULED SERVICE COUPON
After Sales & Service Centre stamp

9
4° SCHEDULED SERVICE COUPON
within the first 3.500
 Replace engine oil
 Replace spark plugs
 Check valves play
 Check advance ignition
 Check bolts and nuts
 Check brakes
 Check and lubricate primary and secondary chain
CUSTOMER COPY Date ____________________
4° SCHEDULED SERVICE COUPON
within the first 3.500
 Replace engine oil
 Replace spark plugs
 Check valves play
 Check advance ignition
 Check bolts and nuts
 Check brakes
 Check and lubricate primary and secondary chain
Grillo S.p.A. COPY Date ____________________
CAUTION:
The warranty do not cover
the possible damages due
to a lack of engine oil.
CAUTION:
The warranty do not cover
the possible damages due
to a lack of engine oil.

10
4° SCHEDULED SERVICE COUPON
After Sales & Service Centre stamp
Customer/vehicle datum
SURNAME …………………………………………………………….
NAME …………………………………………………………………..
ADDRESS ……………………………………………………………..
…………………………………………………………………………...
MODEL ….……………………………………………………………..
FRAME N. ……………………………………………………………..
Send to Grillo S.p.A. – Via Cervese, 1701 (FC) – ITALY
Tel. [phone]
4° SCHEDULED SERVICE COUPON
After Sales & Service Centre stamp

11
5° SCHEDULED SERVICE COUPON
within the first 4.500
 Replace engine oil
 Replace transmission oil
 Replace petrol filter
 Replace fuel filter
 Clean petrol filter
 Check distribution chain
 Check battery
 Check transmission belt
 Check clutch
 Check brakes
 Check bolts and nuts
 Check engine fuel
 Check and lubricate primary and secondary chain
CUSTOMER COPY Date ____________________
5° SCHEDULED SERVICE COUPON
within the first 4.500
 Replace engine oil
 Replace transmission oil
 Replace petrol filter
 Replace fuel filter
 Clean petrol filter
 Check distribution chain
 Check battery
 Check transmission belt
 Check clutch
 Check brakes
 Check bolts and nuts
 Check engine fuel
 Check and lubricate primary and secondary chain
Grillo S.p.A. COPY Date ____________________
CAUTION:
The warranty do not
cover possible
damages due to a
lack of engine oil.
CAUTION:
The warranty do not
cover possible
damages due to a
lack of engine oil.

12
5° SCHEDULED SERVICE COUPON
After Sales & Service Centre stamp
Customer/vehicle datum
SURNAME …………………………………………………………….
NAME …………………………………………………………………..
ADDRESS ……………………………………………………………..
…………………………………………………………………………...
MODEL ….……………………………………………………………..
FRAME N. ……………………………………………………………..
Send to Grillo S.p.A. – Via Cervese, 1701 (FC) – ITALY
Tel. [phone]
5° SCHEDULED SERVICE COUPON
After Sales & Service Centre stamp

13
MAIN RULES FOR THE INJURIES PREVENTION
1) The caution is the main mean in the injuries prevention. Reduce the speed
and avoid doing dangerous manoeuvres.
2) Always wear the helmet.
3) Wear appropriate clothes: helmet, protection glasses, mouth protection,
thorax protection, long sleeves, gloves, long trousers, boots, etc..
4) The tires pressure is very important for the grip and for the machine handling (check the value on the use and maintenance manual).
5) Never use this ATV if you are under age 16.
6) On disconnected roads travel at a low speed.
7) Reduce your speed in the bends, above all sloping down.
8) It’s very dangerous to action the handlebar brusquely.
9) When you fill up with fuel switch off the engine, get off the vehicle and clean all spills before starting the engine.
10) Keep in working order the vehicle, above all the brakes.

14

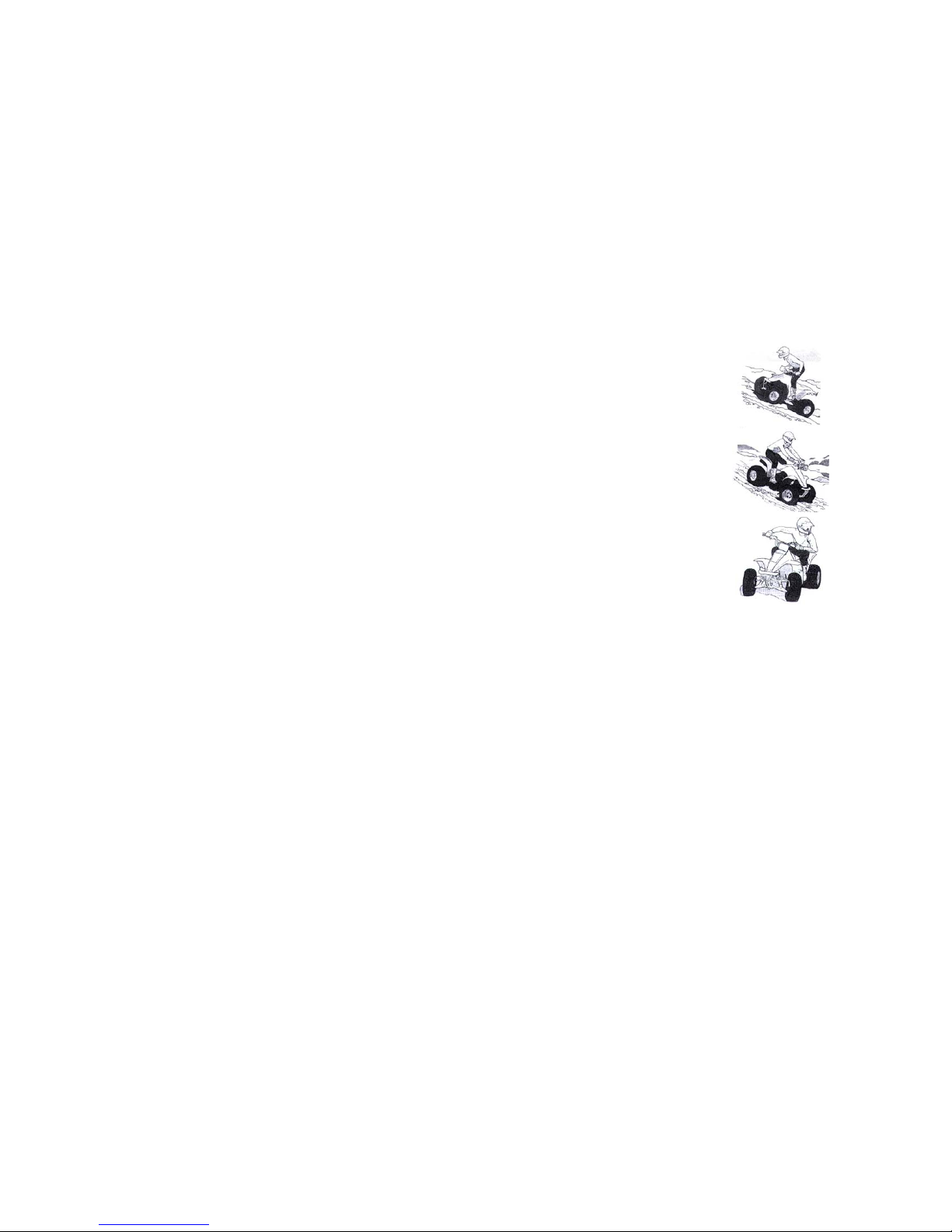

11) While climbing, drive staying on feet, moving the body forwards to avoid to turn over.
12) Sloping down drive the vehicle staying on feet, mowing the body behind.
13) Bending mowing the body weight forwards inside the bend.

USE AND MAINTENANCE MANUAL
QUAD DX 175
This manual contains important safety information: read it carefully!

2

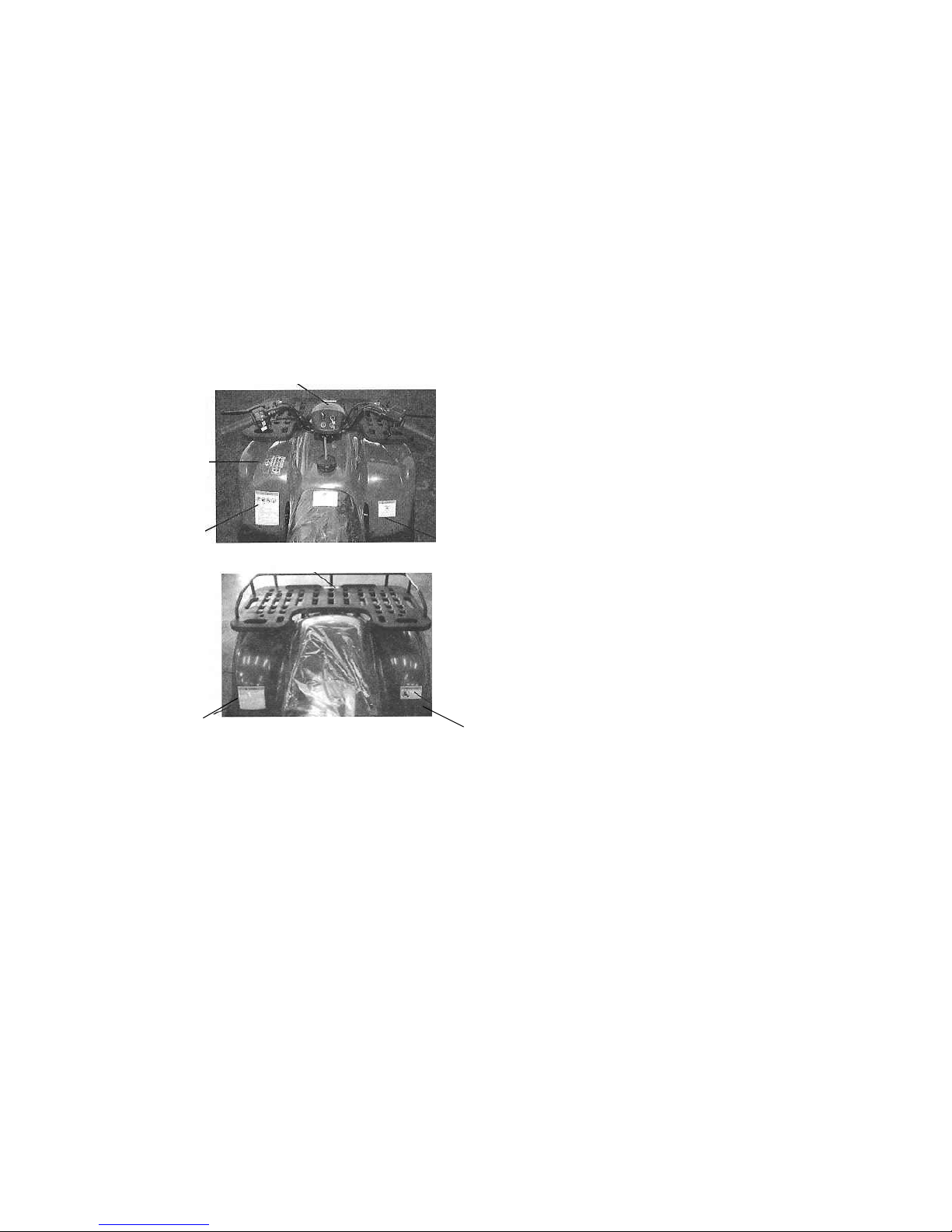

LOCATION OF THE “WARNING AND SPECIFICATION LABELS”
Read and understand all of the labels on
your quad.
They contain important information for safe
and proper operation of your quad.
In case of doubt, consult the distributor or an
authorized dealer.
Never remove any labels from your quad. If a
label becomes difficult to read or comes off,
a replacement label is available from your
dealer.
3
2
7
1
4 5

3
1 – WARNING 2 – WARNING 4 – WARNING
Some information, which are contained
in the 1, and 4 labels, that you find on
your vehicle, are referred to the
Countries where the ATV is not
homologated for the employment on
road or for the passenger transport.
Even if in Italy it is not compulsory, the
use of the helmet is advisable. NEVER
use the vehicle under the effect of
substances, which may alter the driving
abilities.
5 – WARNING
NEVER operate this ATV if you are under
age 18.
The label is not referred to the Countries
where the vehicle is NOT homologated
for the passenger transport.
3
6
LOADING LIMIT/ WARNING
(Front luggage-rack)
30kg (66 lbs)
NEVER sit in this point.
7
LOADING LIMIT/WARNING
(Rear luggage-rack)
45 kg (99 lbs)
NEVER sit in this point.
I
N
D
I
E
T
R
O
A
V
A
N
T
I
Improper tire pressure or overloading can
cause loss of control.
Loss of control can result in severe injury
or death.
OPERATING TIRE PRESSURE: set with
tires cold.
Recommended:
FRONT 0,25 bar = kgf/cm².
REAR RE 0,25 bar = kgf/cm².
Minimum
FRONT 0,22 bar = kgf/cm².
REAR 0,22 bar = kgf/cm².
Never set tire pressure below
minimum. It could cause the tire to
dislodge from the rim.
LOADING/TRAILER TOWING
CHECK IF THE TOWING OF A BARROW
IS ALLOWED.
Cargo or a trailer can affect stability
and handling.
Read owner’s manual before loading
or towing.
When loading with cargo or towing a
trailer, reduce speed and allow more
room to stop.
Avoid hills and rough terrain.
Maximum Vehicle Load: 180 kg,
(396 lbs), includes weight of operator,
cargo and accessories (and if
applicable, trailer tongue weight).

4
SECURITY INFORMATIONS
WHEN YOU DRIVE AN ATV YOU MUST BE VERY CAREFUL
An ATV reacts differently from the other vehicles, like motorcycle and cars. The wrong use may cause rapidly a crash or the tipping, both during
the normal manoeuvres and bending or overtaking hills and obstacles.
THE NON-OBSERVANCE OF THE FOLLOWING DIRECTIONS COULD CAUSE SERIOUS INJURIES
Read carefully the manual and the labels, following the procedures that are described.
NEVER use an ATV without an adequate period of apprenticeship.
If you are under the age of 16, you should not use an ATV with a higher displacement than 50 c.c.
The passenger transport needs more caution.
Driving on roads opened to traffic or on asphalted surfaces needs a particular care.
It is advisable the use of the helmet and of adequate cloths, which are composed by gloves, robust shoes, a jacket with sleeves and long
trousers.
NEVER use the vehicle, after having substances, which may alter the driving ability.
Do not drive, keeping an excessive speed, compared to your abilities and to the route conditions.
NEVER do jumps, rearings, or other acrobatics.
Always check your ATV, before using it, to verify its security.
Using the ATV, always keep both the hands on the handlebar and the feet on the running boards.
Do not use the ATV in rivers with strong currents or in deeper waters than 25 cm. (10 inch.).
Always use tires of the type and the measures, which are specified in this manual and pump them at the pressure indicated in the manual.
Do not change the ATV, installing or using unsuitable accessories.
Do not exceed the loading capacity, which is established for your ATV. The loading must be suitably arranged and fixed. Regulate the speed
and follow the instructions of this manual, regarding the loading and the towing of a barrow. Keep a bigger security distance in case of braking.
WARNING
Always switch off the engine, during the refuelling.
Do not start the engine or drive the vehicle in closed places to avoid potential risks.

5
DESCRPTION AND MACHINE IDENTIFICATION
1. Battery
2. Front headlight
3. Rear brake pedal
4. Gearbox pedal
5. Seat lock
6. Rear bumper
7. Handlebar
8. Clutch pedal
9. Starter knob (choke)
10. Main switch
11. Speed limiter
12. Front brake lever
13. Throttle lever
21
3
7
8910 11
12
13
4 5
6
