Grundig GD7510644UW User manual

Washer-Dryer
User Manual
GD7510644UW
2820529778/ EN/ / 22/11/2021 14:14

EN / 2
Table of Contents
1 Safety Instructions........................ 4
1.1 Intended Use ............................... 4
1.2 Safety of Children, Vulnerable
Persons and Pets ........................
4
1.3 Electrical Safety........................... 5
1.4 Handling Safety ........................... 6
1.5 Installation Safety ........................ 6
1.6 Operational Safety....................... 8
1.7 Drying Safety ............................... 9
1.8 Maintenance and Cleaning
Safety ..........................................
11
2 Important Instructions for Envir-
onment ...........................................
12
2.1 Compliance with WEEE Directive 12
2.2 Package Information.................... 12
3 Technical Specifications .............. 13
4 Installation ..................................... 14
4.1 Appropriate Installation Location . 14
4.2 Installation of Bottom Panel
Cover ...........................................
14
4.3 Removing Transportation Safety
Bolts.............................................
15
4.4 Connecting to Water Supply........ 15
4.5 Connecting the Drain Hose to the
Drain ............................................
15
4.6 Adjusting the Stands.................... 16
4.7 Electrical Connection................... 16
4.8 Handling the Product ................... 17
5 Preparation .................................... 17
5.1 Sorting the Laundry ..................... 17
5.2 Preparing Laundry for Washing... 18
5.3 Tips for Energy and Water Sav-
ing................................................
18
5.4 Start Up ....................................... 18
5.5 Loading the Laundry.................... 19
5.6 Correct Load Capacity................. 19
5.7 Using Detergent and Softener ..... 19
5.8 Tips for Efficient Washing............ 21
5.9 Tips for Efficient Drying ............... 23
5.10 Displayed Programme Duration .. 23
6 Operating the Product .................. 24
6.1 Control Panel............................... 24
6.2 Symbols on the Display ............... 25
6.3 Preparing the Machine ................ 25
6.4 Selection of Washing Program .... 26
6.5 Washing Programmes .................. 26
6.6 Temperature Selection.................. 28
6.7 Spin Speed Selection.................... 28
6.8 Drying Programmes ...................... 29
6.9 Washing and Drying Pro-
grammes .......................................
30
6.10 Programme and Consumption
Table .............................................
31
6.11 Auxiliary Function Selection.......... 33
6.11.1 Auxiliary Functions .................... 34
6.11.2 Functions/Programmes Selec-
ted by Pressing the Function
Keys for 3 Seconds ...................
35
6.12 Drying Steps ................................. 36
6.13 End Time....................................... 36
6.14 Starting the Programme................ 37
6.15 Loading Door Lock........................ 37
6.16 Changing the Selections After
Programme has Started................
38
6.17 Cancelling the Programme ........... 39
6.18 End of Programme........................ 39
6.19 Standby Mode............................... 39
6.20 HomeWhiz Feature and Remote
Control Function............................
39
6.20.1 HomeWhiz Setup ...................... 40
6.20.2 Setting up a Washing Machine
Connected to Someone Else's
Account .....................................
41
6.20.3 Remote Control Function and
Using It ......................................
41
6.20.4 Troubleshooting......................... 42
7 Maintenance and Cleaning ............ 43
7.1 Cleaning the Detergent Drawer .... 43
7.2 Cleaning the Loading Door and
the Drum .......................................
43
7.3 Cleaning the Body and Control
Panel.............................................
43
7.4 Cleaning the Water Intake Filters.. 43
7.5 Draining Remaining Water and
Cleaning the Pump Filter ..............
44
8 Troubleshooting ............................. 45
9 DISCLAIMER / WARNING............... 50
10 GRUNDIG UK AND IRELAND
STANDARD MANUFACTURER
GUARANTEE TERMS AND CON-
DITIONS ...........................................
51

EN / 3
Please read this user manual first!
Dear Customer,
Thank you for choosing Grundig product. We hope that you get the best results from your
product which has been manufactured with high quality and state-of-the-art technology.
Therefore, please read this entire user manual and all other accompanying documents
carefully before using the product.
Follow all warnings and information in the user manual. Thus, you protect yourself and
your product against possible dangers.
Keep the user manual. If you hand over the product to someone else, provide the user
manual as well. Warranty terms, usage and troubleshooting methods of your product are in
user guide.
Symbols and Definitions
The following symbols are used in the user guide:
Danger that could result in death or injury.
Important information or useful hints about usage.
Read the user manual.
Recyclable materials.
Hot surface warning.
WARNING Danger that may result in property damage to the product or its environment.

EN / 4
1 Safety Instructions
This section includes the safety
instructions necessary to pre-
vent the risk of personal injury
or material damage.
Our company shall not be held
responsible for damages that
may occur if these instructions
are not observed.
• Installation and repair opera-
tions shall always be per-
formed by Authorised Ser-
vice.
• Use original spare parts and
accessories only.
• Do not repair or replace any
component of the product un-
less it is clearly specified in
the operation manual.
• Do not modify the product.
1.1 Intended Use
• This product has been de-
signed for domestic use. It is
not for commercial purposes
or it should not be used out of
its intended use.
• Use only for washing and dry-
ing textile products that are
marked accordingly.
• The manufacturer assumes
no responsibility for any dam-
age due to misuse or mis-
handling.
• This appliance is intended to
be used in household and
similar applications. For ex-
ample;
– Personnel kitchens of
stores, offices and other
work environments;
– Ranches,
– By customers of hotels,
motels and other accom-
modation facilities
– Bed and breakfasts, hostel-
like environments
– Common areas of apart-
ment blocks or laundries.
1.2 Safety of Children,
Vulnerable Persons
and Pets
• This product may be used by
children aged 8 years and
older and persons with under-
developed physical, sensory
or mental capabilities or lack
of experience and knowledge
if they have been given su-
pervision or instruction con-
cerning use of the appliance
in a the product safe way and
the hazards involved.
• Children under the age of 3
should be kept away unless
continuously supervised.

EN / 5
• Electrical products are dan-
gerous for children and pets.
Children or pets should not
play with, climb on top or in-
side the product. Check in-
side the product before use.
• Use child lock to prevent chil-
dren from intervening with the
product.
• Do not forget to close the
loading door when leaving
the room where the product is
located. Children and pets
may get locked inside and
drown.
• Children should not perform
cleaning and user mainten-
ance works without an adult’s
supervision.
• Keep the packaging materials
away from children. Risk of
injury and suffocation.
• Keep all detergents and ad-
ditives used for the product
away from children’s reach.
• Cut the power cable and
break and deactivate the
locking mechanism of the
loading door before disposing
of the product for children’s
safety.
1.3 Electrical Safety
• Product should be unplugged
during installation, mainten-
ance, cleaning and repair
procedures.
• Damaged power cables
should be replaced by the au-
thorised service in order to
prevent possible danger.
• The product should not be
fed via an external switching
device such as a timer or
connected to a circuit that is
regularly switched on and off
by a device.
• Do not tuck the power cord
under the product or to the
rear of the product. Do not
put heavy items on the power
cord. Do not over bend, crush
and touch the power cable to
sources of heat.
• Do not use an extension
cord, multi-plug or adaptor to
operate your product.
• The plug shall be easily ac-
cessible. If this is not pos-
sible, a mechanism that
meets the electrical legisla-
tion and that disconnects all
terminals from the mains
(fuse, switch, main switch,
etc.) shall be available on the
electrical installation.
• Do not touch the plug with
wet hands.
• When unplugging the appli-
ance, don't hold the power
cord, but the plug.
• Make sure the plug is not
wet, dirty or dusty.

EN / 6
1.4 Handling Safety
• Unplug the product before
moving, remove the water
outlet and water main con-
nections. Drain any water left
inside the product.
• This product is heavy, do not
handle it by yourself. Do not
hold extruding parts such as
the laundry loading door to lift
and move the product. The
upper tray should be tightly
fixed for moving.
• Your product is heavy; it
should be carried carefully by
two people if a staircase is in-
volved. It may cause injuries
if your product falls on you.
Do not hit and drop the
product while carrying.
• Carry the product in an up-
right position.
• Make sure that the hoses as
well as the power cable are
not folded, pinched or
crushed after the product is
fitted into its place after in-
stallation or cleaning proced-
ures.
1.5 Installation Safety
• Check the information on the
manual and installation in-
structions to prepare the
product for installation and
make sure the electrical
mains, clean water mains and
water outlet are suitable. If
not, call a qualified electrician
and plumber to have them
make the necessary arrange-
ments. These operations are
the responsibility of the cus-
tomer.
• Check for any damage on the
product before installing it. Do
not have the product installed
if it is damaged.
• Injuries may occur if hands
are put into uncovered slots.
Close the holes of the trans-
portation safety bolts with
plastic plugs.
• Do not install or leave the
product at locations where it
may be exposed to external
environment conditions.
• Do not install the product at
locations where the temperat-
ure drops below 0 ºC.
• Do not place the product on a
carpet or similar surface. It
would create fire hazard
since it cannot receive air
from underneath.
• Place the product on a level
and hard surface and balance
with the adjustable legs.
• Connect the product to a
grounding plug protected by a
fuse suitable to the current

EN / 7
values on the type label.
Make sure the grounding is
carried out by an expert elec-
trician. Do not use the
product without suitable
grounding to local/national
regulations.
• Plug the product in a socket
with voltage and frequency
values suitable to those indic-
ated on the type label.
• Do not plug the product to
loose, broken, dirty, greasy
sockets or sockets that has
come out their seats or sock-
ets with a risk of water con-
tact.
• Use the new hose set
provided with the product. Do
not re-use old hose sets. Do
not make additions to the
hoses.
• Connect the water inlet hose
directly to the water tap. The
pressure from the tap should
be minimum 0.1 MPa (1 bar)
and maximum 1MPa (10
bars). 10 to 80 litres of water
should be running from the
tap in a minute in order for
the product to function prop-
erly. If the water pressure is
above 1 MPa (10 Bars), a
pressure-reducing valve
should be fitted. The max-
imum allowed temperature is
25°C.
• Fit the end of the water dis-
charge hose to the dirty water
discharge drain, the sink or
the bathtub.
• Place the power cable and
houses in locations without
risk of tripping.
• Do not install the product be-
hind a door, a sliding door or
at another location that will
prevent the door from open-
ing completely.
• If a drier is to be placed on
the product, fix with a suitable
connection apparatus ob-
tained from the authorised
service.
• There is a risk of contact with
electrical pieces when the up-
per trays is removed. Do not
dismantle the upper tray of
the product.
• Place the product at least 1
cm away from the edges of
furniture.
• Make sure the room in which
the installation performed is
adequately ventilated, as
there may be a risk of un-
desirable gases coming out
of the device igniting other
fuels in the room or interact-
ing with an open flame.

EN / 8
1.6 Operational Safety
• When you are using the ap-
pliances, use only detergents,
softeners and supplements
suitable for washing ma-
chines.
• Do not use chemical solvents
on the product. These materi-
als contain an explosion risk.
• Do not operate defective or
damaged products. Unplug
the product (or turn off the
fuse it is connected to), turn
off the water tap and call an
authorised service.
• Do not place sources of igni-
tion (burning candle, cigar-
ettes, etc.) or sources of heat
(irons, furnaces, ovens, etc.)
on top of or near the product.
Do not put inflammable/ex-
plosive materials near the
product.
• Do not get on the product.
• Unplug the product and turn
off the tap if you will not be
using the product for long
periods.
• Detergent/maintenance ma-
terials may splash out of the
detergent drawer if it is
opened while the machine is
working Contact of the deter-
gent with your skin and eyes
is dangerous.
• Make sure pets do not climb
inside the product. Check in-
side the product before use.
• Do not force open the locked
loading door. The door will
open once the washing is
completed. If the door does
not open, use the solutions
for “loading door does not
open” error in the
Troubleshooting section.
• Do not wash elements con-
taminated with gasoline, ker-
osene, benzene, reducers, al-
cohol or other inflammable or
explosive materials and in-
dustrial chemicals.
• Do not directly use dry clean-
ing detergent and do not
wash, rinse, spin or dry laun-
dry contaminated with dry
cleaning detergent.
• Do not place your hands into
the rotating drum. Wait until
the drum no longer rotates.
• Do not place your hand or a
metal object under the wash-
ing machine.
• If washing laundry at high
temperatures, the discharged
washing water would burn
your skin if in contact with
your skin, for ex. when the
draining hose is connected to
the tap. Do not touch the dis-
charge water.

EN / 9
• Take the following precau-
tions to prevent formation of
biofilm and malodours:
– Make sure the room where
the washing machine is
placed is well ventilated.
– Wipe the door gasket and
loading door glass with a
dry and clean cloth at the
end of the programme.
• The glass of the loading door
will heat up when washing or
drying at high temperatures.
Therefore, do not allow espe-
cially children to touch the
loading door glass while
washing or drying.
1.7 Drying Safety
• Laundry that has been previ-
ously washed, cleaned, con-
taminated or stained with
gasoline/gas, dry cleaning
solvents or other inflam-
mable/explosive materials
should not be dried in the ma-
chine because they give off
inflammable or explosive va-
pours. Otherwise, fire hazard
arises.
• Laundry contaminated with
materials such as vegetable
or mineral oil, acetone, alco-
hol, gasoline, gas oil, stain re-
movers, naphtha, turpentine,
paraffin or paraffin removers
should be washed separately
in hot water by adding extra
detergent before being dried
in the washing machine with
dryer. Otherwise, fire hazard
arises.
• Do not dry textile products
that contain predominantly
foam, rubber or rubber-like
parts (e.g. shower caps, wa-
terproof textile products, rub-
ber products and clothes) or
the ones that are filled and
damaged (e.g. Pillows or
coats). There is a risk of
burns.
• If you use a laundry ball, de-
tergent scale, laundry cage or
ball in your machine, these
products may melt during dry-
ing. If you are going to
choose the drying feature, do
not use these products. Oth-
erwise, fire hazard arises.
• If you use industrial chemic-
als for cleaning, do not use
the drying function. Other-
wise, fire hazard arises.
• The door becomes very hot
after drying process. After
drying is over, open the door
of the device completely. Do
not touch the metal door loc-
ated inside of the door glass.
There is a risk of burns due to
high temperatures.

EN / 10
• During Drying programmes, a
cooling step is performed as
the last step to ensure that
the laundry remains at a tem-
perature where it will not be
damaged. You may be ex-
posed to hot steam if you
open the cover without com-
pleting the cooling step. Risk
of seething.
• If the drying programmes are
interrupted (as a result of pro-
gramme cancellation or
power failure), the laundry in
the machine may be hot. Be
careful.
• Do not stop the machine be-
fore the drying programme is
completed. If you have to
stop the machine, take out all
the laundry inside of it and
place them in a suitable place
and wait for them to cool.
• Your product is suitable to
operate between the temper-
atures of 0°C and +35°C.
• Ambient temperatures
between 15°C and +25°C are
ideal for your product.
• Do not overload the machine
for drying. Observe the spe-
cified maximum load levels
for drying.
• If the laundry has been
washed with a stain remover,
run an additional rinsing
speed before starting the dry-
ing speed.
• Do not dry leather laundry
and laundry containing
leather (such as leather tags
on jeans) in the machine. The
colour left by the leather parts
may smear on other textiles.
• If there is a problem that you
cannot solve using the in-
formation given in the safety
instructions section, turn off
and unplug the machine and
call an Authorized Service.
• In your washer-dryer, you can
only wash laundry, only dry
laundry or do both of these
processes. The machine
should not be used for a long
period of time only for drying
wet laundry. While the ma-
chine is only used for drying,
it should be run empty in a
short washing programme
every 15 starts.
• Before putting laundry in the
machine, check all of them
and make sure that there is
no object such as lighter,
coin, metal object and pin,
etc. in their pockets or inside
of them.

EN / 11
• Lingerie that has metal parts
should not be dried in the ma-
chine. Metal parts may come
off during drying and cause
damage to the machine. Put
them in a bag or pillow case.
• Do not dry large laundry such
as tulle curtains, curtains,
sheets/beddings, blankets,
rugs in the machine. Laundry
may get damaged.
• Do not dry unwashed laundry
in the machine.
• Do not use softener or anti-
static agent unless recom-
mended by the manufacturer.
• Products such as softener
should be used in accord-
ance with the manufacturer's
instructions.
• Do not dry silk, wool and sim-
ilar delicate clothes in the ma-
chine. Otherwise, wool
clothes can shrink and dam-
age may be caused in other
delicate clothes.
• Check the symbols on laun-
dry label before washing and
drying processes.
• The machine automatically
cleans the lint itself that
comes out of the laundry dur-
ing drying. The machine per-
forms automatic water in-
takes for cleaning. For this
reason, the water tap of the
machine should also be open
during drying programmes.
• Prevent the lint from accumu-
lating around the product.
1.8 Maintenance and
Cleaning Safety
• Do not wash the product with
pressure washers, by spray-
ing vapour, water or pouring
water.
• Do not use sharp or abrasive
tools to clean the product. Do
not use household cleaners,
soap, detergent, gas, gasol-
ine, thinner, alcohol, varnish,
etc. while cleaning.
• Cleaning agents containing
solvents might reek poison-
ous fumes( for ex. cleaning
solvent. Do not use cleaning
products containing solvents.
• There may be detergent
residues in the detergent
drawer when you open it for
cleaning.
• Do not dismantle the filter of
the discharge pump while the
product is running.
• The temperature in the ma-
chine may rise up to 90ºC.
Clean the filter after the water
in the machine cools down in
order to avoid risk of getting
burnt.

EN / 12
2 Important Instructions for Environment
2.1 Compliance with WEEE
Directive
This product complies with EU
WEEE Directive (2012/19/EU).
This product bears a classifica-
tion symbol for waste electrical
and electronic equipment
(WEEE).
This product has been manu-
factured with high quality parts and materi-
als which can be reused and are suitable
for recycling. Do not dispose of the waste
product with normal domestic and other
wastes at the end of its service life. Take it
to the collection center for the recycling of
electrical and electronic equipment. Please
consult your local authorities to learn about
these collection centers.
Compliance with RoHS Directive:
The product you have purchased complies
with EU RoHS Directive (2011/65/EU). It
does not contain harmful and prohibited
materials specified in the Directive.
2.2 Package Information
Packaging materials of the product are
manufactured from recyclable materials in
accordance with our National Environment
Regulations. Do not dispose of the pack-
aging materials together with the domestic
or other wastes. Take them to the pack-
aging material collection points designated
by the local authorities.

EN / 13

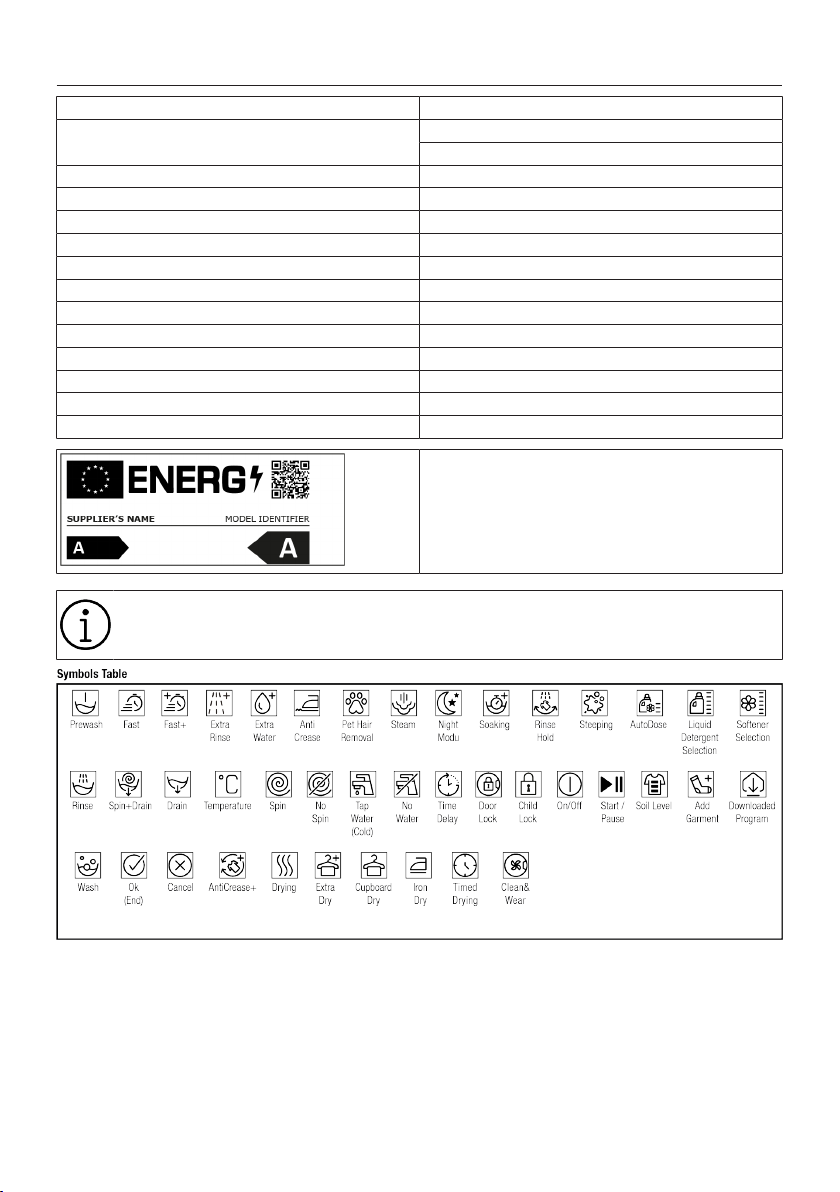

3 Technical Specifications
Supplier’s name or commercial brand GRUNDIG
Model name GD7510644UW
7178543300
Washing capacity (cotton) (kg) 10
Drying capacity (cotton) (kg) 6
Maximum spin speed (cycle/min) 1400
Built-In No
Height (cm) 84
Width (cm) 60
Depth (cm) 60
Single Water inlet / Double Water inlet +/-
Electrical input (V/Hz) 230 V /50Hz
Total current (A) 10
Total power (W) 2200
Main model code 1421
You can access technical information of the product by
scanning the QR code on the energy label with a mobile
device connected to the internet.
The consumption values apply when wireless network connection is turned off.

EN / 14
4 Installation
Please read the “Safety Instruc-
tions” section first!
While performing the installation of
the product, the calibration mode*
always should be run before the
first use.
Calibration mode provides accurate
sensing of laundry amount during
washing. To run the calibration
mode, the spin function should be
cancelled by selecting the Drum
Cleaning** programme.
The machine should be empty
while the calibration cycle is run-
ning.
This process takes about 15
minutes. To complete the calibra-
tion mode, you should wait until the
programme is finished.
*Calibration mode may not be avail-
able on some models. Spin speed
cannot be selected in models
without this feature.
**The programme name may vary
depending on the model. For the
appropriate programme selection,
you can review the programme de-
scriptions section.
• Preparation of the location and electrical,
tap water and waste water installations at
the place of installation is under cus-
tomer's responsibility.
• Make sure that the water inlet and dis-
charge hoses as well as the power cable
are not folded, pinched or crushed while
pushing the product into its place after in-
stallation or cleaning procedures.
• Prior to installation, visually check if the
product has any defects on it. Do not
have the product installed if it is dam-
aged. Damaged products cause risks for
your safety.
4.1 Appropriate Installation
Location
• Place the product on a hard and level
floor. Do not place it onto a carpet with
high pile or other similar surfaces. Pla-
cing on an improper floor shall cause
noise and vibration problems.
• Do not place the product on the power
cable.
• Do not install the product at places where
temperature may fall below 0 ºC. Freez-
ing might damage your product.
• Leave a minimum space of 1 cm
between the product and the furniture.
• If you will install the product on a surface
with steps, never place it close to the
edge.
• Do not place the product on any platform.
• There shall not be any locked, sliding or
hinged doors that may prevent the load-
ing door from opening completely in the
installation location of this product.
• Do not place heat sources such as
cooker, irons, ovens, heater etc. on the
appliance and do not use them on the
product.
4.2 Installation of Bottom Panel
Cover
• In order to increase the sound comfort of
the product, it is recommended to install
the cover after removing the packaging
foam.

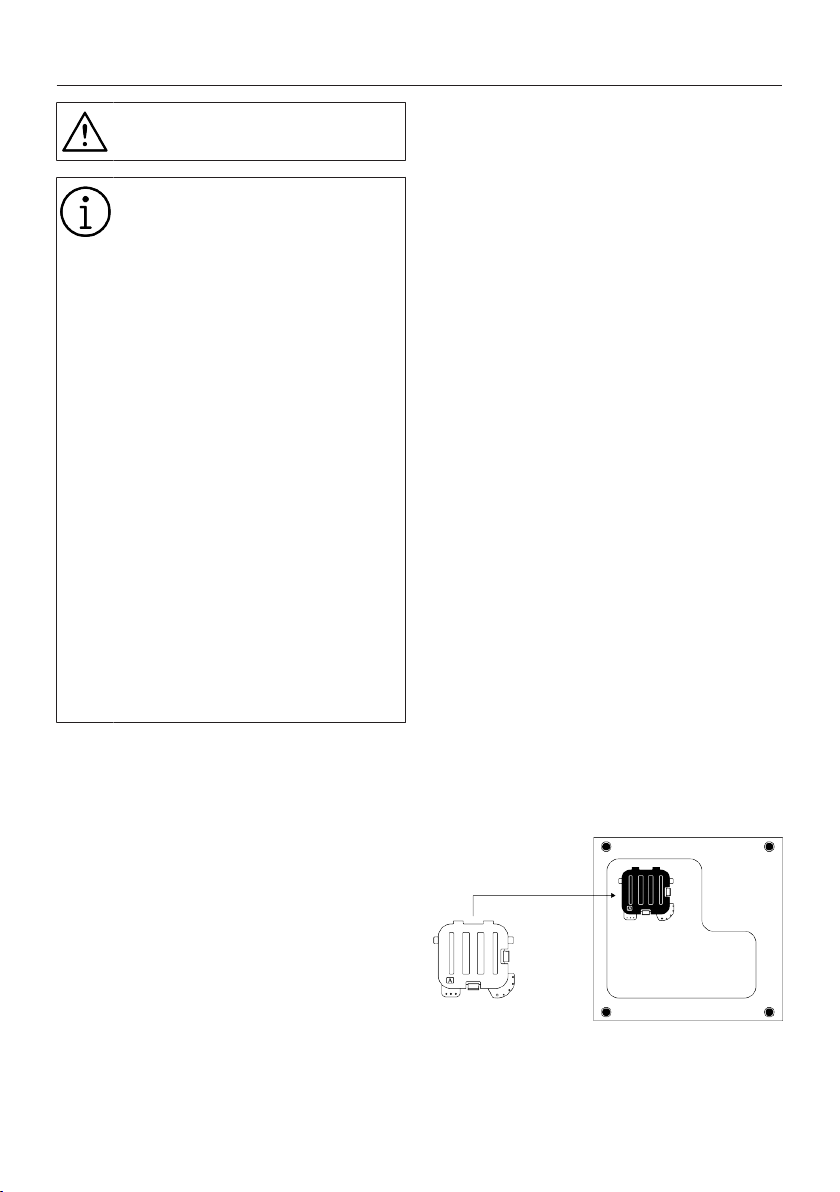

Cover A
Tilt the machine back slightly. Rest the tabs
of Cover A against the lower panel. Com-
plete the assembly by rotating the cover.

EN / 15
4.3 Removing Transportation
Safety Bolts
a. Loosen all transportation safety bolts
with an appropriate wrench until they
turn freely.
b. Bend the inner part by pressing it at the
grip areas and pull the part out.
c. Attach the plastic covers supplied in the
User Manual bag into the holes on the
rear panel.
WARNING
Remove the transportation safety
bolts before operating the product.
Otherwise, the product will get
damaged.
WARNING
Keep the transportation safety bolts
in a safe place to reuse when the
product needs to be moved again
in the future.
Install the transportation safety
bolts in reverse order of the disas-
sembly procedure.
Never move the product without the
transportation safety bolts properly
fixed in place.
4.4 Connecting to Water Supply
WARNING
The water pressure required for the
operation of the product is between
1-10 bars (0.1-1 MPa). To ensure a
smooth operation of the machine,
10 - 80 liters of water shall be sup-
plied in a minute from a fully
opened tap. If the water pressure is
higher, install a pressure reducing
valve.
WARNING
Models with a single water inlet
shall not be connected to the hot
water tap. In such a case the laun-
dry will get damaged or the product
will switch to protection mode and
will not operate.
Do not use old or used water inlet
hoses on a new product. It may
cause water leakage from your ma-
chine and stain your laundry.
a. Connect the special hose supplied with
the product to the water inlet on the
product.
WARNING
Make sure that the cold water con-
nection is performed correctly dur-
ing the installation of the product.
Otherwise, your laundry may come
out as hot at the end of the washing
cycle and thus they may be worn.
b. Tighten all hose nuts by hand. Never
use a tool when tightening the nuts.
c. Open the taps completely after making
the hose connection to check for water
leaks at the connection points. If any
leak occurs, turn off the tap and remove
the nut. Check the gasket and tighten
the nut carefully again. In order to pre-
vent the water leaks and resultant dam-
ages, keep the taps closed when you do
not use the product.
4.5 Connecting the Drain Hose to
the Drain
a. Attach the end of the drain hose directly
to waste water drain, washbasin or
bathtub.

EN / 16
Your house will be flooded if the
water draining hose is dislocated
during water draining. There is also
a risk of burning due to the high
washing temperatures. In order to
prevent such situations and make
sure that the product performs wa-
ter intake and drain processes
without any problem, fix the drain
hose securely.
b. Connect the hose to a minimum height
of 40 cm and a maximum height of 90
cm.
c. If the hose is placed on the floor (or at a
maximum height of 40 cm from the floor)
and then its height is increased, dischar-
ging of water becomes difficult, and
laundry may come out very wet from the
machine. Thus, follow the heights
provided in the figure.
d. To prevent the waste water to go back
into the product again and to ensure
easy drainage, do not immerse the end
of the hose into the waste water or do
not insert it into the drain for more than
15 cm. If it is too long, cut it short.
e. The end of the hose should not be bent,
it should not be stepped on and the
hose must not be pinched between the
drain and the product. Otherwise, water
discharge issues may emerge.
f. If the length of the hose is too short, use
it by adding an original extension hose.
The length of the hose shall not be
longer than 3.2 m. To prevent water
leaks, always secure the connection
between the extension hose and the
draining hose of the product with a suit-
able clamp so that it does not come off
and cause leaks.
4.6 Adjusting the Stands
WARNING
In order to ensure that the product
operates more silently and vibra-
tion-free, it must stand level and
balanced on its feet. Ensure that
the product is balanced by adjust-
ing the feet. Otherwise, the product
may move from its place and cause
crushing, noise and vibration prob-
lems.
To avoid damaging the lock nuts,
do not use any tools to loosen the
nuts.
a. Loosen the lock nuts on the feet by
hand.
b. Adjust the feet until the product stands
level and balanced.
c. Tighten all lock nuts again by hand.
4.7 Electrical Connection
Connect the product to a grounded outlet
protected by a 13 A fuse. Our company
shall not be responsible for the damages
that shall be incurred due to using the
product without grounding according to
local regulations.
• Connection must comply with national
regulations.
• The electrical connection cable infra-
structure of the product must be ad-
equate and suitable for product require-
ments. It is recommended to use a
Ground Fault Circuit Breaker (GFCI).
• Power cable plug must be within easy
reach after installation.

EN / 17
• If the current supply to the fuse or
breaker in the house is less than 13
Amps, have a qualified electrician install
a 13 amp supply.
• The voltage specified in the "Technical
specifications" section must be equal to
your mains voltage.
• Do not make connections via extension
cables or multi-plugs. Overheating and
burning may occur due to the connecting
cable.
Damaged power cables should be
replaced by the authorised service
in order to prevent possible danger.
Important

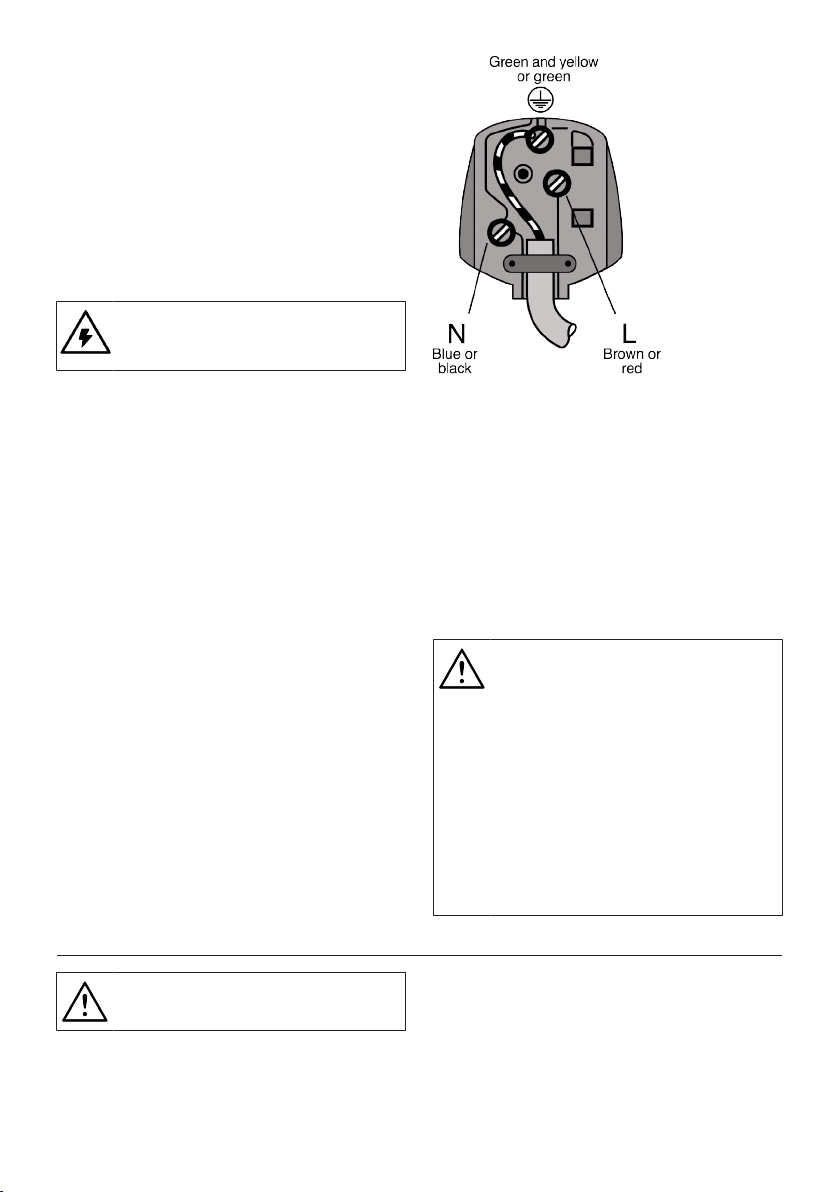

Fitting a different plug:
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying the
terminals on your plug, proceed as follows:
a. Connect the green - yellow or green
(earth) wire to the terminal in the plug
marked ‘E’ or with the symbol f or col-
oured green and yellow or green.
b. Connect the blue (neutral) wire to the
terminal in the plug marked ‘N’ or col-
oured black.
c. Connect the brown (live) wire to the ter-
minal in the plug marked ‘L’ or coloured
red.
With the alternative plugs a 13 A fuse must
be fitted either in the plug or adaptor or in
the main fuse box. If in doubt contact a
qualified electrician.
4.8 Handling the Product
a. Unplug the product before handling it.
b. Disconnect the water outlet and water
main connections. 3 Drain all the water
that remains in the product. See Drain-
ing Remaining Water and Cleaning the
Pump Filter
c. Install the shipping bolts in reverse or-
der of the disassembly procedure. See
Removing the Shipping Bolts
Never carry the product without the
shipping bolts properly attached!
Your product is so heavy that it
shall not be carried by one person.
Your product shall be carried by
two people and more care shall be
taken on the stairs as it is a heavy
product. If the product falls on you,
it may cause injury.
The packaging materials are dan-
gerous for children. Keep pack-
aging materials at a safe place
away from the reach of children.
5 Preparation
Please read the “Safety Instruc-
tions” section first
5.1 Sorting the Laundry
• Sort laundry according to type of fabric,
colour, and degree of soiling and allow-
able water temperature.
• Always observe the instructions given on
the garment care labels.

EN / 18
5.2 Preparing Laundry for Washing
• Laundry items with metal attachments
such as, underwiring, belt buckles or
metal buttons will damage the product.
Remove the metal pieces or wash such
clothes by putting them in a laundry bag
or pillow case.
• Take out all substances in the pockets
such as coins, pens and paper clips, and
turn pockets inside out and brush. Such
objects may damage the product or
cause noise problem.
• Put small size clothes such as infant’s
socks and nylon stockings in a laundry
bag or pillow case.
• Place curtains in without compressing
them. Remove curtain attachment items.
Curtain attachment items may cause
pulling and tearing on the curtain.
• Fasten zippers, sew loose buttons and
mend rips and tears.
• Wash “Machine washable” or “Hand
washable” labelled products only with an
appropriate programme. Dry these types
of clothes by hanging them or laying
them flat. Do not dry them in the ma-
chine.
• Do not wash colours and whites together.
New, dark coloured cottons release a lot
of dye. Wash them separately.
• Only use paints / colour changing agents
and descalers suitable for use in ma-
chines. Always observe the instructions
on the packaging
• Tough stains must be treated properly
before washing. If you are not sure,
check with a dry cleaner.
• Wash trousers and delicate laundry
turned inside out.
• Laundry that are subjected to materials
such as flour, lime dust, milk powder, etc.
intensely must be shaken off before pla-
cing into the product. Such dusts and
powders on the laundry may build up on
the inner parts of the product in time and
can cause damage.
• Before washing laundry made of angora
wool, keep them in the freezer section of
the refrigerator for few hours. This will re-
duce pilling
5.3 Tips for Energy and Water
Saving
Following information will help you use the
product in an ecological and energy/water-
efficient manner.
• Operate the product in the highest load
capacity allowed for the programme you
have selected, but do not overload. See
"Programme and consumption table"
• Observe the temperature instructions on
the detergent packaging.
• Wash slightly soiled laundry at low tem-
peratures.
• Use faster programmes for small quantit-
ies of lightly soiled laundry.
• Do not use prewash and high temperat-
ures for laundry that is not heavily soiled
or stained.
• If you plan to dry your laundry in a dryer,
select the highest spin speed recommen-
ded during washing process.
• Do not use more detergent than the re-
commended on the detergent packaging.
5.4 Start Up
Before starting to use the product make
sure that the preparations described in sec-
tion “Environmental Instructions” and “In-
stallation”. To prepare the product for
washing laundry, perform first operation in
Drum Cleaning programme. If this pro-
gramme is not available in your product,
apply the method which is described in sec-
tion "Cleaning the loading door and the
drum".
Use an anti-limescale product suit-
able for the washing machines
Some water has remained in the
product due to the quality control
processes in the production. It is
not harmful for the product.

EN / 19
5.5 Loading the Laundry
a. Open the loading door.
b. Put the laundry items into the product in
a loose manner.
c. Push the loading door to close until you
hear a locking sound. Ensure that no
items are caught in the door. The load-
ing door is locked while a programme is
running. The door lock will open a few
minutes after the washing programme
has ended. Then you can open the
loading door. If the door does not open,
apply the solutions provided for “Load-
ing door cannot be opened” error in the
Troubleshooting section.
5.6 Correct Load Capacity
The maximum load capacity depends on
the type of laundry, the degree of soiling
and the desired washing programme.
The product automatically adjusts the water
amount according to the weight of the laun-
dry put inside it.
Follow the instructions in “Pro-
gramme and consumption table”.
When the appliances is overloaded
product’s washing performance will
drop. Moreover, noise and vibration
problems may occur.
For a successful drying perform-
ance, do not put more laundry in
the machine than specified.
Bathrobe: 1200 g
Bedding: 700 g
Sheet: 500 g
Pillow Case: 200 g
Table Cloth: 250 g
Negligee/Pyjamas: 200 g
Lingerie: 100 g
Shirts: 200 g
Blouse: 100 g
Towel: 200 g
The loading door is locked while a
programme is running. The door
lock will open once the programme
is completed. If the inner part of the
machine is very hot at the end of
the program, the loading door will
not open until the temperature
drops. If the door does not open,
apply the solutions provided for
“Loading Door Cannot Be Opened”
error in the Troubleshooting sec-
tion.
WARNING
If the laundry is placed incorrectly,
noise and vibration problems may
occur in the machine.
5.7 Using Detergent and Softener
WARNING
Read the manufacturer instructions
on the package while using deter-
gents, softeners, starch, bleach and
decolourants, anti-limescale and
follow the dosage information
provided. Use a measuring cup, if
any.

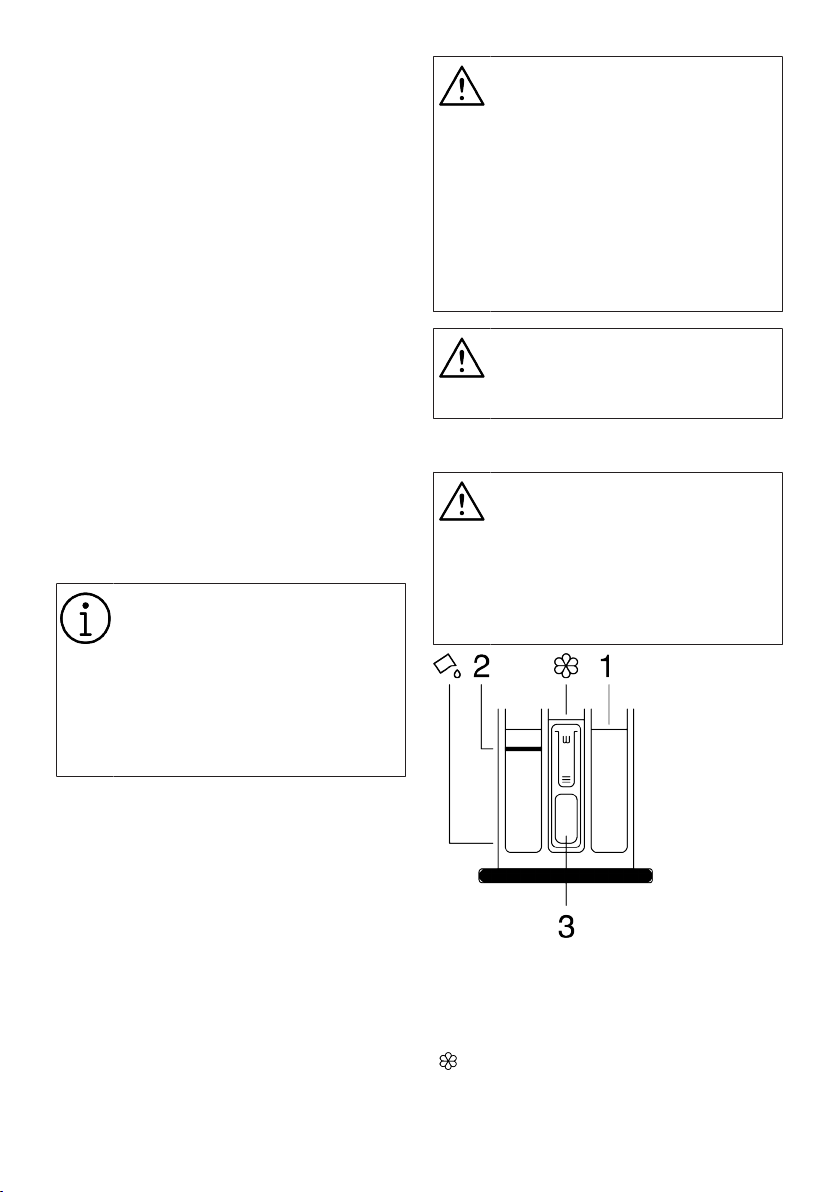

The detergent drawer comprises of three
compartments:
(1) for prewash,
(2) for main washing,
(3) for softener,
( ) a syphon piece in the softener com-
partment,

EN / 20
( ) there is a liquid detergent apparatus
for liquid detergent use in the main washing
compartment.
Detergent, Softener and Other Cleaning
Agents
• Add detergent and softener before start-
ing the washing programme.
• Do not leave the detergent drawer open
when the washing programme is on.
• If you are using a programme without
pre-washing, do not put detergent in the
pre-wash compartment (compartment no.
“1”).
• Do not put liquid detergent in the pre-
wash compartment (compartment no. “1”)
in a programme with prewashing.
• Do not select a programme with pre-
washing if you are using a detergent pod
or dispensing ball. Place the detergent
pod or the dispensing ball directly among
the laundry in the product.
• If you are using a liquid detergent, follow
the directions under “Liquid detergent
use” and do not forget to bring the liquid
detergent apparatus to the correct posi-
tion.
• Do not add washing chemicals (Liquid
detergent, Softener, etc.) while the ma-
chine is during Drying step.
Choosing the Detergent type
Detergent type to be used depends on the
washing programme, fabric type and col-
our.
• Use different detergents for coloured and
white laundry.
• Wash your delicate clothes only with spe-
cial detergents (liquid detergent, wool
shampoo, etc.) intended solely for delic-
ate clothes and at suggested pro-
grammes.
• When washing dark coloured clothes and
quilts, it is recommended to use liquid de-
tergent.
• Wash woollens at suggested programme
with special detergent made specifically
for woollens.
• Please review the programme descrip-
tions part for suggested programme for
different textiles.
• All recommendations about detergents
are valid for selectable temperature
range of programmes.
Only detergents, softeners and ad-
ditives suitable for washing ma-
chines should be used.
Do not use soap powder.
Adjusting the Detergent Amount
The amount of detergent depends on the
amount of laundry, how soiled they are and
the water hardness.
• Do not exceed the recommended dosage
values on the detergent packaging in or-
der to eliminate excessive foam and poor
rinsing problems, to save money and pro-
tect the environment.
• Use less amounts of detergent for fewer
or less soiled laundry.
Using Softeners
Put the softener in the softener compart-
ment of the detergent drawer.
• Do not exceed the (>max<) level sign in
the softener compartment.
• If the softener is not fluid, dilute with wa-
ter before placing in the softener com-
partment.
WARNING
Do not use liquid detergents or
other materials with cleaning prop-
erties unless they are intended for
use in washing machines for
softening the laundry.
Using Liquid Detergents
If the Product Has a Liquid Detergent
Apparatus
• Press and rotate the apparatus at where
it is shown when you want to use liquid
detergents. The part falling below will
serve as a barrier for liquid detergent.
• Clean with water at its place or by remov-
ing from its place when it is necessary.
Do not forget to place the apparats in the
main washing compartment (compart-
ment no. “2”) after cleaning.
• The apparatus should be up if you will
use a powder detergent.
