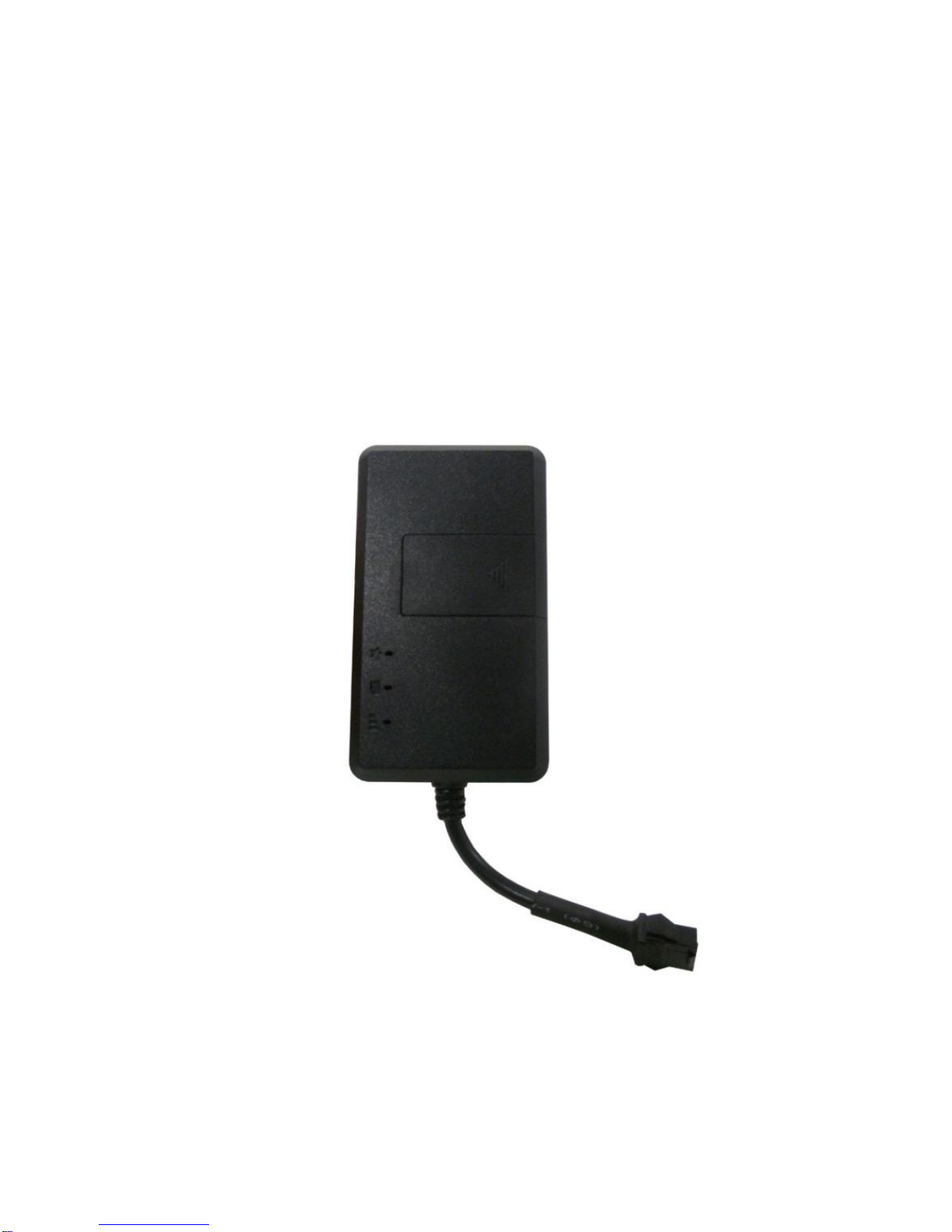

GPS Tracking System
TK-06A
User Manual
Thank you for purchasing the tracker. This manual shows how to operate the
device smoothly and correctly. Make sure to read this manual carefully before
using this product. Please note that specification and information are subject to
changes without prior notice in this manual. Any change will be integrated in
the latest release.

GSM teknik
Page 2
Contents
1. Summary functions.......................................................................................................3
2. Main functions ..............................................................................................................3
3. Specs.............................................................................................................................3
4. Installation instructions..................................................................................................4
5. Wires connection.............................................................................................................5
6. Device Parameter Settings...........................................................................................5
6.1 Initialization.............................................................................................................5
6.2 Set password..........................................................................................................5
6.3 Authorization...........................................................................................................5
6.4 Single Locating.......................................................................................................6
6.5 Get geographical location.......................................................................................6
6.6 Auto continuous track.............................................................................................6
6.7 Voice Surveillance..................................................................................................7
6.8 Geo-fence...............................................................................................................7
6.9 Overspeed alarm....................................................................................................7
6.10 ACC ON alarm......................................................................................................7
6.11 Time Zone Setting.................................................................................................7
6.12 GPRS setting........................................................................................................7
6.13 IP and Port setting................................................................................................8
6.14 Cut oil or circuit (optional).....................................................................................8
6.15 Recover oil or circuit.............................................................................................8
6.16 Power failure alarm (optional)..............................................................................8
6.17 Check device setting parameters.........................................................................8

GSM teknik
Page 3
1. Summary functions
Working Based on existing GSM/GPRS network and GPS satellites, this product can
locate and monitor any remote targets by SMS or GPRS.
2. Main functions
· GSM quad-band frequency for globe use.
·Real time tracking location by SMS/GPRS.
·Real time voice monitoring function.
·Recover original password.
·Set authorized number.
·Reboot device.
·Overspeed alarm alarm.
·ACC anti-theft alarm.
·Device lights turn into sleep mode after 5 minutes.
·Efficient data time interval :ACC on 20s;ACC off 70s
·Connect external relay to realize controlling oil and circuit of the vehicle (optional).
·Built-in backup battery to realize power failure alarm (optional).
3. Specs.
Content
Specs.
Dim.
8 cm x 4.2 cm x 1 cm
Weight
50g
Network
GSM/GPRS/GPS
Band
900/1800Mhz or 850/900/1800/1900 Mhz
GPS chip
UBLOX
GSM module
MTK60
GPS sensitivity
-159dBm
GPS accuracy
5m
Time To First Fix
Cold status 45s
Warm status 35s
Hot status 1s
Work voltage
9V-36V
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +55°C
Humidity
5%--95%

GSM teknik
Page 4
4. Installation instructions
4.1 Preparation
4.1.1 Open the package to check the device model number is correct, be with full
accessories, or else please contact your supplier;
4.1.2 Choose SIM card, need insert a GSM SIM card into the device, please refer to the
suggestion of your supplier for SIM card choice.
Notice: Please insert SIM card before turning the device power switch to on; The SIM
card need open the GPRS function. Please make sure SIM card with full balance.
4.2 Installation
The device is hidden type installation, we suggest the device installing by
professional institution. Please pay attention to the following points:
4.2.1 To avoid the thieves destruction, the device installation place should be as far as
hidden.
4.2.2Avoid putting the device with reversing radar, car burglar alarm and any other
vehicle communication devices;
4.2.3 Can fix the device by ribbon or wide sponge powerful two-side glue stick;
4.2.4 The device has built-in GSM and GPS antenna, make sure the receive side upward
and there is no metal shielding.
4.2.5 Recommended installation place: ①The hidden place in the board below the front
windscreen; ②The hidden place around former dashboard (nonmetal material for skin);
③The hidden place in the board below the back windscreen.
Notice: If the windscreen glued by metal thermal insulation layer or heating layer, it will
reduce the GPS receive signal and lead to GPS work disorder, then please change the
installation place.

GSM teknik
Page 5
4.3 Device light description
Light
Signal
Red light
Power
Yellow light
GSM signal
Blue
GPS signal
Note: the three lights must be stable lighting represents device can work normally. Device
will turn into sleep mode with lights off after around 5 minutes, it will wake up if make a call
to device number.
5. Wires connection
1. Red wire connects to vehicle power anode
2. Black wire connects to vehicle power cathode
3. Yellow wire connects to oil or circuit control wires
4. Green wire connects to ACC wire
Note: Device must connect to ACC wire
6. Device Parameter Settings
6.1 Initialization
Send SMS “#begin#”to the tracker, it will reply “begin ok”and initialize all the settings.
(Default password: 123456). Remark: initialization is resetting all the parameters to factory
defaults.
For example, send SMS “#begin#”, If succeeded, it will reply “begin ok”.
6.2 Set password
6.2.1 Set Password: Send SMS: “#password#old password#new password#”to the
unit to change the password.
For Example, send SMS: “#password#123456#666888#”to device, it will reply SMS:
“password OK”.
6.2.2 Make sure the new password is in 6 digits arabic numbers, or the device cannot
recognize the password.
6.2.3 Resume original password: send SMS: “#resume#”to the device, it will reply SMS:
“resume password, password is 123456”.
6.3 Authorization
6.3.1 Set authorization: send SMS“#admin#password#cell phone number#”to set up
authorized number, device will reply “admin ok”.
6.3.3 Delete authorization send SMS“#noadmin#password#authorized number#”to
delete the authorized number, device will reply “no admin ok”.

GSM teknik
Page 6
6.4 Single Locating
6.4.1 If there is no authorized number, any number dials up the device number, it will
report tracking message; If already set authorized number, then it will not respond when
an unauthorized number calls it.
6.4.2 Dialing tracking: make a call to device number, it will hang up and reply a real-time
tracking message.
6.4.3 SMS tracking: send SMS“#smslink#123456#”, it will reply a real-time tracking
message.
*Tracking location, when GPS signals is weak, you will receive the last location when GPS
is available. If it is different with its exact current location, pay attention to check the time
included in the SMS.
6.5 Get geographical location
6.5.1 Must set the SIM CardAPN parameter firstly before using this function, if there is
APN user name and password, Please refer to point 6.13 to set.
6.5.2 Send SMS: “DW” to device, it will reply current location info. For example: ADD:
Floor 5, Bldg C, LaoWei 2nd Industrial Park, DaLang South Rd, Longhua town,
Shenzhen,China
Note: this function may not work in some certain area.
6.6 Auto continuous track
6.6.1 Limited times auto track: Send SMS “#at#30#sum#15#”to the device, it will reply the
tracking message at 30s intervals for 15 times. (default “s”:second).
6.6.2 Unlimited time auto track: Send SMS “#at#30#sum#0#” to the device. Remark:
device must be connected to tracking software.
6.6.3 Cancellation: Send SMS “#noat#password#” to the device.
Note: device defaults when ACC ON, time interval is 20s, when ACC OFF, time
interval is 70s, only ACC ON time interval can change.

GSM teknik
Page 7
6.7 Voice Surveillance
6.7.1 The command to switch between Track and Monitor are “tracker”and “monitor
6.7.2. The default mode is “track”(Tracking status).
6.7.3. Send SMS “#monitor#password#” to the device, and it will reply “monitor ok!” and
switch to “monitor”mode. Then use mobile phone to dial the device number, it will get
though and enter voice listening function.
6.7.4. Send SMS “#tracker#password#” to the device, it will reply “tracker ok!” and
restore to “track” mode.
6.8 Geo-fence
Set up geo-fence for the unit to restrict its movement within a district. The device will send
message to the authorized number automatically when it exceed the district.
6.8.1 Set up
When the unit stays immobile in a place, send
SMS:“#stockade#password#semidiameter#”to unit to set the restricted district. In case
of breach, it will send SMS “stockade! + Geo-info”to the authorized number.
For example, Send SMS: “#stockade#123456#3#”, “3” represents 300 meters.
6.8.2 Cancel: Send SMS: “#nostockade#password#” to deactivate this function, it will
reply “no stockade ok”.
6.9 Overspeed alarm
6.9.1 Set up: Send SMS:“#speed#password#speed number in 3 digits#” to the device
(suppose the speed is 80km/h), EG, send SMS “#speed#123456#080#”, and it will reply
“speed ok ”. When the car moves exceeding 80 km/h, the unit will send SMS alert “speed
alarm” to the authorized number.
6.9.2 Cancel: send SMS “#nospeed#password#” to deactivate the overspeed alarm. it
will reply “cancel speed ok”.
6.10 ACC ON alarm
6.10.1 Send SMS"#ACC#ON#" to device to start illegal start alarm function, when vehicle
ignition on, device will reply "ACC!!" to the authorized number.
6.10.2 Send SMS"#ACC#OFF#"to device to close the function.
6.11 Time Zone Setting
Remark: UTC+8 is default time zone.
6.11.1 Send SMS “#timezone#password#direction#time zone value in hours#time
zone in munites#”. If set OK, it will reply “time zone ok”. For example, if in UTC-6, send
SMS “#timezone#123456#W#6#00#”. If in UTC+5.30, send SMS
“#timezone#123456#E#5#30#”.
6.12 GPRS setting
User must send SMS via cell phone to set IP, port and APN before starting GPRS.
6.12.1 Setting APN
6.12.1.1APN standards forAccess Point Name and differs from country to country. For

GSM teknik
Page 8
more information about the localAPN, inquiry from your local GPRS network operator.
6.12.1.2 Send SMS “#apn#password#APN content#APN user name#APN
password#” via a cell phone and if succeeded, the tracker will return the message “set
APN OK”.
E.g. send SMS command “#apn#123456#cmnet#”.
Notes: CMNET is the APN content of China Mobile (it has no APN user name and
password). If there is noAPN user name and password, then no need to writeAPN user
name and password.
6.13 IP and Port setting
6.13.1 Send SMS “#IP#password#ip address#port number#”. If succeeded, “set ip
address and port ok” will be returned by SMS. Note: “IP”in SMS must be capital
letter.
E.g, Send SMS command “#IP# password #58.64.200.27#6780#” to the device
(58.64.200.27 is IP, 6780 is port )
6.14 Cut oil or circuit (optional)
Send SMS “#stopoil#password#”to device, it will reply “stop oil ok”, cut oil successfully.
Send SMS “#stopelec#password#”to device, it will reply “stop electricity ok”, cut circuit
successfully.
6.15 Recover oil or circuit
Send SMS “#supplyoil#password#”to device, it will reply “supply oil ok”, recover oil
successfully.
Send SMS “#supplyelec#password#”to device, it will reply “supply electricity
ok”, recover circuit successfully.
6.16 Power failure alarm (optional)
Built-in backup battery to realize power failure alarm, it will send SMS “cut power alert!”to
the authorized number.
6.17 Check device setting parameters
Send SMS “TCP”to device, device will reply SMS “IP+port+APN+GPRS
setting(A: valid,V: invalid).
