GuangDong YuanFeng Electronic Technology Co.,Ltd. GPS PF11 User manual

User Manual
GPS PF11

Thanks for using YF GPS PF11!
YF reserves the rights of final interpretation of the manual.
The manual content is subject to change without notice. Please accept our
apology for your inconvenience.
Please back up your data of the GPS navigator. YF assumes no responsibility for
any loss caused by data loss.
The manual might contain a few mistakes though it has been checked. If mistakes
are found, you are welcome to contact the YF customer service center.

Please read the instructions in this manual and use only accessories of YF to
avoid unpredicted damage. Failure to follow the instructions will invalidate
warranty and might endanger personnel safety, for which YF assumes no
responsibility.
Data of navigation electronic maps might be inconsistent with actual traffic signals
due to transportation development. Please follow traffic regulations and signs and
drive according to road situation. Operating the GPS navigator device while
driving might cause serious accidents. YF assumes no responsibility for accidents
and loss due to improper use.
For information of software update and upgrade, please go to our website
www.yftech.com.
The pictures in the manual are subject to the material object.

Welcome ................................................................1
Chapter I Beginning Use.........................................2
1.1APPEARANCE ............................................................2
1.2POWER SUPPLY &CHARGING .......................................2
1.3BASIC USE ...............................................................3
1.4SYSTEM MAIN INTERFACEAND MAJOR FUNCTIONS.............5
Chapter II Navigation..............................................7
2.1INSTRUCTION ............................................................7
2.2OPERATION...............................................................7
2.3THE PLAYER OF DVR..................................................10
Chapter III Function Operation................................11
3.1MUSIC PLAYER ..........................................................11
3.2VIDEO PLAYER...........................................................13
3.3PHOTO BROWSER ......................................................15
3.4E-BOOK READER........................................................18
3.5FLASH PLAY..............................................................22
3.6THEME.....................................................................22
3.7WALLPAPER..............................................................23
3.8FAVORITES ...............................................................24
3.9EXPLORER................................................................25
3.10CALENDAR..............................................................26
3.12SYSTEM RESOURCE..................................................27
3.13CALCULATOR...........................................................27

3.14UNIT......................................................................28
3.15GPSINFO ..............................................................28
3.17VOLUME.................................................................29
3.18BACKLIGHT .............................................................30
3.19LANGUAGE..............................................................30
3.20DATE&TIME............................................................31
3.21CALIBRATION...........................................................31
3.22RESTORE FACTORY SETTING ......................................32
3.23USBSETTING..........................................................33
3.24SYSTEM INFO ..........................................................35
3.25NAVIGATION PATH.....................................................35
3.26OTHELLO................................................................35
3.27BOXMAN................................................................36
3.28RUSSIABLOCK.........................................................36
Appendix Troubleshooting.....................................37
4 FCC statement..................................................37

Welcome
Thanks for using GPS PF11-5001. It is featured with navigation function , audio & video
play, photo browsing and e-book functions.
SiRFAtlas-ⅤCPU with high performance and low power consumption
Friendly user interface for simple operation
Power management for longer and more stable operation
Data transmission with computer via Mini USB
Quality reception, accurate positioning and satisfactory navigation service
Leisure friend with audio/video/amusement functions
You may use the GPS navigator anytime anywhere, for example while driving, walking or
cycling. Let its navigation and amusement functions enrich your life and work!
To realize the functions of GPS PF11-5001 and to understand the operation details, please
read the manual carefully.
You may see the following supplemental information in the manual.
[Note]: Explanation of relevant subjects
[Relevant Information]: Extra information of relevant subjects
[Attention]: Precautions or warnings of relevant subjects. Please pay attention to this
information and follow the instructions to avoid devastating influence on yourself and
others.
[*]: Optional function
This manual is applicable only to the GPS PF11-5001.
1

Chapter I Beginning Use
This chapter introduces the basic operations of GPS PF11-5001.
1.1Appearance
The product picture below is subject to the material object.
1. Lock Key
6. VIDEO-IN Port
2. Power key
7. MINI USBPort
3. T-Flash slot for DVR only
8. Indicator light
4. Earphone Port
9. Microphone
5. T-Flash Port
10. Reset key
1.2 Power Supply & Charging
Charge the GPS navigator fully with the charger before first use.
1.2.1 Power Supply
The GPS PF08 can be powered by the built-in battery or external power supply.
When the GPS navigator is unconnected to the charger, it is powered by the Li-polymer
battery.
The battery capacity icon in the system main interface shows current residual
battery capacity.
When the GPS navigator is connected to the charger, it is powered by external power and
2

the battery is charged.
[Attention] The GPS navigator adopts internal non-removable Li-polymer battery. To avoid
battery rupture, explosion, release of hazardous substance or burn, do not unpack, pierce,
strike on or discard the battery in fire or water.
1.2.2 Charging by DC Charger
The GPS navigator must be charged with the DC charger before first use.
Plug the USB terminal of the DC charger into the USB port of the GPS navigator and the
other to the power socket to supply power and charge the GPS navigator.
[Note] The charging indicator light is red during charging. Do not unplug the charge until
the battery is fully charged and the indicator light turns green. Please charge the GPS
navigator when the battery is low or used up.
1.2.3 Charging by Car Charger
Plug one terminal of the car charger into the USB port of the GPS navigator and the other
to the charging port to supply power and charge the GPS navigator.
[Note] To avoid damage due to current surge, plug in the car charger after the automobile
is started.
1.3 Basic Use
1.3.1 Powering on/off & Sleep
1.3.1.1 Powering on
Press the power key of the GPS navigator and let go after at least two seconds to power it
on.
[Note] Great humidity fluctuation may lead to short circuit of the GPS navigator. Power on
the navigator after it has accommodated to new environment.
1.3.1.2. Powering off & Sleep
Press the power key and let go after at least two seconds to power off the GPS navigator.
The following interface will be prompted. If is selected, the navigator will
automatically resume the state before entering sleep mode when it is powered again.
3

1.3.2 Restarting the System
When the system does not response, press the reset key on the back of the GPS
navigator to restart the system.
[Relevant Information]The following situations might lead to no response of the system.
1. Delay or pause in interface switching;
2. Failure of function activation with overlong execution;
3. Failure to power on/off the GPS navigator by pressing the power key.
[Note] Restarting the system by pressing the reset key will result in loss of unsaved data.
Please backup your data regularly.
1.3.3 Fixing the GPS Navigator with Mounting Kit
The mounting kit is composed of a back splint and a bracket. To use the GPS navigator in
an automobile, fix it on the dashboard under the front windshield.
[Note] Do not place the GPS navigator in positions obstructing the driver’s vision. Do not
place it without fixing it or in the place of air bag or the area after the air bag is inflated.
1.3.4 Using T-FLASH Card
Copy mapping applications, map data and media files in a T-FLASH card. Insert the card
in the corresponding slot.
[Note] 1. Do not take out the T-FLASH card while a navigation program is being run or
a media file is being played.
2. To avoid drop or crash of the T-FLASH card, do not exert heavy pressure on
it or bend it.
3. Avoid using or storing the T-FLASH card in high temperature, high humidity
or direct sunlight.
4

Keep the card away from liquid or corrosive substance.
4. Mind the direction while inserting the T-FLASH card to avoid damaging the
slot or the card.
1.4 System Main Interface and Major Functions
Long press the power key on the top side of the GPS navigator to enter the system main
interface shown below.
The icon and are shortcuts to view system information and set
time & date for the device. For details, please refer to relevant chapter and section.
[Relevant Information]: In the above interface, the icon style is set as “left”, and the icons
at the left remain during page scrolling. To change the style of icon layout, refer to 3.6
Theme.
[Relevant Information]: To rearrange icons at will, tap on an icon and stay until a four-way
arrow appears at the upper left of it, and then drag the icon to a wanted place.
Function
Explanation
GPS
Tap to enable navigation function
DVR
Tap to enable DVR function
Tool
Calculator , Unit, system information, favorite, calendar ,GPS
information
Media
JPG
，
GIF
，
BMP and PNG files supported;
Photo rotation, zoom in/out and auto play supported
5

Setting
Volume, backlight, language, date& time, calibration, system info,
USB setting and Factory reset
Game
Othello, DuiDuiPeng, Russia Block
6

Chapter II Navigation
Tap the icon in the system main interface to start the navigation program. For
detail usage, please refer to the electronic map instruction.
Due to transportation development, inconformity between products and
real traffic information will occur a period after product release. Please
drive according to road condition and abide by traffic regulations.
Navigation paths are for reference only, and the user may decide whether
to follow them.
High and crowded structures (such as inside of tunnels, space between
high buildings, underground car parks and under viaducts), weather
change or satellite signals turnoff may influence signal reception,
resulting in positioning failure, inaccurate positioning, navigation failure or
system function abnormity.
With stereoscopic maps, instant animation, voice prompt and text prompt of the navigation
system, you will appreciate its unique charm and enjoy a great trip.
Function of DV recorder (Drive video record)
This section introduces the usage of the DVR.
2.1 Instruction
1、The function of DVR need match with TF card
2、Requirement of TF card is 4 grade; Capacity should be 4G at least.
3、Format the TF by special form at 1st time usage,, you can choose it under the format
setting
4、The player of DVR will create automatically after formatted
5、There are 3 lock manner (hand-driven lock, top lock on device ,G-sensor lock) for
DVR’s video ,
2.2 Operation
2.2.1 Interface of DVR
。

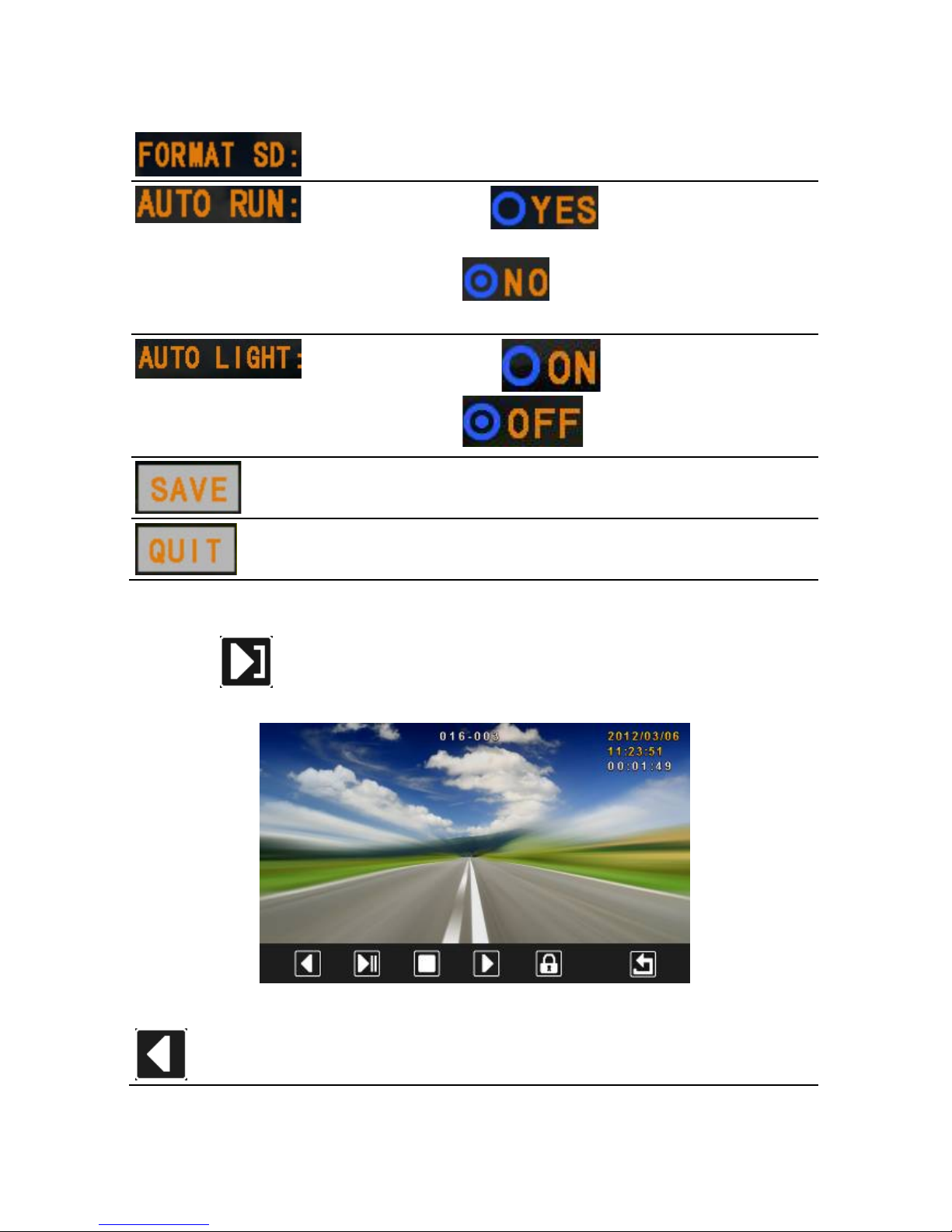

Tap the icon in the system main interface to enter the DVR interface as follows:
7

Turn
No/off
Tap to start-up& turn off video
Playback
Tap to player the recorded video
Lock
Tap to lock the recording video (Avoid erased during the period of
cycling video)
Setting
Tap to setting / format theTF card/ setting startup method of video
Return
Tap to quit the DVR interface(if you did not turn off video for quit, it
will still run behind)
2.2.2 Setting interface of DVR
Tap the icon in the DVR main interface to enter the setting interface as follows:
8

Formatting
Tap “confirm” to Format the TF,
Start video
manner Tap and Save, it will running
behind automatically when power on /Tap
and Save, it will
running by
manually to turn on video.
Light
Tap
to turn no the light Tap
to turn off
Save
Tap to save current video
Quit
Tap to Quit setting interface
2.2.3 Playback interface of DVR
Tap the icon in the DVR main interface to enter the player interface as follows:
Previous
Play the previous video
9

Play/ Pause
Pause/continue playing
Stop
Stop playing the current video
Next
Play the previous video
Lock
Tap to lock & unlock current video
Return
Tap to return the main interface
2.3 The Player of DVR
The Player will create automatically after formatted, this file will
shown on the screen once open the TF card on computer, we can save picture,output the
vedio file and map information,when duble tap it.
10

Chapter III Function Operation
3.1 Music Player
The music player supports WMA9 and WAV files and also supports selection of play
sequence. To use the function, please first insert a flash card with music files inside.
1. Tap the music icon in the system main interface to enter the Music Play
interface as follows:
Icon
Name
Explanation
Close
Close the music player.
Minimize
Minimize the music player and return to the
system main interface.
Play
Continue playing the paused/ stopped music.
Pause
Make the playing music pause.
Stop
Stop playing the music.
Set play
sequence
Select sequence, random or cycle play.
Previous
Play the previous music.
11

Icon
Name
Explanation
Next
Play the next music.
Volume
regulation
Drag it leftward/ rightward to turn down/ up the
volume.
Progress
regulation
Drag it leftward /rightward to play from a
previous/future moment.
Music list
Enter it to select music to play.
Time
Display the run time.
Equalizer
Enter the equalizer.
2. Tap in the Music Play interface to enter the Music list as follows:
Icon
Name
Explanation
Close
Close the Music List.
Scroll bar
Drag it upward/ downward to view all music.
Add one
Add a piece of music on the left list to the play list on the right.
12

Icon
Name
Explanation
Add all
Add all the music on the left list to the play list on the right.
Delete one
Select one piece of music in the play list and tap the icon to delete
it.
Delete all
Delete all the music in the play list.
3 Tap in the Music Play interface to enter the Equalizer Setting interface as
follows:
Tick in on the upper left of the above interface, and then tap to select a
music type or “User” from the drop-down menu.
The music types include Pop, Rock, Metal, Dance, Electronic, Country, Jazz, Oldies,
Blues, Nostalgia, Opera and speech. If “User” is selected, you may drag the slider at will
to set the equalizer. After setting, tap to save and return to the Music Play
interface.
Note: If your memory card contains corresponding lyric files for the music being played,
lyrics will be displayed in the lyric window right at the Music Play interface. Double tap the
lyrics window to view the lyrics in full screen. Under full screen mode, double tap the
screen to return to normal-sized interface.
3.2 Video Player
The video player supports WMV, ASF and AVI files, full-screen play, progress selection
and file selection.
13

To use the function, please first insert a flash card with video files inside.
1. Tap in the system main interface to enter the video player interface as follows:
Icon
Name
Explanation
Close
Close the video player.
Previous
video
Play the previous video.
Play
Continue playing the paused/ stopped video
file.
Next video
Play the next video.
Stop
Stop the video
Video folder
Enter it to select a video to play.
Progress
regulation
Drag the sliding block leftward to play from a
previous moment or rightward for a coming
moment.
Volume
regulation
Drag it leftward /rightward to turn down / up the
volume.
Time
Display the play time and the video duration.
2. Tap in the Video Player interface to enter the video folder as follows:
14

Icon
Name
Explanation
Close
Close the video folder.
Scroll bar
Drag the sliding block upward/ downward to view
all the files
under the folder.
Video name&
format
Video name and its format
Select a video file from the above video folder interface and then tap on it to start playing.
3.3 Photo Browser
The photo browser supports JPG, GIF, BMP and PNG files, photo rotation, zoom in/ out
and auto play.
To use the function, please first insert a flash card with photos inside.
1. Tap the photo icon in the system main interface to enter the photo browser
interface as follows.
15
