HABCO SF28 Setup guide
HABCO® TECHNICAL DOCUMENT C097535 - 10803169
© HABCO Manufacturing Inc. “HABCO” and HABCO Edge Logo are registered trademarks of HABCO Manufacturing Inc. Domestic and International Patents. Page 1
Commercial Froze Space Merchandiser
& Holding Freezer
SAFETY, INSTALLATION AND INSTRUCTION MANUAL
Made In Canada
501 Gordon Baker Road, Toronto, Ontario
Canada M2H 2S6 Tel: 416-491-6008 Fax: 416-491-6982
Toll Free in Canada: 1-800-387-5398 Toll Free in U.S.A: 1-800-448-0244
www.habcotech.com
HABCO® TECHNICAL DOCUMENT C097535 - 10803169
© HABCO Manufacturing Inc. “HABCO” and HABCO Edge Logo are registered trademarks of HABCO Manufacturing Inc. Domestic and International Patents. Page 2
HABCO® COMMERCIAL HOLDING FREEZERS
SAFETY, INSTALLATION AND INSTRUCTION MANUAL
MODELS: SF28, SF24SX, SF28M SF28SX, SF46SX, SF46M
HABCO Management Systems are Cered to ISO 9001-2008.
LANGUAGE: Translaon of this document is completed with the utmost care,
ulizing the resources of an ISO 9001 Cered Translaon rm. In rare instanc-
es where translaon is imperfect or imprecise, the parent English document
will take precedence.
IMPROPER OR UNSAFE useofthisapplianceotherthanintendedby
themanufacturer,canresultindeath,seriousbodilyinjury,property
damage and/or appliance damage!
Pleasekeepthismanualavailableforotherusersandownersbefore
WARNING
INTENDED USE
HABCO® Commercial Freezers are designed for the commercial fro-
Not
Not intended for use in outdoor, direct
MEANINGS OF SIGNAL WORDS AND SYMBOLS
WARNING
WARNING
NOTICE
Table of Contents
2
3
4
4
LOCATION4
ELECTRICAL4
5
5
6
6
PREVENTATIVE MAINTENANCE7
8
9
Glossary
Commercial Freezer Appliance
HABCO® Freezer Merchandiser
Compressor Refrigerant Compressing Motor Mounted in Base of Holding Freezer
Condensate
Condensing Chamber Compressor and Condenser Coil Enclosure at Base of Cabinet
Digital Controller
Cooling Coil to Ceiling of Cabinet Interior
Evaporator Housing
Circular Formed Heat Exchange Coil Mounted in Base of Cabinet
Lint-Tolerant Heat-Exchange Coil Mounted at Front Base of Cabinet
Mechanically Fastened Areas Areas Requiring a Tool to Access
Owner Person or Company Holding Legal Title to Appliance
Product Temperature Temperature of product within the appliance is average of high and low temperatures displayed on digital readout
Return Air Temperature
Roller Panel Cover
Temperatures
Trained Professional
HABCO® TECHNICAL DOCUMENT C097535 - 10803169
© HABCO Manufacturing Inc. “HABCO” and HABCO Edge Logo are registered trademarks of HABCO Manufacturing Inc. Domestic and International Patents. Page 3
SAFETY - IMPORTANT! READ AND UNDERSTAND THIS INFORMATION FIRST
SERVICE AND MAINTENANCE MUST BE PERFORMED BY TRAINED PROFESSIONAL
WARNING
•
•
•
•
•
•
•
•
•
•
•
•
WARNING
• -
•
•
•
NOTICE
• HABCO® FREEZERS ARE DESIGNED AND MANUFACTURED AS HOLDING FREEZERS. USE OF THIS FREEZER FOR PURPOSES OTHER THAN MAINTAINING PRE-
FROZEN PRODUCT WILL VOID WARRANTY.
• -
, AND/OR
•
• -
•
•
•
•
•
•
•
•
•
HABCO® TECHNICAL DOCUMENT C097535 - 10803169
© HABCO Manufacturing Inc. “HABCO” and HABCO Edge Logo are registered trademarks of HABCO Manufacturing Inc. Domestic and International Patents. Page 4
HABCO®CommercialFreezersaredesignedandengineeredtothehigh-
Any use of the product for purposes other than which it was designed,
Once the appliance has been received, remove stretch-wrap, cor-
WARNING: RISK OF SUFFOCATION! KEEP PLASTIC PACKAGING MATERIAL
AWAY FROM CHILDREN AND ANIMALS, AND DISPOSE SAFE AND SECURE.
WARNING: RISK OF PERSONAL INJURY! EMPLOY BEST HEALTH AND SAFETY
LIFTING PRACTICES WHEN REMOVING SHIPPING PLATFORM(S); LEVELING
CABINET; REVERSING DOORS; AND MOVING APPLIANCE. IF IN DOUBT, ASK
FOR HELP.

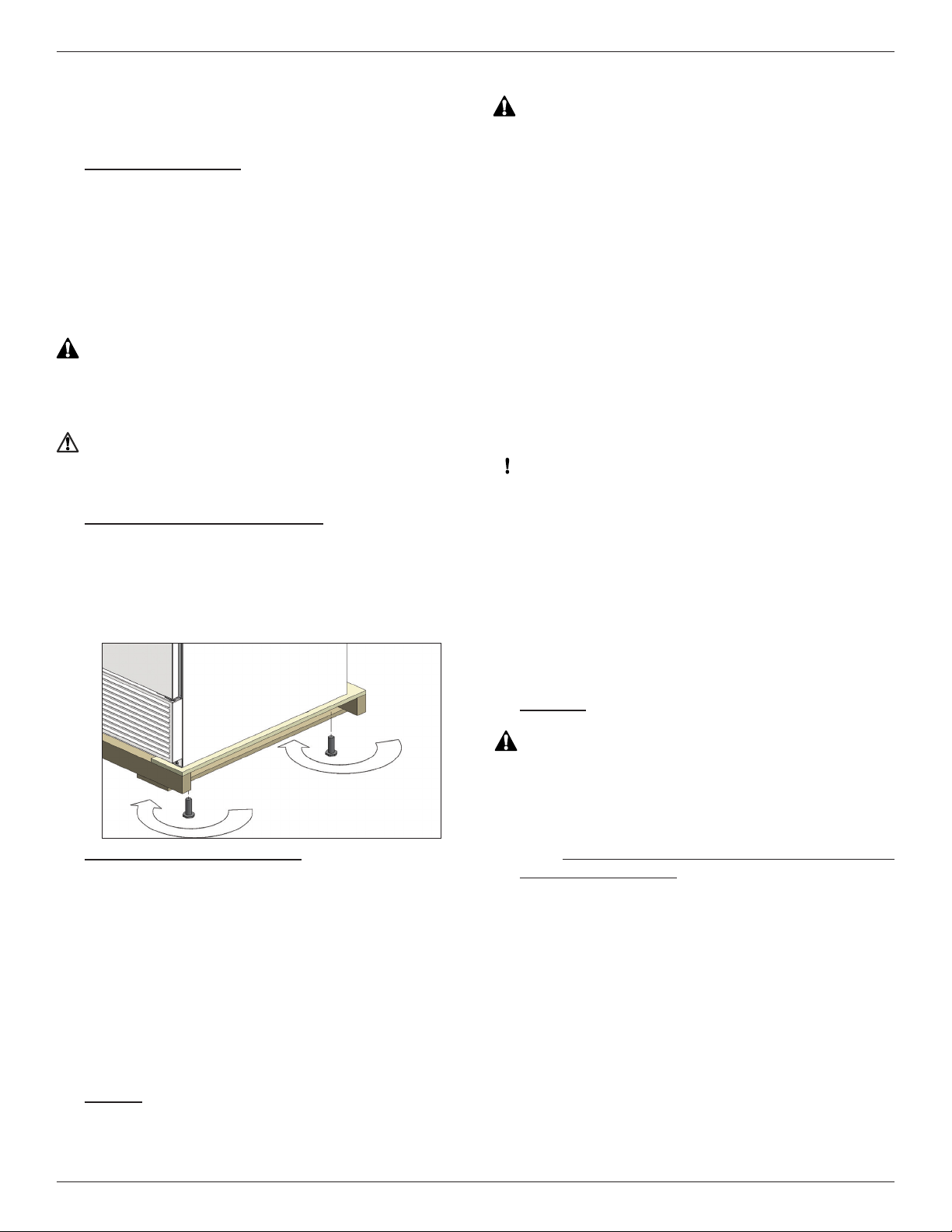

removed, do not reinstall leveller legs and follow caster kit instal-
FIG.A1
Install non-braking casters at rear of the freezer by threading into
Install braking casters at front of the freezer by threading into ex-
-
LOCATION
WARNING: RISK OF FIRE, AND ELECTROCUTION!
DO NOT ALTER, IMPACT OR PLACE PRESSURE ON POWER CORD. AL
LOW ADEQUATE SPACE FOR POWER CORD TO FLOAT FREELY BETWEEN
CABINET AND WALL AND DO NOT STRAIN AND/OR STRETCH POWER
CORD TO REACH ELECTRICAL RECEPTACLE.
DO NOT INSTALL OUTDOORS AND/OR IN DAMP CONDITIONS.
DO NOT INSTALL APPLIANCE WHERE STORAGE, HANDLING AND/OR DIS-
PENSING FLAMMABLE AND/OR EXPLOSIVE MATERIALS OCCUR.
-
NOTICE: RISK OF APPLIANCE DAMAGE!
DO NOT OBSTRUCT AIR-RETURN GRILLS LOCATED INSIDE CABINET NEAR
THE LOWER LEFT AND RIGHT OF THE REAR AIR DISTRIBUTION PANEL. DO
NOT BLOCK EXTERIOR, LOWER FRONT GRILL. FAILURE TO COMPLY MAY
RESULT IN RESTRICTED AIR CIRCULATION, SUBSTANTIALLY REDUCED COOL-
ING PERFORMANCE AND DAMAGE TO REFRIGERATION COMPONENTS
AND VOID WARRANTY.
DO NOT LOCATE APPLIANCE IN CLOSE PROXIMITY TO HIGH HEAT SUCH AS
FRYERS, RANGES, AND/OR HEATING DUCTS.
DO NOT INSTALL OUTDOORS, IN DIRECT SUN, DAMP, EXTREME HEAT
AND/OR COLD CONDITIONS.
ELECTRICAL
WARNING: RISK OF DEATH, FIRE, EXPLOSION, ELECTRICAL SHOCK AND/OR
OTHER PERSONAL INJURY!
PLUG INTO A DEDICATED THREE-PRONG GROUNDED WALL RECEPTACLE.
SINGLE DOOR FREEZERS REQUIRE DEDICATED 15AMP POWER SUPPLY, AND
DOUBLE DOOR FREEZERS REQUIRE DEDICATED 20AMP DEDICATED POWER
SUPPLY. IF IN DOUBT, EMPLOY A CERTIFIED ELECTRICIAN TO CONFIRM YOUR
POWER SUPPLY MEETS CRITERIA .
DO NOT USE EXTENSION CORDS, POWER BARS, AND/OR ADAPTERS TO
POWER THIS APPLIANCE.
DO NOT ALTER, IMPACT OR PLACE PRESSURE ON POWER CORD. AL
LOW ADEQUATE SPACE FOR POWER CORD TO FLOAT FREELY BETWEEN
CABINET AND WALL AND DO NOT STRAIN AND/OR STRETCH POWER
CORD TO REACH ELECTRICAL RECEPTACLE.
INSPECT POWER CORD FOR ANY DAMAGE PRIOR TO POWERING. DO NOT
PLUG THIS APPLIANCE INTO WALL RECEPTACLE IF POWER CORD IS
DAMAGED.
DO NOT ACCESS MECHANICALLY FASTENED AREAS WITHOUT PERMIS
SION OF OWNER AND READING AND UNDERSTANDING PRODUCT
MANUAL.
DISCONNECT POWER BEFORE ACCESSING MECHANICALLY FASTENED
AREAS.
HABCO® TECHNICAL DOCUMENT C097535 - 10803169
© HABCO Manufacturing Inc. “HABCO” and HABCO Edge Logo are registered trademarks of HABCO Manufacturing Inc. Domestic and International Patents. Page 5
Checkthatthe powersupplyconformstothedataplatelocatedon
NOTICE: NO PACKAGING MATERIAL IS LOCATED IN CONDENSING
CHAMBER! DO NOT REMOVE LOWER AIR FLOW GRILL WITHOUT
READING AND UNDERSTANDING THIS MANUAL.
DO NOT LOAD APPLIANCE ABOVE LOAD LEVEL LINE INDICATOR LOCATED
ON LEFT INTERIOR WALL. DO NOT LOAD PRODUCT OUTSIDE PERIMETER OF
SHELVES.
DO NOT BLOCK EXTERIOR, LOWER FRONT GRILL. FAILURE TO COMPLY MAY
RESULT IN RESTRICTED AIR CIRCULATION, SUBSTANTIALLY REDUCED COOL-
ING PERFORMANCE, DAMAGE TO REFRIGERATION COMPONENTS, AND/
OR SPOILED PRODUCT.
- Corresponding number of shelves standard with your freezer
-
-
-
FIG. E1
i. Double Door Freezer models are equipped with a refrigera-
Allow Freezer to run empty for a 24 hour period to ensure proper
-
-
NOTICE: RISK OF APPLIANCE DAMAGE AND SPOILAGE! ADJUSTMENTS
MADE TO THE DIGITAL CONTROLLER, NOT OUTLINED WITHIN THIS
USER GUIDE, WILL VOID HABCO® LIMITED WARRANTY.
All HABCO® Commercial Freezers are preset at the factory to main-
equipped with an advanced digital controller allowing precision cooling
FIG. E1
FIG.E2 - CHART - DETAIL DIGITAL CONTROLLER
1. READING THE CONTROL-
LER TEMPERATURE
The temperature of the return air temperature is
displayed on the controller in degrees Celsius.
Product temperature will be average between
the lowest and highest temperature displayed
when unit is stabilized.
2. HOW TO CHANGE HOLDING
TEMPERATURE OF YOUR
CABINET
a. Press and hold the SET key for more
than two seconds - CURRENT TEMPER-
ATURE SETTING WILL APPEAR AND
°C WILL FLASH;
b. Press the UP or DOWN arrow keys to
change the temperature setting within 10
seconds;
c. Press the SET key to enable new setting.
3. WHAT TO DO IF THE ALARM
SOUNDS
a. Leave Door(s) Closed;
b. Press any key on controller face to dis-
able the alarm;
c. Check temperature to prevent spoilage;
d. Contact HABCO® and advise Serial
Number (located on upper left interior
wall); Alarm Code displayed on Control-
ler face (FIG.E3); and, full contact infor-
mation with phone number.
HABCO® TECHNICAL DOCUMENT C097535 - 10803169
© HABCO Manufacturing Inc. “HABCO” and HABCO Edge Logo are registered trademarks of HABCO Manufacturing Inc. Domestic and International Patents. Page 6
FIG. E3
Cause / What to Do?
Cabinet Probe
Failure Compressor Operates on Timer Instead of
P2 Evaporator Probe
Failure
HA Maximum Tem-
perature Alarm
LA Minimum Tem-
perature Alarm
WARNING: RISK OF DEATH, FIRE, EXPLOSION, ELECTRICAL SHOCK AND/OR
OTHER PERSONAL INJURY!
DO NOT ACCESS MECHANICALLY FASTENED AREAS WITHOUT PERMIS
SION OF OWNER AND READING AND UNDERSTANDING PRODUCT
MANUAL.
DISCONNECT POWER BEFORE ACCESSING MECHANICALLY FASTENED
AREAS.
MAINTENANCE AND REPLACEMENT OF LED LIGHT STRIPS AND RELAT
ED DRIVER COMPONENTS TO BE PERFORMED BY A QUALIFIED
TECHNICIAN ONLY.
-
HABCO® Commercial Freezer solid door lights are actuated auto-
Incandescent Lamp Replacement
-
signed for use in commercial appliances and should be replaced
WARNING: RISK OF DEATH, FIRE, EXPLOSION, ELECTRICAL SHOCK AND/OR
OTHER PERSONAL INJURY!
DO NOT ACCESS MECHANICALLY FASTENED AREAS WITHOUT PERMIS
SION OF OWNER AND READING AND UNDERSTANDING PRODUCT
MANUAL.
DISCONNECT POWER BEFORE ACCESSING MECHANICALLY FASTENED
AREAS.
WARNING: RISK OF PERSONAL INJURY! EMPLOY BEST HEALTH AND SAFE-
TY LIFTING PRACTICES WHEN REMOVING SHIPPING PLATFORM(S); LEVEL-
ING CABINET; REVERSING DOORS; AND MOVING APPLIANCE. IF IN DOUBT,
ASK FOR HELP.
NOTICE: HABCO® WARRANTS FACTORY DOOR REVERSAL ONLY. ANY IS
SUES AND SUBSEQUENT SOLUTIONS ARISING FROM FIELD REVERSED
DOORS ARE THE RESPONSIBILITY OF THE CUSTOMER. DOOR ADJUST
MENTS ARE NOT COVERED UNDER WARRANTY. INSPECT DOOR HARD
WARE FOR WEAR WHEN REVERSING OR SERVICING.
-
Note: bracket is under
WARNING! HOLD DOOR AGAINST CABINET WHILE REMOVING
BRACKET AND FASTENERS. MAGNETIC DOOR GASKET WILL ASSIST.
REMOVAL OF THE SET-SCREW (FIGHiii)WILL LEAVE DOOR UNSECURED.
FIG.H1
i
iii
-
FIG.H2
i
ii
HABCO® TECHNICAL DOCUMENT C097535 - 10803169
© HABCO Manufacturing Inc. “HABCO” and HABCO Edge Logo are registered trademarks of HABCO Manufacturing Inc. Domestic and International Patents. Page 7
FIG.H3
FIG.H4
i
ii
-
FIG.H5
FIG.H6
i
PREVENTATIVE MAINTENANCE
WARNING: RISK OF DEATH, FIRE, EXPLOSION, ELECTRICAL SHOCK AND/OR
OTHER PERSONAL INJURY!
DO NOT ACCESS MECHANICALLY FASTENED AREAS WITHOUT PERMIS
SION OF OWNER AND READING AND UNDERSTANDING PRODUCT
MANUAL.
DISCONNECT POWER BEFORE ACCESSING MECHANICALLY FASTENED
AREAS.
WARNING: RISK OF PERSONAL INJURY!
EMPLOY BEST HEALTH AND SAFETY LIFTING PRACTICES WHEN REMOV-
ING SHIPPING PLATFORM(S); LEVELING CABINET; REVERSING DOORS; AND
MOVING APPLIANCE. IF IN DOUBT, ASK FOR HELP.
EMPLOY BEST HEALTH AND SAFETY PERSONAL PROTECTION PRACTICES
AND ADHERE TO MANUFACTURER’S WARNINGS WHEN USING TOOLS AND
CLEANING AGENTS.
USE CARE WHEN HANDLING OR CLEANING METAL PARTS.
NOTICE: RISK OF APPLIANCE DAMAGE!
MAINTAIN A CLEAN CONDENSER COIL (BOX-SHAPED COMPONENT LO-
CATED BEHIND THE LOWER GRILL) TO PREVENT DAMAGE TO REFRIGERA-
TION PARTS AND POOR PERFORMANCE NOT COVERED UNDER WARRANTY.
QUALIFIED PROFESSIONAL TO DISCONNECT APPLIANCE FROM ELECTRI-
CAL RECEPTACLE PRIOR TO REMOVING AIR FLOW GRILL FOR MAINTE-
NANCE OR SERVICE.
USE ONLY MILD ANTI-BACTERIAL, NON-ABRASIVE ‘DISH SOAP’ DETERGENT
AND SOFT CLOTH OR BRISTLE BRUSHES FOR CLEANING YOUR APPLIANCE.
FOR STUBBORN RESIDUE, SUCH AS GREASE BUILD-UP ON CONDENSER
(HEAT-EXCHANGE) COIL, EMPLOY THE SERVICES OF A QUALIFIED PROFES-
SIONAL.
HABCO® TECHNICAL DOCUMENT C097535 - 10803169
© HABCO Manufacturing Inc. “HABCO” and HABCO Edge Logo are registered trademarks of HABCO Manufacturing Inc. Domestic and International Patents. Page 8

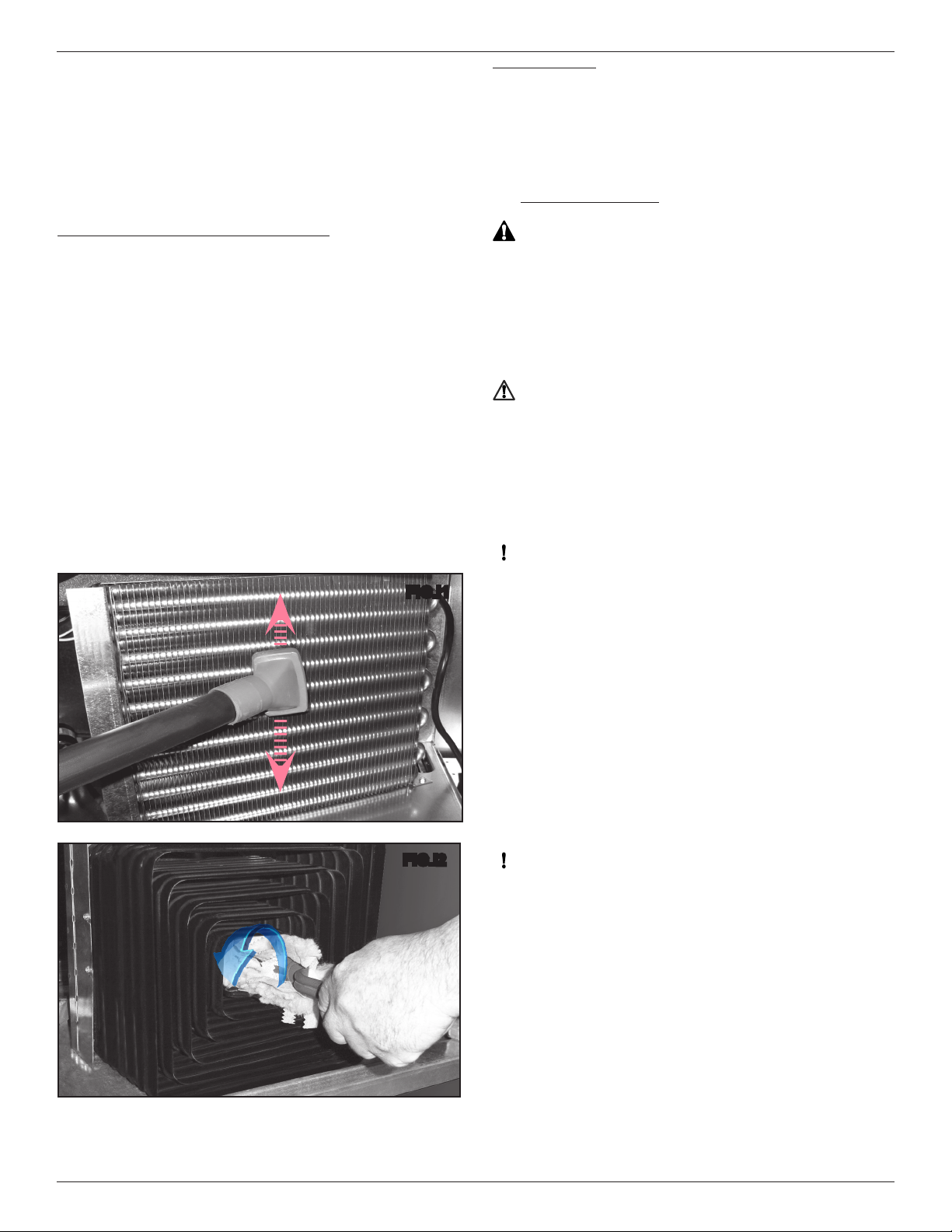

Heat-Exchange Coil located at front base of cabinet behind the grill on
-
-
-
FIG.I1
FIG.I2
• An open box of baking soda placed on a shelf at the rear of the
•
WARNING: RISK OF DEATH, FIRE, EXPLOSION, ELECTRICAL SHOCK AND/OR
OTHER PERSONAL INJURY!
DO NOT ACCESS MECHANICALLY FASTENED AREAS WITHOUT PERMIS
SION OF OWNER AND READING AND UNDERSTANDING PRODUCT
MANUAL.
DISCONNECT POWER BEFORE ACCESSING MECHANICALLY FASTENED
AREAS.
WARNING: RISK OF PERSONAL INJURY!
USE ONLY MILD ANTI-BACTERIAL, NON-ABRASIVE ‘DISH SOAP’ DETERGENT,
AND SOFT CLOTH (OR BRISTLE BRUSHES WHERE SPECIFIED) FOR CLEANING
YOUR APPLIANCE. FOR STUBBORN RESIDUE, SUCH AS GREASE BUILD-UP
ON CONDENSER (HEAT-EXCHANGE) COIL, EMPLOY THE SERVICES OF A
QUALIFIED PROFESSIONAL.
USE CARE WHEN HANDLING OR CLEANING METAL PARTS.
NOTICE: RISK OF APPLIANCE DAMAGE! AFTER ACCESSING REFRIGERATION
OR ANY OTHER MECHANICALLY FASTENED AREAS OF THE APPLIANCE, RE-
FASTEN SECURELY.
-
A wide variety of oil based stainless steel cleaning agents are avail-
NOTICE: RISK OF APPLIANCE DAMAGE! DO NOT SOAK SHELF IN ANY LIQ-
UIDS OTHER THAN WATER AND DETERGENT.
For areas of shelf where cloth cannot fully reach, use brush
-
HABCO® TECHNICAL DOCUMENT C097535 - 10803169
© HABCO Manufacturing Inc. “HABCO” and HABCO Edge Logo are registered trademarks of HABCO Manufacturing Inc. Domestic and International Patents. Page 9
FIG.J1
FIG.J2
-
bacterial dish soap and warm water with a damp cloth or sponge
should be used to clean all HABCO® Commercial Freezer door gas-
-
WARNING: RISK OF ENTRAPMENT! WHEN STORING, ENSURE THAT DOOR
IS BLOCKED SLIGHTLY AJAR, BUT SECURED NOT TO OPEN.
NOTICE: RISK OF APPLIANCE DAMAGE! DO NOT STORE OUTDOORS, IN DI-
RECT SUN, DAMP, EXTREME HEAT AND/OR COLD CONDITIONS.
-
• -
ed 3 prong wall receptacle?
• Is the circuit breaker thrown or fuse blown?
• Is there adequate power?
•
• Are there other appliances on the same circuit drawing power?
• Has an extension cord, power bar or adapter, been improperly
used to connect power?
• Is the appliance overloaded with product?
•
• Is the condenser plugged with grease and/or dirt?
• Are the doors closing properly?
• Do the gaskets seal snugly?
• Is the lower guide track free from debris and spillage?
• Is the shipping pallet removed and is the appliance level?
•
•
•
•
•
•
•
•
•
This manual suits for next models
6
Table of contents
