Habey BIS-6650 User manual

Owner's Manual
BIS-6650
Intel Dual Core Atom D2550 Large Screen
Digital LED Signage System

Disclaimer
Except for the accessories attached to the product
as specified herein, what is contained in this user
manual does not represent the commitments of
Habey USA Company. Habey USA Company
reserves the right to revise this User Manual,
without prior notice, and will not be held liable for
any direct, indirect, intended or unintended losses
and/or hidden dangers due to improper installation
or operation.
Before ordering products, please learn about the
product performance from the distributors to see if
it is in line with your needs.
The contents of this manual are protected by
copyright law. All rights are strictly reserved. Any
form of unauthorized reproduction including but not
limited to carbon copy, facsimile transmission and
electronic copy or email is prohibited.
i

1. Please read the product manual carefully before using this
product.
2. Put all the unused or uninstalled boards or electronic compo-
nents on a static dissipative surface or in static shielding bag.
3. Always ground yourself to remove any static discharge before
touching board. To ground, place your hands on a grounding metal
object or wear a grounding wrist strap (not included) at all times.
4. When taking or fetching the boards or cards, please wear anti-
static gloves and hold the boards by its edges.
5. Make sure that your power supply is set to the correct voltage
in your area. Incorrect voltage may cause personal injuries and
damage the system.
6. To prevent electronic shock hazard or any damage to the prod-
uct, please ensure that all power cables for the devices are un-
plugged when adding or removing any devices or reconguring
the system.
7. To prevent electrical shock, disconnect the power cable from the
electrical outlet before relocating the system.
8. When adding or removing components to or from the system,
ensure that all the power cables for the system are unplugged pri-
or to installation or removal.
9. To prevent any unnecessary damage to the products due to fre-
quent power on/off, please wait at least 30 seconds to restart the
unit after the shutdown.
10. If the system fails during normal operation, do not attempt to
x yourself. Contact a qualied service technician or your retailer.
11. This product is classied as Class A product, which may cause
radio interference in our living environment. In this occasion, users
need to take measures to handle the interference.
Safety Instructions
ii

Content
Section 1 Product Introduction.............................................................................1
1.1 Overview...........................................................................................................................1
1.2 Product Specification........................................................................................................2
1.3 Product Indicator Diagram................................................................................................3
Section 2 Motherboard Description......................................................................4
2.1 Interface Location and Dimension...................................................................................4
2.2 Installation Steps...............................................................................................................4
2.3 Install RAM........................................................................................................................5
2.4 Jumper Settings................................................................................................................5
2.4.1 CMOS Clear/Hold Jumper Setting JCC）..........................................................5
2.4.2 Hardware Switch for System Auto Boot Upon Power On JAT）....................7
2.4.3 COM2 Jumper Setting J1, J2）..........................................................................7
2.4.4 LVDS Rated Voltage Select Jumper J8）...........................................................8
2.5 Interfaces Description.......................................................................................................9
2.5.1 SATA Interface SATA1, SATA2, PWROUT）.....................................................9
2.5.2 Serial Ports COM）...........................................................................................10
2.5.3 Display Interfaces VGA, DVI, LVDS）..............................................................11
2.5.4 LVDS Backlight Control Interface J2）.............................................................13
2.5.5 USB Ports USB_LAN1, USB_LAN2, USB56, J6）..........................................14
2.5.6 Keyboard & Mouse Connector KBMS）...........................................................15
2.5.7 Programmable Input/Output Interface JGP）..................................................16
2.5.8 Power Interface PWR1, PWR2）.....................................................................16
2.5.9 FAN Connector CPU_FAN）............................................................................17
2.5.10 JLPC JLPC）...................................................................................................18
2.5.11 Audio Interface JACKHDA，J11）..................................................................19
2.5.12 Front Panel Connector JFP）.........................................................................20
2.5.13 SO-DIMM Slot SO-DIMM）............................................................................22
Section 3 Computer Installation and Use.............................................................23
3.1 Install Computer Peripheral Accessories.......................................................................23
3.1.1 DVI Interface Connection.....................................................................................23
3.1.2 COM Device Connection.....................................................................................23
iii

3.1.3 PS/2 Keyboard and Mouse Connection..............................................................23
3.1.4 Power Cable Connection.....................................................................................23
3.2 Install Computer Software..............................................................................................24
3.2.1 Install Operating System......................................................................................24
3.2.2 Install Drivers........................................................................................................24
3.3 BIS-6650LC BIOS SETUP.............................................................................................24
AMI BIOS Description...........................................................................................................25
BIOS Settings........................................................................................................................25
3.1 Main Menu......................................................................................................................26
3.2 Advanced Menu..............................................................................................................26
3.2.1 ACPI Settings.......................................................................................................27
3.2.2 APM Configuration...............................................................................................28
3.2.3 CPU Configuration...............................................................................................28
3.2.4 SATA Configuration..............................................................................................30
3.2.5 USB Configuration................................................................................................31
3.2.6 Supper IO Configuration......................................................................................32
3.2.7 H/W Monitor..........................................................................................................33
3.2.8 Serial Port Console Redirection...........................................................................33
3.3 Chipset Menu..................................................................................................................34
3.3.1 South Bridge.........................................................................................................34
3.4 Boot Menu.......................................................................................................................35
3.5 Security Menu.................................................................................................................37
3.6 Save & Exit Menu...........................................................................................................37
Section 4 Install and Replace Computer Components......................................... 39
4.1 Remove Computer Cover...............................................................................................40
4.2 Replace DIMM................................................................................................................41
4.3 Install CF Card................................................................................................................41
4.4 Mounting Bracket............................................................................................................42
Appendix............................................................................................................43
Appendix 1: Driver Installation..............................................................................................43
Appendix 2: Watchdog Programming Guide.......................................................................44
Appendix 3: GPIO Instruction...............................................................................................46
Appendix 4: Glossary............................................................................................................47
iv

Packing List
Thanks for purchasing Habey USA products. Please
check your package carefully according to the checklist
below. If you find any components lost or damaged, please
contact your retailer.
Item QT Y.
BIS-6650 1
User Manual 1
Drivers and Utilities 1
DVI Cable 1
Power Adaptor 1
Wall Mount Bracket 1
Screws 1

Section 1ProductIntroduction
1.1Overview
A compact hardware platform specially designed for LED control system in digital
signage applications. It is based on Mini-ITX motherboard, powered by Intel Atom
N2800/D2500/D2550 CPU.System offers high performance with industrial-grade
reliability. Rich I/O: 4x USB2.0 /2x COM /1x VGA /1x DVI-D /2x LAN, 1x Mini PCIe
SSD(optional).
The industrial grade embedded boards, SSD support, VGA and DVI interface
and compact fanless design make BIS-6650LC a perfect solution for Kiosk,
Digital Signage, LED controlling, Advertising and other embedded applications.
1

2
Model BIS-6650
Platform Intel
Chassis
Color Black
Dimension 355mm× 194mm× 50mm(W×D×H)
Structure ICEFIN fanless enclosure
Material Aluminium alloy
Motherboard
Model Aluminium alloy
Processor Intel Atom N2800/D2500/D2550 1.86GHz
Chipset Intel NM10
Memory 1xDDR3 SO-DIMM supports 800/1066MHz RAM upto 4GB
Storage
CF N/A
SSD 1x Mini PCIe SSD(optional)
HDD 1x 2.5” HDD Bay
System Features
Network Realtek RTL8111E,10/100/1000Mbps,2x LAN
USB 4x USB2.0
Serial Port 1x RS-232(DB9),1x RS-232/485
Dispaly 1x VGA,1x DVI-D
Cooking System Fanless, ICEFIN cooking design
Audio 1x Mic-in,1x Line-out,
Expansions 1x PCI LED card reserve location, 1x Mini PCIe,
System LED PWR_LED
System Control Power ON/OFF swtich
PS/2 N/A
Power Power Supply DC +12V power adapter
Reliability
Mounting Desktop or Wall Mount
Operating Temp 0~55 celsius degree
Storage Temp -40~80 celsius degree
Relative Humidity 5%~95% relative humidity, non-condensing
Operating Vibration 0.5g rms/5~500Hz/random operating
EMC CE/FCC Class B
1.2 Product Specification

2.DC 12V8.Line-in
3.2x COM9.2x USB 2.0
4.DVI10.VGA
5.2x Gigabit Ethernet6.Line-out
7.LED Controller
8
10
7
9
2
4
5
6
3
2BIS-6650RearView
3
1.3ProductIndicatorDiagram
1BIS-6650Front View
1.Power ON/OFF Button
1

Section 2MotherboardDescription
2.1Interface Location and Dimension
The following picture shows the front panel interfaces location and the dimension of the board
MITX-6936. Please pay attention to the installation procedures. Improper installation of any
components will lead to system malfunction.
Note:Beforeinstallation,pleaseputontheanti-staticgloves,incase thatthestatic
electricitycausesdamageto themotherboard.

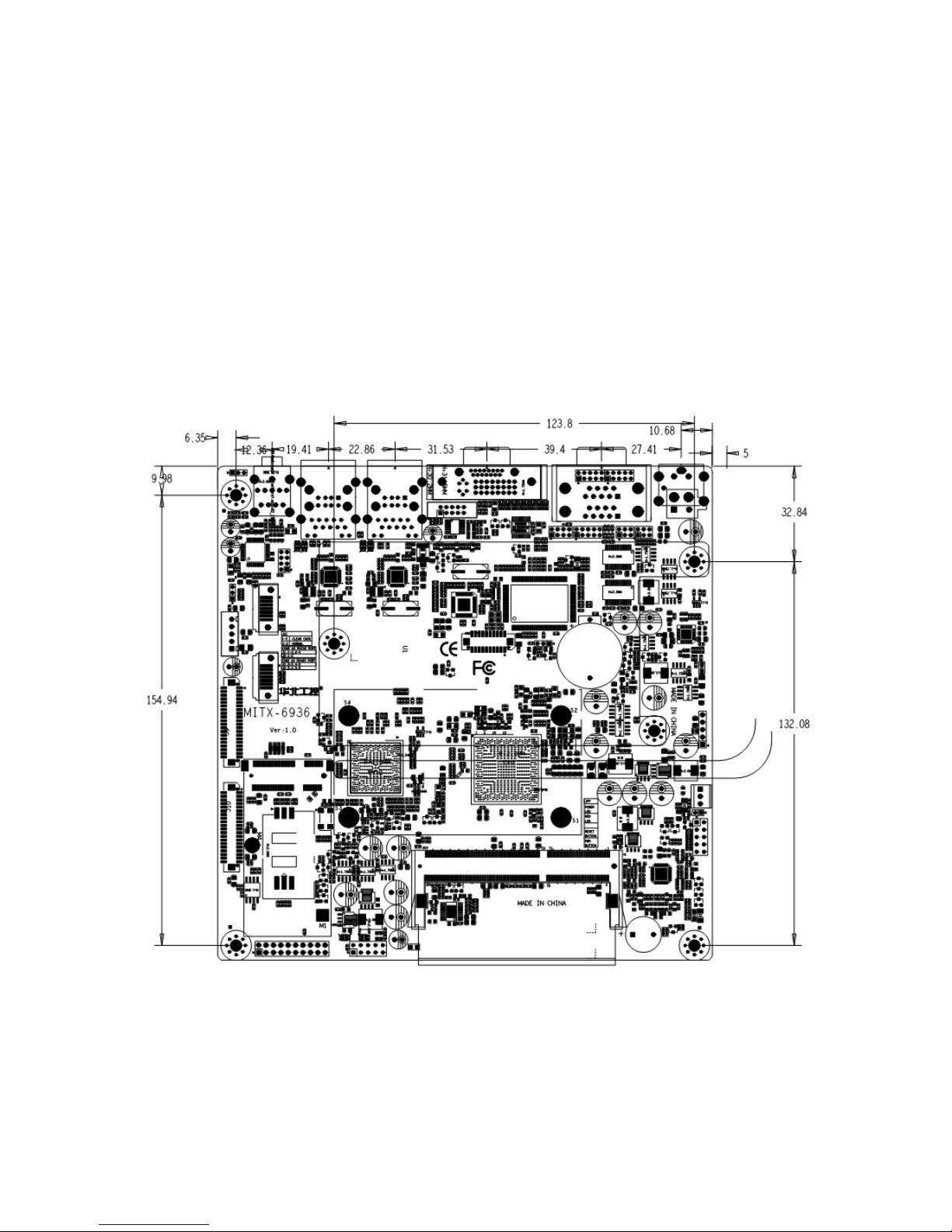

MITX-6936Dimension Diagram
2.2Installation Steps
Please follow the steps below to assemble your computer:
1.Refer to the manual and adjust all the jumpers of MITX-6936
2.Install RAM
4

3.Install other expansion cards
4.Connect all signal cable, power cable, panel control cable and power supply unit.
5.Start the computer and complete the BIOS settings.
Keycomponentsofthismotherboard areintegrated circuit, andthesecomponents
will beeasilydamagedbyelectrostaticinfluence. So, beforeinstalling the
motherboard, youshouldalways keep thefollowingprecautionsin mind:
1.Hold the board by edges, don’t touch any components or plug and socket pins
2．Wear anti-static gloves/wrist strap while touching the integrated circuit components, such as
CPU, RAM, etc.
3．Put those unused or uninstalled components in static shielding bags or trays
4．Please first check the power switch is off before connecting the power plug
2.3Install RAM
Board with one DDRIII slot, please pay attention to following remarks before installing the RAM
module:
1.First, please algin the notch of the memory bank with the notch on the socket and press the
memory bank slowly into the socket.
2.Please choose the proper memory bank that matches your motherboard
2.4JumperSettings
Please refer to following instructions to do jumper settings before installing your hardware
devices.
Remark: How to identify the PIN1 of all jumpers and interfaces: Please observe the word mark
on the side of the plug socket, which will be a “1” or bold line or triangular symbol; And please
look at the back of PCB, each with a square shape will be the PIN 1; and all the jumpers’ PIN1
have a white arrow on the side.
2.4.1 CMOS Clear/Hold Jumper Setting JCC）
CMOS is powered by the onboard button cell. Clear CMOS will lead to permanent elimination
of previous system settings and back to the original system setting (factory default).
Steps: 1）Turn off the computer and disconnect the power supply
2）Use Jumper Cap JCC Pin1-2 short for 5~6 sec. Then restore the default setting
5

with Pin2-3 connected
3）Turn on the computer, then press “DEL” key to enter BIOS setting and reload
optimal defaults.
4）Save and Exit
JCC:
Setting JCC
1-2 BIOS back to intialization (factory dafault)
2-3 Normal Status, System default
DonotclearCMOSwhen thecomputorispoweron, otherwise,itwillcause
damageto themotherboard!
6

2.4.2 Hardware Switch for SystemAuto Boot Upon Power On JAT）
JAT：
Setting JAT
Open Disable this auto boot function
Close Enable this auto boot function
2.4.3 COM2 Jumper Setting J1, J2）
J1, J2 jumpers are used to configure COM2 transmission mode. COM2 supports
RS232/RS485. Default mode as RS232.
7

2.4.4 LVDS Rated Voltage Select Jumper J8）
Before using the LVDS, please first check the rated operating voltage.
COM2 RS232 default）
COM2 RS485
J1 1-3 2-4 J1 3-5 4-6
J2 1-2 J2 3-4 5-6
8

J8：
Setting 3.3V 5V
J8 1-2 2-3
2.5Interface Description
Pleasereadthefollowing instructionscarefullybeforeyouconnectingtheexternal
connectorsin caseofanydamagecaused tothemotherboard.
2.5.1 SATA Interface SATA1, SATA2, PWROUT）
Board provides 2x standard 7 Pin SATA interfaces and one 5Pin PWROUT interface. HDD is
power-up through the PWROUT interface with an adapter cable
9

SATA:
Pin Signal Name
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
PWROUT:
Pin Signal Name
1 +12V
2 GND
3 VCC
4 GND
5 VCC3
2.5.2 Serial Ports COM）
Board provides 2x standard DB9 serial ports( Reserved two Pins :JCOM1, JCOM2)。
10

COM1/COM2:
Pin Signal Name
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
2.5.3 Display Interface VGA, DVI, LVDS）
1x standard DB15 VGA port , 1x DVI-D, 1x standard single channel 18/24bit LVDS port.
Reserved one 2×5 Pin VGA Pin optional
11

VGA:
Pin Signal Name Pin
Signal Name
Pin
Signal Name
1 RED 6 GND 11
NC
2 GREEN 7 GND 12
SDA
3 BLUE 8 GND 13
HSYNC
4 NC 9 +5V 14
VSYNC
5 GND 10 GND 15
SCL
DVI:
Signal Name Pin Signal Name
TDC2# 1 2 TDC2
GND 3 4 NC
NC 5 6 SC-DDC
SD-DDC 7 8 NC
TDC1# 9 10 TDC1
GND 11 12 NC
NC 13 14 VCC
GND 15 16 HP-DETECT
TDC0# 17 18 TDC0
GND 19 20 NC
NC 21 22 GND
12

TLC 23 24 TLC#
GND 25 26 GND
NC 27 28 NC
LVDS:
Signal Name Pin Signal Name
VCC 1 2 VCC
GND 3 4 GND
LA_DATA_N0 5 6 L_DDC_DATA
LA_DATA_P0 7 8 L_DDC_CLK
GND 9 10 GND
LA_DATA_N1 11 12 LA_CLK_N
LA_DATA_P1 13 14 LA_CLK_P
GND 15 16 GND
LA_DATA_N2 17 18 LA_DATA_N3
LA_DATA_P2 19 20 LA_DATA_P3
2.5.4 LVDS Backlight Control J2）
J2：
Pin Signal Name
1 +12V
2 BKLT_EN
13

3 GND
4 BKLT_CTRL
5 +5V
2.5.5 USB Ports USB_LAN1, USB_LAN2, USB56, J6）
External USB and LAN ports. 2x separate slots provide 2x standard USB2.0 ports and 1x RJ
45 port. USB_56 is the internal USB port. The one 2x 5Pin header can be converted into 2x
standard USB ports. Both sides of the RJ45 network interface with a LED lamp. The yellow
one indicates the data transmission status. The green one indicates the network link status. J6
is the LAN LED for LAN 1 and LAN2.
Standard USB Ports:
Pin Signal Name
1 +5V
2 USB DATA-
3 USB DATA+
4 GND
USB_56:
Signal Name Pin Signal Name
VCC 1 2 GND
USB DATA- 3 4 GND
14
