Haicom HI-305III User manual

1
Bluetooth
GPS Receiver
Table of Contents
1. Overview
2. Dimensions
3. Packaging
4. System
5. Installation
6. GPS Technical Data
1.1 Main Features
1.2 Advantages
2.1 HI-305III Dimension
2.2 Specifications
3.1 Introductions
3.2 Standard Packaging:
3.3 Optional Accessories:
4.1 LED Indicator
4.2 External Antenna
6.1 ONE-PULSE-PER-SECOND (1PPS) OUTPUT
6.2 SOFTWARE INTERFACE Software Interface
6.3 NMEA OUTPUT MESSAGE SPECIFICATION
6.4 NMEA Messages
6.5 DEFAULT VALUES
6.6 TROUBLESHOOTING
................................................................................................
................................................................................................
...................................................................................
................................................................................................
...............................................................................................
............................................................................
................................................................................................
................................................................................................
........................................................................................
...........................................................................................
.................................
................................
................................
................................................................................
........................................................................................
.................................................................................
2
3~4
5
6
7
8
9
10
10
11~12
13
14
14
15~21
22
23

2

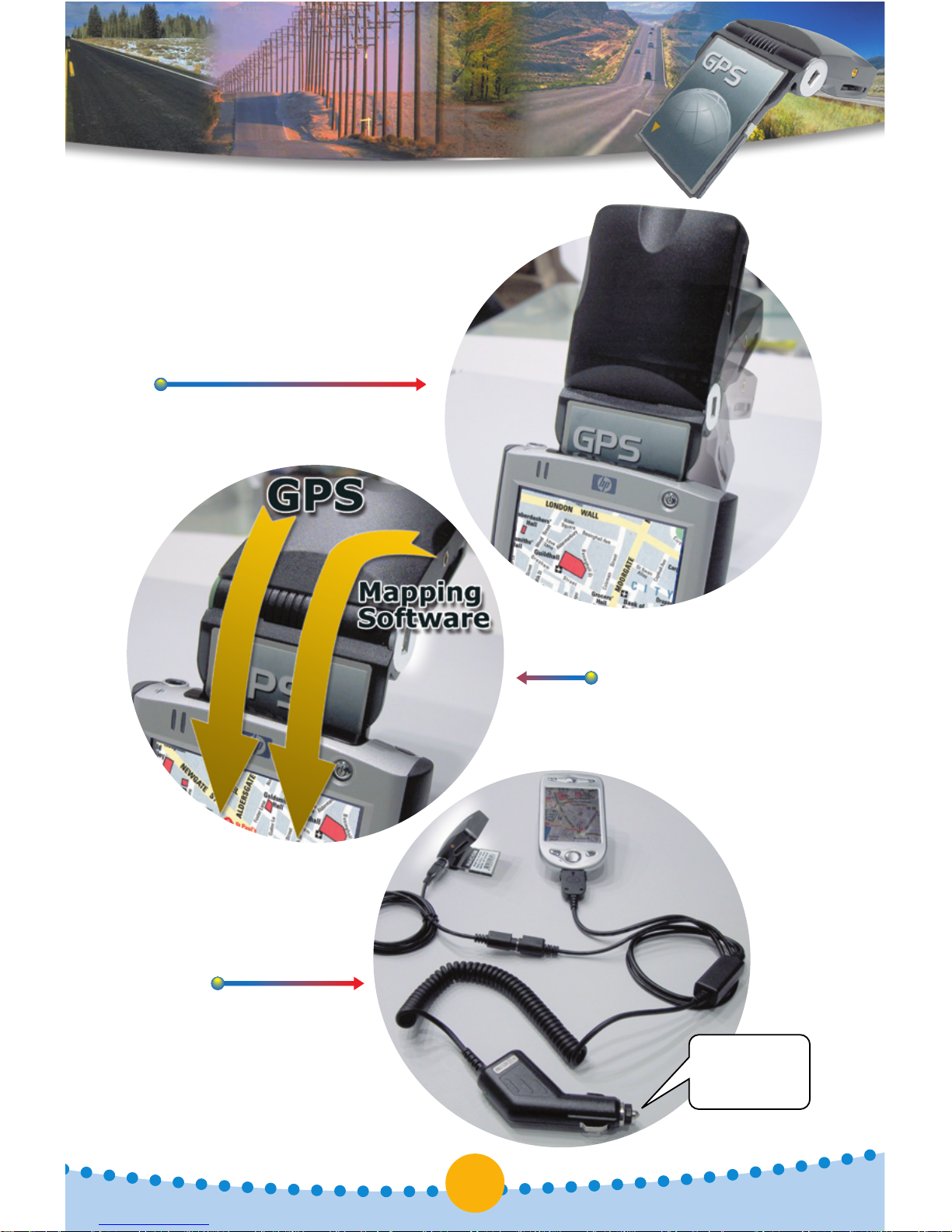

1.1 HI-305III
Features
Multi-Mode GPS receiver
With SD memory slot
HI-305III as a
CompactFlash™ GPS receiver
HI-305III as a
PDA GPS receiver
HI-305III as a
SD Card via CF interface
Cigarette
lighter
DC 12V~24V

3
1.2 ADVANTAGES:
Universal GPS Solution:
HI-305III can be virtually any kinds of GPS receivers, such as,
CompactFlash GPS, USB GPS, Bluetooth GPS, Serial GPS, Any PDA
GPS, etc.You won't need to buy several GPS receivers to fit your
mobile devices, like, Notebook PC,Tablet PC, PDA, etc.With HI-305III ,
one unit fit all interfaces from different devices.
HI-305III as a USB GPS receiver
HI-305III as a Serial GPS receiver
HI-305III as a Bluetooth GPS receiver
USB port
Bluetooth
docking
station
Pin-out*
PS/II to USB
connecting cable
Mini 1394 to USB
connecting cable
PS/II Mini DIN
(for power out)
DB9 connector
(for data in)
Mini 1394 port
Function
CN1
TX
5
RX
4
VCC
2
GND
1
Pin Assignment
Connectors
PS/2 Connector
Min Din: 6 pin male connector
135
246
1
1

4
Foldable Compact Size:
With very smart hinge design, HI-305III can folded from 180° to 0° to
accommodate the best satellite receiving angle.You can adjust HI-305III
in best angle with your mobile device on the dashboard so that the
external antenna will not needed. Also,you don't need to face the
mobile device display to the sky for better receiving angle.
Total GPS solution:
On the side of HI-305 III ,
there is a SD memory
slot. User can insert the
SD memory card
containing the mapping
software so that the GPS
data and the map data
can be accessed
simultaneously via the
Compact Flash interface
from the host device like,
PDA, laptop PC, etc.,.
After the proper driver installed, with the SD memory card inserted,
as soon as user plug the Compact Flash interface, there will be a
folder created from host device.
Beside using it as a complete GPS solution,HI-305 III can also be a SD
card reader in CF interface.One can store any file into any standard
SD memory card and the file can be read or write via the Compact
Flash interface.
HI-305III in Car navigation
(without ext. antenna)
HI-305III in Car navigation
(without ext. antenna)

5
2.1 Dimension:
Top View: Botton View:
Front View:
Side View:
Unfolded View:
Back View:
122
65
48
25
Mini-1394
MMCX antenna LED indicator
Unit: mm
SD slot
2. Dimension

6
2.2 Specifications
Interfaces:
Protocol: NMEA0183 GGA, GSA, GSV,RMC
Baud Rate:
Max. Update Rate:
Datum:
Channel:
Frequency:
Hot Start:
Warm Start:
Cold Start:
Reacquisition Time:
Position Accuracy:
Maximum Altitude:
Maximum Velocity:
Voltage:
Power consumption:
Antenna Type:
External Antenna Connector:
Dimension:
LED Indicator: 3D Positioning (blinking) or Searching GPS (on)
Operating Temperature:
Storage Temperature:
Operation Humidity:
Sensetility:
Fold
Unfold
Compact Flash type I & Mini-1394
4800, N, 8, 1
1 Hz
WGS84
20 channel
L1, 1575.42MHz
3 ~ 6 sec. Average
34 sec. Average
46 sec. Average
100 ms
7m 2D RMS, SA off
10,000m
600m/s
DC 3.3V+- 10%
90mA continuous mode
Built-in active antenna
MMCX (Optional)
65 (L) x 48 (W) x 25 (H)mm
116 (L) x 48 (W) x 22 (H)mm
-40° to + 80°
- 55° to + 85°
95%, Non- Condensing
Acquisition: -149 dbm
Tracking: -159 dbm

7
3.1 HI-305 III Introductions
HI-305III is a GPS receiver with Compact Flash type I/ mini-1394
interfaces and built-in active antenna for high sensitivity to tracking
signal. Based on the SiRF star III Ultra high sensitive chip set and
supports all functions (Single Sat updates in reduced visibility,
Superior urban canyon performance,Foliage Lock for weak signal
tracking, etc.). HI-305III is well suited to system integration and users
who use any kinds of mobile devices,such as, PDA, notebook PC,
Tablet PC, etc.It satisfies a wide variety of applications for car
navigation,personal navigation or touring devices,tracking and
marine navigation purpose.Users can simply plug it into a PDA or
other type of handheld PC running with suitable mapping and
routing software for navigation.
By counecting different
optional connecting
cables, HI-305III can be
all kinds of wired GPS
receiver solutions.
3. Packaging

8

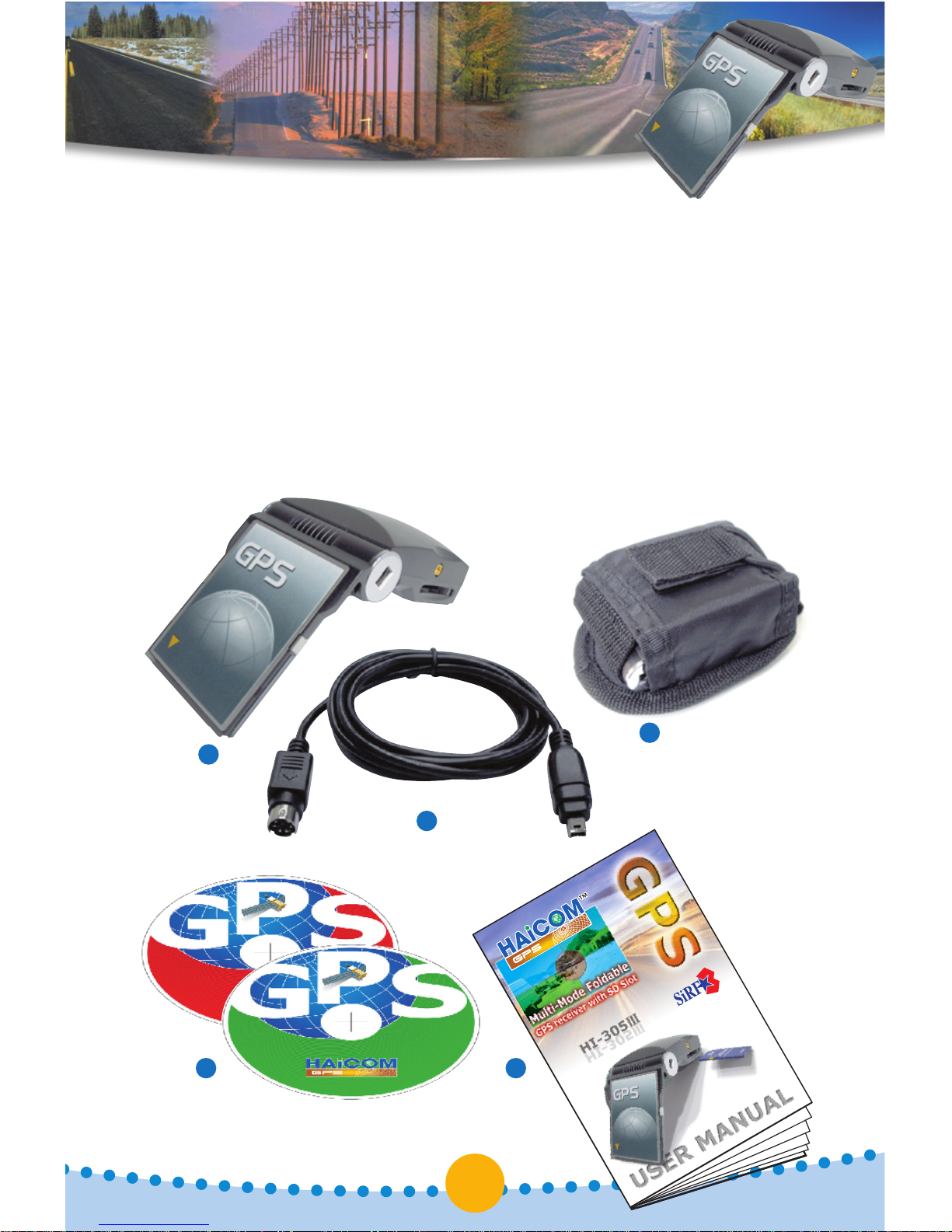

3.2 Standard Packaging:
Model Name
1. Multi-Mode Foldable GPS receiver with SD slot unit
2. Male Mini-1394 to PS/II connecting cable
3. Carrying pouch
4. Mini CD (containing user Manual CD . . .
5. User Manual
Model#
HI-305III
PS2-1394
BAG-002
CDR-01
MAU-35III
1
2
3
4 5

9
3.3 Optional Accessories:
Model Name
1. MMCX external antenna
2. CF-PCMCIA adapter
3. PS/II to USB connecting cable
4. PS/II to DB9 serial connecting cable
5. PS/II to PDA connecting cable/charger
6. Bluetooth Slipper
Model#
ATN-MMC
CF-PCM
PS2-USB
PS2-DB9
PS2-XXX
HI-401BT
1 2 3
6
54

10
4.1 LED Indicator
4.2 External Antenna
Basically, you don't need external antenna to perform GPS
positioning with HI-305III since it already build-in active antenna.
HI-305III can receive good satellite signal without external antenna
even using in car dashboard or side window.The only condition that
you need external antenna is when HI-305III can not directly "see"
the sky, For instance, when you are in the middle of a car, or any
environments that GPS signal is blocked, the external GPS antenna
will help to receive better GPS signal.
Plug the external antenna with MMCX connector to the plug on
the side of HI-305III . Place the magnetic external antenna on the
roof of the car or outdoor open-space, and make sure place it in
correct direction.That is, the side with magnetic is the bottom side,
and the upper side must face to sky in order to receive better signal.
Notice:
Hold the antenna connector while you plug the external antenna
into HI-305III or unplug the external antenna from HI-305III . Do not
pull the cable line.
LED off
LED flashing
LED on
Receiver switch off
3D Position Fixed
Signal searching
4. System

11
HI-305III GPS supports plug and play.
Using Compact Flash Interface with PDA:
1. Plug in the CF part into your PDA equipped with Compact Flash
interface.
2. Running the suitable mapping/navigation software and select
the correct COM port & baud rate: 4800, N, 8, 1.
Usually, the COM port is COM 2~COM 10 depending on the PDA
type.
User can use the testing program provided with the package to
detect the COM port that HI-305III is using.
MMCX Connector
External Antenna
Mini 1394
female connector
5. Installation

12
INSTALLATION
Driver installations:
There is a small CD included along with every standard package.
The CD contains certain test program and all related driver.
Using the HI-305III in GPS applications, the user won't need install
any driver except for the following circumstances:
1. USB driver: When use HI-305III in G-mouse mode with USB
connecting cable and use with the laptop PC's USB port, please
install the USB driver
before using it.
2. PCMCIA driver:
When use HI-305III in
Compact Flash
interface via CF-
PCMCIA adaptor from
the laptop PC's
PCMCIA port, please
install the PCMCIA
driver before using it.
3. Compact Flash driver: When use HI-305III in Compact Flash
interface with the SD memory card inserted, please install the
driver when use HI-305III under both PDA or laptop PC's Compact
Flash interface.

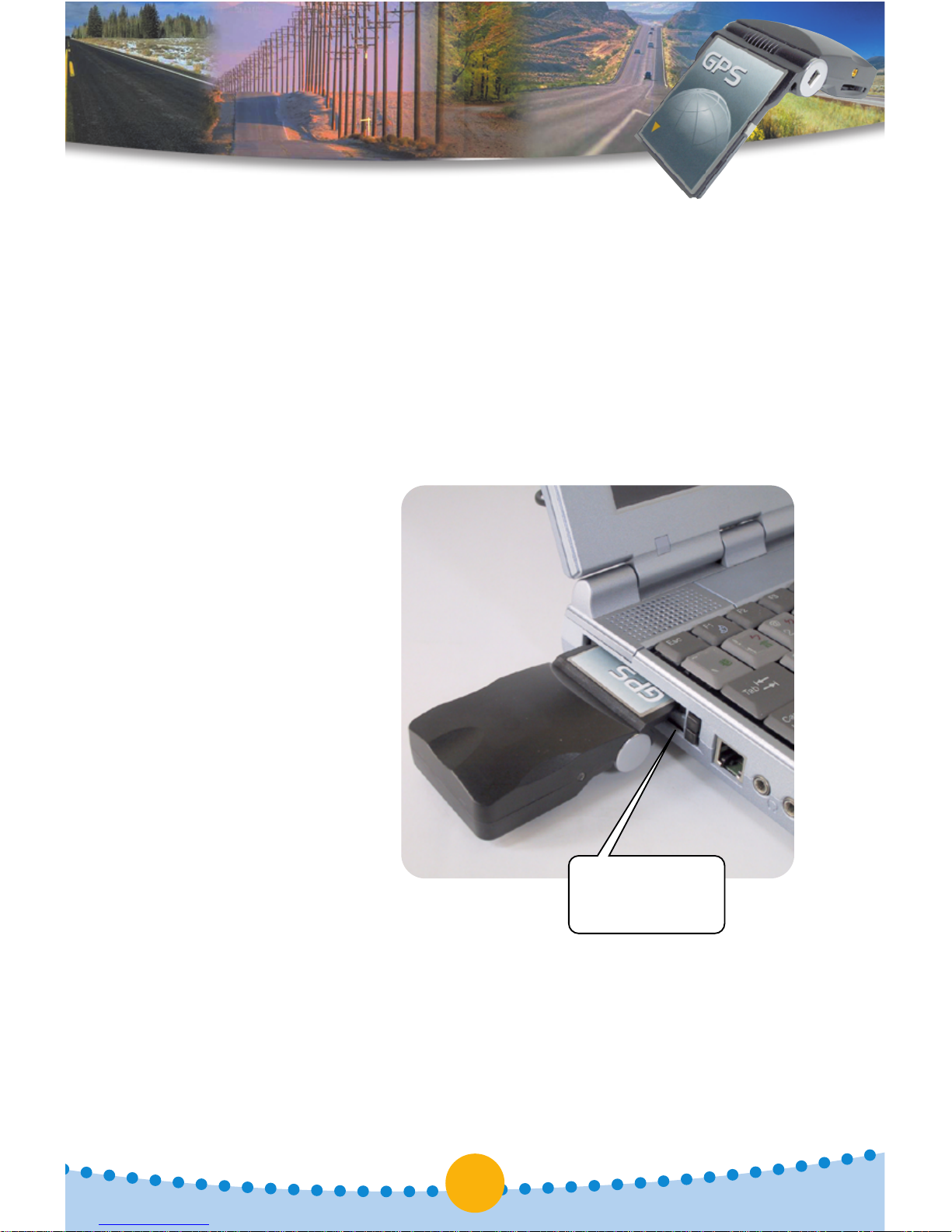

In Laptop PC
HI-305III with
PCMCIA adaptor

13
6.1 ONE-PULSE-PER-SECOND (1PPS) OUTPUT
The one-pulse-per-second output is provided for applications
requiring precise timing measurements.The output pulse is 1usec in
duration. Rising edge of the output pulse is accurate to +/-1usec
with respect to the start of each GPS second. Accuracy of the one-
pulse-per-second output is maintained only when the GPS receiver
has valid position fix.
The 1PPS output is always generated when the GPS receiver is
powered-on. Proper adjustment of the 1PPS output to align with the
GPS second requires calculation of the receiver clock offset and
clock drift-rate as part of the position-velocity-time (PVT) solution.
When enough satellite signals are received to generate valid
position fixes, the 1PPS output is adjusted to align with the GPS
second in several seconds. When the 1PPS output is brought in sync
with the GPS second, the 1PPS Valid Signal on the I/O pin becomes
active (HIGH); when the 1PPS output is not yet in sync with the GPS
second, the 1PPS Valid Signal remains inactive (LOW).
As long as enough satellite signals are received to generate valid
position fixes, the 1PPS output remains synchronized to the GPS
second, and the 1PPS Valid Signal remains active. If signal blockage
prevents the receiver from generating valid position fix, the 1PPS
output will drift away from the GPS second and the 1PPS Valid
Signal will become inactive. Upon re-acquiring enough satellites to
generate consecutive valid position fixes, the 1PPS Valid Signal will
become active again, signaling that the 1PPS output is again
synchronized with the GPS second.
For best stable operation of the 1PPS signal, it is to be operated in
static environment having clear view of the sky.
6. GPS Technical Data

14
6.2 SOFTWARE INTERFACE
This section describes the details of the serial port commands
through which the HI-305III GPS module is controlled and
monitored.The serial port commands allow users to set the receiver
parameters, configure output message type, and retrieve status
information.The baud rate and protocol of the host COM port must
match the baud rate and protocol of the GPS receiver serial port for
commands and data to be successfully transmitted and received.
The default receiver protocol is 4800bps, 8 data bits, 1 stop bit, and
none parity.
6.3 NMEA OUTPUT MESSAGE SPECIFICATION
The HI-305III supports NMEA-0183 output format as defined by the
National Marine Electronics Association (http://www.nmea.org).
The currently supported NMEA messages for GPS applications are:

15
6.4 NMEA Messages
The serial interface protocol is based on the National Marine
Electronics Association's NMEA 0183 ASCII interface specification.
This standard is fully define in "NMEA 0183, Version 3.01" The
standard may be obtained from NMEA, www.nmea.org
GGA - GPS FIX DATA
Time, position and position-fix related data (number of satellites in
use, HDOP, etc.).
Format:
$GPGGA,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>,
M,<10>,M,<11>,<12>,*<13><CR><LF>
Example:
$GPGGA,104549.04,2447.2038,N,12100.4990,E,1,06,
01.7,00078.8,M,0016.3,M,,*5C<CR><LF>
GGA
GLL
GSA
GSV
RMC
VTG
Global Positioning System Fix Data
Geographic Position Latitude / Longitude
GNSS DOP and Active Satellites
GNSS Satellites in View
Recommended Minimum Specific GNSS Data
Course Over Ground and Ground Speed

16
Note: The checksum field starts with a '*' and consists of 2 characters representing a
hex number.The checksum is the exclusive OR of all characters between '$' and '*'.
Field
1
2
3
4
5
6
7
8
9
10
11
12
13
Example
104549.04
2447.2038
N
12100.4990
E
1
06
01.7
00078.8
0016.3
5C
Description
UTC time in hhmmss.ss format,
000000.00 ~ 235959.99
Latitude in ddmm.mmmm format
Leading zeros transmitted
Latitude hemisphere indicator,
'N' = North, 'S' = South
Longitude in dddmm.mmmm format
Leading zeros transmitted
Longitude hemisphere indicator,
'E' = East, 'W' = West
Position fix quality indicator
0: position fix unavailable
1: valid position fix, SPS mode
2: valid position fix, differential GPS mode
Number of satellites in use, 00 ~ 12
Horizontal dilution of precision, 00.0 ~ 99.9
Antenna height above/below mean sea level,
-9999.9 ~ 17999.9
Geoidal height, -999.9 ~ 9999.9
Age of DGPS data since last valid RTCM
transmission in xxx format (seconds)
NULL when DGPS not used
Differential reference station ID, 0000 ~ 1023
NULL when DGPS not used
Checksum

17
GLL - LATITUDE AND LONGITUDE,
WITH TIME OF POSITION FIX AND STATUS
Latitude and longitude of current position, time, and status.
Format:
$GPGLL,<1>,<2>,<3>,<4>,<5>,<6>,<7>*<8><CR><LF>
Example:
$GPGLL,2447.2073,N,12100.5022,E,104548.04,A,
A*65<CR><LF>
Field
1
2
3
4
5
6
7
8
Example
2447.2073
N
12100.5022
E
104548.04
A
A
65
Description
Latitude in ddmm.mmmm format
Leading zeros transmitted
Latitude hemisphere indicator,
'N' = North, 'S' = South
Longitude in dddmm.mmmm format
Leading zeros transmitted
Longitude hemisphere indicator,
'E' = East, 'W' = West
UTC time in hhmmss.ss format,
000000.00 ~ 235959.99
Status, 'A' = valid position,
'V' = navigation receiver warning
Mode indicator
'N' = Data invalid
'A' = Autonomous
Checksum
'D' = Differential
'E' = Estimated

18
GSA - GPS DOP AND ACTIVE SATELLITES
GPS receiver operating mode, satellites used for navigation, and
DOP values.
Format:
$GPGSA,<1>,<2>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,
<3>,<3>,<3>,<3>,<4>,<5>,<6>*<7><CR><LF>
Example:
$GPGSA,A,3,26,21,,,09,17,,,,,,,10.8,02.1,10.6*07<CR><LF>
Field
1
2
3
4
5
6
7
Example
A
3
26,21,,,09,
17,,,,,,
10.8
02.1
10.6
07
Description
Mode, 'M' = Manual, 'A' = Automatic
Fix type, 1 = not available,
2 = 2D fix, 3 = 3D fix
PRN number, 01 to 32, of satellite
used in solution, up to 12 transmitted
Position dilution of
precision, 00.0 to 99.9
Horizontal dilution of
precision, 00.0 to 99.9
Vertical dilution of
precision, 00.0 to 99.9
Checksum

19
GSV - GPS SATELLITE IN VIEW
Number of satellites in view, PRN number, elevation angle, azimuth
angle, and C/No.Only up to four satellite details are transmitted per
message. Additional satellite in view information is sent in
subsequent GSV messages.
Format:
$GPGSV,<1>,<2>,<3>,<4>,<5>,<6>,<7>, ... ,
<4>,<5>,<6>,<7> *<8><CR><LF>
Example:
$GPGSV,2,1,08,26,50,016,40,09,50,173,39,21,43,316,
38,17,41,144,42*7C<CR><LF>
$GPGSV,2,2,08,29,38,029,37,10,27,082,32,18,22,309,
24,24,09,145,*7B<CR><LF>
Field
1
2
3
4
5
6
7
8
Example
2
1
08
26
50
016
40
7C
Description
Total number of GSV messages to be
transmitted
Number of current GSV message
Total number of satellites in view, 00 ~ 12
Satellite PRN number, GPS: 01 ~ 32,
SBAS: 33 ~ 64 (33 = PRN120)
Satellite elevation number, 00 ~ 90 degrees
Satellite azimuth angle, 000 ~ 359 degrees
C/No, 00 ~ 99 dBNull when not tracking
Checksum
