Haicom HI-601VT User manual

HI-601VT GPS/GSM Tracker
INTRODUCTIONS:
With HI-601VT GPS/GSM tracker, one can track, remote
control, tapping any object globally in real time by using any
regular SIM card (with one phone number), any regular phone
(home phone, mobile phone, smart phone, etc.) and any local
mapping software or Google Earth. No any special software
needed. Because HI-601VT is small in size and main unit come
with the big capacity rechargeable battery, it is also very
suitable for personal tracking. On the HI-601VT, one can press
the “panic button” and HI-601VT will instantly dial back to the
preset telephone numbers (can set three numbers in different
priority).
With the optional car kit accessories, car control cables, micro-
phone, moving sensor, one can remotely control certain
functions:
Car control cable sets:To stop the car oil and electricity from
any phone.
Micro-phone sets:to hear the voice around HI-601VT.
Vibration sensor:HI-601VT will automatically dial back when
the moving occur.
1
1

Decoder
Decoding
analog
dialtone
into digital
GPS data
HI-601VT

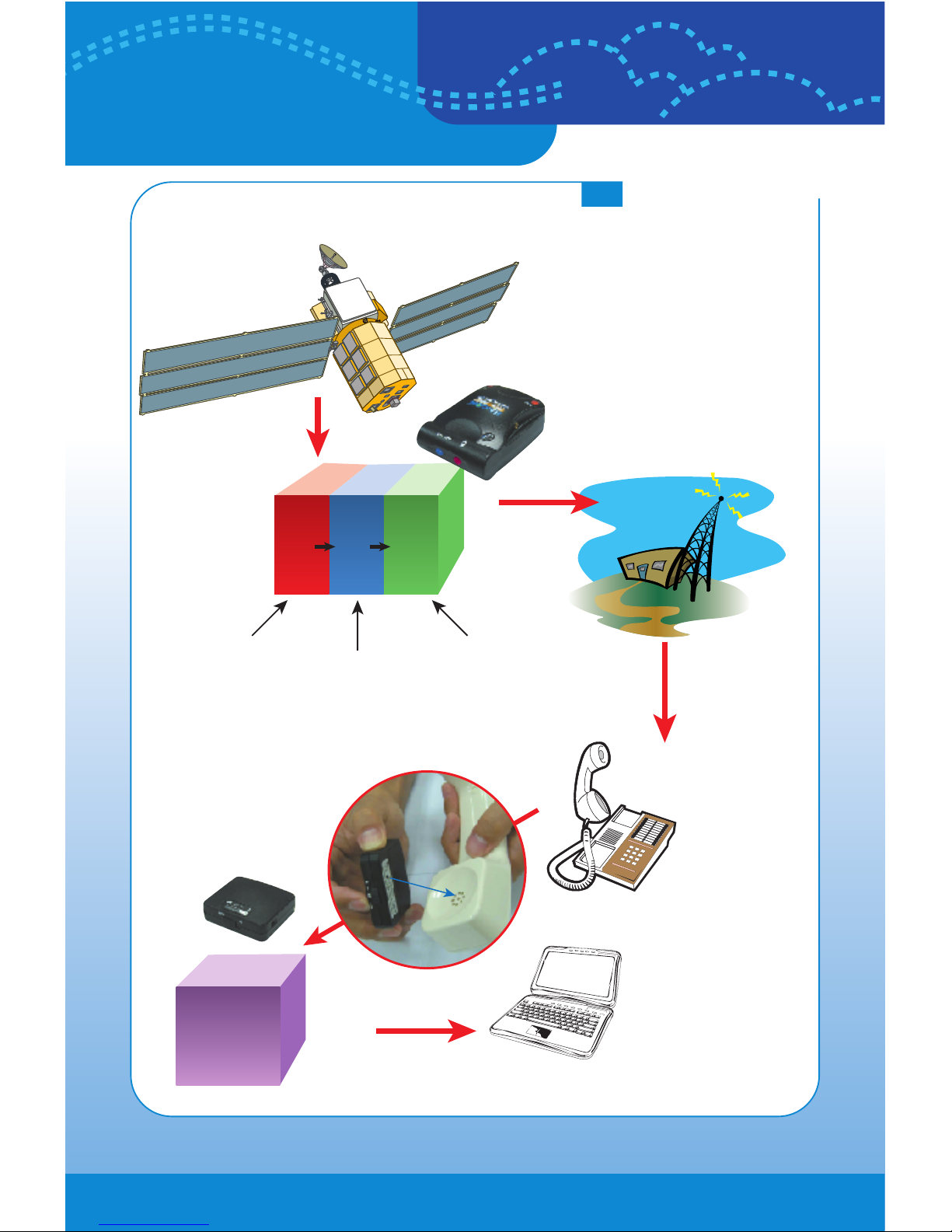

Basic Theory:
GPS receiver Micro-chip processor GSM module
Send dialtone
via GSM
network to
host telephone
Transfer
GPS data
into dialtone
(voice message)
Receive
up-dated
GPS digital
location
GSM networkGSM network
GPS satellite
Phone with
dialtone
Phone with
dialtone
Send via Bluetooth
or serial connector
Computer with
local map
2
2
HI-601VT-lite

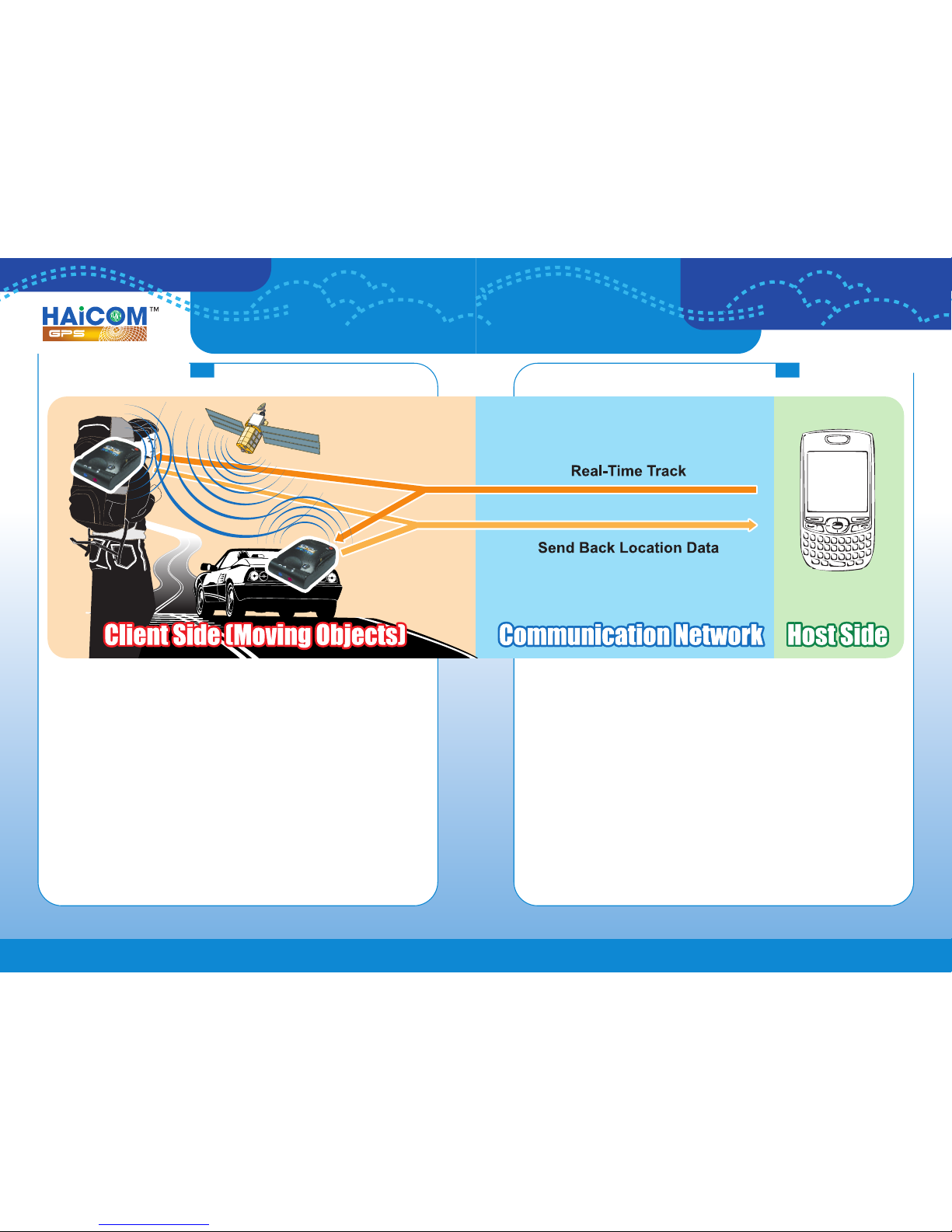

HOW HI-601VT works:
Unlike most GPS/GSM tracker using the GPRS communication
or SMS message in none-real time mode and require control
station (require monthly fee) or Internet access, HI-601VT no
need any control center and special software. Since it is point
to point solution, it is also no need to check the object from the
Internet. wherever one can make the phone call, one can track
the object and see the moving from any local mapping software
or Google Earth in real time simultaneously.
Just like you call someone and someone tells you where the
object is and shows you where he is on the mapping software.
HI-601VT provide non-stop and continue real time tracking
without time limitation. Just like you talk to someone over the
phone as long as you can.
3 4
3 4
HI-601VT-lite

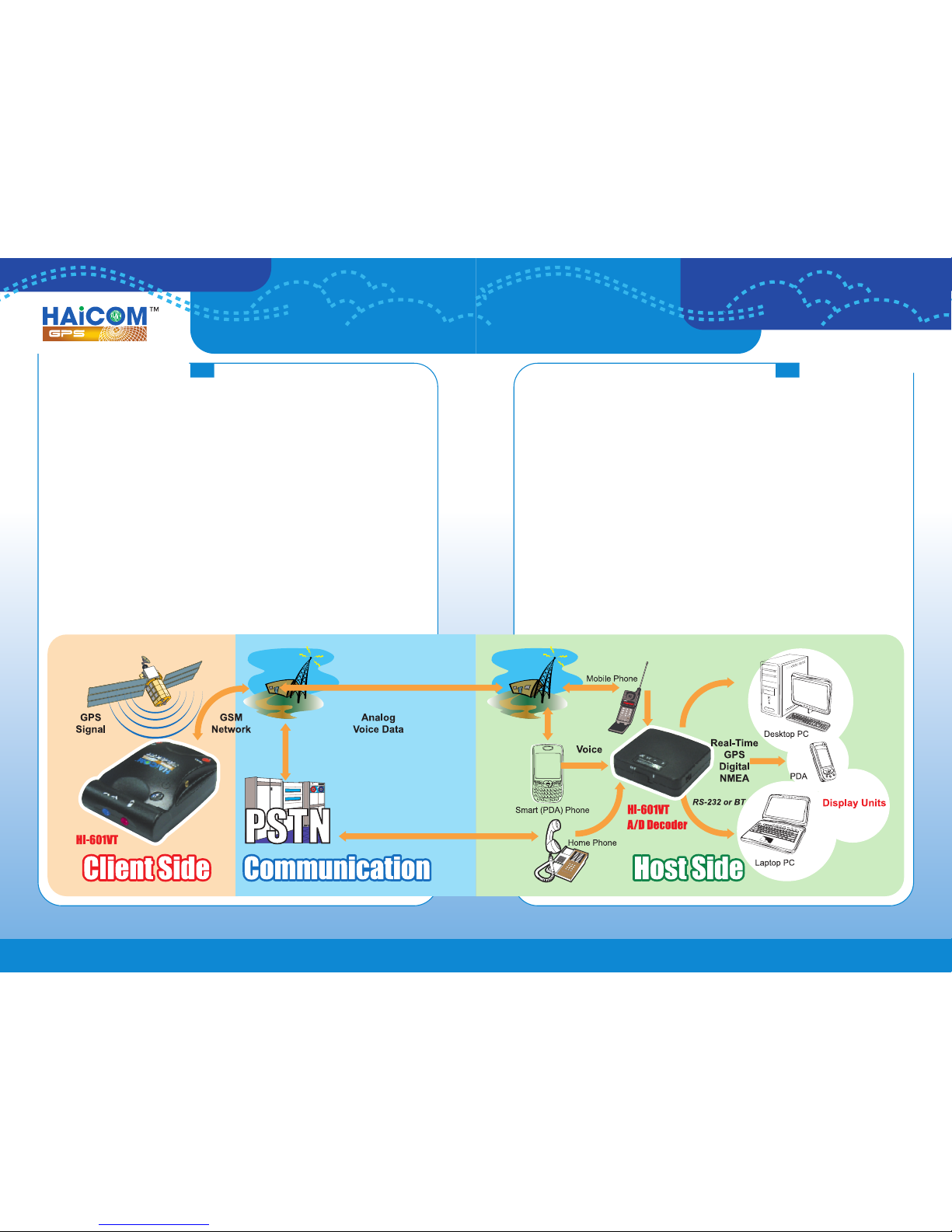

Step by Step operation explanations:
1.Switch power on HI-601VT main unit.
2.The GPS receiver module in HI-601VT start receive GPS
satellite signal (The GPS LED blinking means the GPS is in 3D
fixed and the data is valid)
3.The GSM module starts sending the GPS data via GSM
network back to the host side (The GSM LED blinking means
the GSM network stand by and stay on means the GSM
connected with some host)
4.Dial the Telephone number from the host side to the HI-
601VT main unit.
5.Switch on HI-601VT decoder (Switch on the middle for data
out via wired connection and to the most right side for
wireless Bluetooth connection)

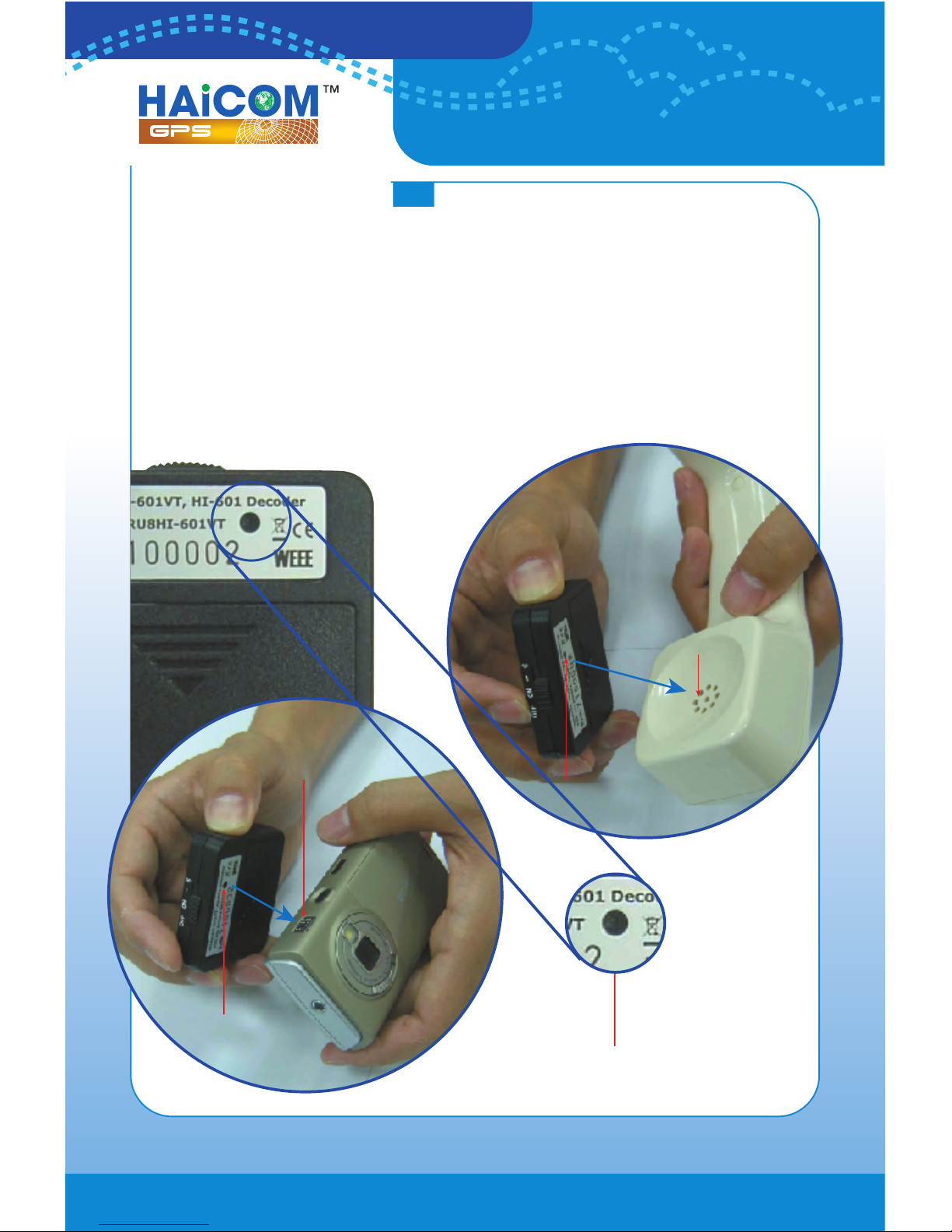

6.Attach the decoder ot the phone speaker.
7.The HI-601VT A/D decoder start to decoding the Analog GPS
voice message into real-time GPS digital NMEA message.
8.On the decoder unit, connect the PS/II output cable or set up
Bluetooh connection to the display unit (such as smart
phone, PDA, laptopPC, desktopPC, etc.)
9.Using any standard NMEA mapping software, select the com
port, start GPS (just like using normal GPS receiver)
5 6
5 6
HI-601VT-lite

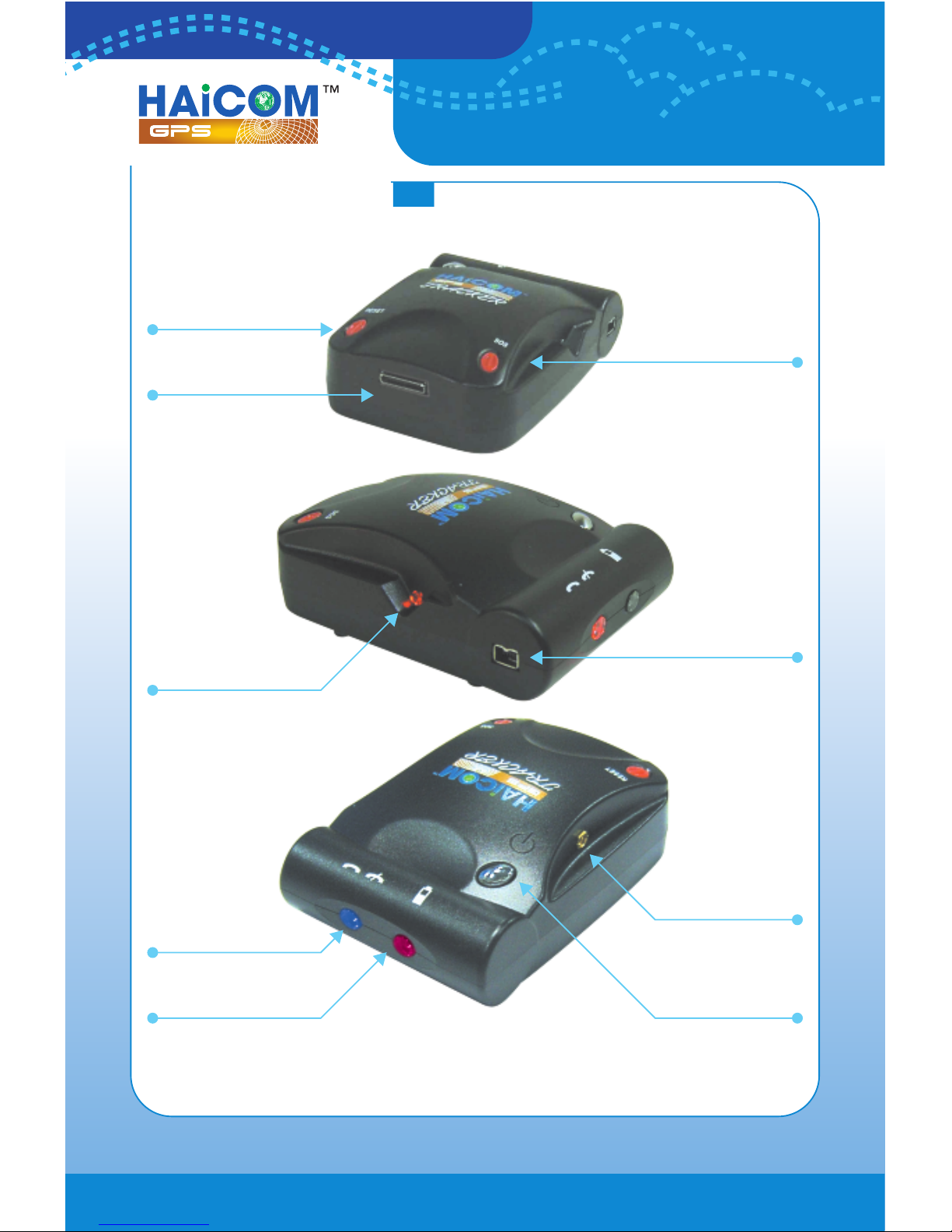

Alarm release
Connector for
data control
output and power in
GPS status LED
GSM status LED
Power status LED
SOS panic button
Mini1394 connector
for GPS data output
and power in
GPS MMCX external
antenna plug
Power ON/OFF
HI-601VT main unit
overview
7
7

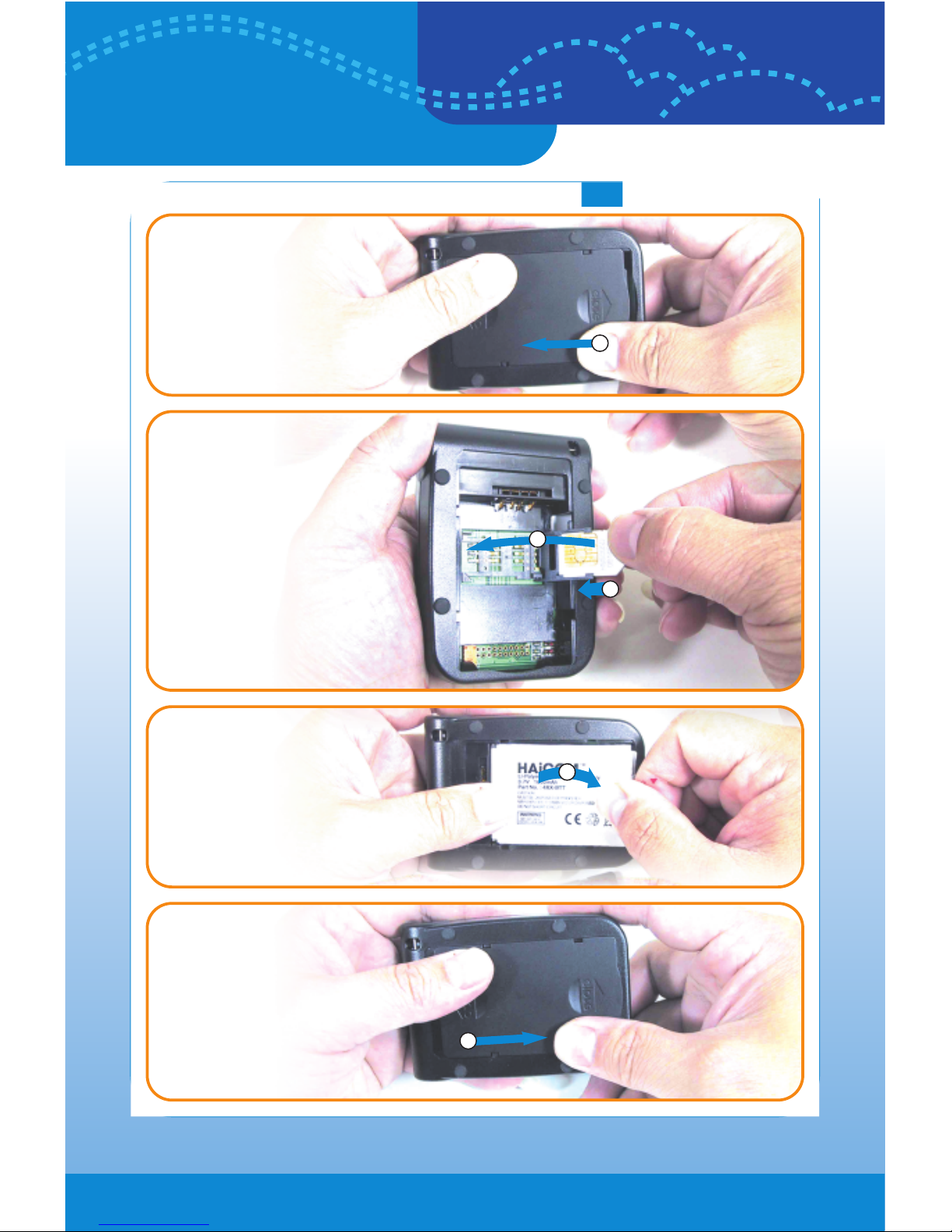

Open battery
cabinet cover
Insert SIM card
Put battery in
Close battery
cabinet cover
* Make sure SIM
card no need
pin code
3
4
1
5
2
Getting Start
8
8
HI-601VT-lite

GSM LED indicator
Power LED indicator
GPS LED indicator
HI-601VT set contains two main units:
1. HI-601VT unit installed on the “client side”:
in your car, someones' back pack, etc.
2. Decoder unit carried with the “host side”
Inside HI-601VT contain five main parts: 1) SiRF StarIII high
sensitive GPS receiver module, 2) Tri-band GSM module,
3) System control circuit section, 4) Power management
section, 5) Rechargeable battery
Decoder unit contain three parts: 1) A/D converter circuit
section, 2) Bluetooth module, 3) Two 3A batteries
Status
GSM Stand-by
Searching network or
no SIM card
Network connected
Status
Battery low
External powered (Power full)
External powered - charging
Status
Searching GPS
GPS 3D fixed
LED
Off 3 sec. and on 75 micro Sec.
On 600 micro sec.
and off 600 micro sec.
Stay on
LED (Color)
Red
Green
Orange
LED
Stay on
Blinking
9
9

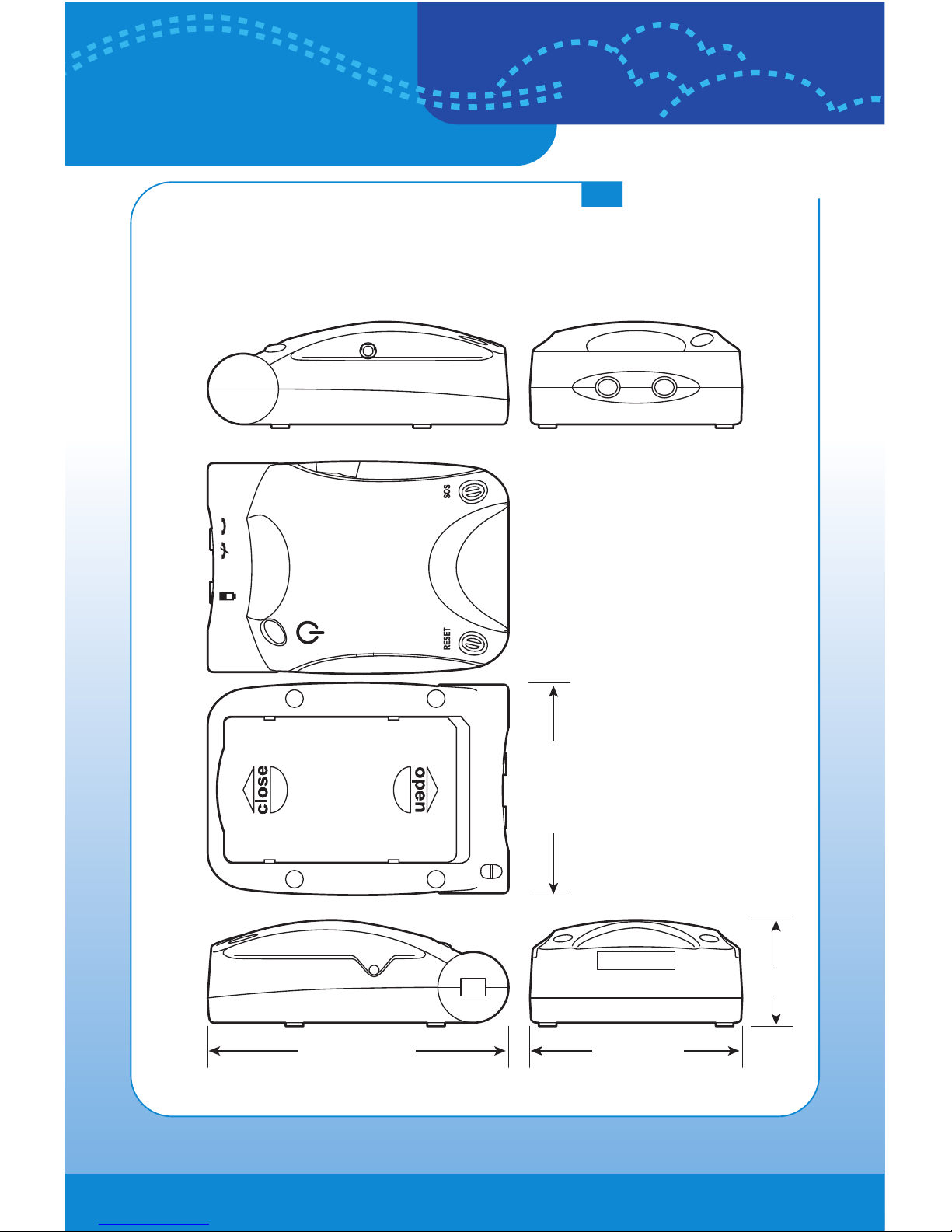

Dimension:
84mm 60mm
60mm
29.5mm
10
10
HI-601VT-lite

GPS Receiver
Specifications
Chipset
Protocol
Baud Rate
Max. Update Rate
Datum
Channel
Frequency
Hot Start
Warm Start
Cold Start
Reacquisition Tike
Position Accuracy
Macimum Altitude
Maximum velocity
Voltage
Power consumption
Antenna Type
External Antenna
Connector
Dimension
LED Indicator
SiRF Star III
NMEA0183 GGA, GSA, GSV, RMC, GLL
4800, N, 8, 1
1 Hz
WGS84
20 channel
L1, 1575.42MHz
8 sec. Average
38 sec. Average
48 sec. Average
100 ms
15m 2D RMS, SA off
18,000m
515m/s
DC 3.3V+-10%
90mA continuous mode
Built-in active antenna
MMCX (Optional)
84 (L) x 60 (W) x 29.5 (H)mm
3D Positioning (blinking) or
Searching GPS (on)
11
11

GSM module features
Feature
Power saving
Charging
Frequency bands
GSM Class
Transmit power
GPRS Connectivity
Temperature range
Temperature control
and auto switch-off
DATA GPRS:
CSD:
WAP:
SMS
MMS
Implementation
Minimizes power consumption in SLEEP mode to 3mA
Supports charging control for Li-lon battery
*MC55 Tri-band: EGSM 900, GSM 1800, GSM 1900
*MC56 Tri-band: EGSM 850, GSM 1800, GSM 1900
•Compliant to GSM Phase 2/2+
Small MS
•Class 4 (2W) at EGSM900 and GSM850
•Class 1 (1W) at GSM1800 and GSM1900
•GPRS multi-slot class 10
•GPRS mobile station class B
•Normal operation: -20°C to +55°C
•Restricted operation:-25°C to -20°C & +55°C to +70°C
•Constant temperature control prevents damage to
MC55/56 when the specified temperature is exceeded.
When an emergency call is in progress the automatic
temperature shutdown functionality is deactivated.
•GPRS data downlink transfer: max. 85.6 kbps
•GPRS data uplink transfer: max. 42.8 kbps
•Coding scheme: CS-1, CS-2, CS-3 and CS-4
•Supports the two protocols PAP (Password Authentication
Protocol) and CHAP (Challenge Handshake Authentication
Protocol) commonly used for PPP connections.
•Support of Packet Switched Broadcast Control Channel
(PBCCH) allows you to benefit from enhanced GPRS
performance when offered by the network operators.
•CSD transmission rates: 2.4, 4.8, 9.6, 14.4 kbps, non-
transparent, V.110
•Unstructured Supplementary services Data (USSD) support
•WAP compliant
•MT, MO, CB, Text and PDU mode
•SMS storage: SIM card plus 25 SMS locations in the
mobile equipment
•Transmission of SMS alternatively over CSD or GPRS.
Preferred mode can be user-defined.
MMS compliant
*MC55: none-America version *MC56: America version
12
12
HI-601VT-lite

Feature
SIM interface
Audio interfaces
Audio features
Two serial interfaces:
ASC0,ASC1
SIM Application
Toolkit
Ringing tones
Real time clock
Timer function
Support of TTY/CTM
Firmware upgrade
Implementation
•Supported SIM card: 3V
•External SIM card reader has to be connected via
interface connector
Two analog audio interfaces, one digital audio
interface(DAI)
Speech code modes:
•Half Rate (ETS 06.20)
•Full Rate (ETS 06.10)
•Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80)
•Adaptive Multi Rate (AMR)
Handsfree operation
•Echo cancellation
•Noise reduction
•2.65V level, bi-directional bus for AT commands and
data
•ASC0 - full- featured 8-wire serial interface. Supports
RTS0/CTS0 hardware handshake and software
XON/XOFF flow control. Multiplex ability according to
GSM 07.10 Multiplexer Protocol.
•ASC1 - 4-wire serial interface. Supports RTS1/CTS1
hardware handshake and software XON/XOFF flow
control.
•Baud rate: 300bps… 230kbps on ASC0 and ASC1
•Autobauding (on ASC0 only) detects 1200, 2400, 4800,
9600, 19200, 38400, 57600, 115200, 230400 bps
SIM Application Toolkit Supports SAT class3, GSM 11.14
Release 98, support of letter class ”c”
Offers a choice of 7 different ringing tones / melodies,
easily selectable with AT command
Implemented
Programmable via AT command
To benefit from TTY communication via GSM, CTM
equipment can be connected to one of the three audio
interfaces.
Firmware upgradable over serial interface and SIM
interface
13
13

Real-Time
1. Put in SIM card (please disable the pin code require)
and turn the power on (make sure the HI-601VT can
“see” the sky or no metal material blocking)
2. Call the telephone number inside HI-601VT and hear
the continue dial tone. Connect the decoder and attach
decoder microphone to the phone speaker.
3. Set up Bluetooth connection between the decoder and
the PC or mobile device (just treat the decoder as a
regular Bluetooth GPS receiver). Open local mapping
software (or Google Earth), select the com port,
start GPS.
HI-601VT-lite
Easy
Tracker 1. 2. 3.
14
14
HI-601VT-lite

Point to Point Track
No need call center
No need monthly fee
No need special software
Protect privacy
Build-in
micro-phone
Decoder mic
Mobile phone
speaker
Decoder mic
Land-line phone
speaker
15
15

Realtime GPS data
sent via Bluetooth
wirelessly to the
mobile device or PC
Decoder mic attached to any smartphore speaker
Treat this combination as a
regular Bluetooth GPS receiver.
From the mapping software,
select com port, start GPS.
Example:
LED Color
Orange
Bluetooth
Red
Green
Stay on
GPS data valid (3D fixed)
Bluetooth Connected
Decoding (4 seconds interval)
Receiving data
Symbol Blinking
GPS data not valid
Bluetooth no connected
16
16
HI-601VT-lite

Decoder mic attached
to the phone speaker*
wireless Bluetooth
*Remark:
please turn on the loud
speaker function on the
phone
Realtime track with
any smartphone or
mobile phone
Example:
17
17

Realtime track with the land-line phoneExample:
wireless
Bluetooth
18
18
HI-601VT-lite

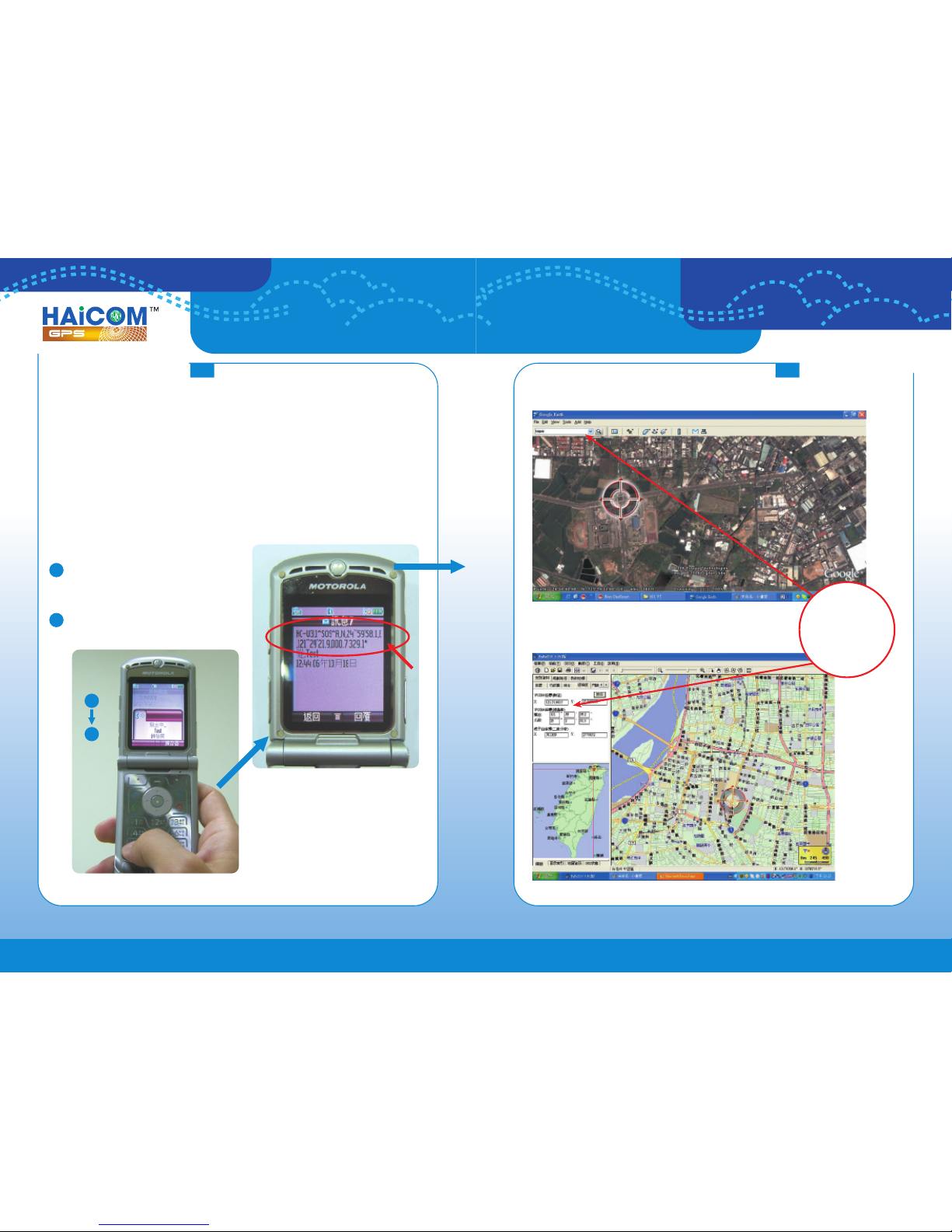

Receive Location via SMS
With smartphone or mobile phone and track with SMS in none-
real time bases (without decoder):
The phone set up communication to HI-601VT. Press “71” and hang up
the phone. In few seconds, the phone will receive a short message
indicating the HI-601VT current coordinates. Then, go to Google Earth
or any mapping software (in none navigation mode) and key in the
coordinates. The map will point out the exact location.
(1) Dial the number to HI-601VT
(please make sure set up the
dial back Tele# first: page 28)
(2) After connection,
press “71”. then, hang up.
    In few seconds,
    your mobile will
    receive a SMS
    message reqarding
    to the current
    location coordinate.
Key in the coordinates into the Google Earth
or any mapping software for the location
(1)
(2)
Key in
latitude and
longitude data
received from
SMS
19 20
19 20
HI-601VT-lite

Use HI-601VT unit as a regular GPS receiver:
By connecting different kinds of optional accessory cables from
the side of HI-601VT mini1394 connector, the HI-601VT can
also be all kind regular GPS receivers.
For instance, HI-601VT can connect a HI-403BT cube and the
combination can be a regular Bluetooth GPS receiver for car
navigation. Or, connect an optional USB cable to become a USB
GPS receiver for laptopPC navigation.

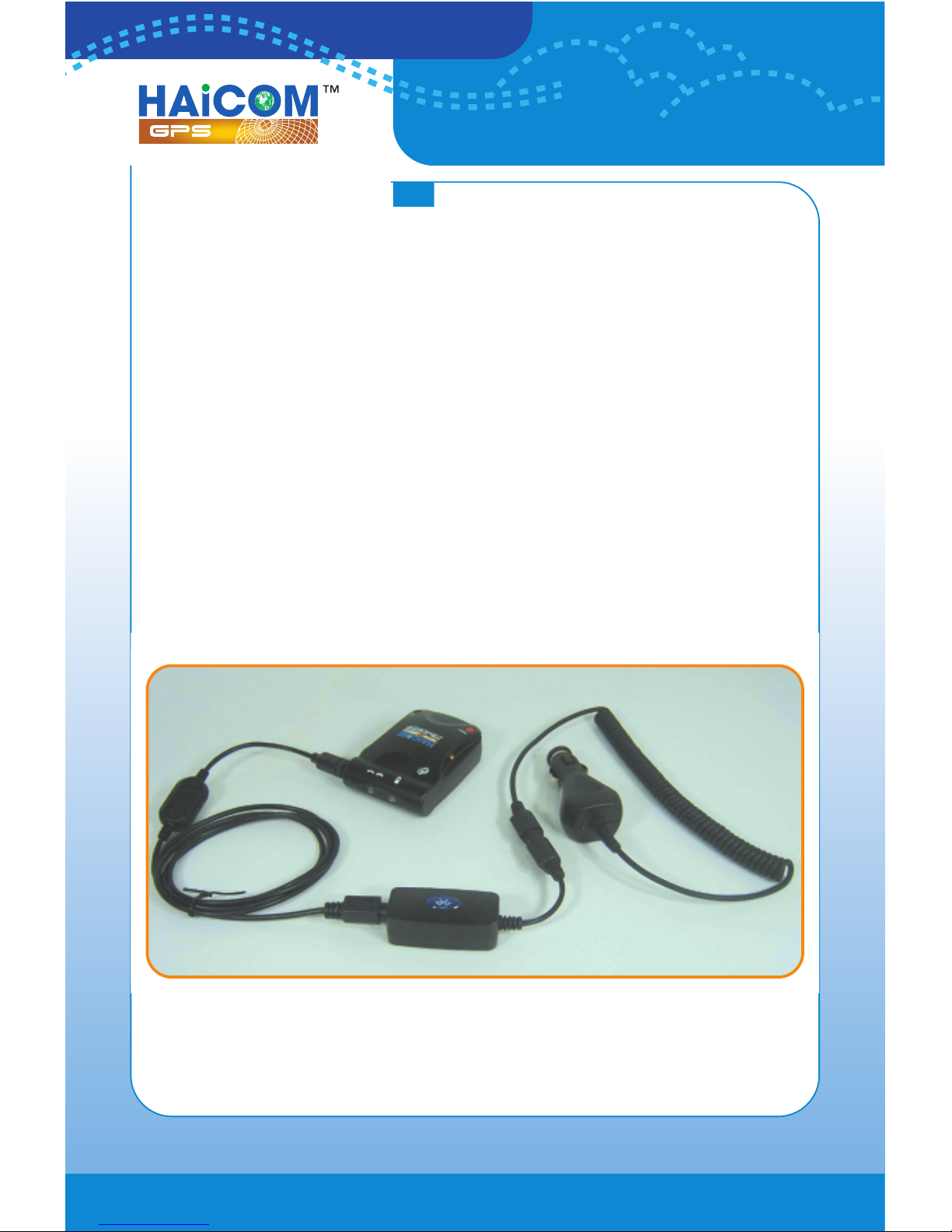

Use HI-601VT as a regular Bluetooth GPS receiver
(with HI-403BT box and cigarette lighter)
21
21

HI-601VT as a regular wired GPS mouse:
By connection different optional connecting cables, HI-601VT
can be all kinds of independent wired GPS receiver solutions.
22
22
HI-601VT-lite
