Haier DTA-2196PF User manual

DTA-2196PF COLOUR TELEVISION
SERVICE MANUAL
Models:
DTA-2196PF
Customer model:
GTV51RFDVD

.
2
Edition: 2005-5-6
CONTENTS
1. Safety precautions……………………………………………………………..……………3
2. TV block diagram……………………………………………………………………..…….4
3. Replacement of memory IC………………………………………………………….……5
4. Service adjustment……………………………………………………………..…………...5
5. ICs functional description…………………………………………………………………8
6. Test point waveform………………………………………………………………………10
7. All ICs voltages……………………………..……………………………………………….10
8. Purity / convergence adjustment………………………………………………………11
9. DVD maintenance…………………………………………………………………………13
10. List of Parts ………………………………………………………………………….…….14
11. Circuit diagram……………………………………………………………………………28
12. Exploded view………………………………………………………………………29

.
3
1. SAFETY PRECAUTIONS
1. The design of this product contains special hardware, many
circuits and components especially for safety purposes. For
continued protection, no changes should be made to the
original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to those
used in the original circuits. Service should be performed by
qualified personnel only.
2. Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void the
manufacturer’s warranty and will further relieve the
manufacturer of responsibility for personal injury or property
damage resulting therefrom.
3. Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics
are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by using
replacement components rated for higher voltage, wattage,
etc. Replacement parts which have these special safety
characteristics are identified in the parts list of Service
manual. Electrical components having such features are
identified by shading on the schematics and by ( ！) on
the parts list in Service manual. The use of a substitute
replacement which does not have the same safety
characteristics as the recommended replacement part
shown in the parts list of Service manual may cause shock,
fire, or other hazards
4. Don’t short between the LIVE side ground and
ISOLATED (NEUTRAL) side ground or EARTH side
ground when repairing. Some model’s power circuit is
partly different in the GND. The difference of the GND is
shown by the LIVE: ( ) side GND, ISOLATED
(NEUTRAL): ( ) side GND and EARTH: ( ) side GND.
Don’t short between the LIVE side GND and ISOLATED
(NEUTRAL) side GND or EARTH side GND and never
measure with a measuring apparatus (oscilloscope etc.) the
LIVE side GND and ISOLATED (NEUTRAL) side GND or
EARTH side GND at the same time. If above note will not be
kept, a fuse or any parts will be broken.
5. If any repair has been made to the chassis, it is
recommended that the B1 setting should be checked or
adjusted (See ADJUSTMENT OF B1 POWER SUPPLY).
6. The high voltage applied to the picture tube must conform to
that specified in Service manual. Excessive high voltage can
cause an increase in X-Ray emission, arcing and possible
component damage, therefore operation under excessive
high voltage conditions should be kept to a minimum, or
should be prevented. If severe arcing occurs, remove the AC
power immediately and determine the cause by visual
inspection (incorrect installation, cracked or melted high
voltage harness, poor soldering, etc.). To maintain the proper
minimum level of soft X-Ray emission, components in the
high voltage circuitry including the picture tube must be the
exact replacements or alternatives approved by the
manufacturer of the complete product.
7. Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10kΩ2W
resistor to the anode button.
8. When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced. Always use the
manufacturer’s replacement components.
9. Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control
knobs, metal cabinet, screw heads, earphone jack, control
shafts, etc.) to be sure the product is safe to operate without
danger of electrical shock.
10. The surface of the TV screen is coated with a thin film which
can easily be damaged. Be very careful with it when handle
the TV. Should the TV screen become soiled, wipe it with a
soft dry cloth. Never rub it forcefully. Never use any cleaner
or detergent on it.
(1) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second.
(…Withstand a voltage of 1100V AC (r.m.s.) to an appliance
rated up to 120V, and 3000V AC (r.m.s.) to an appliance
rated 200V or more, for a period of one second.)
This method of test requires test equipment not generally
found in the service trade.
(2) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
line isolation transformers during this check). Using a
“Leakage Current Tester”, measure the leakage current from
each exposed metal part of the cabinet, particularly any
exposed metal part having a return path to the chassis, to a
known good earth ground (water pipe, etc.). Any leakage
current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).
●Alternate Check Method
Plug the AC line cord directly into the AC outlet ( do not use
a line isolation transformer during this check.). Use an AC
voltmeter having 1000 ohms per volt or more sensitivity in
the following manner. Connect a 1500Ω10W resistor
paralleled by a 0.15μF AC-type capacitor between an
exposed metal part and a known good earth ground (water
pipe, etc.). Measure the AC voltage across the resistor with
the AC voltmeter. Move the resistor connection to each
exposed metal part, particularly any exposed metal part
having a return path to the chassis, and measure the AC
voltage across the resistor. Now, reverse the plug in the AC
outlet and repeat each measurement. Any voltage measured
must not exceed 0.75V AC (r.m.s.). This corresponds to
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.).
This corresponds to 0.2mA AC (r.m.s.)

.
4
2. Block diagram TDA9351 PS/N3/2 series with mono intercarrier sound demodulator

5
3. REPLACEMENT OF MEMORY IC
1. MEMORY IC.
This TV uses memory IC. In the memory IC are memorized data for correctly operating the video and deflection
circuits.
2. PROCEDURE FOR REPLACING MEMORY IC
(1) Power off
Switch the power off and unplug the power cord from AC outlet.
(2) Replace IC
Be sure to use memory IC written with the initial data values.
(3) Power On
Plug the power cord into the AC outlet and switch the power on.
(4) Check and set SYSTEM default value:
1) Press “MUTE”
Æ“CALL” Æ“-\--“ Æ“CALL” Æ“MUTE” buttons in sequence to enter into factory
status.
2) If the memory IC haven’t been written with the initial data, press [Program+] / [Program-] to select item
INIT and press [VOLUME+] / [VOLUME-] to start initialize memory IC.
3) Check the setting value of the SYSTEM default value of Table below. If the value is different, select
items by [Program+] / [Program-] keys and set value by [VOLUME+] / [VOLUME-] keys.
4) Press “EXIT” button to return to the normal screen.
4. SERVICE ADJUSTMENT
Specific operation: use remote controller
Press “MUTE” Æ“CALL” Æ“-\--“ Æ“CALL” Æ“MUTE” buttons in sequence to enter into factory mode.
Press [Program+] / [Program-] to select items and press [VOLUME+] / [VOLUME-] key, to make data adjustment
of corresponding factory menus.
Press “EXIT” key to exit factory mode.
Focus adjustment
1. Receive a crosshatch signal.
2. While watching the screen, adjust the FOCUS VR on the FBT to make the vertical and horizontal lines as
fine and sharp as possible.
Geometrical adjustment
Receive PAL standard complete pattern signal.
Adjustment steps：
a) Adjust VSL, to the centre horizontal line just appears from half bottom shadow.
b) Adjust VAM, to get 92% of vertical picture contents would be displayed on CRT.
c) Adjust VSH, the centre horizontal line corresponds to CRT vertical centre.
d) Adjust SCL, to the linearity of P card field is in proper condition.
e) Adjust HSH, to get the picture horizontal centre correspond to CRT horizontal centre.
Receive NTSC signal and repeat above adjustment.
AGC Adjustment
Receive 60dBμ(1mV) VH colour bar pattern signal.
Select TOP item.
Adjust value, to noise reduce gradually and just disappeared point.
CRT cut off and white balance adjustment
a) CRT cut off adjustment
1. Select item VG2B, then adjust value to 32.
2. PRESS “0” key, when the screen shows”VG2” adjust the SCREEN control on Fly back transformer to
make the screen show alternating flashing characters of “INSIDE HIGH INSIDE LOW”.
b) White balance adjustment
1. Receive a Black and White pattern.
2. Adjust WRP, WRG, WRB items to get colour temperature 9300K ±3 JND.

6
Adjustable Items
Direct access key Items Description Preset Remark
“0” VG2 Adjust VG2 voltage
“1” 5/6HSH Horizontal shift ON A
“2” 5/6VSL Vertical slop 21 A
5/6VAM Vertical amplitude 45 A
5/6SCL S-correction 20 A
5/6VSH Vertical shift 38 A
5/6VOF OSD Vertical offset 38 A
HOF* OSD Horizontal offset 20 A
“3” RED Black level offset R 32 A
GRN Black level offset G 32 A
WPR White point R 31 A
WPG White point G 31 A
WPB White point B 31 A
YDFP Y-Delay for PAL
YDFN Y-Delay for NTSC
YDFS Y-Delay for SECAM
YDAV Y-Delay for AV
COOL
WARM
LCT OSD gain reduction
TLCT Teletext gain reduction
“4” TOP AGC Take-over point 27 A
VOL Volume 36
9874 Gain control for TDA9874 59
AVLT 5
9860 1
IFFS Vision IF 32
HDOL Cathode drive level 31
AGC IF AGC speed
VG2B VG2 Brightness
PF Peaking center frequency
“5” Picture preset 1
0CON Listen: Contrast 0 A
0BRI Listen: Brightness 0 A
0COL Listen: Colour 50 A
0SHP Listen: Sharpness 50 A
1CON Soft: Contrast 45 A
1BRI Soft: Brightness 45 A
1COL Soft: Colour 50 A
1SHP Soft: Sharpness 50 A
“6” Picture preset 2
2CON Standard: Contrast 70 A
2BRI Standard: Brightness 50 A
2COL Standard: Colour 50 A
2SHP Standard: Sharpness 60 A
3CON Dynamic: Contrast 85 A
3BRI Dynamic: Brightness 60 A
3COL Dynamic: Colour 60 A
3SHP Dynamic: Sharpness 80 A
“7” OP1-OP9
“8” INIT Initialize EEPROM
“9” XMIN “no signal”osd the horizon
leftmost position

7
XMAX “no signal”osd the horizon
rightmost position
YMIN “no signal”osd the vertical
leftmost position
YMAX “no signal”osd the vertical
rightmost position
NOTE: THE ITEMS WITH REMARK “A” IS ADJUSTABLE DATA.
Optional data
1. OP1
Bit Function Description Preset Remark
Bit 7 OP_RGB 1=Enable 0 EA
Bit 6 OP_DVD 1=Enable 1 EA
Bit 5 OP_SVHS 1=Enable (Can only be selected either SVHS and
DVD)
1 EA
Bit 4 OP_AV2 1=Enable 0 EA
Bit 3 OP_WOOFER_VOL 1=Enable 0 EA
Bit 2 OP_SUPERWOOFER 1=Enable 0 EA
Bit 1 OP_YPRPB 1=Enable 0 EA
Bit 0 OP_VG2_MODE 1=Enable 1 EA
2. OP2
Bit Function Description Preset Remark
Bit 7 OP_FSL 1=21dBμV 0=26dBμV 0 EA
Bit 6 OP_SOY 1=Enable 0 EA
Bit 5 OP_ARABIC_SET 1=Enable 1 EA
Bit 4 OP_FARSI_SET 1=Enable 0 EA
Bit 3 OP_CYRILLIC_SET 1=Enable 1 EA
Bit 2 OP_EUROUP_SET 1=Enable 1 EA
Bit 1 OP_AUTO_SOUND 1=Enable 1 EA
Bit 0 OP_AVL 1=Enable 1 EA
3. OP3
Bit Function Description Preset Remark
Bit 7 OP_RUSSIA 1=Enable 1 EA
Bit 6 OP_ITALY 1=Enable 0 EA
Bit 5 OP_GERMANY 1=Enable 0 EA
Bit 4 OP_FRANCE 1=Enable 0 EA
Bit 3 OP_TURKISH 1=Enable 1 EA
Bit 2 OP_ARABIC 1=Enable 1 EA
Bit 1 OP_FARSI 1=Enable 0 EA
Bit 0 OP_ENGLISH 1=Enable 0 EA
4. OP4
Bit Function Description Preset Remark
Bit 7 Reserved 0 EA
Bit 6 OP_HALFTONE 1=Enable 1 EA
Bit 5 OP_IDENT-SENSITIVE 1:21dbuv 0:26dbuv 0 EA
Bit 4 OP_HCO 0 EA
Bit 3 OP_LOGO 1=Enable 0 EA
Bit 2 OP_DUTCH 1=Enable 0 EA
Bit 1 OP_SPANISH 1=Enable 0 EA
Bit 0 OP_ROMANIA 1=Enable 0 EA
5. OP5

8
Bit Function Description Preset Remark
Bit 7 OP_STORE_AV 1= Enable 1 EA
Bit 6 OP_OSO 1= Enable 0 EA
Bit 5 OP_SOFT_CHANGE 1=Enable 0 EA
Bit 4 OP_FADE 1=Enable 0 EA
Bit 3 OP_ SOUND_M 1= Enable 1 EA
Bit 2 OP_ SOUND_I 1= Enable 1 EA
Bit 1 OP_ SOUND_BG 1=Enable 1 EA
Bit 0 OP_SOUND_DK 1=Enable 1 EA
6. OP6
Bit Function Description Preset Remark
Bit 7 RESERVED 1=Enable 0 EA
Bit 6 OP_POR_WHEN_BLUE 1=Enable 0 EA
Bit 5 OP_MENU_MIDLINE 1=Enable 0 EA
Bit 4 OP_MENU_BLUE 1=Enable 1 EA
Bit 3 OP_CHILDLOCK 1=Enable 1 EA
Bit 2 OP_TINT 1=Enable 0 EA
Bit 1 OP_BLUE_SCREEN 1=Enable 0 EA
Bit 0 OP_LOGO_LISTEN 1=Enable 1 EA
7. OP7
Bit Function Description Preset Remark
Bit 7 OP_FMWS 1= Enable 1 EA
Bit 6 OP_HOTEL 1= Enable 0 EA
Bit 5 OP_PROG-ID 1=Enable 0 EA
Bit 4 OP_LED 1=Enable 0 EA
Bit 3 OP_ TWIST 1= Enable 1 EA
Bit 2 OP_BYELORUSSIAN 1= Enable 1 EA
Bit 1 OP_ UKRANIAN 1=Enable 1 EA
Bit 0 OP_AV1 1=Enable 1 EA
8. OP8
Bit Function Description Preset Remark
Bit 7 OP_TILT 1= Enable 1 EA
Bit 6 OP_DIRECT_WITCH-ON 1= Enable 0 EA
Bit 5 OP_INEER-DVD 1=Enable 0 EA
Bit 4 OP_PROG-FREQ 1=Enable 0 EA
Bit 3 OP_ FAST_BAR 1= Enable 1 EA
Bit 2 OP_AUSTALIA 1= Enable 1 EA
Bit 1 OP_ FREQ 1=Enable 1 EA
Bit 0 OP_9860 1=Enable 1 EA
9. OP9
Bit Function Description Preset Remark
Bit 7 OP_YGN 1= Enable 1 EA
Bit 6 OP_OPC 1= Enable 0 EA
Bit 5 OP_BSD 1=Enable 0 EA
Bit 4 OP_AAS 1=Enable 0 EA
Bit 3 OP_ FMWS1 1= Enable 1 EA
Bit 2 OP_MVK 1= Enable 1 EA
Bit 1 OP_ CMSS 1=Enable 1 EA
Bit 0 OP_OSVE 1=Enable 1 EA
Note：Don’t adjust any OPTION items, please inform the engineer about any change.
5. ICs functional description
1. N501 UOC TDA9351

9
SYMBOL PIN DESCRIPTION
STAND BY output. 1 In STAND BY mode, low level (Power OFF).
For Power ON this pin will be high.
SCL 2 I2C-bus clock line
SDA 3 I2C-bus data line
TUNING 4 tuning Voltage (Vt) PWM output
KEY 5 Control keys input
SYSTEM 6 TV system control
VOL 7 Sound Volume control PWM output
MUTE 8 Sound mute output
VSSC/P 9 Digit ground for μ-controller core and periphery
CTL 10 DVD power control
STANDBY 11 STANDBY control
VSSA 12 Analog ground of digital ground of TV-processor
SECPLL 13 Internally connected
VP2 14 2nd supply voltage TV-processor(+8V)
DECDIG 15 decoupling digital supply of TV-processor
PH2LF 16 Phase-2 filter
PH1LF 17 Phase-1 filter
GND3 18 Ground 3 for TV-processor
DECBG 19 Band gap decoupling
AVL/EWD 20 Automatic volume levelling
VDRB 21 Vertical drive B output
VDRA 22 Vertical drive A output
IFIN1 23 IF input 1
IFIN2 24 IF input 2
IREF 25 Reference current input
VSC 26 Vertical sawtooth capacitor
TUNER AGC 27 Tuner AGC output
AUDEEM/SIFIN1 *1 28 Audio deemphasize or SIF input
DECSDEM/SIFIN2 29 Decoupling sound demodulator
GND2 30 Ground 2 for TV processor
SNDPLL/SIFAGC *1 31 Narrow band PLL filter
AVL 32 Automatic Volume Levelling
HOUT 33 Horizontal output
FBISO 34 Flyback input/sandcastle output
AUDEXT 35 External audio output
EHTO 36 EHT/over voltage protection input
PLL IF 37 IF-PLL loop filter
IFVO/SVO 38 IF video output / selected CVBS output
VP1 39 supply voltage TV processor
CVBS INT 40 internal CVBS input
GND1 41 ground for TV processor
CVBS/Y 42 CVBS/SVHS(Y) input
CHROMA 43 SVHS (C) input
AUDOUT 44 Audio output
INSSW2 45 YUV insertion input
R2/VIN 46 R input / V (R-Y) input / PR input
G2/YIN 47 G input / Y input
B2/UIN 48 B input / U (B-Y) input / PB input
BCLIN 49 Beam current limiter input
BLKIN 50 Black current input
RO 51 Red output
GO 52 Green output
BO 53 Blue output
VDDA 54 Analog supply of Closed Caption decoder and digital supply of TV-processor (3.3 V)
VPE 55 Ground
VDDC 56 Digital supply to core (3.3 V)
OSCGND 57 Oscillator ground supply
XTALIN 58 Crystal oscillator input
XTALOUT 59 Crystal oscillator output
RESET 60 Ground
VDDP 61 Digital supply to periphery (+3.3 V)
P1.0/INT1 62 AV1 / AV2 mode Output.
P1.1/T0 63 AV /S-VHS mode Output.
P1.2/INT0 64 Remote control signal input.

10
Note Pin TV SVHS AV1 AV2
62 1 0 0 1
63 1 1 0 0
2. N902 24C08/PCF8598
PIN Function
1 GND
2 GND
3 Upper resistance
4 GND
5 SDA data wire
6 SCL clock wire
7 GND
8 +5V Power
3. N601: Sound power amplify (AN7522N)
Symbol PIN Function Symbol PIN Function
Vcc 1 Power supply GND 7 ground
Out 1 (+) 2 Ch 1 output (+) In 2 8 Ch 2 input
GND(out 1) 3 Ch 1Ground VOL 9 Volume Control
Out 1 (-) 4 Ch 1 output (-) Out 2 (-) 10 Ch 2 output (-)
Standby 5 Mute input GND(out 2) 11 Ch 2 Ground
In 1 6 Ch 1 input Out 2 (+) 12 Ch 2 output (+)
4. N301: Vertical output (TDA8357A)
Symbol PIN Function Symbol PIN Function
INV IN 1 Input PUMP UP 6 Pump up power
INV IN 2 Input V OUT 7 Vertical output
Vcc 3 Pump up power V PRO 8 Vertical protection
V OUT 4 Vertical output V FEEDBACK 9 Vertical feedback
GND 5 Ground
5. U101：Tuner
PIN Function PIN Function
1 AGC 7 +5V
2 vacant 8 vacant
3 Gnd 9 Vt 33V
4 SCL 10 Gnd
5 SDA 11 IF Out
6 +5V
6. Test point Waveforms
TDA9351 PIN53
2.5Vpp
2.5Vpp
3.8Vpp
H H
H
TDA9351 PIN52 TDA9351 PIN51
1.2Vpp
2.6Vpp
H H
TDA9351 PIN40
TDA9351 PIN38

11
7. IC voltages
TDA9351
PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
V 0 3.8 3.6 3.3 3.5 4.4 5.1 1.8 0 0.18 0.17 0 2.3 8 5 3
PIN 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
V 4 0 4 0.5 0.7 0.8 1.9 1.9 3.9 3.8 1.6 3.2 2.3 0 2.3 0.2
PIN 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
V 0.5 0.3 0 1.7 2.4 3.4 8 3.9 0 3.3 0 3.6 1.4 2.5 2.5 2.5
PIN 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
V 1.9 5.0 2.4 2.4 2.4 3.1 0 3.2 0 1.8 1.7 0 3.2 5.1 3.3 5
TDA8357
PIN 1 2 3 4 5 6 7 8 9
V 0.8 0.7 16 6.9 0 43 7.2 0.3 7.2
AN 7522N
PIN 1 2 3 4 5 6 7 8 9 10 11 12
V 10 4.4 0 4.4 2.75 1.4 0 1.4 0.35 4.4 0 4.4
24C08/PCF8598
PIN 1 2 3 4 5 6 7 8
V 0 0 5.1 0 3.2 0 0 5.1
8. PURITY / CONVERGENCE ADJUSTMENT
5Vpp
0.9Vpp
1.3Vpp
H H
1Vpp
V
CRTKB
CRTKGCRTKR
95Vpp
95Vpp
95Vpp
H H H
TDA9351 PIN33 TDA9351 PIN34
0.8Vpp
V
TDA9351 PIN21 TDA9351 PIN22 TDA9351 PIN59

12
PURITY ADJUSTMENT
1. Demagnetize CRT with the demagnetizer.
2. Loosen the retainer screw of the deflection yoke.
3. Remove the wedges.
4. Input a green raster signal from the signal generator,
and turn the screen to green raster.
5. Move the deflection yoke backward.
6. Bring the long lug of the purity magnets on the short
lug and position them horizontally. (Fig2)
7. Adjust the gap between two lugs so that the GREEN
RASTER will come into the centre of the screen.
(Fig. 3)
8. Move the deflection yoke forward, and fix the position
of the deflection yoke so that the whole screen will
become green.
9. Insert the wedge to the top side of the deflection yoke
so that it will not move.
10. Input a crosshatch signal.
11. Verify that the screen is horizontal.
12. Input red and blue raster signals, and make sure that
purity is properly adjusted.
CRT
WEDGE
DEFLECTION YOKE
P
4
6
P: PURITY MAGNET
4: 4-POLES (convergence magnets)
6: 6-POLES (convergence magnets)
P/C MAGNETS
Fig. 1
PURITY MAGNETS
Long lug
Short lug
Bring the long lug over the short lug and
position them horizontally.
Fig. 2
(FRONT VIEW)
GREEN RASTER
CENTER
Fi
g
. 3

13
STATIC CONVERGENCE ADJUSTMENT
1. Input a crosshatch signal.
2. Using 4-pole convergence magnets overlap the red
and blue lines in the center of the screen (Fig. 1) and
turn them to magenta (red/blue).
3. Using 6-pole convergence magnets overlap the
magenta (red/blue) and green lines in the center of the
screen and turn them to white.
4. Repeat 2 and 3 above, and make the best
convergence.

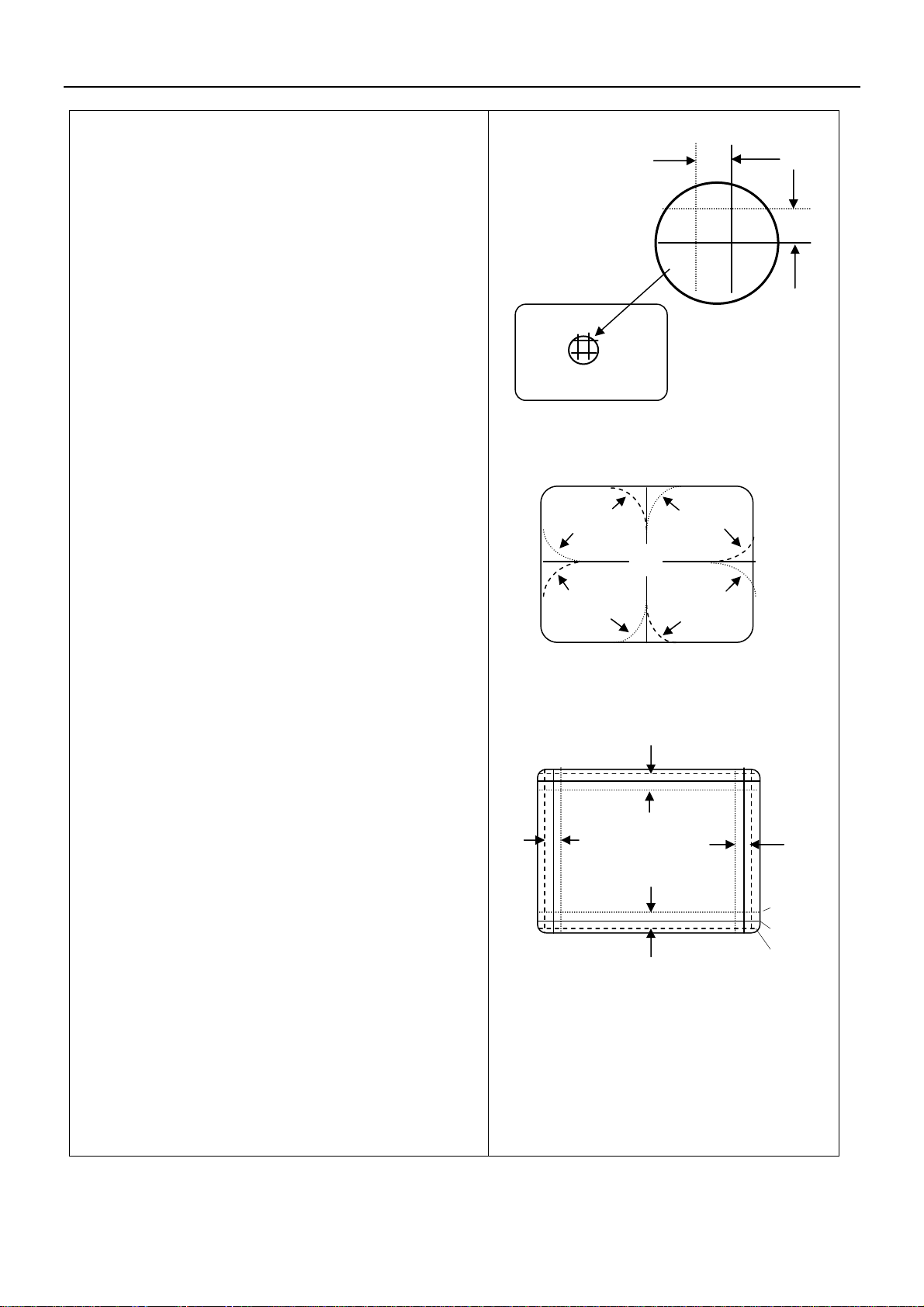

DYNAMIC CONVERGENCE ADJUSTMENT
1. Move the deflection yoke up and down and overlap
lines in the periphery. (Fig. 2)
2. Move the deflection yoke left to right and overlap the
lines in the periphery. (Fig. 3)
3. Repeat 1 and 2 above, and make the best
convergence.
After adjustment, fix the wedge at the original position.
Fasten the retainer screw of the deflection yoke.
Fix the 6 magnets with glue.
(FRONT VIEW)
Fig. 1
(FRONT VIEW)
RED GREEN BLUE
BLUE
RED
GREEN GREEN
RED BLUE
BLUE GREEN RED
Fig.2
(FRONT VIEW)
RED GREEN BLUE BLUE GREEN RED
RED
GREEN
BLUE
BLUE
GREEN
RED
Fig. 3

14
9. DVD Part: Introduction of MTK1389D maintenance
NOTE: MTK1389D is a type of LSIC for DVD decode .MTK1389D IC consists of
RF,SERVO,DSP,DECODE,VIDEO DAC and AUDIO DAC.
1. Under normal power supply conditions, the maintenance plan for MT1389D mono-chip is: first the reset
circuit resets the MT1389D, after the crystal oscillator circuit gave the clock signal to MT1389D, MT1389D will
start the initialization check for Flash、E2PROM、SDRAM, after everything is checked to be normal, it will start
initialization check for built-in Audio DAC, servo and motor Driver IC .
2. If the all the a.m. parts are good, then MT1389D will send signal to motor Driver to drive the servo
system，pick up then to generate DVD light for collection, tracing the main shaft to check if there is any disc, and
confirm if it is CD format or DVD format disc. If the disc is in DVD format, the system will read the data from the
disc directly; if it is in CD format built-in servo will drive the CD laser to send out CD light and read the data, the
data then will be amplified through built-in RF amplifier and sent to MT1389D decode part for data processing,
released by MPEG and resolved into video data and audio data, then they will be returned to analog signals
through built-in VIDEO DAC、AUDIO DAC.
Decoder section
3. There is power supply, clock and reset, but the system does not work.
1）Check if all the address wires required for FLASH are exist, and if they are in normal status,
especially check if the A0~A15 of FLASH have normal signals, if there aren’t, then inspect MT1389D to see if
there is faulty soldering. If there are normal signals at A0~A15, check if the address data signal of MT1389D
and SDRAM is normal. If it is normal, then check the signal at A16~A19 of MT1389D; if there are also signals,
then check the video output wires and AV filter circuit; if there is no signal, then check the corresponding pins
of MT1389D to see if there is any short circuit, break or faulty soldering.
4. System in normal operation, but the audio has no sound.
1）Because the AUDIO DAC is built in MTK1389D IC.you need to check the lower passing amplifying
circuit and the MUTE circuit at the back of the LPF circuit. Also check if there is any power supply to the LPF
circuit.
2）Check if the power supply voltage required for playing is at normal level.
Servo Section
5. After the LOGO of the machine shows normally, there is no OSD display. This problem mainly is caused
by the abnormality built-in RF and servo, possible problems may be:
1）Built in RF and its surrounding circuits have problems.
2) Servo part of MT1389D has problems.
6. OSD display is normal，while there is no action of servo part（feeding motor does not work, main shaft does
no turn, possible fault status are:
1) The corresponding signals giving by MT1389D to DMSO、FMSO are missing, the reason may be the
problem of MT1389D or the communication between MT1389D and motor Driver IC SA5668.
2) Not output from Motor Driver, the reason may be the problem on motor Driver or its corresponding
circuit.
7. Servo part in good status, while there is no pick up action（no light, no focus）
1）No light, check the power supply（power supply for pick up）, or the light producing driving circuit to see
if they are in normal status.
2）No focus, check MT1389D to see if there is signal output from FOSO、TRSO.
Secondly, check motor driver to see if there is F+、F-、T+、T-signal output.
Thirdly, check the external corresponding circuit of the motor driver to see if there is any problem.
8. All the servo part has action, while it cannot read out the disc
1）Check MT1389D if there is RF net picture output, if there isn’t, then it must be the problem of
MT1389D and external surrounding circuits, it there is output, then it might the problem of MT1389D
and its surrounding circuits.
2）There is RF signal，but not in normal status，then check MT1389D and surrounding circuits.
3 ）Everything is normal, but the disc cannot be read out, check MT1389D and its surrounding circuit
10. List of Parts
LOCATION DESCRIPTION PART
NUMBER QTY
FRONT CABINET ASS’Y 0090806353 1
WIRE D2006-12P-D2512-10P-TJC3-2P-350 0090401676 1

15
RUBBER 0090300453 4
FRONT CABINET UNIT 0090807137 1
FRONT CABINET 0090205215 1
REMOTE LENS MTAE4063AE--Q 0090205267 1
LED LENS MTAE4062AE--Q 0090205265 1
SCREW SJ2824-87 ST3X10F 0090600011 1
SCREW SJ2824-87 ST3X10F 0090600011 1
SCREW SJ2824-87 ST3X10F 0090600011 5
POWER CAP 0090204210 1
SPRING 0090100107 1
SPEAKER YDT0407-9AU-8W-8Ω 0094002137 2
SPEAKER WIRE 0090401453 2
SCREW SJ2824-87 ST3X10F 0090600011 8
SCREW SJ2824-87 ST4x12F 0090600015 2
WIRE 0090402207 1
SCREW SJ2824-87 ST3X10F 0090600011 6
PLASTIC SUPPORT 0090205222 1
DVD-SCART OUTPUT
BOARD ASS`Y 0094007558 1
PCB 0091801283 1
SCART SCART CS-104 0094300458 1
COAXIAL COAXIAL 0094300460 1
CNT01 WIRE D2505-10H-200 0090401677 1
DVD ASS`Y 0090804211 1
DVD SUPPORT 0090206184 1
SCREW SJ2825-87 ST3x12F 0090600013 4
DVD DS-C011B-A 0094010705 1
DVD DOOR 0090206186 1
POWER CORD ASS`Y BJG7006-----Q 0094011842 1
POWER SWITCH KDC-A04MU017 0094000141 1
THERMAL TUBE 4*20 0090200232 4
POWER LINE 0090401742 1
POWER POWER
CONNECTION CORD 0090400587 1
POWER SWITCH PLASTIC MTBH7005BC--Q 0090100874 1
SWITCH GB9074.4-88 M3X8F 0090600074 2
RUBBER 0090205253 1
BACK CABINET ASS`Y 0090806279
BACK CABINET UNIT 0090806277 1
BACK CABINET 0090206188 1
LABEL 0090206192 1
SCREW SJ2825-87 ST3x12F 0090600013 4
PVC 0090206296 2
GROSS MATERIAL ASS`Y 0094010751 1

16
HIGH VOLTAGE SPACER TEM101 0090200008 1
BUCKLE TMMOA411-1 0090200047 1
POWER LINE HOOK MTAJ6004AG--Q 0090202659 1
SCREW SJ2824-87 SJ4X16F 0090600023 8
SCREW SJ2824-87 SJ4X16F 0090600023 1
UP FOAM PADDING MTEA4074----Q 0090504738 1
DOWN FOAM PADDING MTEA4075----Q 0090504739 1
LASER LABEL 0090204751 1
SCREW SJ2824-87ST5X25（φ20） 0090100297 4
SCREW SJ2825-87 ST3x12F 0090600013 2
DEGAUSS CORD HOOK MTAJ1001AG--Q 0090801952 4
PLASTIC SUPPORT ASS`Y BJA7010-----Q 0094011713 1
PLASTIC SUPPORT 0090206185 1
SCREW SJ2825-87 ST3X10F 0090600037 7
BUCKLE MTAJ1001AG--Q 0090200038 1
NICAM SUPPORT 0090201116 1
SCREW SJ2825-87 ST3X10F 0090600037 1
CRT ASS`Y 0094011182 1
DEGUASSING COIL AH-HXC-54H 0094501083 1
GROUNDING WIRE 21 寸TJC1-1Y/2 0090401291 1
CRT A54LYZ195*91JD(AK) 0094006755 1
PARKAGING ASS’Y 0090807932 1
21''PLASTIC BAG 21" 0090204755 1
CARTON BOX AB 0090506455 1
USER MANUAL PLASTIC
BAG 0090204759 1
BACK CABINET LABEL 0090206887 1
USER MANUAL 0090506240 1
REPAIR CARD 0090504886 1
CUSTOMER REGISTER
CARD 0090504887 1
PVC 0090505483 1
PASTER 0090205739 1
PASTER 0090205740 1
PASTER 0090205742 1
PASTER 0090205743 1
PASTER 0090205741 1
ADVERTISEMENT PRODUCTION LEAFLET 0090505943 1
PASTER 0090205744 1
PASTER 0090205745 1
X-RAY PASTER 0090205746 1
PEG 0090100027 16
POWER MTEA0006AF--Q 0090500018 1
IRON CORD 60mm 0090100306 1
BATTERY 7# 0094000213 2
REMOTE （GOODMANS） 0094011234D 1

17
CONTROL BOARD ASS`Y 0094009510 1
LD01 LED TOL-30mRGdEHa 0094401957 1
RUBBER 0090203564 1
RM01 REMOTE HS0038B 0094004386 1
TV/DVD TACT SWITCH KFC-A06-21050 0094000440 1
MENU TACT SWITCH KFC-A06-21050 0094000440 1
V- TACT SWITCH KFC-A06-21050 0094000440 1
V+ TACT SWITCH KFC-A06-21050 0094000440 1
P- TACT SWITCH KFC-A06-21050 0094000440 1
P+ TACT SWITCH KFC-A06-21050 0094000440 1
SKIP+ TACT SWITCH KFC-A06-21050 0094000440 1
SKIP- TACT SWITCH KFC-A06-21050 0094000440 1
OPEN/CLOSE TACT SWITCH KFC-A06-21050 0094000440 1
PLAY TACT SWITCH KFC-A06-21050 0094000440 1
STOP TACT SWITCH KFC-A06-21050 0094000440 1
CN01 WIRE SCN-401-TJC3-5 0090401829 1
CN03 WIRE JC25-300-D2507 0090402322 1
CN04 WIRE 450mm 0090402208 1
CN02 CONNECTOR SOCKET TJC3-6A 0094300107 1
CNT08 AV SO C K E T AV 3 - 8 . 3 5 - 5 0094300167 1
C11 ELECT. CAPACITOR CD110X-16V-100μF-M-F05 0094200747 1
CONTROL BOARD
MACHINE ASS`Y 0094009518 1
PCB 0091801623 0091801623 1
R01 CARBON FILM RESISTOR RT13-1/6W-470-J------T 0094100020 1
R02 CARBON FILM RESISTOR RT13-1/6W-620-J------T 0094100916 1
R03 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 0094100023 1
R04 CARBON FILM RESISTOR RT13-1/6W-1.2K-J------T 0094100753 1
R05 CARBON FILM RESISTOR RT13-1/6W-1.8K-J------T 0094100722 1
R14 CARBON FILM RESISTOR RT13-1/6W-20KΩ-J-T52 0094100074 1
R15 CARBON FILM RESISTOR RT13-1/6W-20KΩ-J-T52 0094100074 1
R06 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 0094100033 1
R07 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 0094100033 1
R12 CARBON FILM RESISTOR RT13-1/6W-100-J------T 0094100017 1
R11 CARBON FILM RESISTOR RT13-1/6W-100-J------T 0094100017 1
R13 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 0094100033 1
VD11 TRANSISTOR 2SA1015 0094400211 1
VD01 TRANSISTOR KSC815-YTA------F 0094400192 1
C13 CERAMIC CAPACITOR CT1-F-63V-0.01μF-Z-F05 0094201040 1
C12 ELECT. CAPACITOR CD110X-16V-47μF-M-F05 0094200988 1
W01 JUMP WIRE φ0.58mm/7.5mm------B 0094101552 1
MAIN BAORD ASS’Y 0094011796 1
MAIN BAORD PREMANAGE
ASS’Y 0094011798 1
N301B HEAT SINK 0090100450 1
N301C IC TDA8357J 0094401409 1
SCREW ST3X10F SJ2831-87 0090600076 1

18
SCREW ST3X10F SJ2831-87 0090600076 1
V401A HEAT SINK QHS-30184A 0090100775 1
V401 IC TT2140 0094401644 1
N801A HEAT SINK MTBT3048BC--Q 0090100765 1
N801C IC KA5Q0765RTH-YDTU 0094401392 1
SCREW ST3X10F SJ2831-87 0090600076 1
N802C IC L7809CS 0094400808 1
SCREW ST3X10F SJ2831-87 0090600076 1
N808 IC MC7805CT 0094400791 1
N802A HEAT SINK QHS-30184A 0090100017 1
N601B IC AN7522N 0094401684 1
N601A HEAT SINK QHS-30184A 0090100665 1
SCREW ST3X10F SJ2831-87 0090600076 1
N804B IC KA278R05 0094401923 1
N804A HEAT SINK MTBH4070BC--Q 0090100443 1
SCREW ST3X10F SJ2831-87 0090600076 1
N803 IC KA78R05 0094400637 1
LW WIDTH COIL TK115 0094501063 1
R110 OXIDE RESISTOR RY16S-1W-33-J-05-E-A 0094102578 1
R407 OXIDE RESISTOR RY16S-1W-3.9K-J-12.5-E-A 0094102667 1
R307 OXIDE RESISTOR RY17S-2W-390-J-05-E-A 0094100097 1
R414 OXIDE RESISTOR RY17S-2W-1K-J-05-E-A 0094102457 1
R413 OXIDE RESISTOR RY17S-2W-7.5K-J-05-E-A 0094100098 1
R810 OXIDE RESISTOR RY17S-2W-18K-J-17.5-L-A 0094102580 1
R802 OXIDE RESISTOR RY17S-2W-33K-J-05-E-A 0094100101 1
R404 OXIDE RESISTOR RY15-1/2W-120Ω-J-12-D 0094101653 1
R801 OXIDE RESISTOR RY17S-2W-33K-J-05-E-A 0094100101 1
R825 OXIDE RESISTOR RY17S-2W-47K-J-05-E-A 0094102581 1
R818 OXIDE RESISTOR RY15S-1/2W-1.5K-J------T 0094100085 1
R820 FUSE RESISTOR RY17-2W-24Ω-J-05-C 0094100095 1
R821 FUSE RESISTOR RF10-2W-1-J-05-E-A 0094100125 1
R404 FUSE RESISTOR RF10-2W-6.2-J-12.5-L-A 0094102590 1
R824 FUSE RESISTOR RF10-1/2W-1-J-05-E-A 0094102583 1
R415 FUSE RESISTOR RF10-1/2W-1-J-05-E-A 0094102583 1
R302 FUSE RESISTOR RF10-1/2W-10-J-05-E-A 0094102668 1
R409 FUSE RESISTOR RF10-1/2W-0.22-J-05-E-A 0094102584 1
R306 FUSE RESISTOR RF10-2W-0.68-J-05-E-A 0094102586 1
R815 FUSE RESISTOR RF10-2W-0.18-J-15-L-A 0094102669 1
R416 JUMPER WIRE φ0.58mm/12.5mm-----B 0094101552 1
P801 THERMOSENSITIVE
RESISTOR MZ73-14RM270V 0094400046 1
RP801 THERMOSENSITIVE
RESISTOR MF72-2-5Ω±N 0094400047 1
C248 CERAMIC CAPACITOR CS1-F-63V-0.1μF-Z-F05 0094201617 1
C410 CERAMIC CAPACITOR CT1-B-2kV-681pF-K-07-A 0094201373 1
C419 CERAMIC CAPACITOR CT1-B-2kV-681pF-K-07-A 0094201373 1
C807 CERAMIC CAPACITOR CT1-B-2kV-561pF-K-07-A 0094200067 1
C810 CERAMIC CAPACITOR CT1-B-500V-560pF-K-F05 0094201449 1
C823 CERAMIC CAPACITOR CT81-400VAC-18B-2E4-332-M-10-C-A 0094202412 1

19
C311 CERAMIC CAPACITOR CS1-F-63V-0.1μF-Z-F05 0094201617 1
C305 CERAMIC CAPACITOR CS1-B-63V-0.01μF-K-F05 0094200982 1
C805 FILM CAPACITOR CT1-B-1kV-1000pF-K-07-A 0094201071 1
C216 FILM CAPACITOR CL21X-63V-224-J------F 0094201463 1
C414 FILM CAPACITOR CL21X-400V-104-J-07-A-A 0094200098 1
C227 FILM CAPACITOR CBB13-50V-104-J-07-A-A 0094200099 1
C416 FILM CAPACITOR CBB21-400V-364-J-20-G-A 0094200101 1
C409 FILM CAPACITOR CBB81-1.6KV-752-J-20-A-A 0094200104 1
C802A FILM CAPACITOR MKT61-275V-104-M-15-G-A 0094200105 1
C222 ELECT. CAPACITOR CD110X-50V-1μF-M-F05 0094200043 1
C236 ELECT. CAPACITOR CD110X-16V-22μF-M-F05 0094201043 1
C846 ELECT. CAPACITOR CD110X-25V-1000μF-M-05-A 0094201011 1
C811 ELECT. CAPACITOR CD110X-25V-2200μF-M-05-A 0094201319 1
C610 ELECT. CAPACITOR CD110X-25V-1000μF-M-05-A 0094201011 1
C304 ELECT. CAPACITOR CD263-100V-33uF-M-05-A 0094202297 1
C418 ELECT. CAPACITOR CD263-100V-33uF-M-05-A 0094202297 1
C808 ELECT. CAPACITOR CD263X-160V-100μF-M-07-A 0094200736 1
C411 ELECT. CAPACITOR CD288H-250V-22uF±20%-05-G-A 0094201604 1
C801 ELECT. CAPACITOR CD293-400V-150μF-M-10-A 0094201341 1
N201 IC TDA9351 0094402112 1
N202 IC M24C08(BR24C08) 0094400316 1
PC801 IC PC817C 0094400196 1
N703 IC TC4052BP 0094400138 1
X201 CRYTAL JA12D-12MHZ-20PF 0094600198 1
Z201 CERAMIC TRAP FILTER XT6.0M 0094600065 1
SF101 SAW FILTER D2901C 0094600276 1
C852 ELECT. CAPACITOR CD110X-16V-1000μF-M-F05 0094200802 1
F801 FUSE TSG-3.15A-250V 0094000137 1
F801A FUSE CLIP FC503 0090100021 1
F801B FUSE CLIP FC503 0090100021 1
L401 LINEARITY COIL LX034 0094501053 1
L801 LINE FILTER LCL-207 0094500686 1
T444 FLYBACK TRANSFORMER BSC25-0283G 0094501054 1
T801 SWITCHING MODE
TRANSFORMER BCK-07-DE7 0094501146 1
T401 HORIZONTAL
TRANSFORMER AA26-50001B 0094500034 1
TU101 TUNER TD05EFS-01（TEDE9-280A） 0094005862 1
V999 CRT SOCKET GZS10-2-BD 0094300007 1
CN801 CONNECTOR SOCKET TJC1-2A 0094300110 1
CN802 CONNECTOR SOCKET TJC2-2A 0094300063 1
CN601 CONNECTOR SOCKET TJC3-2A 0094300092 1
CN602 CONNECTOR SOCKET TJC3-2A 0094300092 1
CN502 CONNECTOR SOCKET TJC3-3A 0094300111 1
SERVICE CONNECTOR SOCKET TJC3-3A 0094300111 1
CN200 CONNECTOR SOCKET TJC3-3A 0094300012 1
CN211 CONNECTOR SOCKET TJC3-3A 0094300012 1
CN210 CONNECTOR SOCKET TJC3-5A 0094300104 1
CN503 CONNECTOR SOCKET TJC3-5A 0094300104 1

20
CN401 CONNECTOR SOCKET TJC1-4A 0094300307 1
CN809 CONNECTOR SOCKET TJC3-5A 0094300104 1
MD701 CONNECTOR SOCKET JL-6Y 0094300185 1
MD702 CONNECTOR SOCKET JL-7Y 0094300187 1
VD802 DIODE T1R5GU41-12.5-M 0094401993 1
VD803 DIODE T1R5GU41-12.5-M 0094401993 1
C259 DIODE MTZJ5.1B------T 0094200617 1
GT501 CONNECTOR SOCKET TJC1-1A 0094300090 1
GT502 CONNECTOR SOCKET TJC1-1A 0094300090 1
VD806 DIODE FFPF10U20STU 0094401512 1
C848 ELECT. CAPACITOR CD110X-25V-1000μF-M-05-A 0094201011 1
CN702 WIRE 0090401872 1
CN706 WIRE 0090401670 1
CN703 CONNECTOR SOCKET TJC3-8A 0094300106 1
S WIRE 0090401672 1
CN810 WIRE TJC3-4A 0090400514 1
N702 IC HEF4053 0094400503 1
G WIRE 150mm 0090400064 1
R625 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 0094100023 1
DV801 CARBON FILM RESISTOR TVR14561 0094400806 1
C705 FILM CAPACITOR CD71-50V-1uF-M-F05 0094200994 1
CN501 WIRE TJC3-8B-3Y-5Y-350MM 0090401452 1
R527 OXIDE RESISTOR RY17S-2W-33K-J-05-E-A 0094100101 1
R511 OXIDE RESISTOR RY17-2W-18KΩ-J-20-D 0094102168 1
R521 OXIDE RESISTOR RY17-2W-18KΩ-J-20-D 0094102168 1
R531 OXIDE RESISTOR RY17-2W-18KΩ-J-20-D 0094102168 1
R505 FUSE RESISTOR RF10-2W-2.4Ω-J-A 0094100704 1
R506 FUSE RESISTOR RF10-2W-68-J-05-E-A 0094100128 1
C509 ELECT. CAPACITOR CD110X-250V-4.7μF-M-F05 0094200727 1
C510 CERAMIC CAPACITOR CT1-B-2KV-1000PF-K-07-A 0094200971 1
C800 FILM CAPACITOR MKT61-275V-104-M-15-G-A 0094200105 1
CN807-N401(I-G) WIRE 0090401671 1
N805 JUMPER WIRE φ0.58mm/2.5mm------B 0094101552 1
DVD SCART CS-103 0094300457 1
MAIN BAORD MACHINE
ASS’Y 0094011797 1
PCB 0091801280 （V2.0） 0091801280 1
R104 CARBON FILM RESISTOR RT13-1/6W-10-J------T 0094100065 1
R752 CARBON FILM RESISTOR RT13-1/6W-10-J------T 0094100065 1
R742 CARBON FILM RESISTOR RT13-1/6W-10-J------T 0094100065 1
R216 CARBON FILM RESISTOR RT13-1/6W-47-J------T 0094100066 1
R943 CARBON FILM RESISTOR RT13-1/6W-47-J------T 0094100066 1
R250 CARBON FILM RESISTOR RT13-1/6W-47-J------T 0094100066 1
R257 CARBON FILM RESISTOR RT13-1/6W-47-J------T 0094100066 1
R258* CARBON FILM RESISTOR RT13-1/6W-75-J------T 0094100067 1
R265 CARBON FILM RESISTOR RT13-1/6W-75-J------T 0094100067 1
R715 CARBON FILM RESISTOR RT13-1/6W-75-J------T 0094100067 1
