SERVICE MANUAL
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does
not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product. Products
powered b electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the
product deal with in this service information by anyone else could result in serious injury or death.
COLOR
TV
Model No. HL32R1
CHASSIS:
MTK5380LC
2009 (Qingdao Electronics
limited company
)
All rights reserved. Unauthorized copying and distribution is a violation of
law.
Model No. HL32R1a

CONTENTS
Table of contents………………..................…………………..……….2
1. General Information…………...............…………………………..4
1-1. General Guidelines...…………………………………………………..4
1-2. Important notice………………………………………………………...4
1-3. How to read this Service Manual……………………………………..5
2. Specifications……………………………………………....................6
3. Location of Controls and Components ...........................7
3-1.Board Location…………………………………………………………..7
3-2. Main Board & AV Board………………………………………………..7
3-3. Power Board…………………………………………………………….9
3-4. LCD Panel………………………………………………………………11
4. Disassemble and assemble…………………...........………….12
4-1 Remove the Pedestal ……………………………………………….…13
4-2 Remove the Back Cover…………………...…………………………..1 3
4-3 Remove the speaker..........…….........…………………………………13
4-4 Remove the power module.....……………....…………………………13
4-5 Remove the Main board.....……….......……………………………….14
4-6 Remove the remote control and the keypad control.....................14
4-7 Remove the Terminal Bracket..……………………….……………….14
5. Installation Instructions ………..................………………..…..15
5-1 External Equipment Connections …………………………..........…..15
5-2 HDMI and DVI input.………………………….............................…...20
6. Operation Instructions ………………………….........................23
6-1 Tv Side pannel control and connections...…………………….........23
6-2 Back Panel Conections.…………...……………………………..........24
6-3 Setting Up Your Remote Control...................................................25
7. Electrical parts ............................................................................26
7-1. Block diagram ...............................................................................26
7-2. Circuit Diagram..............................................................................26
7-3 .Wiring Connection Diagram...........................................................42
8. Measurements and Adjustments .......................................43
8-1. Service Mode ..................................................................................43
……………………….……………… 14
4-8 Remove the Panel

8-1-1.How to enter into Service Mode ......................................................43
8-1-2.How to exit ..................................................................................43
8-2. Measurements and Adjustments ..................................................43
9. Trouble shooting ......................................................................49
9-1. Simple check ...............................................................................49
9-2. Power Supply Board failure check ..............................................50
9-3. Main board failure check ..............................................................51
9-4. Pannel failure ...............................................................................53

1. General Information
1-1 General Guidelines
When servicing, observe the original lead dress. If a short circuit is found, replace all parts which
have been overheated or damaged by the short circuit.
After servicing, see to it that all the protective devices such as insulation barriers, insulation papers
shields are properly installed.
After servicing, make the following leakage current checks to prevent the customer from being
exposed to shock hazards.
1) Leakage Current Cold Check
2) Leakage Current Hot Check
3)Prevention of Electro Static Discharge(ESD)to Electrostatically Sensitive
1-2 Important notice
1-2-1. Follow the regulations and warnings
Most important thing is to list up the potential hazard or risk for the service personnel to open the
units and disassemble the units. For example, we need to describe properly how to avoid the
possibility to get electrical shock from the live power supply or charged electrical parts (even the
power is off).
This symbol indicates that high voltage is present inside. It is dangerous to
make any king of contact with any inside part of this product.
This symbol indicates that there are important operating and maintenance
instructions in the literture accompanying the appliance
1-2-2. Be careful to the electrical shock
To prevent damage which might result in electric shock or fire, do not expose this TV set to rain or
excessive moisture. This TV must not be exposed to dripping or splashing water, and objects
Filled with liquid, such as vases, must not be place on top of or above the TV
1-2-3. Electro static discharge (ESD)
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such
Components commonly are called Electrostatically Sensitive (ES) Devices. The following
tech-niquesshouldbeusedtohelpreducetheincidenceofcomponentdamagecausedbyelectro
Static discharge (ESD).
1-2-4. About lead free solder (PbF)
This product is manufactured using lead-free solder as a part of a movement within the consum-er
products industry at large to be environmentally responsible. Lead-free solder must be used in the
servicing and repair of this product.
1-2-5. Use the genewing parts (specified parts)
Special parts which have purposes of fire retardant (resistors),high-quality sound (capacitors), low
noise(resistors), etc. are used.
When replacing any of components, be sure to use only manufacture's specified parts shown in
the parts list.
Safety Component
●Components identified by mark have special characteristics important for safety.

1-2-6. Safety Check after Repairment
Confirm that the screws ,parts and wiring which were removed in order to service are put in the
original positions, or whether there are the portions which are deteriorated around the serviced
places serviced or not. Check the insulation between the antenna terminal or external metal and
the AC cord plug blades. And be sure the safety of that.
Insuration Test
1. Unplug the plug from the AC outlet.
2. Remove the antenna terminal on TV and turn on the TV.
3. Insulation resistance between the cord plug terminals and the eternal exposure metal
should be more than M ohm by using the 500V insulation resistance meter
4. If the insulation resistance is less than M ohm, the inspection repair should be required.
If you have not the 500V insulation resistance meter, use a Tester.
External exposure metal: Antenna terminal Headphone jack
1-2-7. Ordering Spare Parts
Please include the following informations when you order parts. (Particularly the Version
letter)
1. Model number and Version letter
The model number can be found on the back of each product and the Version letter can
be found at the end of the serial number.
2. Part No. and Description
You can find them in your service manual.
1-2-8. Photo used in this manual
The illustration and photos used in this Manual may not base on the final design of products, which
may differ from your products in some way.
1-3. How to read this Service Manual
1-4-1. Using Icons
Icons are used to attract the attention of the reader to specific information. The meaning of each icon is
described in the table below:
Note:
A “note” provides information that is not indispensable, but may nevertheless be valuable to the
reader, such as tips and tricks.
Caution:
A “caution” is used when there is danger that the reader, through incorrect manipulation,

870/267/657
796/230/590
15.3
12.5
90W
10W×2
H:178/V:178
3000:1
1366x768
32inch
HL32R1
may damage equipment, loose data, get an unexpected result or has to restart(part of)
a procedure.
Warning:
A “warning” is used when there is danger of personal injury.
Reference:
A “reference” guides the reader to other places in this binder or in this manual, where he/she will
find additional information on a specific topic.
2. Specification
Model
Screen size
Aspect ratio 16:9
Resolution
Contrast Ratio
Angel of view
Color display 16.7M
OSD language English
Color system ATSC/NTSC
Audio system DK,BG,I, LL'
Audio output power(Built-in)(W)
Audio output power(outer)(W) No
Total power input（W）
Voltage range（V）120V±10% V
Power frequency（Hz）60HZ
Time of sleep timer(MINS) 240Min
Net weight(KG)
Gross weight(KG)
Net dimension(MM)
Packaged dimension(MM)
3. LOCATION OF CONTROLS AND COMPONENTS

Power connectors (CNA1)
A Board DC13W0E0101M Mainboard Assembly(0090719678C)
B Board 0094001274A Power Supply

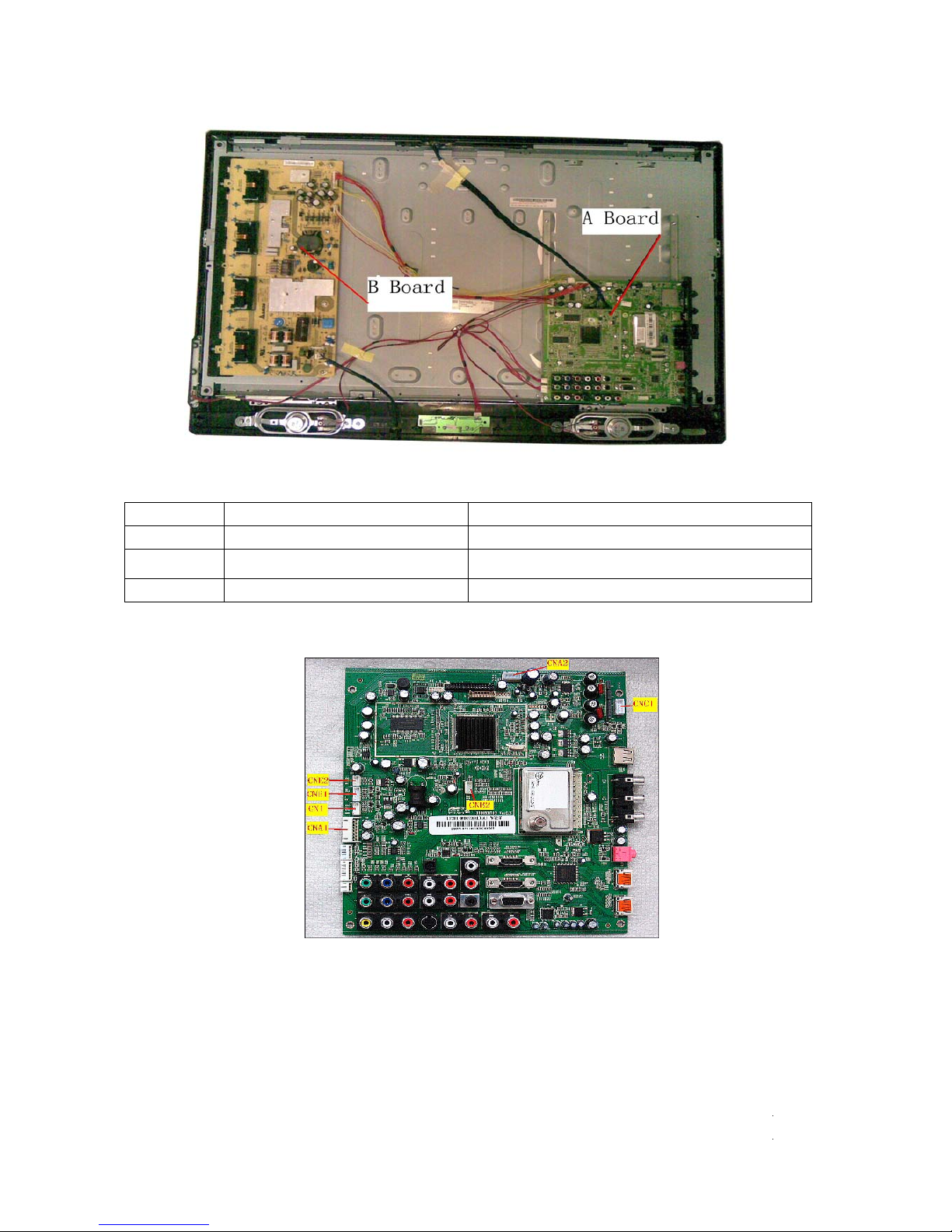

3-1 Board Location
No. Parts number Description
3-2 Main Board & AV Board
3-2-1 Function Description:
Main Board：
Process signal which incept from exterior equipment，then translate into signal that panel can
display.
3-2-2 Connector definition
Main board connector

Pin number Signal number
1 SW
2 GND
3 +5VSB
4 GND
5 GND
6 +12V
7 +12V
Notes:
CNA1-Pin1:System power on / standby
System board will use this pin to control system power.
CN1 Pin number Signal number
1 Dimming
2 ON/OFF
3 GND
4 SELECT(NC)
Notes:
CN1-Pin2: Backlight on/off
The system can turn on or turn off the backlight of TFT LCD Panel through the power
supply unit path.
CN1-Pin1: Control the luminance of backlight.
The system can generate the PWN signal to control the strength of TFT LCD Panel’s
backlight through this connector.
CNA2
Pin number Signal number
1 +24V/16.5V
2 +24V/16.5V
3 GND
4 GND
Remote connector(CNE1)
Pin number Signal number
1 +5VSB
2 IR_IN
3 LED_RED
4 LED_GRE
5 GND
Keypad connector(CNE2)

Pin number Signal number
1 GND
2 ADIN1-K0
3 ADIN2-K1
Speaker connector(CNC1)
Pin number Signal number
1 SPEA_L+
2 SPEA_L-
3 SPEA_R_
4 SPEA_R+
Other connectors:
CNB2 to Upgrade the program of MTK5380L (U13) AND FLASH (U17)
3-3. Power Board
3-3-1 Function Description:
Supply power for Main board, Panel.

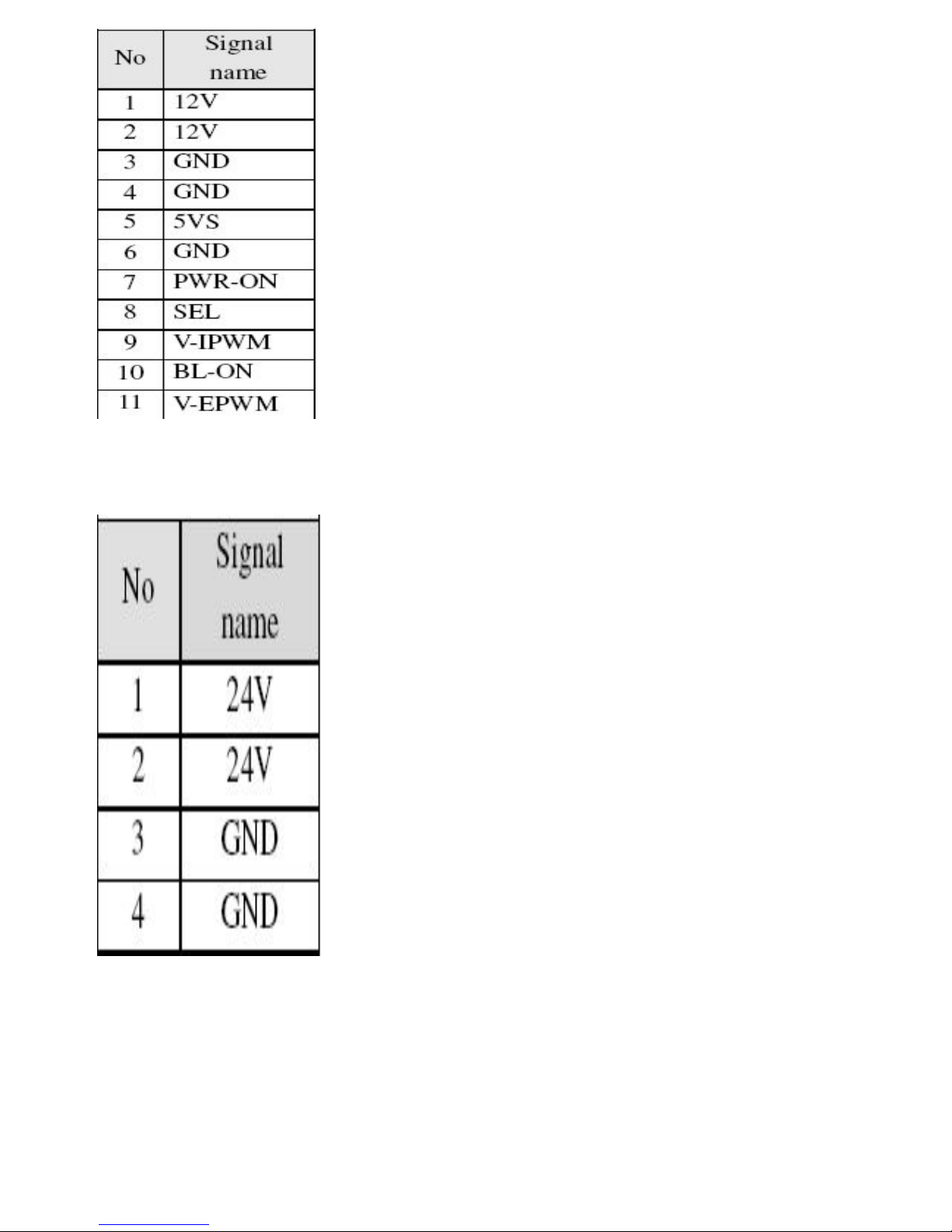

3-3-2Connectordefinition
CON2

CON3
CON3

3-4. LCD Panel
3-4-1 Function Description: Display the signal.

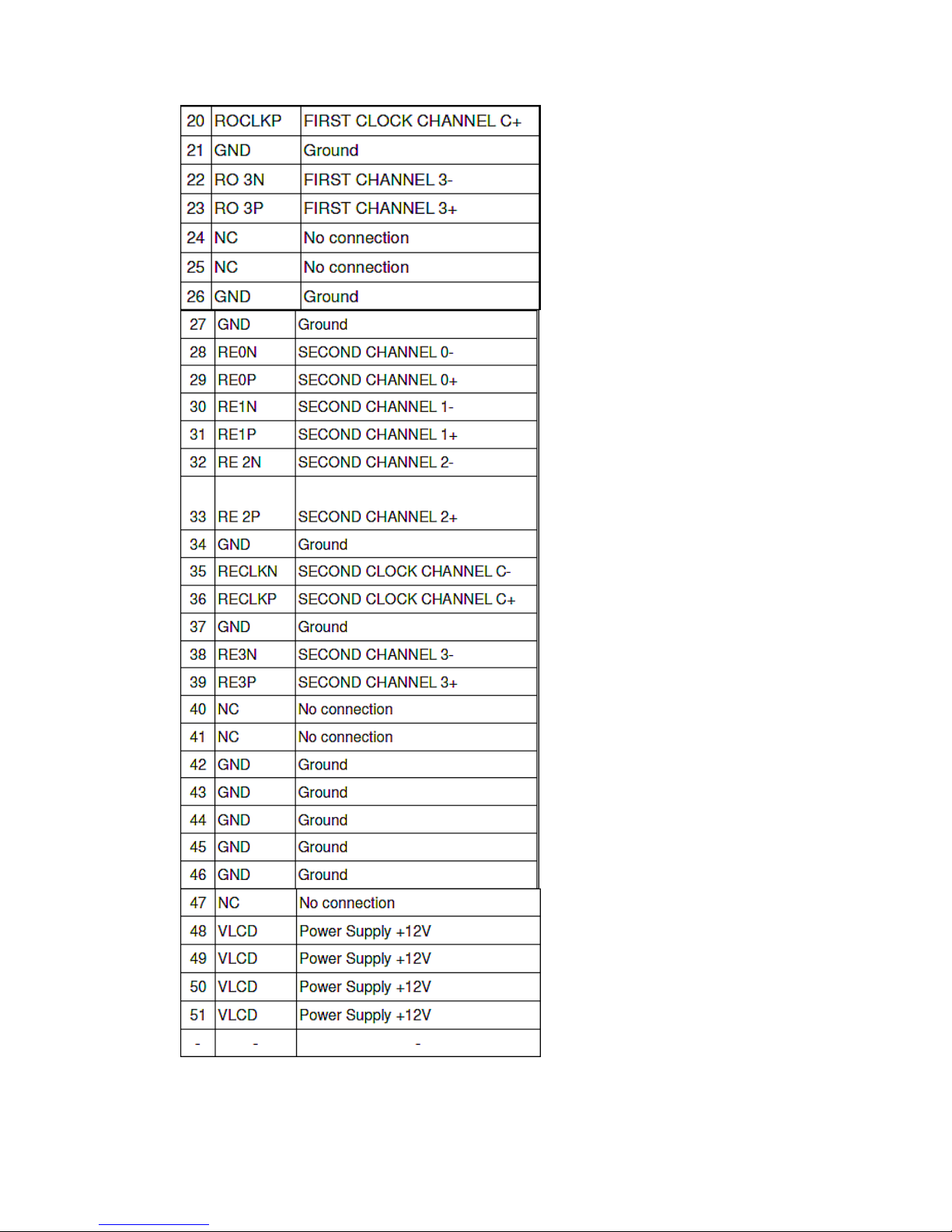

3-4-2 Connector definition

4.Disassemble and assemble

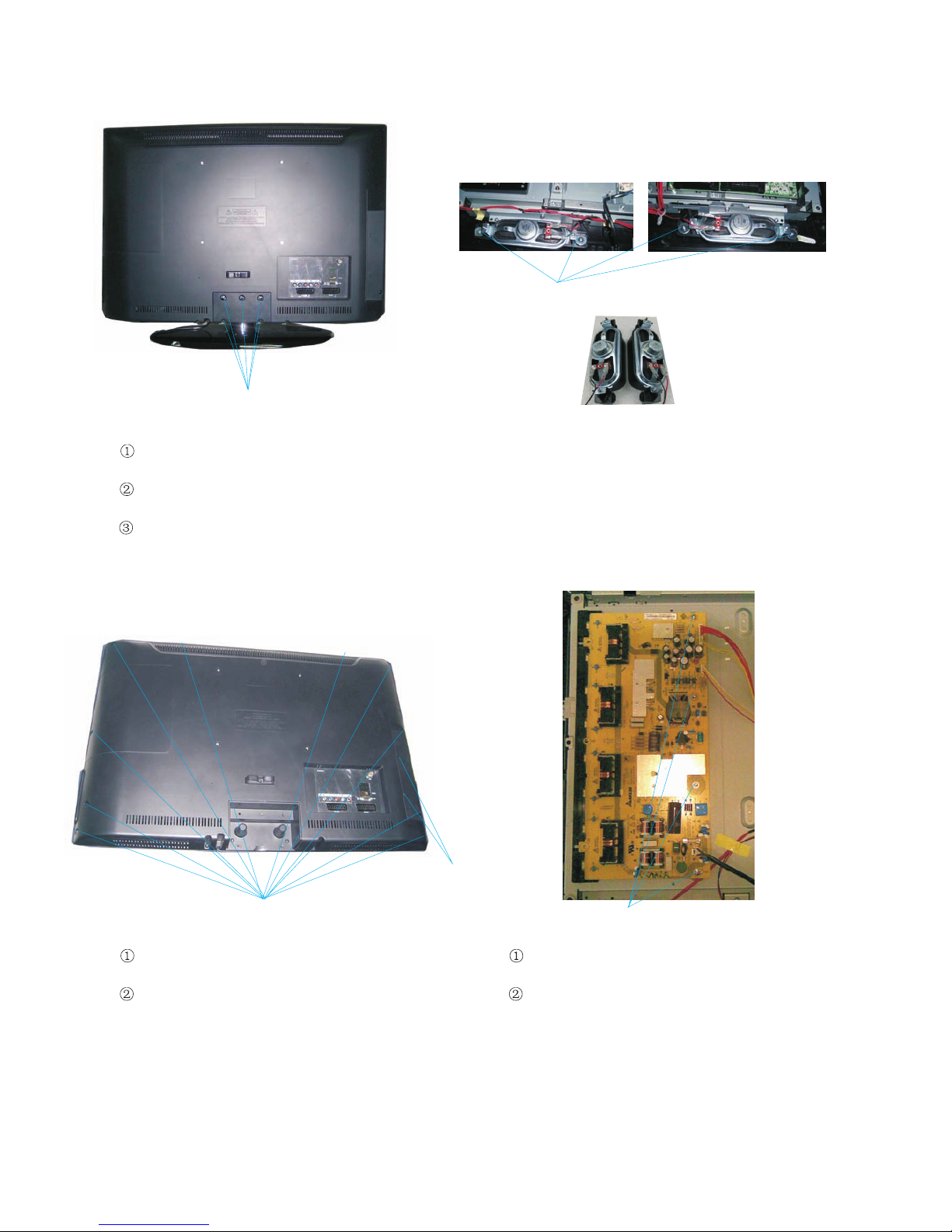

4-1 Remove the Pedestal
Lay down the unit so that rear
cover faces upward .
5 screw.(ST4*16)
4 screw.(ST4*16)
12 screw.(ST4*12)
Remove the five screw from the rear
cover indicated by blue line.
Then remove the pedestal.
4-2 Remove the Back Cover
Remove the fourteen screwindicated
on figure above by blue line.
Then remove the back cover from the
unit．
4-3. Remove the speaker
Remove the four screw from the speaker
indicated on figure above by blue line.
4-4 Remove the power module
Remove the four screw indicated on the
figure above by blue line .
Then remove the power module.
2 screw.(ST3*10)
4 screw.(M4*8)

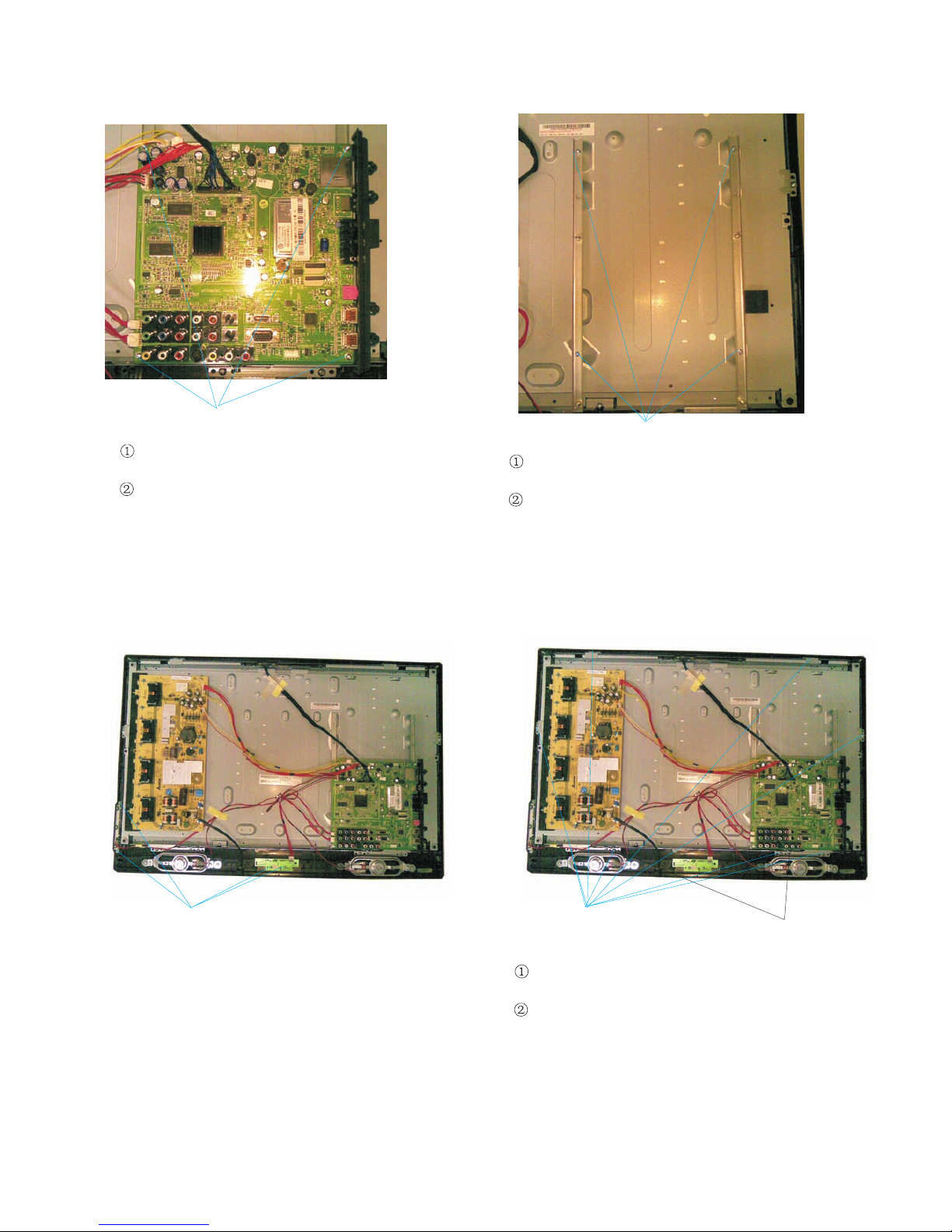

4-5 Remove the the Main board
Remove the four screw indicated on
the figure above by blue line.
4 screw(M3*8)
4 screw(ST3*10)
8 screw(M3*8)
8 screw(ST4*12) 2 screw(M4*8)
Remove the Main board．
4-6 Remove the remote control
and the keypad control
Remove the four screw indicated on the
figure above by blue line.
Take out the remote control board and
the keypad control.
4-7 Remove the Terminal Bracket
4-8 Remove the panel
Remove the eight screw indicated on the
figure above by blue line.
Remove the ten screw indicated on the
figure above by blue line.
Then remove the terminal bracket.
Then remove the panel .

ANT INANT IN
ANT INANT IN
Over-the-air TV reception quality will depend onyour antenna type, antenna location and antenna positioning.
External Equipment Connections
Antenna Connection
Multi-family Dwellings/Apartments
(Connect to wallantenna socket)
Wall Antenna
Socket
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
VHF Antenna
UHF Antenna
Turn clockwise to tighten
RF Coaxial Wire(75 ohm)
Bronze Wire
Be careful notto bend thebronze wire
when connecting the antenna.
Bronze Wire
To improve the picture quality in a poor signal area,
please purchase a signal amplifier and install properly.
If the antenna needs to be split for two TV`s, install a
2-Way Signal Splitter in the connections.
To install the antenna properly please contact a
professional in your area.
Accessories
Remote control Owner`smanual Alkalinebattery(AAA) 2
Please READ this manual carefully before
operating your TV,and retain itfor future
reference.
TFT-LCD TV
OWNER S MANUAL'
MODEL: S
HL26K
HL32K
HL37K
HL42K
HL47K
R
HL37T
HL52T
PLAY/PAUSE
REV
REPEAT
GUIDE
MTS/SAP
CCD ARC
FREEZE
ENTER
STOPUSB REC
PREV NEXT
CH.LIST
FAVORITE
TV
STB
INPUT
MUTE
VOL CH
MENU
SLEEP DISPLAY
EXIT
RECALL
PICTURE AUDIO PC HDMI
CABLE VCR AUD
DVD
5.installation instruction

Connecting a
our Connection
Connections
22
11
11
YYPbPb PrPr LLRR
LLLL
RRRR
VIDEOVIDEO VIDEOVIDEO
S-VIDEOS-VIDEO
VGAVGA
VGA AUDIOVGA AUDIO
AUDIOAUDIO AUDIOAUDIO
LL
RR
DVI AUDIODVI AUDIO
AUDIOAUDIO
22
LLRR
AUDIOAUDIO
COMPONENT INCOMPONENT IN
VIDEO INVIDEO IN
11
AV OUTAV OUT
VGA INVGA IN
HDMI INHDMI IN ANT INANT IN
OPTICAL OUTOPTICAL OUT
VCR
NOTE: All cables shownare not includedwith the TV.
There are several ways to connect your television,
depending on the components you want to connect and
the quality of the signal you want to achieve. The
following are examplesof some different ways toconnect
your TV with different input sources.
External Equipment
Choose Y
Toavoid picture noise(interference), leave an adequate
distance between theVCR and TV.
Connection Option 1
Set VCR output switch to channel 3 or 4 and then tune
the TV to the same channel number.
Connection Option 2
1. Connect theaudio and videocables from theVCR's
output jacks to the TV input jacks, as shown in the figure.
When connecting theTV to VCR, match the jack colors
(Video = yellow,Audio Left = white, and Audio Right =red).
If you connect a S-VIDEO output from VCR to the
S-VIDEO input, the picture quality is improved;
compared to connectinga regular VCRto the Video input.
2. Insert a video tape into the VCR and press PLAY on
the VCR. (Referto the VCRowner`s manual.)
3. Select the input source with using the
INPUT button on the remote control, and
then press / button to select the source,
press ENTER button to confirm.

22
11
11
YYPbPb PrPr LLRR
LLLL
RRRR
VIDEOVIDEO VIDEOVIDEO
S-VIDEOS-VIDEO
VGAVGA
VGA AUDIOVGA AUDIO
AUDIOAUDIO AUDIOAUDIO
LL
RR
DVI AUDIODVI AUDIO
AUDIOAUDIO
22
LLRR
AUDIOAUDIO
COMPONENT INCOMPONENT IN
VIDEO INVIDEO IN
11
AV OUTAV OUT
VGA INVGA IN
HDMI INHDMI IN ANT INANT IN
OPTICAL OUTOPTICAL OUT
22
11
11
YYPbPb PrPr LLRR
LLLL
RRRR
VIDEOVIDEO VIDEOVIDEO
S-VIDEOS-VIDEO
VGAVGA
VGA AUDIOVGA AUDIO
AUDIOAUDIO AUDIOAUDIO
LL
RR
DVI AUDIODVI AUDIO
AUDIOAUDIO
22
LLRR
AUDIOAUDIO
COMPONENT INCOMPONENT IN
VIDEO INVIDEO IN
11
AV OUTAV OUT
VGA INVGA IN
HDMI INHDMI IN ANT INANT IN
OPTICAL OUTOPTICAL OUT
How to connect
1. Connect theDVD video outputs(COMPONENT) to
the Y Pb Pr jacks on the TV and connect the DVD audio
outputs to the YPbPr Audio IN jacks onthe TV, as
shown in the figure.
2. If your DVD onlyhas an S-VIDEOoutput jack,
connect this to the S-VIDEO input on the TV. as shown
in the figure.
Note
If your DVD player does not have component video
output, use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use INPUTbutton on theremote control toselect
component mode.
3. Press Play button on external equipment for program
play.
4. Refer to the DVD player's manual for operating
instructions.
How to connect
Connect the audio and video cables from the external
equipment's output jacks to the TV input jacks, as shown
in the figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).
How to use
1. Select the input source with using the INPUT button on
the remote control.
2. Press / button to select the desired source.
3. Press button to confirm.
4. Operate thecorresponding external equipment.
ENTER
Video Game Set
Camcorder
Component Input ports
To get better picture quality, connect a DVD player to the
component input ports as shown below.
Component ports
on the TV
Video output ports
on DVD player
Y Pb Pr
Y Pb Pr
Y B-Y R-Y
Y Cb Cr
Y P P
BR
External A/V Source Setup
Connecting a DVD player

22
11
11
YYPbPb PrPr LLRR
LLLL
RRRR
VIDEOVIDEO VIDEOVIDEO
S-VIDEOS-VIDEO
VGAVGA
VGA AUDIOVGA AUDIO
AUDIOAUDIO AUDIOAUDIO
LL
RR
DVI AUDIODVI AUDIO
AUDIOAUDIO
22
LLRR
AUDIOAUDIO
COMPONENT INCOMPONENT IN
VIDEO INVIDEO IN
11
AV OUTAV OUT
VGA INVGA IN
HDMI INHDMI IN ANT INANT IN
OPTICAL OUTOPTICAL OUT
Digital Set-top Box
This TV can receive DigitalOver-the-air/Cable signals without an external digital set-top box. However, if you do receive
Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).
How to connect
Use the TV`s COMPONENT , VGA or HDMI
jack for video connections, depending on
your set-top boxconnector. Then, make
the corresponding audioconnections.
How to use
1. Turn on the digital set-top box. (Refer to the
owner`s manual forthe digital set-topbox.)
2. Use INPUT on the remotecontrol to select
COMPONENT , VGA or HDMI source.
Send the TV`s audio to external audio equipment (stereo
system) via theDigital AudioOutput (Optical) port.
How to connect
1. Connect one end of an optical cable to the TV Digital
Audio(Optical) Outputport.
2. Connect the other end of the optical cable to the digital
audio (optical) inputon the audioequipment.
See the external audio equipment instruction manual for
operation.
Note
When connecting withexternal audio equipments,such
as amplifers orspeakers, please turnthe TV speakers off.
Connecting a digital audio output
Connecting a DTV(digital TV)
Signal
480i
480p
720p
1080i
1080p
COMPONENT HDMI
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
HDMI
Caution: Do not look into the optical output
port. Looking at the laser beam may damage
your vision.
!!
22
11
11
YYPbPb PrPr LLRR
LLLL
RRRR
VIDEOVIDEO VIDEOVIDEO
S-VIDEOS-VIDEO
VGAVGA
VGA AUDIOVGA AUDIO
AUDIOAUDIO AUDIOAUDIO
LL
RR
DVI AUDIODVI AUDIO
AUDIOAUDIO
22
LLRR
AUDIOAUDIO
COMPONENT INCOMPONENT IN
VIDEO INVIDEO IN
11
AV OUTAV OUT
VGA INVGA IN
HDMI INHDMI IN ANT INANT IN
OPTICAL OUTOPTICAL OUT

22
11
11
YYPbPb PrPr LLRR
LLLL
RRRR
VIDEOVIDEO VIDEOVIDEO
S-VIDEOS-VIDEO
VGAVGA
VGA AUDIOVGA AUDIO
AUDIOAUDIO AUDIOAUDIO
LL
RR
DVI AUDIODVI AUDIO
AUDIOAUDIO
22
LLRR
AUDIOAUDIO
COMPONENT INCOMPONENT IN
VIDEO INVIDEO IN
11
AV OUTAV OUT
VGA INVGA IN
HDMI INHDMI IN ANT INANT IN
OPTICAL OUTOPTICAL OUT
How toconnect
1. To getthe bestpicture quality, adjustthe VGAgraphics card to 1024x768 .
2. Usethe TV`sVGAor DVI(Digital VisualInterface)Audio INport foraudio connections,depending on your computer
connector.
If the graphic card on the computer does not output analog and digital RGB simultaneously, connect only one of
either VGAIN or HDMI IN todisplay the VGAon theTV.
If the graphic cardon thecomputer doesoutput analogand digital RGB simultaneously, setthe TVto eitherVGAor
HDMI ; (theother mode isset to Plugand Play automaticallyby theTV.)
3. Then,make thecorresponding audioconnection. Ifusing asound card,adjust the VGA sound as required.
How touse
1. Turnon the computerand theTV.
2. UseINPUT onthe remotecontrol toselect VGAor HDMIsource.
3. Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or
brightness in VGAmode. If noiseis present, changethe VGAmode to anotherresolution, change therefresh rate to
another rate oradjust the brightnessand contrast onthe menu untilthe picture isclear. Ifthe refresh rateof the VGA
graphic cardcan notbe changed,change theVGAgraphic cardor consultthe manufacturerof theVGAgraphic card.
Note
1.Use aDVI cable.
2.Avoid keepinga fixed imageon theTV's screen fora long periodof time.The fixed image may becomepermanently
imprinted onthe screen.
3. Thesynchronization inputform forHorizontal andVerticalfrequencies isseparate.
Resolution
Frame
frequency
(Hz)
VGA
SVGA
XGA
640x480 60Hz
800x600 60Hz
1024x768
60Hz
Mode Resolution
75Hz
Connecting a computer
75Hz

When the source device(DVD player or Set Top Box) supports HDMI
How To Connect
1. Connect thesource device toHDMI port of this TV with an HDMI cable(notsupplied with thisproduct).
2. No separatedaudio connection isnecessary.
How To Use
If the source device supports Auto HDMI function, the output resolution of the source device will be automatically
set to 1280x720p.
If the source device does not support Auto HDMI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.
Select HDMI input source in input source option of Select Main source menu.
When the source device(DVD playeror Set Top Box) supports DVI
How To Connect
1. Connect thesource device toHDMI port of this TV with a HDMI-to-DVI cable(not supplied withthis product).
2. Aseparated audio connection is necessary.
3. If the source device has an analog audio output connector, connect the source device audio output to DVI Audio
In port locatedon the leftside of HDMI port.
How To Use
If the source device supports Auto DVI function, the output resolution of the source device will be automatically
set to 1280x720p.
If the source device does not support Auto DVI, you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of the source device to 1280x720p.
Press the INPUT button to select HDMI input source in input source option of Select Main source menu.
5-2 HDMI and DVI input
