Read This Manual
Inside you will find many helpful hints on how
to use and maintain your air conditioner properly.
Just a little preventative care on your part can
save you a great deal of time and money over
the life of your air conditioner. You'll find many
answers to common problems in the chart of
troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need
to call for service.
The design andspecifications are subject to change without prior notice for
product improvement. Consultwith the sales agency or manufacturer for details.

1122
CONTENTS
Contact an authorisedservice technician for repair or maintenance of this unit.
Contact the authinstallerfor installation of this unit.
This appliance isnot intended foruse by persons(including children) with reduced
physical, sensory ormental capabilities, or lack of experience and knowledge, unless
they have beengiven supervision or instruction concerning use of the appliance by a
person responsible fortheir safety.
Youngchildren should be supervised to ensure that they do not play withthe
air conditioner.
If the powercord is to be replaced, replacement work shall be performed by
authorised personnel only.
Installation work mustbe performed in accordance with the national wiring
standards by authorisedpersonnel only.
CAUTION
SOCIABLE REMARK
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can
be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least
free of charge.
C) The manufacture will take back the old appliance for disposal at least free of
charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal
dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food
chain.
When using this air conditioner in the European countries, the following
informations must be followed:
SOCIABLE REMARK
SAFETY PRECAUTIONS
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
OPERATION TIPS
TROUBLESHOOTING TIPS
Sociable remark...........................................................................................................2
Warning ......................................................................................................................3
Caution .......................................................................................................................4
Parts names ........... ...................................................................................................5
Special functions ........................................................................................................6

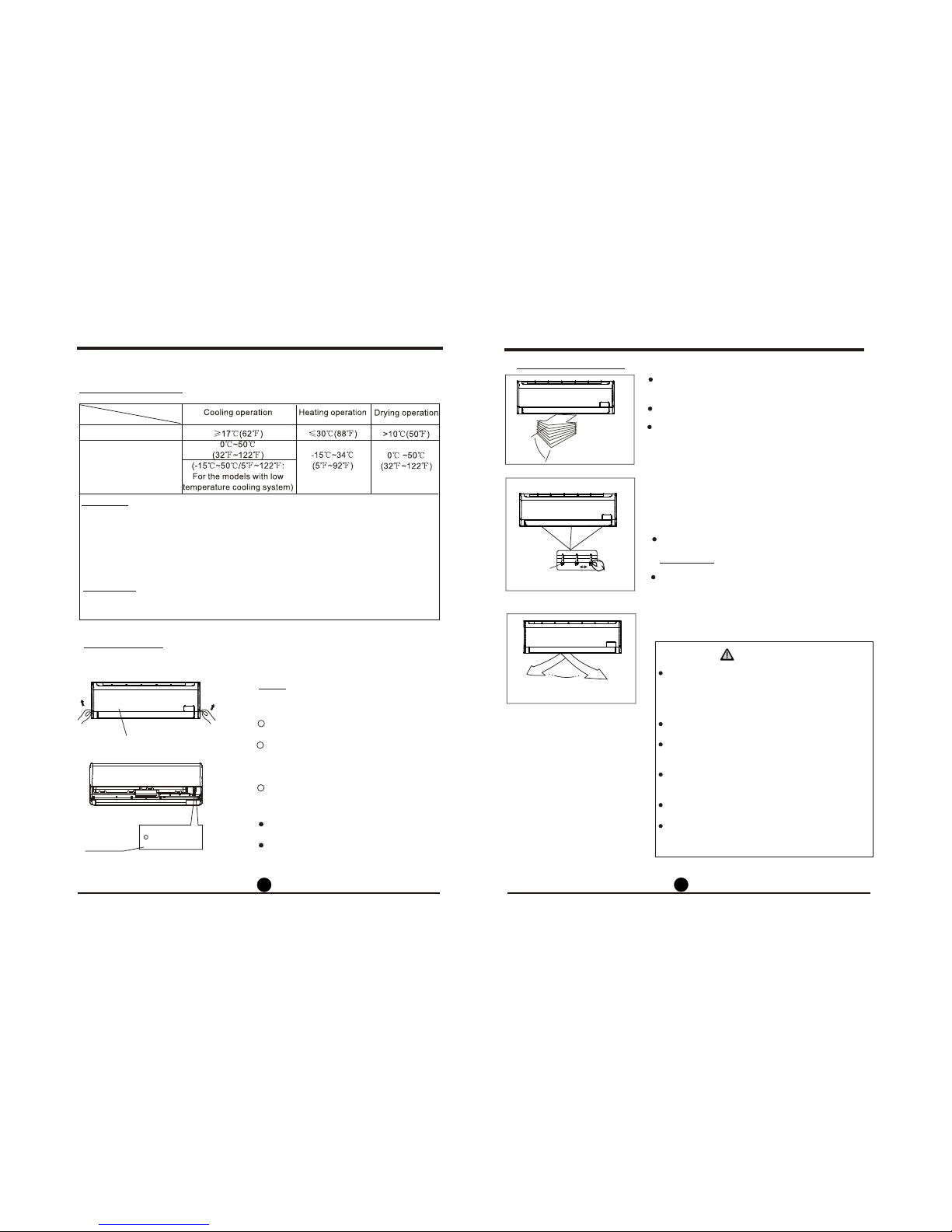

Operating temperature.................................................................................................7
Manual operation ........................................................................................................7
Airflow direction control ...............................................................................................8

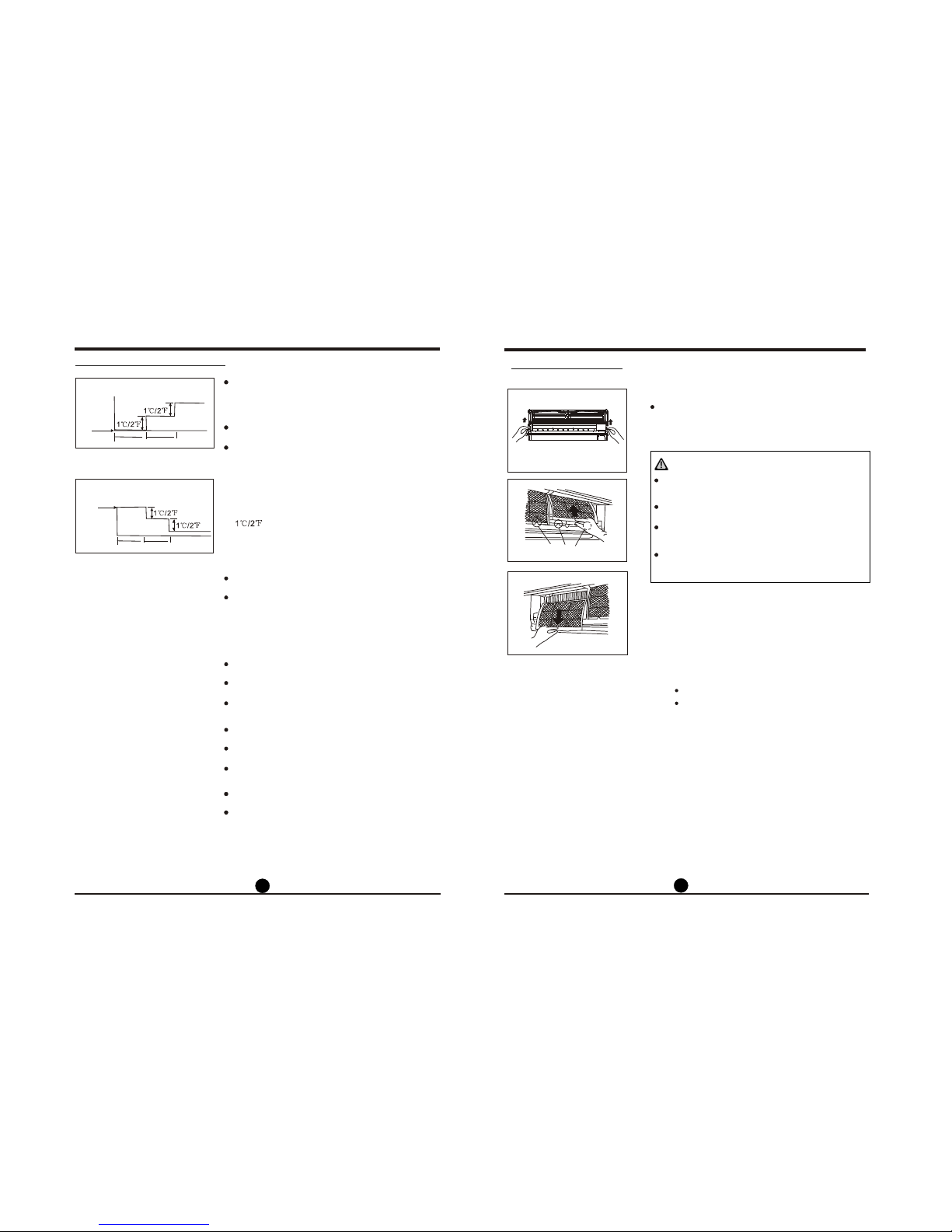

How the air conditioner works .......................................................................................9

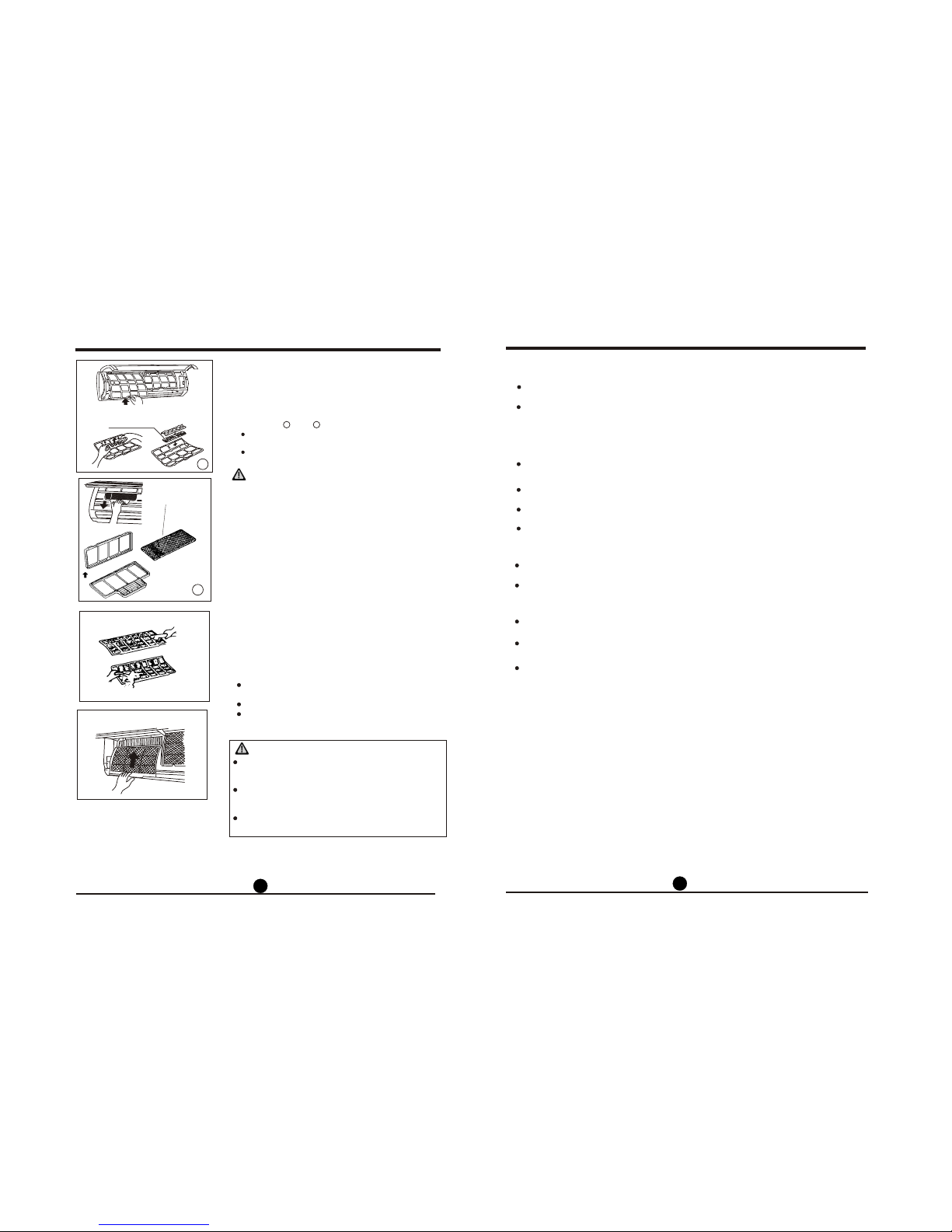

Care and maintenance ...............................................................................................10
Operation tips ............ ...............................................................................................12
Troubleshooting tips ..................................................................................................14

3344
SAFETY PRECAUTIONS
To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
WARNING
Always do this.
Never do this.
CAUTION This symbol indicates the possibility of injury or damage to property.
Connect with the power
properly.
Do not modify power cord
length or share the outlet
with other appliances
Always ensure effective
earthing.
Disconnect the power if
strange sounds, smell, or
smoke comes from it.
Ventilate room before operating air
conditioner if there is a gas leakage
from another appliance.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock
or fire due to heat generation.
No earthing may cause
electric shock.
It may cause fire and
electric shock.
It may cause explosion, fire and, burns.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of
machine or electric shock.
It contains contaminants and
could make you sick.
It may cause fire and
electric shock.
It may cause electric shock
or fire.
This could damage your
health.
No installation may cause
fire and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and
electric shock.
Do not operate or stop the
unit by switching on or off
the power.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not drink water drained
from air conditioner.
Do not use the power cord
close to heating appliances.
Do not damage or use an
unspecified power cord.
Do not direct airflow at
room occupants only.
Always install circuit
breaker and a dedicated
power circuit.
Do not open the unit
during operation.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
Do not disassemble or
modify unit.
!!
!!!!
!!
!!
WARNING
Use the correctly rated
breaker or fuse.
There is risk of fire or
electric shock.
!!
SAFETY PRECAUTIONS
CAUTION
When the air filter is to be
removed, do not touch the
metal parts of the unit.
It may cause an injury.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Stop operation and close
the window in storm or
hurricane.
Use caution when unpacking
and installing. Sharp edges
could cause injury.
Do not clean the air
conditioner with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or
plant.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Ventilate the room well
when used together
with a stove, etc.
An oxygen shortage
may occur.
Do not use this air cond-
itioner to preserve preci-
sion devices, food, pets,
plants, and art objects.
It may cause deterioration
of quality, etc.
It may cause failure of
product or fire.
Do not use for
special purposes.
Turn off the main power
switch when not using
the unit for a long time.
If water enters the
unit, turn the unit off
and disconnect the
power , contact a
qualified service
technician.
!!
!!
!!
!!
!!
It may cause failure of
appliance or accident.
Appearance may be
deteriorated due to change
of product color or
scratching of its surface.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Do not use strong detergent
such as wax or thinner. Use
a soft cloth for cleaning.
If bracket is damaged, there
is concern of damage due to
falling of unit.
There is danger of fire or
electric shock.
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
Do not place heavy object on the
power cord and take care so that
the cord is not compressed.
Operation without filters
may cause failure.
Always insert the filters
securely. Clean filter
once every two weeks.
!!
!!
!!

5566
Parts names
OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS
Indoor unit
NOTE:
All the pictures in this manual are for
explanation purpose only. Your air
conditioner may be slightly different.
The actual shape shall prevail.
1. Front panel
2. Air inlet
3. Air filter(under the panel)
4. Air outlet
5. Horizontal air flow grille
6. Vertical air flow louver(inside)
7. Display panel
8. Connecting pipe, drain hose
9. Connective cable
10. Connecting pipe
11. Stop valve
Indoor unit
Outdoor unit
8
NOTE: The indoor unit you purchased would like one of the following. There is a slightly
difference on front panel and display window, but the features are the same.
9
10
11
Outdoor unit
Air inlet(rear)
Air inlet(side)
Air outlet
(A)
(B)
4
3
5
2
7
1
6
defrost
timer
auto
run
timer
auto
ion
def.
Frequency display:
This display is separated into five zones.
The zones illuminate based on the
compressor current frequency.For example,
higher frequency will illuminate more zones.
Indicator Lights on Display panel
NOTE:The display panelof the indoor
unit you purchasedmay be look like
one of thefollowing:
11
Signal
receptor
234
defrost
timer
auto
run
timer
auto
ion
def.
(A)
(B)
(C )
run ion timer def.
Auto indicator:
This indicator illuminates when the air
conditioner is in AUTO operation.
Timer indicator:
This indicator illuminates when TIMER
is set ON/OFF.
Defrost Indicator
(For cooling& heating model only):
This indicator illuminates when the air
conditioner starts defrosting automatically
or when the warm air control feature is
activated in heating operation.
DIGITAL DISPLAY:
Displays the current setting temperature
and malfunction/protection code when the
air conditioner is in operation.
1
2
3
4
Ion Indicator
Lights up when Ion feature is activated and
Ionizer can generate abundant anions to fill
the room with refreshing and natural air.
NOTE: This function is only available for
air conditioner adopts Ionizer.
run
ion
timer
def.
AUTO indication lamp
Lights up during the Auto operation.
RUN indication lamp
This lamp illuminates when the air
conditioner is in operation.
TIMER indication lamp
Lights up during Timer operation.
Ion indication lamp(optional function)
Lights up when CleanAir feature is
activated and Ionizer can generate
abundant anions to fill the roomwith
refreshing and natural air.
DEFROST indication lamp
(For cooling & heating models only):
Lights up when the air conditioner starts
defrosting automatically or when the warm
air control feature is activated in heating
operation.

7788
OPERATING INSTRUCTIONS
Airflow direction control
Adjust theair flow direction properly otherwise, it
might cause discomfortor cause unevenroom
temperatures.
Adjust thehorizontal louver using the remote
controller.
Adjust thevertical louver manually.
Toset the verticalair flow(Up--Down) direction
Perform this functionwhile the unitis in operation.
Use the remotecontroller to adjustthe air flow
direction. The horizontallouver can bemoved at
a range of6O for each press, or swing up and down
automatically. Pleaserefer to the REMOTE
CONTROLLER OPERATIONMANUAL fordetails.
Toset the horizontal air flow direction (left - right)
Move the verticallouver manually to adjust the air
flow in thedirection you prefer.
IMPORTANT: Before adjusting the vertical louvers,
the supply powermust be disconnected.
For some models,the vertical louvercan be adjusted
by using theremote controller. Please refer to the
REMOTE CONTROLLER OPERATION MANUAL
for details.
Do not operate the air conditioner for long periods with
the air flow direction set downward in cooling or
dehumidifying mode. Otherwise, condensation may
occur on the surface of the horizontal louver causing
moisture to drop on to the floor or on furnishings.
Do not move the horizontal louver manually unless it is
necessary. Always use the remote controller.
When the air conditioner is started immediately after it
was stopped, the horizontal louver might not move for
approximately 10 seconds.
Open angle of the horizontal louver should not be set
too small, as COOLING or HEATING performance may
be impaired due to too restricted air flow area.
Do not operate unit with horizontal louver in closed
position.
When the air conditioner is connected to power (initial
power), the horizontal louver may generate a sound for
10 seconds, this is a normal operation.
CAUTION
,,
,,
,,
,,
Manul operation can be used temporarily in case the remote controller is disable or
maintenance necessary.
OPERATING INSTRUCTIONS
Manual operation
Manual control
button
Panel
AUTO/COOL
Range
Range
Vertical
louver
(three places)
NOTE: This manualdoes not include Remote Controller Operations, see the
<<Remote Controller Instruction>> packed with the unit for details.
Operating temperature
Mode
Temperature
Room temperature
Outdoor temperature
1. If air conditioner is used outside of the above conditions, certain safety protection
features may come into operation and cause the unit to function abnormally.
2. Room relative humidity less than 80%. If the air conditioner operates in excess of this
figure, the surface of the air conditioner may attract condensation. Please sets the vertical
air flow louver to its maximum angle (vertically to the floor), and set HIGH fan mode.
3. Optimum performance will be achieved within these operating temperature.
Suggestion: For the unit adopts an Electric Heater, when the outside ambient temperature
OO
is below 0 C(32 F), we strongly recommend you tokeep the machine plugged in orderto
guarantee it running smoothly.
CAUTION:
Open and lift the front panel up to an angle
until it remains fixed with a clicking sound.
One press of the manual control button will
lead to the forced AUTO operation. If press
the button twice within five seconds, the unit
will operate under forced COOL operation.
Close the panel firmly to its original
position.
This button is used for testing purposes
only. You had better not choose it.
To restore the remote controller operation,
use the remote controller directly.
CAUTION:
1
3
2
NOTE: The unit mustbe turned offbefore
operating the manualcontrol button. If the
unit is operational,continue pressing the
manual control buttonuntil the unit is off.

991010
Cleaning the Grille, Case and Remote Controller
Acloth dampened withcold water may be used
on the indoorunit if it is very dirty. Then wipeit
with a drycloth.
Do not usea chemically treated cloth or duster to
clean the unit.
Do not usebenzine, thinner, polishing powder, or
similar solvents forcleaning. These maycause
the plastic surfaceto crack or deform.
Never use waterhotter than 40OC/104OFto clean
the front panel,it could cause deformation of
discoloration.
CAUTIONS
CARE AND MAINTENANCE
Care and maintenance
Turn the system off before cleaning. To clean, wipe
with a soft,dry cloth. Do not use bleach or abrasives.
NOTE: Supply power must be disconnectd before
cleaning the indoor unit.
Filter Handle
Cleaning the airfilter
A cloggedair filter reduces the cooling efficiencyof
this unit. Pleaseclean the filter once every 2 weeks.
1. Lift theindoor unit panel up to an angle until it
stops with aclicking sound.
2. Take hold of the handle ofthe air filterand lift it
up slightly totake it out from the filter holder,
then pull itdownwards.
3. Remove theAIR FILTER from theindoor unit.
Clean theAIR FILTERonce two weeks.
Clean theAIR FILTERwith a vacuumcleaner
or water,then dry itup in coolplace.
OPERATING INSTRUCTIONS
How the air conditioner works
1 hour
1 hour
Set
Temperature
Set
Temperature
Cooling
Heating
SLEEP operation
1 hour 1 hour
SLEEP operation
7 hours timer off
7 hours timer off
AUTO operation
When you set the air conditioner in AUTO mode, it will
automatically select cooling, heating(cooling/heating
models only), or fan only operation depending on what
temperature you have selected and the room
temperature.
The air conditioner will control room temperature
automatically round the temperature point set by you.
If the AUTO mode is uncomfortable, you can select
desired conditions manually.
SLEEP operation
When you push SLEEP button on remote controller
during cooling, heating(cooling & heating models only),
or AUTO operation , the air conditioner will
automatically increase (cooling) or decrease (heating)
per hour for the first 2 hours, then hold
steady for the next 5 hours, after that it will switch off.
This characteristic maintains both enery saving and
comfort in night operation.
DRYING operation
The fan speed will be automatically controlled under
dry operation.
During the dry operation, if the room temperature is
OO
lower than 10 C(50 F), the compressor stops operation
and restarts until the room temperature is above
OO
12 C(54 F).
Optimal operation
To achieve optimal performance, please note the
following:
Adjust the air flow direction correctly so that it is not
directed on people.
Adjust the temperature to achieve the highest comfort
level. Do not adjust the unit to excessive temperature
levels.
Close doors and windows on COOL or HEAT modes,
or performance may be reduced.
Use TIMER ON button on the remote controller to
select a time you want to start your air conditioner.
Do not put any object near air inlet or air outlet, as the
efficiency of the air conditioner may be reduced and
the air conditioner may stop running.
Clean the air filter periodically, otherwise cooling or
heating performance may be reduced.
Do not operate unit with horizontal louvre in closed
position.

1111 1212
OPERATION TIPS
The following eventsmay occur during normal operation.
1. Protection ofthe air conditioner.
Compressor protection
The compressor can'trestart for 3minutes after itstops.
Anti-cold air (Cooling and heating models only)
The unit isdesigned not toblow cold airon HEATmode, when theindoor heat
exchanger is inone of the following three situations and the set temperature has not
been reached.
A) Whenheating has juststarting.
B) Defrosting.
C) Low temperatureheating.
The indoor oroutdoor fan stoprunning when defrosting(Cooling and heating models
only).
Defrosting (Cooling and heatingmodels only)
Frost may begenerated on the outdoor unit during heat cycle when outdoor temperature
is low andhumidity is high resulting in lower heating efficiency of the air conditioner.
During this conditionair conditioner will stop heating operation and start defrosting
automatically.
The time todefrost may varyfrom 4 to10 minutes accordingto the outdoor temperature
and the amountof frost build up on the outdoor unit.
2. Awhite mist comingout from theindoor unit
Awhite mist may generate due to a large temperature difference between air inlet and
air outlet onCOOL mode in an indoor environment that has a high relativehumidity.
Awhite mist may generate due to moisture generated from defrosting process when
the air conditionerrestarts in HEAT mode operationafter defrosting.
3. Low noiseof the air conditioner
Youmay hear a low hissing sound when the compressor is running or has just stopped
running. This soundis the soundof the refrigerantflowing or comingto a stop.
Youcan also hear a low "squeak" sound when the compressor is running or has just
stopped running. Thisis caused byheat expansion andcold contraction ofthe plastic
parts in theunit when thetemperature is changing.
Anoise may be heard due to louver restoring to its original position when power is first
turned on.
4. Dust isblown out from the indoor unit.
This is anormal condition whenthe air conditionerhas not been used for a long time or
during first useof the unit.
5. Apeculiar smell comesout from theindoor unit.
This is causedby the indoorunit giving offsmells permeated frombuilding material, from
furniture, or smoke.
6. The airconditioner turns toFAN onlymode from COOLor HEAT(For cooling and
heating models only)mode.
When indoor temperaturereaches the temperaturesetting on air conditioner, the
compressor will stopautomatically, andthe air conditioner turns to FAN only mode. The
compressor will startagain when the indoor temperature rises on COOL mode or fallson
HEAT mode (For cooling and heating models only) to the set point.
CARE AND MAINTENANCE
Maintenance
Checks before operation
If you planto idle the unit for a long time, perform
the following:
(1) Operate thefan for about half a day to dry the
inside of theunit.
(2) Stop theair conditioner and disconnect power.
Remove the batteriesfrom the remote controller.
(3) The outdoorunit requires periodic maintenance
and cleaning. Donot attempt todo this yourself.
Contact your dealeror servicer.
Check that thewiring is not broken off or
disconnected.
Check that theair filter is installed.
Check if theair outlet orinlet is blocked after the
air conditioner hasnot been used for a long time.
Do not touchthe metal parts of the unit when
removing the filter. Injuries canoccur when
handling sharp metaledges.
Do not usewater to clean inside the air conditioner.
Exposure to watercan destroy the insulation,
leading to possibleelectric shock.
When cleaning theunit, first make sure that the
power and circuitbreaker are turned off.
Caution
Air freshening filter
Air freshening filter
1
2
4. Remove the Air FresheningFilter from its support
frame (on somemodels).
(The optional filterinclude :Plasma Dust Collector/
Silver Ion filter/Bio filter /Vitamin C filter/3M air
purifier filter,etc. The removing and installation
methods are slightlydifferent, see the pictures
marked and onthe left.
Clean the air freshening filter atleast once a
month, and replaceit every 4-5 months.
Clean it with vacuum cleaner,then dry it in cool
place.
5. Install theair freshening filter back into position.
6. Insert theupper portion of air filter back into the
unit, taking carethat the leftand right edges line
up correctly andplace filter into position.
12
Do not touchthe Plasma Dust Collector
Filter within 10minutes after opening the
front panel, itmay cause an electric shock.

1313
TROUBLESHOOTING TIPS
Troubleshooting Tips
Stop the air conditioner immediately if one of the following faults occur. Disconnect the
power and contact the nearest customer service center.
Fuse blows frequently or circuit breaker trips frequently.
Other objects or water penetrate the air conditioner.
The remote controller won't work or works abnormally.
Trouble
Malfunctions
Unit does not
start
Unit not cooling
or heating
(Cooling/ heating
models only)
room very well
while air flowing
out from the air
conditioner
Cause
Power cut
Unit may have become unplugged.
Fuse may have blown.
Battery in Remote controller may
have been exhausted.
The time you have set with timer
is incorrect.
Wait for power to be restored.
Check that plug is securely in wall
receptacle.
Replace the fuse.
Replace the battery.
Wait or cancel timer setting.
Set temperature correctly. For
detailed method please refer to
"Using remote control" section.
Clean the air filter.
Close the doors or windows.
Clear obstructions away first, then
restart the unit.
Wait.
Inappropriate temperature
setting.
Air filter is blocked.
Doors or Windows are open.
Air inlet or outlet of indoor or
outdoor unit has been blocked.
Compressor 3 minutes
protection has been activated.
If the trouble has not been corrected, please contact a local dealer or the nearest customer
service center. Be sure to inform them of the detailed malfunctions and unit model.
Notes: Do not attempt to repair the unit yourself.
Always consult an authorised service provider.
What should be done?
7. Dripping water may generate on the surface of the indoor unit when cooling in a high
relatively humidity (relative humidity higher than 80%). Adjust the horizontal louver to
the maximum air outlet position and select HIGH fan speed.
8. Heating mode (For cooling and heating models only)
The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit
during heating operation. When the outdoor temperature falls, heat drawn in by the air
conditioner decreases accordingly.At the same time, heat loading of the air conditioner
increases due to larger difference between indoor and outdoor temperature. If a
comfortable temperature can't be achieved by the air conditioner, we suggest you use a
supplementary heating device.
9. Auto-restart function
Power failure during operation will stop the unit completely.
For the unit without Auto-restart feature, when the power restores, the OPERATION indicator
on the indoor unit starts flashing. To restart the operation, push the ON/OFF button on the
remote controller. For the unit with Auto-restart feature, when the power restores, the unit
restarts automatically with all the previous settings preserved by the memory function.
For some models, the machine is special designed with Auto-restart function for the open
angle of the horizontal louver.Power failure during operation or pressing the ON/OFF button
on the remote controller will stop the unit completely.When the power restores or pressing
the ON/OFF button on the remote controller again,the unit restarts automatically with all the
previous settings including the open angle of the horizontal louver by the memory function.
So we strongly suggest that the open angle of the horizontal louver should not be set too
small,in case the condensed water forms and drops from the horizontal louver. Press the
AUTO/COOL button under the front panel and the open angle of the horizontal louver will be
restored to the standard angle when the condensed water forms on the horizontal louver.
10. Lightning or a car wireless telephone operating nearby may cause the unit to malfunction.
Disconnect the unit with power and then re-connect the unit with power again. Push the
ON/OFF button on the remote controller to restart operation.
OPERATION TIPS
If the following code appears on the LED window, disconnect the power and contact
the service people: E0,E1,E2,E3,E4,E5,E6,E7,E8 or P0,P1,P2,P3,P4, P6.
Operaton indicator or other indicators flash rapidly and this flash can not be
stopped by disconnecting the power and then connecting it in again.
1212
