Harman Kardon Harman-Kardon HKTS 2 User manual

Harman/Kardon Incorporated
250 Crossways Park Dr.
Woodbury, New ork 11797
Rev512/2004
HKTS 2

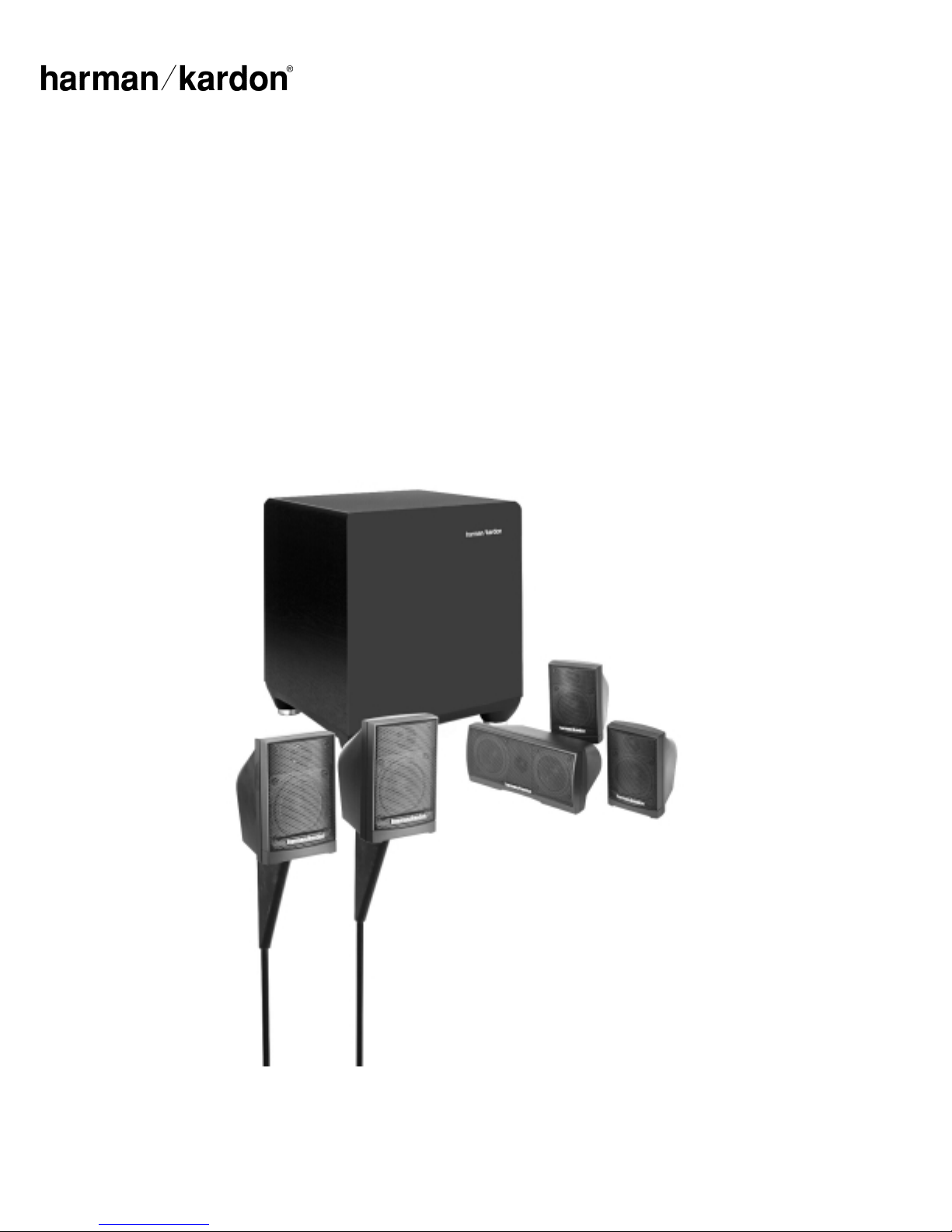

Home Theater Speaker System
SERVICE MANUAL

TABLE OF CONTENTS
BASIC SYSTEM SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . .3
DETAILED HKTS 2 SPECIFICATIONS . . . ……………………. . . .4
CONNECTIONS . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . .5
OPERATION . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . .8
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . .9
MECHANICAL/PACKAGING PARTS LIST . . . . . . . . . . . . . . . . . .10
EXPLODED VIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

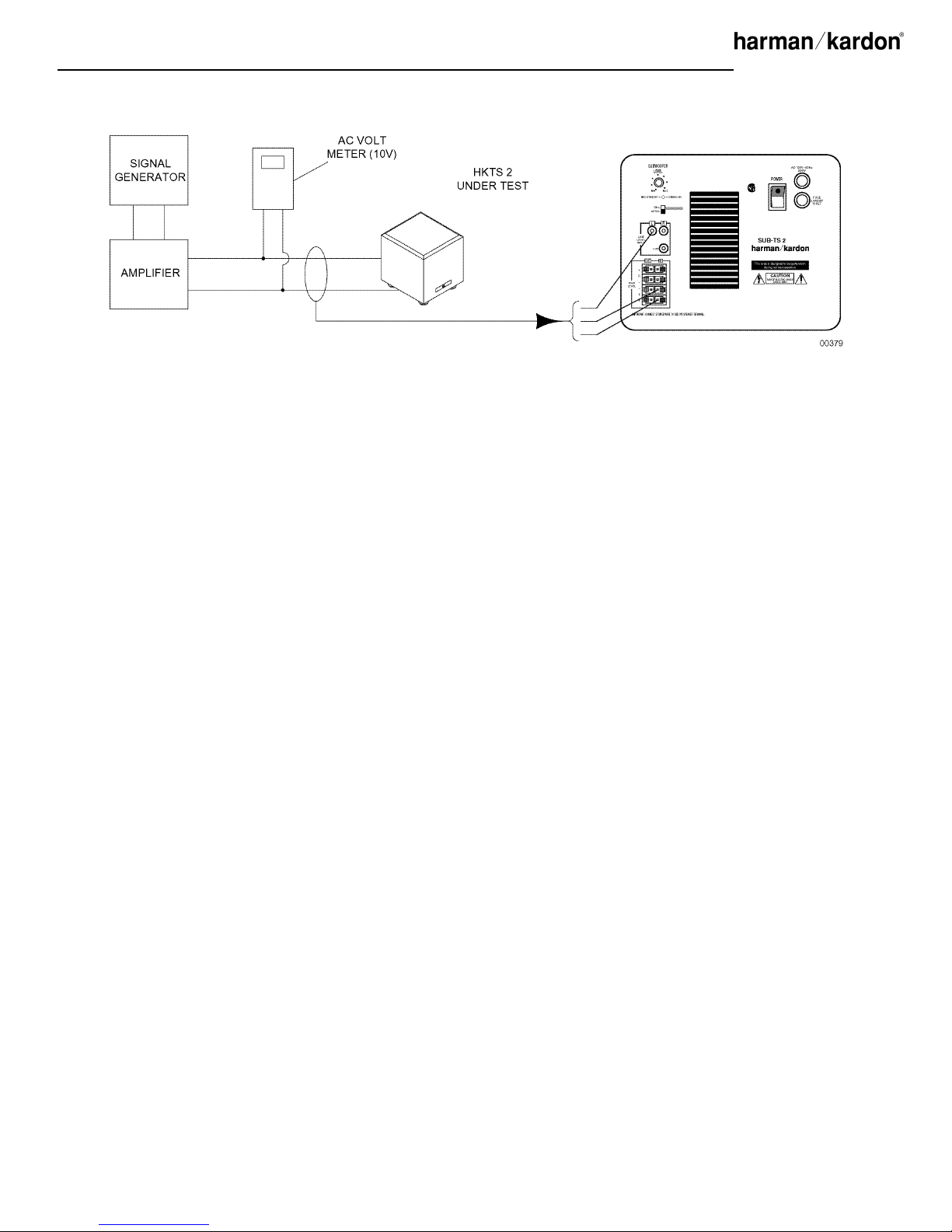

TEST SET UP and PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . .12
PACKAGING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
ELECTRICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
INTEGRATED CIRCUIT DIAGRAMS . . ................................. . . . .17

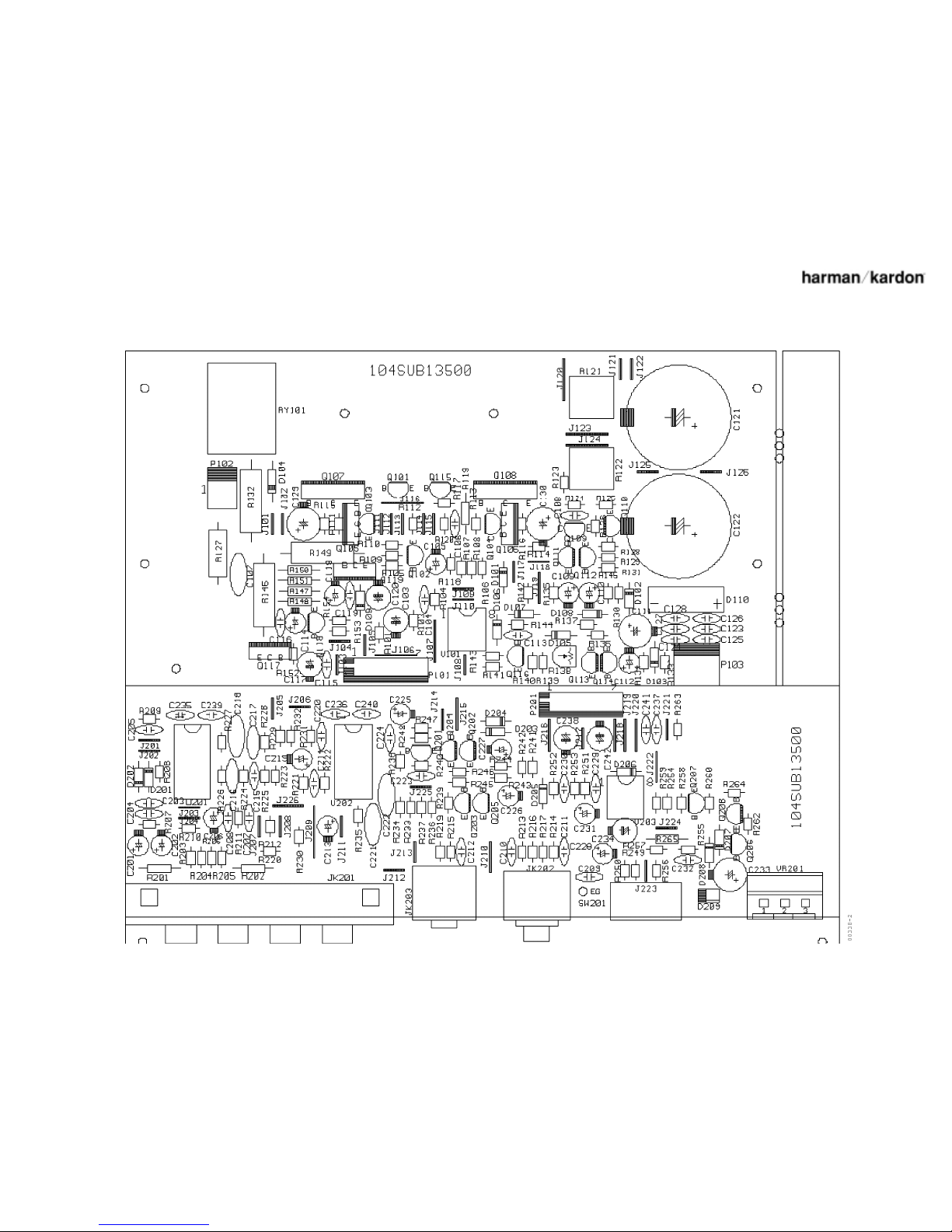

PRINTED CIRCUIT BOARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
SCHEMATIC . . . . . . . . . …………………………………………. . . .22
HKTS 2
2

HKTS 2
3
HKTS 2 SYSTEM
Frequency Response 35Hz - 20kHz (-6dB)
Satellites
Recommended Power 10 - 50 watts
Impedance 8 ohms nominal
Sensitivity 86dB @ 1 watt/1 meter
Tweeter One 1/2" titanium-laminate dome, video-shielded
Midrange One 3" driver, video-shielded
Dimensions (H x W x D) 4-5/8" x 3-1/8" x 3-3/4"
117mm x 79mm x 93mm
Weight 1.1lb/0.5kg
Center Channel
Recommended Power 10 - 50 watts
Impedance 8 ohms nominal
Sensitivity 86dB @ 1 watt/1 meter
Tweeter One 1/2" titanium-laminate dome, video-shielded
Midrange Dual 3" drivers, video-shielded
Dimensions (H x W x D) 3-1/2" x 7-5/8" x 3-3/4"
89mm x 194mm x 95mm
Weight 1.89 lb/0.86kg
SUB-TS 2 Subwoofer 100 watts RMS
10" woofer, bass-reflex enclosure
Dimensions (H x W x D) 18 1/4" x 15 3/4" x 16 3/4"
464mm x 400mm x 425mm
Weight 35.8 lb/16.2kg
Refinements may be made on occasion to existing products without notice, but will always meet or
exceed original specifications unless otherwise stated.
Specifications

HKTS 2
4
SUB-TS2 Detailed Specifications

HKTS 2
5

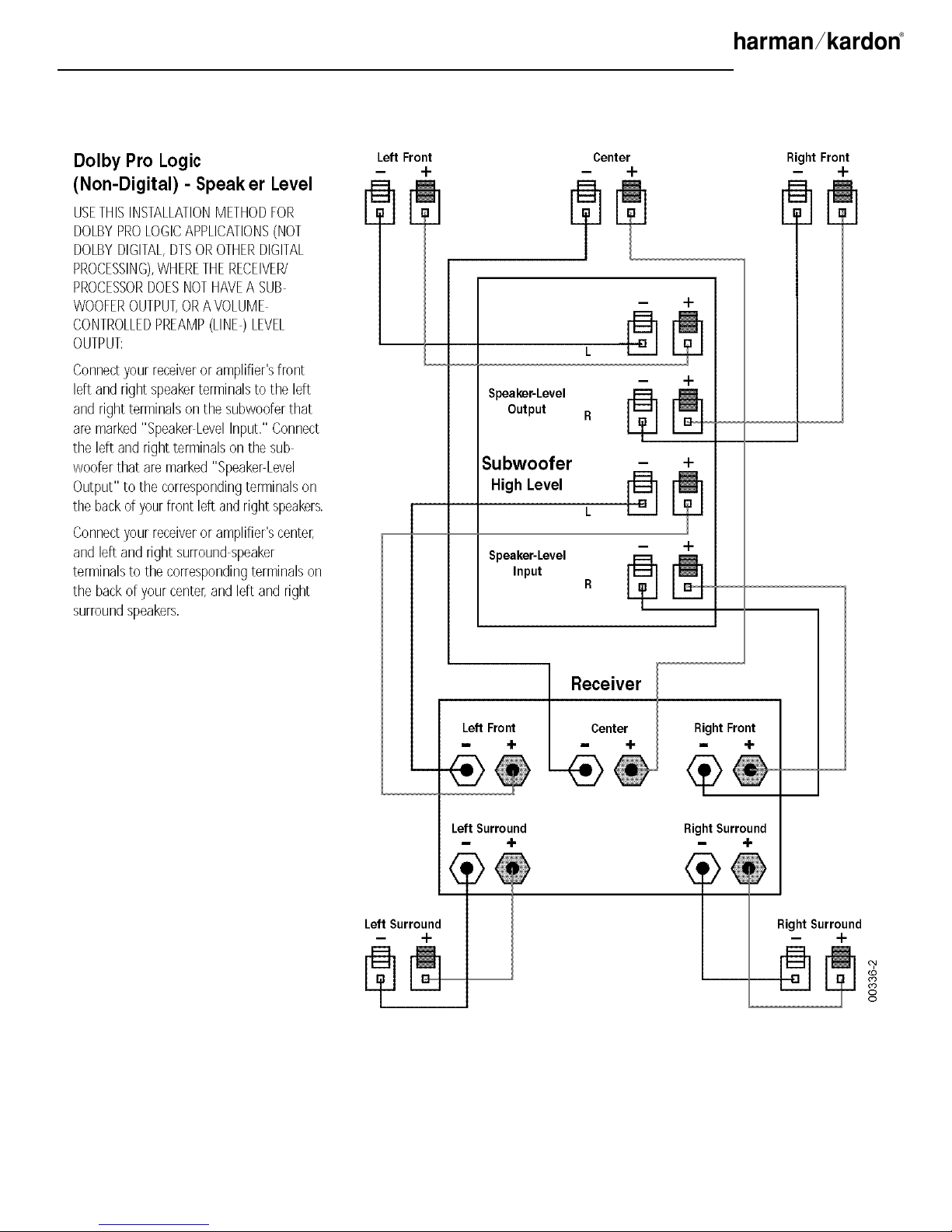

Connections

HKTS 2
6
Connections (Cont.)

HKTS 2
7
Connections (Cont.)

HKTS 2
8
Operation

HKTS 2
9
Tro bleshooting

HKTS 2
10
Mechanical/Packaging Parts List
SUB-TS-2
Amplifier assembly N/A
10" 4 ohm woofer 25MF10DZB-DW01
Cushion for Foot (4) WI5307
Plastic Foot (4) WI5321
Plastic base X105000
SAT-TS2
Satellite, Complete HKTS2/SAT
Woofer N68A45PF-02DW
Grille G255002
Grille Logo SZ5322
Rear foot WI0782
Wall bracket WI0408
Support mural WI0409
CEN-TS2
Center Channel, Complete HKTS2/CENTER
Woofer 22PF45NA-HW01
Grille G255003
Grille Logo SZ5371

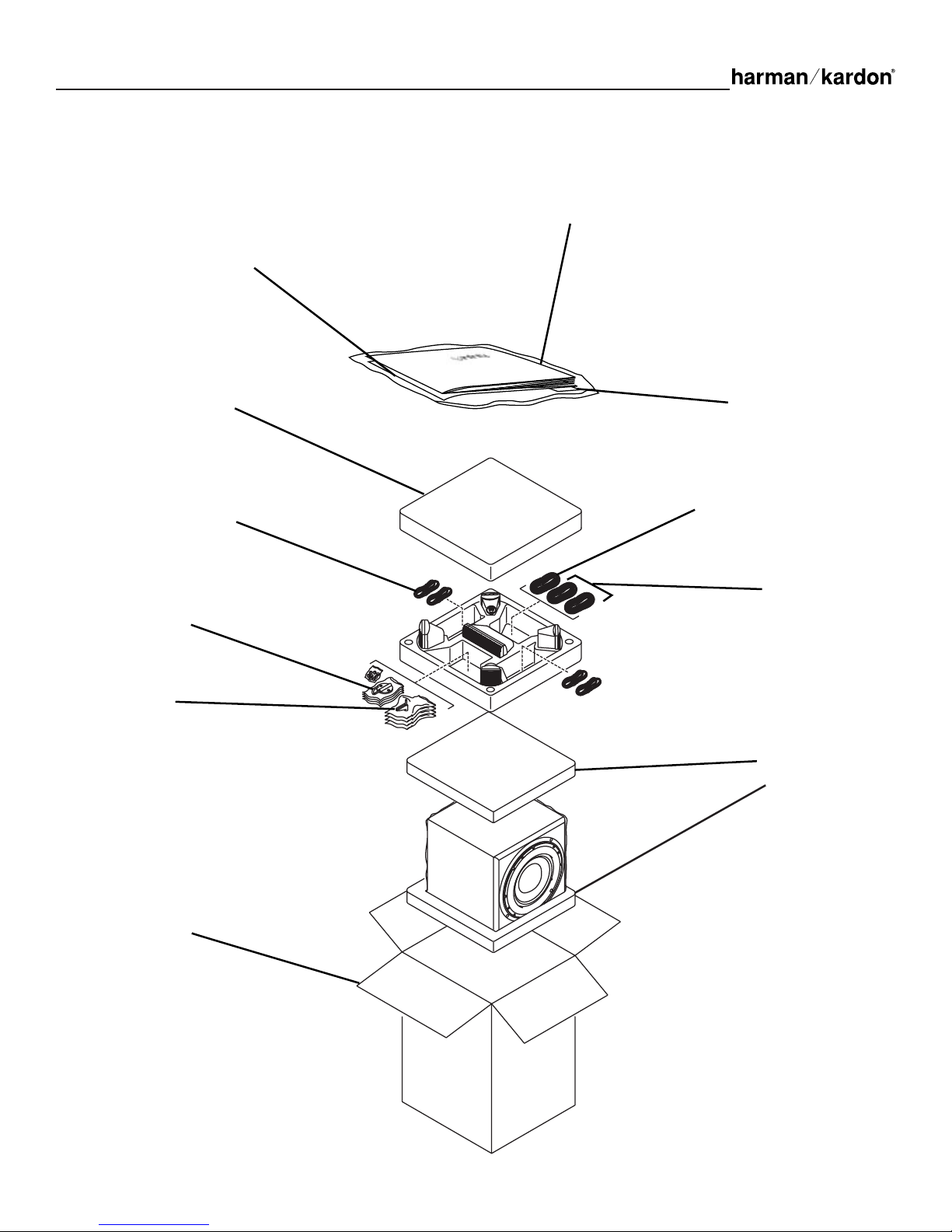

Packaging
Owner's manual AI5083
Warranty card AT5073
Outer carton WB5710
Subwoofer styrofoam WP5120
Styrofoam Set for Satellites WP5119
20’ Wire set (Sub in/out) SAL063-1
40’ Wire set (surround) SAL5009
15’ Wire set (sats & center) SAL5020
OPTIONAL: Floor Stands for SAT-TS2 satellites - FSTS1
