Hartmann CARIBBEAN SQUARE PARASOL User manual

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.
For replacement or lost spare parts please go to http://faq.hartmanuk.co.uk/spares/
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
ATTENTION:
1. Please read these instructions carefully before assembly
2. Aluminium is soft metal and over tightening may strip thread or break the part
3. Please allow 45 minutes for assembly.
4. Assembly will require 2 people
Care for the canopy:
•Simply clean the umbrella canopy with a soft brush and mild detergent.
•Do not machine wash or machine dry.
•Do not iron.
•Air-dry the canopy thoroughly in an open position before storing for extended periods of time.
IMPORTANT! Always close/put down the parasol when not in use. Do not use or assemble the parasol in heavy winds, rain, thunderstorms or if it’s
snowing. In these weather conditions, we recommend to fold down or disassemble the parasol. Disassemble by following the setup steps in this
manual.
IMPORTANT! The parasol must be secured in place using a parasol base. Make sure the ground is level and firm.
IMPORTANT! If the crank gets too hard to turn, check if the rope has come off the pulley. If you continue to turn the crank, the rope or crank
handle could break.
IMPORTANT! Placing the parasol over or near a swimming pool can cause premature fading of the canopy.
WARNING: To prevent damage to parasol, facing the canopy against the wind.
Do not assemble the parasol on sandy, muddy or loose soil.
Keep children and pets away while setting up the parasol.
Children must be supervised around the parasol.
This parasol is for outdoor use only.
Do not light any fires under or near the parasol!
This parasol is primarily intended to be used as a sunshade and not as wind protection.
For more information regarding maintenance of your furniture please visit http://www.hartmanuk.com
Component’s
Component’s
Parts List
Parts Picture
Description
Q’
ty
Component
no.
Parts List
Parts Picture
Description
Q’
ty
Component
no.
A
Cross Base A
1
13402164A
H
Parasol
Frame with
Canopy
1
13402164D
d
Cross Base B
1
13402164B
I
Crank
Handle
2
2100024
C
Support Pole
1
13402164C
J
Blow
Molded
Base 1
1
2100027
D
Bolts
4
2100021
K
Blow
Molded
Base 2
1
2100027
E
Bolts
2
2002198
L
Wrench
1
2100023
F
Washers
4
2100022
M
Solar Panel
1
2100025
G
Allan Key
1
2100029
N
Cover
1
13402164E
O
Missing Image
Cap
1
2100026

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.
For replacement or lost spare parts please go to http://faq.hartmanuk.co.uk/spares/
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
ASSEMBLY INSTRUCTIONS
CARIBBEAN SQUARE PARASOL (3M SQUARE)
(13502164)

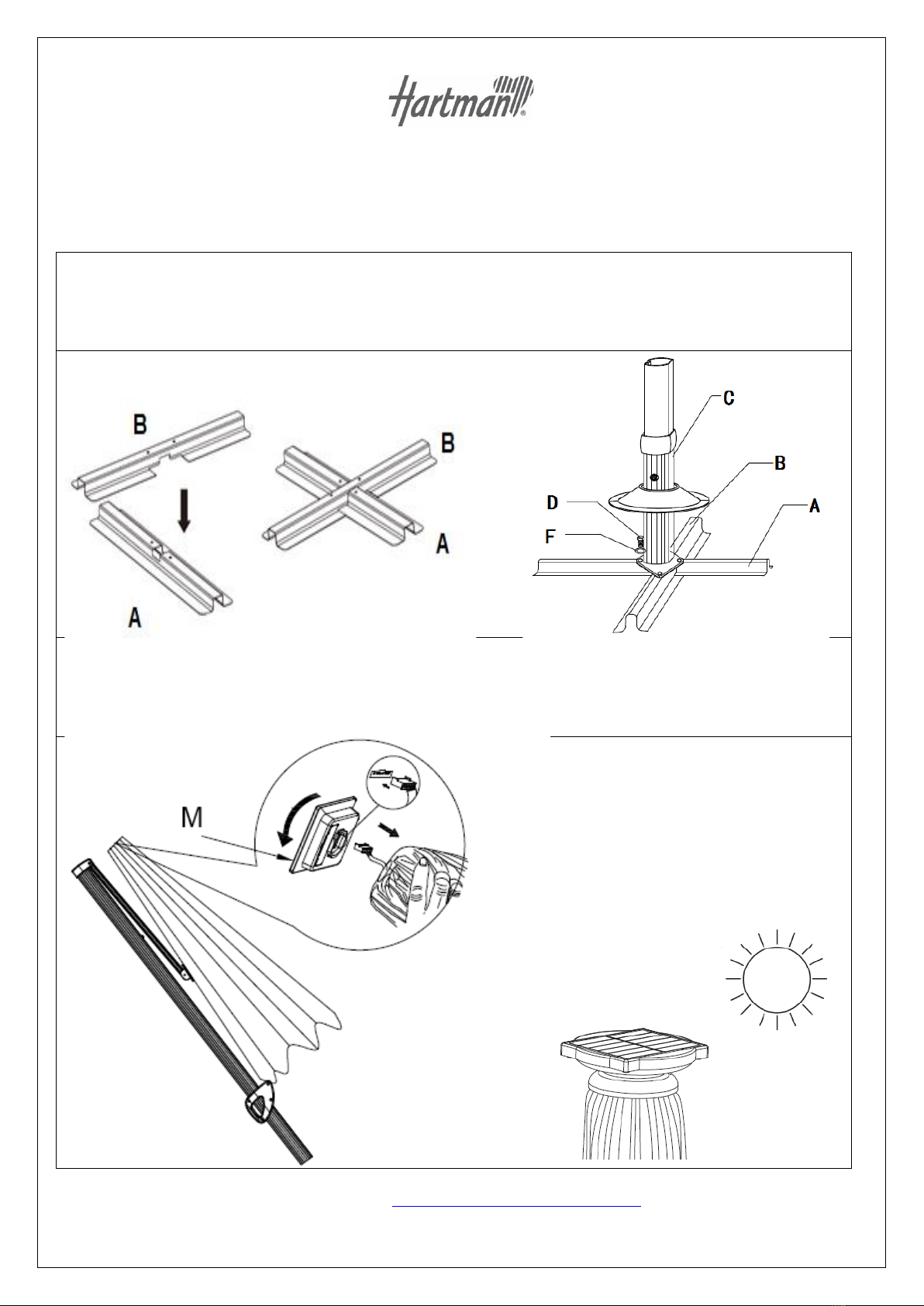

Step 1
Place Cross Base(A) on a soft surface, line up notches and place Cross Base(B) over Cross Base(A).
Then attach the Support Pole (C) to the Cross Base by using the Bolts (D) and Washers (F) (found in
blister pack), hand tighten first. Adjust the Support Pole (C) to be sure it is positioned correctly on the
base and finally tighten all bolts by using Wrench (L). Be careful not to over tighten.
Step 2
Find the plug at the top of the parasol. Insert the plug into the socket under the Solar Panel (M) as
shown.
Put the solar panel on the top of the parasol and hide the plug and wire inside the groove at the top of
parasol. Then turn the solar panel clockwise.

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.
For replacement or lost spare parts please go to http://faq.hartmanuk.co.uk/spares/
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
CAUTION:
YOU MUST CHARGE BATTERY BEFORE FIRST USE. Please note that battery can discharge if they are
left unused or uncharged for a long period of time. Since there can be a six-month period between
production and final customer purchase, we recommend you charge your solar parasol for at least 8
hours in direct sunlight before the first use. Failure to charge the battery will result in premature
dimming of the lights in your new solar parasol. Make sure the light switch is in the off position when
charging the solar panel. For everyday normal use, turn the light switch on at night when you want to
use the solar light and turn off the switch after use. MAKE SURE THE LIGHT SWITCH IS IN THE OFF
POSITION IN THE DAYTIME FOR THE SOLAR PANEL TO RECHARGE THE BATTERY.
Step 3
Place Blow Molded Base (J & K) on the Cross Base assembly and fill with sand and water, cover with
caps (O).
Step 4
Insert Parasol Frame with Canopy (H) into the Support Pole (C). Slide the Support Pole collar onto the
support pole at the same time. Tighten the two bolts (E) into the Support pole to secure the parasol by
using Wrench (G).

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.
For replacement or lost spare parts please go to http://faq.hartmanuk.co.uk/spares/
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
Step 5
Unfasten the storage straps around the canopy.
Step 6
Insert the Crank Handle (I).
To open the parasol, squeeze the Glide Handle and Lever clamp together and slide up or down the
pole to achieve the desired tilting angle. Release the Lever clamp to lock into place. To open the
canopy, turn the crank handle clockwise until the canopy is fully open.

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.
For replacement or lost spare parts please go to http://faq.hartmanuk.co.uk/spares/
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
Step 7
To rotate parasol, insert the Crank Handle (I) into pole and turn to desired position.
The multiple position canopy can rotate 360° around the axis of the main pole to offer the shade on
your expected area around the parasol.
Press the light switch to turn on/off the solar lights.

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.
For replacement or lost spare parts please go to http://faq.hartmanuk.co.uk/spares/
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
Step 8
Tilt the parasol to the desired angle.
Step 9
To close the parasol, turn the Crank Handle counter clockwise until the canopy is fully closed. Squeeze
the Glide Handle and Lever clamp together, then slide down the pole and release the grip to lock into
place.

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.
For replacement or lost spare parts please go to http://faq.hartmanuk.co.uk/spares/
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.
Step 10
Fasten the storage straps around the canopy.
Step 11
Use Cover (N) when your parasol is not in use.

PLEASE KEEP ME WITH YOUR PROOF OF PURCHASE FOR FUTURE REFERENCE.
For replacement or lost spare parts please go to http://faq.hartmanuk.co.uk/spares/
Should you have any queries about your furniture your first point of contact should be the retailer from whom
you purchased your product.

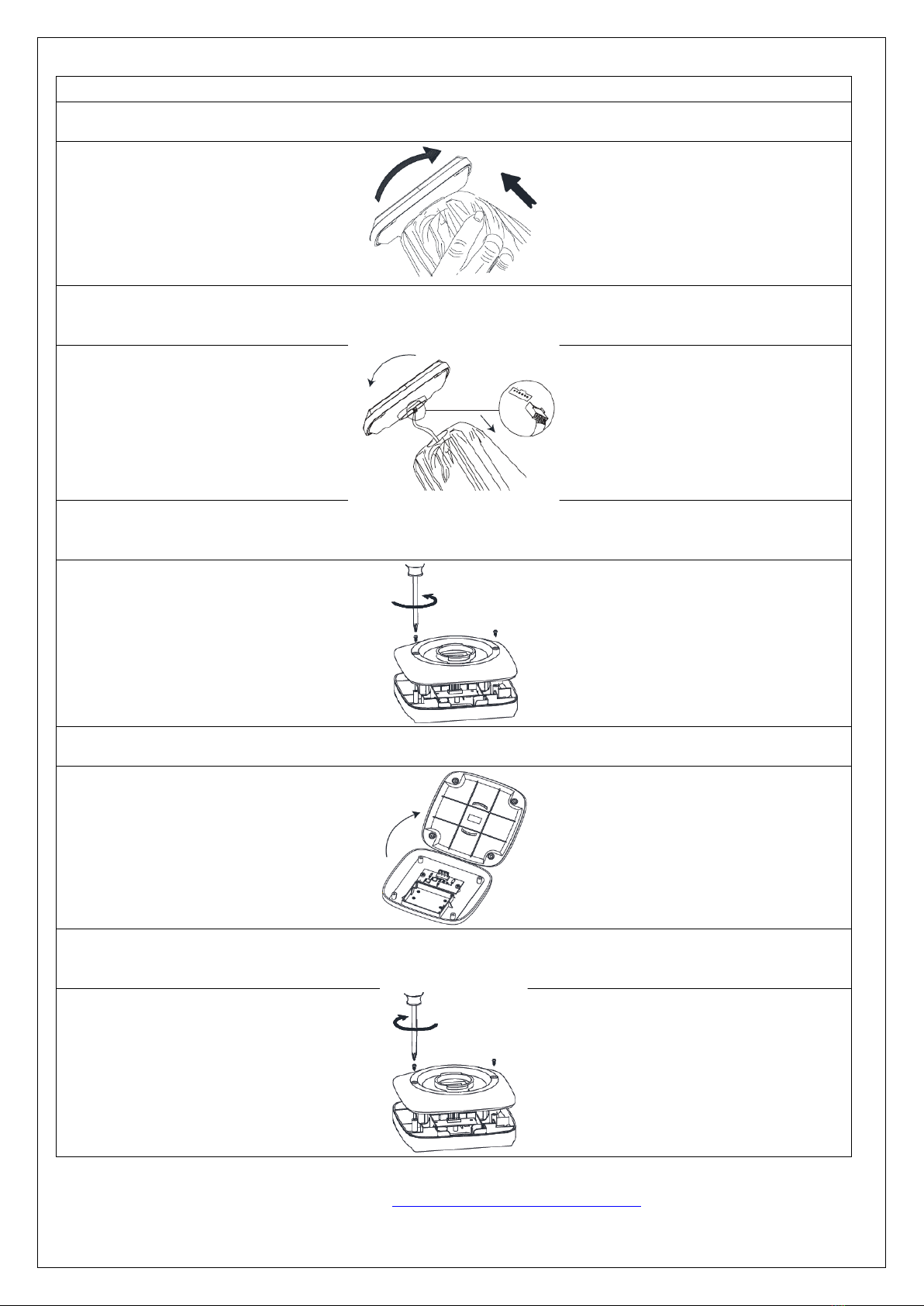

Battery Replacement
Step 1
Twist counterclockwise and remove the solar panel from the top of the parasol.
Step 2
Pull the plug out of the socket under the solar panel. Pull by holding the plug, not by pulling on the
wires.
Step 3
Place the solar panel upside down on a flat, non-abrasive surface to avoid scratching. Remove all
screws on the solar panel bottom case.
Step 4
Carefully open the bottom case and set aside. Replace the batteries, matching the +/- on battery case.
Step 5
Carefully put the bottom case back. Align the screw holes and replace the screws. Do not over tighten
the screws.
