Harvest healthcare Hh20 series Installation and operating manual

General User/ Safety Guide

HARVEST HH20

ACTIVE SEAT

CUSHION

ACTIVE CUSHIONS

CONTENTS

General Safety 3-4

Warnings 5

Product Description 6

Initial Installation of Your System 7

System Operation 8-11

Cleaning of Your System (Disinfection Procedure) 12-13

Routine Maintenance 14

Guarantees & Warranties 15-16

Trouble Shooting 17-19

2T+44 (0)1709 377172 F+44 (0)1709 377173

.............................................................................................................................................................................................................................................

Contents

.............................................................................................................................................................................................................................................

CONTENTS

SAFETY

3

E[email protected] www.harvesthealthcare.co.uk

Important

Please read carefully and familiarise yourself with the Information in this manual

prior to using your equipment.

Keep this manual readily available for any future reference.

For your safety and to ensure the most efcient performance from your system any

precautions detailed in this document should be observed.

Do not cover the pump unit with bedding or blankets.

Always protect your system from open ames, do not use in the presence of

cigarettes or smoking materials. Air circulation in the cushion will assist combustion if

the air cells are punctured allowing the released air to fan any burning.

Suffocation risk: The cover is not air permeable and may present a suffocation risk to

some patients. Ensure that the patient can use the product safely.

Do not expose the pump unit to liquids of any kind.

Do not use phenol based solutions when cleaning. Please note that certain patient

creams etc, that are petroleum based or similar may affect the re retardancy of the

product.

When in storage the system must be kept in a clean and dry environment.

Do not store in direct sunlight.

Always do a risk assessment before using this product. The risk assessment must

take into consideration the environment in which the product is being used with

special attention to high risk environments and the level and quality of anticipated

supervision.

All cover materials on this cushion are tested to Crib5

1.

2.

3.

4.

5.

6.

7.

8.

9.

10.

11.

SAFETY

4T+44 (0)1709 377172 F+44 (0)1709 377173

Note:

All Harvest Healthcare pumps are tted with a functional earth and

are labelled accordingly both internally and externally.

Double insulation

Type BF equipment

C E Marked Product

As labelled accordingly

There is a possibility of Electro-Magnetic Interference. If this occurs

increase the distance between the devices.

PUMP POWER REQUIREMENTS

Power Rating

Voltage

Fuse

Medical Classication

Safety Standards

8W

AC230V / 50Hz

1A

Type B Applied Part

EN 60601-1. EN 60601-1-2

SAFETYSAFETY

5

E[email protected] www.harvesthealthcare.co.uk

ELECTRICAL EQUIPMENT CAN BE HAZARDOUS

IF MISUSED. ONLY AUTHORISED TECHNICAL

PERSONNEL SHOULD REMOVE THE BACK

FOR MAINTENANCE. REMOVING THE BACK

CASE BY UNQUALIFIED PERSONNEL WILL

INVALIDATE ANY WARRANTY

BEFORE CLEANING THE UNIT ENSURE THAT

THE ELECTRICAL SUPPLY TO THE PUMP

HAS BEEN DISCONNECTED. PLEASE REMOVE

THE PLUG FROM THE POWER SUPPLY.

DO NOT USE THIS SYSTEM AS A MEANS FOR

LIFTING THE PATIENT. THIS WILL DAMAGE THE

SYSTEM AND COULD PUT THE PATIENT AT RISK.

WARNINGWARNING

6T+44 (0)1709 377172 F+44 (0)1709 377173

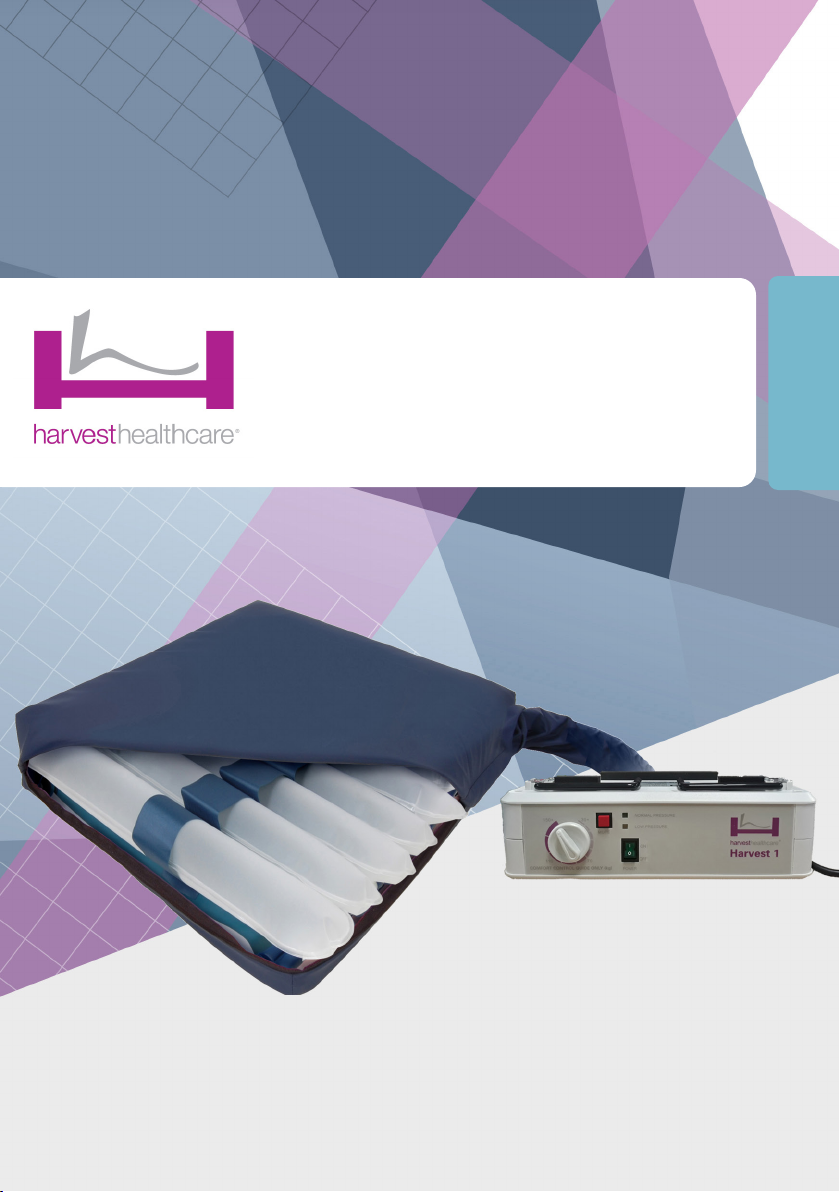

The HARVEST SEAT CUSHION is an alternating pressure relieving seat system used

in the prevention and treatment of pressure ulcers. This system is recommended

for use by a patient who would normally sit out of bed through the day but who

is still at risk from pressure sores. The maximum weight recommended for this

system is 25 stone / 159 kg.

The SEAT CUSHION uses the established principles of alternating therapy, this

offers the patient comfortable and relaxing support that can both prevent tissue

breakdown and help with healing.

The pump unit is both lightweight and compact; its features include a clearly visible

low-pressure warning indicator and a manual pressure / comfort control function.

The SEAT CUSHION is made up of alternating cells and is split up into 2 sections

consisting of odd cells e.g. 1,3,5 etc. and even cells e.g. 2,4,6 etc. These

two sections will alternate through a 10 minute cycle in which time both sets

of alternating air cells will have inated and deated sequentially. All air cells are

individually replaceable should any damage occur to them.

Quick release couplings between the pump unit and the seat enable easy patient

transfer arrangements. To deate the system simply disconnect the couplings

from the pump unit.

The cover is made of a multi-stretch, vapour permeable, waterproof PU fabric.

RODUCT DESCRIPTION

7

E[email protected] www.harvesthealthcare.co.uk

Installation:

Unpack the system and place the pump unit underneath or next to the chair in a

safe place to avoid a trip hazard.

Place the seat cushion in the chair where the patient will be seated with the cells

and/or vapour permeable cover upmost.

Connect the tubes leading from the seat cushion to the outlet ports on the pump.

Refer to the comfort control setting (on the front of the pump) and adjust the dial

according to the patient’s weight.

Connect the seat pump to the power supply and switch on the pump.

When the low pressure indicator has extinguished the patient may be placed on

the support surface.

INSTALLATION

8T+44 (0)1709 377172 F+44 (0)1709 377173

INFLATING THE CUSHION

Switch on: During this stage select a weight setting to suit the service user. The

weight setting is selected by turning the dial to the patient’s approximate weight

located on the control panel.

NOTE:

Set the pump at the correct pressure to suit the weight of the service user. Refer

to the Comfort Control Guide located on the front of the pump.

IN THE EVENT OF A POWER FAILURE

When the power is restored, the pump will automatically restart and continue on

the previous selected setting.

If the power has not returned after 15 minutes, remove the service user from the

seat cushion.

SWITCHING OFF THE SYSTEM

Set the switch on the control panel to OFF position and disconnect the plug from

the mains power supply.

OPERATION

9

E[email protected] www.harvesthealthcare.co.uk

Feed Tube Connection

Manual Comfort Control Dial

Power Switch

A

B

C

D

E

F

Visual Low-Pressure Warning

w/ Alarm Mute

Bed Hooks

Non-slip Feet

A

B

D

F

E

C

OPERATION

10 T+44 (0)1709 377172 F+44 (0)1709 377173

Orange Low Pressure Warning Light

When the pump starts inating the cushion the low pressure light will ash until the required

pressure is reached then the light will extinguish. If the required pressure is not reached

within 30 minutes the light will turn orange and an alarm will sound.

If the light still does not go out, contact your supplier for assistance.

Low Pressure Warning Light

The low pressure light will illuminate when a fault is detected. If the warning light does

not go out, contact your supplier for assistance. Check for the correct function of the low

pressure warning light at regular intervals.

Adjusting the Comfort Setting

Adjust the comfort setting by turning the dial on the control panel.

PUMP FEATURES

OPERATION

11

E[email protected] www.harvesthealthcare.co.uk

Setting Procedure

It is important to follow the correct setting procedure to ensure the patient receives

adequate support while achieving maximum pressure relief and comfort. Failure to

follow this procedure could result in the patient being put at risk.

Set the correct pressure setting on the pump according to the patient weight

guide on the face of the pump.

If the pump unit has been used to power an air mattress before being

connected to a seat cushion, check the setting on the control panel for the

patient weight.

Sit the patient on the seat cushion when it is inated.

1.

2.

NOTE:

Ensure that the pressure setting is set to the correct setting when the patient is

returned to the bed if the pump has been used with a cushion. Failure to do so

could result in the patient being put at risk.

OPERATION

12 T+44 (0)1709 377172 F+44 (0)1709 377173

The following guidelines are suggested by Harvest Healthcare as being suitable

infection control procedures.

Further information and guidance is available from Harvest Healthcare on request

and also your local Health and Safety advisor. It is advised that this procedure be

adopted on transfer of the system between patients.

PUMPS

General cleaning may be achieved by using a cloth dampened with a mild

detergent and water solution. This may be followed up by either wiping with a

sodium hypochlorite solution to a dilution of 1000 PPM (parts per million) or by

using an alcoholic wipe.

These products are available from Harvest Healthcare.

NOTE:

DO NOT use hypercarbonate or phenol based cleaning solutions.

DO NOT use any abrasive compounds or cleaning pads.

DISINFECTION PROCEDUREDISINFECTION PROCEDURE

13

E[email protected] www.harvesthealthcare.co.uk

Seat Cushion

During general use the cushion and internal tube sets can be cleaned by using

a mild detergent solution. Where appropriate the seat cover can be completely

removed for laundering or sterilisation. Wherever there is staining or body uids on

the cushion, including cells and tubing, then a sodium hypochlorite solution to a

dilution of 1000 PPM should be used following thorough cleaning with soap and

water.

All covers may be laundered as follows:

Pre Wash Cold 10 minutes

Main Wash >80oc 10 minutes

Followed by cold rinses and extraction.

Do not use phenol based solutions

CAUTION

During cleaning procedures suitable protective clothing should be worn including

suitable eye protection.

Ensure that the mains power supply to the pump has been disconnected prior to

cleaning.

DISINFECTION PROCEDUREDISINFECTION PROCEDURE

14 T+44 (0)1709 377172 F+44 (0)1709 377173

Suitably qualied personnel should carry out routine maintenance every 12 months

from initial date of purchase.

The following checks should be carried out:

Inspect lter. If the lter is dirty, replace it.

Check that the hoses both inside the pump and also on the cushion are kink

and split free. If any splits are found then replace all the damaged area.

1.

2.

Ensure that the pump is giving out enough mmHg (millimetres of mercury) on

the maximum output by using either a sphygmomanometer or any mercury

/ digital pressure gauge. If not, adjust the comfort control parameters to

the correct range. If the pump is still not achieving the correct mmHg then

replace the motor or the relevant defective parts.

(Contact Harvest Healthcare for guidance on how to repair this device.)

Check that the comfort control is working within the correct parameters. If

not contact Harvest Healthcare for guidance.

Check that the timer is working. If the timer has stopped working the cells will

not alternate. Replace the timer motor or remove the equipment and contact

your service provider.

Check that all the indicators; lights and alarms are working correctly. If any

are found to be defective replace them with new ones.

(Replacement parts are available to order from Harvest Healthcare)

3.

4.

5.

6.

DISINFECTION PROCEDUREROUTINE MAINTENANCE

15

E[email protected] www.harvesthealthcare.co.uk

Pumps

The pump is covered by warranty for a period of 1 year from the date of

purchase. This excludes all serviceable parts such as the bellows and lters

which are recommended to be changed every 12 months in line with the

service schedule.

Mattresses/Seat Cushions

All Harvest Healthcare Mattresses/Seats and Covers have a guarantee for a

period of 12 months from date of purchase.

Guarantee

Harvest Healthcare Ltd guarantees to repair or replace all goods supplied

to its customers which are found to be defective whilst still in their

applicable warranty period. All warranties are subject to the following

conditions:

Harvest Healthcare’s guarantees are subject to the following conditions:

Warranty/guarantee is subject to all guidelines being adhered to.

That the equipment has been used for the purpose for which it was

intended.

That the usage has been on a fair wear and tear basis. This does not

include user damage.

That Harvest Healthcare’s cleaning/disinfecting guidelines have been

followed.

That Harvest Healthcare’s maintenance guidelines have been followed

(please refer to the product manual).

That all maintenance has been carried out by a suitably qualied and

competent person.

That all parts used are OEM (Original Equipment Manufacturer) parts and

were supplied by Harvest Healthcare either directly or through a distributor.

All warranties begin from the time the product leaves the premises of

Harvest Healthcare.

All repairs and replacements will be at the sole discretion of Harvest

Healthcare.

1.

2.

3.

a.

b.

c.

d.

e.

f.

j.

h.

I.

DISINFECTION PROCEDUREGUARANTEES & WARRANTIES

16 T+44 (0)1709 377172 F+44 (0)1709 377173

Claims Relating To Guarantee Or Warranty

In the event of a fault being discovered within the guarantee or warranty

period, the customer shall notify either Harvest Healthcare or your local

distributor at the earliest opportunity.

If, upon inspection, Harvest Healthcare accepts liability then the equipment

shall be repaired or replaced immediately.

If Harvest Healthcare does not accept liability it shall inform the customer

of its reasons and provide the customer with an estimate for either repair or

replacement.

Our standard terms and conditions of sale can be found on our website or

by request to Harvest Healthcare Ltd

If this device malfunctions and a serious incident occurs please contact

Harvest Healthcare Ltd or your competent authority. A member of our

service team will be happy to help you and offer advice.

Email: servicing@harvesthealthcare.co.uk

Telephone: 01709 377172

4.

DISINFECTION PROCEDUREGUARANTEES & WARRANTIES

17

E[email protected] www.harvesthealthcare.co.uk

PART 1

Fault

Occuring

Ensure That Possible Solution To

The Problem

(Next Stage)

If Your

Product Is Still

Not Working

The pump is

showing no

indications

that is is on.

Mains is

plugged in.

The switch is in

the on position.

The fuse in the

plug is

not blown.

Replace them with the

correct fuses (3amp).

Connect the appliance

to the nearest mains

socket and ensure

that the green mains

switch is on.

Return the

pump unit to

Harvest

Healthcare or

your local

distributor.

The pump

appears to

be running

but is not

extinguishing

the low

pressure light.

The hoses

are

connected

correctly.

Disconnect the hoses

and re-connect them

into the outlet

connectors on the side

of the pump.

There are no

leaks in the

cushion.

Replace the damaged

cushion section with

the correct spare parts.

Return the

system to

Harvest

Healthcare or

your local

distributor.

................................................................................................................

............................................................................................................................

Low pressure

light does not

light when

pump

disconnected.

All the ports

are free from

blockage.

Clear any debris for

outlet and pipework.

Contact Harvest

Healthcare.

...........................................................

................................................................................................................

...........................................................

DISINFECTION PROCEDURETROUBLESHOOTING

18 T+44 (0)1709 377172 F+44 (0)1709 377173

PART 2

Fault

Occuring

Ensure That Possible Solution To

The Problem

(Next Stage)

If Your

Product Is

Still

Not Working

The pump is

on and is not

inating the

cushion.

The

connectors are

connected

correctly.

Disconnect the

connectors and

reconnect them to the

connectors on the side

of the pump.

Return the

pump unit to

Harvest

Healthcare or

your local

distributor.

The pump is

on and is not

inating the

cushion.

There are no

leaks in the

cushion.

Replace the damaged

parts with the correct

spares, available from

Harvest Healthcare.

There are no

kinks in the

tubing down

the sides of the

cushion.

Untwist any kinks

found.

Return the

system to

Harvest

Healthcare or

your local

distributor.

......................................................................................................................................

.......................................................................................................................................

......................................................................................................................................

Turn the pressure

up or down, refer to

the weight guide on

the front panel of the

pump for the patients

weight.

Check that the

pressure is in

the

correct

range for

the patient

weight.

................................................................................................................

DISINFECTION PROCEDURETROUBLESHOOTING

19

E[email protected] www.harvesthealthcare.co.uk

PART 3

Fault

Occuring

Ensure That Possible Solution To

The Problem

(Next Stage)

If Your

Product Is

Still Not

Working

The system does

not appear to be

alternating.

There are no

kinks in the

tubing down

the side of the

cushion.

Untwist any kinks

found.

Return the

pump unit to

Harvest

Healthcare or

your local

distributor.

The pump is

operating noisily.

The pump is

not resting

against a

solid

surface.

Re-position the pump

either on the oor or

attach to a suitable

surface.

Return the

system to

Harvest

Healthcare or

your local

distributor.

.............................................................................

All circuit diagrams and parts are available from Harvest Healthcare

upon request.

................................................................................................................

.............................................................................

DISINFECTION PROCEDURETROUBLESHOOTING

DECLARATION OF CONFORMITY

Declaration of Conformity Annex VII EU Directive 93/42/EEC

We, as company: Harvest Healthcare Ltd

Sheaf House

Bradmarsh Way

Bradmarsh Business Park

Rotherham, S60 IBW

Product Development and Quality Manager

Rotherham, 09.04.2020

Confirm on our own behalf that the medical product:

Active Seat Cushion - HH20.P1 - UDI: 5060517530136

Risk Class: IIa

SRN: TBC

complies with all applicable requirements in Appendix I of the EU directive 93/42E EC

The following compliance evaluation process was applied: Annex VII

EU legislation for this type of product covers all safety, health and environmental requirements.

Modifying this product without consultation with Harvest Healthcare Ltd will invalidate this declaration

of conformity.

This declaration of conformity is issued under the sole responsibility of Harvest Healthcare.

Notified Body: TBC

This document is valid for 4 years after the date of the signature.

Authorised Representative: TBC

SRN: TBC

Active Seat Cushion - HH20.P2 - UDI: 5060517530297

Active Seat Cushion - HH20.P3 - UDI: 5060517530112

20 T+44 (0)1709 377172 F+44 (0)1709 377173

DISINFECTION PROCEDURE

DECLARATION

OF CONFORMITY

Harvest Healthcare HH20 Series Installation and operating manual

Popular Massager manuals by other brands
