Harvest Healthcare HARVEST 3 PUMP Installation and operating manual

[e-mail] www.harvesthealthcare.co.uk 1
PUMP
www.harvesthealthcare.co.uk
General User/Safety Guide
HARVEST 3 PUMP

T+44 (0)1709 377172 F+44 (0)1709 377173
2

[e-mail] www.harvesthealthcare.co.uk 3
CONTENTS
WARNINGS & CAUTIONSWARNINGS & CAUTIONS
GENERAL INFORMATIONGENERAL INFORMATION
1 DEFINITION OF THE GROUPS MENTIONED1 DEFINITION OF THE GROUPS MENTIONED
2 NON-COMPLIANT USE2 NON-COMPLIANT USE
3 SAFETY INSTRUCTIONS3 SAFETY INSTRUCTIONS
3.1 GENERAL SAFETY INSTRUCTIONS3.1 GENERAL SAFETY INSTRUCTIONS
3.2 SAFETY INFORMATION FOR THE OPERATOR3.2 SAFETY INFORMATION FOR THE OPERATOR
3.3 SAFETY INFORMATION FOR THE USER3.3 SAFETY INFORMATION FOR THE USER
3.4 SYMBOLS USED3.4 SYMBOLS USED
3.5 CLEANING & DISINFECTION
3.6 SERVICING & MAINTENANCE
3.7 SERVICE LIFE & DISPOSAL
TECHNICAL SPECIFICATIONTECHNICAL SPECIFICATION
OVERVIEWOVERVIEW
OPERATIONOPERATION
CLEANING & CARECLEANING & CARE
ROUTINE MAINTENANCE & SERVICINGROUTINE MAINTENANCE & SERVICING
TROUBLESHOOTINGTROUBLESHOOTING
PARTS LISTPARTS LIST
GUARANTEES & WARRANTIESGUARANTEES & WARRANTIES
DECLARATION OF CONFORMITYDECLARATION OF CONFORMITY
4-5
6-10
7
7
7
7
8
8
9
10
10
10
11
12 -13
14
15
16-17
18-21
22
23
24

T+44 (0)1709 377172 F+44 (0)1709 377173
4
WARNINGS &
CAUTIONS
READ THIS INSTRUCTION MANUAL AND OBSERVE SAFETY
INSTRUCTIONS.
WARNING
This pump must be properly installed and operated as directed by this user manual.
The pump should be checked regularly to ensure correct operation. Loss of function
will remove all pressure relieving properties.
This pump, when connected to a pressure relieving system, is intended for use as part
of a pressure ulcer prevention program; do not rely solely on this device to achieve
the result. The medical professional is responsible for applying best medical judgment
when using this system.
Select the correct setting for the occupant’s weight and therapy required. Care should
be taken not to accidently change pressures once set as the effectiveness of the
therapy may be reduced.
All hoses must be free of kinks, twists and must be properly connected and positioned
so as not to cause any obstruction.
Do not position the pump in a way that prevents access to the disconnection device
(mains power plug).
Ensure the mains lead or pump cannot become trapped or crushed, e.g. by raising or
lowering of bed or bed rails or any other moving object.
Check the mains lead is damage free and positioned so as not to cause an
obstruction or injury e.g. strangulation or trip hazard.
Ensure that the electricity supply is of the type stated on the pump unit.
Do not place pump on or near a heat source or cover with bedding.
Harvest Healthcare advise against smoking whilst the system is in use to prevent the
accidental ignition of associated items which may be ammable, such as bed linen.
We advise a risk assessment is carried out before using any medical equipment to
protect the user and service user.
•
•
•
•
•
•
•
•
•
•
•

E[email protected] www.harvesthealthcare.co.uk 5
Do not expose the pump to liquids.
Wireless equipment such as mobile phones should be kept at least 10ft/3m away from
the system.
The mattress/cushion and pump should be cleaned between patient uses.
Do not use bleach, chlorine releasing agents in concentrations over 1000 ppm,
solvents or alcohol-based cleansers, e.g. Phenicol, Hibiscrub, Clearsol, Stericol and
Hycoline as these will destroy the mattress material. Full cleaning instructions can be
found on page 15.
Suitable for continuous use.
Do not modify the mattress/cushion or pump unit in any way.
Do not connect to any other medical device or equipment.
Not for use in an oxygen enriched environment.
Not for use in an outdoor environment.
Store the system in a clean and dry environment, out of direct sunlight.
•
•
•
•
•
•
•
•
•
•
Electrical equipment can be hazardous. Only authorised technical
personnel should remove the rear pump case for maintenance.
Removal of the case by unqualied personnel will invalidate the
warranty.
Before cleaning the unit ensure that the electrical supply to the pump
has been disconnected by removing the plug from the power supply.
WARNINGS &
CAUTIONS

T+44 (0)1709 377172 F+44 (0)1709 377173
6
GENERAL
INFORMATION
Harvest 3 is our high end, digital pump designed to provide controlled compressed air to a
pressure care mattress or active seat cushion. The inated cells within the supplied mattress
provide an alternating pressure surface designed to reduce surface pressure on the skin and
therefore reduce risk of the development of pressure ulcers in susceptable patients.
The Harvest 3 provides the highest air pressure of the Harvest Healthcare pump range
and therefore outputs suitable ow for all use with all Harvest Healthcare active pressure
care mattresses. This includes use with bariatric products, and for occupants with more
complicated clinical needs.
This pump has audible and visual alarms for low pressure, power failure and cycle fault, static
mode and a lock out facility. Extra features include maxi rm mode, seat inate mode and four
choices of cycle time - 10, 15, 20 and 25 minutes.
Harvest Healthcare supply a pump and mattress but it is the user’s responsibility to ensure
each system meets the guidelines set out in the pump and mattress guide (shown below).
Failure to do this could put the service user at risk. This could prolong the recovery process or
increase the risk of further tissue damage.
For information on our mattress range please refer to the mattress user manuals available on
our website www.harvesthealthcare.co.uk.
GENERAL INFORMATION
Read through this instruction manual conscientiously from start to nish.
Note the safety instructions which must be observed.
BEFORE USING THIS SYSTEM FOR THE FIRST TIME:
-
-
Harvest Healthcare products bear the CE mark and meet all safety and functionality
requirements.
These safety requirements can only be met if the user is satised with the proper condition of
the product (including accessories) before use.
Harvest 1 Harvest 2 Harvest 3
Kensington Overlay 
Sandringham

Hampton 
Windsor
  
Hampton Extra   
Prime Comfort Active

Duke   
Duke Extra
  
Active Mattress and Pump Guide

E[email protected] www.harvesthealthcare.co.uk 7
USER/CARE PERSONNEL
Users are persons who as a result of their vocational training, experience or brieng are
authorised to operate the equipment.
Furthermore, the user/care personnel can recognise and avoid potential dangers and assess
the clinical condition of the service user.
PATIENT/OCCUPANT/SERVICE USER
The person in need of pressure care support, due to being identied as at risk of developing
of pressure ulcers by a suitably qualied carer or other.
QUALIFIED PERSONNEL
Qualied personnel are employees of the operator who as a result of their vocational
training or brieng are entitled to deliver, assemble, disassemble and transport the product.
2 NON-COMPLIANT USE
All uses deviating from the intended purpose, which may also be hazardous as a result.
This includes for example:
• Incorrect installation.
• Operation by persons who have not been instructed in its use.
• Using the system with non-approved parts/accessories.
• Using the system if any of the components are damaged or faulty.
GENERAL
INFORMATION
1 DEFINITION OF THE GROUPS MENTIONED
OPERATOR
An operator is any natural or legal person who uses the equipment or on whose instruction
it is used (e.g. nursing homes, specialised retailers, health insurance companies, medical
suppliers).
3.1 GENERAL SAFETY INSTRUCTIONS
During the brieng, specic attention must be drawn to any potential dangers
which can occur despite correct operation. Before putting the product into service
for the rst time, the Instruction Manual must be read conscientiously and in detail
by the user/care personnel.
Programming of the system should be carried out by competent trained personnel.
Use only spares and accessories supplied or approved by Harvest Healthcare.
Only suitably trained personnel are allowed to operate the system.
3 SAFETY INSTRUCTIONS

T+44 (0)1709 377172 F+44 (0)1709 377173
8
GENERAL
INFORMATION
The mains cable must be free and not be allowed to be caught up in the bed’s
moving mechanisms. The mains cable may be damaged or it may be pulled out of
its socket and electric leads exposed as a result.
If the mains cable or the mains plug are damaged, the relevant part must be
replaced. This work should be carried out by the manufacturer or authorised
service agents.
When connecting the mains plug do not use multiple sockets since liquids may
penetrate into these (re hazard and electric shock).
3.2 SAFETY INFORMATION FOR THE OPERATOR
With the help of this instruction manual, instruct each user in the safe operation of
this system before it is put into service for the rst time.
Advise the user of any hazards which may occur if not handled correctly.
Only persons who have been properly instructed may operate this system. This
also applies for persons who only operate the system on a temporary basis.
3.3 SAFETY INFORMATION FOR THE USER
Ensure that the operator instructs you in the safe operation of this system.
In addition, pay particular attention to the ‘Warnings and Cautions’ (page 4-5) and the
‘General Safety Information’ as described in 3.1.
If there is a suspected fault or damage, unplug the mains plug from the socket and follow
the power down procedure (page 16). Clearly mark ‘Out of Order’, take out of service
immediately and inform the person in charge without delay.

E[email protected] www.harvesthealthcare.co.uk 9

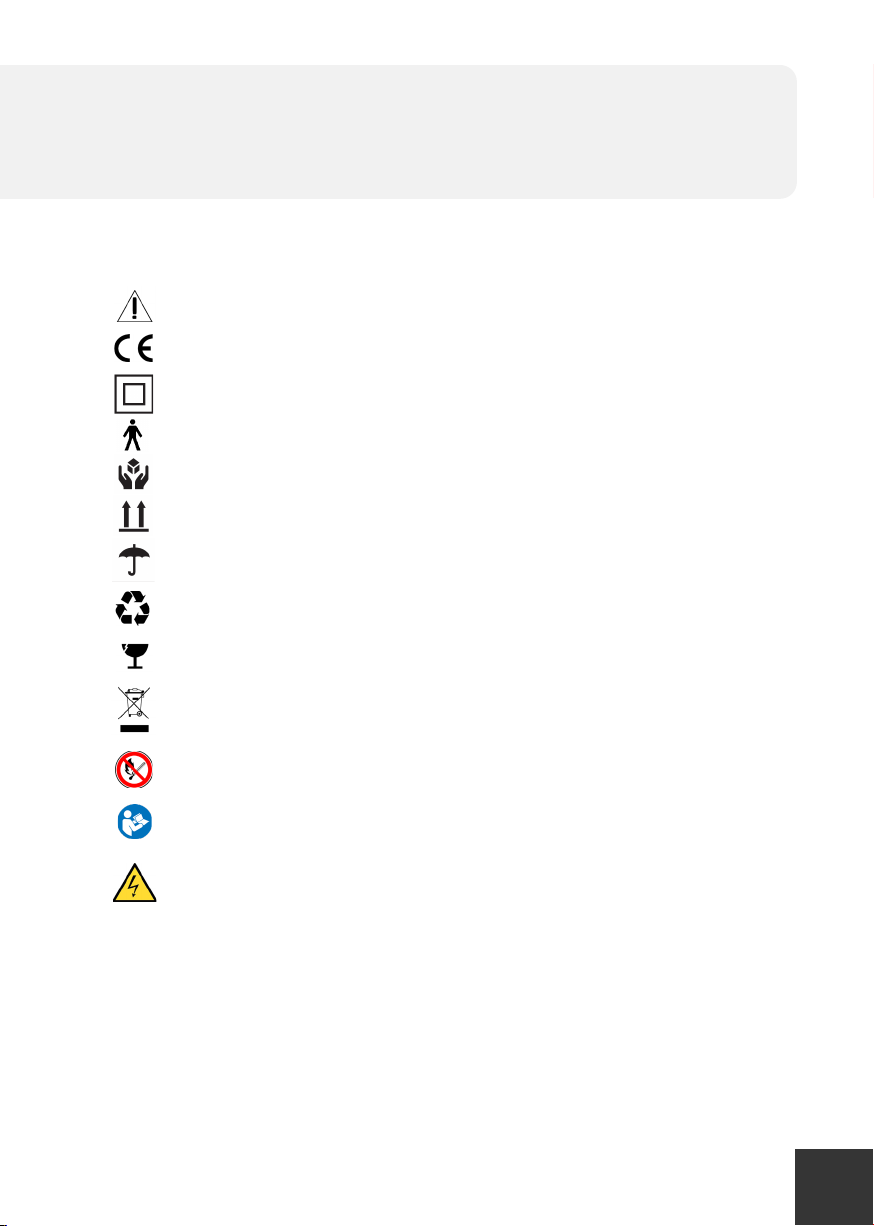

This symbol indicates general hazards. There is a danger to life and health.
Conformity mark in accordance with the Medical Device Directive (93/42 EEC).
The symbol for Protection Class II device, double insulated.
The symbol for type B device according to EN 60601-1.
Handle with care.
This way up.
Keep dry.
Recycling symbol. Refers to packaging that can be recycled (cardboard).
Fragile, handle with care.
This product must be disposed of in a designated refuse bin for waste
electronic devices (WEEE) in the European Union. Do not dispose of as normal
domestic waste.
No smoking. No naked ames.
Read instructions / consult manufacturers guide.
This symbol indicates electrical hazards. There is danger to life and health.
3.4 SYMBOLS USED
GENERAL
INFORMATION

T+44 (0)1709 377172 F+44 (0)1709 377173
10
GENERAL
INFORMATION
3.5 CLEANING & DISINFECTION
Do not immerse electrical components in water but wipe with a damp cloth only.
The electrical components must not be cleaned with a high-pressure cleaner or
water jet. Disinfection by wiping only is allowed.
Full cleaning and disinfection instructions can be found on page 15.
3.6 SERVICING & MAINTENANCE
Servicing must only be carried out by qualied personnel.
A technical check and/or safety inspection must be conducted at least once a year
or after a lengthy break in use.
Any defects, damage or signs of wear must be rectied without delay. Only original
spare parts from Harvest Healthcare may be used, otherwise all guarantees or
warranties will be invalidated.
See pages 16-17 for ‘Routine Maintenance’ and ‘Routine Servicing’.
3.7 SERVICE LIFE & DISPOSAL
Our full terms & conditions including product warranties are available by request or can be
found on our website www.harvesthealthcare.co.uk.
PARTS AND DATA MAY UNDERGO FURTHER DEVELOPMENT AND
THEREFORE DEVIATE FROM THE DETAILS GIVEN.
The system must not be disposed of as normal domestic waste after its service life,
but must be disposed of in a designated refuse bin for waste electronic devices
(WEEE) in the European Union. Do not dispose of as normal domestic waste.

E[email protected] www.harvesthealthcare.co.uk 11
TECHNICAL
SPECIFICATION
HARVEST 3 TECHNICAL SPECIFICATION
Pump Model No.
Operating Cycle
Dimensions
Weight
Air Flow Output
Pressure Setting
HPU3
10 / 15 / 20 / 25 minutes
340 x 125 x 244mm
3.5 kg
12 lpm
Manual
PUMP POWER REQUIREMENTS
Power Rating
Voltage
Fuse
Medical Classication
Safety Standards
13W
AC 230V / 50Hz
T 1AH 250V
Type B Applied Part
EN 60601-1. EN 60601-1-2
For any further assistance, please contact a member of the Harvest Servicing team at
[e-mail]

T+44 (0)1709 377172 F+44 (0)1709 377173
12
OVERVIEW
Feed Tube Connection
Power Switch
Cycle/Alternating Time
Pressure Range/Comfort Setting
Alarm Mute
A
B
C
D
E
FAlternating Mode
Static Mode
Maxi-Firm Mode
Seat Inate Mode
Lock Button
PUMP OVERVIEW
A
B
D
F
EC
G
G
Maxi-Firm. This must be manually switched off after use.
J
H
Feed Tube Connector
Pipes from the mattress connect here. The pump must be able to be disconnected in
an emergency for CPR to be administered.
A
Power Switch
The power switch is on the right hand side of the pump. When pressed to the ON
position the switch will illuminate to indicate that there is a power supply to the
pump. With the switch in the ON position press the power button on the control panel
to activate the pump. To turn the pump off press the power switch on the control
panel.
B
HI
I
J

E[email protected] www.harvesthealthcare.co.uk 13
Cycle/Alternating Time
The cycle time can be selected by pressing the button on the control panel. The
cycle time options are 10, 15, 20 or 25 minutes. Consult a medical professional for
cycle times above ten minutes.
C
Pressure Range / Comfort Setting
The pump has a scale printed on the front panel in kilograms. Press the comfort
control button (-) or (+) until the nearest desired weight setting is illuminated on the
display panel. When the mattress is in use the user can adjust the comfort setting
as required for the service user’s needs. A slight increase of the comfort setting
may be required if the service user needs more support when the bed is proled.
When the bed platform is laid at readjust the setting as required for the service
user.
D
Alarm Mute
The pump is tted with an audible and visual alarm. Press the ‘Mute’ button to
reset the alarm. Initially the alarm will sound after 40 mins if the mattress has not
fully inated while in the start-up mode. Once safely inated the alarm will sound if
it detects a cycle fault or low pressure fault on the system.
E
Alternating Mode
When pump is switched on for the rst time it will inate all the cells.
The alternating mode LED will illuminate to indicate that the pump is in start-up mode.
Once all the cells have been inated the alternating mode will activate. The cells in the
mattress will then inate and deated to prove pressure relief for the service user.
F
Static Mode
The ‘Static Mode’ can be operated by the user to inate all the cells for patient care
and transfers. Press the ‘Static Mode’ button and the LED will illuminate orange. The
‘Static Mode’ will stop working after 20 mins and the pump reverts back to normal
alternating mode.
G
OVERVIEW
Bed Hooks (Back of Pump)
Attach the pump to the foot end of the bed. Adaptor brackets are available to t
different sizes of beds. If the pump cannot be attached to the foot end of the bed it is
the user’s responsibility to ensure that the pump is placed in such a position that it will
not cause harm or injury to the service user. The pump unit must be placed so
that it can be clearly seen and monitored at all times.
K
Maxi-Firm Mode
Press the ‘Maxi-Firm’ button to automatically inate the mattress to its maximum
pressure. This will take approximately 20 mins. During normal pressure operations the
pump will monitor the pressures. Switch off the Maxi-Firm after use.
H
Seat Inate Mode
Press the ‘Seat Inate’ button. The pump will increase the pressure by 5mmHg while
this mode is activated. This function helps give the user extra support when the bed is
proled. No other settings need to be altered, either when in use or after deactivation.
I
Lock Button
The ‘Auto Lock Out’ will become active after 5 minutes, signied by the LED green
light next to the padlock symbol. This function prevents alteration of the pump
settings. Deactivate the auto-lock by pressing and holding the padlock button.
The pump will bleep once and the LED light will extinguish. Access to the different
functions will now be made available
J

T+44 (0)1709 377172 F+44 (0)1709 377173
14
OPERATION
INFLATING THE MATTRESS/CUSHION
Plug in at the mains supply, press the ON button on the side of the pump and then
on the control panel. The control panel will light up to indicate that there is a power
supply.
The pump is in start up mode. Once the mattress is fully inated it will be ready to use.
While in start up mode do not select static mode. This will cause the pump to
alarm. If the pump alarms, switch off the pump and switch it back on to reinate the
mattress.
The mattress is now ready to be used.
1
2
Set the pump to run at the correct pressure to suit the weight of the
service user. Refer to the Pump Control Panel guide on the front of
the pump.
If the pump needs to be disconnected for any reason attach the transport cap to the feed
tubes connector. This will prevent deation retaining the remaining air within the mattress.
The alternating action stops in this mode.
TRANSPORT MODE
To turn off the system press the power button to OFF and unplug from
the mains supply.
When the mattress is fully inated set the pump to the approximate weight of the
service user. Position the service user in the lying position. If required adjust the weight
setting to meet the patient’s comfort needs.
Ensure that the comfort setting is altered correctly when the patient moves from a lying
to a sitting position and vice versa. This can be done using the ‘Seat Inate’ button.
The pump will increase the pressure by 5mmHg while this mode is activated. This
function helps give the user extra support when the bed is proled. No other settings
need to be altered, either when in use or after deactivation
NOTE: The static mode is only to be used for patient care. Switch off after use.
1
2
SETTING UP PROCEDURE
It is important to follow the correct setting up procedure to ensure the patient receives
sufcient support whilst achieving maximum pressure relief and comfort.
Failure to follow this procedure could result in the patient being put at risk.

E[email protected] www.harvesthealthcare.co.uk 15
CLEANING & CARE
PUMPS
For general cleaning wipe with a soft cloth dampened with a mild detergent and water
solution. This may be followed by either wiping with a sodium hypochlorite solution to a
dilution of 1000ppm (parts per million) or by using alcohol wipes.
DO NOT USE HYPERCARBONATE, PHENOL-BASED CLEANING
SOLUTIONS, ABRASIVE COMPOUNDS OR CLEANING PADS.
NOTES FOR CARE OF ASSOCIATED PRODUCTS
Following the use of a detergent and/or disinfectant solution rinse the mattress cover
with clean water using a clean cloth and allow to dry.
Frequent or prolonged exposure to high concentrations of disinfectant solutions will
reduce the useful life of the mattress cover.
Where high concentration disinfectants e.g. > 10,000ppm chlorine releasing
agent (e.g. Haztab or bleach) or combined cleaning/chlorine releasing agent (e.g.
Chlorcleam, Actichlor) and detergent solutions are used to remove blood or other
body uids, mattresses should be thoroughly rinsed with clean water to remove any
residues. This will help prevent any long term compatibility issues associated with
disinfectant residues.
Alternatively, disinfection may be achieved by laundering at temperatures not
exceeding 80°C for 10 minutes which may include a chlorine rinse.
•
•
•
•
TRANSPORT & STORAGE
Storage conditions as follows:
–15 °C without relative humidity control and +40 °C at a relative humidity up
to 93%, non-condensing. Atmospheric pressure range of 700 hPa to 1060 hPa.
Suitable for all standard modes of transport when in the correct packaging.
Operation conditions:
A temperature range of +5 °C to +35 °C and relative humidity range of 15% to 93%, non-
condensing. Operational atmospheric pressure 700 hPa to 1060 hPa. Suitable for pollution
degree 2. Operational altitude ≤2000 m.
Transportation of the mattress system:
The mattress should be loosely rolled lengthwise with the cover innermost, taking care not
to strain the feed pipes. It can then be stored / transported in the carry bag with the pump,
mains cable and this booklet. Do not stack bagged mattresses more than two high.

T+44 (0)1709 377172 F+44 (0)1709 377173
16
ROUTINE
MAINTENANCE
These checks should be carried out at each decontamination process, i.e.
between patients or patient occupancy and weekly for longer term patients.
PUMP
1Check the pump casing for cracks or other damage that could be dangerous.
2Check the power cord (ensure there are no bare wires).
If any faults are detected remove the equipment from use and contact the Harvest Healthcare
Service Department or your distributor.
OTHER COMPONENTS
Check air cells and mattress interior for signs of damage or contamination, e.g.
staining or uid ingress at each decontamination process, i.e. between patients or
patient occupancy (or weekly for longer term patients).
The individual cells can be wiped clean with a mild antiseptic solution.
All cells are replaceable and can be sourced from Harvest Healthcare.
•
•
•
POWER UNIT
Disconnect the power unit from the electricity supply before carrying out maintenance, repairs
or cleaning.
Check all electrical connections and power lead for signs of wear and damage.
The power unit can be wiped down with a detergent or disinfectant solution. Do not use
solvents. Unsuitable for sterilisation.
The use of inappropriate cleaning and detergent materials on medical equipment could damage
surfaces and may compromise the ability to decontaminate medical devices adequately or may
interfere with device function.
When the pump or mattress is no longer required dispose of the equipment in accordance
with the local regulations. WEEE requirements do apply to the pump unit and any electrical
components including cables which are used for or with this product.

E[email protected] www.harvesthealthcare.co.uk 17
ROUTINE
SERVICING
The Harvest 3 pump should be serviced every 12 months by Harvest Healthcare approved
personnel using genuine Harvest Healthcare spare parts.
SERVICING YOUR SYSTEM
Failure to follow the service schedule may invalidate future
warranty claims (‘Guarantees & Warranties’ can be found on page
23).

T+44 (0)1709 377172 F+44 (0)1709 377173
18
18
TROUBLESHOOTING
CHECK THATFAULT STAGE 2 CHECK
Pump shows no indication that it is powered up.
Mains plug is plugged in and power switched on. The power switch on the pump is switched on. The fuse in the mains plug is not blown. The wall socket that the pump is connected to is working correctly.
1. 2. 3. 4.
Connect the pump to the nearest (working) mains outlet. Replace the plug fuse with the correct 5A fuse. Try a different device in the mains outlet.
1. 2. 3.
IF PROBLEM PERSISTS
Contact Harvest Healthcare technical support. Before calling: Please ensure you have the serial number and model of equipment. Please record details of the results of the recommended tests. (Notes pages are provided at the back of this user manual).
T+44 (0)1709 377172 F+44 (0)1709 377173

[e-mail] www.harvesthealthcare.co.uk 19
18
E[email protected] www.harvesthealthcare.co.uk 19
CHECK THATFAULT STAGE 2 CHECK
The pump appears to be running but the mattress is not inating correctly and or the low pressure light is illuminated.
IF PROBLEM PERSISTS
Contact Harvest Healthcare technical support. Before calling: Please ensure you have the serial number and model of equipment. Please record details of the results of the recommended tests. (Notes pages are provided at the back of this user manual).
PLEASE NOTE Ination can take up to 30 minutes.
The hoses are routed correctly (not kinked) and connected to the pump correctly. The CPR valve is not trapped and is in the closed position.
1. 2.
There are no leaks in the mattress. The tubes in the mattress are not disconnected or kinked.
1. 2.
Disconnect and then re- connect the hoses to the outlet on the side of the pump. Open then reclose the CPR valve, make sure the valve is not trapped in the bed mechanism.
1. 2.
Replace any damaged or leaking mattress parts with the correct genuine Harvest Healthcare spare parts. Straighten out any kinked pipes and reconnect any disconnected joints.
1. 2.

T+44 (0)1709 377172 F+44 (0)1709 377173
20
20
TROUBLESHOOTING
Some of the cells appear to be deated.
This is normal for alternating pressure therapy. The mattress is made up of individual air cells. The alternating section is split up into 2 sections consisting of odd cells e.g. 1,3,5 etc and even cells e.g. 2,4,6 etc. These two sections will alternate through a 10 minute cycle in which time both sets of alternating air cells will have inated and deated sequentially.
CHECK THATFAULT STAGE 2 CHECK
The system does not appear to be alternating.
Check that the static mode is not turned on. Carefully mark one of the inated cells with a pen. Ensure that there are no kinks in the pipework down the side of the mattress. Check the cycle time on the control panel. Recommended setting 10 minutes unless a health professional has recommended otherwise.
1. 2. 3. 4.
Monitor the cell for 7 minutes to see if it deates. Straighten out any kinked pipes.
1. 2.
IF PROBLEM PERSISTS
Contact Harvest Healthcare technical support. Before calling: Please ensure you have the serial number and model of equipment. Please record details of the results of the recommended tests. (Notes pages are provided at the back of this user manual).
T+44 (0)1709 377172 F+44 (0)1709 377173
