OWNER’S MANUAL
Model 9214
HIGH OUTPUT 12 VOLT TRANSFER PUMP
9214 –5/06
10/17

2
Introduction
Congratulations on purchasing a Harvest Tec Model 9214 transfer pump. This system is designed to
transfer Harvest Tec buffered propionic acid. The model 9214 base kit includes the following parts:
Pump, Hose, Fittings, Drain Fill Kit, and Miscellaneous Hardware. The transfer pump can be used
Harvest Tec 55 gallon drums as well as 200 gallon totes with the included adapters. Before installing
the unit on the baler, make sure you have the proper installation kit. For your convenience we have
included a parts break down for the model 9214 transfer pump. If replacement parts are needed, bring
this manual into the dealership so they can order the correct parts for you.
Technical Information
Design Features
•15 PSI maximum outlet pressure
•2600 RPM, 1/4 HP motor:
•12 VDC rated at 20 amps
•Thermal overload protection of the motor
•20 ft. long power cable with battery clips and a 30 amp fuse.
•Positive displacement/self-priming design
•Can pass particulate materials up to 0.100" diameter in the pumped fluids
•Flow easily controlled by outlet throttling from maximum to zero
•Pump may run dry without damage
•Handles viscosities from 1.0 CPS to 3700 CPS
•Minimum shear (agitation) of pumped fluids
•Minimum operating ambient temperature: -10°F (-23°C)
•Maximum operating ambient temperature: 130°F (54°C)
•Maximum 30 minute duty cycle, not for continuous operation.

3
Assembly
Remove the transfer pump and the parts box from the
shipping carton. Remove the parts bag from within the
parts box and locate the four ¼” bolts and washers (5 & 6).
Attach the carrier (18) to the top of the pump and tighten to
10 ft-lbs.
Apply Teflon tape to a black 1” MPT x 1” HB (1) fitting and
thread into the top discharge port of the pump and insert
pump probe (9) into the bottom intake port. Attach the 12’
EPDM hose to the fitting using a 1” hose clamp (4).
If using drain/fill line:
Attach second black hose fitting (1) to the EPDM hose with a hose clamp (4) followed by a 1” ball valve
(15) and male coupler (12).
If using nozzle ball valve:
Attach second black hose fitting (1) to the EPDM hose with a hose clamp (4) followed by the 1” nozzle
ball valve (21).
Installation of Drain/Fill Line
If your preservative applicator was originally equipped with a drain/fill line, it will need to be fitted with the
enclosed parts to ensure the 15 gallon per minute flow rate. Failure to do so will restrict the output of the
transfer pump.
A) Remove existing drain/fill line, leaving only the bung fitting in the tank.
B) Thread ¾” MPT x 1” HB elbow fitting (2) into the end of the tank.
C) Run 1” hose from the elbow down the frame to the bottom of the baler.
D) Attach new valve holder (8) to baler frame using existing hardware.
E) Thread female coupler (11) through valve holder and into 1” ball valve (15) followed by a 1” MPT x 1” HB
(1).
F) Attach 1” hose between elbow and valve assembly using hose clamps (4).
Electrical Installation
Connect cable to 12 volt DC power supply as follows, paying special attention to wire
colors:
If pump is to be powered from a vehicle power system it is recommended that permanent wiring and
connections be made to vehicle power system which includes a 30 amp slow blow fuse.
Pump
Cable
Positive
Red
Negative
Black

4
Operating Instructions
The 9214 transfer pump can be used on either 450# drums or 1800# totes using the supplied adapters.
If using drums:
Remove one of the caps from the drum, adapters for both the 2” NPT (14) and buttress (11) fittings are
included. Attach the telescoping suction tube (16) to the desired adapter and insert into the drum. Be sure to
unscrew the other plug to allow for venting. Attach the pump to the adapter by inserting the pump probe into
the adapter and tightening the collar clamp attached to the pump base.
If using totes:
Remove the 6” tote cap and replace with the included cap (17). The included cap has a breather installed to
prevent the tote from collapsing. Attach the telescoping suction tube (16) to the 2” NPT adapter and insert into
the tote through the cap. Attach the pump to the adapter by inserting the pump probe into the adapter and
tightening the collar clamp attached to the pump base.
Attach the pump to either the drain/fill line or insert the nozzle valve into the tank and turn the toggle switch on.
The pump has an internal bypass and can run with the nozzle or ball valve turned off. Once the desired
amount of chemical has been transferred, close the ball or nozzle valve and turn off the pump.
If the pump is removed from the drum or tote, but the adapter is left in place, a dust shield (19) and collar (20)
is included to prevent contamination.
Fluid Compatibility
*Warning: The pump, hose and fittings must be thoroughly flushed if used for transferring non-food
grade materials prior to use with forage preservatives.
AGCO Buffered Acid
Caustic Soda (50%)
Motor Oil
Zinc + Citric Acid Mix
Ammonium Sulfate
CropSaver®
Princep 4L®
Zinc Chloride
Antifreeze
Dual®
Phosphoric Acid
Zinc Hydrosulfite
Atrazine 4L®
Eptam 7E®
Potash
Zinc Sulfate
Baler’s Choice®
Fultime®
Prowl®
2-4 D
Banvel®
Furadan®
Pursuit®
Touchdown®
Bicep®
Guardsman®
Roundup®
Malathion
Gramoxone Extra®
Karate®
Sodium Hydroxide (50%)
Harness Xtra®
Lasso Micro Tech®
Thirty Plus®
Hydraulic Oil
Methyl Parathion
Transmission Fluid
Maintenance
To keep pump running at its best, periodically perform the following procedures. (Refer to exploded view
drawing of pump)
Chemical Applications Do not allow chemical to remain in the pump for any extended period of time, whereby
the chemicals are allowed to “dry out.” Thoroughly rinse pump by flushing the pump with water or appropriate
flushing fluid.
DO NOT USE PRESSURIZED WATER OR PRESSURIZED AIR to flush your pump. Damage to the
equipment can occur if flush water pressure exceeds 15psi (1 bar). Instead, submerge the suction tube or inlet
adapter in clean water and dispense water by operating the pump. Dispose of the flush water properly. After
flushing, pump air to remove as much water as possible.

5
Maintenance (continued)
All Applications on annual basis or as needed.
1. Tighten all external screws to 50 in. lbs. NOTE: NEVER EXCEED 50 IN. LB. TORQUE WHEN
TIGHTENING SCREWS.
2. Drain oil through sight caps and replace oil with approximately 16 ounces of automotive grade SAE
30W through one of the sight cap holes. The oil level should be level with the bottom edge of the sight caps
located on the front of the pump body. NOTE: Always check oil level when the pump is level.
3. Check the four #10-24 x 1/2" machine screws holding the diaphragm in place. If loose, tighten
screws to 35 in. lbs. to prevent internal leakage. NOTE: If external screws are removed, hand start and tighten
to 50 in. lbs.
Troubleshooting

6

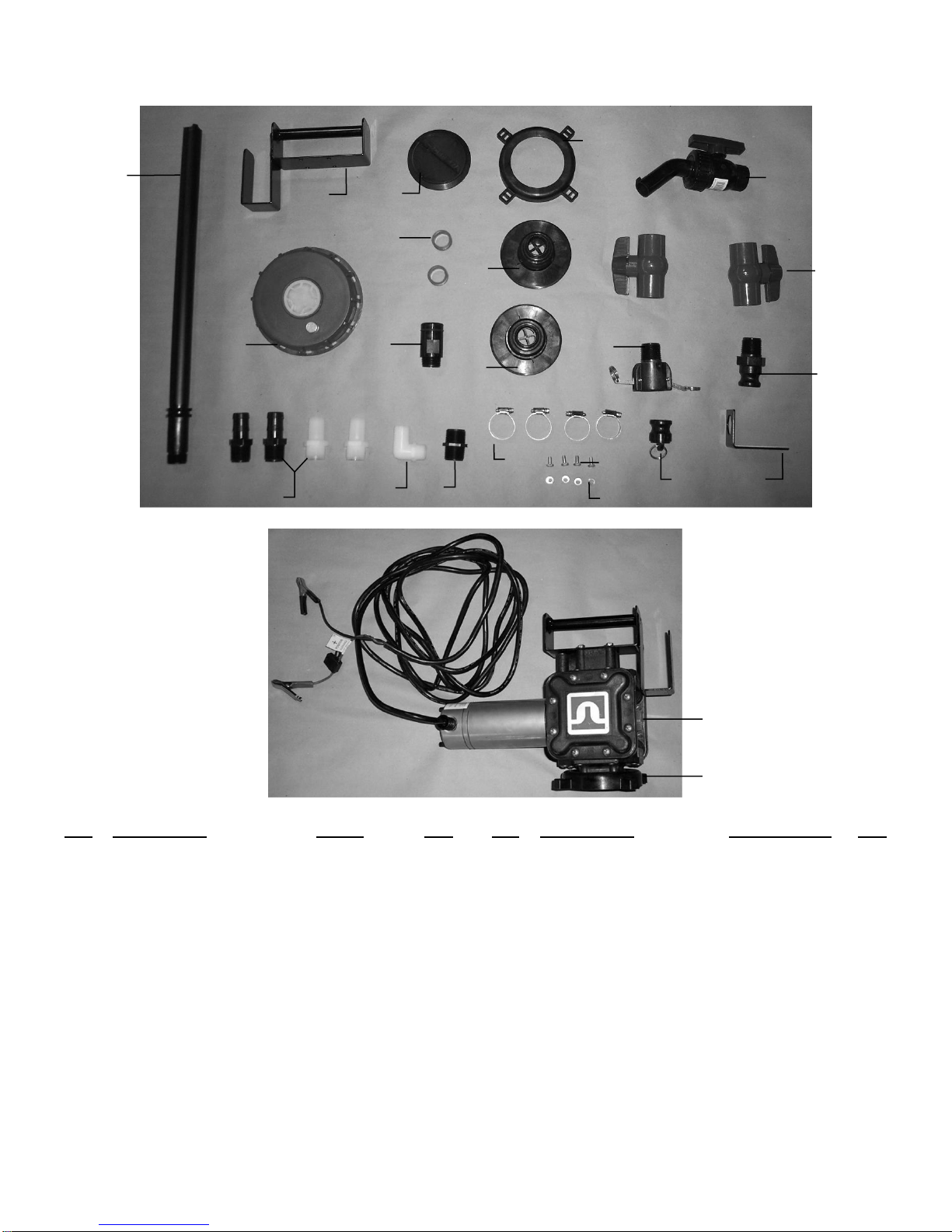

Parts Breakdown 9214 Transfer Pump
Ref
Description
Part #
Qty
Ref
Description
Part Number
Qty
1
Telescoping Suction Tube
003-TP1005
1
14
1/4-20 x 1/2" Bolt
NA
4
2
Carrier
001-4572
1
15
1" Hose Clamp
003-9007
4
3
Dust Shield
003-TP1006
1
16
1" MPT Nipple
003-M100100
1
4
Mini Teflon Roll
003-TP1002
2
17
3/4" MPT x 1" HB Elbow
003-EL34100
1
5
Collar Clamp
003-TP1007
1
18
1" MPT x 1" HB Straight
003-A100100
4
6
Nozzle Ball Valve
003-TP1008
1
19
Buttress Tank Adapter
003-TP1003
1
7
2" NPT Adapter
003-TP1004
1
20
Pump Probe w/ O-Ring
003-TP1001
1
8
1" Ball Valve
002-2210
2
21
Bulk Cap 6" w/ Breather
005-9204PC
1
9
Female Coupler
002-2204L
1
22
12VDC 15GMP Pump
007-7000
1
10
Male Coupler
002-2204O
1
23
Pump Flange
003-TP1009
1
11
Valve Bracket
001-6702I
1
NP
1" EVA Hose (clear)
002-9013
5 ft
12
1" Plug
002-2204M
1
NP
1" EPDM Hose (black)
003-TP1010
12 ft
13
1/4" Lock Washer
NA
4
1
21
2
3
5
4
20
19
7
6
8
10
11
12
17
16
14
15
13
9
23
22
18

7
