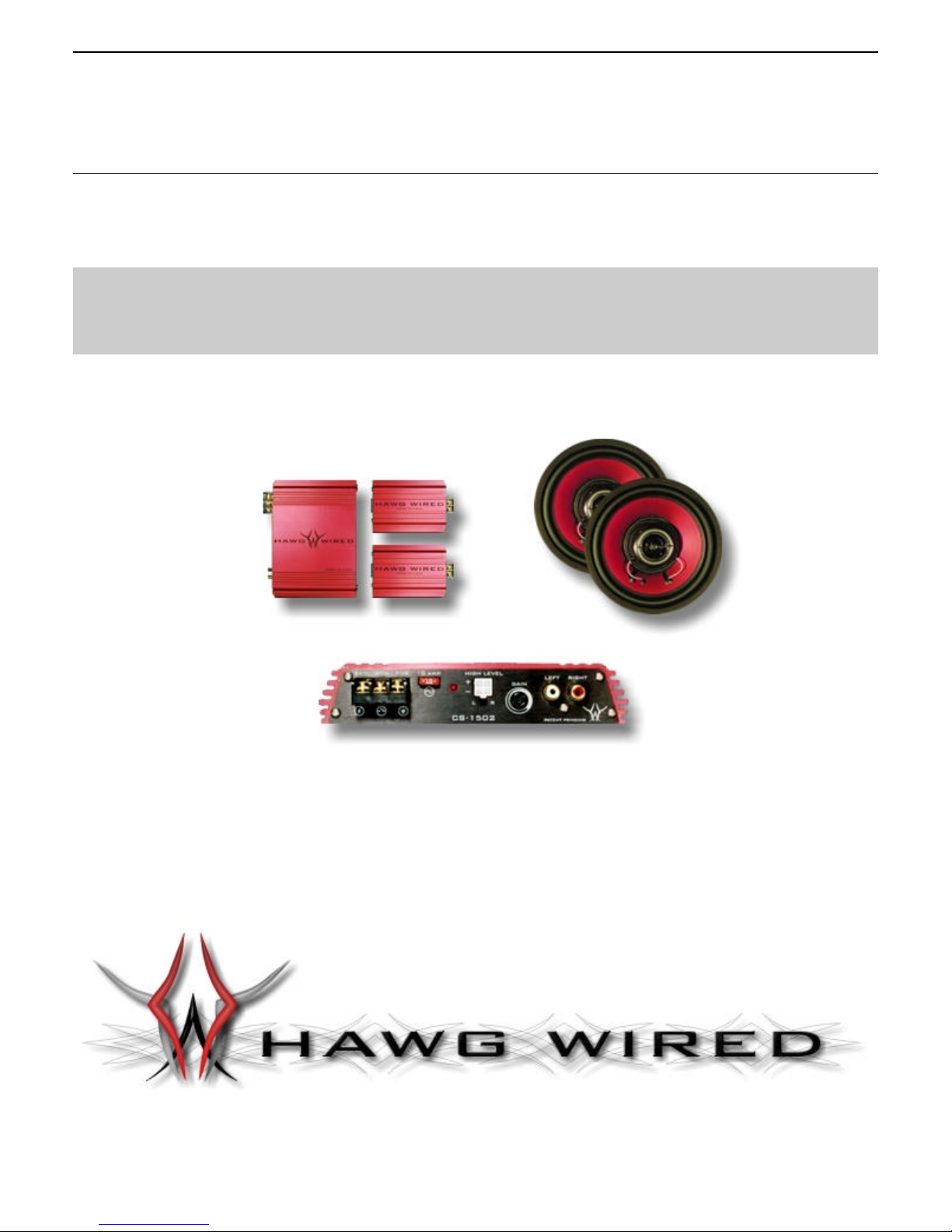

Hawg Wired SC1502 User manual

d
de es si ig gn ne ed d a an nd d b bu ui il lt t i in n t th he e u u. .s s. .a a. .
H
HA AW WG G W WI IR RE ED D, , I IN NC C. .
I
IN NS ST TA AL LL LA AT TI IO ON N G GU UI ID DE E
S
S
SC
C
C1
1
15
5
50
0
02
2
2 A
A
AU
U
UD
D
DI
I
IO
O
O S
S
SY
Y
YS
S
ST
T
TE
E
EM
M
M

SC1502 AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED, INC. PAGE 2FREMONT, CA
D
DE EA AR R C CU US ST TO OM ME ER R
CONGRATULATIONS ON YOUR PURCHASE OF THE FINEST MOTORCYCLE AUDIO EQUIPMENT AVAILABLE.
WE’RE PLEASED YOU’VE CHOSEN OUR PRODUCT, AND WELCOME YOU TO OUR FAMILY. AT HAWG WIRED,
WE STRIVE TO BRING YOU THE ULTIMATE RIDE EXPERIENCE THROUGH QUALITY SOUND. WITH YEARS OF
ENGINEERING, CRAFTSMANSHIP, AND A WHOLE LOT OF TRIAL AND ERROR, WE BELIEVE WE’VE GOTTEN
THIS STUFF NAILED DOWN RIGHT. WE SINCERELY HOPE YOU ENJOY OUR QUALITY PRODUCTS ON ALL
OF YOUR MOTORCYCLE JOURNEYS.
THANKS!
THE HAWG WIRED TEAM
S
SE ER RI IA AL L N NU UM MB BE ER R
PLEASE RECORD THE MODEL AND SERIAL NUMBER[S] OF YOUR EQUIPMENT IN THE SPACE PROVIDED
BELOW AS YOUR PERMANENT RECORD. THE NUMBERS ARE ON THE BOTTOM OF EACH COMPONENT.
THIS WILL HELP WITH YOUR FACTORY WARRANTY COVERAGE AND MAY BE USEFUL IN RECOVERING YOUR
AUDIO SYSTEM IN THE UNFORTUNATE EVENT THAT IT’S STOLEN.
MODEL NUMBER[S]:
SERIAL NUMBER[S]:
T
TA AB BL LE E O OF F C CO ON NT TE EN NT TS S
INTRODUCTION ......................................................................................................... 3
KIT CONTENTS .......................................................................................................... 3
INSTALLATION INSTRUCTIONS ................................................................................... 4
SPEAKER WIRING CHART ........................................................................................... 6
SYSTEM DIAGRAMS ................................................................................................... 7
SPECIFICATIONS....................................................................................................... 8
WARRANTY INFORMATION .......................................................................................... 9

SC1502 AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED, INC. PAGE 3FREMONT, CA
I
IN NT TR RO OD DU UC CT TI IO ON N
THIS MANUAL PROVIDES INFORMATION FOR THE OWNER, SALESPERSON, AND INSTALLER. FOR THOSE
OF YOU LOOKING FOR QUICK INSTALLATION INFORMATION FOR THIS PRODUCT, PLEASE PROCEED TO
THE INSTALLATION SECTION OF THIS MANUAL.
HERE AT HAWG WIRED, WE WORK HARD MAKING SURE ALL OF THE INFORMATION IN THIS MANUAL IS
CORRECT AND CURRENT, BUT DUE TO OUR CONSTANT EFFORT TOWARDS IMPROVING OUR PRODUCTS,
THIS INFORMATION IS SUBJECT TO CHANGE WITHOUT NOTICE. PLEASE CHECK OUR WEB SITE
REGULARLY FOR THE LATEST NEWS, TIPS, AND CHANGES TO THIS DOCUMENTATION.
THIS KIT INCORPORATES THE FOLLOWING KEY FEATURES SPECIFICALLY DESIGNED FOR MOTORCYCLES:
qMODULAR DESIGN MAKES IT EASY TO FIT IN TIGHT SPACES
qALL DIGITAL CIRCUITRY MAKES IT EFFICIENT IN POWER USAGE AND HEAT DISSIPATION
qCREATES MORE POWER WITHOUT TAXING THE BATTERY OR CHARGING SYSTEM
qELIMINATES COOLING OR MOUNTING CONCERNS SINCE VERY LITTLE HEAT IS GENERATED
qCOMPLETE WIRING KIT MAKES FOR A PROFESSIONAL, QUICK, AND EASY INSTALLATION
THIS KIT HAS BEEN DESIGNED TO WORK WITH BOTH THE BATWING AND SHARK-NOSE HARLEY-
DAVIDSON® FAIRINGS, AND CAN ALSO BE INSTALLED IN MOST AFTERMARKET FAIRINGS WITH MINOR
MODIFICATION TO THE WIRING KIT.
K
KI IT T C CO ON NT TE EN NT TS S
1 –SC1502 CONTROLLER MODULE
2 –CT75 AMPLIFIER MODULES
2 –18” CONTROL CABLES
1 –6’ POWER CABLE WITH ATC FUSE HOLDER & BLACK SLEEVE
1 –24” GROUND CABLE
1 –REMOTE POWER CABLE
1 –HIGH LEVEL INPUT CABLE
1 –36” RCA CABLE
1 –24” SPEAKER WIRE EXTENSION
2 –AMPLIFIER MOUNTING BRACKETS
4 –LARGE ZIP TIES
2 –SMALL VELCRO PADS
1 –LARGE VELCRO PAD
1 –INSTALLATION HARDWARE KIT
1 –25 AMP ATC FUSE
6 –18 AWG BUTT CONNECTORS
4 –SMALL ZIP TIES
1 –PACKET OF DIELECTRIC GREASE
3 –PACKETS OF ALCOHOL CLEANING PADS

SC1502 AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED, INC. PAGE 4FREMONT, CA
I
IN NS ST TA AL LL LA AT TI IO ON N I IN NS ST TR RU UC CT TI IO ON NS S
1. TURN OFF THE IGNITION AND REMOVE THE SEAT.
TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.
2. DISCONNECT THE BATTERY.
TIP: ALWAYS DISCONNECT THE NEGATIVE SIDE FIRST, POSITIVE SECOND.
3. REMOVE THE FRONT FAIRING COVER.
TIP: REFER TO MANUFACTURER INSTRUCTIONS IF NECESSARY.
4. PLACE A SMALL AMOUNT OF DIELECTRIC GREASE ON EACH CONTROL CABLE CONNECTOR, THE
CONTROLLER MODULE, AND ON EACH AMPLIFIER MODULE, FOCUSING ON THE ELECTRICAL
CONTACTS.
5. WITH BOTH AMPLIFIER CONTROL CABLES ATTACHED, MOUNT1THE CONTROLLER MODULE; TYPICAL
BATWING MOUNTING GOES ON TOP OF THE RADIO, WHILE THE SHARK-NOSE FAIRING REQUIRES
SIDE MOUNTING ON THE FLAT AREA UNDERNEATH THE GLOVE BOX.
TIP: ON 2006 BATWING MODELS: IF ONE OF THE TWO MODULES (XM SATELLITE RADIO OR CB COMMUNICATIONS) IS
INSTALLED ON TOP OF YOUR RADIO, YOU WILL NEED TO INSTALL OUR HKA150 ADAPTER BRACKET IN THE BLANK
MODULE SLOT. IF BOTH MODULES ARE INSTALLED, MOUNT THE CONTROLLER ON TOP OF THE MODULES. IF
NEITHER MODULE IS INSTALLED, CUT THE LARGE VELCRO® PIECE IN HALF IN ORDER TO PLACE ONE PIECE ON
EACH SIDE OF THE RIB DOWN THE CENTER OF THE RADIO, THEN MOUNT THE CONTROLLER ON TOP OF THE RADIO.
IN ALL INSTALLATION SITUATIONS, ENSURE THAT THE CONTROLLER IS POSITIONED AS FAR BACK AS POSSIBLE.
6. ON BATWING MODELS, REMOVE BOTH SPEAKER BRACKETS AND INSTALL THE AMPLIFIER MOUNTING
BRACKETS USING THE FACTORY HARDWARE. NOW MOUNT1YOUR AMPLIFIERS TO THE BRACKETS
USING THE VELCRO®PATCHES PROVIDED.

SC1502 AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED, INC. PAGE 5FREMONT, CA
I
IN NS ST TA AL LL LA AT TI IO ON N I IN NS ST TR RU UC CT TI IO ON NS S [ [C CO ON NT TI IN NU UE ED D] ]
7. ON SHARK-NOSE MODELS, MOUNT1ONE AMPLIFIER IN FRONT OF CONTROLLER, AND ONE AMPLIFIER
BEHIND CONTROLLER USING THE VELCRO®PATCHES PROVIDED.
8. CONNECT THE CONTROL CABLES TO EACH OF THE AMPLIFIER MODULES.
NOTE: NEVER CONNECT OR DISCONNECT CONTROL CABLES WHILE POWER IS ON. THIS CAN CAUSE DAMAGE TO THE
AMPLIFIER MODULES AND WILL VOID YOUR WARRANTY.
9. RUN THE BATTERY WIRE (WITHOUT THE FUSE INSTALLED) FROM THE +BATTERY TERMINAL, UNDER
THE GAS TANK, THROUGH THE FAIRING, AND CONNECT TO THE CONTROLLER TERMINAL LABELED
PWR. THE BLACK SLEEVE SHOULD END UP BETWEEN THE GAS TANK AND THE FAIRING.
TIP: DO NOT CONNECT THE BATTERY WIRE TO THE BATTERY UNTIL THE INSTALLATION IS COMPLETE.
10. INSTALL THE GROUND WIRE FROM THE CONTROLLER TERMINAL LABELED GND TO CHASSIS
GROUND.
TIP: TYPICALLY YOU CAN UTILIZE AN EXISTING SCREW OR NUT ON THE FRAME, PREFERABLY WHERE A FACTORY
GROUND STRAP ALREADY EXISTS. IT IS IMPORTANT TO VERIFY THAT THE POINT SELECTED FOR GROUNDING IS A
TRUE AND CLEAN CONNECTION TO THE CHASSIS. MANY PROBLEMS ARE THE RESULT OF A POOR GROUND.
11. INSTALL THE REMOTE TURN-ON WIRE FROM THE CONTROLLER TERMINAL LABELED REM TO DESIRED
+12V TURN-ON SOURCE.
TIP: WITH FACTORY RADIOS, USE THE CIGARETTE LIGHTER METHOD (PASS THROUGH LUGS INCLUDED AND
INSTALLED ON REMOTE WIRE). WITH AFTERMARKET RADIOS, REFER TO YOUR RADIO SPECIFIC WIRING DIAGRAM TO
DETERMINE THE REMOTE TURN-ON LEAD TO CONNECT TO THE CONTROLLER MODULE.

SC1502 AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED, INC. PAGE 6FREMONT, CA
I
IN NS ST TA AL LL LA AT TI IO ON N I IN NS ST TR RU UC CT TI IO ON NS S [ [C CO ON NT TI IN NU UE ED D] ]
12. INSTALL INPUT WIRES. IF USING STOCK HARLEY®RADIO, CONNECT HIGH-LEVEL CABLE TO WIRES
REMOVED FROM SPEAKERS (REFER TO WIRING CHART FOR STOCK HARLEY®RADIO).
NOTE: IF AN AFTER MARKET RADIO IS BEING INSTALLED, USE RCA LOW LEVEL OUTPUT IF AVAILABLE. IF LOW-LEVEL
IS NOT AVAILABLE, SEE RADIO MANUAL TO DETERMINE HIGH-LEVEL CONNECTION.
13. RE-CONNECT THE BATTERY.
TIP: ALWAYS CONNECT THE POSITIVE SIDE FIRST, NEGATIVE SECOND.
14. INSTALL 25 AMP ATC FUSE INTO THE FUSE HOLDER ON THE POWER CABLE.
TIP: THIS IS A GOOD TIME TO RE-CHECK ALL CONNECTIONS JUST BEFORE INSTALLING THE FUSE. ALSO MAKE SURE
THAT THE CONTROL CABLES ARE COMPLETELY SEATED AND LATCHED INTO THEIR RESPECTIVE SOCKETS.
15. PERFORM A SYSTEM TEST. TURN THE KEY TO THE ACCESSORY POSITION AND VERIFY THAT ALL
FUNCTIONS WORK AS EXPECTED. ONCE THE SYSTEM IS OPERATIONAL AND FUNCTIONING
PROPERLY, SET THE GAIN SO THAT THE SYSTEM PERFORMS AT OPTIMAL VOLUME WITH THE RADIO
AT ABOUT ¾ VOLUME.
NOTE: DO NOT SET THE GAIN TOO HIGH. THIS CAN LEAD TO DAMAGING THE SPEAKERS.
16. TURN THE IGNITION OFF.
17. INSTALL THE FAIRING COVER.
TIP: REFER TO MANUFACTURE INSTRUCTIONS IF NECESSARY.
18. INSTALL THE SEAT.
TIP: REFER TO MANUFACTURE INSTRUCTIONS IF NECESSARY.
19. PERFORM A FINAL SYSTEM TEST. TURN THE KEY TO THE ACCESSORY POSITION AND VERIFY THAT
ALL FUNCTIONS STILL WORK AS EXPECTED.
20. PERFORM A TEST DRIVE AND AGAIN VERIFY THAT THE SYSTEM IS OK.
NOTE1: BE SURE TO CLEAN ALL MOUNTING SURFACES WITH THE INCLUDED ALCOHOL PADS BEFORE
ATTACHING THE ADHESIVE VELCRO®PATCHES.
S
SP PE EA AK KE ER R W WI IR RI IN NG G C CH HA AR RT T
MODEL/PART LEFT
SPEAKER
(+)
LEFT
SPEAKER
(-)
RIGHT
SPEAKER
(+)
RIGHT
SPEAKER
(-)
1998 –2006
STOCK HARLEY HEAD
UNIT
WHITE /
ORANGE
LIGHT GREEN
/ WHITE
GRAY / RED LIGHT GREEN
/ BLACK
HIGH-LEVEL INPUT
CABLE
WHITE BLACK
(TWISTED W/
WHITE WIRE)
RED BLACK
(TWISTED W/
RED WIRE)

SC1502 AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED, INC. PAGE 7FREMONT, CA
S

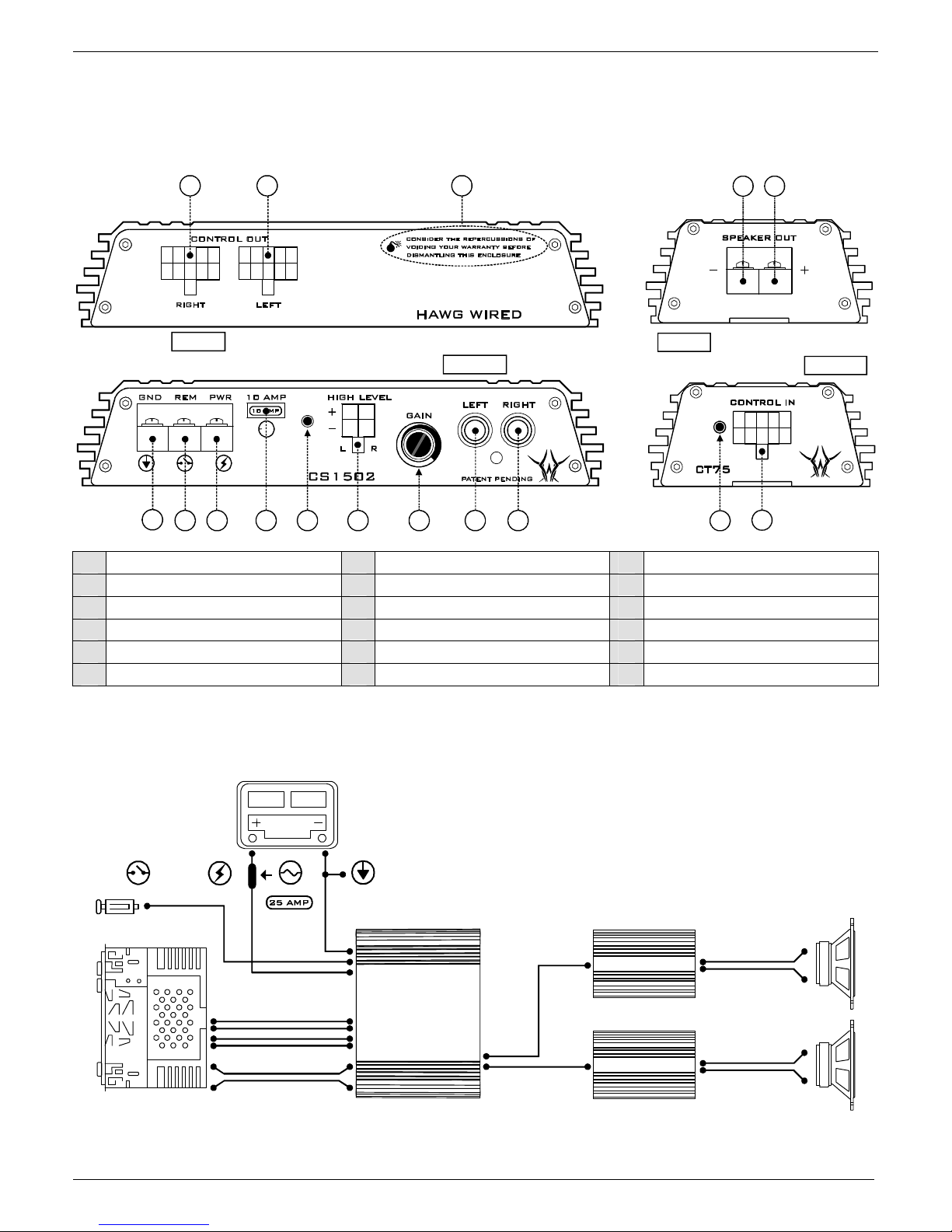

SY YS ST TE EM M D DI IA AG GR RA AM MS S
F
FA AC CE EP PL LA AT TE ES S: :
ADCBEF
G
H
I
JK
L
Front
Back
Front
Back
N
P
O
M
AGROUND TERMINAL GGAIN ADJUSTMENT KNOB MPOWER INDICATOR
BREMOTE TERMINAL HLEFT LOW LEVEL INPUT NCONTROL CABLE INPUT
CPOWER TERMINAL IRIGHT LOW LEVEL INPUTONEGATIVE SPEAKER OUTPUT (-)
D10AMP FUSE JRIGHT CONTROL CABLE OUT PPOSITIVE SPEAKER OUTPUT (+)
EPOWER INDICATOR KLEFT CONTROL CABLE OUT
FHIGH LEVEL INPUT LHIGHLY RECOMMENDED
S
SY YS ST TE EM M C CO ON NF FI IG GU UR RA AT TI IO ON N: :
BATTERY
CONTROL
MODULE
AMP
AMP
RADIO
pwr gnd
rem
LIGHTER
high level
(speaker wires)
-OR-
low level
(rca cable)
control
cables
speaker
out
speaker
out

SC1502 AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED, INC. PAGE 8FREMONT, CA
S
SP PE EC CI IF FI IC CA AT TI IO ON NS S
SYSTEM MODEL NUMBER:.................................................................................................... SC1502
NOMINAL OUTPUT IMPEDANCE: ............................................................................................ 4 OHMS
NOMINAL POWER OUTPUT (WATTS RMS):........................................................ 75 WATTS PER CHANNEL
FREQUENCY RESPONSE: .............................................................................................. 10HZ-50KHZ
CASE DIMENSIONS:
CS1502 CONTROL MODULE................................................................... 6.75” W X 4.50” D X 1.25” H
CT75 AMPLIFIER MODULE...................................................................... 3.00” W X 4.00” D X 1.25” H
OUR AMPLIFIER TECHNOLOGY FEATURES CLASS-T®DIGITAL AMPLIFIERS BY TRIPATH
"UNCOMPROMISED SOUND QUALITY" TYPICALLY: .......................................... 0.005% THD+N @ 70W 4O
............................................................................................................. 10.0% THD+N @ 117W 4O
DYNAMIC RANGE = 103DB
OVER-CURRENT AND OVER-TEMPERATURE PROTECTION
TURN-ON AND TURN-OFF POP SUPPRESSION
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

SC1502 AUDIO SYSTEM INSTALLATION GUIDE
HAWG WIRED, INC. PAGE 9FREMONT, CA
W
WA AR RR RA AN NT TY Y I IN NF FO OR RM MA AT TI IO ON N
HAWG WIRED OFFERS A LIMITED WARRANTY ON HAWG WIRED PRODUCTS ON THE FOLLOWING TERMS:
• LENGTH OF WARRANTY
1 YEAR ON AUDIO SYSTEMS AND 6 MONTHS ON SPEAKERS (RECEIPT REQUIRED).
• COVERAGE
THIS WARRANTY COVERS ONLY THE ORIGINAL PURCHASER OF A HAWG WIRED PRODUCT PURCHASED
FROM AN AUTHORIZED HAWG WIRED DEALER IN THE UNITED STATES. IN ORDER TO RECEIVE SERVICE,
THE PURCHASER MUST PROVIDE HAWG WIRED WITH A COPY OF THE RECEIPT STATING THE CUSTOMER
NAME, DEALER NAME, PRODUCT PURCHASED AND DATE OF PURCHASE.
• DEFECTIVE PRODUCTS
PRODUCTS FOUND TO BE DEFECTIVE DURING THE WARRANTY PERIOD WILL BE REPAIRED OR REPLACED
(WITH A PRODUCT DEEMED TO BE EQUIVALENT) AT HAWG WIRED'S DISCRETION.
• WHAT IS NOT COVERED
DAMAGE CAUSED BY ACCIDENT, ABUSE, IMPROPER OPERATIONS, WATER, THEFT
ANY COST OR EXPENSE RELATED TO THE REMOVAL OR REINSTALLATION OF PRODUCT
SERVICE PERFORMED BY ANYONE OTHER THAN HAWG WIRED OR AN AUTHORIZED HAWG WIRED SERVICE
CENTER
ANY PRODUCT WHICH HAS HAD THE SERIAL NUMBER OR TAMPER LABELS DEFACED, ALTERED, OR
REMOVED
SUBSEQUENT DAMAGE TO OTHER COMPONENTS
ANY PRODUCT PURCHASED OUTSIDE THE U.S.
ANY PRODUCT NOT PURCHASED FROM AN AUTHORIZED HAWG WIRED DEALER
• LIMIT ON IMPLIED WARRANTIES
ANY IMPLIED WARRANTIES INCLUDING WARRANTIES OF FITNESS FOR USE AND MERCHANTABILITY ARE
LIMITED IN DURATION TO THE PERIOD OF THE EXPRESS WARRANTY SET FORTH ABOVE. SOME STATES
DO NOT ALLOW LIMITATIONS ON THE LENGTH OF AN IMPLIED WARRANTY, SO THIS LIMITATION MAY NOT
APPLY. NO PERSON IS AUTHORIZED TO ASSUME FOR HAWG WIRED ANY OTHER LIABILITY IN
CONNECTION WITH THE SALE OF THE PRODUCT.
• HOW TO OBTAIN SERVICE
PLEASE CALL 1-510-894-2999 FOR HAWG WIRED CUSTOMER SERVICE. YOU MUST OBTAIN A RETURN
MATERIAL AUTHORIZATION NUMBER (RMA) TO RETURN ANY PRODUCT TO HAWG WIRED. YOU ARE
RESPONSIBLE FOR SHIPPING CHARGES OF RETURNED PRODUCTS TO HAWG WIRED.
• MADE IN THE USA
THIS PRODUCT WAS PROUDLY DESIGNED, DEVELOPED AND BUILT IN THE USA. THE MAJORITY OF THE
COMPONENTS USED IN THE CONSTRUCTION OF THIS PRODUCT ARE PRODUCED BY AMERICAN
COMPANIES. HOWEVER, DUE TO THE GLOBAL NATURE OF MODERN MANUFACTURING AND THE
ELECTRONICS INDUSTRY IN GENERAL, SOME PARTS MAY BE MANUFACTURED IN OTHER COUNTRIES.
HAWG WIRED, INC.
FREMONT, CA
CONTACT US BY EMAIL
GENERAL INFORMATION –[e-mail]
SALES AND MARKETING –[e-mail]
TECHNICAL SUPPORT –[e-mail]
CONTACT US BY PHONE
MAIN 510.894.2999
EFAX 510.217.6994
COPYRIGHT © 2006 HAWG WIRED, INC. ALL RIGHTS RESERVED.
