Haylou GX1 User manual

HAYLOU GX1
Condenser Streaming Microphone
For More Language Versions,
Please Scan QR Code
Quick Sta Guide

01 Connection,Verbinden,接続
1.Connect the mic to the PC, using the Type-C to USB-A cable
Schließen Sie das Mikrofon über das mitgeliefee Type-C zu USB-A Kabel an den Computer an.
付属のType-CからUSB-Aのケーブルで、マイクをパソコンに接続します。
2.Monitor: Connect to headphones/speaker via 3.5mm audio cable.
Kopörerausgang: Schließen Sie Kopörer/Lautsprecher über ein 3,5-mm Audiokabel an.
モニター：3.5ミリのオーディオケーブルでイヤホン/オーディオを接続。
Type-C
3.5mm monitor
3,5mm Kopörerausgang
3.5mmモニター
5/8 thread
5/8 Gewinde
5/8ねじ

02 Adjustment,Betrieb,調整
15-30cm
Best angle of sound pickup
Optimaler Aufnahmewinkel
最適な集音角度
Attention:Screw down both sides of the product after angle adjustment.
Hinweise:Ziehen Sie nach der Anpassung des Winkels die Schrauben auf beiden Seiten des Produkts fest.
注意:角度を調整し、製品両側のネジを締める。

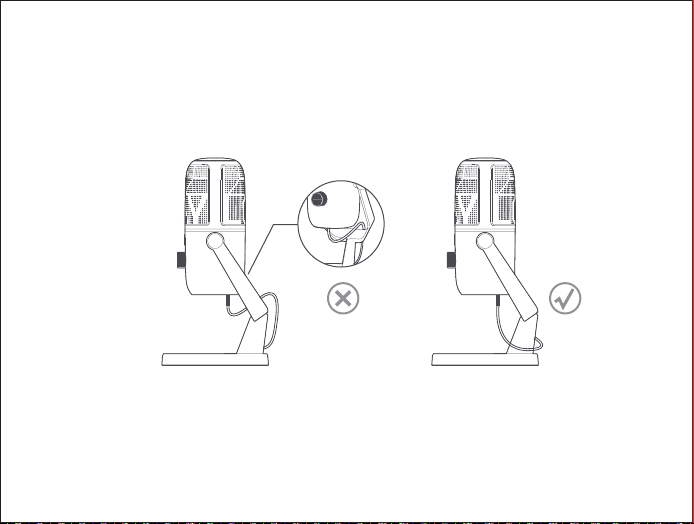

Cable adjustment
Kabel Platzierung
ケーブル調整
Attention:
1. Avoid cable-mic connection above the suppo, for perpetual friction between the suppo and cable may cause
damage and consequently aect user experience.
2. The mic should be connected below the suppo for utmost user experience.
Hinweise:
1. Das Kabel sollte nicht über die Oberseite der Halterung mit dem Mikrofon verbunden werden. Langfristige Reibung
zwischen der Halterung und dem Kabel füh zu Schäden und beeinträchtigt das Erlebnis.
2. The mic should be connected below the suppo for utmost user experience.
注意:
1、ケーブルはスタンドの上を通してマイクと接続しないでください。スタンドとケーブルの長期摩擦により破損し、
使用に影響することがあります。
2、最高の使用体験を実現するため、スタンドの下からマイクと接続してください。

Headphone volume,Kopörerlautstärke,イヤホン音量
Hinweise:
1. Das Kabel sollte nicht über die Oberseite der Halterung mit dem Mikrofon verbunden werden. Langfristige Reibung
zwischen der Halterung und dem Kabel füh zu Schäden und beeinträchtigt das Erlebnis.
2. The mic should be connected below the suppo for utmost user experience.
By default, users can rotate the knob to turn up or down the headphone volume, in which case, the RGB indicator
will prompt green. At its maximum/minimum volume, the indicator ashes for twice.
Standardmäßig können Sie den Knopf drehen, um die Lautstärke des Kopörers zu erhöhen oder zu verringern. Das
RGB-Licht leuchtet grün. Wenn die Lautstärke auf dem Maximum ist, blinkt es zweimal, und wenn sie auf dem Minimum
ist, blinkt es zweimal.
デフォルトではつまみを回すと、イヤホンの音量を上げたり下げたり調整することができます。この時、RGBランプ
は緑色に点灯し、音量最大時に2回、最小時に2回点滅します。
Headphone volume+
Kopörerlautstärke+
イヤホン音量+
Headphone volume-
Kopörerlautstärke-
イヤホン音量-
RGB indicator turns green
Das RGB-Licht leuchtet grün
RGBランプは緑色に点灯します。
03 Operation,Bedienung,操作

Mic Volume,Mikrofonlautstärke,マイク音量
Press the knob to switch to mic mode, in which case, the RGB indicator will prompt blue. Rotate the knob to elevate
or lower the sensitivity of mic in recording. At its maximum/minimum sensitivity, the indicator ashes for twice.
Drücken Sie den Knopf, um in den Mikrofonmodus zu wechseln. Das RGB-Licht leuchtet blau. Drehen Sie den Knopf,
um die Empndlichkeit des Mikrofons zu erhöhen oder zu verringern, wenn das Radio an ist. Wenn die Empndlichkeit
am höchsten ist, blinkt es zweimal und wenn sie am niedrigsten ist, blinkt es zweimal.
つまみを押すとマイクモードに切り替えることができます。この時、RGBランプは青色に点灯し、つまみを回すとマ
イク集音時の感度を上げたり下げたりすることができます。感度は最高時に2回、最低時に2回点滅します。
Mic volume+
Mikrofonlautstärke+
マイク音量+
Mic volume-
Mikrofonlautstärke-
マイク音量-
Press the knob for mode switch.
Klicken Sie auf den Knopf, um den
Modus zu wechseln.
つまみを押してモードを切り替えます。
RGB indicator turns blue.
Das RGB-Licht leuchtet blau.
RGBランプは青色に点灯します。

Mute&RGB,Stumm&RGB,ミュート&RGB
1. Press mic mute button to mute or unmute the mic.
2. As the mic is muted, the RGB indicator will turn red.
1. Drücken Sie die Mikrofon-Stummschalttaste, um die Stummschaltung einzuschalten oder aufzuheben.
2. Wenn das Mikrofon stummgeschaltet ist, leuchtet das RGB-Licht rot.
1.マイクのミュートボタンを押してマイクをミュートにしたり、ミュートを解除したりすることができます。
2.マイクがミュート状態の場合、RGBランプが赤色に点灯します。
Long press the knob for 5s or longer to turn o or on the RGB indicator.
Drücken Sie den Knopf länger als 5 Sekunden, um das RGB-Licht ein- oder auszuschalten.
つまみを5秒以上長押しするとRGBランプを消灯したり点灯したりできます。
Mute/unmute
Stumm/Nicht stumm
ミュート/ミュート解除
Turn red in muting
Bei Stummschaltungleuchtet
das Licht rot
ミュート時に赤色に点灯

04 Microphone FAQ
Questions Answers
No sound from computer
after connection
Game console and device
compatibility
When the mic is set to be the input device, the computer media sound will come
out from the monitoring earphone of the mic;You can enter "Control Panel" in
the search box on the taskbar, select Control Panel, then select Sound;
In the Playback tab, right-click the system speaker, select Set as Default Device,
and select OK, then the media sound will come out from the computer.
Compatible with Switch, Ps4/5, MacOS, Windows11/10/8/7, IOS, Android.
You need to purchase an adapter cable to connect to the mobile phone.
How to install the mic on the
suppo
Large background noise or
popping sound when speaking
After unscrewing the left and right knobs of the mic, you can install the threaded
po on the bottom of the mic to a mic suppo with a standard 5/8 thread or a boom
Make sure there is no fan or air conditioner directly blowing your mic.
Make sure the mic is placed close to your mouth (do not put it directly on your
mouth).
It is recommended to keep a distance of 15-30 cm from the mic (the knob is
on the front side).
Click the knob, then the RGB will turn blue. Rotate the knob to the left to reduce
the gain eect of the mic to achieve the desired sound eect.

05 Basic Parameters
Product name: Condenser Streaming
Microphone
Product model：Haylou-GX1
Dimensions: 90.2×71.5×176.5mm
Package size: 201×135×101mm
Package contents: Microphone,
Quick Sta Guide, Type-C Audio
Connection Cable, Sound Setting Card
Number of buttons: 2pcs
Working voltage: USB 5V
Working current: <150mA
Microphone attributes: 25mm condenser
RGB light eect: blue / green / red / coloul
Pickup pattern: Cardioid
Sensitivity: -8dBFS/Pa (Volume=default)
ADC/DAC frequency response: 20Hz-20KHz
Signal-to-noise ratio: -75dBFS (Volume=default)
ADC bit/sampling: 24Bit/192KHz
DAC bit/sampling: 24Bit/48KHz
USB inteace type: Type-C
Headphone RMS output: >25mW/32R
System compatibility：Compatible with Switch,
Ps4/5, Windows11/10/8/7, Mac, IOS and Android

06 Safety Information
Before using and operating the device, please read and obsee the following precautions
to ensure the best peormance of the device, and avoid dangerous or illegal situations.
Precautions for usage scenarios and operating environment:
1. Strictly prohibit children or pets to swallow this product or its accessories to avoid harm to
them.
2. Do not place this product in an area where the temperature is too high or too low,
otherwise it may cause re or explosion.
3. Strictly prohibit to bring this product close to heat sources or exposed re sources, such
as ovens and electric heaters.
4. Some people have allergies. Their skin are allergic to plastics, coex, ber and other
materials, and symptoms such as redness, swelling and inammation will occur in long-term
contact areas. Please stop using and consult a doctor when similar situation occurs.
5. Do not use unauthorized or incompatible power adapters or data cables, otherwise it may
damage the accessories, causing re, explosion or other hazards.
6. The radio waves generated by the device may aect the normal operation of implanted
medical equipment or personal medical equipment, such as pacemakers and hearing aids. If
you use these devices, please consult their manufacturers about the restrictions on using the
device.

7. Do not take this device and its accessories as ordina household waste, please abide
by the local laws and regulations for the disposal of this device and its accessories, and
suppo recycling actions.
8. It is not allowed to change or increase transmission frequency ( including the installa-
tion of additional RF power ampliers ), or to connect an external antenna or switch to
other transmitting antennas without authorization.
9. Do not cause harmful inteerence to various legitimate radio communication business
indust during use. Once inteerence is found, stop using it immediately and take
measures to eliminate the inteerence before continuing to use it.
10. The use of micro-power radio device must endure the inteerence of various radio
seices or radiation inteerence of industrial, scientic and medical application equipment.
11. When using in special occasions, such as airplanes, airpos, etc., please abide by
relevant regulations.

Batte Safety
1. Do not disassemble, modify, puncture or damage the device and batteries.
2. Please do not expose the batte or device to ame, high temperature or other dangers.
3. Please do not sho-circuit the batte to avoid re.
4. Please dispose of batteries in accordance with local regulations, and do not take batteries
as household waste. If the batteries are not disposed of properly, it may cause the
batteries to explode.
Remarks:
This manual is for reference only, the specic functions and product
pictures may be slightly dierent from the actual product, please󶀅refer
to the󶀅actual product.
Peormance Failure Table
Name
Microphone body
The functions listed in the manual are invalid, no sound from receiver,
small sound, noise, button / knob function is invalid, the display light is not lit,
the mic can not be turned o
Other The suppo is broken and the rotation is stuck
Peormance failure

Free exchange seice will not be accessed under following circumstances:
1. Damages caused by unauthorized disassembly.
2. Defects or physical damages caused by leaking or dropping o.
3. Damages caused by act of God.
Supposing your item is within any damages or defects except the above circumstances,
please return to us or your distributor for free repairing.
Manufacturer: Dongguan Liesheng Electronic Co., Ltd.
Address: Room 401-410, Building 1, No. 86 Hongtu Road, Nancheng District,
Dongguan City, Guangdong, China
Web: www.haylou.com

HAYLOU GX1
专业直播麦克风
快 速 开 始 指 南
扫描二维码查看更多语言版本

01 连接
1、通过提供的Type-C至USB-A线缆将麦克风连接至电脑。
2、耳机监听：通过3.5毫米音频线连接耳机/音响。
Type-C
3.5mm
耳机监听
5/8螺纹

02 调试
最佳拾音角度
注意：
调整角度后，将产品两侧螺丝拧紧。
15-30cm

线缆调试
注意：
1、应避免连接线从支架上面穿过与麦克风连接，支架与线材的长期摩擦会导致损坏，影响体验。
2、应从支架下方穿过与麦克风连接以达到最好的使用体验。

耳机监听音量
默认转动旋钮即可调高或降低耳机音量，此时RGB灯会提示绿色，
音量最大时闪烁2次，最小时闪烁2次
耳机监听音量+
RGB灯提示绿色
耳机监听音量-
03 操作

麦克风收音
点按旋钮可切换至麦克风模式，此时RGB灯会提示蓝色，转动旋钮即可调高或降低麦克风
收音时的灵敏度，灵敏度最高时闪烁2次，最低时闪烁2次
麦克风音量- 麦克风音量+
点按旋钮
切换模式
RGB灯提示蓝色

静音&RGB
1.点按麦克风静音按钮可以使麦克风静音或取消静音。
2.当麦克风处于静音状态时，RGB灯将亮起红灯。
长按旋钮5秒
以上可以熄灭
或唤起RGB灯
静音/取消静音
静音时亮红灯
