Hayter LT322 User manual

LT322 / LT324
CAB
AND
FITTING KIT
INSTRUCTION MANUAL
AND PARTS LIST
FROM SERIAL NO. 917P001014 (CAB), 919R001001 (FITTING KIT) MANUAL PART NO. 919014 (REV.0.)
ISSUE: 21.04.99

ATTENTION
THIS SYMBOL MEANS
BE ALERT!
YOUR SAFETY IS INVOLVED
THIS CAB IS FOR USE ON THE LT322 AND LT324 TURF MOWERS.
READ THIS MANUAL BEFORE FITTING THE CAB.
IT IS ESSENTIAL THAT OPERATOR'S STUDY IT FOR THEIR OWN SAFETY.

INTRODUCTION. 1.5
WARRANTY. 1.5
SAFETY PRECAUTIONS. 1.6 - 1.7
Training. 1.6
Preparation. 1.6
Operation. 1.6 - 1.7
EC CONFORMITY INFORMATION. 1.8
Noise Levels. 1.8
EC Declaration of Incorporation. 1.8
SPECIFICATIONS. 1.9
PARTS LIST / DELIVERY CHECK LIST - KIT. 1.10 - 1.11
PARTS LIST - CAB. 1.12 - 1.13
CAB GENERAL ASSEMBLY. 1.14 - 1.20
Introduction. 1.14
Assembly. 1.14 - 1.20
BEACON ASSEMBLY. 1.21 - 1.23
Refitting the Beacon. 1.21 - 1.22
Beacon Template. 1.23
MAINTENANCE. 1.25 - 1.26
Commissioning the Cab. 1.25
Daily. 1.25
Every 250 Hours. 1.25
Hinging the Cab For Mower Maintenance. 1.25
To Re-assemble the Cab. 1.26
ELECTRICAL WIRING DIAGRAM. 1.27
1.4 1.4
CONTENTS
CONTENTS Page No.

The Cab Code 917P is designed to be fitted to the Hayter LT322 2WD Triple Turf Mower or the LT324 4WD Triple Turf
Mower using Fitting Kit Code 919R. This allows the mower to be used on slopes up to a maximum of 22 degrees
depending on ground conditions and provides limited safety protection in the event of a roll-over. For maximum safety,
the seat belt must be correctly fitted and worn by the operator.
This manual contains guidance for the correct assembly and the operation of the cab. It is provided for the protection of
those operating and servicing the equipment.
The Cab must only be fitted to a Hayter LT322 or LT324 by an authorised Hayter dealer.
In the interest of continuing improvement, Hayter Limited reserve the right to alter specifications without notice.
Left and Right: Throughout this manual the terms Left and Right refer to the machine when looking in the direction of
forward travel.
HAYTER LIMITED Warrants to the original user / purchaser that this unit shall be free from defects in material and
workmanship for a period of 12 calendar months from the date of delivery to the customer. This warranty excludes
proprietary items which have the benefit of the supplying manufacturer’s warranty.
This warranty which is not capable of assignment does not apply to any unit that has been tampered with, altered, misused
or abused and will become invalid if non genuine Hayter parts are fitted. This warranty does not cover minor adjustments
unless they are due to defective materials or workmanship. Consult the Instruction Manual or your authorised Hayter
dealer for assistance when making these adjustments.
To make a warranty claim contact your authorised Hayter dealer through whom the equipment was originally supplied,
indicating the serial number and purchase date. Subject to the conditions and exclusions in this warranty, the authorised
Hayter dealer will at our option, repair or replace any warranted part within the duration of the warranty period.
This warranty gives you specific legal rights and is in addition to any statutory rights to which you may be entitled, your
statutory rights are not affected by this warranty. If you need additional information concerning this written warranty or
assistance in obtaining services please write or telephone.
HAYTER LIMITED, Service Department, Spellbrook, Bishop’s Stortford, Herts., CM23 4BU:
Telephone: [phone].
1.5 1.5
INTRODUCTION / WARRANTY
INTRODUCTION
WARRANTY

Read the instructions carefully. Be familiar with the use of the equipment.
Ensure that the specified torque settings are adhered to.
The cab and its mountings must not be drilled, cut or altered in any way.
All drivers should seek and obtain professional and practical instruction. Such instruction should emphasise the need for
care and concentration when working with this equipment.
Ensure that all lifting equipment is in good condition and has sufficient capacity to lift the item required as specified in
this manual.
Always ask for assistance when lifting heavy or awkward loads.
Ensure that the seat belt is correctly fitted and in good condition. Always replace a damaged seat belt.
Always wear the seat belt when the cab is fitted.
Pay particular attention when operating due to the additional weight towards the front of the machine.
1.6 1.6
SAFETY PRECAUTIONS
TRAINING
PREPARATION
OPERATION
READ THIS MANUAL BEFORE FITTING OR USING THE CAB.
IT IS ESSENTIAL THAT OPERATORS STUDY IT FOR THEIR OWN SAFETY.
THESE INSTRUCTIONS ARE IN ADDITION TO THOSE CONTAINED IN THE MACHINE
OPERATOR’S MANUAL UNLESS OTHERWISE STATED. READ AND UNDERSTAND THE
SEPARATE MACHINE OPERATOR’S MANUAL BEFORE ATTEMPTING TO FIT THE CAB.
THE FOLLOWING PRECAUTIONS MUST BE TAKEN TO HELP PREVENT ACCIDENTS.
A CAREFUL OPERATOR WHO USES COMMON SENSE IS THE SAFEST OPERATOR.

Continued.
Do not use the LT322 or the LT324 Triple Turf Mowers on a slope of more than 19 degrees unless the approved cab is
fitted. Do not use the LT322 or the LT324 Triple Turf Mowers on a slope of more than 27 degrees when fitted with the
approved cab.
Ground conditions affect traction. Particular conditions may not permit safe operation on the slope limits stated.
Remember there is no such thing as a “SAFE” slope. Travel on a grass slope requires particular care. To guard against
overturning:
- Use extreme care when changing direction on a slope.
- Do not stop or start suddenly when travelling up or downhill.
- Engage and disengage drive slowly. Take extreme care, especially when
travelling downhill.
- Machine speed should be kept low on slopes and during tight turns.
- Stay alert for humps and hollows and other hidden hazards.
- Never mow across the face of a slope.
Keep all nuts, bolts and screws correctly torqued to be sure that the equipment is in safe working condition.
Replace worn or damaged parts for safety.
Ensure that all emergency exits are in full working order.
Health and Safety at Work Act:
In accordance with section 6 of the Health and Safety at Work Act 1974, this equipment has been designed and constructed
so that, in so far as is reasonably practical, it will not endanger the safety and health of those working with it. This is,
however, subject to the equipment being properly fitted, used and maintained according to the conditions stated in this
manual and elsewhere, which have been found necessary as a result of the research and testing of Hayter Limited.
1.7 1.7
SAFETY PRECAUTIONS
OPERATION
19 Degree Slope
27 Degree Slope
Ground Level
MAINTENANCE

Operator’s Daily Personal Noise Exposure : HAYTER LIMITED have no control over site
conditions, duration of use, state of maintenance or adjustment of the mower. All of these
factors will affect the operator’s daily personal noise exposure level - LEP,d
Under typical working conditions operators could be exposed to a daily personal noise exposure
level in excess of 85 dB (A) LEP,d
Sound Pressure Level:
The maximum sound pressure level at the operator’s position is 87 dB(A) under typical working
conditions.
If ear protection is required, ear protectors with good attenuation in the 63-8000Hz frequency
range should be used.
Employers of personnel using this machine are advised to read the ‘Noise at Work Regulations’
as the operators daily personal exposure level could be above the ‘First Action Level’.
1.8 1.8
EC DECLARATION OF
INCORPORATION
Company Name Hayter Limited,
Company Address Spellbrook,
Bishop’s Stortford,
Herts.
CM23 4BU
England.
Machine Code No. 917P / 919R
Models LT322 / LT324 Cab Incorporating a Roll Over Protective
Structure and Fitting Kit.
This equipment complies with Directive 89/392/EEC amended by 91/368/EEC, 93/44/EEC and
93/68/EEC.
Essential Health and Safety requirements relating to the design and construction of machinery and
safety components.
Tested to OECD code 4 ISO 3776
The above cab must not be put into service unless the machine to which it is to be fitted has been
declared in conformity with the provisions of Directive 89/392/EEC amended by
91/368/EEC,93/44/EEC and 93/68/EEC Essential Health and Safety requirements relating to the
design and construction of machinery and safety components.
Signed : Date : 21.07.97.
M.A. Wright
(Technical Director)
EC CONFORMITY INFORMATION
EC DECLARATION OF INCORPORATION
NOISE LEVELS
IS015

Controls: Windscreen wiper - ON / OFF Switch.
Windscreen washer - ON / OFF Switch.
Beacon - ON / OFF Switch (Optional).
Windscreen washer Bottle Capacity: 1.7 Litres
SPECIFICATIONS
1.9 1.9
Cab Only Fitting Kit Cab Fitted to Machine With Beacon Fitted
(with 200mm Cutterheads)
LT322 LT324 LT322 LT324
Overall Height 1550mm - 2300mm 2300mm 2450mm 2450mm
Overall Width 1031mm - 2120mm 2120mm 2120mm 2120mm
Overall Length 1405mm - 2690mm 2690mm 2690mm 2690mm
Weight 250Kg 60Kg 1350Kg 1400Kg 1350Kg 1400Kg
SPECIFICATIONS

1.10 1.10
PARTS LIST / DELIVERY CHECK LIST CODE 919R - KIT
1. Full Cab - Code 917P CODE 917P 1
2. Bracket - Cab Support W/A R.H. 919002G 1
3. Bracket - Cab Support W/A L.H. 919003G 1
4. Bolt - M16 x 100 ZBH1P100U 4
5. Washer - M16 Plain 09491 10
6. Nut - Nyloc M16 09456 2
7. Block - Cab Pivot & Mount Assembly (includes items 8, 9) 919006 2
8. Block - Cab Pivot 919007G 2
9. Mount - Isolating (Rubber) 919008 2
10. Plate - Backing Front R.H. 918014G 1
11. Plate - Backing Front L.H. 918015G 1
12. Screw - Soc Hd Cap M10 x 45. 09407 14
13. Washer - Plain M10 09479 32
14. Nut - Nyloc M10 09447 16
15. Plate - Backing Rear 918016G 2
16. Bolt - M12 x 35 Hex Hd 09551 4
17. Washer - Plain M12 H.D. ZWQ1L000U 16
18. Washer - Spring M12 SC 09599 4
19. Nut - M12 Nyloc 09453 6

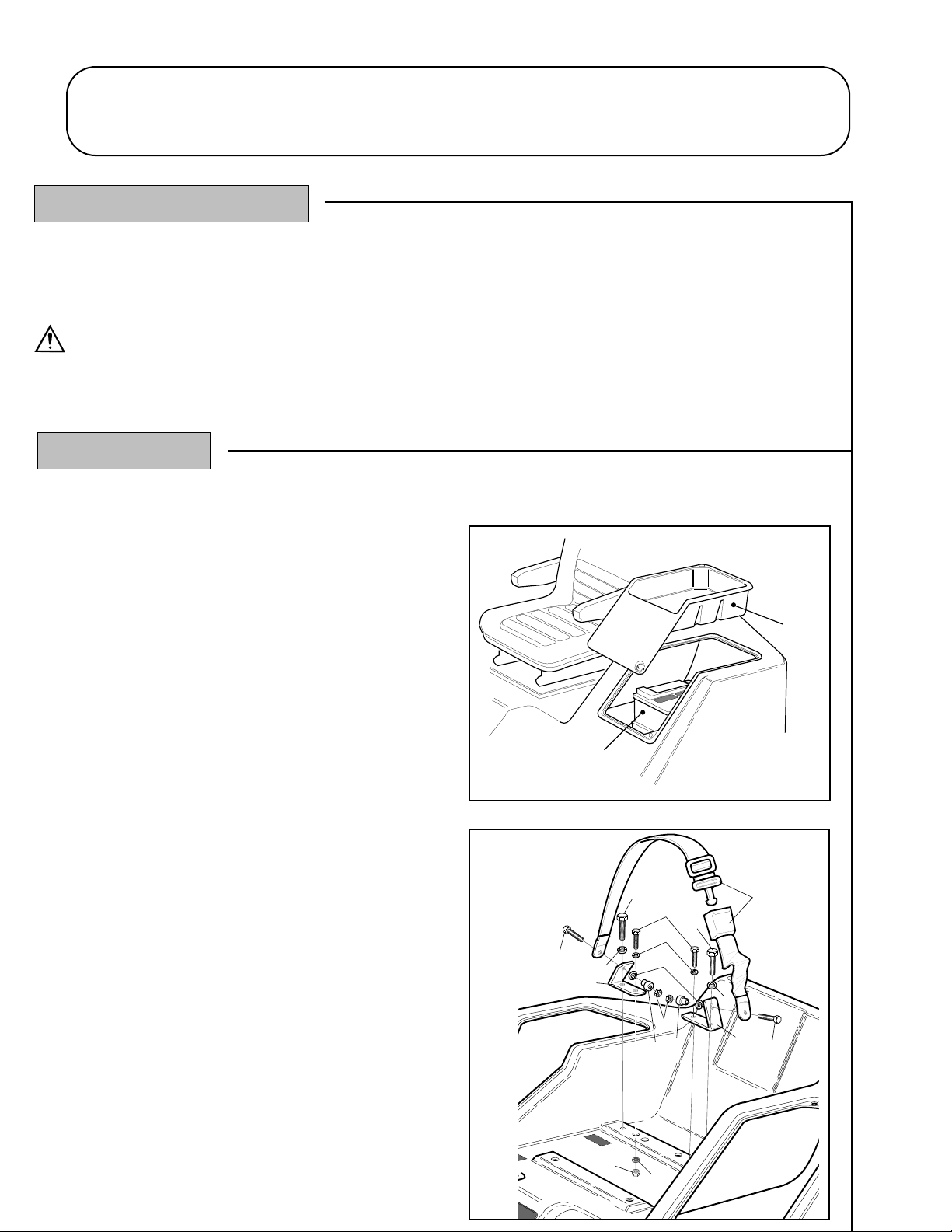

20. Seat Belt - Static (includes 22,23,24 & 25) 74-07-043 1
21. Bracket - Seat Belt Mounting 915030W 2
22. Bolt - 7/16” x 1 1/2” UNF (091309) Incl. in item 20 2
23. Spacer - Long (Seat Belt Bolt) Incl. in item 20 1
24. Spacer - Short (Seat Belt Bolt) Incl. in item 20 1
25. Washer - Wavy. Incl. in item 20 2
26. Nut - Nyloc UNF 7/16” 09222 2
27. Setscrew - M10 x 30 09392 2
28. Bolt - M8 x 35 09631 4
29. Nut - Plain M8 09443 4
30. Washer - Plain M8 09475 24
31. Nut - Nyloc M8 09442 4
32. Mount - Rear Cab W/A 919010G 1
33. Draught Exluder 70-07-079 Specify Length
34. Protection Strip 70-07-070 Specify Length
35. Mount - Isolator 74-07-053 2
36. Mount - Retainer W/A 915023 2
37. Bolt - M10 x 40 09611 4
38. Bolt - M12 x 90 09614 2
39. Infill - Cab 919009 2
40. Seal Strip 70-07-079 Specify Length
41. Bottle - Washer water 74-07-095 1
42. Pump - Washer 74-07-106 1
43. Washer - Pump Sealing 74-07-121 1
44. Tube - 4mm I/D Washer 74-07-084 Specify Length
45. Valve - Non Return 74-07-097 1
46. Bracket - Washer Bottle. 74-07-098 1
47. Screw M5 x 20 ZDH1E020U 2
48. Washer M5 09470 2
49. Nut - M5 Nyloc 09470 2
50. Seal - Front Lower Trim R.H. 915022 1
51. Seal - Front Lower Trim L.H. 915021 1
52. Foam - Strip 919013 Specify Length
53. Switch - Wiper / Washer 924617 1
54. Lens - Wiper / Washer 924616 1
55. Harness - Wiper / Washer 915070 1
56. Fuse - 5 Amp 70-09-025 1
57 Cable Tie (not illustrated) 74-07-020 10
PARTS LIST
Item No. Description Part No. Qty
}Tool Box Fasteners (not illustrated)

19
17
18
16
1D918R01A
9
8
7
65
5
6
5
5
52
4
50
51
14
1
13
13
13
13 13
14
13
13
10
15
13
13
13
3
14
12
12
12 12
11
12
12
13
17
19
14
52
16
33
34
17
52
32
41
45
55
55
42
43
44
13
14
13
14
40 39
40 39
38
17
38
17
38
17
14
36
13
17
37
13 39
35
49
46
47
48
15
2

17
16
1.11 1.11
PARTS LIST / DELIVERY CHECK LIST CODE 919R - KIT
1D918R02A
22
22
20
21
21
25
A
A
B
B
13
13
14
27
24
26
23
53
55
54
56
1D919R14A

58. Catch - Over Centre 2
59. Window - Floor L.H. 1
60. Window - Floor R.H. (Not Illustrated) 1
61. Trim - Corner Panel R.H. 1
62. Trim - Corner Panel L.H. 1
63. Hinge - Door 4
64. Seal 38
65. Plate - Hinge 4
66. Washer - M8 Plain 8
67. Washer - M8 Spring 8
68. Setscrew - M8 x 25 8
69. Seal - Protection Strip 2 Specify Length
70. Window - Door 2
71. Frame - Door L.H. 1
72. Frame - Door R.H. 1
73. Grab Handle 2
74. Frame - Cab W/A 1
75. Handle - Door 2
76. Seal - Door Handle 2
77. Plate - Door Handle 2
78. Washer - M6 Plain 4
79. Washer - M6 Spring 6
80. Setscrew - M6 x 25 6
81. Bush - Window 11
82. Washer - M5 Plain 11
83. Washer - M5 Spring 11
84. Setscrew - M5 x 16 11
85. Striker Pin & Nut 2
86. Bracket - Striker L.H. 1
87. Bracket - Striker R.H. 1
88. Washer - M8 Plain 4
89. Washer - M8 Spring 4
90. Setscrew - M8 x 25 4
91. Hinge - Window 2
92. Pin - Hinge 2
93. Circlip 4
94. Washer - Cone 2
95. Interior Catch - L.H. 1
96. Mirror - Interior 1
97. Cap - M6 Nut 2
98. Window - Rear 1
99. Panel - Roof 1
100. Interior Catch - R.H. (Not Illustrated) 1
101. Damper 2
102. Bolt - M8 x 60 4
103. Washer - M8 Plain 8
104. Nut - M8 Nyloc 4
105. Cap - M8 Nut 4
106. Trim - Roof Panel 1
107. Window - Front 1
108. Motor - Wiper 1
109. Washer - Plastic 1
110. Washer - Plastic 1
111. Washer - Elbow 1
112. Bush - Plastic Diameter 14mm Hole 1
113. Bush - Plastic Diameter 16mm Hole 1
114 Wiper Blade CWB 49 20” 1
PARTS LIST
915045
915050
915051
915049
915048
915046
74-07-059
915029
ZWQ1H000U
09476
01362
74-07-072
915030
915031
915032
915033
917002
915035
915036
915037
ZWQ1F000U
09473
09364
74-07-105
09470
09644
ZDH1E016U
74-07-075
915038
915039
ZWQ1H000U
09476
01362
74-07-056
74-07-103
74-07-104
74-07-100
915052
74-07-112
74-07-055
915040
915017
915053
915041
09371
09475
09442
234051
915042
915043
915044
74-07-117
74-07-115
74-07-096
74-07-114
74-07-116
74 07 080
Item No. Description Part No. Qty
PARTS LIST CODE 917P - CAB1.12 1.12

1.13 1.13
PARTS LIST CODE 917P - CAB
70
69
72
102
103 99
106
69 93
92 91
93
71 70 69
64 65 63
66 67 68
75
81
64
64
76
77
85 80 79
78
86
87
88
89
90
82
83
84
95
69
107
73
1D919R04A
110
111
112
108
108 109 113
115
81
64
114
61
108
96
59
58
62
101
74
103
104
105
105
97 80 78 94
98

To assemble the Cab to the LT322 and LT324 you will require Cab Code 917P and Fitting Kit Code 919R.
Check that all parts have been correctly supplied. Check against the Delivery Check List on page 1.10-1.11.
Note: Some parts of the fitting kit are pre-assembled.
WARNING: PREVENT ACCIDENTS - It is essential to have a suitable lifting device with a safe capacity of 350kg.
- Always wear eye protection when drilling.
The cab must be fitted by an authorised Hayter dealer.
Read and understand the assembly instructions before proceeding. Refer to the Spare Parts List and the LT322 or LT324
Operators Manual and proceed as follows:
1. Lower all cutterheads to the ground.
2. Apply the parking brake, switch off the engine and
remove the ignition key.
3. Remove the plastic tool tray from the L.H. side of the
platform. Refer - fig. 1.
4. Disconnect the battery terminals, first the negative (-ve)
and then the positive (+ve).
5. Remove the M16 securing bolts and washers (items A,
B) and raise the operator platform. Refer - fig 2.
6. Carefully align each seat belt bracket (items 21) with
the holes in the platform and secure with M10 fasteners
(items 27,13,14) and torque to 43Nm. Ensure that the
M16 bolts will fit through the holes in the brackets and
the platform.
Attach the seat belts to the seat belt brackets with the
7/16” fasteners (items 22, 23, 24, 25, 26) and torque to
60Nm. Ensure that long spacer (item 23) and the short
spacer (item 24) are assembled to the correct sides.
Refer - fig. 2.
1.14 1.14
CAB GENERAL ASSEMBLY
INTRODUCTION
ASSEMBLY
1
2
1D924P14A
1. Battery
2. Tool tray
fig. 1.
1D918R02A
22
22
20
21
21
25
A
A
B
B
13
13
14
27
24
26
23
fig. 2.

Continued.
7. Open the engine cover and remove the side screens.
8. Remove the tool box assembly from the L.H. side of the machine. Discard the fasteners securing the tool box brackets
to the chassis. Drill out the two chassis mounting holes on the front tool box bracket to diameter 10.5mm.
9. Remove and discard the rearmost fuel tank mounting fasteners on each side of the machine. (For early LT322 and
LT324 Turf Mowers, refer to page 1.20).
10. Locate the backing plates (items 10, 11, 15) to the holes on the inside of the chassis members as shown in fig. 3.
11. Secure the rear L.H. cab support (item 3) to the six positions in the chassis using fasteners (items 12,13 &14). Refer
- fig. 3. Do not fully tighten at this stage.
12. Repeat (step 11) for the rear R.H. cab support and reassemble the tool box as described in step ‘13’.
13. Use the M8 fasteners (items 28, 29, 30, 31) to secure the rear tool box bracket in the new position on the R.H. side
of the machine and ensure that 3 washers (items 30) are assembled together at the 2 fixing positions as shown. Refer
- fig. 4.
Note: If a lighting kit is fitted, discard the fasteners securing the light cluster at the rear of the machine. Re-secure
between the chassis and the rear tool box bracket and eliminate 2 of 3 washers referred to above at the 2 fixing
positions .
Fit the front tool box bracket with fasteners (items 12, 13, 14) which are used to secure the rear of the R.H. Cab
support. Refer - fig. 4.
1.15 1.15
CAB GENERAL ASSEMBLY
fig. 3.
ASSEMBLY

Continued.

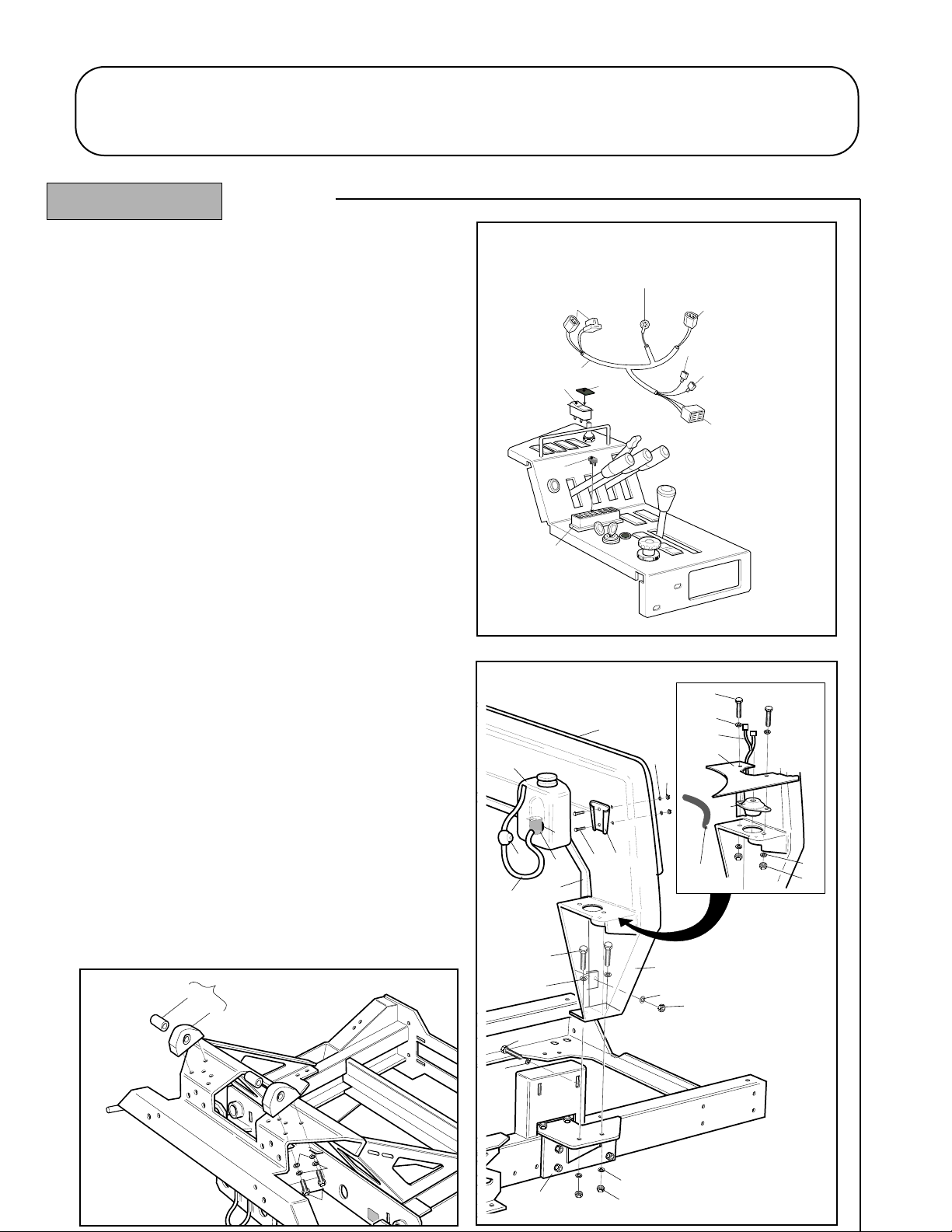

14. Identify the wiring harness, switch, lens, fuse and cable
ties (items 53, 54, 55, 56, 57). Refer - figs. 5 and 5A.
15. Thread connectors ‘A’ and ‘B’ under the R.H. fuel tank
support forward of the cab support bracket.
16. Route the harness across the chassis and thread
connector ‘D’ under the L.H. fuel tank support forward
of the cab support bracket.
17. Route ring terminal ‘C’ to the earth connection point
located beneath the L.H. side of the chassis and connect.
18. Route the remaining arm of harness to the control panel.
19. Connect the wiper / washer terminal (red/blue) to the
fuse box. Refer - figs. 5 and 5A.
20. If a beacon is fitted (optional kit), connect the beacon
terminal (orange) to the beacon switch on the control panel.
21. Remove the wiper/washer switch position blanking
cover in the control panel and pass the 8-way connector
‘G’ through the aperture from the underside. Fit the lens
(item 54) to the rocker switch (item 53) and assemble to
the 8-way connector. Snap the switch into the control panel. Refer - figs. 5 and 5A.
22. Secure the wiring harness in position with the cable ties (items 57) supplied.
23. Fit the 5 amp fuse (item 56) into the fuse box. Refer - figs. 5 and 5A.
1.16 1.16
CAB GENERAL ASSEMBLY
Front
30
30
30
30
30
28
29
13 14
31
1D919R15A
13 15
2
12
fig. 4.
ASSEMBLY
53
55
Fuse Box
54
56
1D919R12A
A
Beacon Wiper
R.H. Inside Rear Corner
of Cab
L.H. Inside Rear Corner
of Cab
Beacon Switch - Orange
(Control Panel)
Wiper/Washer Feed - Red/Blue
(Fuse box-Control Panel)
Switch - (Contol panel)
Chassis Earth Point
(Located beneath L.H. side of chassis)
BC
D
E
F
G
fig. 5. (Code P Models)

Continued.
24. Fit the draught excluder and protection strip (items
33, 34) to the rear cab mount (item 32). Fit the
washer bottle bracket (item 46) with fasteners (items
47, 48, 49). Refer - fig. 6.
25. Fit the rear cab mount assembly (item 32) over the
fuel tank and locate onto the R.H. and L.H. cab
support brackets. Secure using fasteners (items 16,
17, 19) but do not tighten at this stage.
26. Fit the edging strip (item 40) to the cab infill plates
(items 39) and assemble these together with the
isolator mounts (items 35) to the rear cab mount
assembly with fasteners (items 37, 13, 14). Tighten
until the infill plates just move. Refer - fig. 6.
27. Route the wiring harness leads on each side of the
machine up in front of the rear cab mount assembly
and through the slots in the cab infill plates.
28. Lower the platform.
29. Secure the pivot block and mount assemblies (items
7) to the chassis with M12 fasteners (items 16, 17,
18) and torque to 75Nm. Refer - fig 7.
1.17 1.17
CAB GENERAL ASSEMBLY
ASSEMBLY
1D919R10A
3
17
19
13
12
32
13
40
17
16
14
13
37
13
39
35
55
14
49
48
41
45
44
42
34
33
43
46
47
fig. 6.
17
18
16
1D919R08A
9
8
7
fig. 7.
53
55
Fuse Box
54
56
1D919R12A
A
Beacon Wiper
R.H. Inside Rear Corner
of Cab
L.H. Inside Rear Corner
of Cab
Beacon Switch - Orange
(Control Panel)
Wiper/Washer Feed - Red/Blue
(Fuse box-Control Panel)
Switch - (Contol panel)
Chassis Earth Point
(Located beneath L.H. side of chassis)
BC
D
E
F
G
fig. 5A. (Code S Models)

Continued.
30. Using suitable lifting equipment (capable of lifting in
excess of 350Kg safely), carefully raise the cab frame
assembly from the transport frame using suitable lifting
straps as shown in fig. 8.
The transport frame should be returned to Hayter
Limited for re-use.
31. Carefully align the cab frame assembly with the
machine and pivot blocks (items 7) and secure using
M16 fasteners (items 4, 5, 6), but do not tighten fully at
this stage. Refer - fig. 9.
1.18 1.18
CAB GENERAL ASSEMBLY
1D919R02A
fig. 8.
6
5
5
6
7
5
5
4
1D919R07A
7
fig. 9.
ASSEMBLY

Continued.
32. Fit the R.H and L.H. front lower trims (items 50, 51) and foam strips (items 52) to the base of the cab frame. Refer - fig.10.
33. Support the weight of the cab with the lifting equipment and rotate the cab frame rearwards to locate onto the rear
isolator mounts (items 35). Refer - fig. 10.
34. Align The rear isolator mount assemblies by adjusting the bracketry until they are in good central alignment with the
cab fixings.
35. Secure the cab assembly to the rear mounts using fasteners (items 38, 17,19) and ensure that the mount retainers
(items 36) are correctly located. Note: It is essential that the rear mount retainers are fitted.
36. Tighten all fasteners to the recommended torques shown below. Ensure that the rear mounts remain correctly aligned
and that the R.H. and L.H. infill plates are correctly located against the platform. Refit the platform securing bolts and
washers.
Tightening torques: M10 fasteners - 43Nm.
M12 fasteners - 75Nm.
M16 fasteners - 190Nm.
Platform securing bolts - 40Nm.
37. Connect the cab wiring loom connectors to the machine wiring harness connectors.
38. Refit the side screens and close the engine cover.
39. Fill the washer bottle and assemble onto the support bracket.
40. Connect the washer bottle pump connectors to the machine wiring harness connector.
41. Connect the washer bottle tube to the washer bottle pump.
42. Re-connect the battery, first the positive (+ve) and then the (-ve).
43. Refit the plastic tool tray. Refer - fig. 1.
44. Remove the lifting straps.
1.19 1.19
CAB GENERAL ASSEMBLY
ASSEMBLY
1D919R09A
17
16
40 35
38
17
19 36
17
52
50
52
52
51
fig. 10.

Continued.

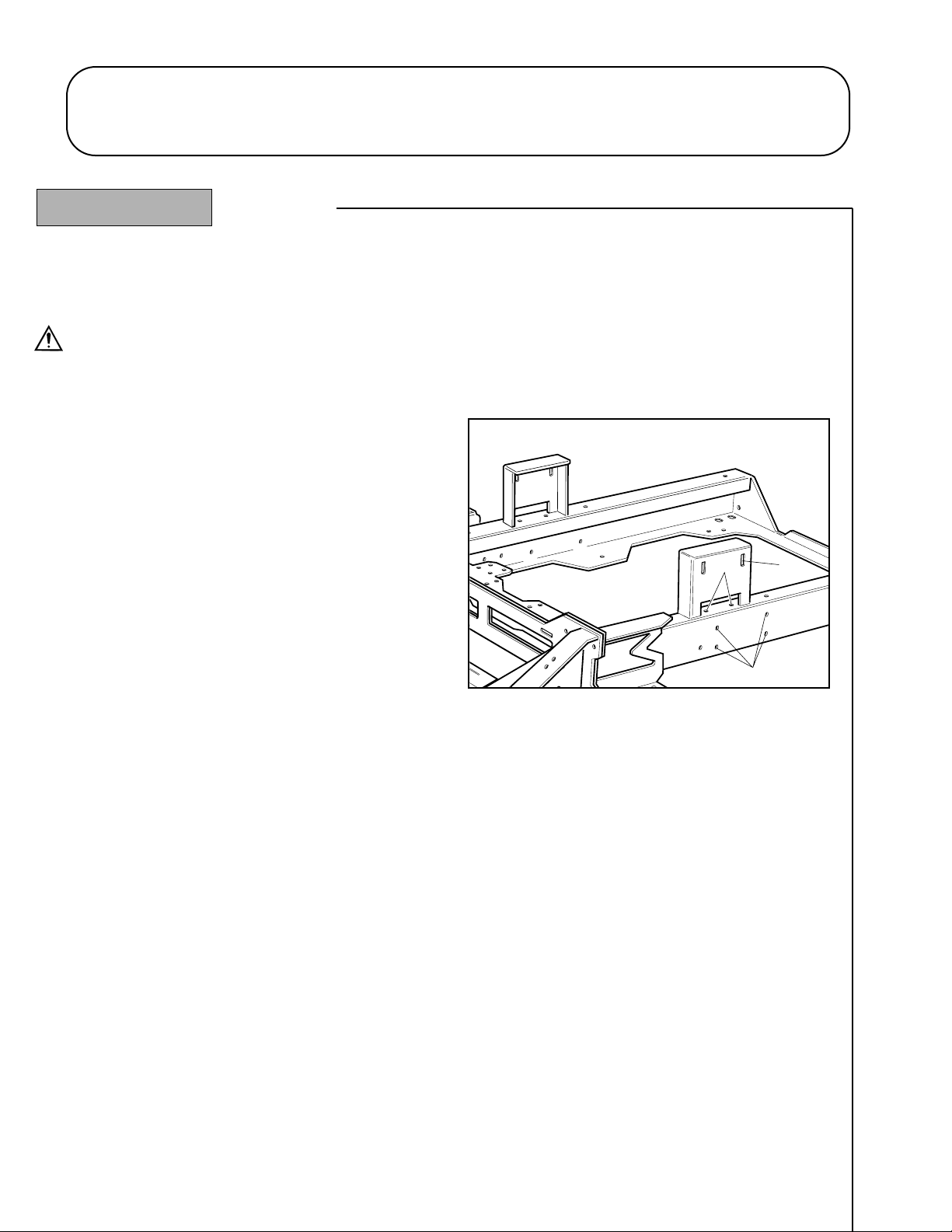

Early LT322 and LT324 Turf Mowers will require some hole sizes to be increased and additional holes to be added to
enable the cab to be fitted.
WARNING: PREVENT ACCIDENTS - Always wear eye protection when drilling.
Proceed as follows:-
1. Following removal of the rear fuel tank mounting
fasteners (step 9 on page 1.16), file out the slots (A) in
the chassis brackets to enable M10 screws to be fitted.
Refer - fig. 11.
2. Remove the fuel tank
3. Open out four holes (B) each side of the chassis member
to 10.5mm diameter as shown in fig. 11.
Take care when drilling the holes not to damage the
hydraulic hoses. It is recommended that a steel plate be
inserted between the chassis member being drilled and
the hydraulic hoses.
4. Locate the rear cab support R.H. in position and mark
the positions of the holes (C) to be drilled in the top of the face of the chassis member. Refer - fig. 11.
5. Repeat step 4 for the rear cab support L.H.
6. Depending on the drilling equipment available, drill 2 - 10.5mm diameter holes in each chassis member or mark the
position of the holes on the fuel tank mounting brackets and drill through the brackets to the chassis member.
Take care when drilling the holes not to damage the hydraulic hoses. It is recommended that a steel plate be inserted
between the chassis member being drilled and the hydraulic hoses.
7. Refit the fuel tank and continue to proceed according to the instructions for fitting the cab.
1.20 1.20
CAB GENERAL ASSEMBLY
ASSEMBLY
B
CA
fig. 11.
