Helo BioSense User manual

QUICK
START
GUIDE
BioSense
health band

1
Packing List
The box contains the following items
BioSense
health band
USB C cable
Charging Base
BioSense
health band

2
1
Input voltage: 5V DC.
Charging time: about 2 hours.
How to charge
1. Plug the USB C cable into the socket on the charger base
2. Place the BioSense onto the charging base, aligning the metal contacts on the back ofthe
band with the gold pins on the charging base. This will line up the magnets in thecorrect
direction
3. Place the charge on a flat surface with the BioSense sideways
BioSense
health band

2
3

2
How to use
1. APP Download
Download the HELO Smart App from the App Store, Google Play Store, or HELO App STORE.
Note: To use “HELO Smart App” on an iPad, you need to select “iPhone only” when
downloading it from the App Store.
2. Initial Setup
The first time you use your device, place it on the charging base after it has been removed
from the box. Once the green LED lights up, you can connect your device to the app.
3. Power On
When the Band is powered off, press and hold the touch button for 5 seconds to power
on the device. Additionally, when the Band is powered off and placed on the charger, the
device will power on.
4. Power Off
When the app is connected to the device, click “Turn off the band” into the app to
shutdown.
5. Start Measurements
Initiate BP/SpO2 measurements through the device: When the Band is powered on,
quickly double-click the touch button, and the dark blue light will flicker, indicating that the
initiation is successful. Touch the finger sensor to measure. Upon completion, the light
turns off, and the dark blue light flickers. A red light will flicker if the measurement fails.
Through the App : When the App is connected to the device, select the health function
then click “Measurement”, and the blue light flickers, indicating that the initiation is
successful.
6. Restart
When the Band is powered on, press and hold the touch button for 10 seconds to enter the
restart mode (red light flicker), double-click the touch button within 5 seconds to confirm
the restart (shut down first, then power on). If the touch button is not double-clicked for
more than 5 seconds, the Band will automatically exit the restart mode, and the red light
will stop flickering.
7. Reset
When the app is connected to the device, click “Reset the band” in the app to shut it down.
All the data not yet synchronized will be lost.
BioSense
health band

1
2
4
2
3
5
1 6
2 7
3 8
94
5
7
8
6
9
7
6

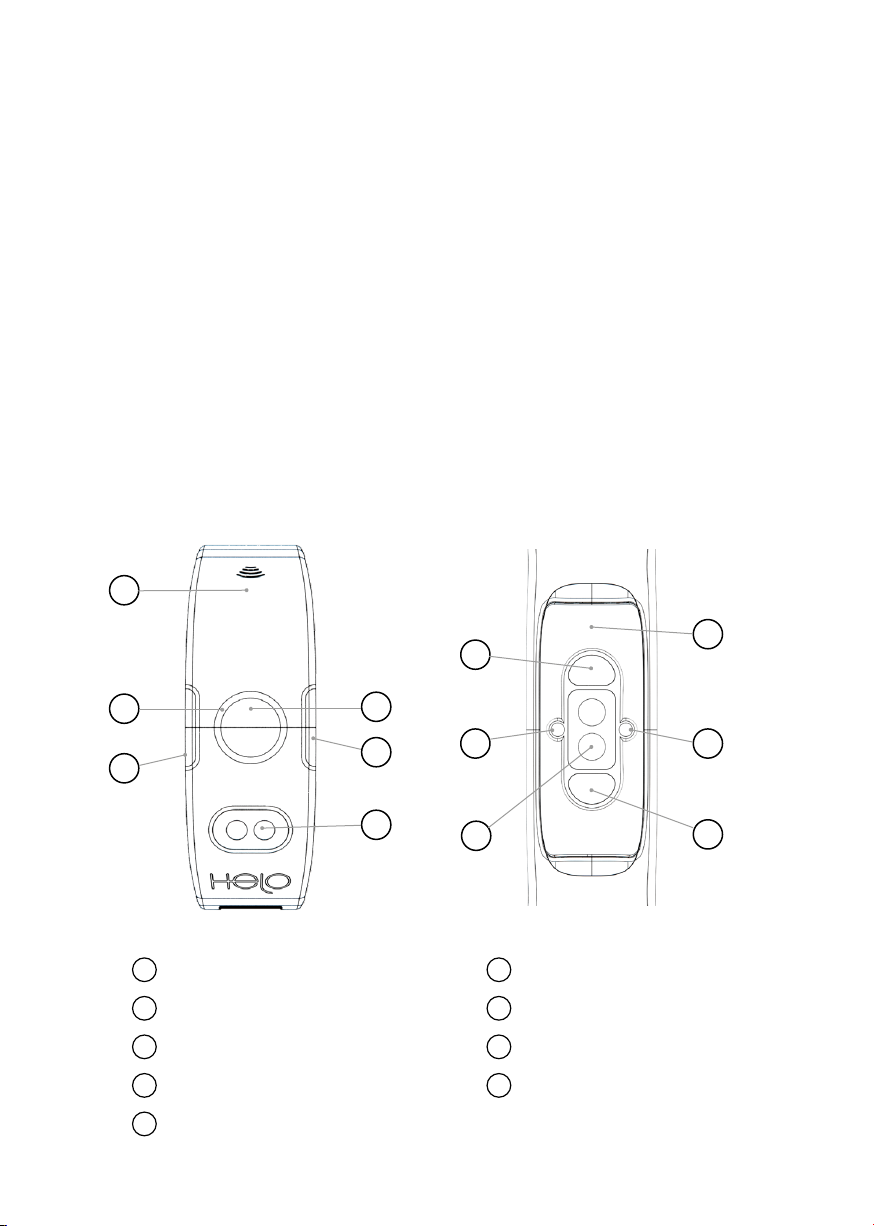

Power ON button
ECG & BIA electrodes
LED light
BP, SpO2, APG sensor
Built-in VyvoPay chip
ECG contact plates
Charger pins
6-Axis Gyroscope
Skin temperature, continuos AFIB,
continuos HR, SpO2 sensors
TOP view BOTTOM view
8. Guardian
The red light will blink for 10 seconds, then stop. To see the values connected to the
Guardian Alerts open the HELO App.
9. Compatibility & Support
Support Android 5.0 or above, iOS 10.0 or above.
10. Connection
After finishing the download, open the App and register by opening an account, then
complete the connection process according to the operating instructions on the App.
11. Check Connection Status
Touching the button once will make the LED light flicker twice. The light will flicker light
blue if the device is connected - green if not connected.

3
Introduction for important features
Heart rate monitoring
To monitor heart rate more accurately, please wear the band approximately one finger’s
length away from the wrist bone.
BioSense
health band

4
More information
Waterproofing instructions
The BioSense’s waterproof rating is IP68 (50m).
NOTE
1. BioSense is only suitable for swimming. If you wear BioSense while diving, it may cause
damage to the device. Such damage is not within the scope of the device’s warranty.
2. While wearing the device, swim, shower, and wash hands only under cold water.
3. BioSense does not have a waterproofing effect for other liquids like acids and alkaline
solutions, chemical reagents, and other corrosive liquids. If you inadvertently encounter or
are in contact with a corrosive liquid, please make sure to clean with clean water and dry
the device. The damage caused due to improper use or abuse of the device is not within
the scope of the device’s warranty.
BioSense
health band

5
Tech Sheet
HARDWARE and SOFTWARE specication
Process
description
1.Wristband material: liquid silica gel + PA two-color coating,surface drying pattern +
UV modication, built-in magnet adsorption
2.Heart electrode: stainless steel 316L + pvd gold
3.Bottom shell: PA embedded 2 pieces of 316L stainless steel + PVD + 2PCS POGO pin
Basic
specication
size 226*20*7.5 mm.
weight 22 gr.
color Black/Grey Strap with Gold or Silver
Electrode & Closure
Hardware
specication
MCU GOODIX5515--ARM Cortex-M4 64MHZ
built-in storage RAM: 256KB,ROM: 1Mbit,external 8MB
Compatibility iOS 10.0 or above,Android 5.0 or above
display ---
resolution ---
touch Capacity touch
button ABS touch button
Connection
bluetooth BLE 5.0
WIFI ---
NFC Support VyvoPay
Sensors
G-Sensor Bosch BMA421
Gyro STK LSM6DS3TR-C,ST
BIA Maxim 30001
Fingertip blood oxygen + blood
pressure Maxim 30101+32664
Body Temp Nano core micro NST117
ECG+Heart rate Maxim 30001
BioSense
health band

Battery
Category Lithium polymer
Standard Voltage 3.8 V
capacity 45 mAh
size 19.5*11*2.5 mm.
App HELO Smart
Health Features: Heart Rate,Respiratory Rate,
Energy,Stress,ECG,BIA,APG,Blood Pressure,
Blood Oxygen,Arrhythmia Detection,
Temperature,Sleep
Activity data: steps,calories,stand still time
Guardian Alerts: heart rate,respiratory rate,
blood pressure,blood oxygen,temperature,
atrial brillation
Other data
waterproof level IP68
charging time 1,5 hours approximately
battery life 3~6 days / Based on different usage
scenarios
buckle material Stainless steel + 18kt Real Gold Plated
Pack
Gift Box W7.4 *L12.3*H5.4mm
Accessories Charger Base,Type C Cable with 70cm Long
Certicate Certification CE/FCC/IC

FUNCTIONS
Healthy
HR
Support to turn on/off 24-hour automatic measurement,the automatic measurement
interval is measured once every 10 minutes (the whole point: 00,10...)
Support manual measurement,app initiated
BR
Support turning on/off 24-hour automatic measurement (determined by whether the heart
rate is turned on/off),and the automatic measurement interval is measured once every 10
minutes (the whole point: 00,10...)
Support manual measurement,app initiated
ECG
Initiate the measurement from the APP,and touch the left and right electrode pads with your
ngers
Data results are uploaded to the app for AI analysis
BIA
Initiate the measurement from the APP,and touch the left and right electrode pads with your
ngers
The data is uploaded by the app to the server for calculation and returns results
Energy
Support 24-hour automatic measurement,the automatic measurement interval is 1 hour,
and the measurement is on the whole point
Support manual measurement,app initiated
Stress
Support 24-hour automatic measurement,the automatic measurement interval is 1 hour,
and the measurement is on the whole point
Support manual measurement,app initiated
BP
Connect APP for blood pressure calibration
Support 24-hour automatic measurement,the automatic measurement interval is 1 hour,
and the measurement is on the whole point.Support manual measurement,app initiated
APG
The data is uploaded by the app to the server for calculation and returns results
Support manual measurement:
Launched from App
SpO2 Support 24-hour automatic measurement,the automatic measurement interval is 1 hour,
and the measurement is on the whole point.Support manual measurement,app initiated
AFib Control the switch from the app.After turning it on,the detection is turned on immediately,
and the green light on the back of the band is always on.
Sleep The sleep quality estimation will be calculated by collecting all PPG values during the entire
night and combining them with gyroscopic sensor-measured values.
Body
Temp.
Support 24-hour automatic measurement
Get from temperature sensor

Guardian
HR
APP settings,show alert by LED light,send email
BR
BP
SpO2
Ab
Body temperature
Activity data
Steps
APP displayCalories
Stand
Electrode
Distribute to the
left and right sides
of the band host,
used for ECG/BIA
measurement
ECG
The index nger and thumb are placed on the electrode pads
on both sides respectively (the measurement precautions
will be displayed on the APP along with a operation gesture
diagram)
BIA
Pinch the electrodes on both sides with the index nger and
thumb respectively,and the left and right hands cannot touch
each other (the measurement precautions will be displayed
on the APP along with a operation gesture diagram)
Touch button
Click
Double click
in quick
succession
Start the SpO2/BP measurement (simultaneous
measurement).Within 10 seconds of starting,the light
will icker blue for 1 second. If the nger does not come in
contact with ngertip LED light, it will automatically cancel.
Measurement duration time: 60 seconds.

Fingertip
LED Light
When manually starting the SpO2/BP measurement, the light will be red after coming in contact with your nger.
LED lights
Low battery: ≤20%, ickers once every 1 minutes
Purple
R:113
G:44
B:159 Flicker
Band charging: ickers once every 2 second
Green
R:90
G:190
B:50
Flicker
Fully charged band: always bright Always
bright
Measurement request via smartphone: ickers 2 times
Blue
R:0
G:160
B:220
Flicker
Measurement via touch button:
during blood oxygen/blood pressure measurement:
1 › When the measurement is initiated, it ickers 2 times;
2 › When the ngertip covers the detection window, stop ashing (no
light) to avoid affecting the data
Measurement completed via touch button:
when the health measurement is completed,it is always on for 2 seconds Always
bright
Firmware update: The band is updating the rmware
Measurement fails: red icker (2 times for second)
Red
R:230
G:0
B:0 Flicker
Guardian Alert: ashes for 10 seconds or the user can click the button to stop it
Power On: When the band is powered off,press and hold the touch
button for 5 seconds to power on the device.The LED light indicator
will cycle through colors for 10 seconds.Additionally,when the Band is
powered off and placed on the charger, the device will power on.
Multicolor
RGB Flicker
Power Off: When the band is powered on,Power off is initiated through
the APP.Click “Turn off the band” to complete the shutdown.The LED
light indicator will cycle through colors for 10 seconds.
Restart: When the Smartband is powered on,press and hold the touch
button for 10 seconds to enter the restart mode (red light icker), double-
click the touch button within 5 seconds to conrm the restart (shut down
rst, then power on). If the touch button is not double-clicked for more
than 5 seconds,the band will automatically exit the restart mode,and the
red light will stop ickering.
Connected: When the Smartband is powered on, it will icker 2 times for
every 15 min.Color changes with connection status:
1 • Connection: light blue; 2 • Disconnected: green.
Green/Light blue
R:0
G:160
B:220 Flicker
Check Device on: To verify if the device is on.Click once on the touch
button and the light will icker twice for 2 seconds. Color changes with
connection status:
1 • Connection: light blue; 2 • Disconnected: green.
LED LIGHT STATUS

6
Device Maintenance
Device care
1. Do not use any sharp objects to clean the device.
2. Avoid using chemical cleaners, solvent solutions, or insect repellents that might damage
the plastic components of the device.
3. Thoroughly rinse the device with clean water after exposure to chlorine, seawater,
sunscreen, alcohol, cosmetics, or other harsh chemicals. Prolonged exposure to these
substances may damage the device.
4. Avoid pressing the keys while underwater.
5. Avoid extreme shock and harsh treatment of the device, as it may reduce device product life.
6. Do not expose the device to extreme temperatures that are either cold or too hot for an
extended period, which may cause permanent damage.
7. After each training session, please rinse the band with clean water.
Cleaning the device
When charging the device, even the slightest amount of sweat or moisture can cause
corrosion of the charging terminal, which will hinder data transmission and affect charging as
well.
1. Gently wipe the device with a cotton cloth with a mild neutral detergent.
2. Please allow the device to dry completely after cleaning.
BioSense
health band

7
Important safety and product information
• If you have a pacemaker or other internal electronic device, consult your physician before
using a heart rate monitor.
• The BioSense optical wrist heart rate monitor occasionally emits green light and flashes.
Consult with your physician if you have epilepsy or are sensitive to flashes of light.
• Always consult your physician before beginning or modifying any routine or exercise
program.
• The device, accessories, heart rate monitor, and related data are intended to be used
only for recreational purposes, not medical purposes. They are not intended to diagnose,
monitor, treat, cure or prevent disease.
• The heart rate readings are for reference only, and no liability is accepted for the
consequences of any wrong interpretation.
• Although the optical wrist heart rate monitor technology typically provides accurate data
for the user’s heart rate, there are inherent limitations with the technology that may cause
some of the heart rate readings to be inaccurate under certain circumstances, including the
user’s physical characteristics, device installation, and the type and intensity of activity.
• The activity trackers rely on sensors to track your movement and other metrics. The data
and information provided by the device are intended to assess your activity and metrics
closely. Still, they may not be completely accurate, including the data for steps, sleep,
distance, heart rate, and calories.
• Do not immerse or expose batteries to water or other liquids.
• Do not expose the device to a heat source or high-temperature location, for example, in
an unattended vehicle in the sun. To avoid damage, remove the device from the vehicle or
store it out of direct sunlight, such as the glove box.
• Do not operate the device outside the specified temperature ranges in the printed manual,
which are included in the product’s packaging.
• When storing the device for an extended period, please store it within the temperature
ranges specified in the printed manual which is included within the product’s packaging.
• Do not use a power or USB cable that is not approved or supplied by the manufacturer.
Please use within the temperature ranges specified in the printed manual, which is included
in the product packaging.
BioSense
health band

Legal disclaimer
Some measurements require the installation of the HELO Smart App available for
Android OS 5.0 and later and for Apple OS version 10.0 and later.
1. HELO BioSense has a water resistance rating of 50 meters according to ISO standard
22810:2010. Therefore, the device can be used for activities like swimming in a pool or
the ocean. However, HELO BioSense should not be used for waterskiing, or other high-
velocity water activities.
2. Unless otherwise specified, HELO BioSense and related services are not medical devices
and are not intended to diagnose, treat, cure, or prevent any disease. Regarding accuracy,
HELO has developed products and services to track certain wellness information as
accurately as reasonably possible. The accuracy of HELO’s products and services is not
intended to be equivalent to medical devices or scientific measurement devices. It is in
no way meant to be a replacement thereof. If you have any concerns, you should always
consult a physician or a healthcare professional before replacing any medical product or
service.
3. Consult your doctor before use if you have any pre-existing conditions that might be
affected by your use of any HELO product or service.
4. Certain functions may be limited in some countries.
BioSense
health band

8
FCC Requirement
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. this device may not cause harmful interference.
2. this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help.
BioSense
health band

IC Requirement
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to
the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired
operation.
BioSense
health band

Thank you!
helocorp.com
