Hermann STEPS DIN EN 15194 User manual

Sales:
Hermann Hartje KG
Tel: [phone]
info@hartje�de
www�hartje�de
USER MANUAL
AS ORIGINAL USER MANUAL
DIN EN 15194 / DIN EN 82079-1
E-BIKE (PEDELEC/EPAC)

3

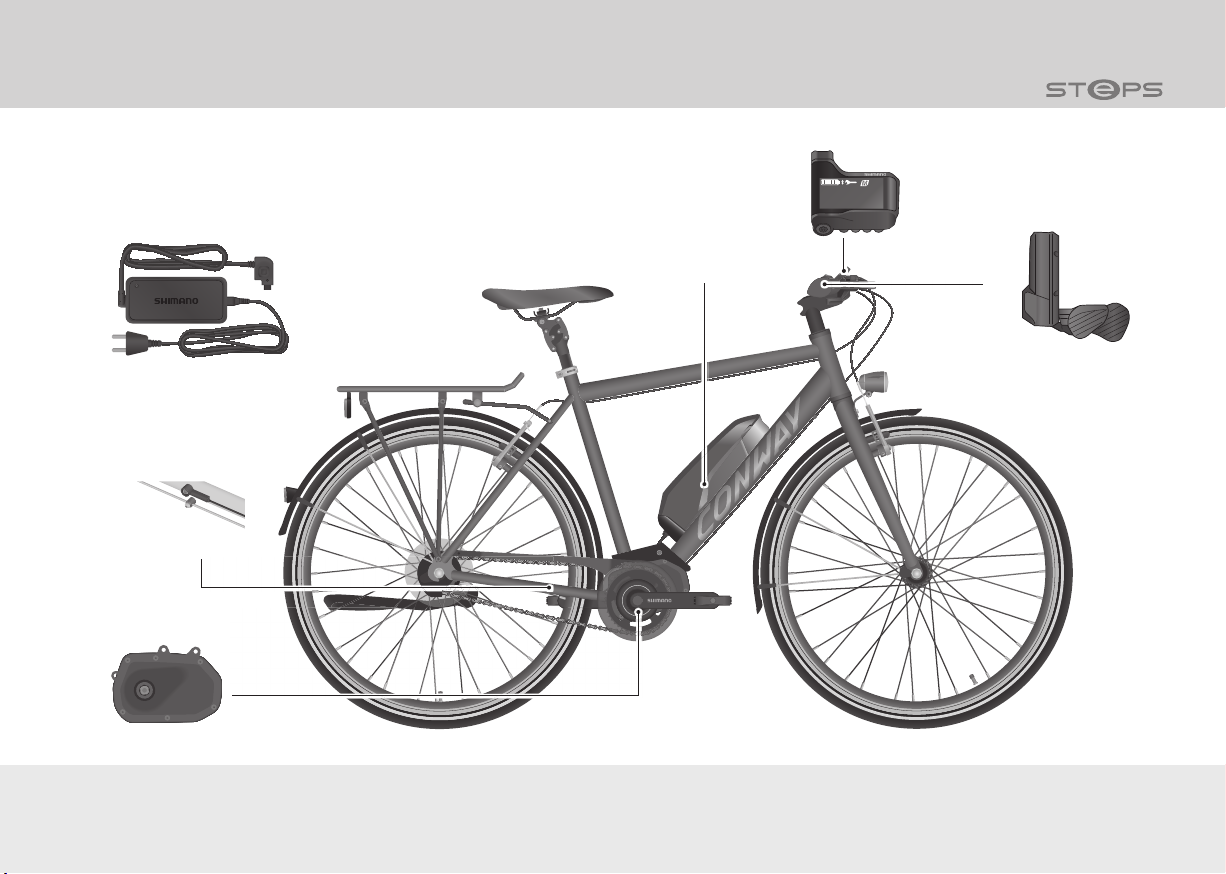

E-bike components
S
H
I
M
A
N
O
T
O
T
A
L
E
L
E
C
T
R
I
C
?
?
?
?
?
?
S
Y
S
T
E
M
Rechargeable
battery
Charger
Drive
Sensor
Note: The figure may vary depending on your model or the selected configu-
ration� Read the special notes regarding your configuration in the respective
chapters�
Display
Operation
km/h
11
25.0
BOOST

4
Table of contents
1 In an emergency � � � � � � � � � � � � � � � � � � � � � � � �7
1.1 General protective measures � � � � � � � � � � � � � � � 7
1.2 In the event of excessive heat � � � � � � � � � � � � � � 7
1.3 In the event of deformation, odour, liquid � � � � � � 7
1.4 If the rechargeable battery catches fire � � � � � � � 8
2 Tuning or manipulations� � � � � � � � � � � � � � � � � � �8
3 Safety � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �9
3.1 Be absolutely sure to read the warning notes � � � � � 9
3.2 Categorisation of warning notes� � � � � � � � � � � � � 9
3.3 Use � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
3.4 Rechargeable battery� � � � � � � � � � � � � � � � � � � � 10
3.5 Charger � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
3.6 Residual risks� � � � � � � � � � � � � � � � � � � � � � � � � � 12
3.6.1 Risk of injury � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
3.6.2 Fire hazard� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 12
3.6.3 Risk of damage � � � � � � � � � � � � � � � � � � � � � � � � � � 12
4 Basic information � � � � � � � � � � � � � � � � � � � � � � �13
4.1 Symbols on the products � � � � � � � � � � � � � � � � � 13
4.2 Symbols in this manual � � � � � � � � � � � � � � � � � � 14
4.3 Terms � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
4.4 Written labels � � � � � � � � � � � � � � � � � � � � � � � � � � 14
4.5 Units � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 14
5 Notes on the e-bike � � � � � � � � � � � � � � � � � � � � �15
5.1 Differences between a bicycle and an e-bike� � 15
5.2 Functionality � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
5.3 Range� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 15
5.4 Cycling with an empty rechargeable battery � � 16
5.5 Drive overheat protection � � � � � � � � � � � � � � � � � 16
6 General notes on the rechargeable battery � � �17
6.1 Charging times � � � � � � � � � � � � � � � � � � � � � � � � � 17
6.2 Storing the rechargeable battery � � � � � � � � � � � 17
6.3 Transporting or shipping the rechargeable battery � 18
6.4 Temperature monitor � � � � � � � � � � � � � � � � � � � � 18
7 Notes on use � � � � � � � � � � � � � � � � � � � � � � � � � �19
7.1 Information regarding road traffic � � � � � � � � � � � 19
7.2 Areas of application of the rechargeable battery
and charger � � � � � � � � � � � � � � � � � � � � � � � � � � � 19

5
Table of contents
7.3 Insurance � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
7.4 Lights � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
7.5 Permissible total weight � � � � � � � � � � � � � � � � � � 19
7.6 Exclusion of wearable parts � � � � � � � � � � � � � � � 19
7.7 Disclaimer� � � � � � � � � � � � � � � � � � � � � � � � � � � � � 19
8 Transport � � � � � � � � � � � � � � � � � � � � � � � � � � � � �20
8.1 By car � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20
8.2 Using other forms of transportation � � � � � � � � � 20
8.3 Shipping � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 20
9 Start-up� � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �20
9.1 Before each ride � � � � � � � � � � � � � � � � � � � � � � � � 20
9.2 Your first ride� � � � � � � � � � � � � � � � � � � � � � � � � � � 21
9.3 Inspection instructions � � � � � � � � � � � � � � � � � � � 21
9.4 Preparations� � � � � � � � � � � � � � � � � � � � � � � � � � � 21
9.4.1 Rechargeable battery � � � � � � � � � � � � � � � � � � � � � 21
9.4.2 Charger � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22
10 Operation � � � � � � � � � � � � � � � � � � � � � � � � � � � �22
10.1 Rechargeable battery� � � � � � � � � � � � � � � � � � � 22
10.1.1 Removing the rechargeable battery � � � � � � � � � 22
10.1.2 Inserting the rechargeable battery � � � � � � � � � � � 24
10.1.3 Charging indicator � � � � � � � � � � � � � � � � � � � � � � � 25
10.1.4 Checking the charge level of the rechargeable
battery � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 25
10.1.5 Determining the charge level of the rechargeable
battery � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
10.1.6 Charging the battery � � � � � � � � � � � � � � � � � � � � � 26
10.2 E-bike � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 28
10.2.1 Displays � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 29
10.2.2 Switching on the e-bike � � � � � � � � � � � � � � � � � � � 29
10.2.3 Using the drive� � � � � � � � � � � � � � � � � � � � � � � � � � 30
10.2.4 Switching off the e-bike � � � � � � � � � � � � � � � � � � � 30
10.2.5 Control units� � � � � � � � � � � � � � � � � � � � � � � � � � � � 30
10.2.6 Standard indicators � � � � � � � � � � � � � � � � � � � � � � 31
10.2.7 Menu settings � � � � � � � � � � � � � � � � � � � � � � � � � � 32
10.2.8 Setting the level of assistance � � � � � � � � � � � � � � 35
10.2.9 Cycling data � � � � � � � � � � � � � � � � � � � � � � � � � � � � 36
10.2.10 Lights � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 36
10.2.11 Walk assistance � � � � � � � � � � � � � � � � � � � � � � � � 37

6
Table of contents
10.2.12 Switching between Auto/Manual � � � � � � � � � � � 37
11 Settings� � � � � � � � � � � � � � � � � � � � � � � � � � � � � �38
11.1 Di2 rear derailleur � � � � � � � � � � � � � � � � � � � � � � 38
12 Speed sensor� � � � � � � � � � � � � � � � � � � � � � � � �39
13 Care � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �39
14 Notes on the key � � � � � � � � � � � � � � � � � � � � � �40
15 Disposal � � � � � � � � � � � � � � � � � � � � � � � � � � � � �40
15.1 Disposing of the e-bike� � � � � � � � � � � � � � � � � � 40
15.2 Disposing of rechargeable batteries and
chargers � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 41
15.3 Disposing of the packaging � � � � � � � � � � � � � � 41
16 Troubleshooting � � � � � � � � � � � � � � � � � � � � � � �41
16.1 General information � � � � � � � � � � � � � � � � � � � � 42
16.2 Rechargeable battery� � � � � � � � � � � � � � � � � � � 43
16.3 Rechargeable battery charging indicator � � � � 44
16.4 Charger � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 45
17 Technical specifications � � � � � � � � � � � � � � � � �47
17.1 Rechargeable battery� � � � � � � � � � � � � � � � � � � 47
17.2 Charger � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 47
17.3 Drive � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 47
18 Declaration of conformity � � � � � � � � � � � � � � � �48
19 Legal notice � � � � � � � � � � � � � � � � � � � � � � � � � �49

7
In an emergency
1 In an emergency
You can find notes on handling the rechargeable battery in this
user manual. Despite compliance with all safety measures, the
rechargeable battery may pose a risk, e.g. if it catches fire (see
Chapter “Residual risks” on page 12)�
• In an emergency, act in such a way that you do not at any time
endanger yourself or other persons�
• In an emergency, follow the instructions on this page.
• Immediately read these instructions so that you can concen-
trate and respond in a calculated manner in the event of an
emergency�
• We recommend keeping a suitable fire extinguisher readily
available at all times�
1.1 General protective measures
If you identify defects or damages to the rechargeable battery:
1� Do not use the rechargeable battery.
2� Wear protective gloves when you touch the rechargeable
battery�
3� Do not inhale any gases or vapours that are emitted.
4� Avoid contact between your skin and any liquid that is
leaked�
1.2 In the event of excessive heat
If you notice that excessive heat is being generated by the
rechargeable battery:
1� Have the rechargeable battery checked by your specialist
dealer immediately. Inform your specialist dealer about the
rechargeable battery’s status prior to transport�
2� For short-term temporary storage, select an outdoor location
and, if possible, place the rechargeable battery in a fire-proof
container or on the soil�
3� If you store the rechargeable battery outdoors, clearly secure
the area with ample space around the storage location�
1.3 In the event of deformation, odour,
liquid
If you identify any deformation, odour or leaking liquids on the
rechargeable battery:
1� If you are not put at risk and you are physically capable of
doing so, place the battery in a fire-proof and acid-resist-
ant container (e�g� made of stone or clay) and cover the
rechargeable battery with sand�
2� If you are not put at risk and you are physically capable of
doing so, use a fire extinguisher to put out a fire.
3� Have your specialist dealer dispose of the rechargeable battery
immediately�
4� Select a location outdoors for short-term temporary storage�
5� If you store the rechargeable battery outdoors, clearly secure
the area with ample space around the storage location�

8
Tuning or manipulations
1.4 If the rechargeable battery catches
fire
1� Call the fire brigade immediately.
2� If you are not put at risk and you are physically capable of
doing so, use a suitable fire extinguisher to put out a fire.
3� If you are not put at risk and you are physically capable of
doing so, cool off the rechargeable battery by putting it in a
fire-proof container filled with water� The water must cover
the rechargeable battery completely�
4� If you are not put at risk and you are physically capable of
doing so, cover the rechargeable battery completely with
sand�
2 Tuning or manipulations
WARNING
Tuning or manipulating your e-bike’s speed settings may
have a negative impact on your bicycle’s braking or riding
performance and may lead to accidents and injury�
Risk of accident and injury!
• Do not make any structural modifications.
CAUTION
The e-bike may respond in a manner other than that which
you expect if the drive system has been manipulated.
Risk of injury!
• Do not make any structural modifications to the drive
system�
NOTICE
You can cause irreparable damage to your e-bike by tuning it.
Risk of damage!
• Do not make any structural modifications to the drive
system�
– You can cause irreparable damage to your e-bike by tuning it.
– The frame, wheels and brakes are not designed for higher
speeds�
– Any change to the drive system renders the warranty or other
claims for damages invalid�
– Tuning your e-bike has legal consequences.
– Operating an e-bike at speeds of over 25 km/h requires a driving
licence and an insurance policy as well as a registration plate�
– E-bike operators travelling at a speed of over 25 km/h are
required to wear a helmet.
– Any change made to the drive system will result in the loss of
the driving licence�

9
Safety
– Any change made to the drive system will result in loss of
insurance cover (personal liability insurance)�
– A criminal record entry may also be made in the case of a
repeat offence (previous conviction)!
– Any change made to the drive system will result in the loss of
the Declaration of Conformity (CE).
– Modifications to the drive system preclude participation in road
traffic�
3 Safety
3.1 Be absolutely sure to read the warning
notes
Read all warnings and notes in this user manual with care
before you operate the e-bike for the first time� This user
manual is a supplementary manual and integral part of
the e-bike user manual� Keep all user manuals so that
they are handy and available at all times. Include the user manual
when passing the e-bike on to third parties�
3.2 Categorisation of warning notes
The warning notes are intended to draw your attention to poten-
tial hazards. Your complete attention is required when reading the
warning notes; the statements must be understood completely�
Failure to follow a warning note may result in injury to yourself or
other persons� The warning notes alone cannot prevent dangers�
Follow all warning notes to avoid a risk when using the e-bike.
WARNING
This signal word indicates a hazard with moderate degree of
risk, which, if not avoided, may result in death or severe injury.
CAUTION
The signal word designates a hazard with low degree of risk
which, if not avoided, may lead to minor or moderate injury.
NOTICE
This key word warns of possible damage to property�
3.3 Use
WARNING
The e-bike, rechargeable battery and charger may only
be used by persons who are able to act without restriction
with respect to their mental and physical abilities�
There is a high risk of injury for persons with restricted
mental and physical capacities�
Risks for children and persons with impaired phys-
ical, sensory or mental capacities or lack of experi-
ence and knowledge, e.g. children or persons with
impaired mental and physical capacities.

10
Safety
• Only allow the e-bike, rechargeable battery and the
charger to be used by persons briefed on safe and
proper use and who understand the risks arising in con-
nection with it�
• Do not let children, young persons and persons without
a driving licence play with the e-bike�
WARNING
Improperly performed repairs may cause accidents.
Risk of accident and injury!
• Do not repair the e-bike yourself.
• Have repairs performed by your specialist dealer�
NOTICE
High or low temperatures could restrict the functioning of
the e-bike or damage it�
Risk of damage!
• Take note of the temperature limits�
• Do not park the e-bike near heat sources.
3.4 Rechargeable battery
WARNING
Internal damage to the rechargeable battery may cause
the rechargeable battery to overheat, emit gases or leak
liquids even a significant amount of time after the damage
occurred�
Risk of fire and explosion!
• Have your specialist dealer inspect the rechargeable
battery after falls or severe impacts�
• Do not open, dismantle, drill through or deform the
rechargeable battery�
WARNING
Rechargeable batteries that have caught fire are very dif-
ficult to extinguish; the cells affected must burn down in
a controlled manner� Responding properly may prevent
severe damages�
Risk of fire and explosion!
• Read Chapter “In an emergency” on page 7in order to
be prepared for such an event�

11
Safety
CAUTION
Lithium could be leaked if the rechargeable battery is
damaged. Lithium causes severe burns to the skin.
Risk of injury!
• Do not touch the damaged rechargeable batteries with
bare hands�
NOTICE
Improperly charging the rechargeable battery can dam-
age the rechargeable battery and the drive�
Risk of damage!
• Do not charge the rechargeable battery if you suspect
that it is damaged�
• Before charging the rechargeable battery for the first
time, be absolutely sure to read the Chapter “Charging
the battery” on page 26�
• Only use the original charger to charge the rechargea-
ble battery and only under supervision�
• While charging the rechargeable battery, always place it
on non-flammable materials (e.g. stone, glass, ceramics).
• If you are not absolutely sure how to handle lithium-ion
rechargeable batteries, have a qualified specialist
explain how to do so.
NOTICE
Incorrect use of the rechargeable battery could cause
damage to the rechargeable battery, the drive or sur-
rounding objects, e.g. due to overheating.
Risk of damage!
• Only use the rechargeable battery included in the prod-
uct contents for the original drive�
• Only use original rechargeable batteries approved for
use with the original drive�
• Keep the rechargeable battery away from fire and other
heat sources; protect it against exposure to intense sun-
light�
• Protect the rechargeable battery against moisture.
Never clean or spray the rechargeable battery with liq-
uids�
• Do not use the rechargeable battery if you notice any
unusual warmth, odour or discolouration and/or if the
rechargeable battery exhibits obvious damages.

12
Safety
3.5 Charger
WARNING
Incorrect handling of electrical current and corresponding
components poses a risk to life due to electric shock�
Risk to life!
• Check the charger, mains cord and mains plug for dam-
age before each use�
• If you identify or suspect damages, do not use the charger.
• Only use the charger indoors.
• Only connect the charger to a properly installed power
supply: in Europe “220 to 240 V ~ (50 Hz)” (see section
“Technical specifications” on page 47)�
• Position the charger in such a way that it cannot become
moist or wet, e.g. due to splashing water.
• Never clean or spray the charger with liquids.
• While charging, always place the charger on non-flam-
mable materials (e.g. stone, ceramics).
• Do not open, dismantle, drill through or deform the charger.
• Only have the charger repaired by qualified profession-
als with original spare parts�
• Only use the charger to charge the original recharge-
able battery or equivalent replacement rechargeable
batteries�
• Always pull the mains plug out of the socket after use.
• Read the additional safety notes on the housing of the
charger�
• If applicable, label the charger to prevent confusion with
chargers from other manufacturers�
3.6 Residual risks
Using the e-bike is associated with the following unforeseeable
residual risks despite compliance with all safety notes:
3.6.1 Risk of injury
– Gases, vapours and liquids could leak out of the rechargeable
battery due to internal, invisible damages and in the event of
fire. Injuries to external and internal organs are possible, for
example, in the event of contact with skin or inhalation of the
gases (see Chapter “In an emergency” on page 7)�
3.6.2 Fire hazard
– Internal, invisible damage can cause the rechargeable battery
to catch fire and ignite objects in the surrounding area (see
Chapter “In an emergency” on page 7)�
3.6.3 Risk of damage
– If the rechargeable battery catches fire, hydrofluoric acid leaks
out with the smoke gas� Hydrofluoric acid is highly corrosive
and causes permanent damage to surfaces (see Chapter “In
an emergency” on page 7)�

13
Basic information
4 Basic information

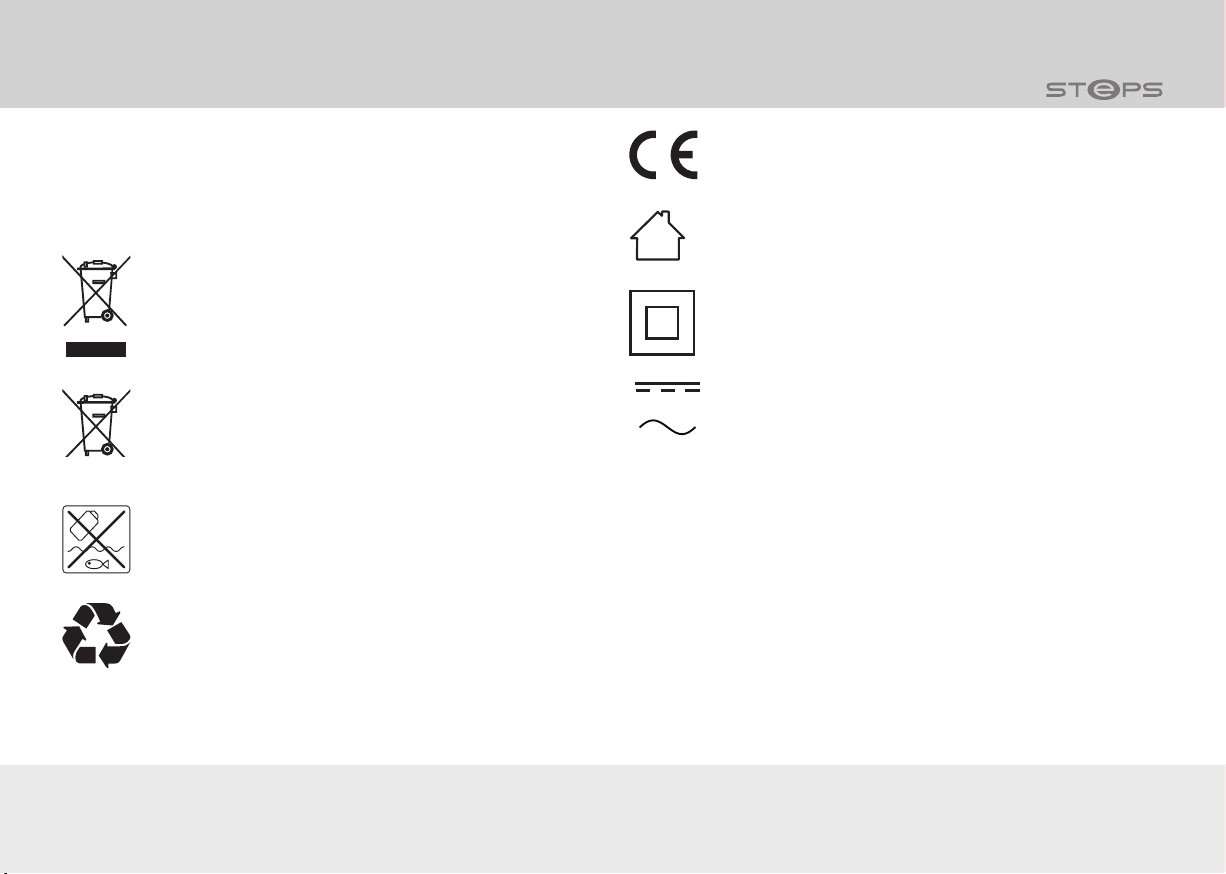

4.1 Symbols on the products
The following symbols are located on the packaging, the recharge-
able battery or the charger�
Label for electrical devices that you must not dispose of
with household waste. You are obligated by law to dis-
pose of correspondingly labelled products at suitable
recycling points for environmentally-friendly recycling�
Label for rechargeable batteries and batteries that you
must not dispose of with household or other garbage�
You are obligated by law to dispose of correspondingly
labelled products at suitable recycling points for envi-
ronmentally-friendly recycling�
Label for environmentally-harmful hazardous sub-
stances. Exercise special caution when handling prod-
ucts labelled as such. Observe disposal guidelines!
Label for waste materials intended for recycling. Sort
the packaging before you dispose of it. Dispose of
cardboard and carton as waste paper and foils via the
recyclable material collection service�
Symbol confirming conformity with guidelines for prod-
ucts corresponding to the requirements of the Euro-
pean General Product Safety Directive.
Labelling for products that may only be used indoors.
The 230 V ~/50 Hz mains connection corresponds to
protection class II.
Symbol for direct current (DC).
Symbol for alternating current (AC).

14
Basic information
4.2 Symbols in this manual
1. Instructions for steps to be performed in a par-
ticular order begin with a number�
•Steps to be performed in no particular order
begin with a dot�
–Lists begin with a so-called dash.
Note: Supplementary notes regarding steps to be per-
formed or use�
4.3 Terms
Terms with “nominal”: Nominal output, nominal capacitance etc. are
values
stipulated according to the design� The actual values may dif-
fer from the nominal values depending on operating conditions�
E-bike (Pedelec/EPAC): An e-bike is a bike powered by an elec-
trical auxiliary motor. E-bikes of this kind are also referred to as
pedelecs (pedal electric cycle) or EPAC (electric power assisted
cycles). The term “e-bike” will be used hereinafter.
Capacitance: The amount of electrical charge expressed in the
unit “Ah” if the rechargeable battery has been completely charged
(see Chapter “Units” on page 14)�
Charging cycle: Refers to fully charging a completely depleted
rechargeable battery�
Memory effect: Refers to the loss in the capacitance of recharge-
able batteries if they are not completely charged (does not apply
to lithium-ion rechargeable batteries)�
Pedal drive: Assembly consisting of pedal, crank arm and chain
wheel�
Temperature limits: Minimum and maximum temperature at
which the corresponding component may be used. At the same
time, both the temperature limits for the component as well as for
the ambient temperature may be specified�
Pedalling frequency: Number of revolutions of the pedal drive in
one minute expressed in the unit “1/min”.
4.4 Written labels
– Image captions and references in the text are rendered in italics�
4.5 Units
Unit Meaning Unit for
1/min per minute Revolutions
AAmperes Electrical current (= W/V)
Ah Ampere hour Electrical charge (= Wh/V)
gGram Weight (= kg/1000)
Hz Hertz Frequency (Hz = vibrations/sec)
kg Kilogramme Weight (= g×1000)
Nm Newton meter Torque
VVolt Electrical voltage (= W/A)
WWatt Electrical power (= V×A)
Wh Watt hour Electrical capacity (= V×Ah)

15
Notes on the e-bike
5 Notes on the e-bike
5.1 Differences between a bicycle and
an e-bike
The additional components of the electric drive constitute the major
differences between a conventional bike and an e-bike�
– The e-bike is significantly heavier and its weight distribution is
different
from conventional bicycles� This results in different
handling�
– The drive has a significant effect on braking characteristics�
– E-bikes require greater braking forces. This may result in
greater wear than with conventional bicycles�
– The electrical assistance will increase your average speed�
• You should therefore cycle attentively. Keep in mind that
other road users must get used to the increased speed of
the e-bike�
– The bike's handling and braking as well as handling of the
rechargeable battery and charger require an appropriate level
of knowledge�
• Familiarise yourself with the characteristics of your e-bike
even if you already have some experience with electrically
power-assisted bicycles (see Chapter “Before each ride”
on page 20)�
5.2 Functionality
The drive only provides you with riding assistance when you pedal�
The intensity of assistance is automatically adjusted depending
on the selected riding mode, the pressure applied when pedalling,
the load and the speed� The drive assists you up to a speed of
25 km/h.
The A-weighted emission sound pressure level at the height of the
bike operator’s ears is less than 70 db(A).
5.3 Range
The drive is an assistive motor� The range is affected by your ped-
alling intensity�
• Set the assistance as low as possible�
The lower the pedalling frequency of the pedal drive the higher the
energy requirement for the drive.
• Use the gear shift as you would without assistance.
• For inclines, head wind or a heavy load, use the lower gears
of the gear shift�
The drive requires a large amount of energy when starting.
• Always start in a low gear and apply as much pressure to the
pedal as possible�
• Before travelling uphill, switch to a lower gear in time.
• Ride with foresight to avoid any unnecessary stops�
The energy consumption will increase with high loads�
• Do not transport any unnecessary loads.

16
Notes on the e-bike
Lack of care and maintenance may reduce the range.
• Handle the e-bike with care and observe all notes regarding
the rechargeable battery in this user manual�
• Check the tyre pressure regularly.
• Comply with the maintenance intervals.
Temperatures below +10 °C may negatively affect the perfor-
mance of the rechargeable battery during operation. When you
are not using your e-bike:
• At low outdoor temperatures, take the rechargeable battery
out of the holder and put it in storage (see Chapter “Storing
the rechargeable battery” on page 17)�
• Only put it back in the holder directly before cycling.
5.4 Cycling with an empty rechargeable
battery
If the rechargeable battery is completely used up during the ride,
you can use your e-bike as you would a normal bike (see Chapter
“Charging indicator” on page 25)�
Note: If the battery charge has been used up, the drive will switch
off� The lights will be supplied with energy for another 2 hours�
5.5 Drive overheat protection
CAUTION
The drive and rechargeable battery can become very hot
if a fault is at hand. You could injure yourself in the event
of contact with your skin�
Risk of injury!
• Do not touch the drive and rechargeable battery.
The drive is automatically protected against damage caused by
overheating. If the temperature of the drive is too high, the drive
will automatically switch off�
• To prevent the drive from overheating, set a low level of assis-
tance at high outdoor temperatures or roads or paths with a
substantial incline (see Chapter “Setting the level of assis-
tance” on page 35)�
• If the drive is switched off when the rechargeable battery is
charged and at a speed of under 25 km/h, do not use the
e-bike temporarily to allow the drive to cool off�
• If allowing the drive to cool off does not resolve the distur-
bance, have your specialist dealer inspect the e-bike.

17
General notes on the rechargeable battery
6 General notes on the
rechargeable battery
Your e-bike is equipped with a high-quality lithium-ion recharge-
able battery (Li-ion rechargeable battery). Li-ion rechargeable
batteries are safe if used properly. Li-ion rechargeable batteries
have a relatively high energy density. Therefore, this rechargea-
ble battery must be handled with great care. For your safety, be
absolutely sure to observe the following notes to ensure reliable
operation and a long life-cycle:
Partial charging does not damage the rechargeable battery as
it does not have a memory effect. Partial charging is evaluated
according to its capacitance (a charge of 50% corresponds to a ½
charge cycle)�
NOTICE
Self-discharge of the rechargeable battery for technical
reasons may cause irreparable damages�
Risk of damage!
• Immediately recharge the rechargeable battery if empty.
• Take note of the temperature limits of the rechargeable bat-
tery (see Chapter “Technical specifications” on page 47)�
• Please note that outside temperatures under +10 °C may
reduce the rechargeable battery’s performance�
• Please note that the rechargeable battery’s performance
declines with age�
• Keep in mind that you will get used to cycling with electrical
assistance after a while� This may result in a perceived drop
in the output of the rechargeable battery�
• If there is a loss of power or the operating time is significantly
reduced, contact your specialist dealer.
• Never perform any modifications on the rechargeable battery.
Note: You can find more information about the rechargeable bat-
tery in Chapter “Rechargeable battery” on page 22�
6.1 Charging times
If the rechargeable battery is empty, a full charge cycle requires 4
to 7�5 hours� The duration of the rechargeable battery charge cycle
depends on the following factors:
– Charge level of the rechargeable battery.
– Temperature of the rechargeable battery and surroundings�
6.2 Storing the rechargeable battery
If you do not use the rechargeable battery for a prolonged period
of time, please store it as follows:
• Charge the rechargeable battery to approximately 70% of its
capacitance�
• For storage, take the rechargeable battery out of the holder
and place it in a safe location�
• Store the rechargeable battery so that there is no risk of it fall-
ing down and so that it is out of reach of children and animals�
• If possible, store the rechargeable battery at room tempera-
ture in a dry, well ventilated area.

18
General notes on the rechargeable battery
• If you are not using the rechargeable battery for a prolonged
period,
it is best to store the rechargeable battery in a well-ven-
tilated location (e.g. basement) at approx. +10°C to +20°C.
• Protect the rechargeable battery against moisture and water.
• Make sure that the upper and lower temperature limit is not
exceeded or underrun during storage (see Chapter “Technical
specifications” on page 47)�
• For storage exceeding 3 months, please recharge the
rechargeable battery every quarter to half year depending
on storage conditions� Then charge the rechargeable battery
again to approx. 70% of its capacitance.
• After the charging process, always disconnect the charger
from the rechargeable battery and pull the mains plug out of
the socket�
6.3 Transporting or shipping the
rechargeable battery
Lithium-ion rechargeable batteries are subject to the requirements
of dangerous goods legislation� The private user may transport
undamaged rechargeable batteries on the road without any further
requirements.
• Please note that the special requirements for packaging and
labelling e�g� during air transport or shipping orders apply for
commercial transport�
• Contact the forwarding company or your specialist bicycle
dealer directly for information regarding the transportation of
the rechargeable battery and suitable transport packaging�
Note: Read Chapter “Transport” on page 20 for information on
how to transport the e-bike�
6.4 Temperature monitor
The rechargeable battery is equipped with a temperature monitor.
It can only be charged at temperatures between 0 °C and +40 °C.
If the rechargeable battery is outside of the charge temperature
range, the charging process will automatically end.
1� Pull the mains plug out of the socket.
2� Once the rechargeable battery has cooled off, pull the charg-
ing plug out of the charging slot�
3� Have your specialist dealer inspect the rechargeable battery�
CAUTION
Temperatures of over 40°C can cause injury to the skin.
Risk of injury!
• If you would like to end the charging process prema-
turely, let the rechargeable battery cool off.
1� Pull the mains plug out of the socket.
2� Once the rechargeable battery has cooled off, pull the charg-
ing plug out of the charging slot�
3� Have your specialist dealer inspect the rechargeable battery�
• Inform your specialist dealer about the rechargeable bat-
tery’s status prior to transport�

19
Notes on use
7 Notes on use
7.1 Information regarding road traffic
The assistance provided by e-bikes is effective up to a speed of
25 km/h. The technical configuration of your e-bike complies with the
European standard EN 15194 for electrically power assisted bicycles
and the bicycle standard DIN EN ISO 4210.
• Seek information regarding the relevant applicable road traffic
regulations for your respective country or the region, for exam-
ple, from the Ministry of Transport.
• Ensure that you regularly obtain information regarding
changes to the content of the regulations currently in force�
7.2 Areas of application of the
rechargeable battery and charger
The drive unit, rechargeable battery and charger are configured for
use with one another and are approved only for use with your e-bike�
7.3 Insurance
• Check whether the conditions of your insurances adequately
cover damages, e.g. liability insurance or household insurance.
• In case of doubt, contact your insurer.
7.4 Lights
Your e-bike is equipped with rechargeable battery-powered lights.
The rechargeable battery must always be inserted when using
public roads so that the lights are operational at all times�
7.5 Permissible total weight
The total admissible weight of
your e-bike is specified on the
CE sticker. The CE sticker is
located on the down tube or
back of the chain stays�
7.6 Exclusion of wearable parts
In addition to the wearable parts listed in the user manual for the
bicycle, the rechargeable battery – with the exception of production
defects – is not covered by the warranty�
7.7 Disclaimer
The manufacturer cannot be held liable for damages or break-
downs resulting from direct or indirect use of the e-bike�
Fig. CE sticker (example)
EPAC
25 km/h
250 Watt
HERMANN HARTJE KG
DEICHSTRAßE 120-122
27318 HOYA/WESER
GERMANY
BAUJAHR
MAX KG
PERMISSIBLE TOTAL WEIGHT
ZUL. GESAMTGEWICHT
2021
140

20
Transport
8 Transport
CAUTION
The lithium-ion rechargeable battery is considered a dan-
gerous good and may be damaged if exposed to shocks
and impacts without such damages being externally
apparent�
Risk of short-circuiting and fire!
• When transporting your e-bike, remove the rechargea-
ble battery and store it separately�
• Transport the rechargeable battery with special care�
• To rule out any risks and damages, transport the e-bike as
follows:
• Remove the rechargeable battery prior to transport (see
Chapter “Transporting or shipping the rechargeable battery”
on page 18)�
8.1 By car
• Store the rechargeable battery so as to prevent slipping and
collision with other objects during the trip�
• Properly secure the load to protect the rechargeable battery
against compressive loads and avoid shocks�
• Store the rechargeable battery so that it is unable to be heated
up by exposure to the sun or other heat sources.
With e-bikes, the forces from braking and lateral forces that act on
the bike rack are stronger than with conventional bicycles�
• Check whether your bike rack is suitable for e-bikes.
• Ask your specialist dealer about suitable bike racks for your
e-bike�
8.2 Using other forms of transportation
When transporting e-bikes with the rechargeable battery installed,
special
guidelines, which are constantly being expanded or
updated, apply. These guidelines may differ from one another
depending on the form of transportation�
• Contact the airline, train or ferry company in due time to ascer-
tain the valid provisions that apply for transporting e-bikes�
Have the technical data handy for this purpose�
8.3 Shipping
• If you ship your e-bike, ship the rechargeable battery sepa-
rately and well-packed in a suitable transport container (see
Chapter “Transporting or shipping the rechargeable battery” on
page 18)�
9 Start-up
9.1 Before each ride
• Check your e-bike according to the Chapter “Inspection
instructions” on page 21 in this user manual and in the user
manual for your bicycle�
