Heska Vet/IV 2.2 User manual

Vet/IV 2.2
Infusion Pump
pm
product manual

Vet/IV 2.2
Infusion Pump
i
Table of Contents
SECTION 1: INTENDED USE
1.1 INTENDED USE ....................................................................................................1
SECTION 2: FEATURES
2.1 Vet/IV 2.2 Infusion Pump Features ..................................................................................2
SECTION 3: WARNINGS, CAUTIONS & NOTES
3.1 Warning, Cautions & Notes Defined ................................................................................3
SECTION 4: SETUP
4.1 Unpacking .........................................................................................................4
4.2 Site Requirements..................................................................................................4
4.3 IV Set Requirements................................................................................................4
SECTION 5: OVERVIEW
5.1 Components.......................................................................................................5
5.1.1 Open Front Door Components..............................................................................6
5.1.2 Rear Panel Components.....................................................................................7
SECTION 6: START-UP TESTS
6.1 Pump Operation Test...............................................................................................8
6.2 Air-In-Line Alarm Test...............................................................................................8
6.3 Door Open Alarm Test..............................................................................................8
6.4 High Pressure (Occlusion) Alarm Test ...............................................................................9
6.5 Charge Indicator Test...............................................................................................9
SECTION 7: PROGRAM DESCRIPTIONS
7.1 Programs
7.1.1 MACRO ................................................................................................... 10
7.1.2 MICRO .................................................................................................... 10
7.1.3 10-P Multi-Program ....................................................................................... 10
7.1.4 TPN........................................................................................................10
7.1.4 TPN EASY ................................................................................................. 10
7.1.5 PIGY Program ............................................................................................. 10
7.1.6 PIGY Program ..............................................................................................10

ii
SECTION 8: ROUTINE OPERATIONS
8.1 Installing the IV Set Into the Pump.................................................................................11
8.2 Priming the System ...............................................................................................11
8.3 Basic Operation ...................................................................................................11
8.3.1 Program Rate and Time ....................................................................................12
8.3.2 Program Rate and VTBI .....................................................................................12
SECTION 9: CHECKING & ADJUSTING SETTINGS
9.1 Checking & Adjusting Settings ....................................................................................13
9.1.1 Check Time Remaining.......................................................................................13
9.1.2 Check VTBI.................................................................................................13
9.1.3 Check VI ...................................................................................................13
9.1.4 Change Settings During Operation.........................................................................13
9.1.5 Change Alarm Volume .....................................................................................13
SECTION 10: SPECIAL PROGRAMS
10.1 To Select Infusion Modes & Pressure Settings ......................................................................14
10.2 Pressure Settings Definitions ......................................................................................14
10.3 10-P Program .....................................................................................................14
10.4 TPN Program......................................................................................................15
10.4.1 TPN EASY Program .........................................................................................16
10.5 PIGY Program .....................................................................................................16
10.6 PIGY Program: IV Bag Setup .......................................................................................17
SECTION 11: LOCKING OPTION
11.1 Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
11.2 Unlocking.........................................................................................................18
SECTION 12: BATTERY OPERATION & MAINTENANCE
12.1 Battery Operation .................................................................................................19
12.2 Prior to First Use...................................................................................................19
12.3 Battery Bimonthly Maintenance ...................................................................................19
12.4 Battery Conditioning ..............................................................................................20
SECTION 13: ALARMS
13.1 Alarms & Messages............................................................................................... 21

iii
SECTION 14: MAINTENANCE
14.1 Cleaning ..........................................................................................................24
14.2 Supplies & Accessories ............................................................................................24
14.3 Ordering ..........................................................................................................24
14.4 Service and Repair Policy and Procedures..........................................................................24
14.5 Technical Support.................................................................................................25
SECTION 15: SPECIFICATIONS............................................................................................26

Vet/IV 2.2
Infusion Pump
1
Section 1: Intended Use
1.1 Intended Use
The Vet/IV™ 2.2 Infusion Pump is intended for veterinary use only. This device should be used to deliver intravenous
electrolyte and glucose fluids. Plasma, whole blood, or whole blood products or derivatives (i.e., Oxyglobin®Solution)
are not recommended for use with the Vet/IV Pump. Administration of these materials may result in failure of the AIR
alarm to recognize air gaps and/or infusion of incorrect volumes of fluid.
Animals receiving any type of fluid administration should be properly monitored at all times by trained veterinary
health care professionals.
The Vet/IV Pump is designed to be used only with specified IV lines, as indicated by the label on the top of the pump.
The Vet/IV Pump must be operated and maintained in accordance with procedures described in applicable product
literature (i.e., User Manual, package inserts, or bulletins of any kind). If, under these prescribed conditions of
operation and maintenance, an aberrant delivery occurs, the user should first make certain that the appropriate
infusion set for which the pump has been calibrated is being used and the pump is being operated.

Vet/IV 2.2
Infusion Pump
2
Section 2: Features
2.1 Vet/IV 2.2 Infusion Pump Features
• Small, lightweight and compact
• Macro and micro infusion capabilities
• Multi-programs
• Sophisticated sensors and alarms
• Rechargeable internal battery
• Integrated mounting clamp for securing the pump to an IV pole
• Snap hook and swivel bolt for cage mounting
• Large setting keys
• Priming function
Cage Mount

Vet/IV 2.2
Infusion Pump
3
Section 3: Warnings, Cautions & Notes
3.1 Warnings, Cautions & Notes Defined
A WARNING alerts you about something that could hurt the operator or the patient.
ACAUTION alerts you about something that could damage the pump or tubing.
A NOTE tells you other important information.
WARNING
This pump is a mechanical device and cannot be guaranteed against failure. For this reason, patients receiving
solutions via this pump should be closely monitored.
WARNING
This pump should be used to deliver intravenous electrolyte and glucose fluids only. Plasma, whole blood or whole
blood products or replacements (i.e., Oxyglobin® Solution) are not recommended for use with the Vet/IV Pump.
WARNING
The Vet/IV Pump is calibrated for either Abbott Series A, Hospira® List No 11545−58 and UniverSet or Abbott Series B
and Baxter ACT 5435 sets. Once calibrated, the pump cannot be used with any alternate system. Please refer to the
label on your pump to ensure that the correct system is being used.
WARNING
This device should not be used in the presence of flammable anesthetics.
WARNING
Do not autoclave, ethylene oxide sterilize, or immerse in liquid. Unplug before cleaning.
WARNING
ELECTRICAL SHOCK HAZARD when covers are removed. Do not remove covers. Service should be performed by
qualified Heska personnel only.
WARNING
Do not use this device in the presence of magnetic resonance imaging (MR or MRI) equipment.
WARNING
Ensure the device’s AC rating is correct for the AC voltage at your installation site before using the pump. The AC
rating is shown on the rear panel rating plate. If the rating is not correct, do not use the pump. Contact Heska’s
Technical Support Services for assistance.
CAUTION
The operator must be thoroughly familiar with the information in this manual before using the pump.
CAUTION
Before operation, verify that administration set tubing is not kinked or occluded.
NOTE: Operation may be affected in the presence of strong electromagnetic sources, such as electrosurgery equipment,
i.e., cautery.
NOTE: Operation may be affected in the presence of computed tomography (CT) equipment.
NOTE: Refer to manufacturer’s guidelines for the use of IV sets.

Vet/IV 2.2
Infusion Pump
4
4.1 Unpacking
1. Carefully remove pump and accessories from box.
2. Make sure no items were damaged during shipment.
3. Make sure you have the following items:
• Vet/IV 2.2 Infusion Pump
• Hospital Grade Power Cord
• Vet/IV 2.2 Infusion Pump User Manual (CD Format)
• Limited Warranty
• Cage Clip Assembly
If any items are missing or damaged, contact Heska's Technical Support Services at 800.464.3752, option 3.
4.2 Site Requirements
Pump is 100–240 VAC compatible. Pump power cord should be connected to a grounded 110 or 240 V AC outlet.
4.3 IV Set Requirements
The Vet/IV Pump is factory calibrated for either Abbott Series A/Hospira List No. 11545−58/UniverSet, Zoetis Series A or
Abbott Series B, Baxter ACT 5435 IV sets, or Zoetis Series B.
WARNING
Once calibrated to either Abbott Series A, Hospira/UniverSet or Abbott Series B, Baxter IV sets, the pump should not
be used with an alternate IV set.
Recalibration is required prior to use of a new IV set system. Please refer to the label on your pump to ensure that the
correct system is being used.
The Vet/IV Pump is compatible with both micro and macro IV sets. It is strongly recommended to use standard IV sets
with MACRO mode and micro IV sets with MICRO mode.
Section 4: Setup

Vet/IV 2.2
Infusion Pump
5
Section 5: Overview

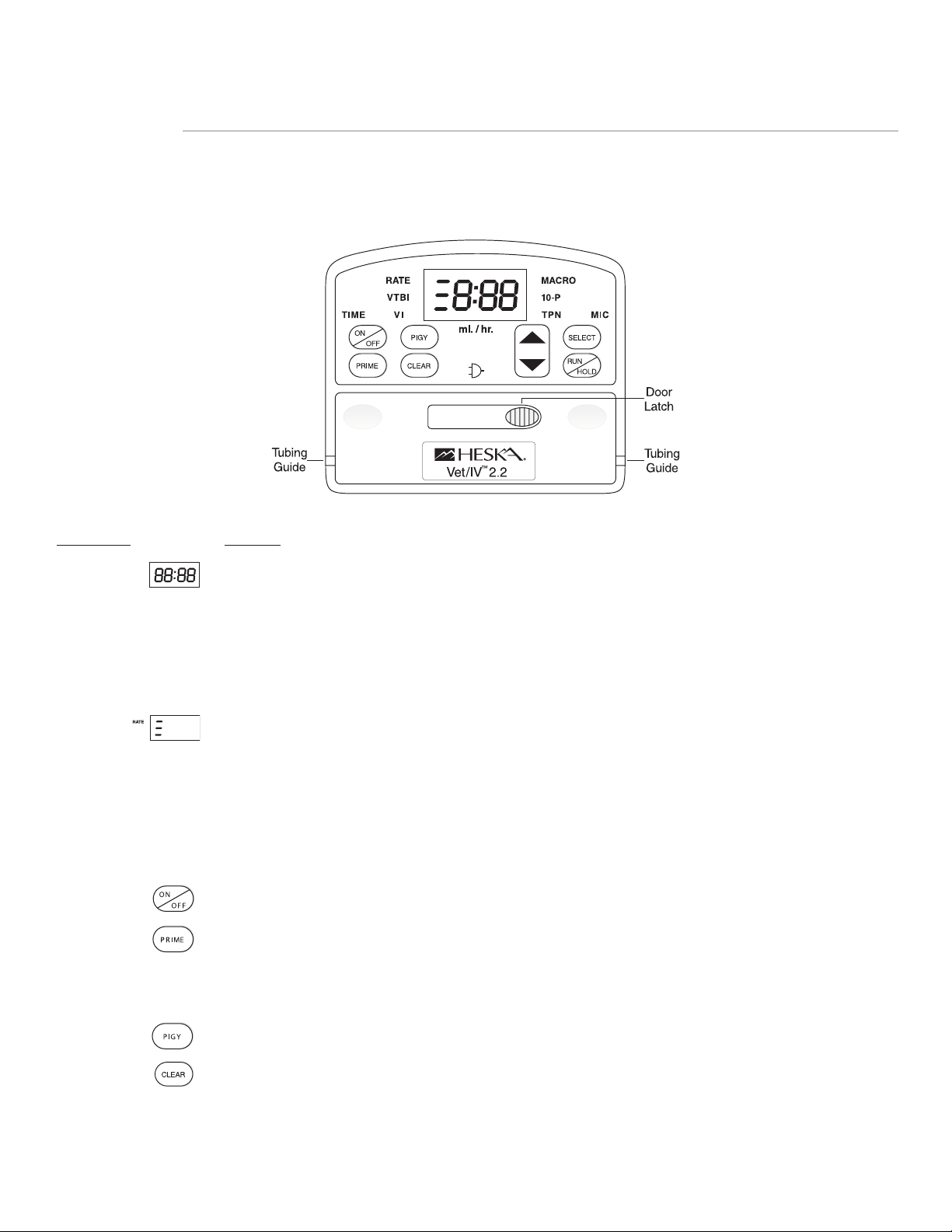

5.1 Components
Description Function
Display Depending on parameter chosen, displays selected infusion rate (RATE), total time of infusion
(TIME), volume to be infused (VTBI), or volume that has been infused (VI).
When pump is operating on battery, display will flash on and off.
Cursors Cursors moving vertically down display screen indicate that pump is infusing. Cursors run down
right side of screen during MICRO infusion and down left side for all other programs.
RATE When illuminated, the number shown on the display is current rate of infusion in ml per hour.
VTBI When illuminated, indicates total volume to be infused.
TIME When illuminated, indicates length of time of infusion or time remaining to complete program.
VI When illuminated, indicates accumulated infused volume from the time CLEAR was last
pressed.
ON/OFF key Switches pump on and off.
PRIME key Moves fluid through IV lines to remove air.
Use Prime function during setup, before attaching lines to patient, or after door has been
opened for line adjustment.
PIGY key Sets pump to run a PIGY program.
CLEAR Key During programming, clears displayed setting.
MACRO Indicates that pump is operating in MACRO infusion mode.
10-P Indicates that pump is operating in multi-program infusion mode.

6
TPN Indicates that pump is operating in TPN or TPN-EASY infusion mode.
MIC Indicates that pump is operating in MICRO infusion mode.
Charging Lights when pump is connected to AC power.
Indicator
ARROW keys Increases or decreases infusion RATE, TIME of infusion, and Volume To Be Infused. Press and
release arrow to step up or down slowly. Press and hold arrow to increase or decrease rapidly.
SELECT key Selects program mode (MICRO, MACRO, 10-P, TPN, or TPN EASY) and pressure setting (HI, Lo, nor).
RUN/HOLD Starts or stops pump operation and fluid delivery. May be used to silence an alarm condition and
pause priming. Saves selections into memory.
Door Latch Opens and closes pump door.
Tubing Guide Alignment guide for administration set. Fluids should run from left to right when facing front of
pump.
5.1.1 Open Front Door Components
Press door latch to open door and note components below.
No. Description Function
1 Latch post Holds door closed.
2 Pressure sensor Detects downstream tubing restriction and occlusion.
3 Pressing plate Holds tubing in place when door is closed.
4 Pump door Holds press plate against tubing.
5 Air sensors Detect presence of air in administration set.

7
5.1.2 Rear Panel Components
No. Description Function
1 Pump hand grip Allows pump to be easily carried.
2 Pole clamp knob Turns clockwise to secure pump to IV pole.
3 Pole clamp Mounts pump on IV pole.
4 Speaker Sounds an audible alarm.
5 Electrical cord Attachment for AC power cord 100-240V connector 50/60Hz.
6 BF protection Safety classification.
7 Serial number The serial number of the pump.

Vet/IV 2.2
Infusion Pump
8
Section 6: Start-Up Tests
Before attaching the Vet/IV Pump to a patient, it is recommended to run the following tests to verify that all indicators
and alarms work properly.
When an alarm is activated, the following will occur:
1. An alarm message appears on the display.
2. An audible alarm sounds.
3. The infusion is stopped.
6.1 Pump Operation Test
NOTE: Upon receipt, or following long periods of disuse, connect the IV pump to AC power and charge for 8–10 hours
but no longer than 12 hours.
1. Press ON/OFF to switch on the pump. The unit should perform a self test and display [on] followed by the last rate
setting. Verify that a long beep sound is heard and that all the LEDs and messages on the display are illuminated for
2 seconds. The charge indicator will stay constantly lit if plugged into AC power.
2. Press the door latch to open the door. Insert a primed administration set into the tubing guide so that fluids will
flow from left to right.
3. Close the door. Press on the door recessions until a click is heard. Be careful not to pinch the administration set.
4. Press PRIME. During priming, the display should show [FILL].
5. Once prime is complete, wait one minute and verify that a [PUSH Run] message appears on the display.
6. Press RUN/HOLD to silence the alarm.
6.2 Air-in-Line Alarm Test
7. Press pto set the pump to a high rate of infusion.
8. Press RUN/HOLD to begin operation.
9. Turn the administration set drip chamber upside down to allow air to enter the lines.
10. When the air gap enters the system, the alarm should sound and [AIr] should be displayed on the screen.
11. Press RUN/HOLD to silence the alarm.
12. [Hold] should appear on the display.
6.3 Door Open Alarm Test
13. Re-orient the drip chamber and press PRIME to remove the air.
14. Press RUN/HOLD to start operation. If the AIR alarm repeats, press RUN/HOLD to stop operation then press PRIME
to re-prime the system. Depending on the amount of air and the programmed rate of infusion, several primes may
be required.

9
15. Open the door by pressing on the door latch. The [door OPEN] alarm should be displayed on the screen.
16. Close the door.
17. [Hold] should appear on the display.
6.4 High Pressure (Occlusion) Alarm Test
18. Occlude the administration set on the delivery (i.e., right) side. Press RUN/HOLD to start operation.
19. After a few seconds the [Hi Pres] (high pressure) alarm should activate.
20. Press RUN/HOLD to silence the alarm.
21. [Hold] should appear on the display.
22. Release the occlusion in the line.
6.5 Charge Indicator Test
23. Disconnect the power cord from the AC power outlet and verify that the charge indicator turns off.
24. Press RUN/HOLD to resume operation. After one second, the display should start flashing to indicate that the pump
is operating on battery power.
25. Connect the power cord to the AC power outlet. Verify that the charge indicator is on and the display has stopped
flashing.

Vet/IV 2.2
Infusion Pump
10
Section 7: Program Descriptions
7.1 Programs
The Vet/IV Pump features 6 different programs which can be used for a variety of applications. Following are the
specifications of each program.
NOTE: The pump will continuously display the program setting by highlighting the appropriate indicator on the
right side of the display.
7.1.1 MACRO
MACRO Macro program.
Rate: 1 to 999 ml/hr in 1 ml increments up to 100 ml/hr, then in 10 ml increments up to 999 ml/hr.
Total volume to be infused: 1 to 9,999 ml.
NOTE: Standard IV sets are recommended for use with this mode.
7.1.2 MICRO
MIC Micro program for smaller animals or micro infusions.
Rate: 0.1 to 99.9 ml/hr in 0.1 ml increments up to 10 ml/hr, then in 1 ml increments up to 99.9 ml/hr.
Total volume to be infused: 0.1 to 2,500 ml.
NOTE: Micro IV sets are recommended for use with this mode.
7.1.3 10-P Multi-Program
10-P Special program which enables the user to program up to 10 different rate/volume combinations
for a single patient. Each program starts immediately after completing the previous program. Note
that you do not have to enter 10 different combinations to use this program. You may enter as few as
1 or as many as 10 programs, as needed for your patient.
Each program can be set with the following parameters:
Rate: 1 to 999 ml/hr.
Total volume to be infused: 1 to 9,999 ml.
NOTE: Total volume of all programs cannot exceed 9,999 ml/hr.
7.1.4 TPN
TPN For administration of Total Parenteral Nutrition. Allows user to set the up and down ramping time
and total time of infusion.
7.1.5 TPN EASY
Delivers TPN with automatic 1-hour ramp-up and 1-hour ramp-down times.
Volume To Be Infused and total Time of Infusion are set by user.
Pump calculates Maximal Rate.
7.1.6 PIGY Program
Delivers fluids using two different sequential rates and volumes to accommodate piggy-back
administration systems.
NOTE: Some mixing of fluids and/or back-flow of fluid from the main bag into the supplemental bag
may occur with the use of this program. This is a recognized phenomenon in fluid therapy and has
been noted with both pump administration and gravity feed systems. For this reason, do not use the
PIGY function to administer chemotherapeutic agents or other solutions that should not be mixed.

Vet/IV 2.2
Infusion Pump
11
Section 8: Routine Operations
NOTE: The Vet/IV Pump should be used to deliver intravenous electrolyte and glucose fluids. Plasma, whole blood,
or whole blood products or derivatives (i.e., Oxyglobin Solution) are not recommended for use with the Vet/IV Pump.
Administration of these materials may result in failure of the AIR alarm to recognize air gaps and/or infusion of incorrect
volumes of fluid.
8.1 Installing the IV Set into the Pump
1. Press door latch to open door.
2. Ensure that the brand of IV set is correct for your type of pump (see label on top of pump).
3. Insert IV line in guide groove so that fluids flow from left (i.e., from fluid bag) to right (i.e., into patient).
4. Close the door. Press on the door recessions until a click is heard. Be careful not to pinch the administration set.
8.2 Priming the System
After installing the IV line in the pump, but before attaching IV to patient, prime the line using the steps below.
1. If pump is off, switch on by pressing ON/OFF. After a short self-check, the pump will display [on] followed by the
last rate setting. The program selection defaults to the last program used (MACRO, 10-P, etc.).
2. Press PRIME.
• The display will show [FILL] and the pump will begin to prime the system.
• Once priming is complete, the display changes from [FILL] to the last rate setting.
8.3 Basic Operation
NOTE: A [0] setting can be rapidly changed to the maximum value (i.e., VTBI 9,999 ml) by pressing .
NOTE: During programming, the Run/Hold alarm may sound if there is a one-minute delay in entering settings or
starting infusion. Press RUN/HOLD to stop the alarm. The display will show [Hold]. Program the pump as needed then
press RUN/HOLD again to begin the infusion.
1. Place the pump near the patient.
2. Connect the pump to an AC power outlet or use on battery power.
3. Verify that the administration set is installed in the pump correctly. Do not attach the IV to the
patient at this time.
4. If the pump is off, switch it on by pressing ON/OFF. After a short self-check, [on] will appear on the
display followed by the last rate setting.
5. The last infusion mode used (i.e., Macro, Mic, etc.) will illuminate on the right side of the display. If
you wish to use this mode, continue to step 6. If you wish to use a different mode. See Section 10:
Special Programs.

12
6. [Rate] is illuminated on the left side of the display. Press orto set the desired infusion rate.
• Press to increase the rate or to decrease the rate.
• Press and hold or to change infusion rate quickly.
If needed, press CLEAR to reset the display to zero.
7. If priming is needed, ensure that the line is not connected to the patient, then press PRIME.
8. Press SELECT to move to the next setting to be entered: Time or VTBI. If Rate and Time are entered,
VTBI is automatically calculated. If Rate and VTBI are entered, Time is automatically calculated.
8.3.1 Program Rate and Time
1. Press SELECT until [Time] is illuminated.
2. Use or to set the total time of infusion.
3. Press SELECT one time. The calculated [VTBI] is displayed. This setting has been automatically
calculated—do not change.
4. Press SELECT one time to display [Volume Infused]. This setting is used to periodically check your
patient during fluid delivery and determine how much fluid has been administered. Note that this
setting does not reset to zero when the pump is turned off. If you are starting with a new patient,
press CLEAR to reset the VI to zero.
5. Continue to Step 9.
8.3.2 Program Rate and VTBI
1. Press SELECT until [VTBI] is illuminated.
2. Use or to set the total Volume To Be Infused.
3. Press SELECT one time to display [Volume Infused]. This setting is used to periodically check your
patient during fluid delivery and determine how much fluid has been administered. Note that this
setting does not reset to zero when the pump is turned off. If you are starting with a new patient,
press CLEAR to reset the VI to zero.
4. Continue to Step 9.
9. Attach the IV line to the patient, then press RUN/HOLD until infusion begins (cursors run down side
of display).
NOTE: All settings are retained in memory even after the pump is turned off.
10. Verify that the infusion is proceeding normally.
11. To turn off the pump, stop operation by pressing RUN/HOLD, then press ON/OFF until [OFF] is
displayed.

Vet/IV 2.2
Infusion Pump
13
Section 9: Checking & Adjusting Settings
9.1.1 Check Time Remaining
1. Press SELECT once during operation. The remaining infusion time is displayed for 5 seconds.
NOTE:
• Time remaining is stored even if the pump is switched off.
• Time remaining will automatically adjust if Total Volume is changed during operation.
• Time remaining will display as dashes if total time is more than 100 hours.
9.1.2 Check VTBI
1. Press SELECT twice during operation. The remaining VTBI is displayed for 5 seconds.
2. When a program is completed, the VTBI will reset to the original programmed volume.
9.1.3 Check VI
1. Press SELECT 3 times during operation. The volume of fluid that has been administered to
the patient is displayed for 5 seconds.
NOTE: The VI will automatically reset to zero once it reaches 9,999 ml.
NOTE: The VI does not automatically reset after the pump is turned off. When starting with a new
patient, this setting should be cleared and reset to zero during initial setup.
9.1.4 Change Settings During Operation
1. Press RUN/HOLD to halt the operation of the pump. [Hold] will appear on the display.
2. Press SELECT until the parameter to be changed (Rate, Time or VTBI) is illuminated.
3. Use or to change the setting as needed.
4. Press RUN/HOLD to resume operation.
9.1.5 Change Alarm Volume
1. Press ON/OFF and allow the pump to complete its initial startup phase (i.e., the last rate setting is
displayed).
2. Hold down SELECT for approximately 2 seconds, until [Tone] is displayed, then release.
3. Use or to adjust the alarm volume. Volume settings range from 1 to 7, with 7 being the
loudest. When the desired setting is reached, press SELECT again to return to the main
display.
x 1
x 2
x 3
9.1 Checking & Adjusting Settings

Vet/IV 2.2
Infusion Pump
14
Section 10: Special Programs
10.1 Select Infusion Modes and Pressure Settings
1. With the pump off, press and hold SELECT.
2. Press ON/OFF quickly then release.
3. [SLCt] shows on the display. Release SELECT.
4. Press SELECT to scroll through the available infusion modes. The following modes are available:
MACRO MIC (Micro) 10-P TPN TPN Easy
5. When the desired mode is illuminated on the right side of the display, press RUN/HOLD to store the
selection in memory.
6. The display changes to [PrES] followed by the last selected pressure setting [HI, Lo, nor]. Press SELECT
to scroll between High, Low, or normal infusion pressures.
NOTE: This setting determines the pressure point at which the occlusion alarm is sounded. See Pressure
Settings Definitions in this section for details. Rate, volume, etc. are not affected by this setting.
NOTE: The HI pressure setting is recommended for almost all conditions, to minimize unnecessary
alarming.
7. When the desired pressure setting is displayed, press RUN/HOLD to store the setting in memory.
8. Continue programming Rate/Time or Rate/VTBI as usual.
10.2 Pressure Settings Definitions
Low = 0.4 bar (6 psi) – for geriatrics, neonates, patients with fragile veins
Normal = 0.6 bar (8 psi)
High = 0.8 bar (12 psi)
Recommended setting for most patients.
NOTE: The pump recalls programmed pressure settings indefinitely until they are changed by the operator. Once new
pressure settings are stored in any program, previous settings in all programs are erased.
10.3 10-P Program
1. Set up the pump as usual, choosing 10-P as the infusion mode.
2. The display shows [P-1], followed quickly by [0] (zero). Rate will be illuminated on the left side of the
display. This indicates that you will be setting the first rate/volume combination in the 10-program
series, starting with the first infusion rate.
3. Set Rate and VTBI as previously discussed, pressing SELECT after each entry.
NOTE: Use SELECT to move between parameters and enter settings. Do not press RUN/HOLD until you
have entered all desired programs and are ready to begin infusion.

15
4. After entering RATE and VTBI for Program 1, press SELECT to continue to the next program. [P–2]
(Program #2) appears on the display.
5. Set the Rate and VTBI for the second program.
6. Continue until all desired programs are set. A maximum of 10 programs can be stored with a total
infusion volume of 9,999 ml.
7. At the last entry, do not press SELECT.Instead, press RUN/HOLD to save the final setting and begin
infusion.
Example of 10-P Program Settings:
Program Rate VTBI
P–1 5 ml/hr 5 ml
P–2 60 ml/hr 150 ml
P–3 5 ml/hr 10 ml
P–4 40 ml/hr 100 ml
P–5 5 ml/hr 8 ml
P–6 50 ml/hr 75 ml
P–7 5 ml/hr 3 ml
P–8 60 ml/hr 90 ml
P–9 100 ml/hr 100 ml
P–10 5 ml/hr 5 ml
NOTE: Maximum Total Volume for VTBI 9,999 ml
10.4 TPN Program
1. Set up the pump as usual, choosing TPN as the infusion mode. The TPN indicator will illuminate on
the right side of the display, and the Volume To Be Infused indicator will be lighted on the left side.
2. Using or , enter the values for the total VTBI and press SELECT.
3. The message [UP.t] (up time) is displayed, followed quickly by [0:00]. Enter the desired ramp-up time
using or , then press SELECT.
4. The message [do.t] (down time) is displayed. Enter the desired ramp-down time using or , then
press SELECT.
5. The message [to.t] (total time) is displayed, followed by the sum of the previously entered Up Time
and Down Time. Use or to set the required total time of infusion. If needed, use or to
adjust this setting to the total time of infusion (i.e., ramp-up time + infusion time + ramp-down time).
6. Press SELECT once more. The calculated maximum rate is displayed.
7. Press SELECT again to display the volume that has already been infused. Clear this value if beginning
with a new patient.
8. Press RUN/HOLD to begin infusion.
Example Program Setting:
Data Setting
1. Total volume: 480 ml
2. Ramp-up time (a): 30 min.
3. Ramp-down time (c): 10 min.
4. Total time (a + b + c): 180 min.
Result Calculated: Max rate: 180 ml/hr

16
10.4.1 TPN EASY Program
1. Set up the pump as usual, choosing TPN EASY as the infusion mode. The TPN indicator will illuminate
on the right side of the display, and [EASY] will appear on the screen.
2. Set the values for the total VTBI using or , then press SELECT.
3. The message [to.t] (total time) is displayed, followed quickly by [2:00], the sum of the built-in up and
down ramping times. Using or , adjust the time to reflect the total time required for infusion.
4. Press SELECT again. The calculated maximum infusion rate is displayed.
5. Press SELECT again to display the volume that has already been infused. Clear this value if beginning
with a new patient.
6. Press RUN/HOLD to begin infusion.
10.5 PIGY Program
NOTE: Some mixing of fluids and/or back flow of fluid from the main bag into the supplemental bag may
occur with the use of this program. This is a recognized phenomenon in fluid therapy and has been noted
with both pump administration and gravity feed systems. For this reason, do not use the PIGY function to
administer chemotherapeutic agents or other solutions that should not be mixed.
NOTE: PIGY refers to the supplemental IV bag that is situated higher on the pole than the main bag (see
illustration). These fluids will be administered first due to the higher pressure of gravity.
NOTE: When the fluids in the PIGY bag are depleted, the system will begin to deliver the fluids in the
main bag even if the pump is still operating under PIGY settings. The reverse is also true: if the PIGY bag
contains more fluid than the PIGY settings are programmed to deliver, the excess PIGY fluids will be
administered using the settings for the lower bag. For the PIGY program to function as expected, the PIGY
bag must contain exactly the amount of fluid that the PIGY program is set to deliver.
1. Set up the pump as usual for administration of the main (lower) bag of fluids, but do not press RUN/
HOLD at the end of programming. Instead, press PIGY. [PIGY] will appear on the display, followed by
the last PIGY rate setting.
If the primary program is already running, press RUN/HOLD to stop operation before pressing PIGY.
2. Using or , adjust the Rate setting for the PIGY bag.
3. Press SELECT to continue.
4. Display shows last [VTBI]. Adjust the setting as needed using or .
5. Press RUN/HOLD to start the PIGY program.
NOTE: The display screen will intermittently flash [PIGY] when operating in PIGY mode.
NOTE: Once the PIGY program is complete, the pump will return automatically to the primary program.
