Hibertek T20 User manual

All in One PC
User Manual
T20 / T22 / T23

About This Manual
This manual provides information about the hardware features of your all
in one PC, organized through the following chapters:
Package Contents
All In One PC
Wired/Wireless keyboard
Wired/Wireless mouse
Manual
DVD Driver (Optional)
Stand Screws & Screwdriver
AC Adaptor
Power cord
All illustrations in this manual are for reference only. Actual product specifications may
vary with territories. Visit the Hibertek website: www. hibertek.com for the latest
information.

Important Safety Instruction
1. Please read these instructions completely before using the equipment.
2. Keep these instructions in a safe place. Avoiding the wet place or in high temperature.
3. Heed all warnings appeared in this book and follow all instructions.
4. Do not use this equipment near water. To reduce the risk of fire or electric shock, do not expose
this apparatus to rain, liquid or moisture. This product is not water proof or oil-proof.
5. Clean the equipment with a soft, dry cloth.
6. Do not block any ventilation openings. Install the equipment in accordance with the
manufacturer’s instructions.
7. Do not install it near any heat sources such as radiators, heat registers, stoves, or other devices
(including amplifiers) that produce heat.
8. Do not attempt to circumvent the safety provisions of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade and the third prong are provided for your
safety. If the plug does not fit into your outlet, consult an electrician for replacement of the outlet.
9. Protect the power cord from being tread upon or pinched, particularly at the plug, and the
point where if emerges from the equipment. Be sure that the power outlet is located near the
equipment so that it is easily accessible.
10. Only use attachments/accessories specified by the manufacturer.
11. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the equipment. When a cart is used, use carefully when moving the cart/equipment
combination to avoid injury from tipping over.
12. Unplug this equipment when it will be unused for long periods of time.
13. Refer all servicing to qualified service personnel. Service is required when the unit has been
damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid is spilled
onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if the unit does not
operate normally or has been dropped.

Getting to Know Your All-in-One PC

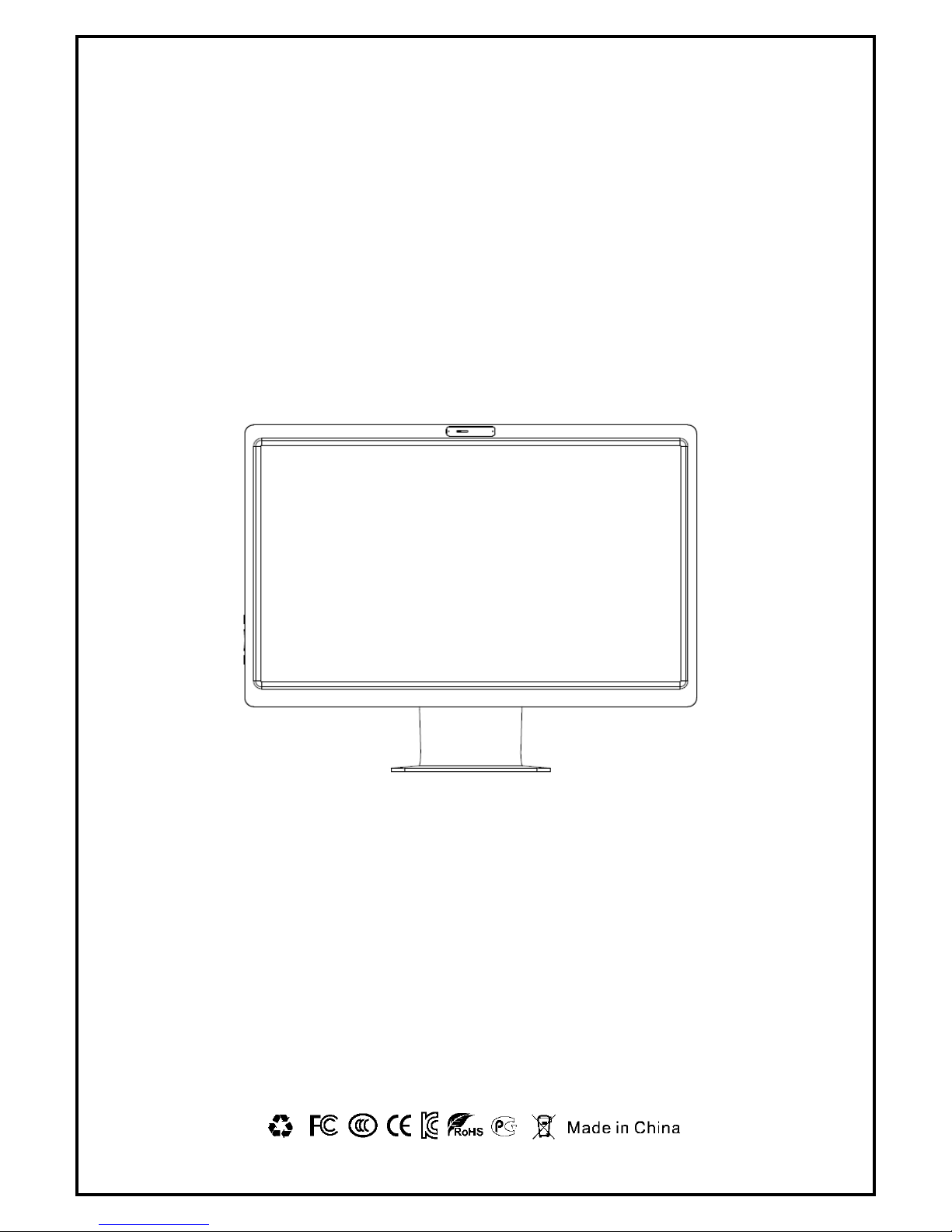

Front View
Refer to the following diagram to identify the components on this side of the
system. The front view may differ depending on the model you purchased.
1. Webcam
The built-in webcam with the built-in
microphone allows you to start video
chats online.
2. Microphone (Built-in)
The built-in microphone can be used
for video conferencing, voice
narrations, audio recordings, and
multimedia applications.
Rear View
1. Back I/O ports
The back I/O interfaces depends on the specification of the motherboard.
Actual features and configurations vary by model.
2. Stand
The stand allows you to position the system upright.
3. Kensington Lock
The Kensington lock is designed to lock the whole system and keep it safe.

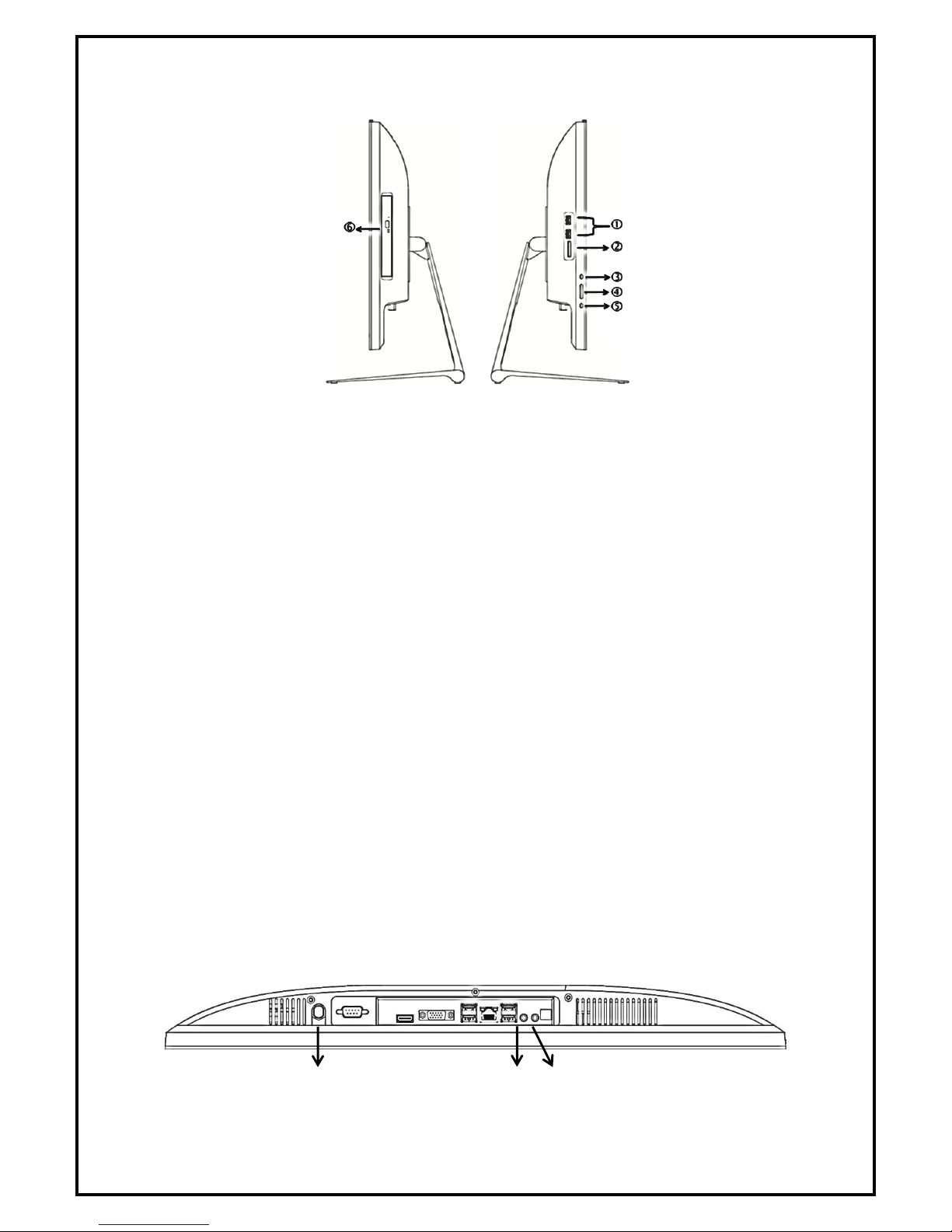

Side View
1. USB 2.0 Ports
The universal serial bus port is compatible
with USB devices such as keyboards,
mouse devices, cameras, and hard disk
drivers.
2. Memory card reader
This All-in-One PC has a built-in memory card
reader that supports MMC/SD/SDHC/MS pro
cards used in devices like digital cameras,
MP3 players, mobile phones, and PDAs
3. Monitor switch
Press to turn off / turn on the screen.
4. Brightness up /down
Press to increase / decrease the brightness.
5. Power Switch
The power switch allows you to switch the
system ON/OFF.
6. Optical Disc Drive
Support compact discs (CD) and/or digital
video discs (DVD), and may have recordable
( R ) or re-writable (RW) capabilities.
Connect the Adaptor and the Audio Components
Adaptor : Plug the adaptor cord into an electrical outlet.
Microphone : Plug the microphone cable into the Microphone port (Pink) of
your AIO.
Headphone / speakers : Insert the speaker cable into the green Line-out jack.
AC Adaptor Microphone Speaker

Use your All in One PC
Positioning your All-in-one PC
Placing your All-in-one PC on a flat surface to keep it stable. Tilt the display
panel to an angle best for your field of vision. The maximum angle of inclination
is from -10 degrees down left to 90 degrees up right.
Connecting the keyboard and mouse
wireless keyboard and
mouse (Optional)
wired keyboard and mouse
1. Install batteries to the wireless
keyboard and mouse.
2. Insert the wireless keyboard and
mouse receiver to the USB port on
the All-in-one PC.
1. Connect the keyboard and
mouse to the side USB port or back
IO port.
The illustrations are for reference only. Actual appearances of your wired or wireless keyboard and
mouse may vary based on the actual package.

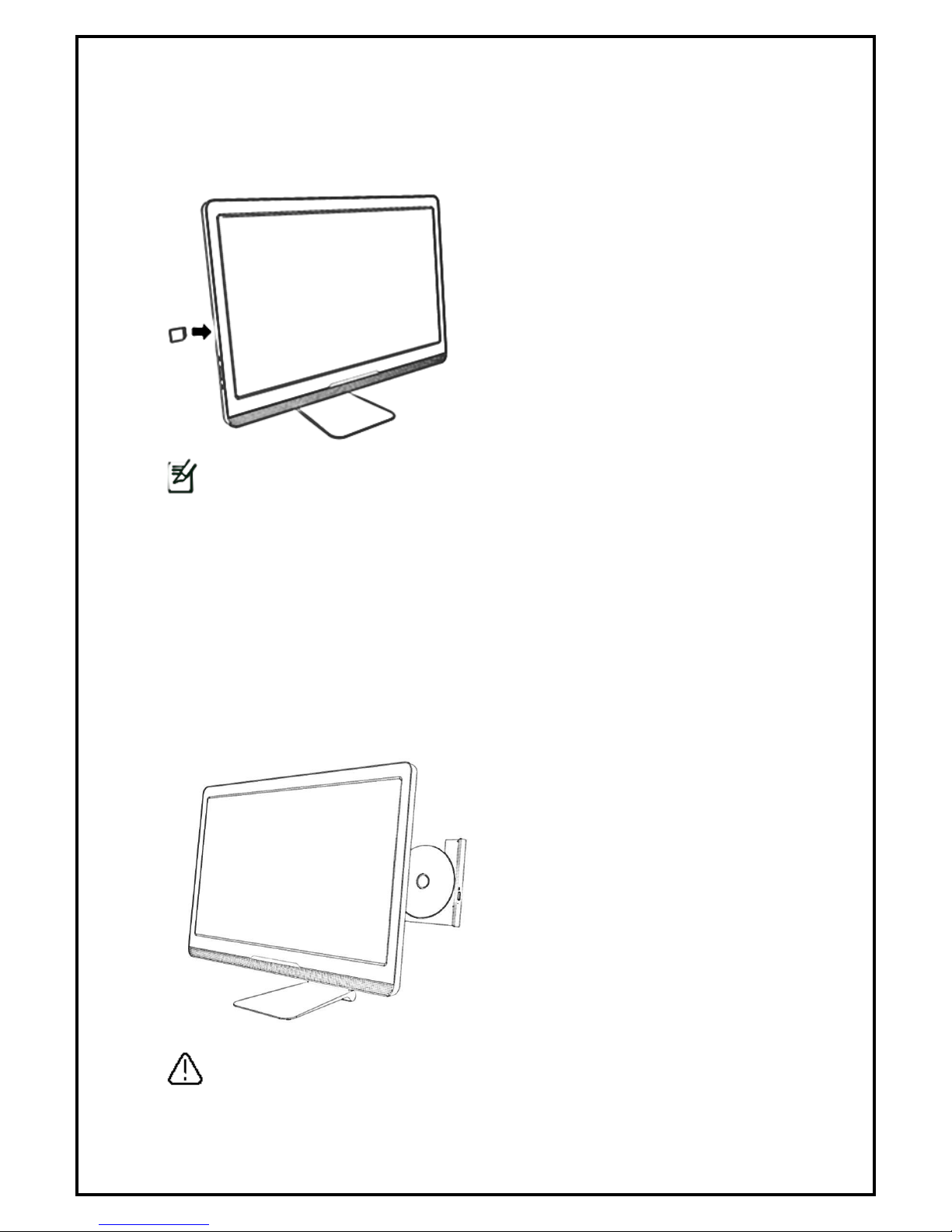

Using the card Reader
The built-in card reader supports various types of memory cards, such as
MMC/SD/SDHC/MS pro. Insert the card with metallic connectors facing towards
you. Push gently until the card clicks into plate.
Before removing the memory card, use the configuration utility on the task bar to stop the
memory card operation. Failure to do so may result in data loss. Pull the card out from the port.
Using the Optical Disc Drive
Inserting a Disc / Removing a Disc
Press the eject button on the disc tray. Pull the tray out with the disc label side
up, place the disc on the center of the tray and snap into place.
Press the eject button on the disc tray. Pull the tray out with your thumb on the
center of the tray; pull the disc by its side with your index finger to release.
Do not remove the disc while the computer is still reading or playing it.

Troubleshooting
My All-in-one PC does not start
Check that the All-in-one PC is connected to an electrical outlet and
it is turned on.
Check that the power cord and all cables are connected firmly.
When I turn on my computer, the message “Operating system
not found” appears or Windows does not start
Check if there is a non-bootable CD inside the optical disk drive. If
there is a non-bootable CD in the drive, remove the CD then restart
the computer.
Check boot setting is the BIOS Setup Utility.
My LCD does not display anything
Check that the All-in-one PC is connected to an electrical outlet and
it is turned on.
The All-in-one PC may be in Standby mode. Press any key to activate
the display
My computer “locks up”
Try restarting the All-in-one PC. On the Windows taskbar, click Start >
Turn off Computer > Restart.
If your computer locks up while playing a DVD-ROW/CD-ROM, stop
the DVD ROM/CD-ROM, and restart the computer by pressing
Ctrl+Alt+Delete.
My DVD-ROM drive tray does not open
Press the eject button on the DVD-ROM/CD-ROM drive.
If the eject button does not work, open the tray by inserting a sharp,
pointed object into the hole next to the eject button.
My speakers have no sound
If you have connected an audio cable to the headphone
connector, disconnect the cable.
My computer does not shut down
It is the best to shut down your computer using the Shut Down
command. Using other methods, including those listed here, may result in
loss of unsaved data. If the Shut Down command does not work
properly, follow these steps:
Restart the computer by pressing Ctrl+Alt+Delete.
Press the power switch to turn off the power.
Unplug the All-in-one PC from the power adapter.
