High End Systems SolaHyBeam 2000 User manual

USER MANUAL
Version 1.3 -- Revision A

SolaHyBeam 2000 User Manual 2v1.3

SolaHyBeam 2000 User Manual 3v1.3
Contents
Welcome 5
KEEP THIS MANUAL FOR FUTURE NEEDS 5
Contacting High End Systems ® 6
Patent information 9
FCC Information 10
Terms and Conditions and Warranty Information 11
SAFETY INSTRUCTIONS 12
IMPORTANT SAFETY WARNING 12
GENERAL GUIDELINES 13
FEATURES 14
Photometric data image 16
Fixture Overview 17
DIMENSIONAL DRAWINGS 18
INSTALLATION INSTRUCTIONS 19
RIGGING THE DEVICE 19
DMX-512 CONTROL CONNECTION 22
DMX-512 CONNECTION WITH DMX TERMINATOR 22
DEVICE DMX START ADDRESS SELECTION 22
DISPLAY 23
Address 26
Info 26
SET 30
Service PIN 31
Test 32
Preset 33
Example Program 35
DMX Control Protocol 36
ERROR MESSAGES 40
CLEANING AND MAINTENANCE 42

SolaHyBeam 2000 User Manual 4v1.3

SolaHyBeam 2000 User Manual 5v1.3
Welcome
Notice
© High End Systems, 2017, All Rights Reserved
Information and specifications in this document are subject to change without notice. High End Systems
assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
Trademarks used in this text: High End Systems, Wholehog, and Lithopatterns, and intellaspot are
registered trademarks. Internal Effects, the High End Systems globe logo and the Hog logo are trademarks
of High End Systems, Inc. Belden is a registered trademark of Belden, Inc.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the
marks and names or their
products. High End Systems disclaims any proprietary interest in trademarks and trade names owned by
others.
KEEP THIS MANUAL FOR FUTURE NEEDS
Thank you for your patronage. You have acquired a powerful and versatile fixture. We are confident that
you will be satisfied with our excellent products and service. For your own safety, please read this user
manual carefully before installing and operating the device.

SolaHyBeam 2000 User Manual 6v1.3
Contacting High End Systems ®
Sales Department
High End Systems, Inc.
2105 Gracy Farms Lane
Austin, TX 78758 USA
voice: 512.836.2242
fax: [phone]
Toll Free: 800.890.8989
Customer Service
High End Systems, Inc.
2105 Gracy Farms Lane
Austin, TX 78758 USA
voice:800.890.8989
fax: [phone]
toll free: 800.890.8989
email: [e-mail]
World Wide Web
http://www.highend.com

SolaHyBeam 2000 User Manual 7v1.3

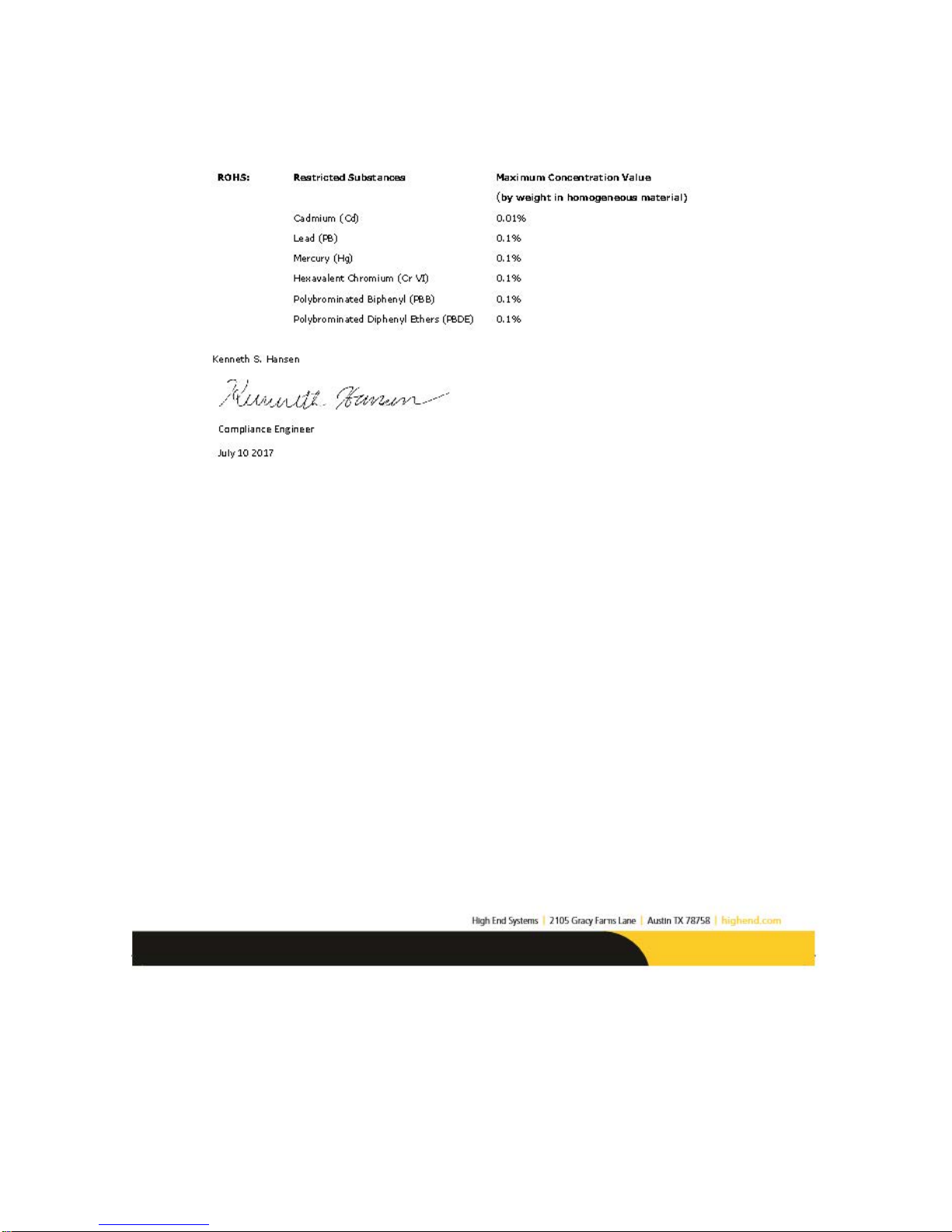

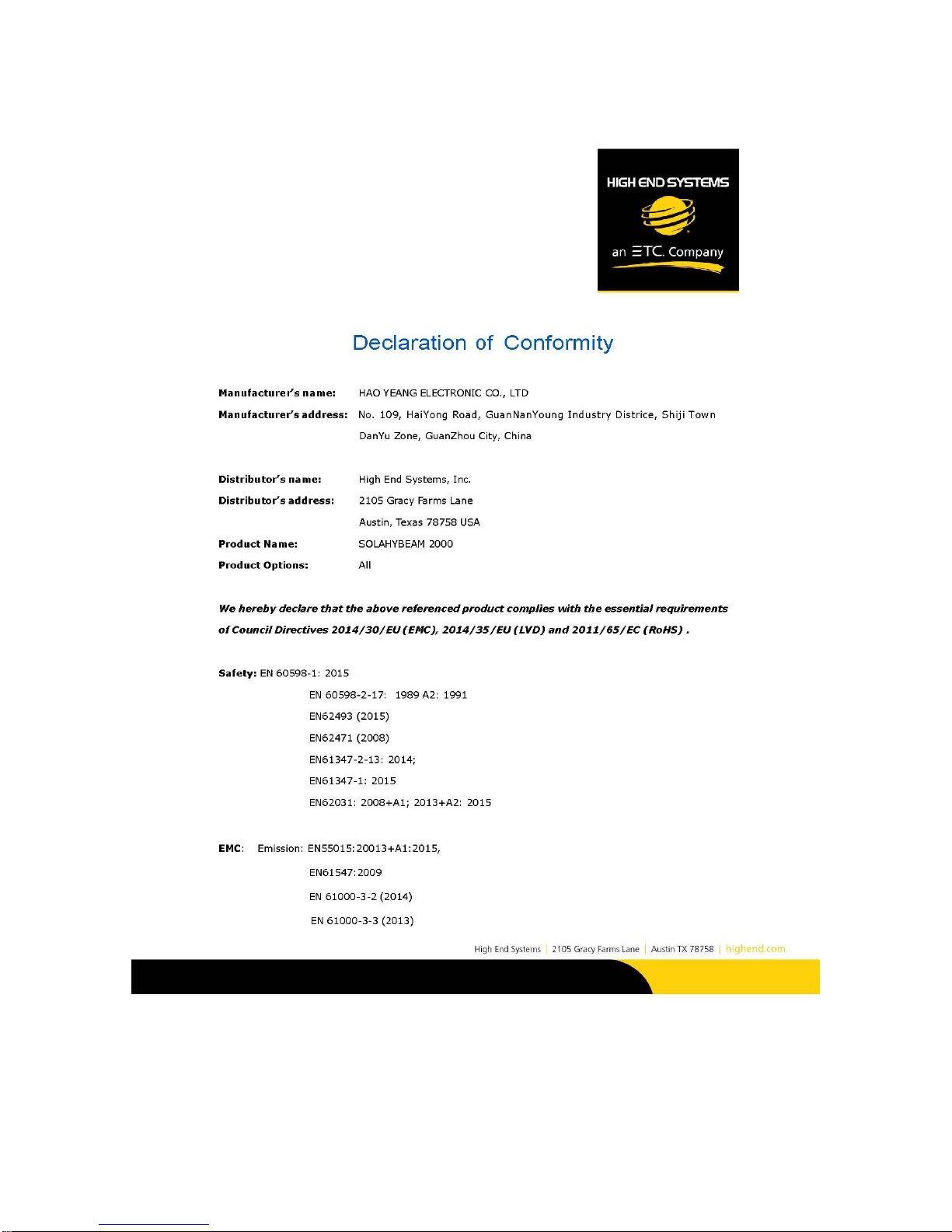

DECLARATION OF CONFORMITY

SolaHyBeam 2000 User Manual 8v1.3

SolaHyBeam 2000 User Manual 9v1.3
Patent Information
Notice of intellectual property rights
For a listing of current patents go to the web address:
https://www.highend.com/patents

SolaHyBeam 2000 User Manual 10 v1.3
FCC Information
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.

SolaHyBeam 2000 User Manual 11 v1.3
Terms and Conditions and Warranty Information
Complete Terms and Conditions and Warranty information can be found on the High End Systems, Inc.
website https://www.highend.com/pub/products/HES-Warranty-Information.pdf.

SolaHyBeam 2000 User Manual 12 v1.3
SAFETY INSTRUCTIONS
IMPORTANT SAFETY WARNING
This device has left the factory in perfect condition. In order to maintain this condition and to ensure safe
operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written
in this user manual.
In order to install, operate, and maintain the lighting fixture safely and correctly we suggest that the
installation and operation be carried out by qualified technicians and these instructions be carefully
followed.
CAUTION!
HIGH VOLTAGE. RISK OF SEVERE OR FATAL ELECTRIC SHOCK
CAUTION!
ALWAYS DISCONNECT MAINS SUPPLY BEFORE REMOVING ANY
FIXTURE COVERS
CAUTION!
NEVER LOOK DIRECTLY INTO THE LIGHTSOURCE. SENSITIVE PERSONS
MAY SUFFER AN EPILEPTIC SHOCK
CAUTION!
NEVER TOUCH THE DEVICE DURING OPERATION! COVERS MAY BE HOT
CAUTION!
KEEP THIS DEVICE AWAY FROM RAIN AND MOISTURE
Important:
Damage caused by the disregard of this user manual is not subject to warranty. The
dealer and manufacturer will not accept liability for any resulting defects or
problems.
•If the device has been exposed to temperature changes due to environmental conditions, do not
power on immediately. The resulting condensation could damage the device. Leave the device
powered off until it has reached room temperature.
•This device falls under protection-class I. Therefore, it is essential that the device be earthed.
•If either lenses or display are damaged (damage may include cracks or gashes in the material)
they must be replaced.
•Electrical connections, such as replacing the power plug, must be performed by a qualified person.
•Make sure that the available voltage is not higher than that which is stated at the end of this
manual.
•Make sure the power cord is never crushed or damaged by sharp edges. Should the power cord
suffer, replacement of the cable must be done by an authorized dealer.
•If the external flexible power cord of this device is damaged, it shall be exclusively replaced by the
manufacturer or their service agent or a similar qualified person in order to avoid injury.
•When the device is not in use or before performing maintenance, always disconnect the device
from the mains. Only handle the power cord from the plug. Never pull the plug out of a socket by
tugging the power cord.
•When powered on for the first time, some smoke or smell may occur. This is caused by coating on

SolaHyBeam 2000 User Manual 13 v1.3
metal parts when heated and is normal. If you are concerned, please contact your distributor.
•Do not focus the beam onto flammable surfaces. The minimum distance between the exiting lens
of the device and the illuminated surface must be greater than 1.5 meter.
Please be aware that damage caused by any modifications to the device are not subject to
warranty. Keep away from children and non-professionals.
GENERAL GUIDELINES
•This device is a lighting effect for professional use on stages, in discotheques, theatres, etc., the
device was designed for indoor use only.
•This fixture is only allowed to be operated within the maximum alternating current as stated in the
technical specifications in section 2 of this manual.
•Handle the device with care, avoid shaking or using force when installing or maintaining the device.
•When choosing the installation location, please make sure that the device is not exposed to
extreme heat, moisture or dust.
•If you use the quick lock cam when rigging the device, make sure the quick lock fasteners are
located in the quick lock holes correctly and securely.
•Operate the device only after having familiarized yourself with its functions. Do not permit operation
by persons not qualified for operating the device. Most damages are the result of unprofessional
operation.
•Please use the original packaging if the device is to be transported.
•The applicable temperature for the device is between -10°C to 45°C. Do not use the device outside
of this temperature range.
For safety reasons, please be aware that all modifications to the device are forbidden.
If this device is operated in any way different to the ones described in this manual, the
product may suffer damage and the warranty becomes void. Furthermore, any other
operation may lead to short-circuits, burns, electric shocks etc.

SolaHyBeam 2000 User Manual 14 v1.3
FEATURES
POWER SUPPLY
•AC 100-240V~
，
50/60Hz
•Power Consumption: 850W
OPTICS
•LED: 600W white LED
•
Extremely long Life: >20,000H
•Color temperature：6954 K
•
Luminous flux
：
25,926 lm
MOVEMENT
•Pan movement: 540
。
/630
。
Optional (16 bit)
•Tilt movement: 270
。
(16 bit)
•Advanced moving system: fast, stable and quite, auto x-y repositioning
COLORS
•CMY color mixing, uniform, linear and speed can be adjustable
•CTO color temperature linear change
•1 Color wheel: 6 dichroic filters + open, indexable, rainbow effect
GOBOS
•1 Rotation gobo wheel: 7 interchangeable, rotating, and indexable, gobo + open
•“Slot in & out” gobo wheel system.
FEATURES
•Control channel modes: 39 channels
•2 operations modes: DMX-512, Master / Slave
•
Beam angle: zoom from 8.5。-38.5。
•Strobe effect with 1-25 flashes per second and pulse effect
•Motorized focus
•Dimmer: 0%~100% full range dimming.
•Stepless iris , 5%~100% linear change iris, pulse iris effect
•Stepless frost, 0%~100% linear change frost.
DISPLAY
•Advanced and convenient full –color LCD touch screen, with rechargeable battery
•Locked automatically after standby for 15 seconds to prevent error; hold the button for 3
seconds to activate
•Friendly reset detection: hold and button to lock pan /tilt reset, able to complete
reset detection inside flight case
SOFTWARE
7 pre-installed programs available upon selection
Upgrades: fast and convenient through DMX cable
Reset DMX address, remote lamp switch, reset can all be done by the controller
Running time of fixture on display for reference

SolaHyBeam 2000 User Manual 15 v1.3
OTHER SPEC
Input signal isolation: guarantees stable signal transmission without interference
Advanced RDM function
WEIGHT
Net weight: 45 kg

SolaHyBeam 2000 User Manual 16 v1.3
Photometric data image

SolaHyBeam 2000 User Manual 17 v1.3
Fixture Overview
1）Lens
2）Handle
3）Display
4）Left-button
5）Down-button
6）ENTER-button
7）Right-button
8）Mode/Esc-button
9）Up-button
10）DMX out
11）DMX in
12）DMX in
13）DMX out
14）Power in
15）Fuse

SolaHyBeam 2000 User Manual 18 v1.3

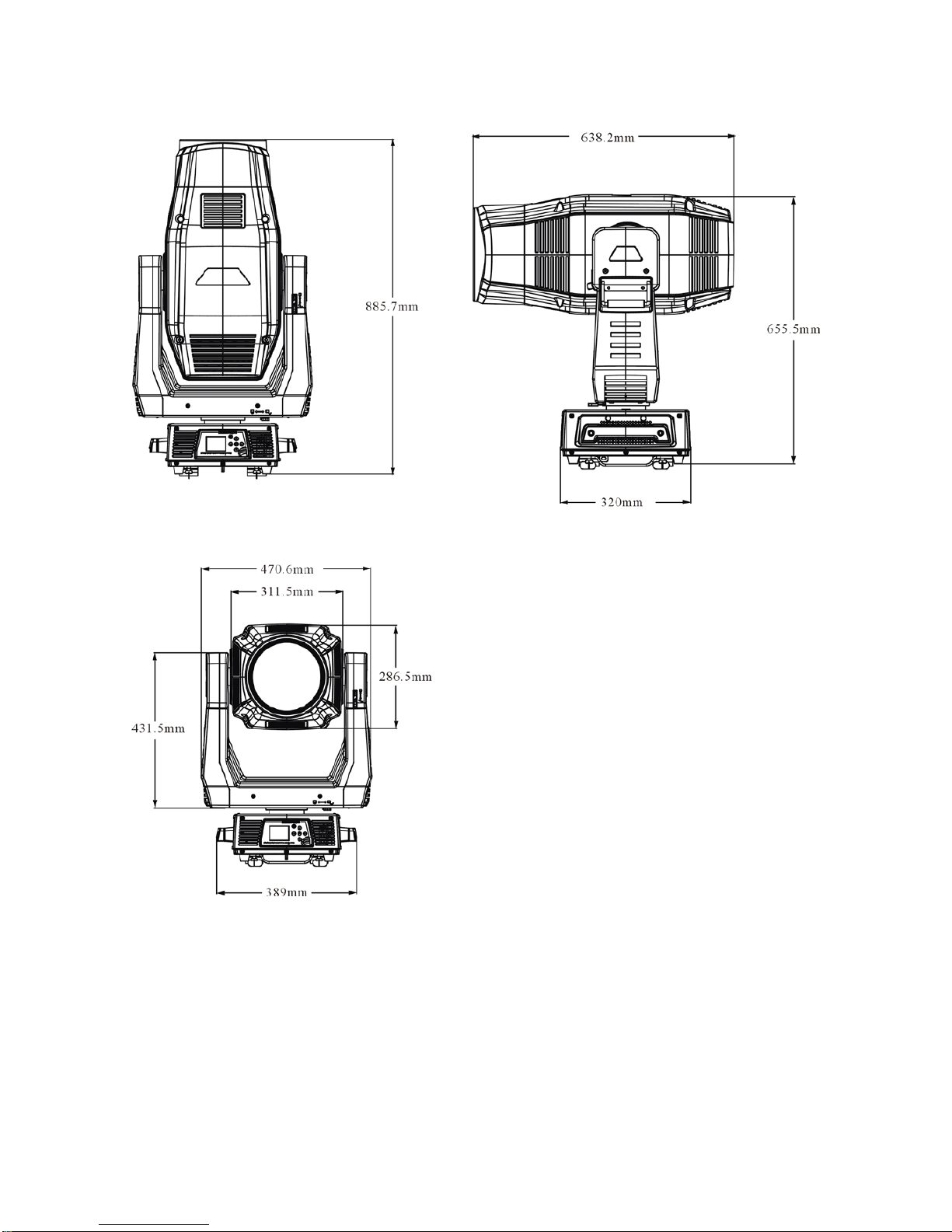

DIMENSIONAL DRAWINGS

SolaHyBeam 2000 User Manual 19 v1.3
INSTALLATION INSTRUCTIONS
CAUTION!
DO NOT OPERATE THIS DEVICE WITH OPEN COVER
•The installation must always be secured with a secondary safety attachment, e.g. an appropriate
safety cable.
•Never stand directly below the device when mounting, removing or servicing the fixture.
•The operator has to make sure the safety and technical installations are approved by an expert
before taking and using this fixture in the field for the first time.
•These installations must be inspected by a skilled person once a year.
•Overhead mounting requires extensive experience, including amongst others calculating working
load limits, installation material being used, and periodic safety inspection of all installation material
and the device. If you lack these qualifications, do not attempt the installation yourself. Improper
installation can result in serious bodily injury.
RIGGING THE DEVICE
CAUTION!
PLEASE CONSIDER THE GB7000.1-2015, GB7000.217-2008 AND THE
OTHER RESPECTIVE NATIONAL NORMS DURING THE INSTALLATION.
THE INSTALLATION MUST ONLY BE CARRIED OUT BY A QUALIFIED
PERSON.
•The structure on which the device is rigged must be able to support 10 times the weight of the
device for 1 hour without any critical deformation occurring.
•The installation must always be secured with a secondary safety attachment, e.g. the included
appropriate safety cable.
•Never stand directly below the device when rigging, de-rigging or maintaining the device.
•All electrical connections should be approved by a qualified electrician prior to using the product.
•When the device is permanently installed these installations have to be approved by a qualified
person once a year.
•Overhead rigging requires extensive experience, including (but not limited to) calculating working
load limits, specifying installation/ rigging materials, and periodic safety inspection of all installation
material as well as the device. If you lack these qualifications, do not attempt the rigging of this
device yourself. Improper installation/ rigging can result in serious bodily injury.
•Before rigging make sure that the installation area can hold a minimum point load of 10 times the
device’s weight.

SolaHyBeam 2000 User Manual 20 v1.3
1.1. RIGGING USING THE OMEGA BRACKETS
•Fix the clamp to the bracket by tightening the M12 nut and bolt to the bracket through the Ф13 hole
in the middle of the bracket.
•Insert the quick-lock fasteners of the first Omega holder into the respective holes on the bottom of
the device. Tighten the quick-lock fasteners fully clockwise.
•Install the second Omega holder.
•Pull the safety cable through the holes on the bottom of the base and over the trussing system or
another suitable rigging point. Insert the end into the carabiner and tighten the safety screw.
Important:
This step is very important to ensure safe rigging of the fixture.
